Back to CatalogFLUKE 116C True RMS Digital Multimeter High Precision AC/DC Voltage Current Meter
Specifications
- Category
- digital multimeter
- testing principles
- Relative value measurement
- Functions
- voltage
- Measuring range
- Automatic range
- Precision
- Other
Variants / Sale Attributes
Model: 116C [Recommended for HVAC Heating, Ventilation, and Air Conditioning Industry]
Package Contents
Multimeter *1
Product Description
Product Specifications
Overview
- Brand
- FLUKE
- Models
- FLUKE 116C, FLUKE 117C

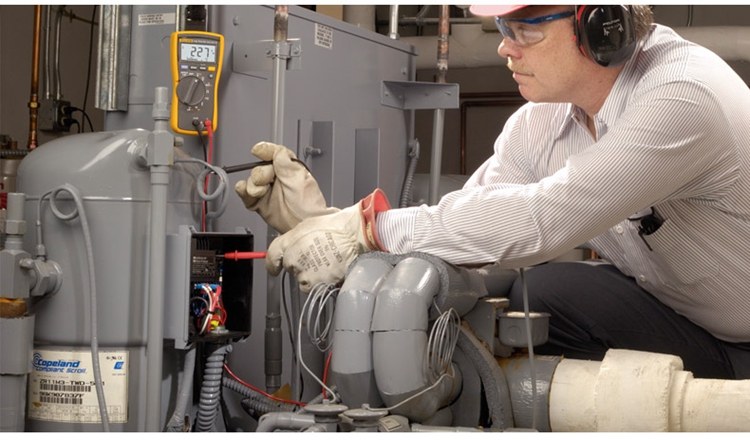

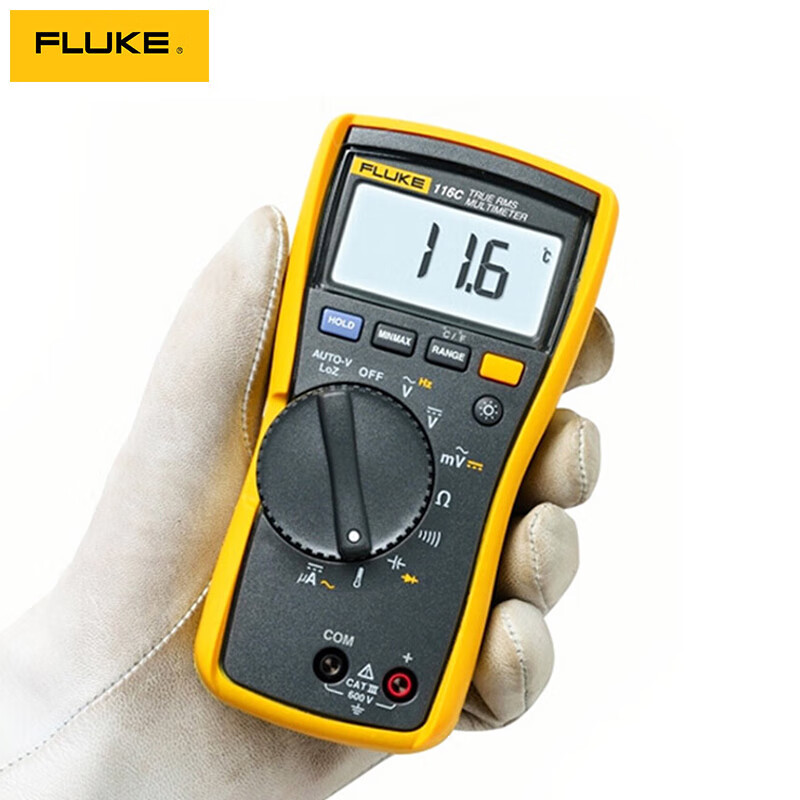

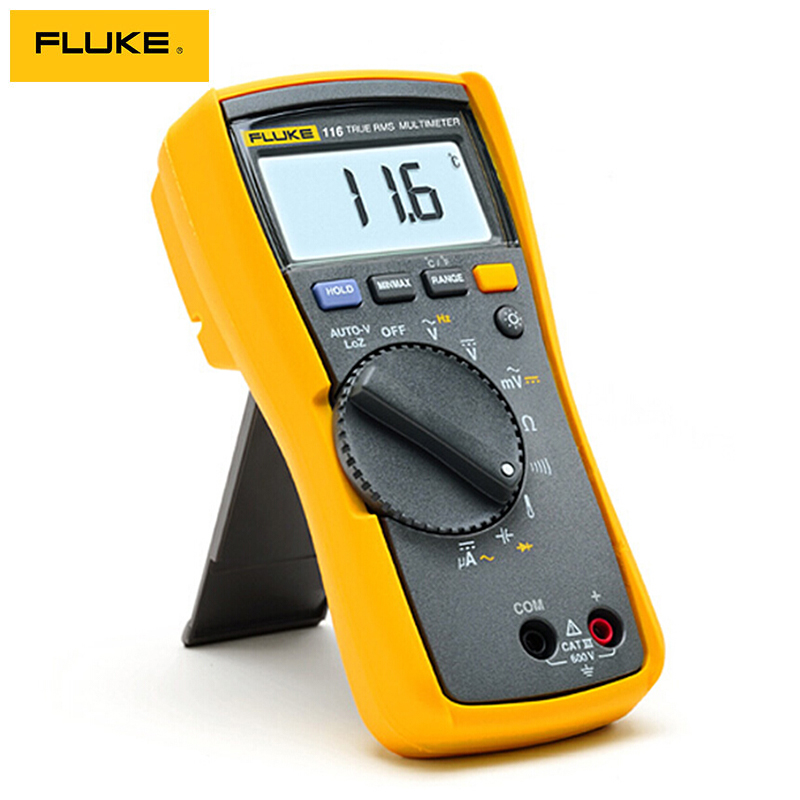

Compact True RMS Digital Multimeters designed for HVAC and refrigeration professionals.
True RMS measurement for accurate AC voltage and current readings.
Suitable for measuring voltage, continuity, resistance, capacitance, frequency, diode testing, microamp current, and contact temperature testing.
True RMS measurement.
Additional details
- Measurement functions
- AC/DC voltage, resistance, continuity with buzzer, diode and capacitance testing, microamp current, temperature measurement (K-type thermocouple).

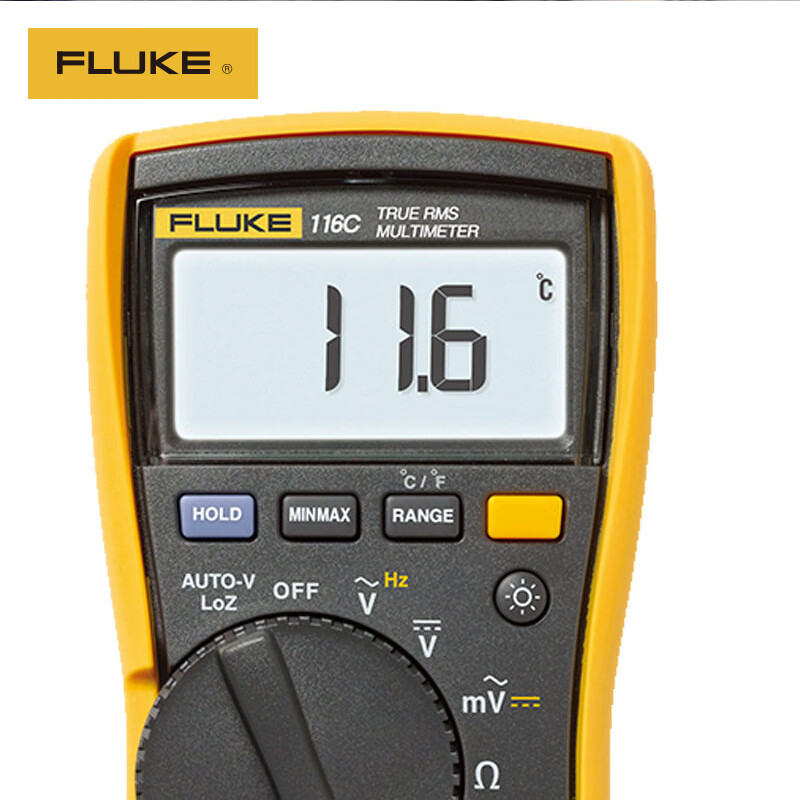

- Display
- 6000 counts, backlight.
Auto AC/DC voltage detection (AUTO-V).
Similar Products
In Stock
In Stock
Additional details
- Range selection
- manual and auto.
Low input impedance (LoZ) to prevent ghost voltage.

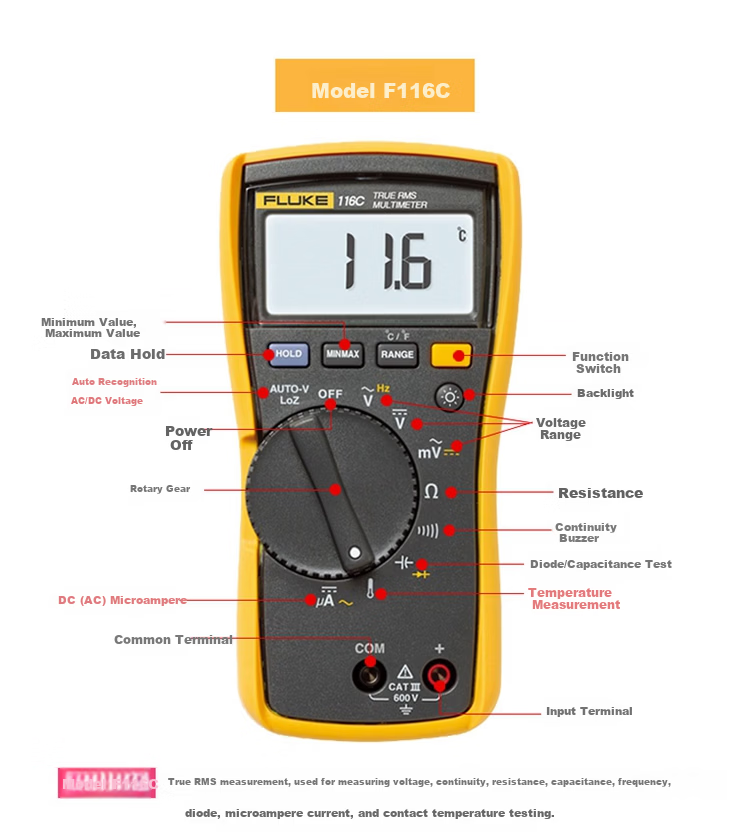

Rotary switch for function selection.
Additional details
- Input terminals
- COM, VΩ, mA, 10A.
- Safety rating
- CAT III 600V.
Continuity buzzer sounds below 20Ω, off above 250Ω.
Additional details
- Temperature range
- -40°C to 400°C (-40°F to 752°F).
- Frequency range
- up to 50 kHz.
Accuracy examples
| Item | Detail |
|---|
| DC voltage | ±0.5% |
| AC voltage (45Hz-500Hz) | ±1.0% + 3 digits |
| Resistance | ±0.9% + 1 digit |
| Capacitance | 1.9% + 2 digits (up to 1000µF), 5% + 20 digits (>1000µF) |
| Temperature | ±1% + 10 digits (°C), ±1% + 18 digits (°F) |
| AC current | ±1.5% + 3 digits (45Hz-500Hz) |
Additional details
- Battery
- 9V alkaline (NEDA1604A/IEC6LR61), typical life 400 hours.

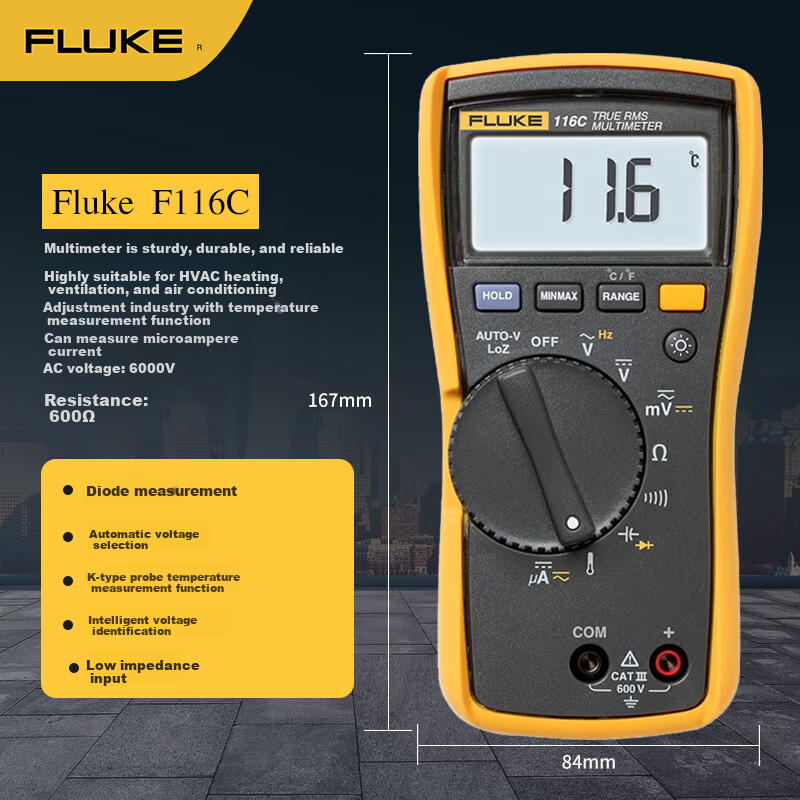

- Dimensions
- 167 x 84 x 46 mm.
- Weight
- 0.55 kg.
- Warranty
- 3 years.

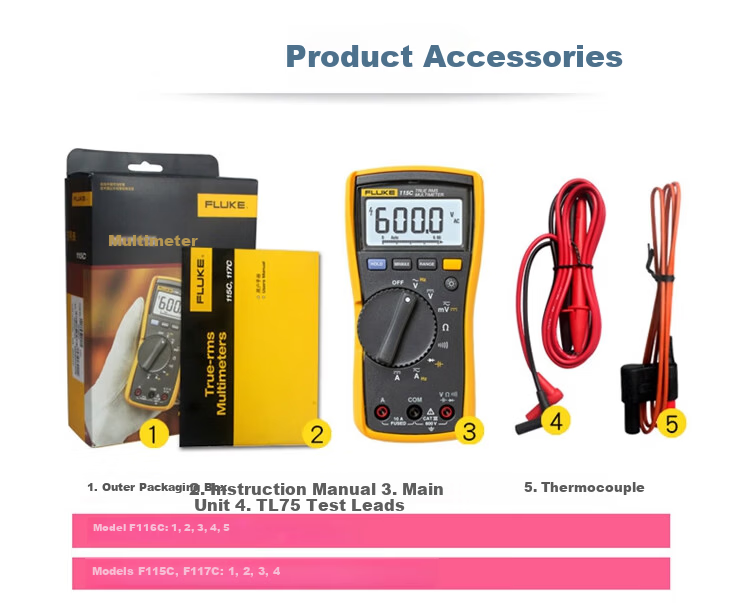

- Accessories included
- carrying case, user manual, test leads (TL75), K-type thermocouple.

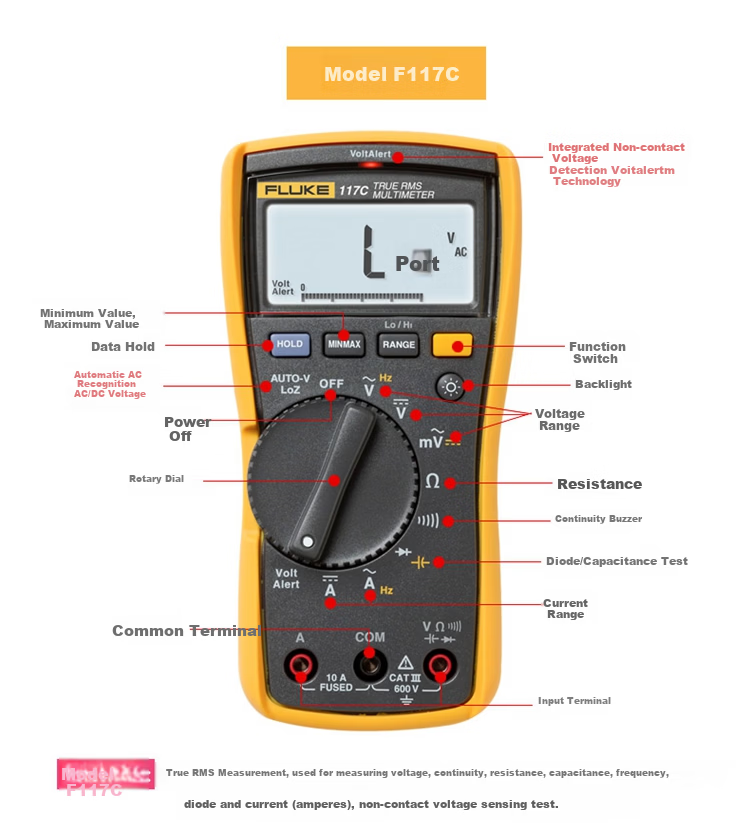

All features of 116C plus integrated non-contact voltage detection (VoltAlertâ„¢ technology).
Additional VoltAlertâ„¢ indicator for safe and quick AC voltage presence detection.
Additional details
- Input terminals
- COM, VΩ, mA, 10A (fused).
- Safety rating
- CAT III 600V.
Same measurement ranges and accuracy as 116C.
Additional details
- Accessories included
- carrying case, user manual, test leads (TL75).

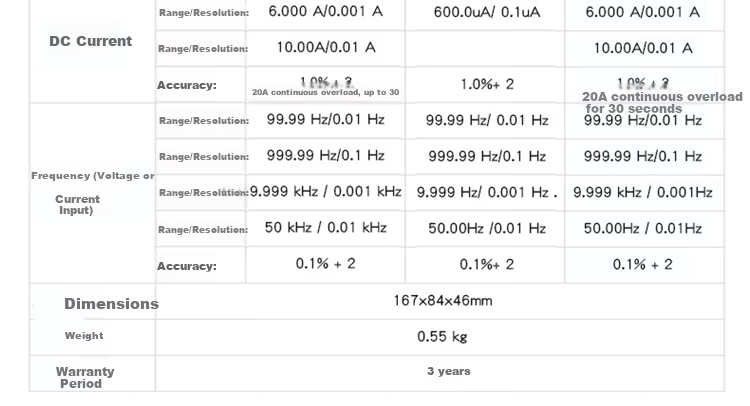

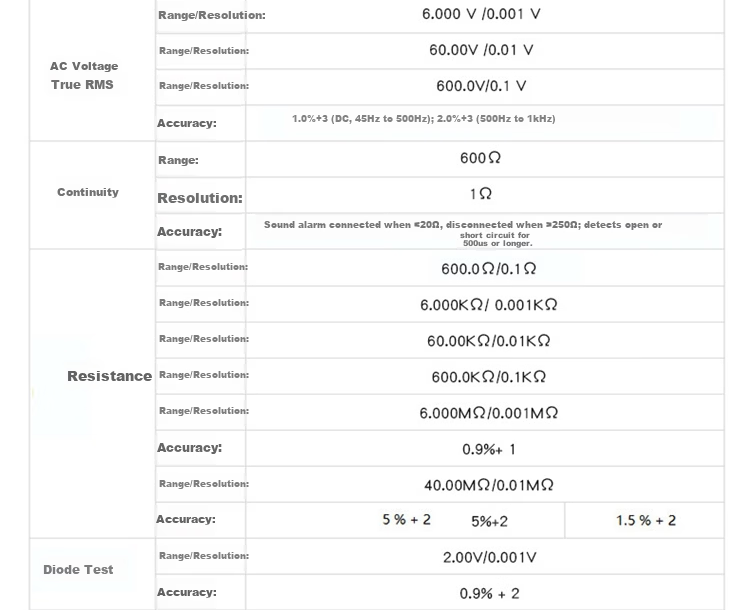

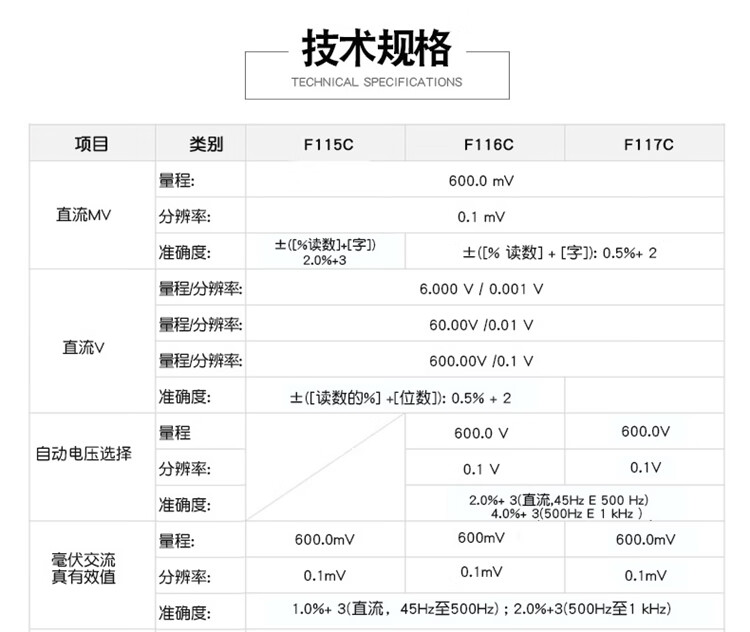

| Parameter | Range (FLUKE 116C/117C) | Resolution | Accuracy (typical) |
|---------------------|-------------------------|---------------------|-----------------------------|
| DC Voltage | 6.000V / 60.00V / 600.0V| 0.001V / 0.01V / 0.1V| ±0.5% |
| AC Voltage (True RMS)| 6.000V / 60.00V / 600.0V| 0.001V / 0.01V / 0.1V| ±1.0% + 3 digits (45Hz-500Hz)|
| DC/AC Millivolts | 0-600.0 mV | 0.1 mV | ±0.5% |
| Resistance | 600.0Ω to 40.00MΩ | 0.1Ω to 0.01MΩ | ±0.9% + 1 digit |
| Continuity | Audible below 20Ω | 1Ω | Buzzer off above 250Ω |
| Capacitance | 1 nF to 9999 µF | 1 nF to 1 µF | 1.9% + 2 digits (<1000µF), 5% + 20 digits (>1000µF) |
| Frequency | 0 to 50 kHz | 0.01 Hz to 0.01 kHz | ±0.1% + 2 digits |
| Diode Test | Up to 2.00 V | 0.001 V | ±0.9% + 2 digits |
| Temperature (K-type)| -40°C to 400°C / -40°F to 752°F | 0.1°C / 0.2°F | ±1% + 10 digits (°C), ±1% + 18 digits (°F) |
| DC Current | 600.0 µA / 6.000 A / 10.00 A | 0.1 µA / 0.001 A / 0.01 A | ±1.0% + 2 digits |
| AC Current (True RMS)| 6.000 A / 10.00 A | 0.001 A / 0.01 A | ±1.5% + 3 digits (45Hz-500Hz) |

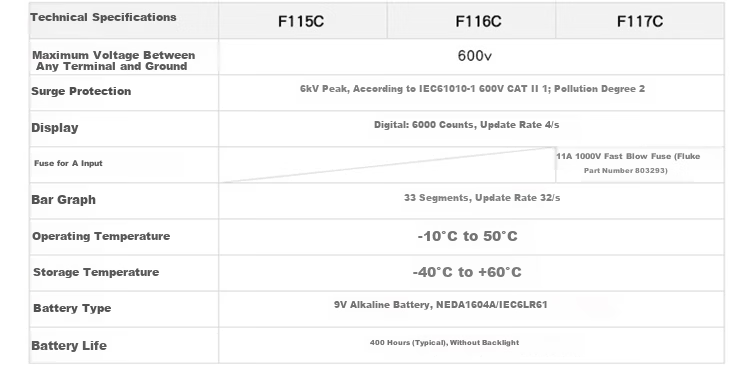

Additional details
- Maximum voltage between any terminal and earth
- 600 V.
- Surge protection
- 6 kV peak (IEC61010-1).
- Display update rate
- 4 times per second.
- Bar graph
- 33 segments, update rate 32 times per second.
- Operating temperature
- -10°C to 50°C.
- Storage temperature
- -40°C to 60°C.
- Fuse
- 11A 1000V fast blow fuse (FLUKE part number 803293).
Rotary switch for easy function selection.
K-type thermocouple (FLUKE 116C only).

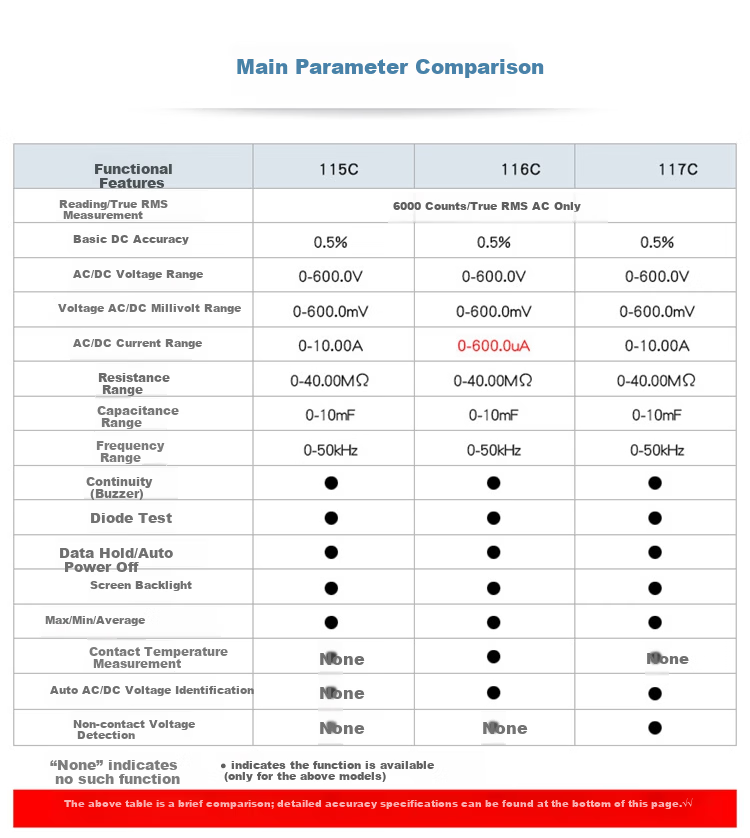

FLUKE 115C model is similar but without temperature measurement and non-contact voltage detection.
"VoltAlertâ„¢" is a trademarked technology for non-contact voltage detection available on FLUKE 117C only.
