1 lock, 3 keys, 1 screwdriver set
| Item | Detail |
|---|

42.5+32.5=75P
CNÂ¥71.90

304 Stainless Steel Old-Style Right-Opening Door Lock
CNÂ¥48.88
| Name | Ball-shaped lock |
| Handle | Stainless steel/copper plate |
| Lock Core | Copper lock core, 75 mm |
| Suitable Door Thickness | 30 mm-50 mm |
| Panel Height | 75 mm, 170 mm |
| Center Distance | 60 mm/70 mm, 53 mm |
| Specifications | 54 × 168 mm |
| Product Weight | 0.4 kg |
| Applicable Range | Wooden doors, bathroom doors, aluminum alloy doors, 42 mm, 55 mm |
| Lock Tongue Size | Short lock edge distance 60 mm, long lock edge distance 70 mm, 56 mm, 42 mm, total length 50 mm, 26 mm, total length 60 mm, 31 mm, 41 mm, 22 mm |

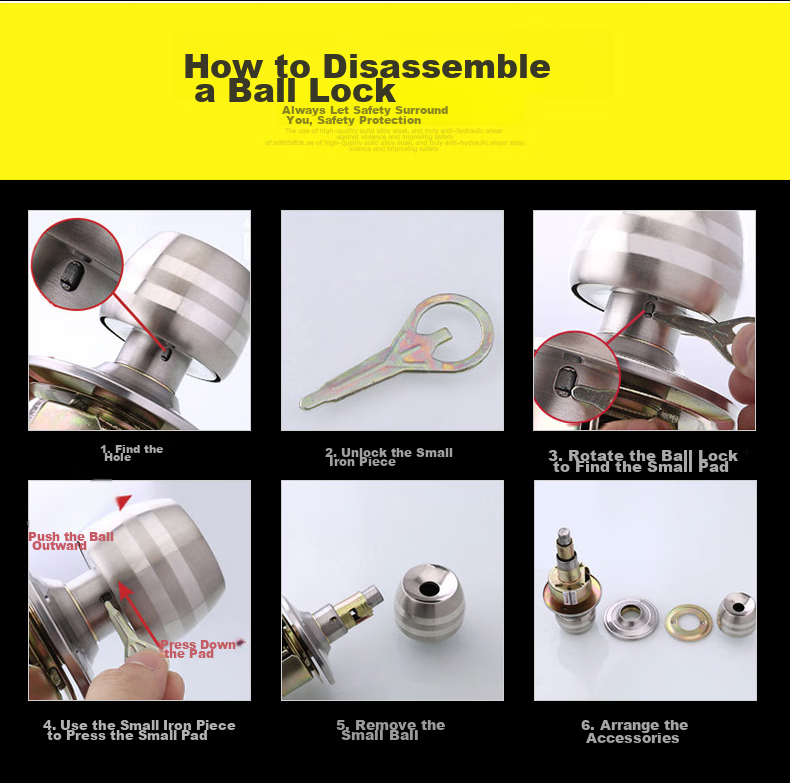

1. Find the hole
2. Unlock the small iron piece
3. Rotate the ball lock to find the small gasket, push the ball outwards, press down the gasket
4. Use the small iron piece to press the small gasket
5. Remove the small ball
6. Arrange the accessories

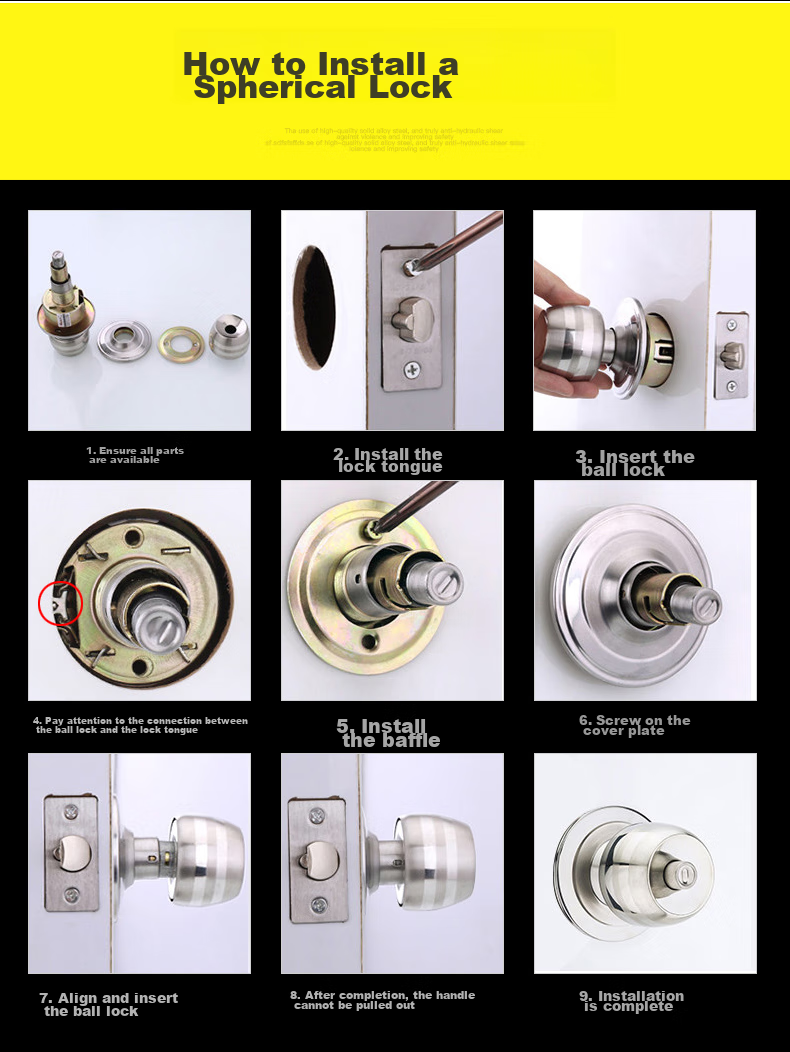

1. Ensure all accessories are complete
2. Install the lock tongue
3. Insert the ball lock
4. Ensure the connection between the ball lock and lock tongue
5. Install the stopper
6. Screw on the cover
7. Align and insert the ball lock
8. Ensure the handle cannot be pulled out
9. Installation completed

50mm
CNÂ¥45.50

silver
CNÂ¥63.00
