Theodoor Commercial Air Curtain Harmonious Wind Series 1.8m Air Door Curtain High Air Volume FM-3018F

theodoor•Wind curtain machine

Theodoor Commercial Air Curtain Harmonious Wind Series 1.8m Air Door Curtain High Air Volume FM-3018F

CN¥448.00

SKU: 100008210894

Status:In Stock (16)

ID: 100004703177

Weight: 13960.00 g

Dims:1890x240x200 mm

Specifications

Functions: Hair dryer

Variants / Sale Attributes

Style: [Pure Copper Motor] Button Type, 1.8 Meters Long

Package Contents

Host, installation backplane, manual.

Product Description

Product Specifications – theodoor Air Curtain Machines

Overview

Brand: theodoor

theodoor specializes in air curtain machines with over 21 years of experience, focusing on high-quality, energy-efficient, and durable products certified by US standards and exported to Europe and America. The brand holds 94 national patents and is recognized as a high-tech enterprise and Guangdong provincial industry brand.

Additional details

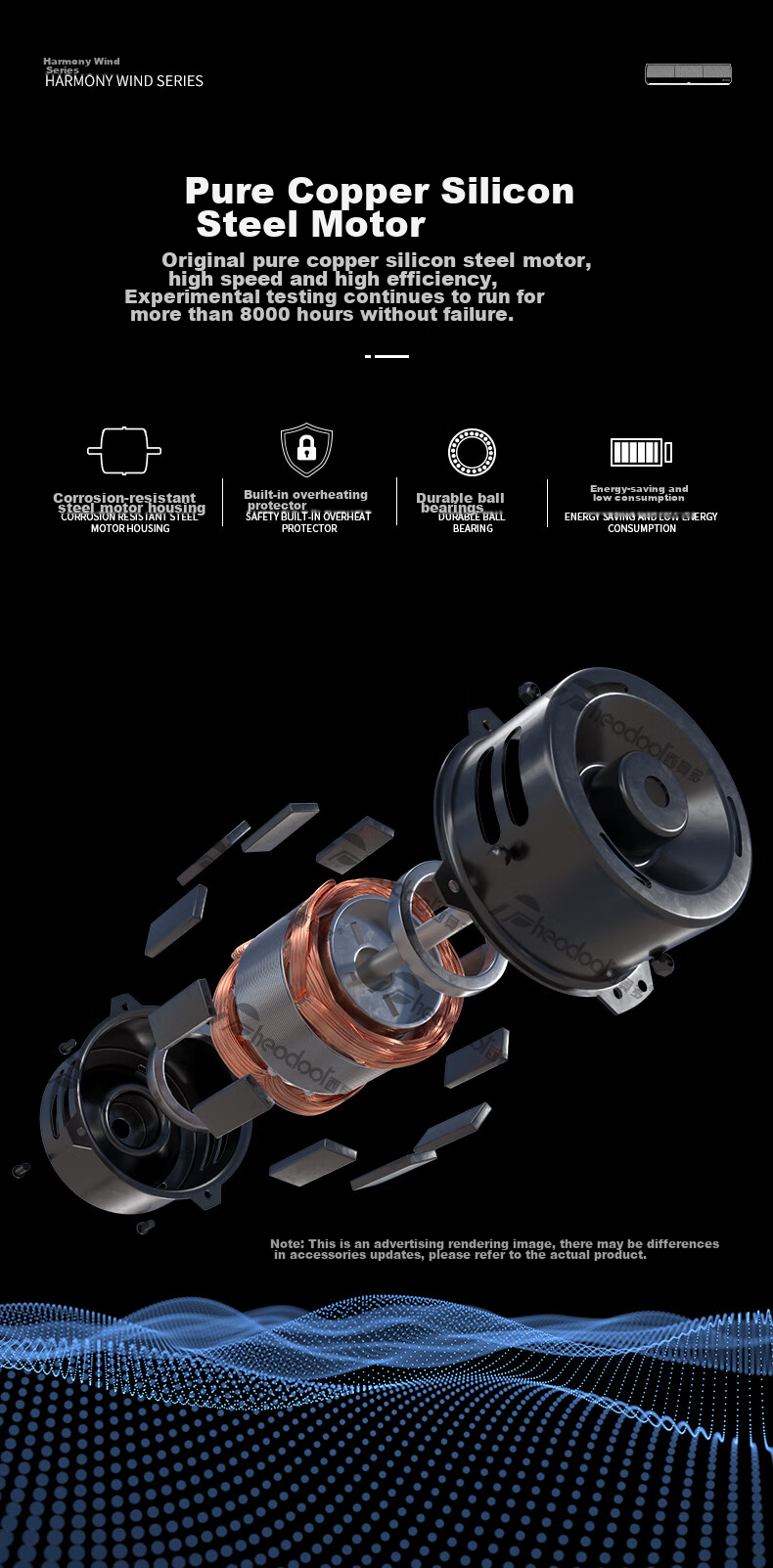

Pure Copper Motor: theodoor uses pure copper wire for motor windings ensuring high stability and durability, unlike low-end brands that use cheaper aluminum wire.
High-Quality Silicon Steel Sheets: Utilizes WISCO 50WW800 silicon steel with high magnetic induction strength, reducing motor vibration and noise, and improving efficiency.

Similar Products

In Stock

NWWind curtain machine

Nanyang Youwei (NYYW) Commercial 0.9m Large Silent Air Door Curtain Energy-Saving Air Curtain H3 Remote Control Model

[H3 model length 0.9 meters] Door height within 3 meters

CN¥396.20

View

In Stock

AIRMATEWind curtain machine

AIRMATE Air Curtain, 1.8-Meter Commercial Air Door for Restaurants And Entrances, Large Wind Power Remote Control AFM3018-04R

Remote control model, suitable for 1.8m door width/3m height

CN¥720.00

View

In Stock

AIRMATEWind curtain machine

AIRMATE Air Curtain, 0.9-Meter Commercial Air Door for Restaurants And Entrances, High Wind Speed, AFM3009-04

Button Style, 0.9 Meters Door Width/3 Meters Height Suitable

CN¥324.00

View

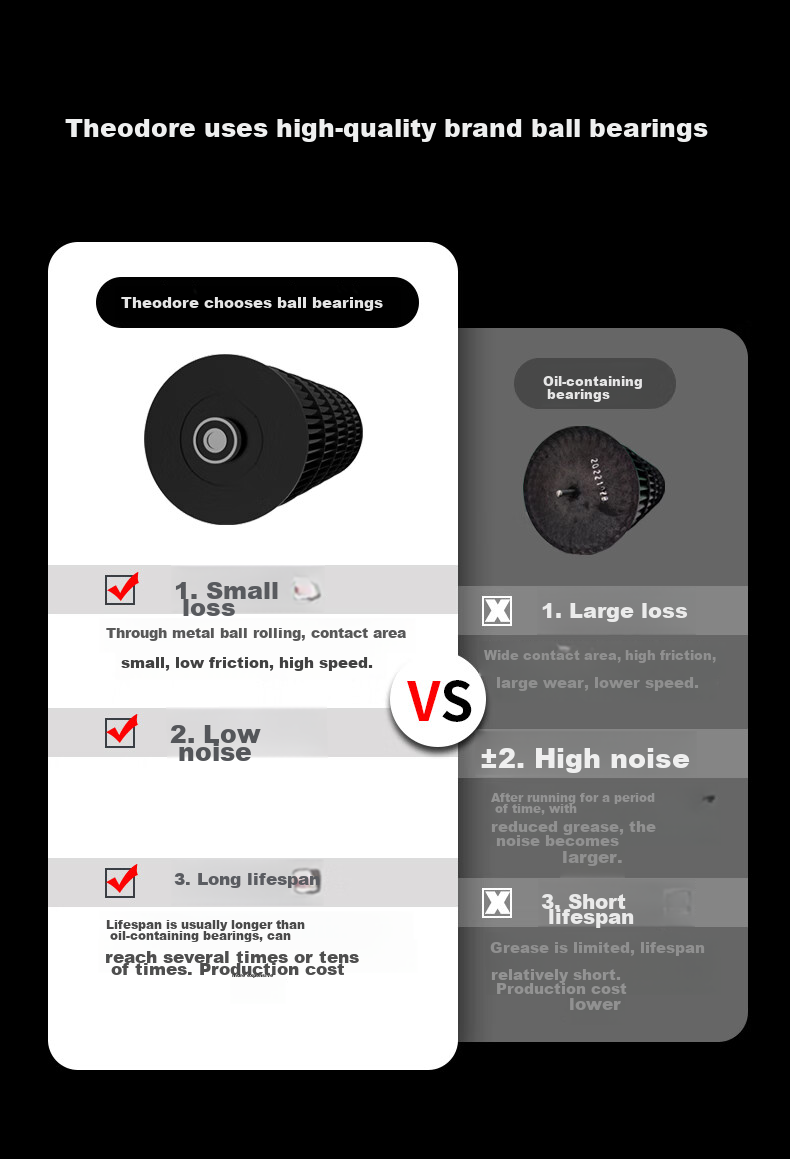

Premium Ball Bearings

Equipped with branded Renben ball bearings for low friction, smooth operation, low noise, and energy saving, compared to cheaper plastic oil-bearing alternatives.

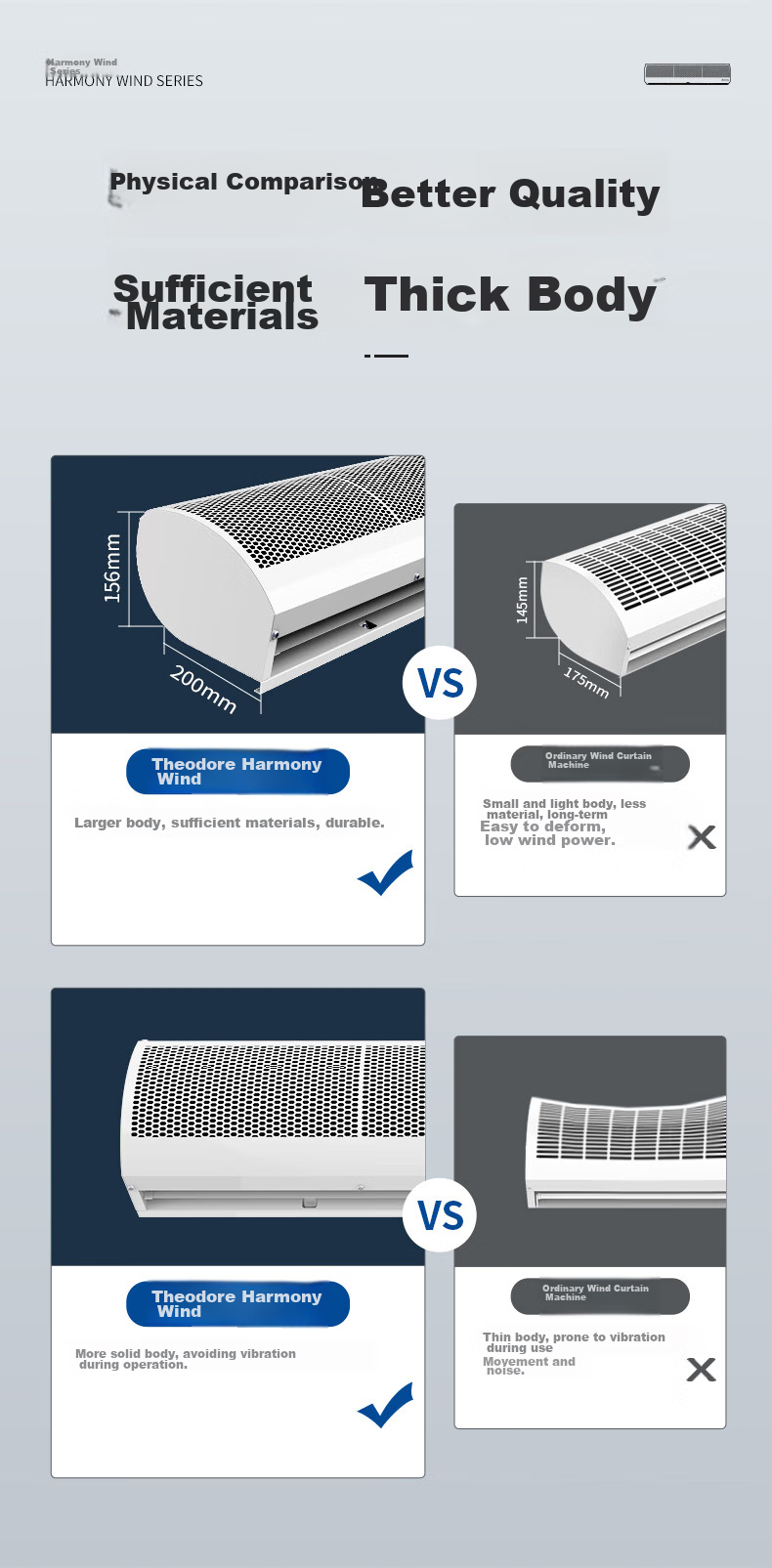

Thick Steel Plates

Uses 0.8 cm to 1.0 cm thick Shougang steel plates for a sturdy, vibration-resistant, and quieter machine body, superior to competitors’ thinner 0.6 cm steel.

Durable Metal Body

Robust metal casing with 3C certification, resistant to deformation and wear.

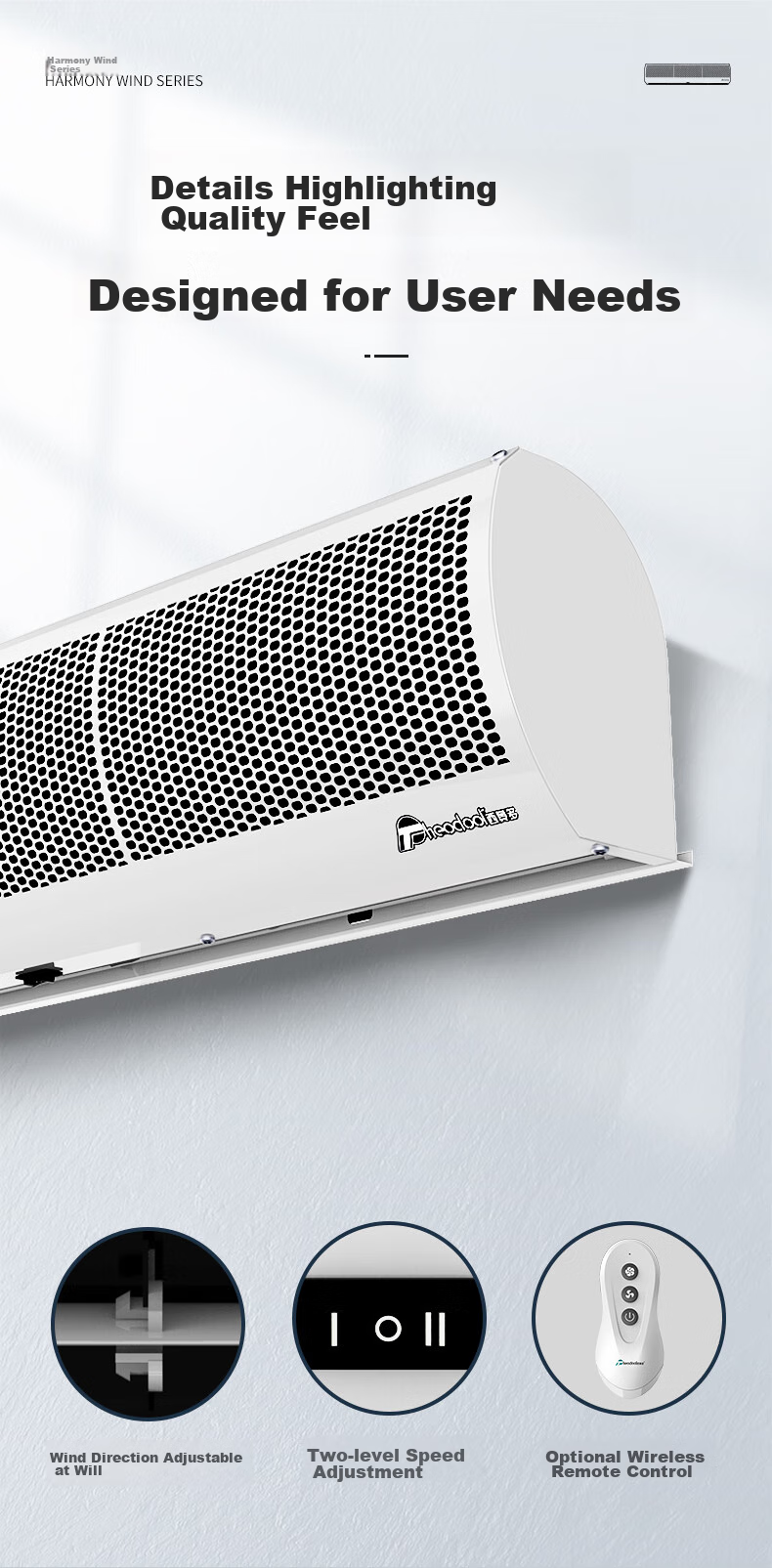

Adjustable Wind Direction and Two-Speed Settings

Allows flexible airflow control.

Optional Wireless Remote Control

Enhances user convenience.

Energy Efficient

Low power consumption with models consuming as low as 0.1 kWh per hour.

Overheat Protection

Motor housing includes built-in overheat protector.

Long Service Life

Motors tested for over 8000 hours continuous operation without failure.

1. Harmony Wind Series

Large air volume up to 3200 m³/h

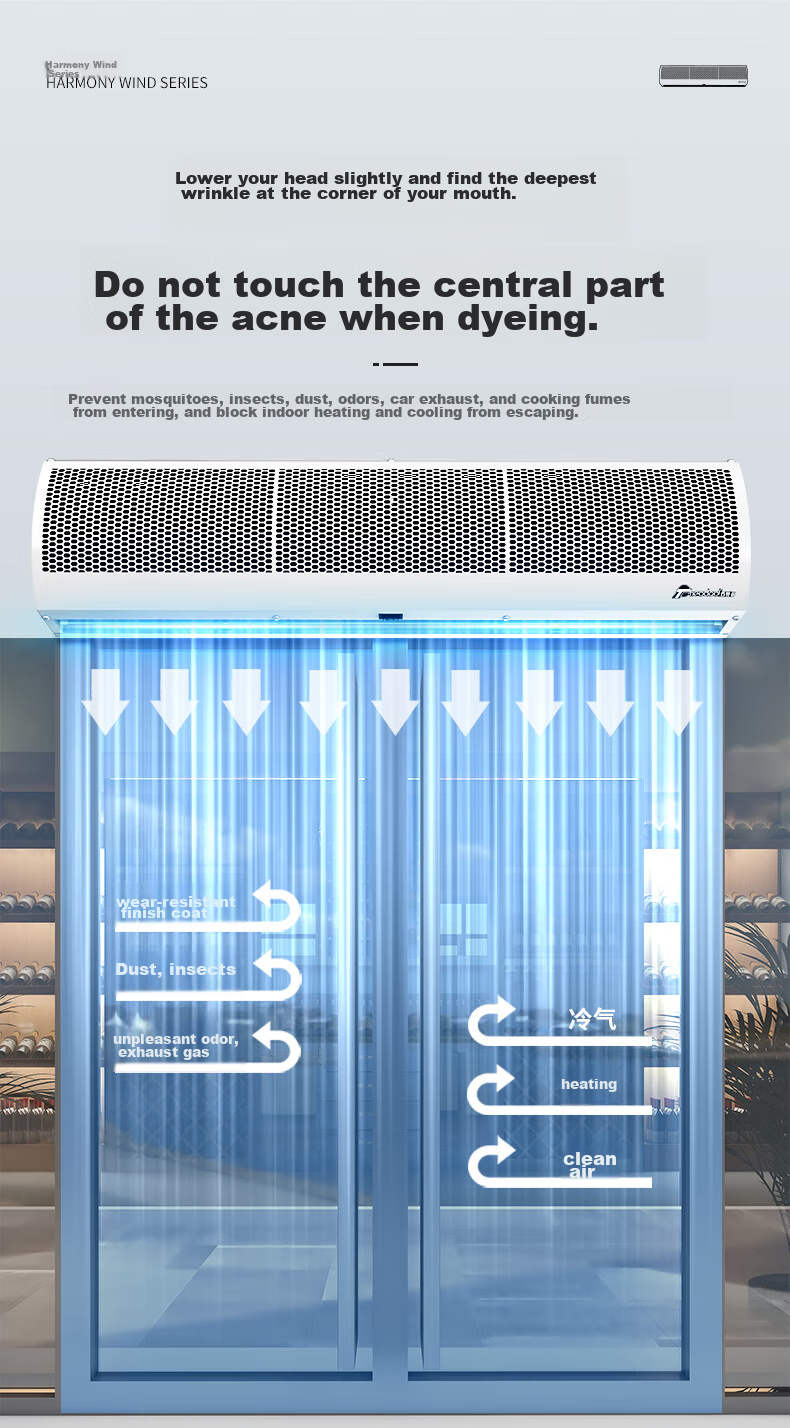

Effective at blocking insects, dust, odors, vehicle exhaust, and oil fumes
Prevents indoor air conditioning cold/hot air leakage
Models suitable for door heights from below 2.5m up to 6-8m (industrial types)
Noise levels range from 48 dB to 57 dB depending on model and speed
Power ranges from 70W to 300W
Control options: button or remote control
Dimensions available: 600mm, 900mm, 1200mm, 1500mm, 1800mm, 2000mm lengths

2. Harmony Wind Series – HARMONYWIND

Additional details

Designed for various commercial environments: hospitals, restaurants, food stores, hotels, clubs, shopping malls

High-quality build with thick metal body and premium components

Additional details

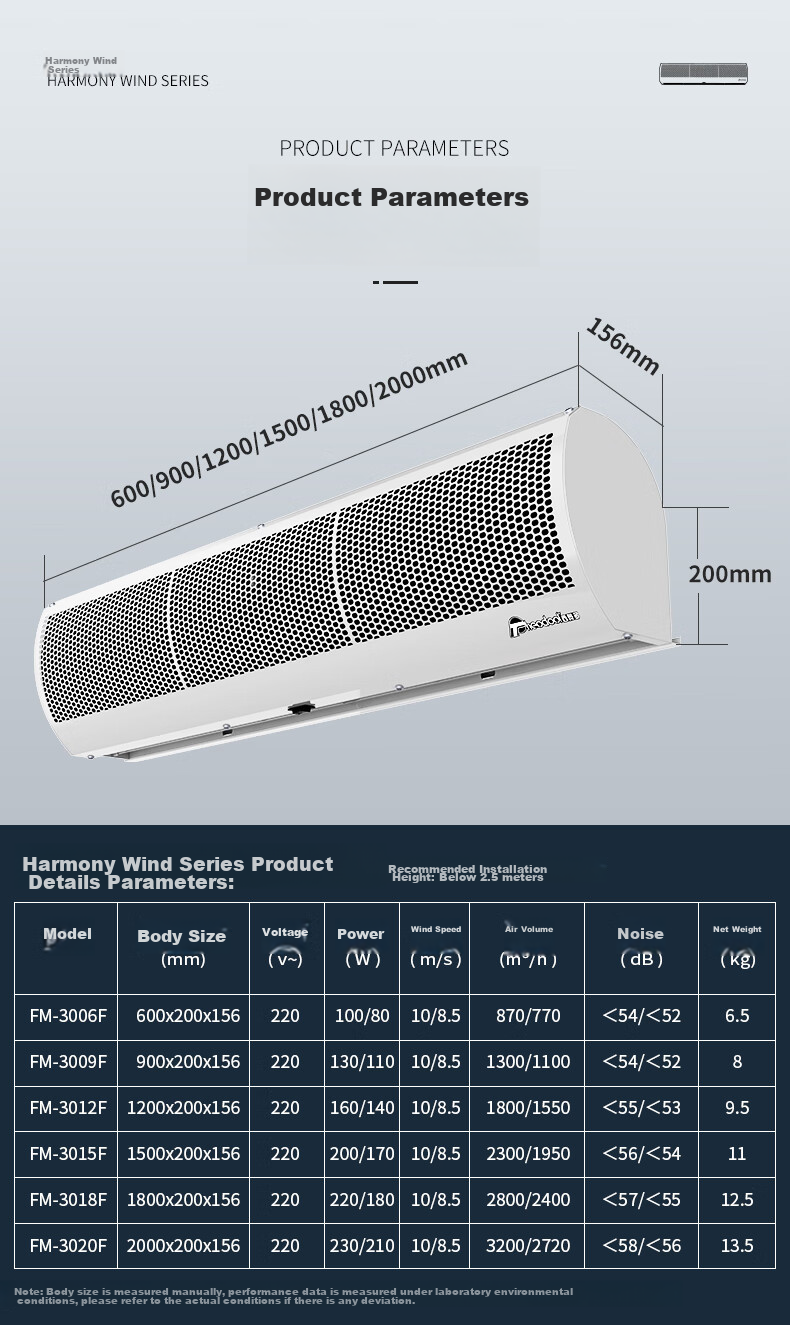

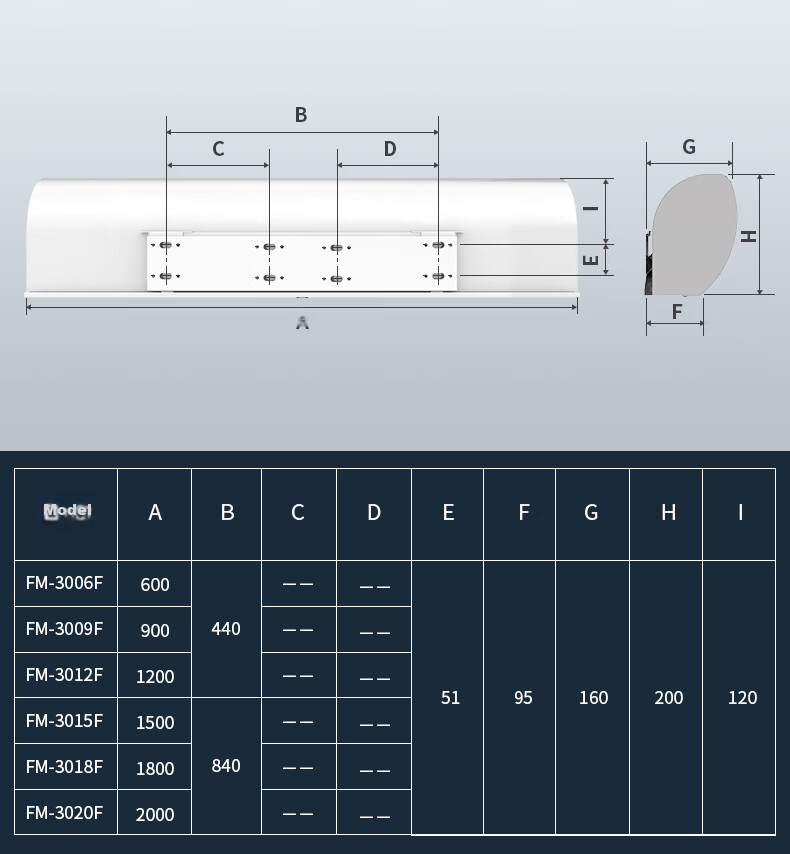

Model FM-3006F: Size 600x200x156 mm, Voltage 220V, Power 70W, Wind Speed 10 m/s, Air Volume 870 m³/h, Noise 53 dB, Weight 5.5 kg
Model FM-3009F: Size 900x200x156 mm, Voltage 220V, Power 100W, Wind Speed 10 m/s, Air Volume 1300 m³/h, Noise 53 dB, Weight 8.5 kg
Model FM-3012F: Size 1200x200x156 mm, Voltage 220V, Power 140W, Wind Speed 10 m/s, Air Volume 1800 m³/h, Noise 54 dB, Weight 8.2 kg
Model FM-3015F: Size 1500x200x156 mm, Voltage 220V, Power 180W, Wind Speed 10 m/s, Air Volume 2300 m³/h, Noise 55 dB, Weight 9.5 kg
Model FM-3018F: Size 1800x200x156 mm, Voltage 220V, Power 200W, Wind Speed 10 m/s, Air Volume 2800 m³/h, Noise 56 dB, Weight 11 kg
Model FM-3020F: Size 2000x200x156 mm, Voltage 220V, Power 230W, Wind Speed 10 m/s, Air Volume 3200 m³/h, Noise 57 dB, Weight 12.5 kg

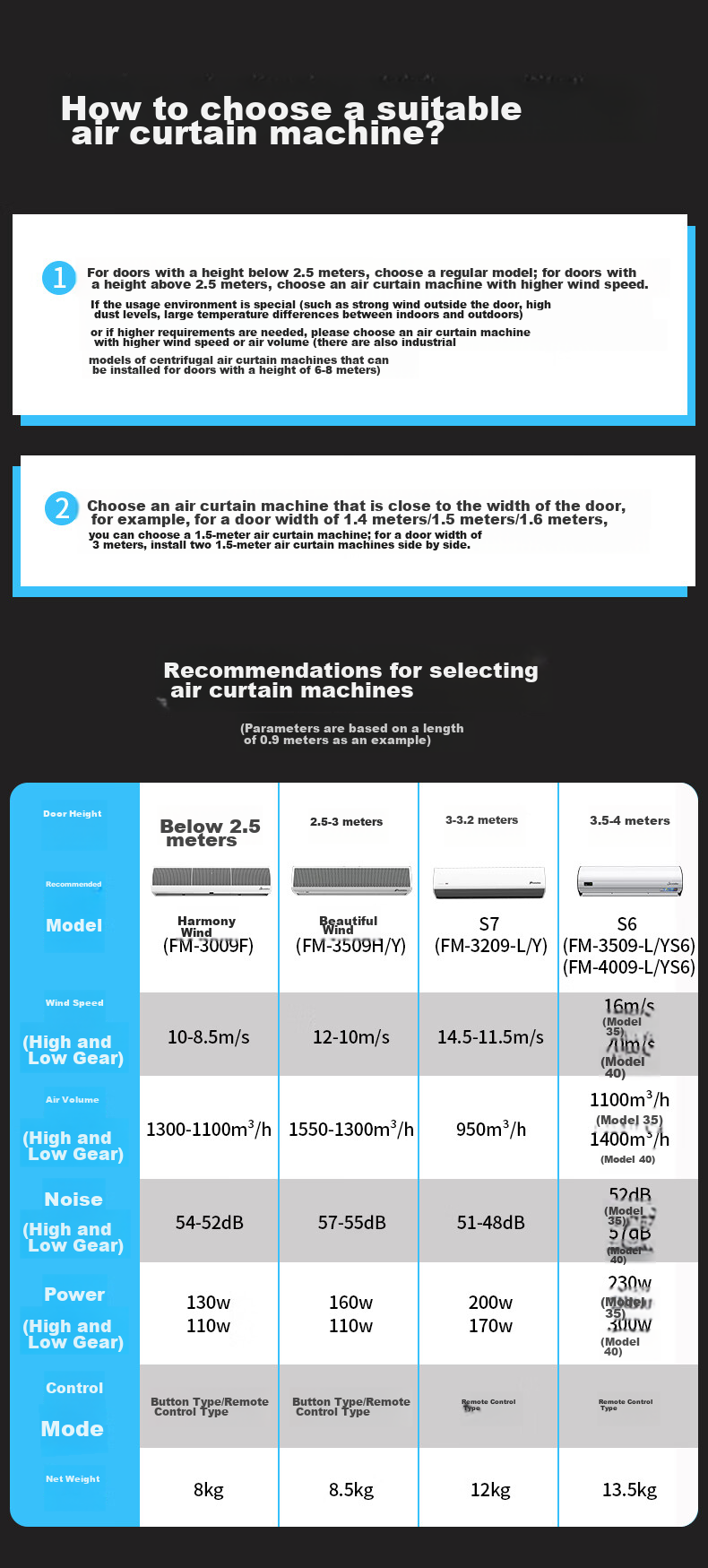

For door heights below 2.5m, select standard models.

For door heights above 2.5m, choose models with higher wind speed or volume.

For special environments (strong outdoor wind, dust, large indoor/outdoor temperature difference), select models with greater wind speed or volume.

Door width should match air curtain length; for wider doors, install multiple units side by side.

US certification for export markets

94 national patents including utility model patents for innovative air duct systems and portable air curtains

SGS, STu, China product certifications

Recognized high-tech enterprise and Guangdong provincial industry brand

Beijing City Sub-center

Hong Kong-Zhuhai-Macao Bridge

Mercedes-Benz Cultural Center

Tianjin National Games

Milan International MCE

Refrigeration and Air Conditioning Exhibitions

theodoor air curtains combine advanced motor technology, premium materials, and patented innovations to deliver reliable, energy-saving, and high-performance air curtain solutions suitable for a wide range of commercial and industrial applications.
