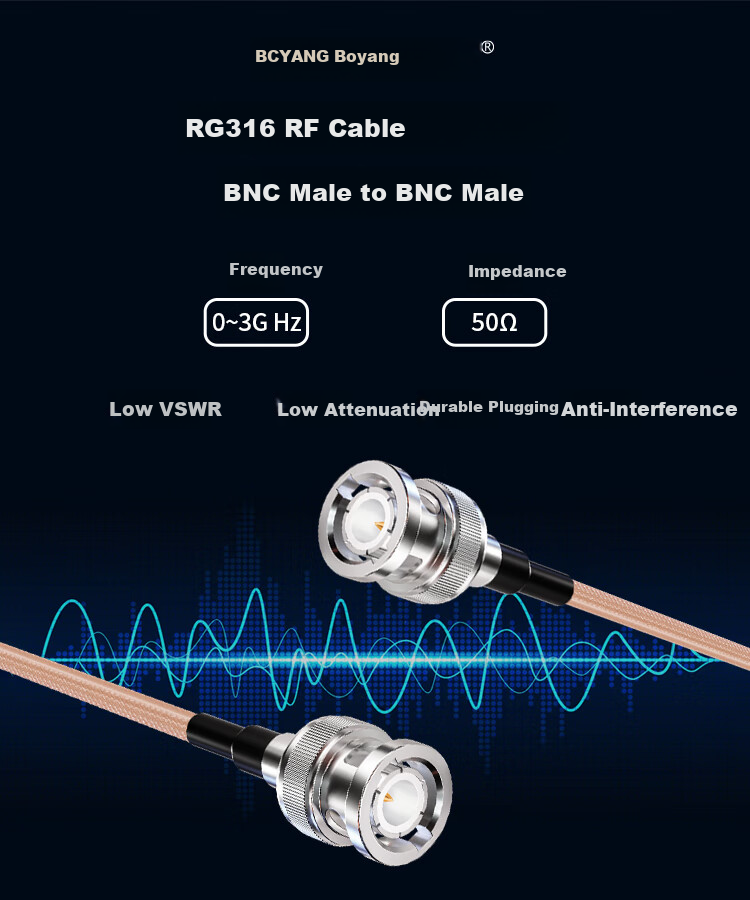

BOYANG BNC Male to BNC Male RF Cable 50 Ohm 5m High Frequency RG316 Ultra-Flexible Silver-Plated Shielded SFF50-1.5 High Temperature Wire (0-3GHz) BY-316-BNC-5

BOYANG BNC Male to BNC Male RF Cable 50 Ohm 5m High Frequency RG316 Ultra-Flexible Silver-Plated Shielded SFF50-1.5 High Temperature Wire (0-3GHz) BY-316-BNC-5

CN¥75.00

SKU: 100010083425

Status:In Stock (8)

ID: 100010047063

Weight: 103.00 g

Dims:239x187x17 mm

Specifications

Cord Length: 5m
Converter: Other
Shielding type: Single shield
Category: Other
Connecting wire: Other

Variants / Sale Attributes

Model: BNC Male to BNC Male (03G)

Version: 5 meters

Package Contents

Boyang BNC Male to BNC Male RF Cable 50 Ohm 5 Meters High Frequency RG316 Ultra-Flexible Silver-Plated Shielded SFF50-1.5 High Temperature Wire (0-3G) BY-316-BNC-5*1 Certificate of Conformity*1

Product Description

Product Specifications

Overview

Brand: BOYANG
Product Type: RG316 RF Coaxial Cable with BNC Male to BNC Male Connectors
Frequency Range: 0 ~ 3 GHz
Characteristic Impedance: 50 Ω
VSWR (Voltage Standing Wave Ratio): < 1.25
Insertion Loss: < 0.3 dB
Return Loss: > 30 dB

Similar Products

Out of Stock

JIB High-End Flagship, XLR Male to Female Audio Cable, Balanced XLR Cable for CD/Amplifier/preamp/speaker Connection BEB-2004 1 Meter Pair

JIBCable

JIB High-End Flagship, XLR Male to Female Audio Cable, Balanced XLR Cable for CD/Amplifier/preamp/speaker Connection BEB-2004 1 Meter Pair

[Flagship Audiophile] Bold · Kano Line One Pair

CN¥3,600.00

In Stock

Youyuezhe Console Debugging Cable 1.8m USB to RJ45 Control Cable Switch Configuration Cable for Cisco Huawei Tenda TP-LINK Router Adapter Y-SP02001E

UNITEKCable

Youyuezhe Console Debugging Cable 1.8m USB to RJ45 Control Cable Switch Configuration Cable for Cisco Huawei Tenda TP-LINK Router Adapter Y-SP02001E

USB to RJ45 Debug Console Cable 1.8 meters

CN¥80.90

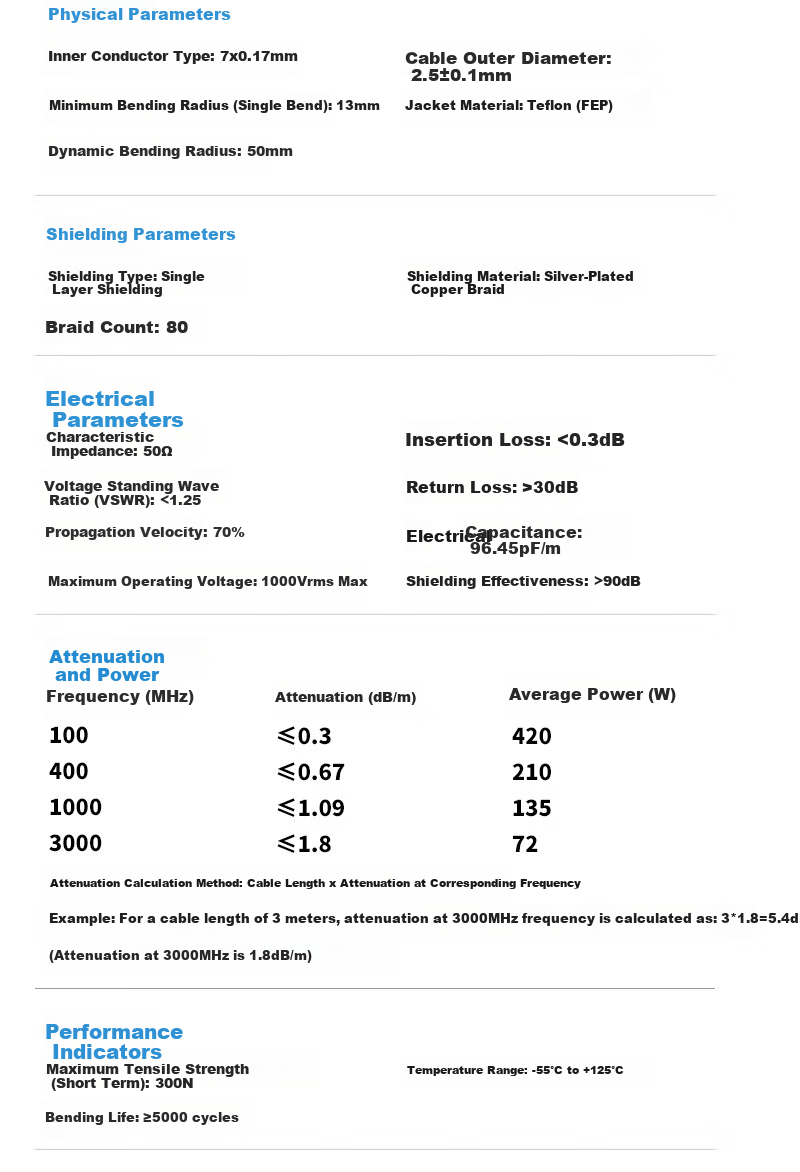

Propagation Velocity

70% of the speed of light

Capacitance

96.45 pF/m

Maximum Operating Voltage

1000 Vrms Max

Shielding Effectiveness

> 90 dB

Inner Conductor

7 strands of 0.17 mm silver-plated copper wire (7x0.17 mm), diameter 0.51 ± 0.02 mm

Dielectric

Polytetrafluoroethylene (PTFE), diameter 1.5 ± 0.1 mm

Shielding

Single layer silver-plated copper braid, 80 strands, 16 × 5 × 0.1 mm

Outer Jacket

Teflon (FEP), diameter 2.5 ± 0.1 mm

Minimum Bending Radius (Static)

13 mm

Dynamic Bending Radius

50 mm

Characteristic Impedance

50 Ω

Insertion Loss

< 0.3 dB

VSWR

< 1.25

Return Loss

> 30 dB

Capacitance

96.45 pF/m

Maximum Voltage

1000 Vrms

Shielding Efficiency

> 90 dB

| Frequency (MHz) | Attenuation (dB/m) | Average Power (W) |

|-----------------|--------------------|------------------|

| 100 | ≤ 0.42 | 400 |

| 420 | ≤ 0.67 | 210 |

| 1000 | ≤ 1.09 | 135 |

| 3000 | ≤ 1.8 | 72 |

Additional details

For a 3-meter cable at 3000 MHz: 3 m × 1.8 dB/m = 5.4 dB attenuation
Maximum Short-Term Tensile Strength: 300 N
Operating Temperature Range: -55°C to +125°C
Bending Life: ≥ 5000 cycles
Connector Type: BNC Male to BNC Male
Connector Shell Material: Nickel-plated Brass
Center Contact Material: Gold-plated Beryllium Copper
Insulator Material: PTFE
Durability: ≥ 500 mating cycles
Salt Spray Resistance: 48 hours
Vibration & Shock Rating: IEC60068-2-6
Contact Resistance: Center ≤ 1 mΩ, Outer ≤ 0.25 mΩ
Insulation Resistance: ≥ 5000 MΩ
Standards Compliance: GJB681, CECC22120, IEC60169-16, MIL-C-39012

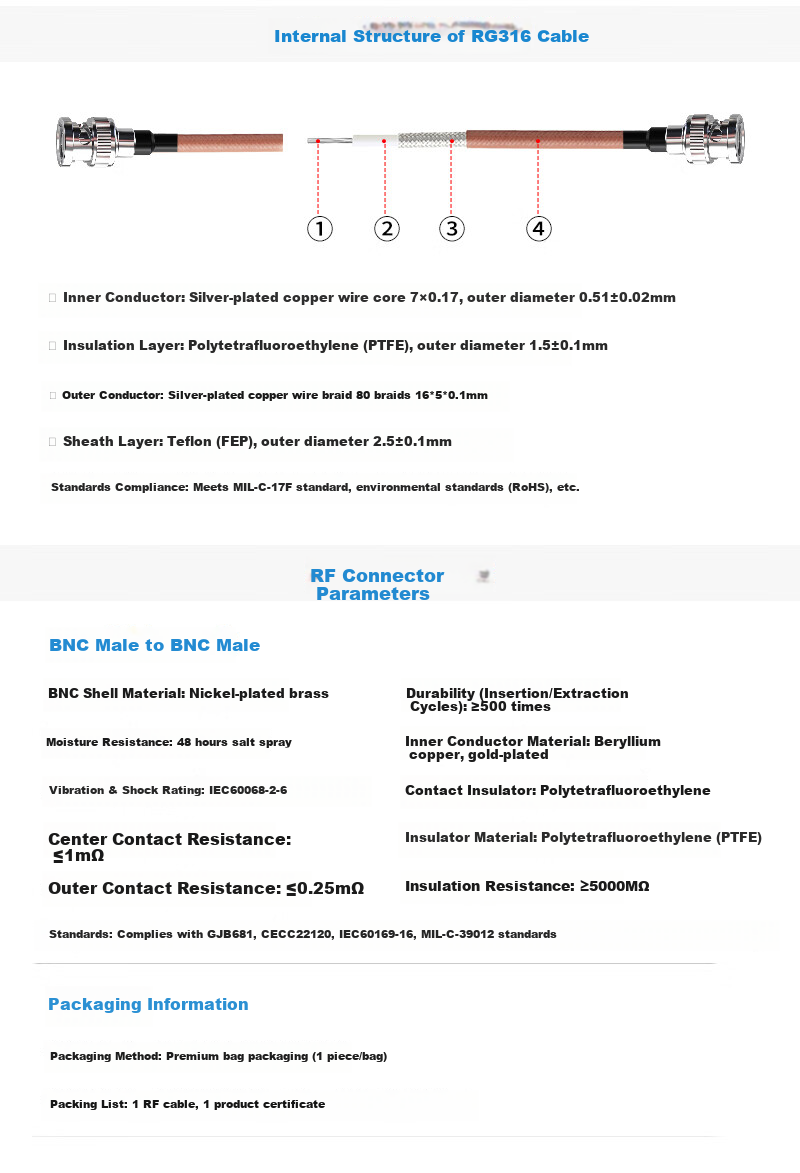

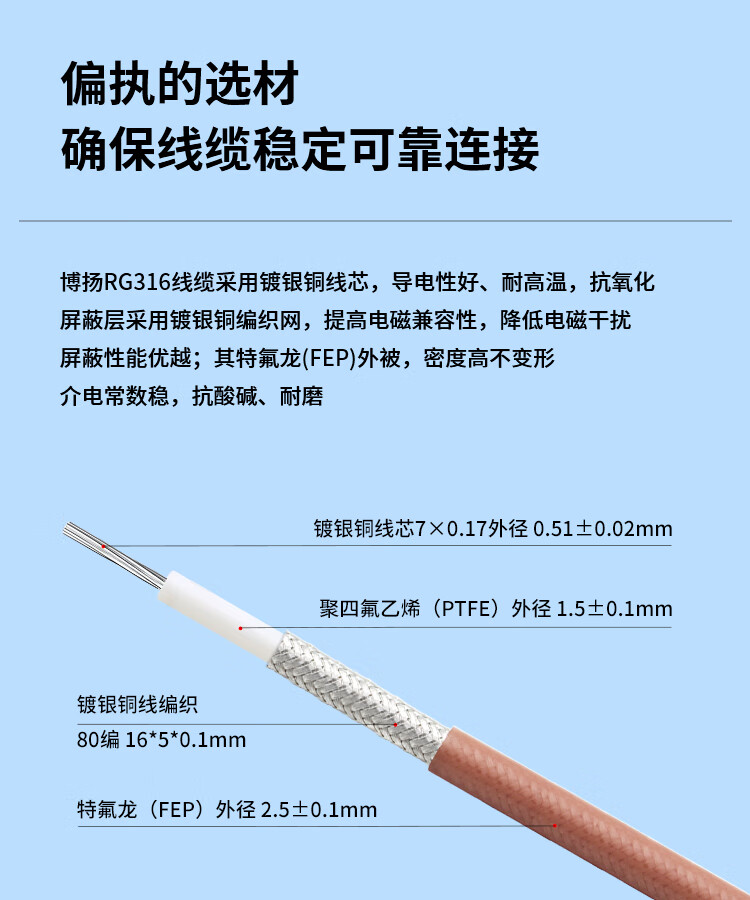

1. Inner Conductor: 7x0.17 mm silver-plated copper wire, diameter 0.51 ± 0.02 mm
2. Dielectric: PTFE, diameter 1.5 ± 0.1 mm
3. Shield: 80-strand silver-plated copper braid
4. Outer Jacket: FEP, diameter 2.5 ± 0.1 mm

MIL-C-17F

RoHS Compliant

Additional details

Packaging Type: Premium bag packaging (1 piece per bag)
Included Items: 1 x RF coaxial cable, 1 x Certificate of Quality

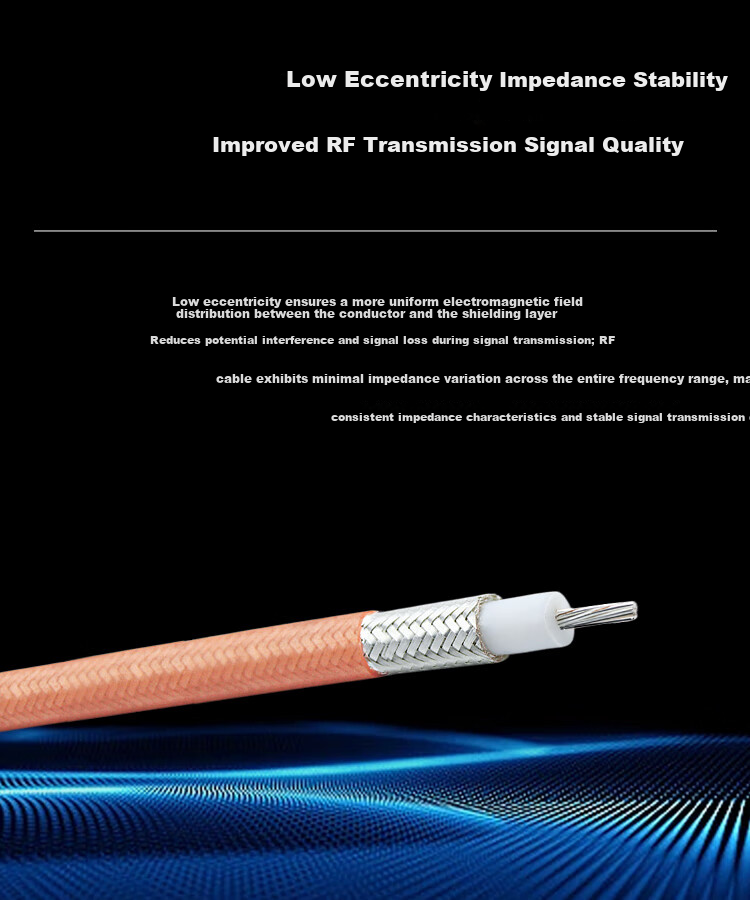

Low eccentricity for stable impedance and improved RF signal quality

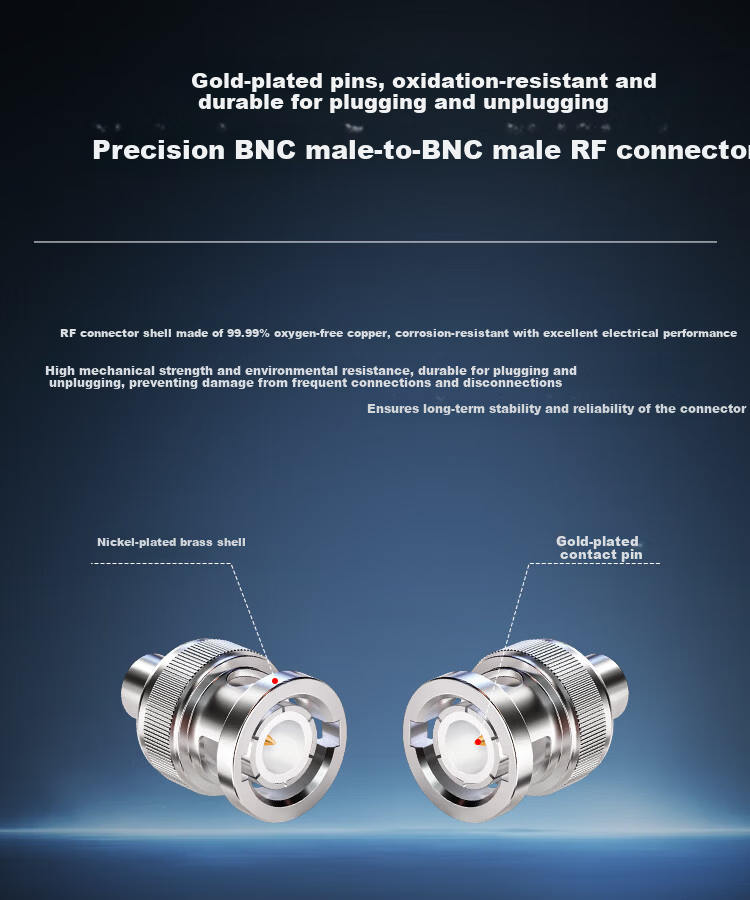

Gold-plated pins for oxidation resistance and durability

Precision BNC male connectors with 99.99% oxygen-free copper shell for excellent electrical and mechanical performance

Nickel-plated brass shell with gold-plated contacts ensures tight, stable connections

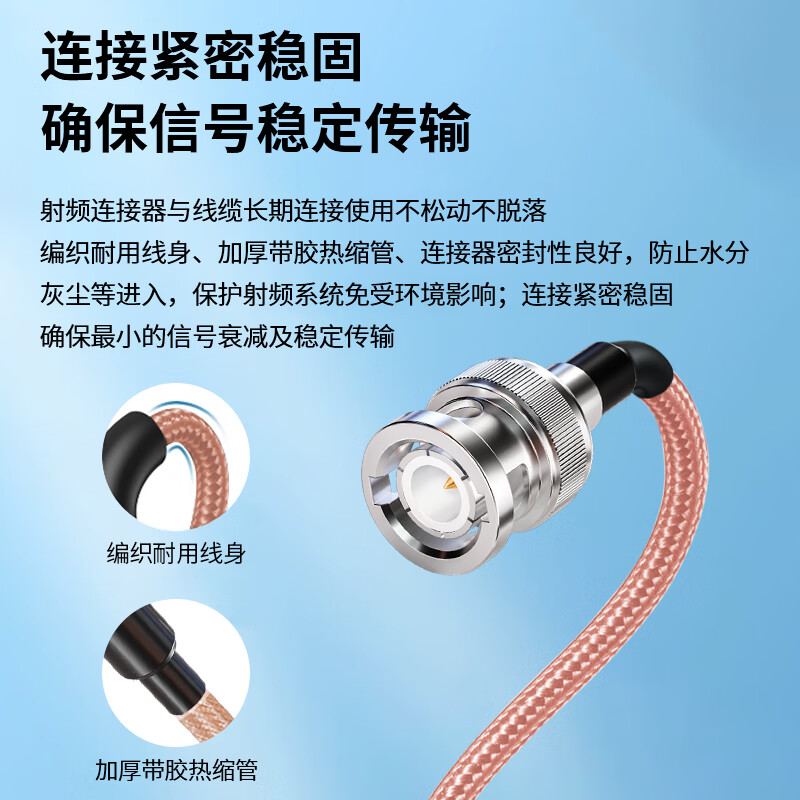

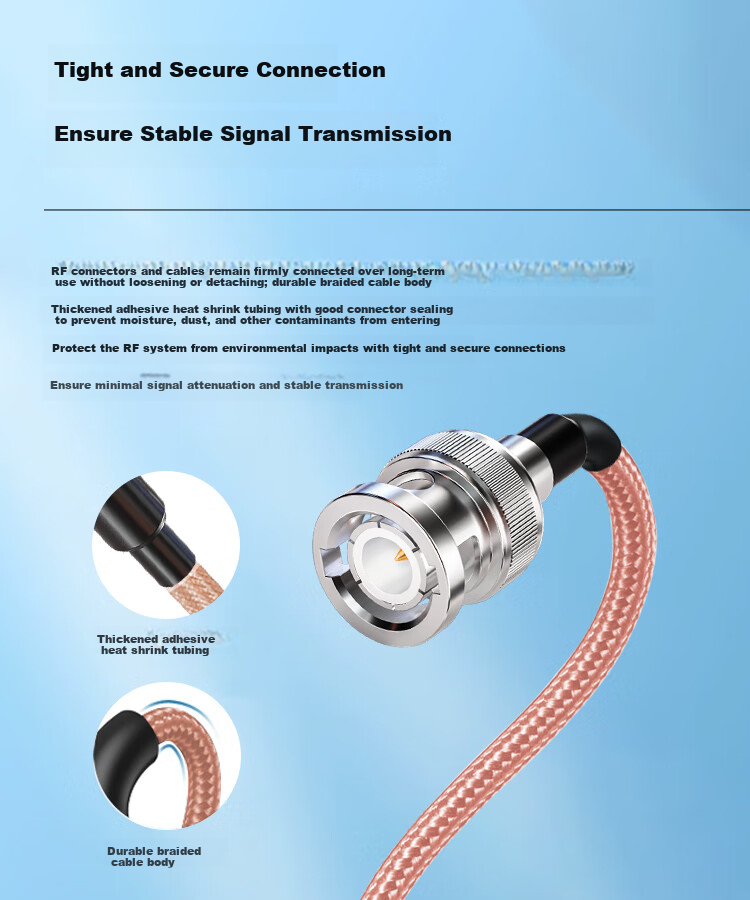

Durable braided cable with thick adhesive heat shrink tubing for excellent sealing against moisture and dust

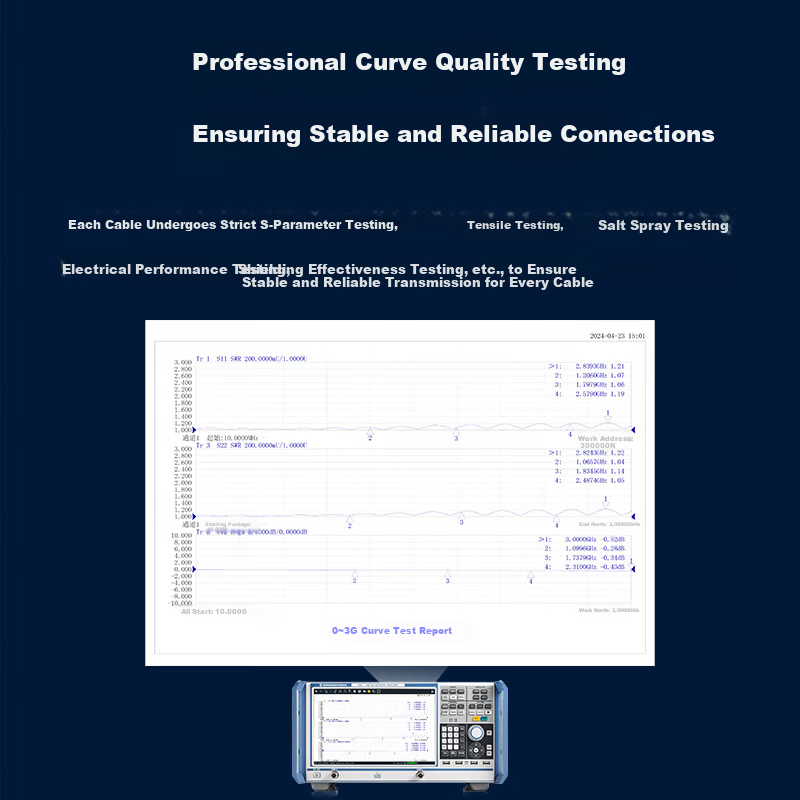

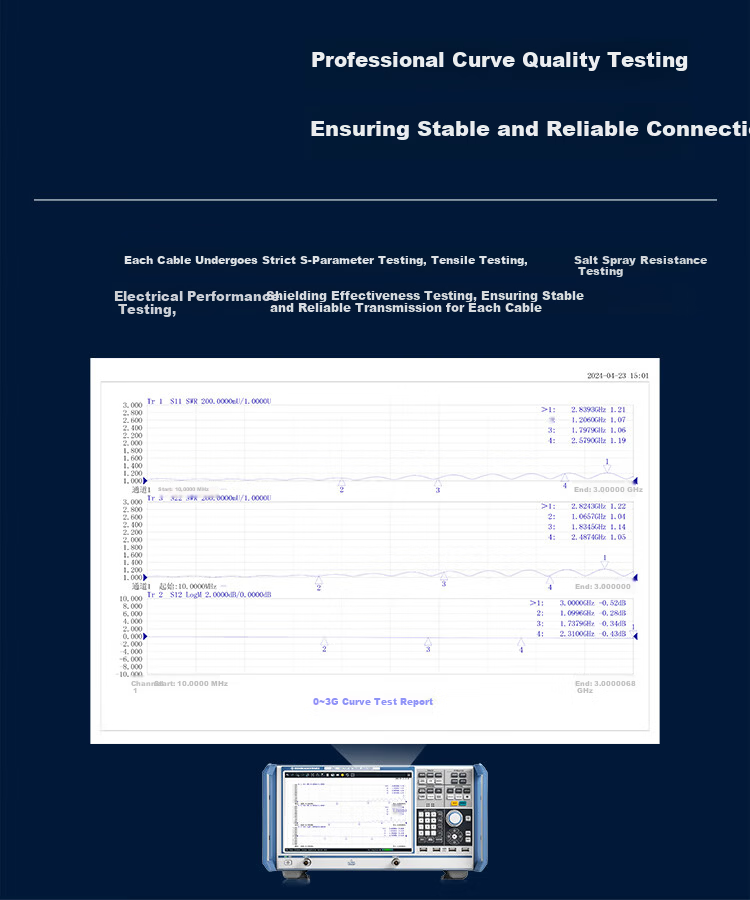

Professional curve quality testing including S-parameter, tensile, salt spray, electrical performance, and shielding effectiveness tests

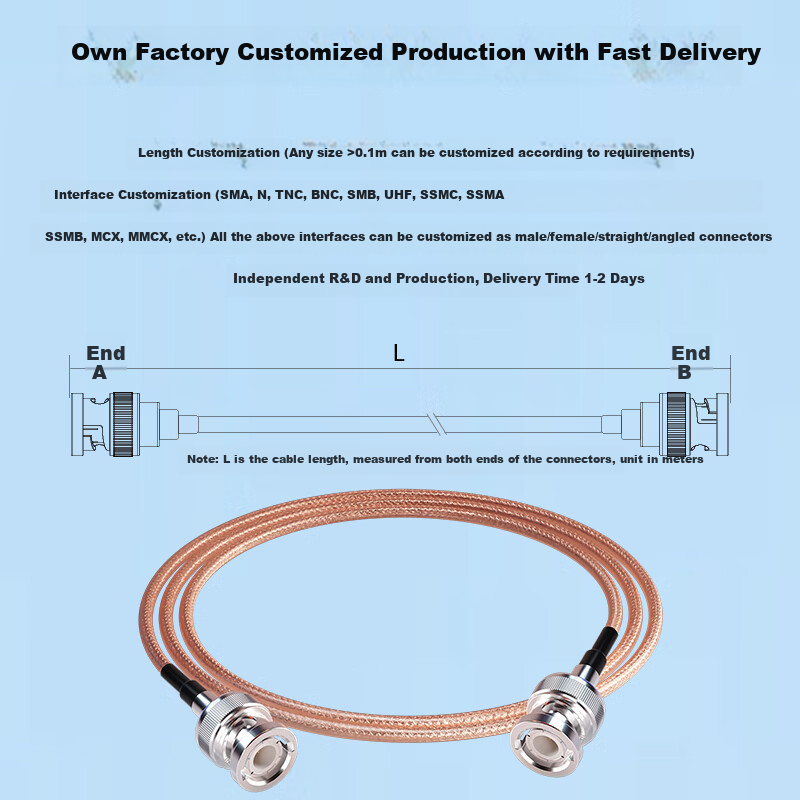

Supports custom lengths and fast delivery

Ideal for communication equipment, microwave devices, military and aerospace, test equipment, and broadcasting, especially suitable for high-frequency and harsh environment signal transmission.

BOYANG – Professional, Technical, and Service Excellence in RF Coaxial Cable Solutions.
