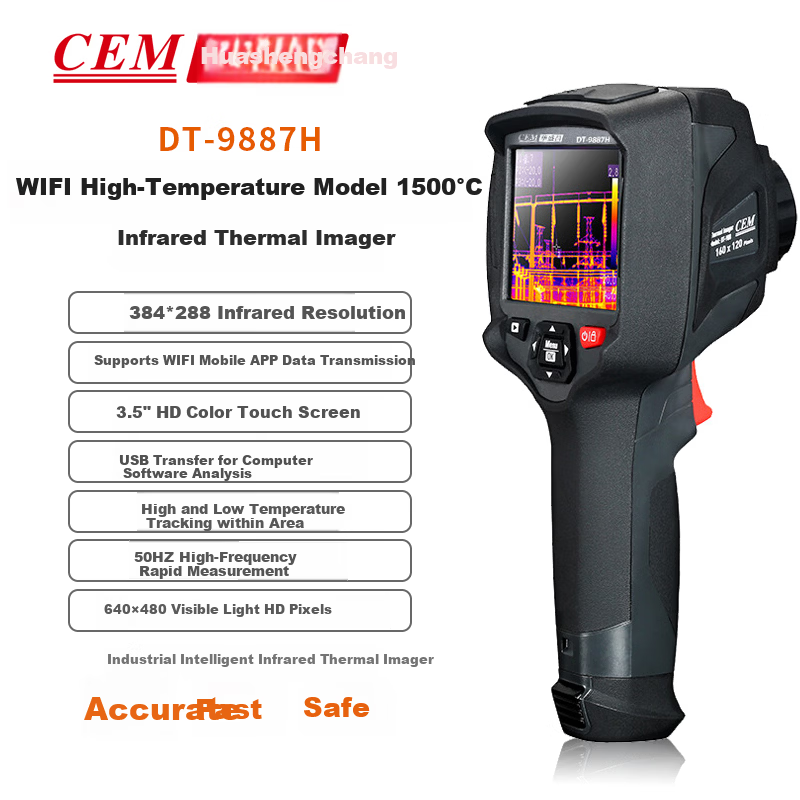

CEM DT-9887H Infrared Thermal Imager HD Floor Heating Electrical Leakage Detection Thermal Camera Touchscreen Smart Connectivity

2. Temperature Measurement

3. Display and Interface

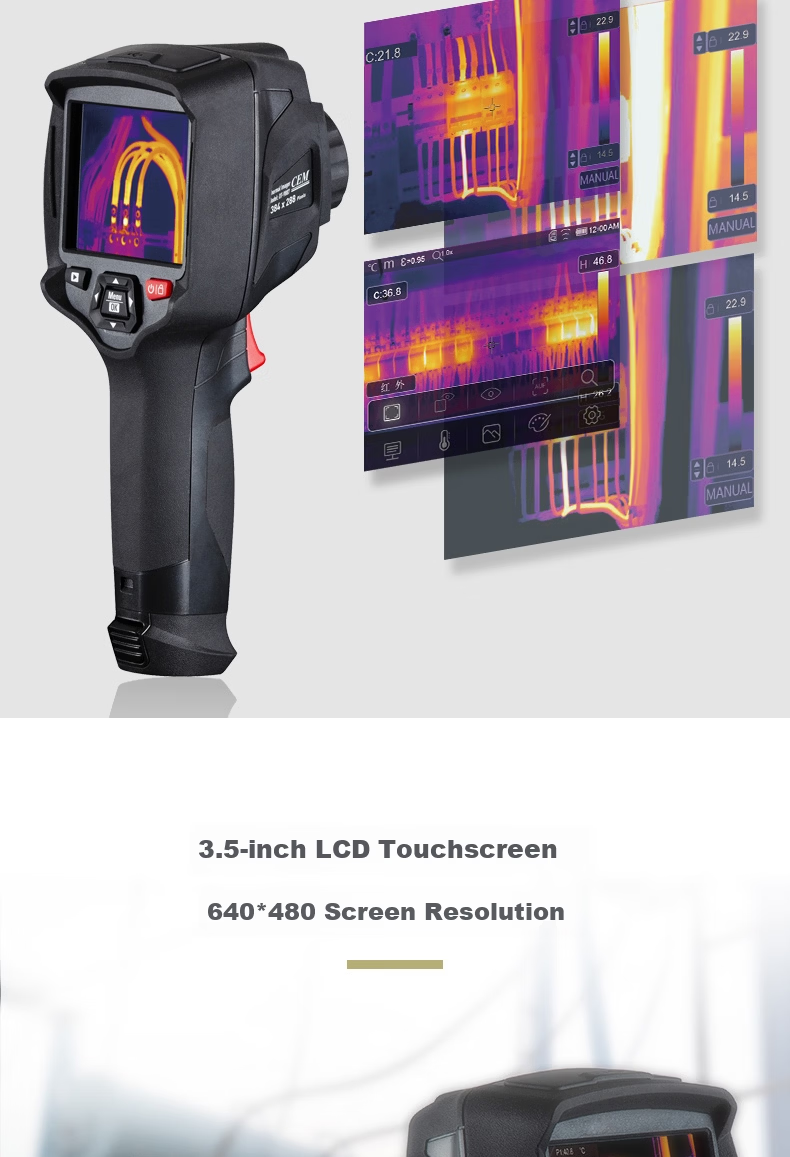

• Screen: 3.5-inch LCD touchscreen
• Screen Resolution: 640×480 pixels (DT-9887H)
• Touchscreen: Yes, supports intuitive operation
• Color Palette: Multiple selectable palettes with touch-adjustable color settings
• Image Storage: Supports storage of over 6000 images
• Video Recording and Playback: Supported

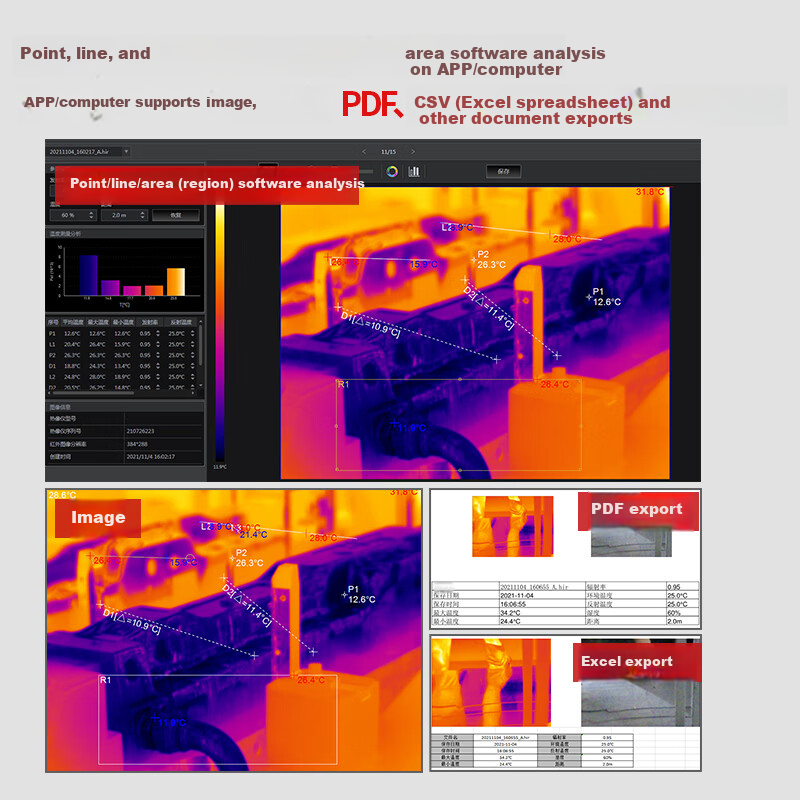

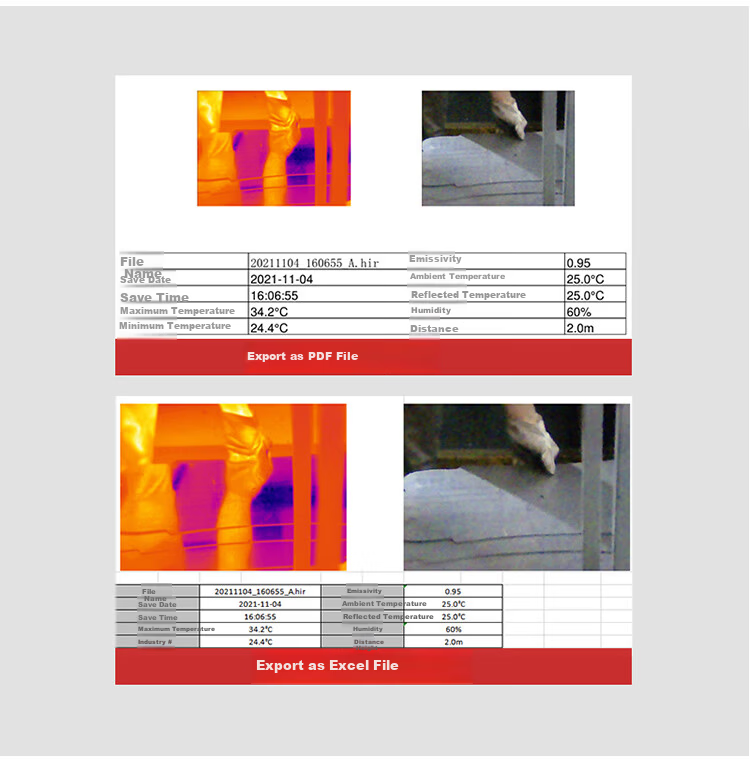

• File Export Formats: JPEG images, PDF, CSV (Excel), PDE
• Data Export: Supports export of point, line, and area (region) analysis data via app or PC software

4. Connectivity

• WiFi: Supported for wireless connection
• USB: USB Type-C charging and data interface
• MicroSD Card Slot: Supported for extended storage
• Tripod Mount: Standard tripod insertion hole

5. Software and Analysis

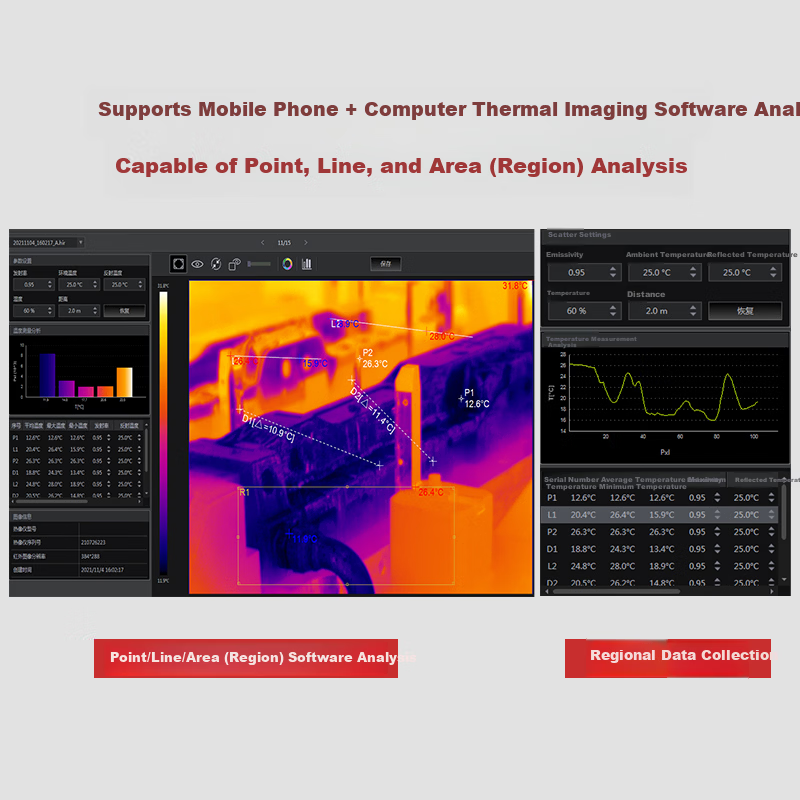

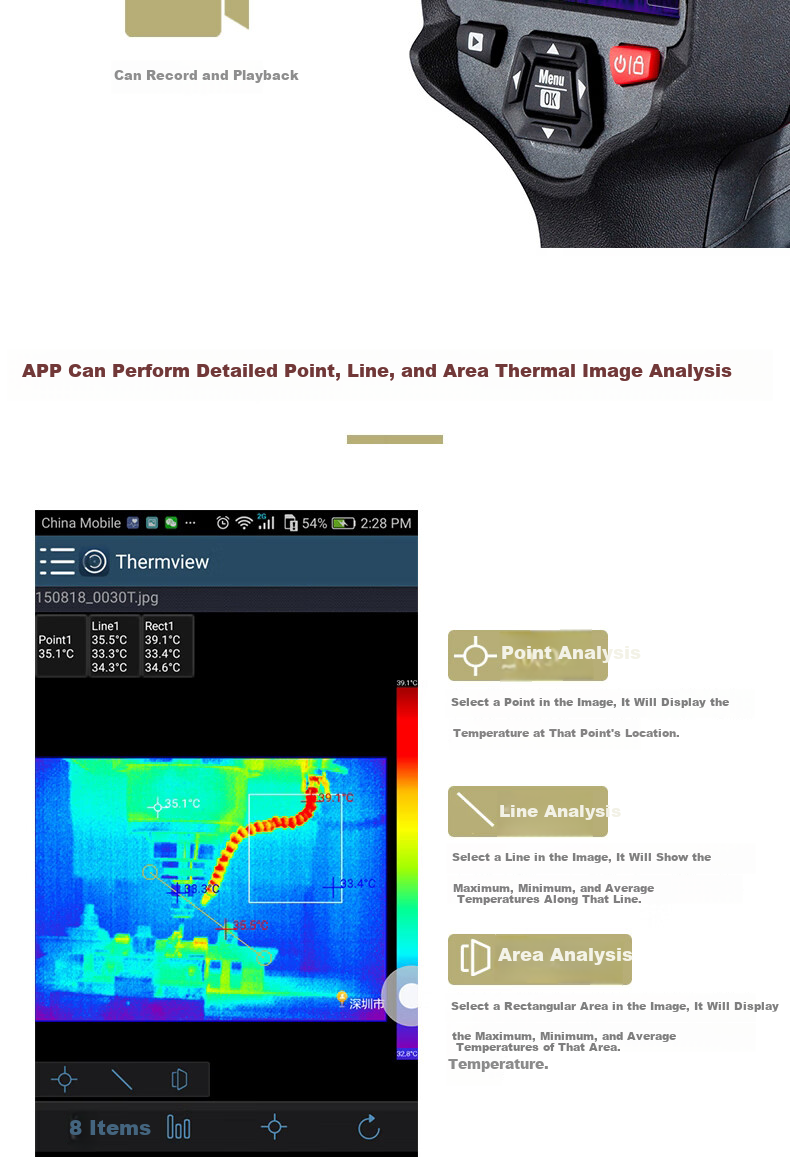

• App and PC Software Support: Enables detailed thermal image analysis including point, line, and area temperature analysis
• Analysis Features: Maximum, minimum, and average temperature calculations for selected points, lines, and regions
• Exportable Reports: Images and data can be exported in multiple formats for documentation and further analysis

6. Optics and Focus

• Manual Focus: Flexible manual focus ring for precise image adjustment
• Lens: Interchangeable lens with no calibration required upon replacement

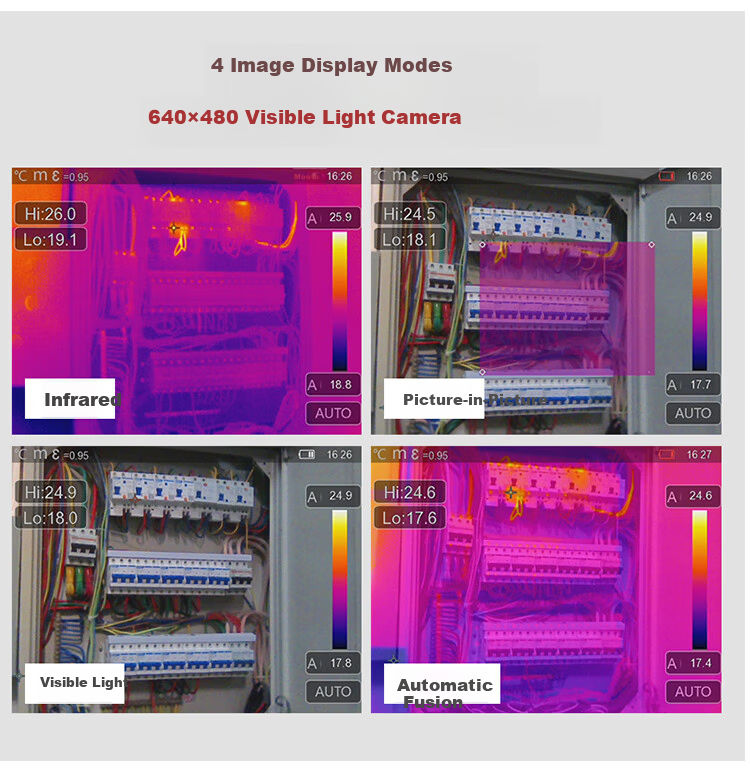

• Optical Fusion: AUF technology for automatic fusion of infrared and visible images ensuring clearer and more accurate thermal images

7. Environmental and Physical

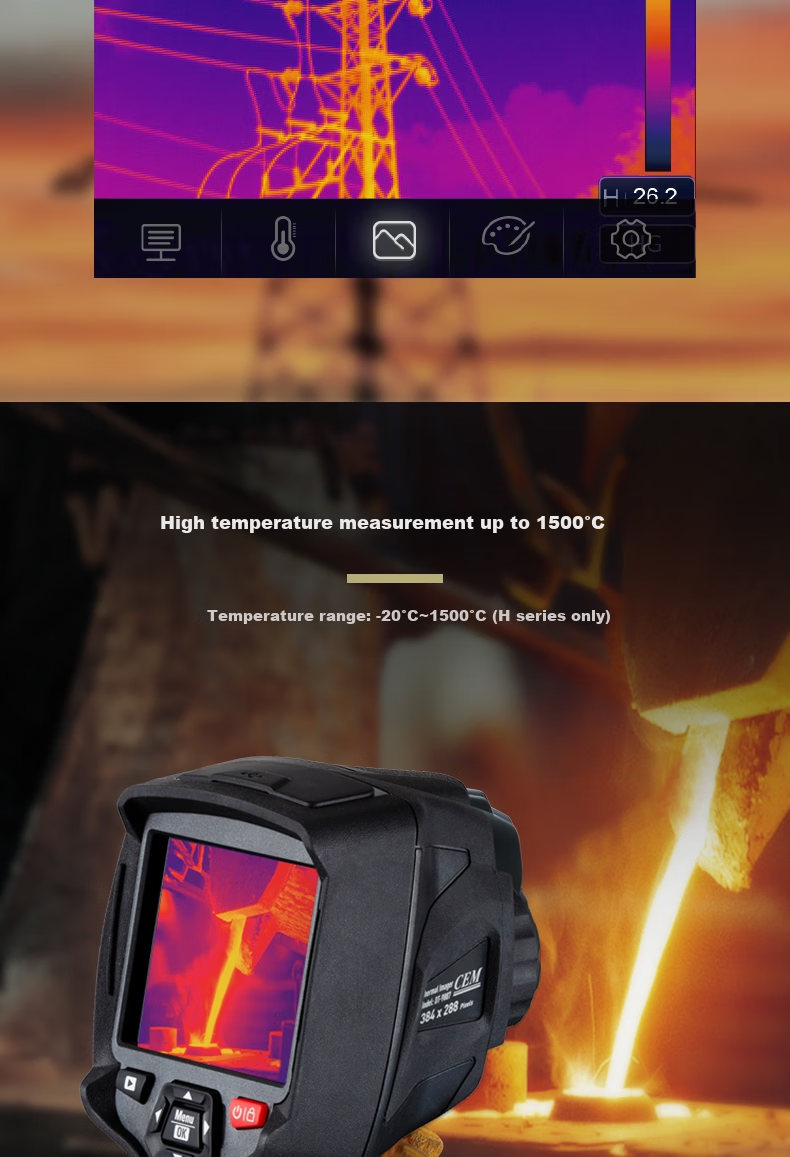

• Operating Temperature Range: -20°C to 1500°C (H Series)
• Dimensions and Weight: Not specified
• Battery: Rechargeable battery with USB Type-C charging
• Accessories: Includes wrist strap, interface cover, and tripod mount

8. Applications

• Suitable for circuit board inspection, electromechanical maintenance, equipment repair, electrical equipment inspection, insulation material inspection, building pipeline and floor heating detection, and other industrial and maintenance scenarios

9. Additional Features

• Automatic calibration-free lens replacement
• High emissivity setting (default 0.95)
• Supports environmental temperature and reflected temperature input for accurate measurement
• Supports image capture and video recording with timestamp and temperature data overlay
• Supports real-time temperature alarm with color-coded display

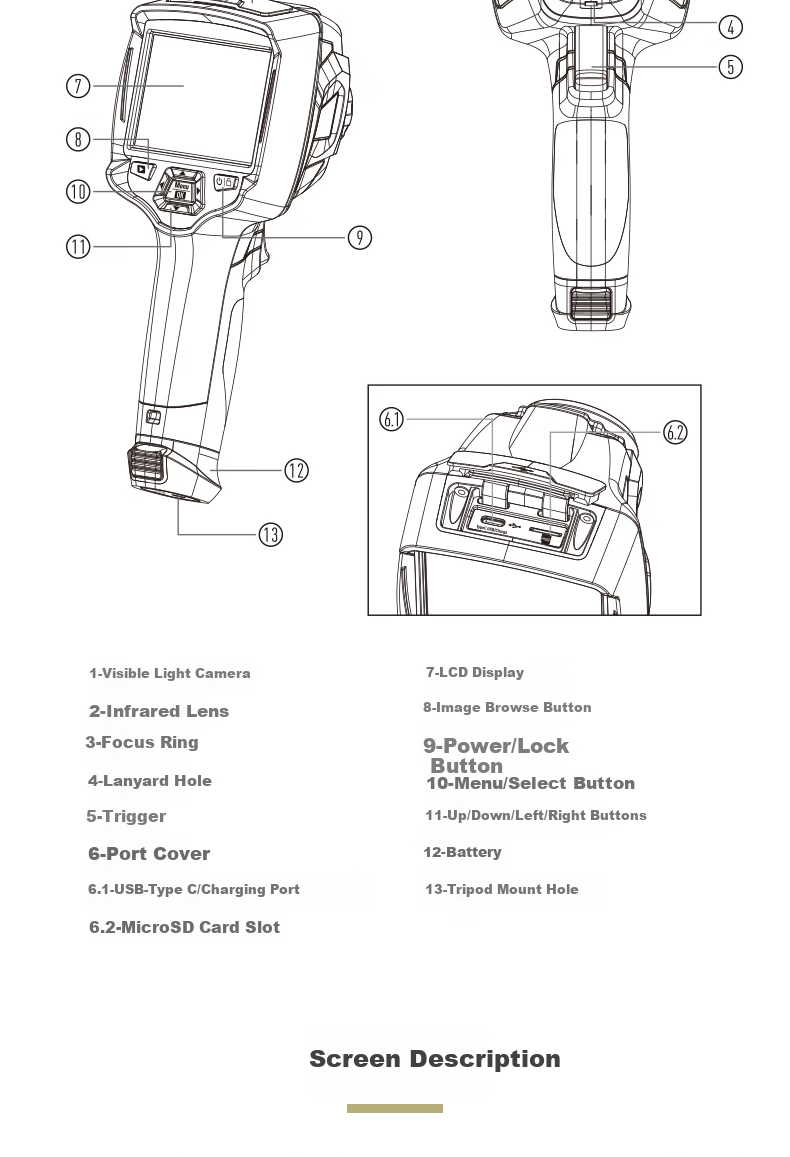

10. User Interface and Controls

• Buttons: Power/lock key, image browsing key, menu/select key, directional keys (up/down/left/right), trigger
• Indicators: Infrared lens, visible light camera, LCD display, focus ring, strap hole, interface cover, battery compartment
