1 barcode scanner, 1 data cable, 1 user manual

wireless connection
CNÂ¥99.00

Wireless 2D Base | Paper + Screen + Medication Code
CNÂ¥264.05
| Item | Detail |
|---|---|
| Dimensions | 62 mm x 169 mm x 82 mm |
| Weight | 130 g (4.6 oz) |
| Input Voltage | 4.0VDC to 5.5VDC |
| Operating Power | 2W (400mA @ 5VDC) |
| Standby Power | 0.45W (90mA @ 5VDC) |
| Interfaces | USB, keyboard wedge, RS-232, IBM 46XX (RS485) |
| Item | Detail |
|---|---|
| Operating Temperature | 0°C-50°C (32°F-122°F) |
| Storage Temperature | -40°C-60°C (-40°F-140°F) |
| Humidity | 0-95% RH (non-condensing) |

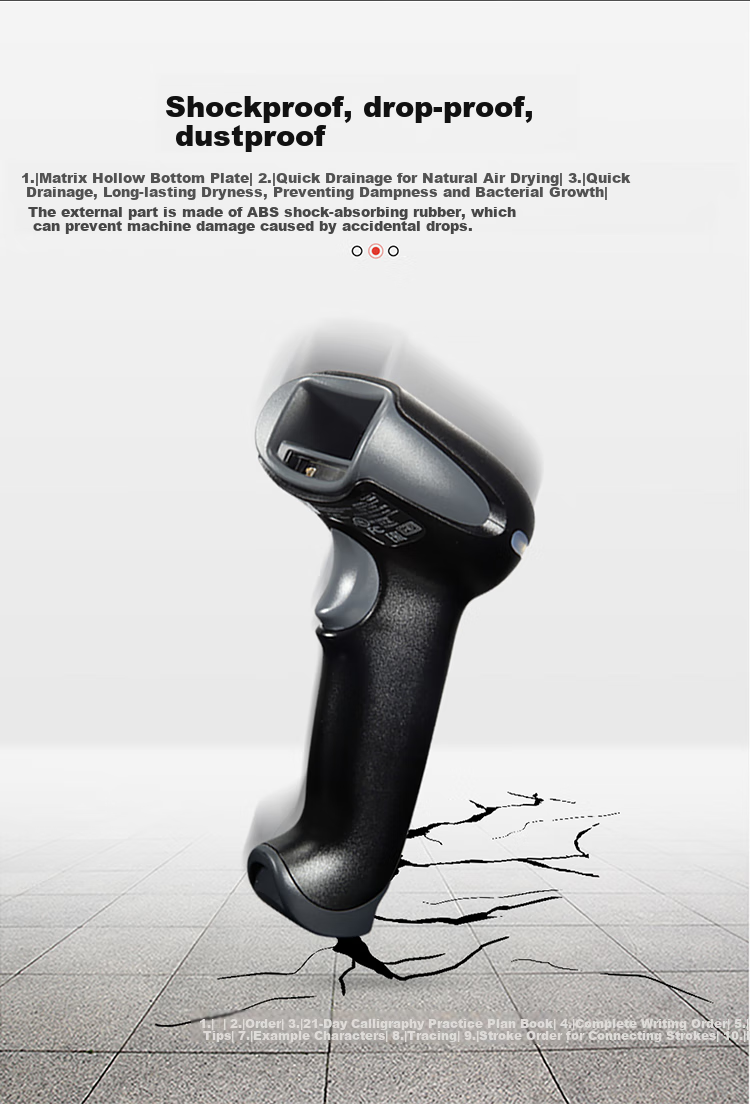

| Drop Resistance | 1,000 rolls from 0.5 m (1.6ft), 30 drops from 1.8 m (6ft) |
| Illumination | 0-100,000 lux (9290 ft-candles) |
| Protection Rating | IP40 |
| Item | Detail |
|---|---|

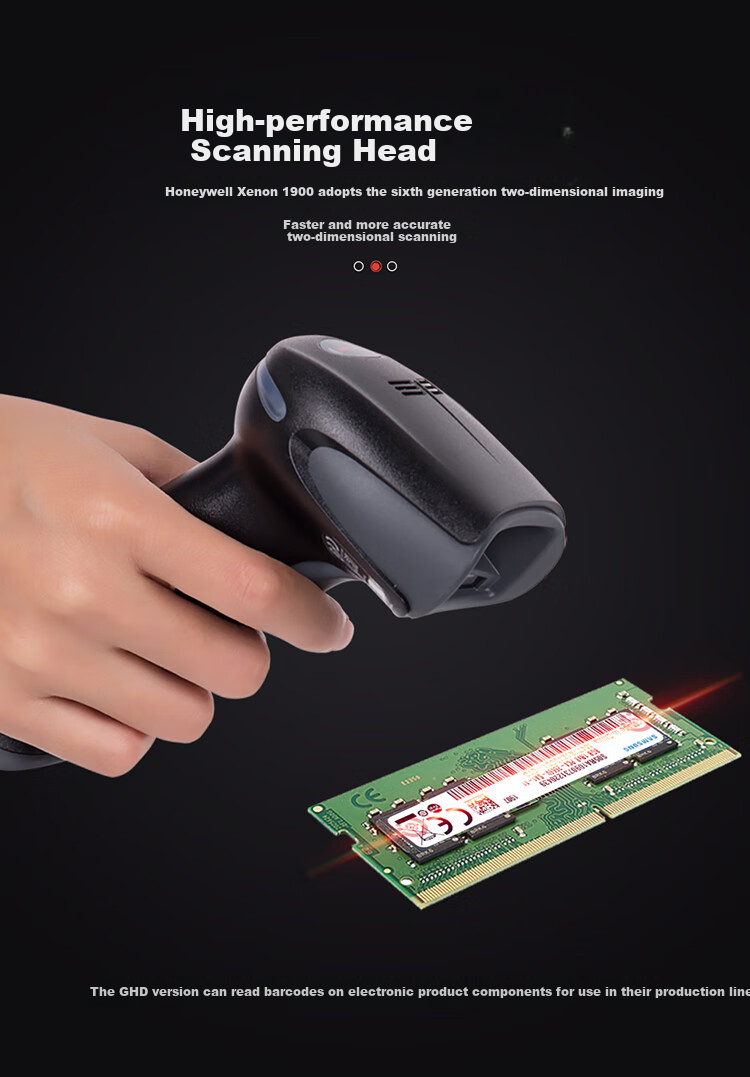

| Scanning Mode | Area imaging (1040x720 pixel array) |
| Motion Tolerance | 70 cm/s (27.6 in/s) for 13mil UPC |
| Scan Angle | Horizontal: 39.2°, Vertical: 27.4° (nominal) |
| Rotation, Tilt, and Skew | 180°, ±65°, ±70° |

Wireless
CNÂ¥769.00

HR11 Onedimensional barcode scanner for logistics use
CNÂ¥199.00
