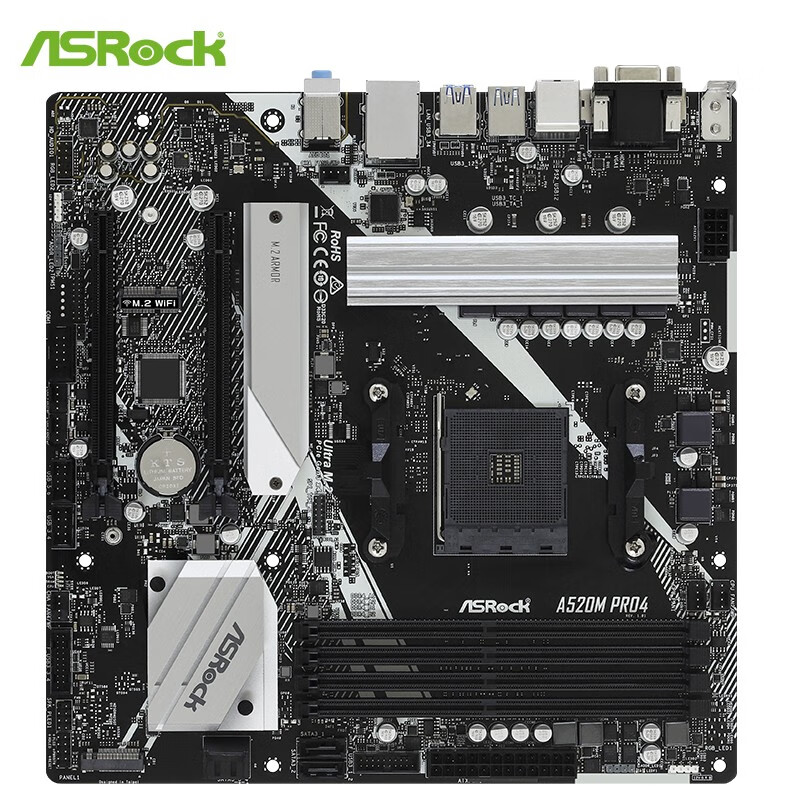

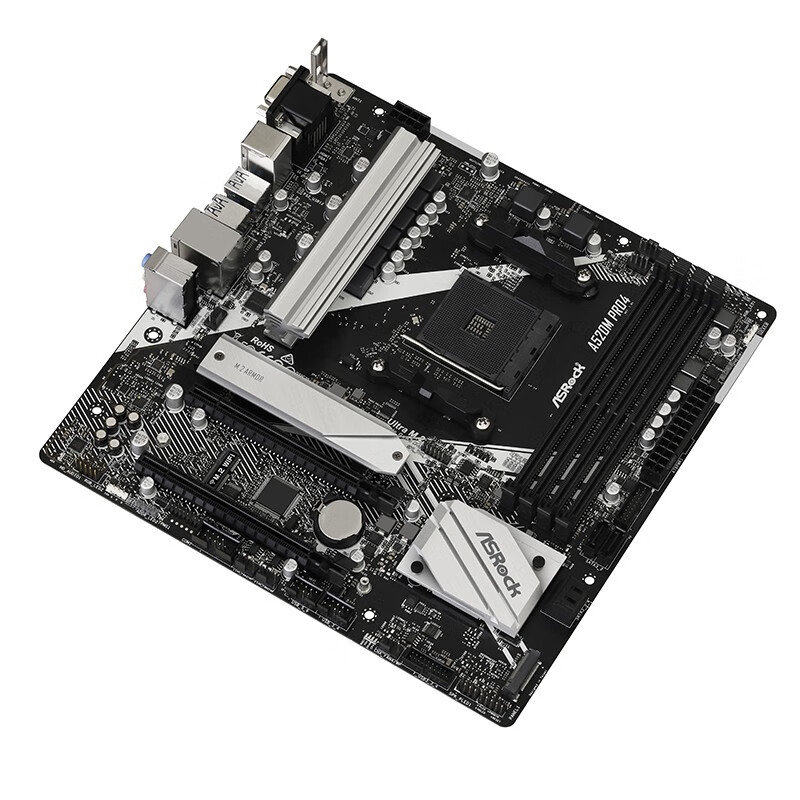

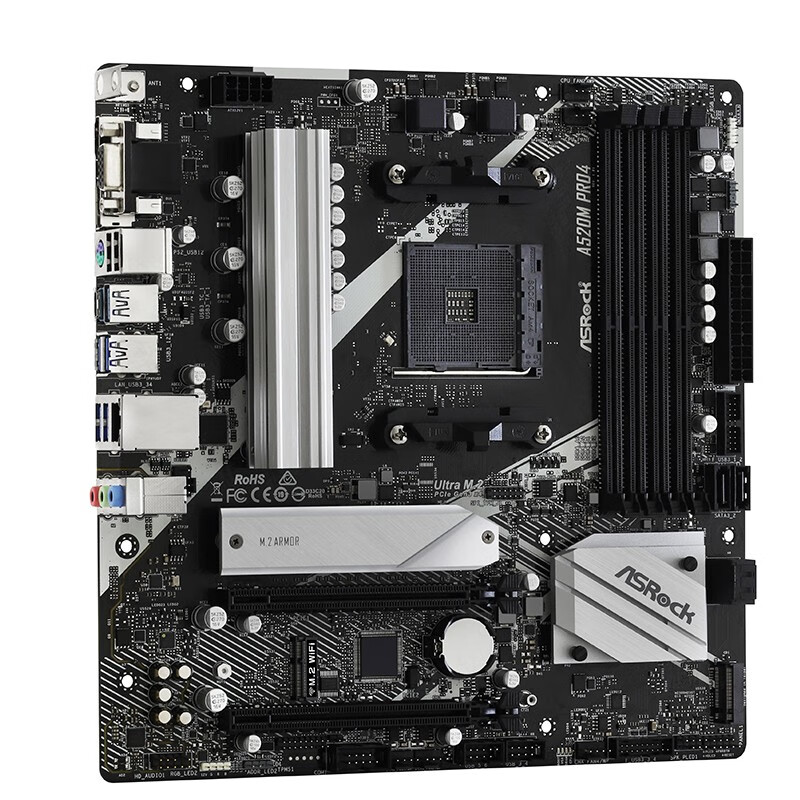

ASRock A520M Pro4 Craftsmanship Motherboard Supports CPU 5600/5600GT (AMD A520/Socket AM4)

ASRock•motherboard

ASRock A520M Pro4 Craftsmanship Motherboard Supports CPU 5600/5600GT (AMD A520/Socket AM4)

CN¥509.00

SKU: 100014522256

Status:Out of Stock

ID: 100015822394

Weight: 1140.00 g

Dims:280x262x60 mm

Specifications

RGB: Non-RGB
INTEL chip: Not supported
Board type: M-ATX (Compact)
PCI Express x8: 0 pcs
Wi-Fi Connection: Wi-Fi connection not supported
Compatible CPU interface: AMD AM4
AMD chip: A520
Support PCIe protocol: Support PCIE 3.0

Variants / Sale Attributes

model: [Jiangxin D4] A520M

Package Contents

A520M Pro4 motherboard x 1, Quick Installation Guide x 1, Support CD x 1, I/O Shield x 1, SATA data cable x 2, M.2 slot screws x 2

Product Description

Overview

Brand: ASRock
Model: M2ARMD A520MPR04
Form Factor: Micro ATX, 9.6-in x 9.6-in (24.4 cm x 24.4 cm)
CPU Support: AMD AM4 socket RyzenTM 3000, 4000 G-Series, and 5000 Series Desktop Processors (Not compatible with AMD Ryzen 5 3400 G and Ryzen 3200 G)
Chipset: AMD A520
Power Phase: 8 Phase Digital Power
Memory: 4 x DIMMs, Supports DDR4 up to 4733+ (OC)

Similar Products

In Stock

GIGABYTEmotherboard

GIGABYTE X870I AORUS PRO ICE WIFI7 Mini Motherboard DDR5 Compatible with AMD CPU AM5 9700X 9800X3D 9900X 9600X

X870

CN¥2,499.00

View

In Stock

GIGABYTEmotherboard

GIGABYTE GIGABYTE Gaming Ice Sculpture X870E AORUS PRO X3D ICE Motherboard DDR5 AMD CPU AM5 9700X 9950X 9900X 9600X Compatible

X870

CN¥3,299.00

View

SSD solid state drive interface

M.2 interface (NVMe protocol), SATA interface, M.2 interface (SATA bus)

VGA, HDMI, DisplayPort

Expansion Slots

2 x PCIe 3.0 x16, 1 x M.2 WiFi

Audio

7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio

Networking

Realtek Gigabit LAN

Storage

1 x M.2 (PCIe Gen3 x2 & SATA3), 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3), 4 x SATA3

USB

10 x USB 3.2 Gen1 (5 rear, 1 rear Type-C, 4 front), 6 x USB 2.0 (4 front, 2 rear)

RGB

2 x RGB LED Headers, 2 x Addressable LED Headers

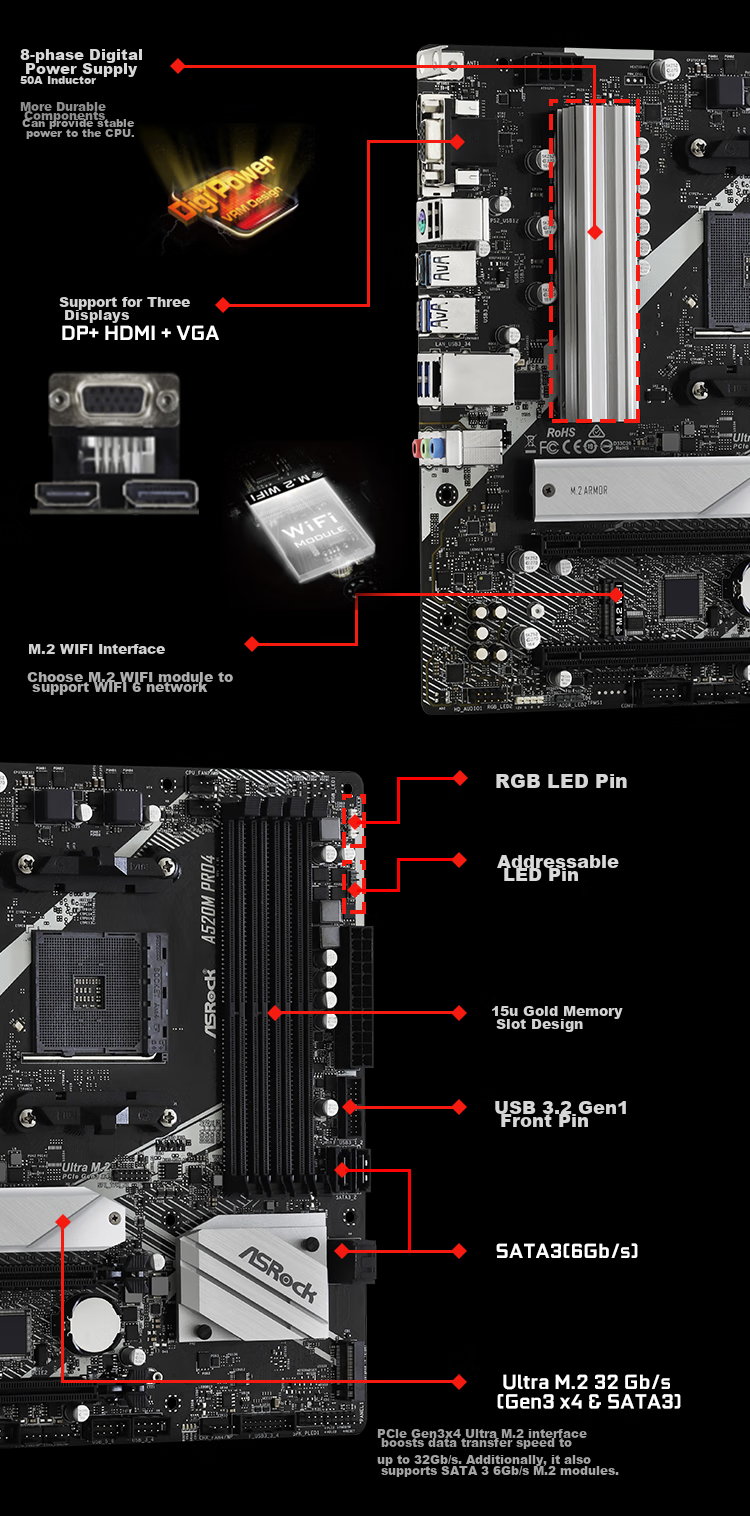

Features

8 Phase Digital Power
Polychrome RGB Sync
Three Display Support (DP+HDMI+VGA)
M.2 Armor
M.2 WiFi Slot
15u Gold Contact Memory Slots
USB 3.2 Gen1 Front Headers
SATA3 (6Gb/s)
Ultra M.2 32Gb/s (Gen3 x4)

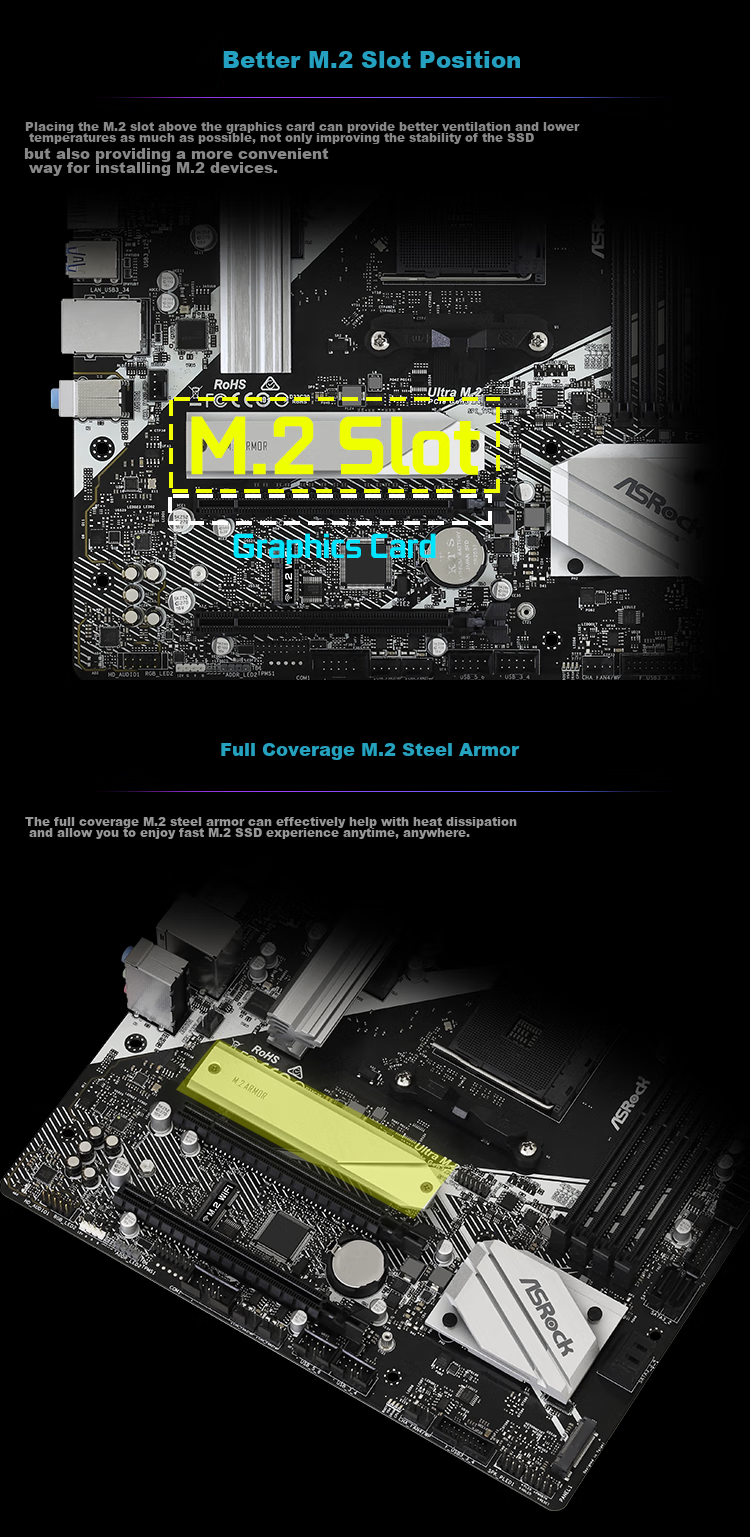

Full Coverage M.2 Steel Armor
RoHS Compliant

Additional details

Additional: M.2 WiFi (Key E) Expansion Slot, Hyper DDR4 Technology supporting up to 4733MHz, 2oz Copper PCB, Dual USB 3.2 Gen1 Ports (Type-A + Type-C)
Company Information: ASRock, established in 2002, is dedicated to providing high-quality motherboards, graphics cards, and mini PCs. With a focus on innovation, user-friendly products, and competitive pricing, ASRock aims to be a leader in the industry while also promoting environmental sustainability. For more information, visit [ASRock's official website](https://www.asrockchina.com.cn/).
