EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

EB-LINK•Network accessories

EB-LINK RS485 Data Fiber Optic Extender Industrial Serial Port Control Optical Modem Bidirectional 485 to Fiber Optic Transceiver Optical-Electrical Converter

CN¥145.00

SKU: 100015489546

Status:In Stock (1)

ID: 100015489546

Weight: 600.00 g

Dims:211x161x71 mm

Specifications

Category: Structured cabling
Type: Optical Network Unit (ONU)

Variants / Sale Attributes

Model: 1channel bidirectional 485 optical transceiver

Package Contents

Optical transceiver*1, certificate of conformity*1, instruction manual*1

Product Description

Product Specifications

Overview

Brand: EB-LINK

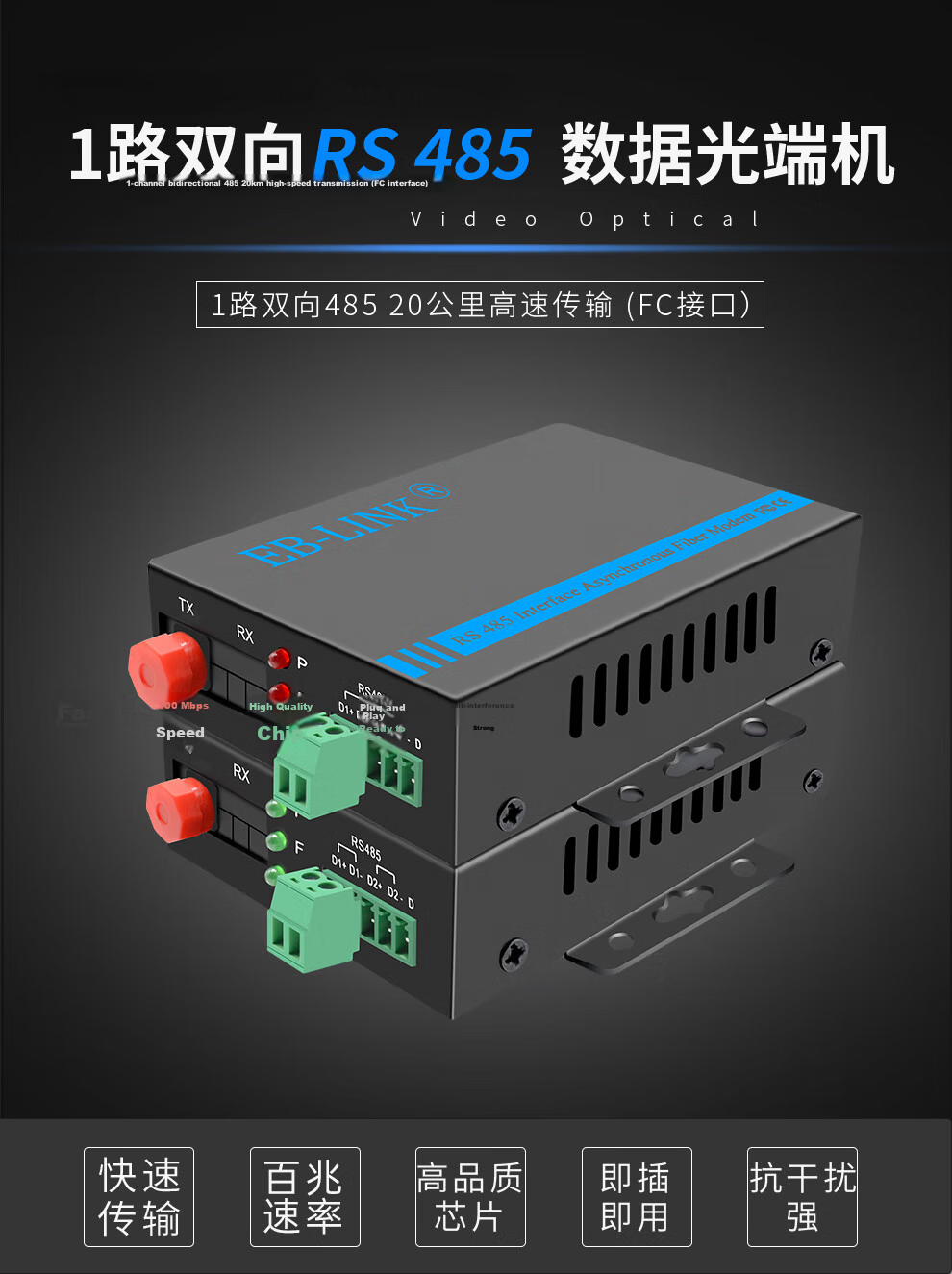

Model: 1-Channel Bidirectional RS485 Data Optical Transceiver

1-channel bidirectional RS485 communication

High-speed transmission up to 20 km via fiber optic (FC interface)

Supports video and digital output (DO)

Fast, plug-and-play operation with strong anti-interference capability

High-quality, stable performance with original Altera EPM240 main control chip

Long-term aging and triple testing before shipment to ensure reliability

Precise calculation and rapid processing response

Additional details

Housing Material: SPCC metal with 1.0 mm thickness

Similar Products

In Stock

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

SAMZHENetwork accessories

ShanZe 100Mbps Single-Mode Dual-Fiber Optical Module 155M SFP Fiber Module (1310nm, 20KM, LC) XSZ-SMB20S

100Mbps LC Singlemode Dual Fiber [20 km] Single Strand

CN¥77.00

In Stock

Sanze Cat6A Shielded RJ45 Connector Super Category 6A 10Gbps Two-Piece Network Plug 10pcs SJ6A10

SAMZHENetwork accessories

Sanze Cat6A Shielded RJ45 Connector Super Category 6A 10Gbps Two-Piece Network Plug 10pcs SJ6A10

Cat6a Shielded [Engineering Version] 10 pcs/box

CN¥27.90

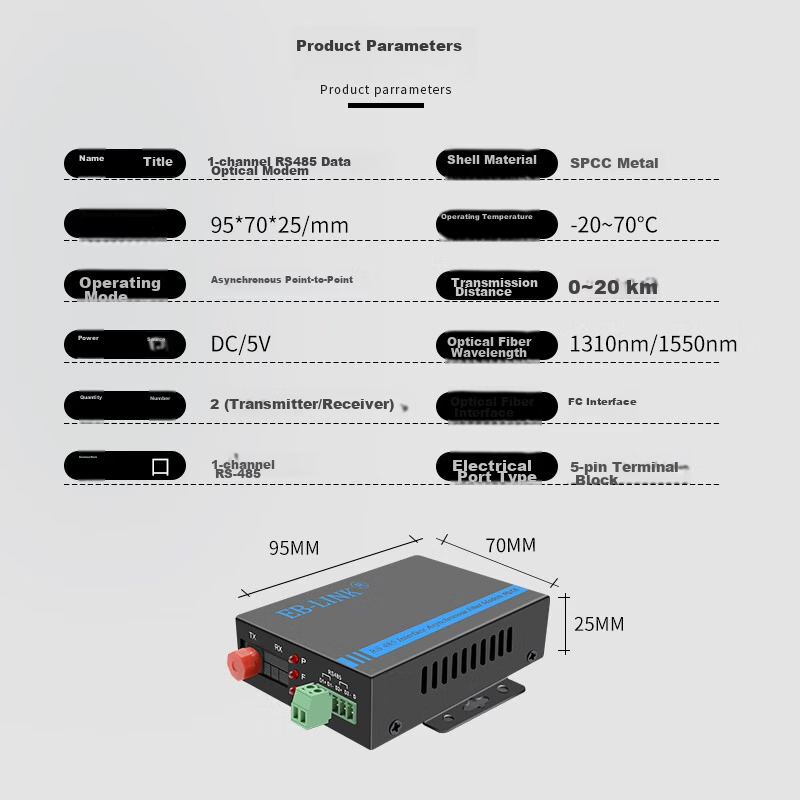

Dimensions

95 x 70 x 25 mm

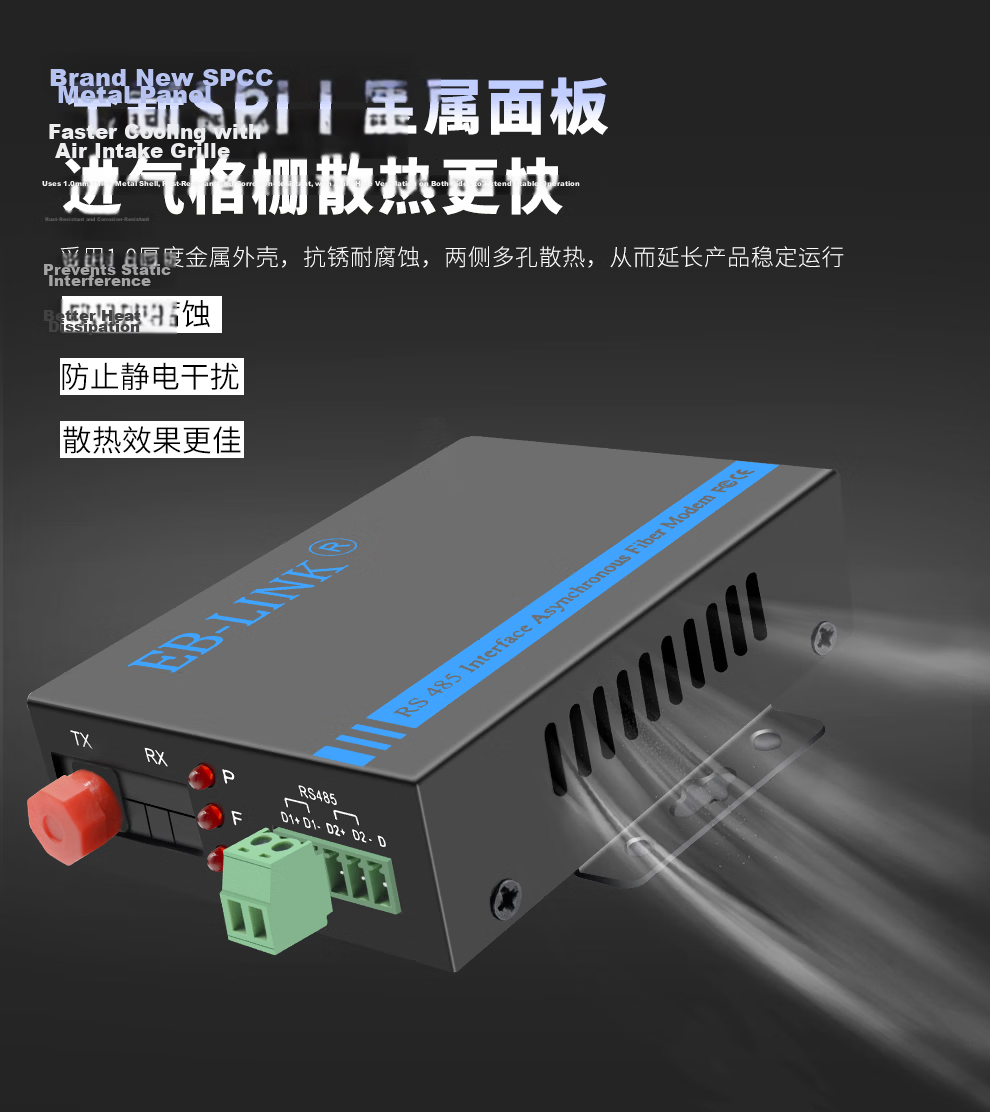

Cooling

Metal panel with ventilation grilles on both sides for enhanced heat dissipation and corrosion resistance

Anti-static and anti-rust design for extended stable operation

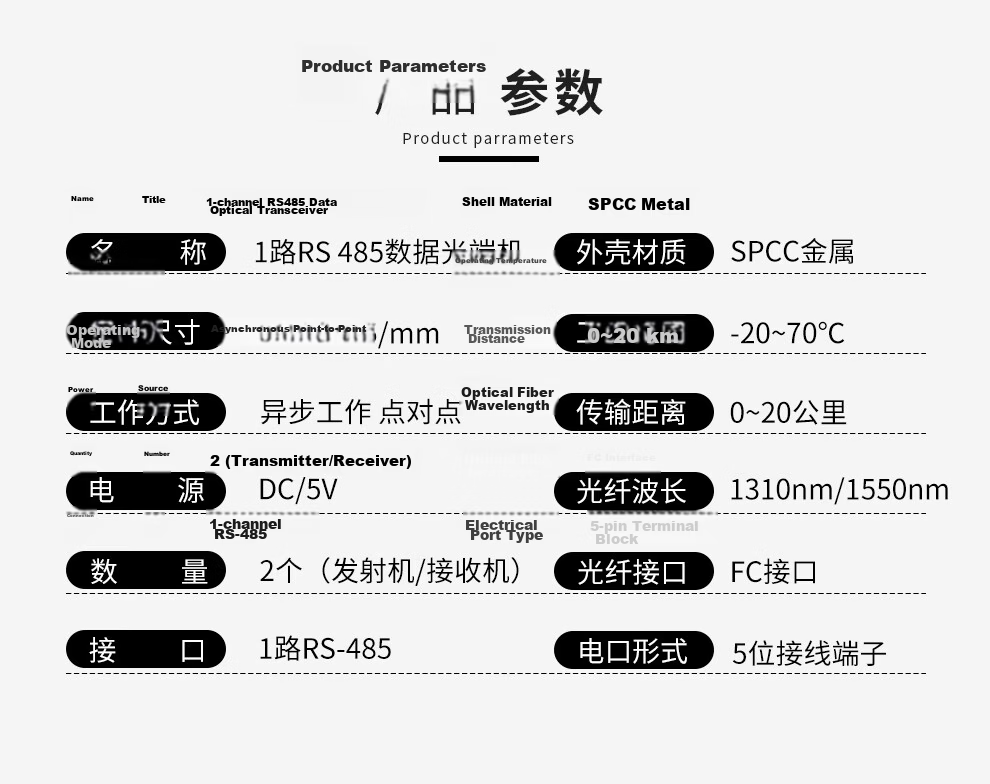

Additional details

Operating Temperature: -20°C to 70°C
Power Supply: DC 5V
Fiber Wavelength: 1310 nm / 1550 nm
Fiber Interface: FC connector (transmitter and receiver)
Transmission Distance: 0 to 20 kilometers
RS485 Port: 1 channel, 5-pin terminal block
RS485 Wiring: Positive (“+”), Negative (“-”), and Data output (“D”)

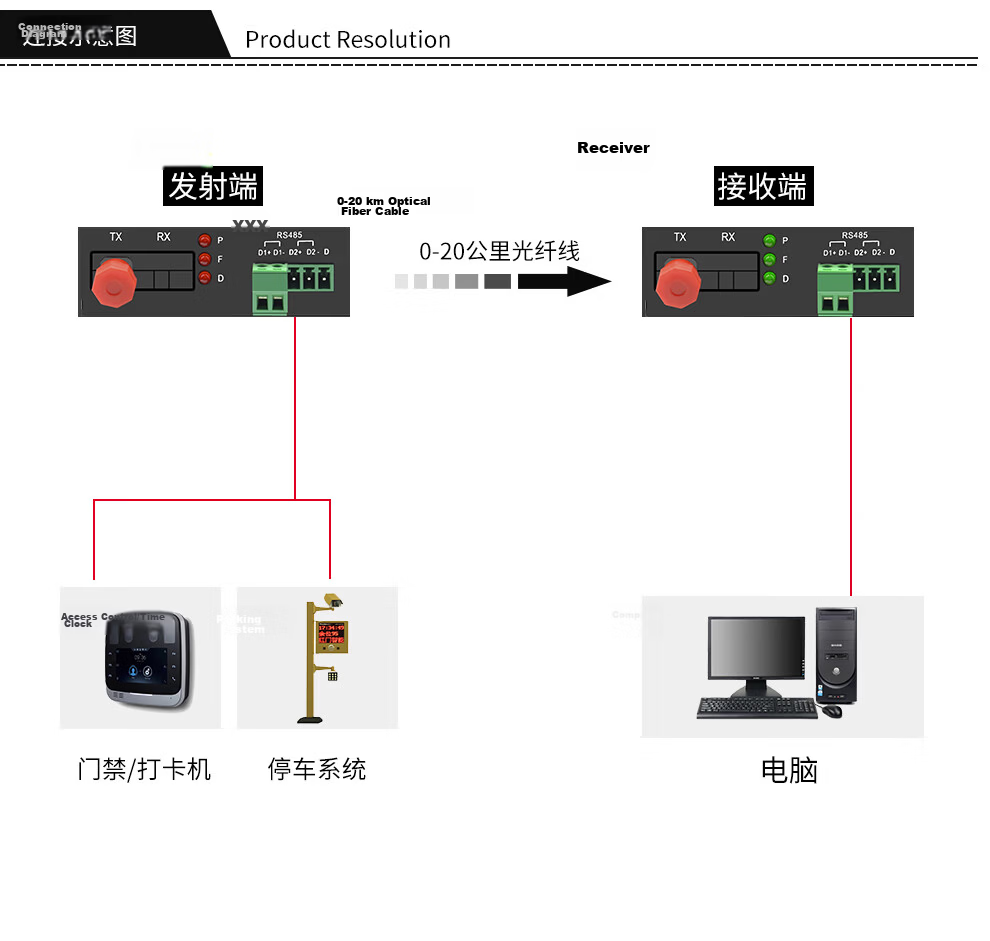

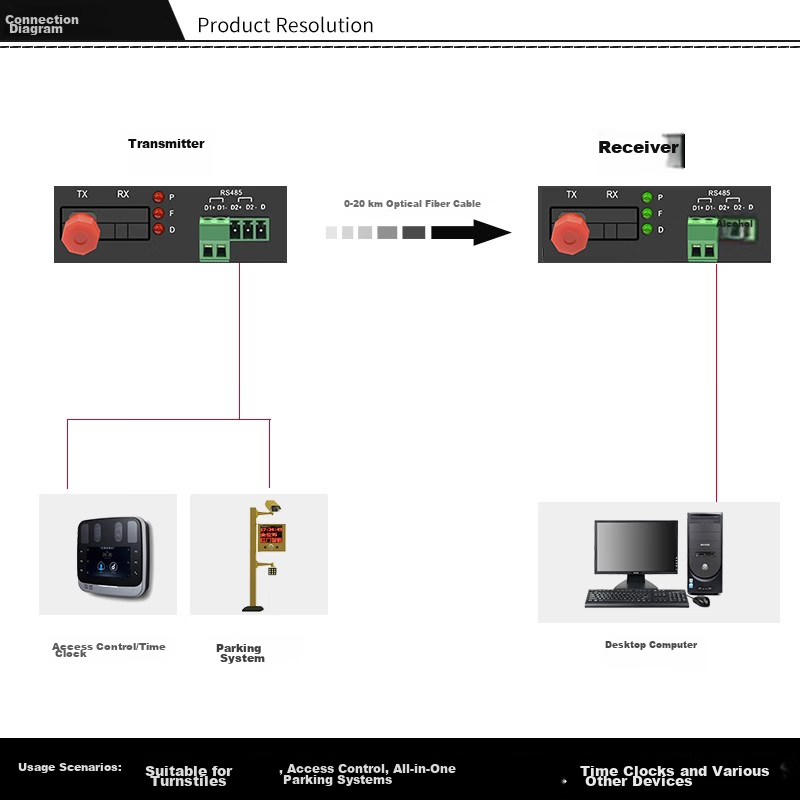

Supports asynchronous point-to-point communication

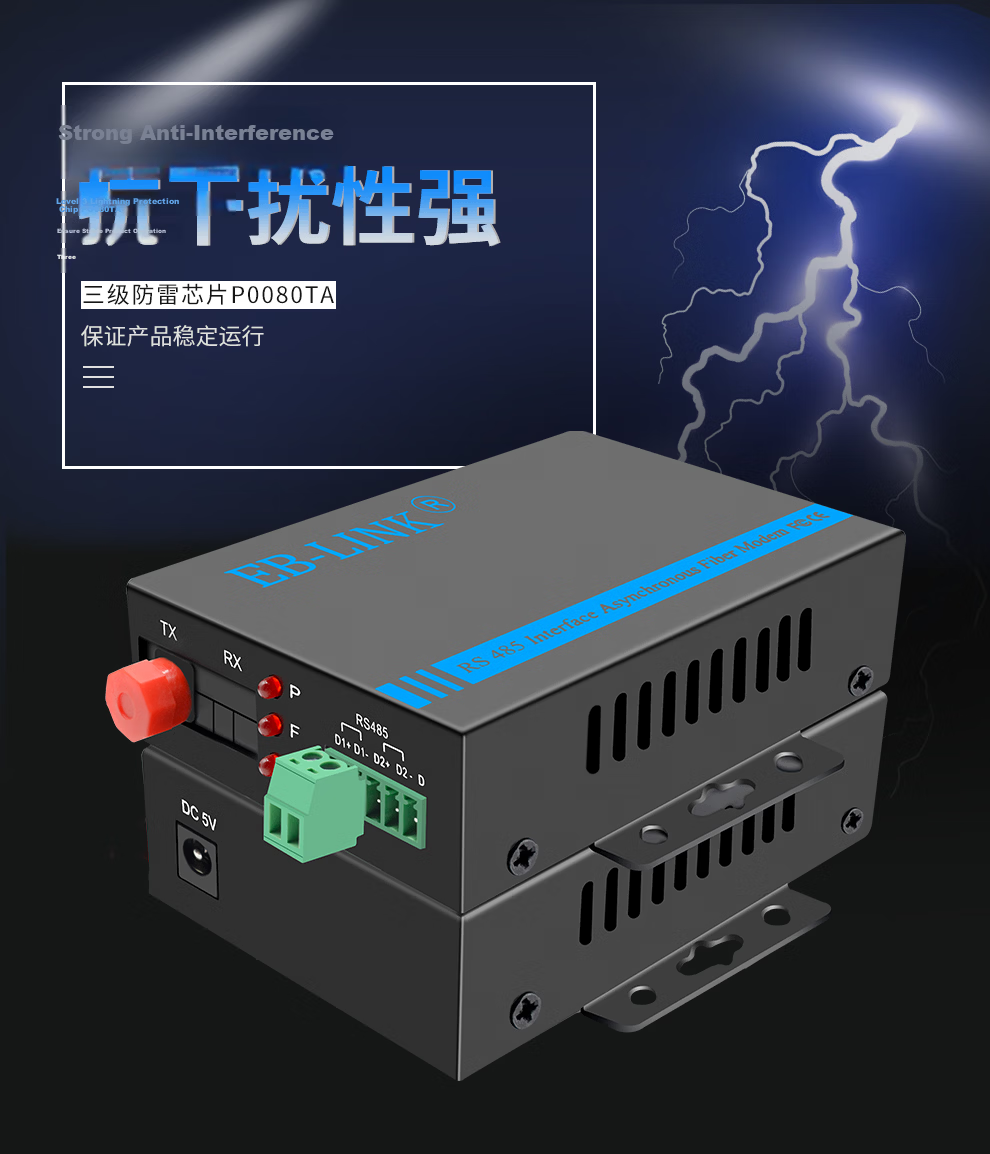

Strong anti-interference with triple lightning protection chip PO080TA

Stable operation ensured by original main control chip and rigorous testing

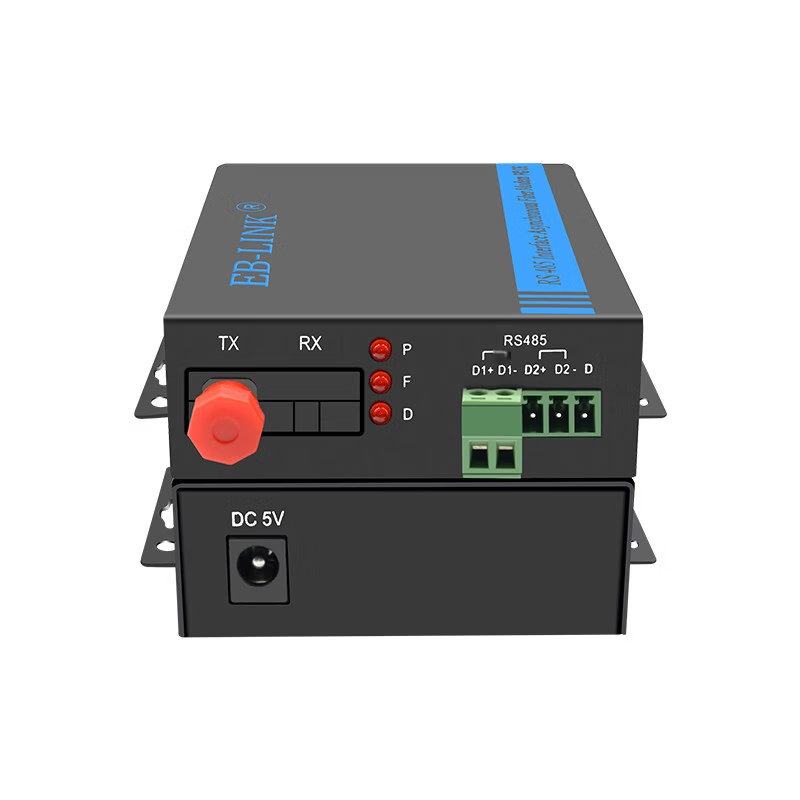

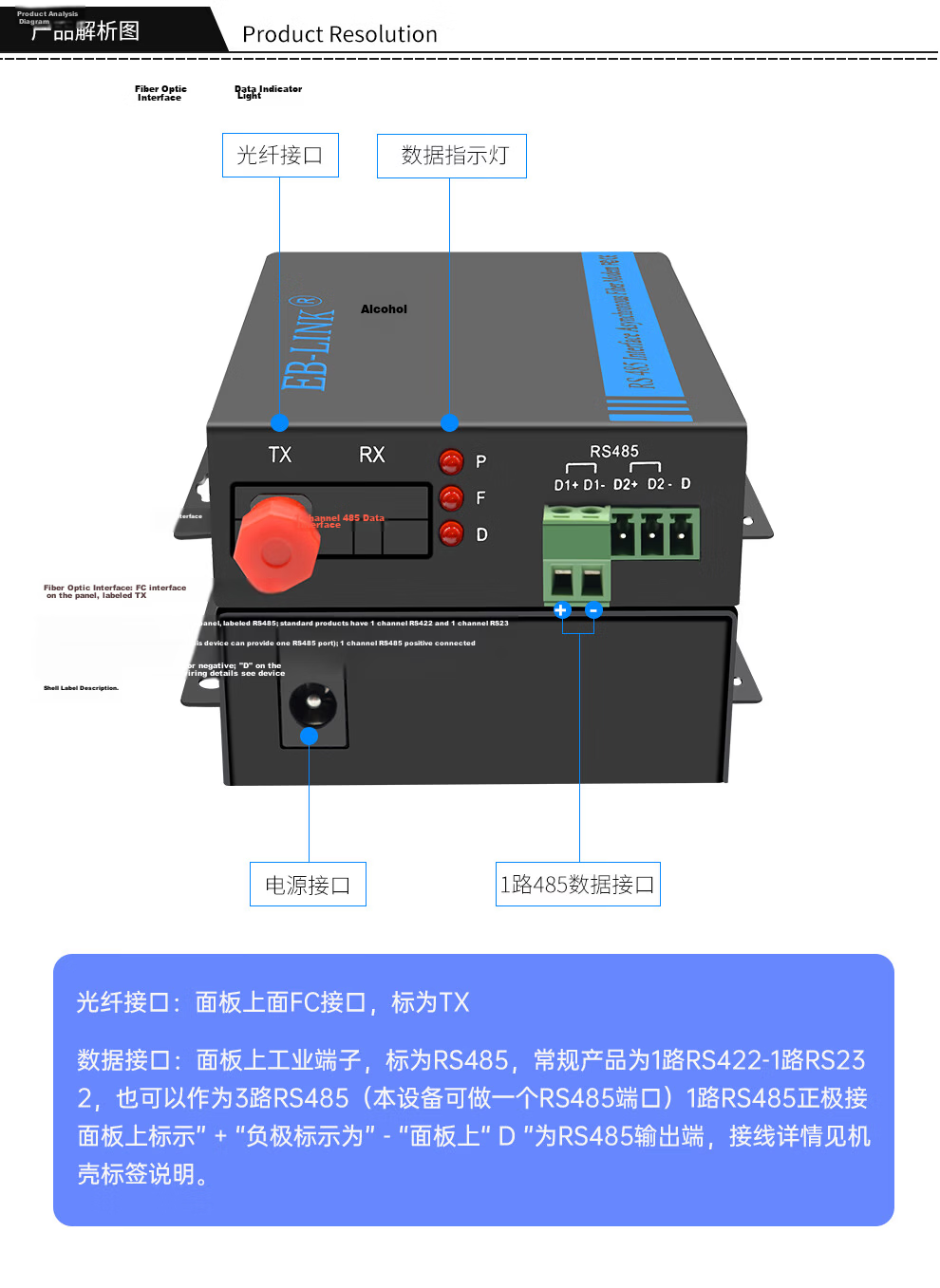

Fiber interface labeled TX on panel

Data interface labeled RS485 on industrial terminal

Status LEDs for TX, RX, and RS485 data transmission

Suitable for various environments and industries including

Access control systems (door access, card readers)
Parking management systems
Industrial automation control
Electronic surveillance
Rail transit and smart city infrastructure
Ticket gates and community entrance gates

1 x RS485 Data Optical Transceiver (Transmitter/Receiver)

This device can be configured as 1-channel RS485 port; conventional models may support RS422 or RS232 as well. Wiring details are provided on the device label.
