BOYANG High-Frequency RF Coaxial Connector 50 Ohm SMA Female to SMA Adapter SMA Straight-Through Female Connector SMA Double Female Adapter 1 Piece BY-SMA
Specifications
Category Other
Connecting wire Other
Converter Other
Shielding type Other
Cord Length Other Variants / Sale Attributes Model: SMA female to SMA female
Package Contents Boyang high-frequency RF coaxial connector 50 ohm SMA female to SMA adapter SMA female straight connector SMA double female adapter 1 piece BY-SMA-KK*1 certificate*1
Product Description Overview
Brand BOYANG

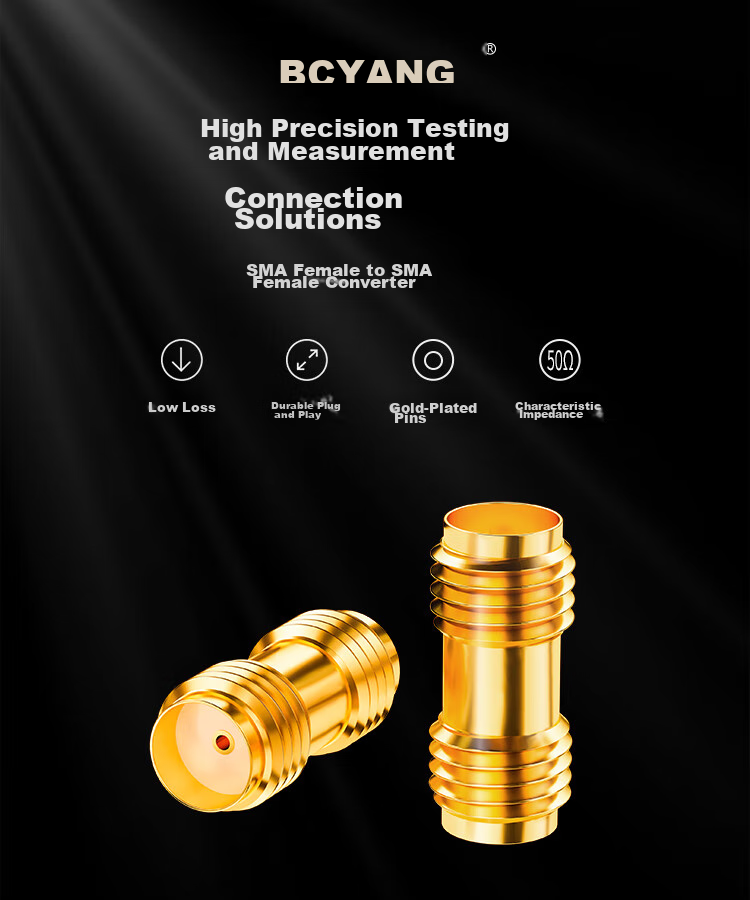

Product Name SMA Female to SMA Female Adapter
Impedance 50Ω
Operating Temperature -55°C to +125°C
Model Number BY-SMA-KK
Relative Humidity ≤95% (at 40°C)
VSWR ≤1.25
Frequency Range 0-6GHz
Similar Products
Connector Body
Brass with Nickel Plating
Mechanical Durability ≥500 cycles

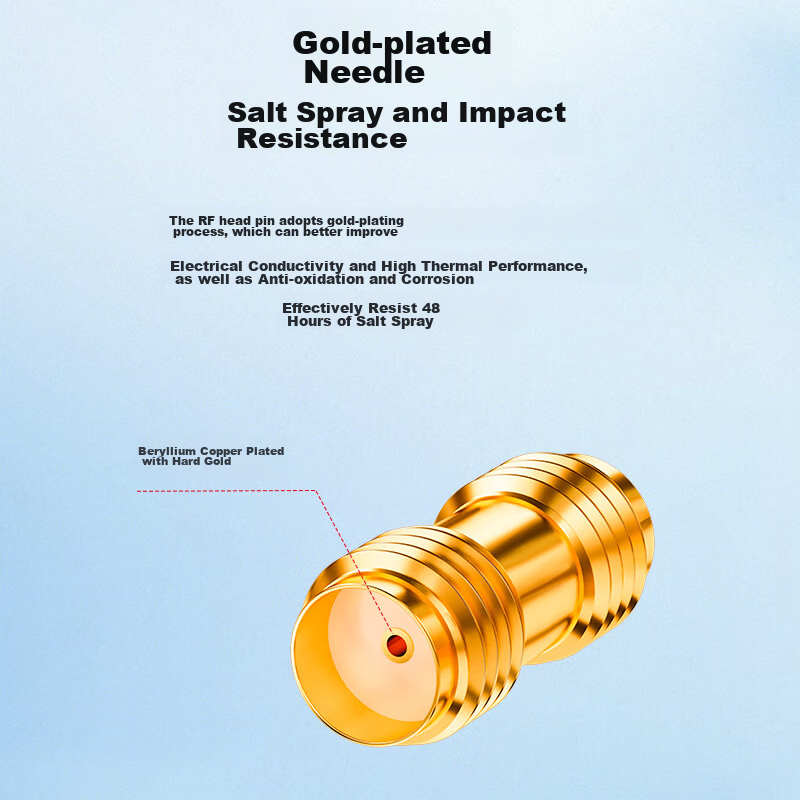

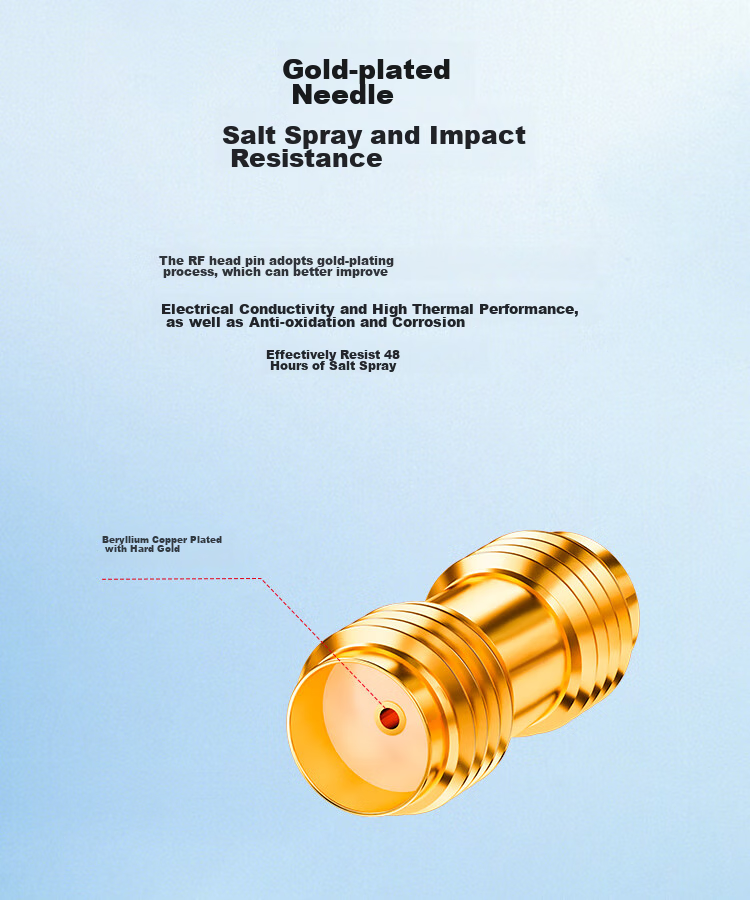

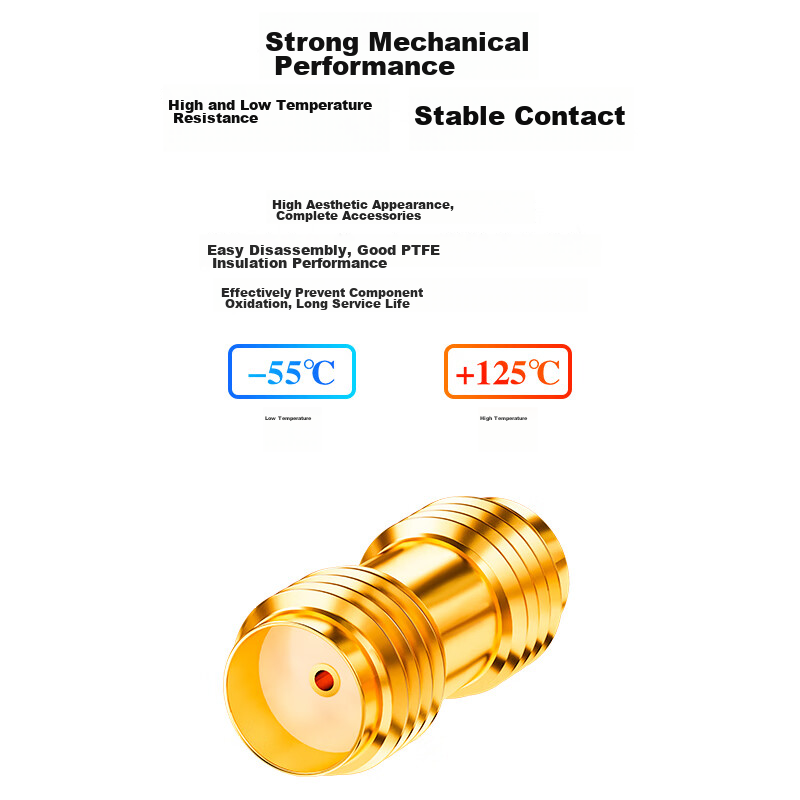

Inner Conductor Beryllium Copper with Hard Gold Plating Gold-plated pins for enhanced electrical conductivity and thermal performance
Salt spray and impact resistance for durability

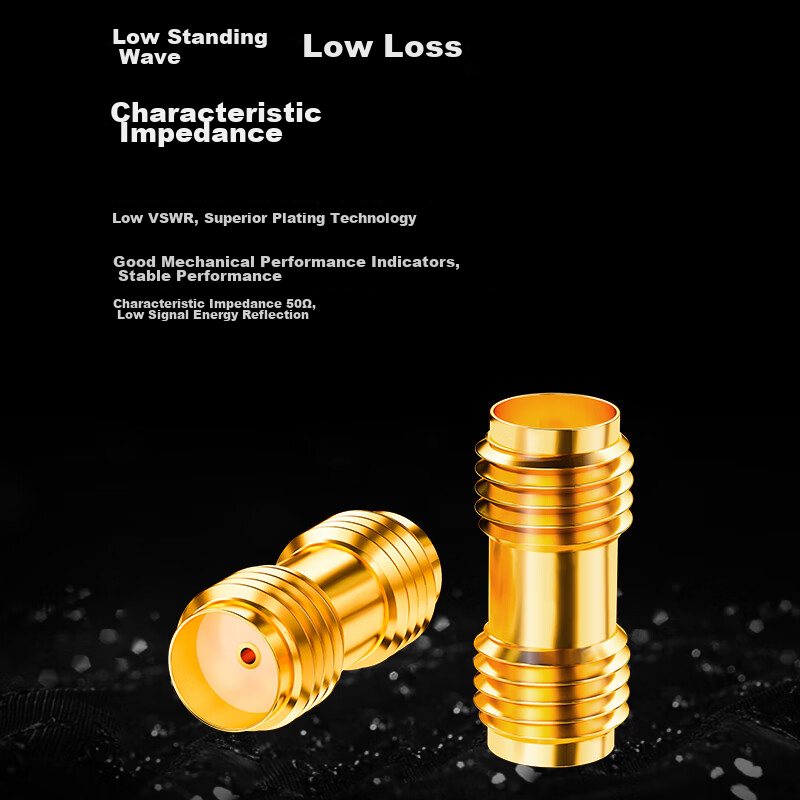

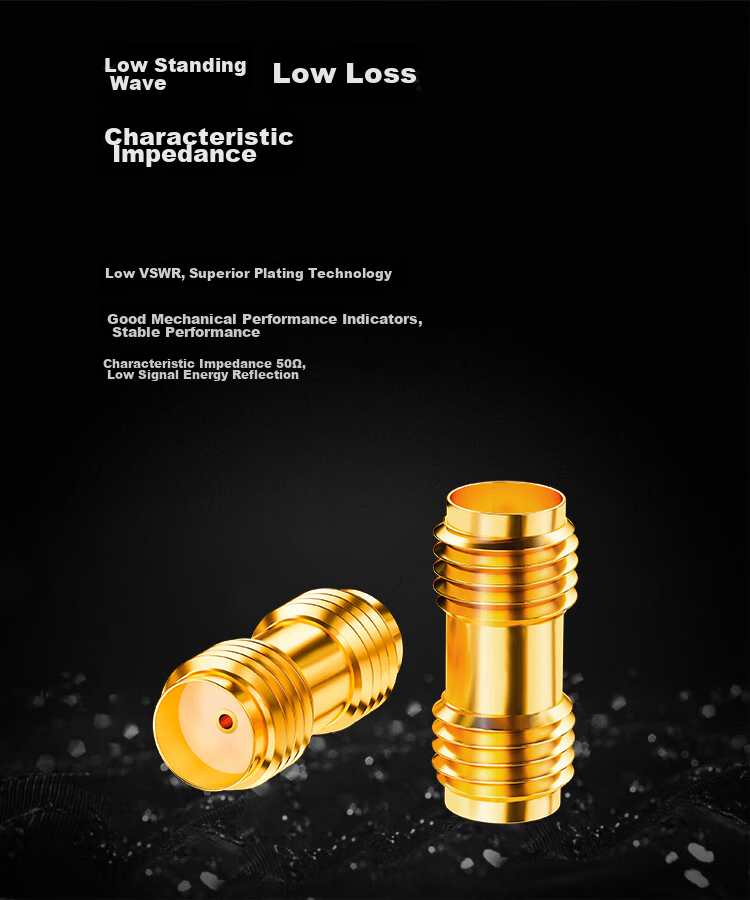

Low VSWR, low loss, and stable impedance for optimal signal transmission
High mechanical strength, stable contact, and attractive appearance
Complete accessories for easy installation and disassembly
PTFE insulation for long-term use and prevention of oxidation
Additional details

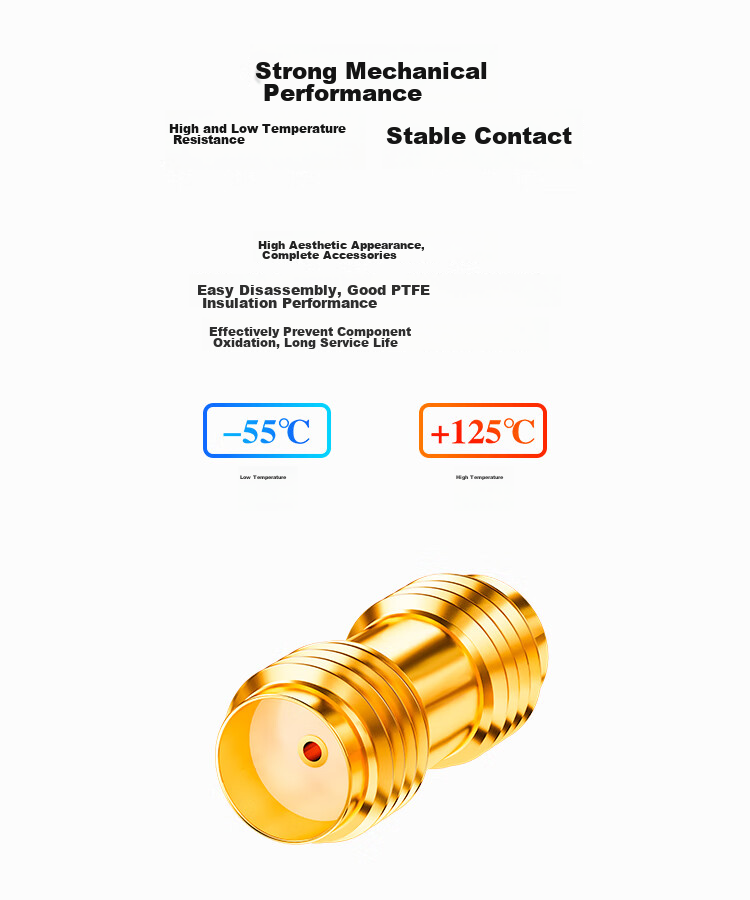

Wide temperature range -55°C to +125°C

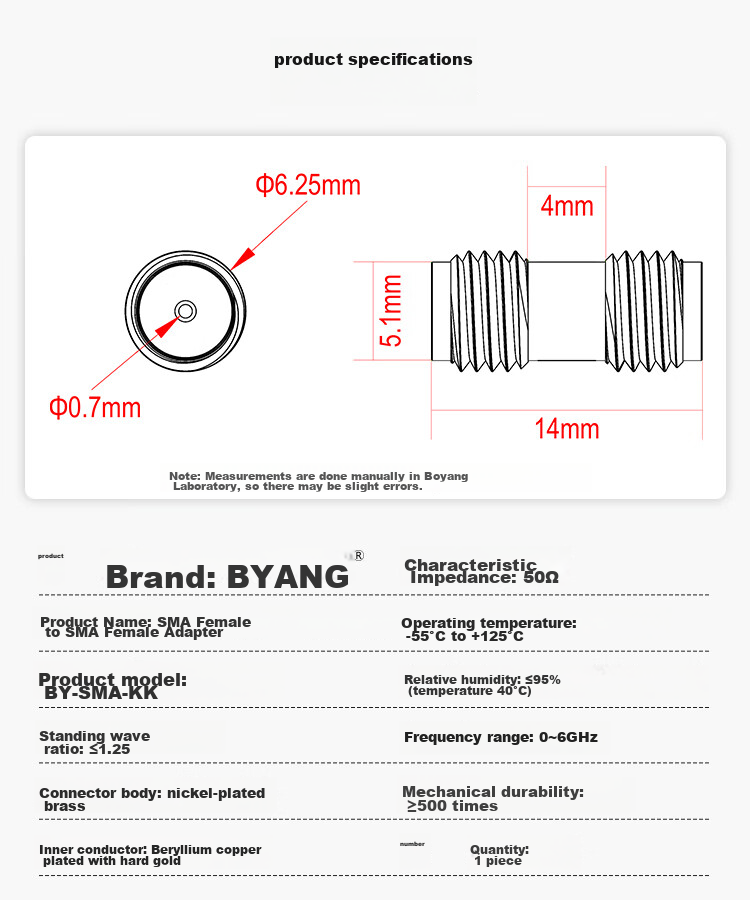

Diameter Φ6.25 mm
Length 4 mm
Width 5.1 mm
Pin Diameter Φ0.7 mm
Height 14 mm Laboratory measurements may have slight errors.
Widely used in communication equipment and radio instruments
Ideal for connecting cables in RF circuits to ensure clear and stable voice transmission
Additional details
Quality Assurance BOYANG ensures high-quality network connectors for reliable performance. National High-tech Enterprise (GR202044206950)
Shenzhen Specialized and New Enterprise (SRDI202103013)
Utility Model Patent Certificate (ZL202122040050.0)
"Specialized and New" Small and Medium-sized Enterprise Recognition Certificate (SRDI202103013)
Additional details
Patent Number ZL202122040050.0
Patent Type Utility Model
Issued to Shenzhen Zhongwei Chuang Technology Co., Ltd. CAICT China Academy of Information and Communications Technology Testing Report Number: 822X72566
Additional details
China Quality Certification Center (CNAS) Testing Report XAY.XTK.
Laboratory Accreditation China Quality Certification Center (CNAS)
Testing Facility China Quality Certification Center (CNAS)
Authorized by Ministry of Industry and Information Technology and General Administration of Quality Supervision, Inspection and Quarantine of China
Disclaimer Hand measurements in the laboratory may have slight discrepancies.
