Yijiatong IP Voice Telephone Exchange IPPBX2050, 2 External Lines, 50 SIP Extensions, Telephone Exchange, Programmable Exchange, Wiring-Free Network Telephone

Overview

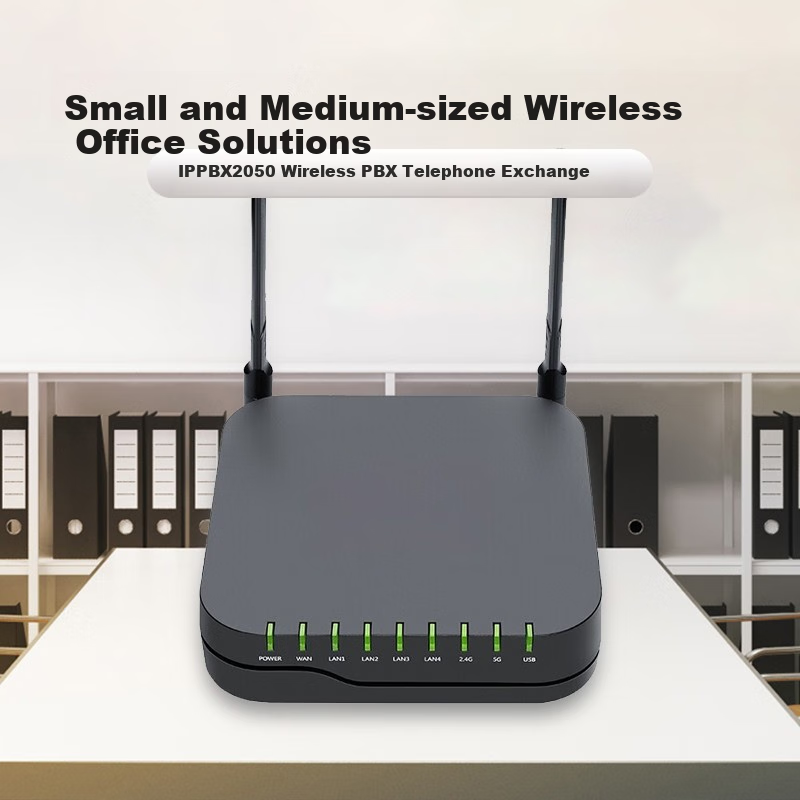

Interface and Indicator Diagram

• Ports: POWER, WAN, LAN1, LAN2, LAN3, LAN4, 2.4G, 5G, USB
• Indicators: LED, Status
• LED Status:
• POWER: Flashing (Green) - Data transmission or registering in progress
• PHONE1/2: Solid (Green) - Successfully registered to soft switch but no data flow
• PHONE1/2: Off - Not registered or registration failed
• 5G: Flashing (Green) - Data transmission
• 5G: Solid (Green) - 5G operational
• 5G: Off - No 5G
• 2.4G: Solid (Green) - 2.4G operational
• 2.4G: Flashing (Green) - Data transmission
• 2.4G: Off - No 2.4G
• LAN1/2/3/4: Solid (Green) - Network connected but no data transmission
• LAN1/2/3/4: Flashing (Green) - Data transmission
• WAN: Off - Network not connected or connection failed

Interfaces

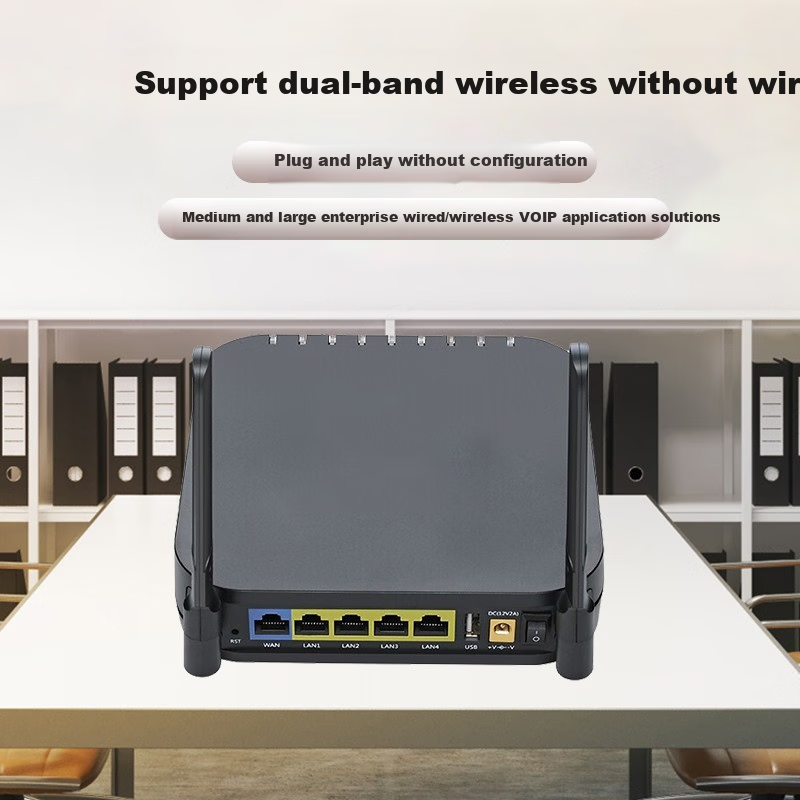

• DC (12V/2A), O, RST, WAN, LAN1, LAN2, LAN3, LAN4, USB, +V---V

Interface Instructions

• POWER: Connect power adapter
• PHONE1/2: Connect phone
