HIKVISION Surveillance Switch, 10 Gigabit Ethernet Ports, 8 POE Ports, 1 Electrical Port, 1 Optical Port, Power Over Ethernet, Unmanaged Splitter, Metal Shell, Lightning Protection, 3E0510P-E
Thumbnail 1
Thumbnail 2
Thumbnail 3
HIKVISION•Switch

HIKVISION Surveillance Switch, 10 Gigabit Ethernet Ports, 8 POE Ports, 1 Electrical Port, 1 Optical Port, Power Over Ethernet, Unmanaged Splitter, Metal Shell, Lightning Protection, 3E0510P-E

CNÂ¥501.00
SKU: 100017557681
Status:Out of Stock
ID: 100031479874
Weight: 720.00 g
Dims:254x142x84 mm

Specifications

Downlink Interface Type
Ethernet Switch
Number of Ports
10 ports
Cloud-managed switch
Cloud management not supported
Power over Ethernet (PoE)
POE power supply
Suitable Scenarios
Access switch
Port Type
Electrical and optical ports
Cooling method
Natural heat dissipation
Set
Single product

Variants / Sale Attributes

Color: 10-Port Gigabit Switch

Package Contents

1 switch + 1 manual

Product Description

Overview

Brand
HIKVISION
Model
DS-3E0510P-E
Interface
8 Gigabit PoE ports, 1 Gigabit Ethernet port, 1 Gigabit optical port
Interface Type
RJ45 ports, full duplex, MDI/MDI-X adaptive
Standards
IEEE802.3, IEEE802.3u, IEEE802.3x
Processing Type
Store and forward
MAC Address Table
4K

Similar Products

In Stock
Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch
Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CNÂ¥580.50

View
In Stock
Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10
SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CNÂ¥179.00

View
Network Management Type
Non-managed
Uplink port rate
Gigabit
Downlink Port Rate
Gigabit
Switching Capacity
20Gbps
Packet Forwarding Rate
14.88Mpps
Internal Buffer
1.5Mbits
Power Supply Standard
IEEE802.3af, IEEE802.3at
Power Supply Core
Power supply for wires 1/2/3/6
PoE Ports
1-8
Port Power
30W per port, 110W for the whole device
Housing
Metal material, fanless
Weight
0.6 kg
Dimensions (L*H*D)
217.6 mm*27.8 mm*108.5 mm
Operating Temperature
0°C to 40°C
Storage Temperature
-40°C to 85°C
Relative Humidity
5% to 95% (non-condensing)
Power Specifications
48VDC, 2.5A

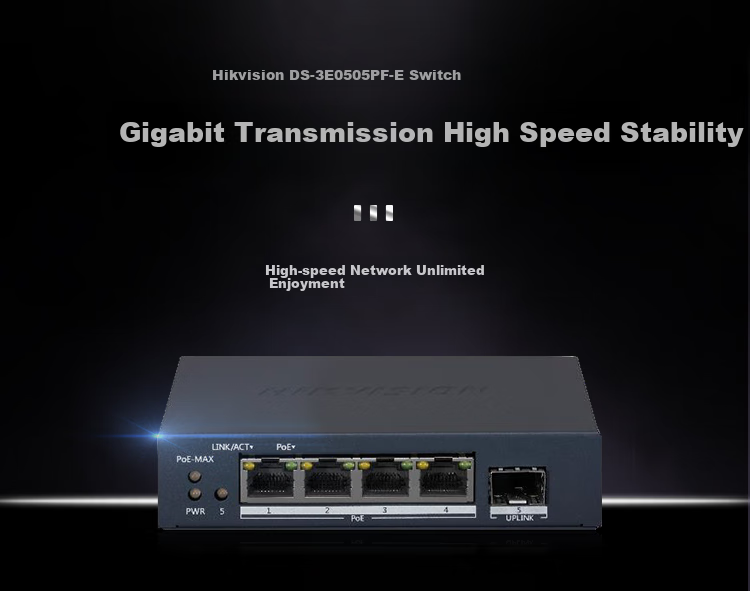

High-speed and stable data exchange

Supports 1000Mbps transmission

Wide compatibility with various devices

Easy installation with plug-and-play design

Supports surge protection up to 6KV

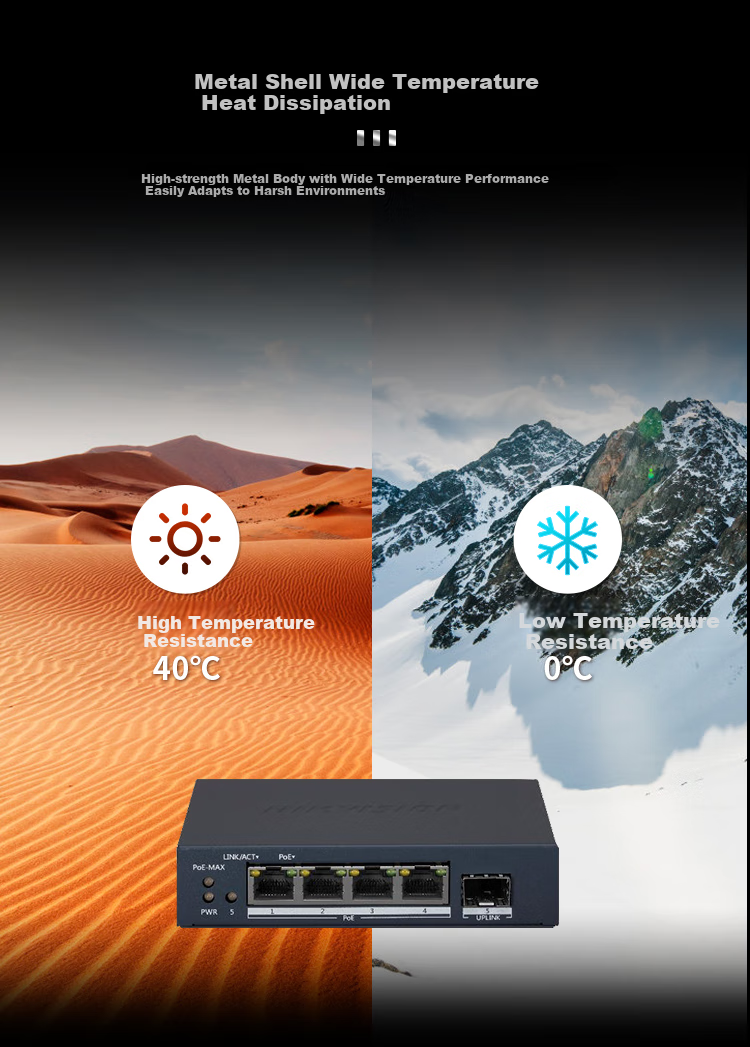

Wide temperature range for versatile environments

Supports wall-mount and desktop installation

Suitable for small to medium-sized enterprises, hotels, and multi-room locations
