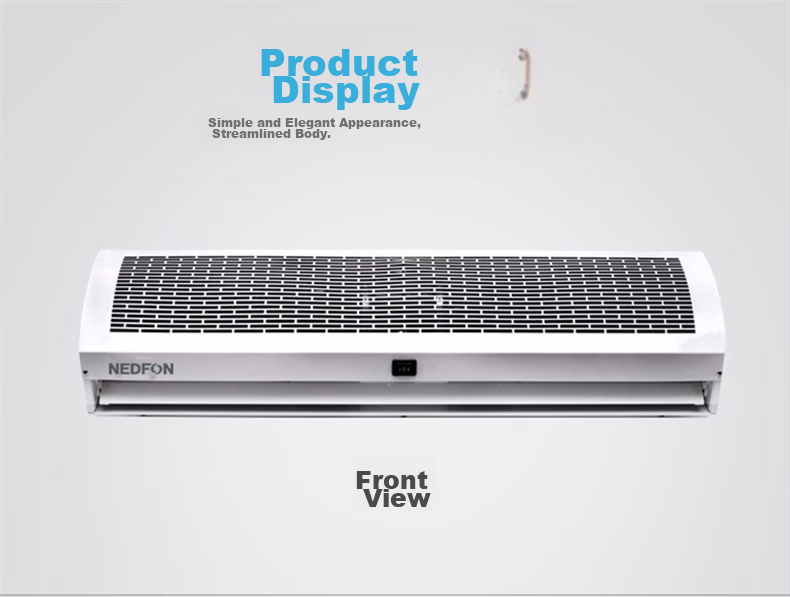

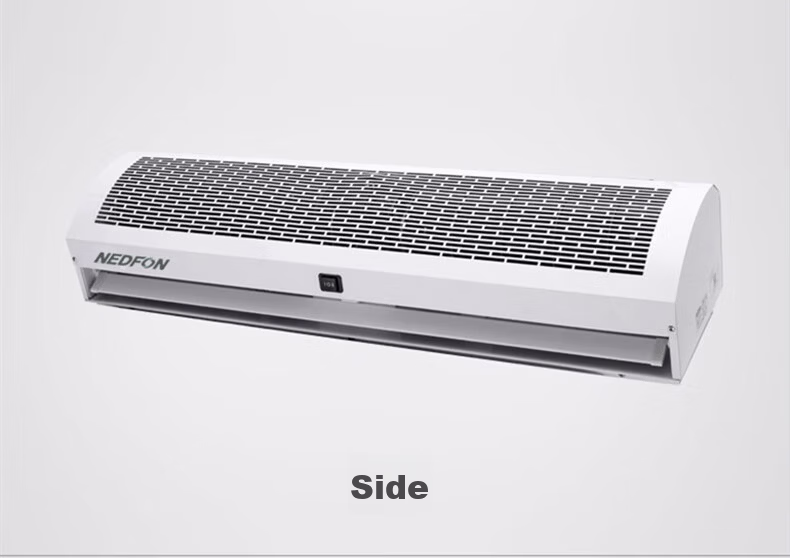

Nedfon FM3018-2-S Natural Wind Cross Flow Air Curtain Commercial 1.8m Powerful Air Door Curtain Fan

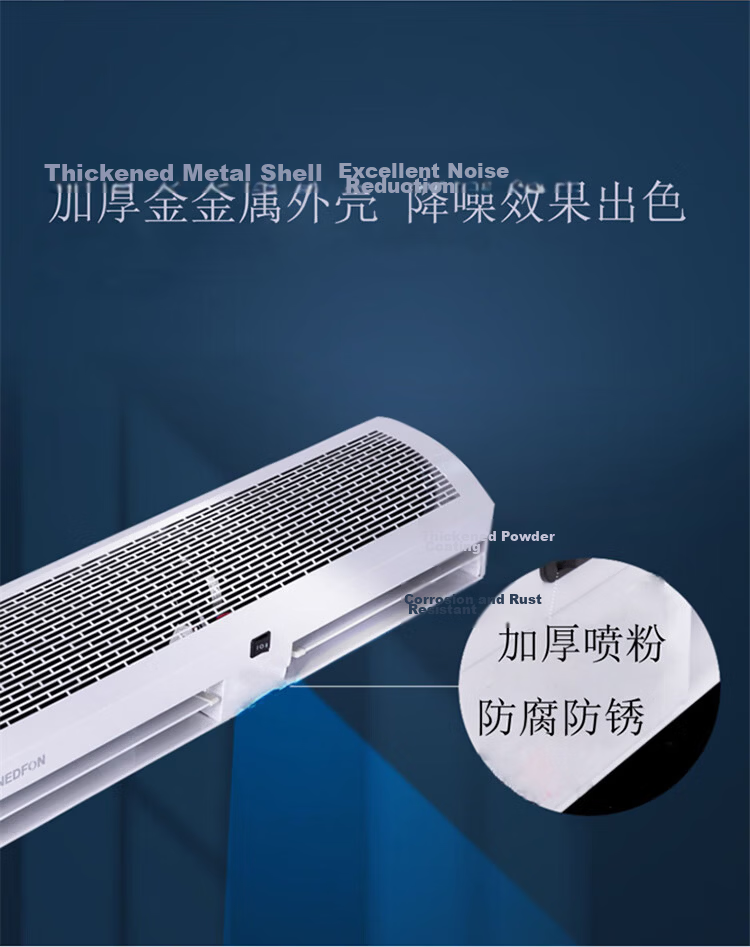

Noise reduction design with thickened powder-coated metal shell

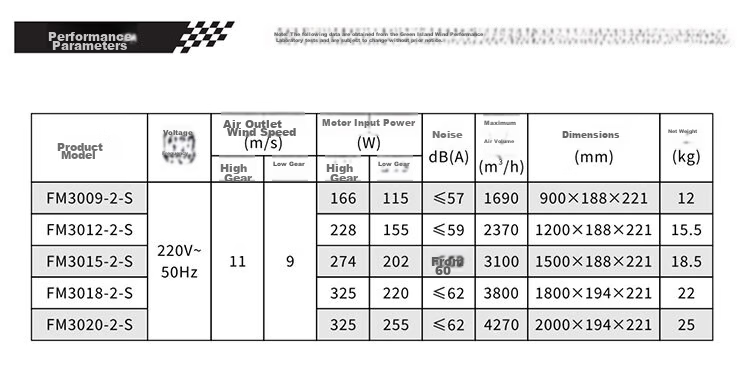

| Model | Length (mm) | Width (mm) | Height (mm) | Power (W) | Voltage/Frequency (V/Hz) | Air Volume (m³/h) | Air Speed (m/s) | Noise (dBA) | Net Weight (kg) | Speed Settings |

|-------------|-------------|------------|-------------|-----------|--------------------------|-------------------|-----------------|-------------|-----------------|----------------|

| FM3009-2-S | 900 | 188 | 221 | 166 | 220/50 | 1690 | 1.2 (High) | 57 | 12 | High/Low |

| FM3012-2-S | 1200 | 188 | 221 | 228 | 220/50 | 2370 | 1.5 (High) | 59 | 15.5 | High/Low |

| FM3015-2-S | 1500 | 188 | 221 | 274 | 220/50 | 3100 | 1.6 (High) | 60 | 18.5 | High/Low |

| FM3018-2-S | 1800 | 194 | 221 | 325 | 220/50 | 3800 | 1.8 (High) | 62 | 22 | High/Low |

| FM3020-2-S | 2000 | 194 | 221 | 325 | 220/50 | 4270 | 2.0 (High) | 62 | 25 | High/Low |

Maintain at least 600mm horizontal clearance for air intake when not embedded in ceiling

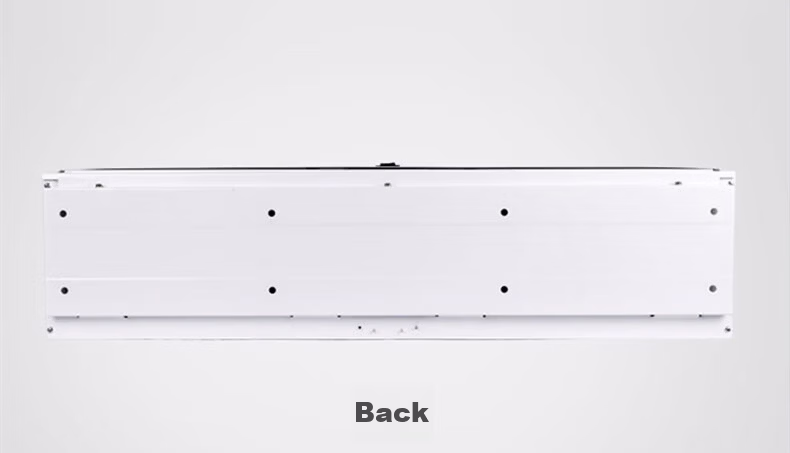

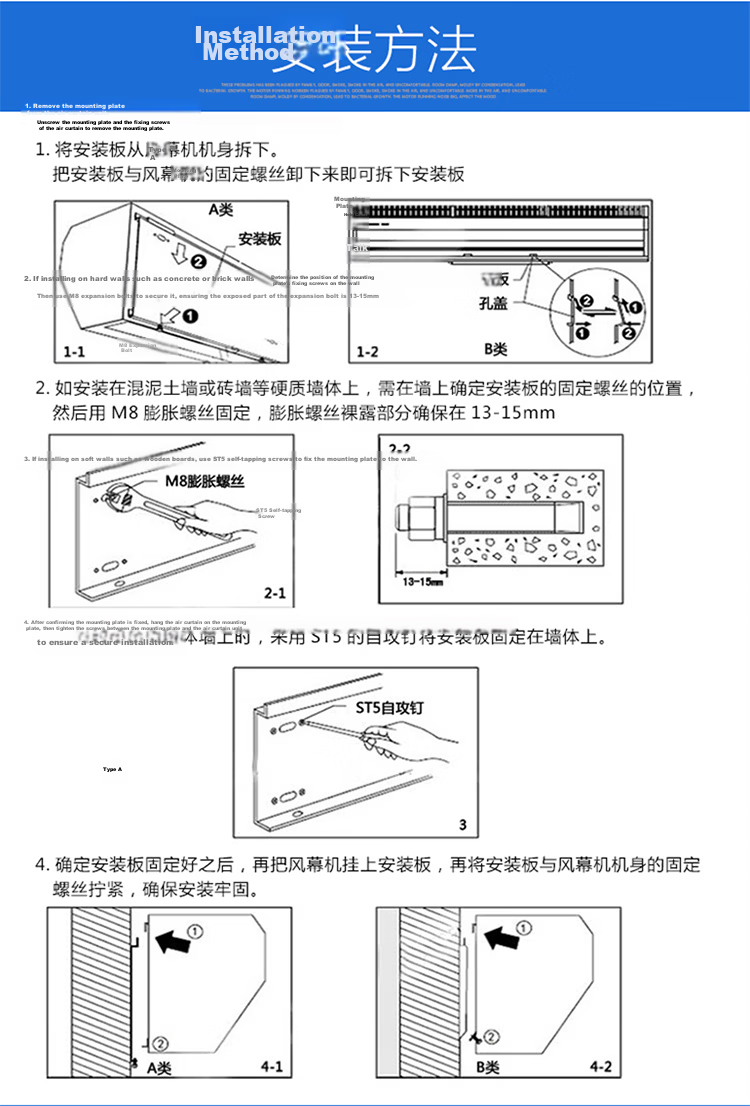

Wall mounting with provided mounting plate; screws not included due to varying wall materials

Use M8 expansion bolts for concrete or brick walls; ST5 self-tapping screws for wooden walls

Ensure secure installation to prevent product detachment

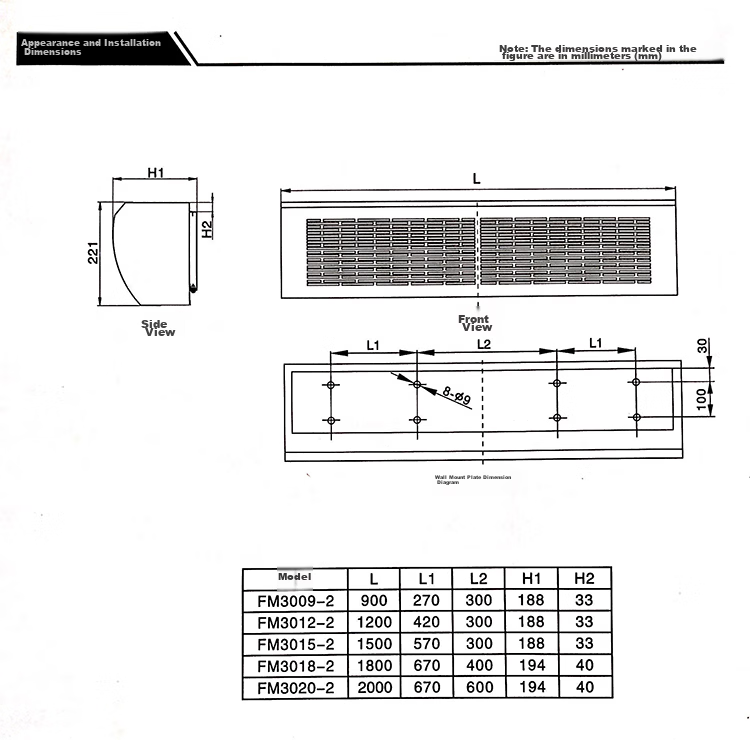

| Model | Length (L1) | Mounting Plate Length (L2) | Height 1 (H1) | Height 2 (H2) | Width (W) | Mounting Plate Thickness |

|------------|-------------|----------------------------|---------------|---------------|-----------|--------------------------|

| FM3009-2 | 900 | 270 | 300 | 188 | 33 | 33 |

| FM3012-2 | 1200 | 420 | 300 | 188 | 33 | 33 |

| FM3015-2 | 1500 | 570 | 300 | 188 | 33 | 33 |

| FM3018-2 | 1800 | 670 | 400 | 194 | 40 | 40 |

| FM3020-2 | 2000 | 670 | 600 | 194 | 40 | 40 |

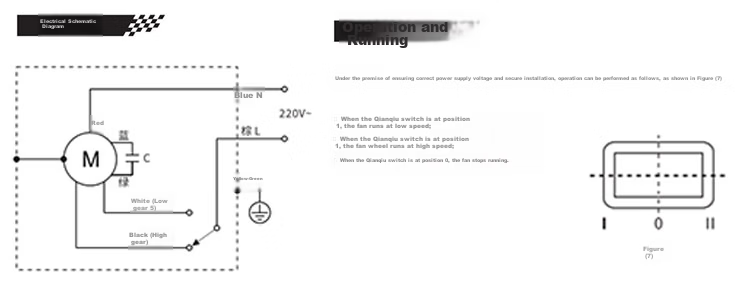

Color-coded wiring for easy installation and operation

China Compulsory Certification (3C)

Certified by China Quality Certification Center and Guangzhou Wukai Certification Testing Co., Ltd.

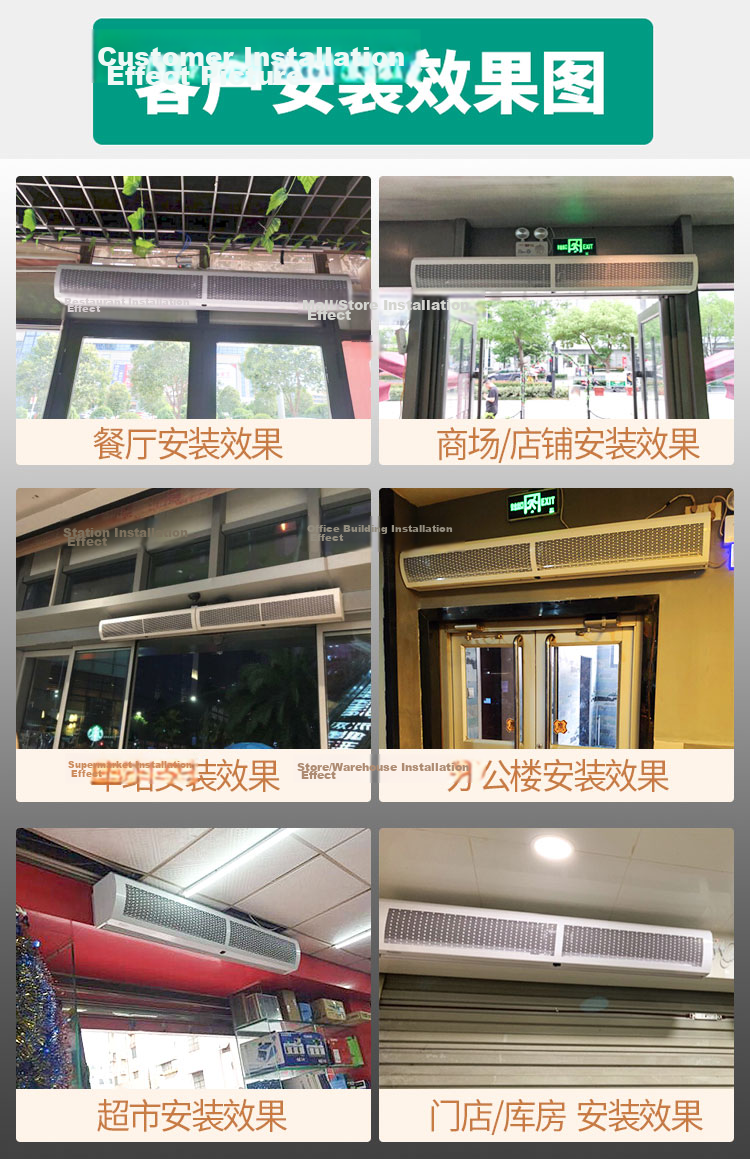

Suitable for restaurants, shopping malls, medical facilities, stations, office buildings, supermarkets, stores, and warehouses

Effectively blocks dust, insects, heat loss, and external pollutants while maintaining indoor air quality

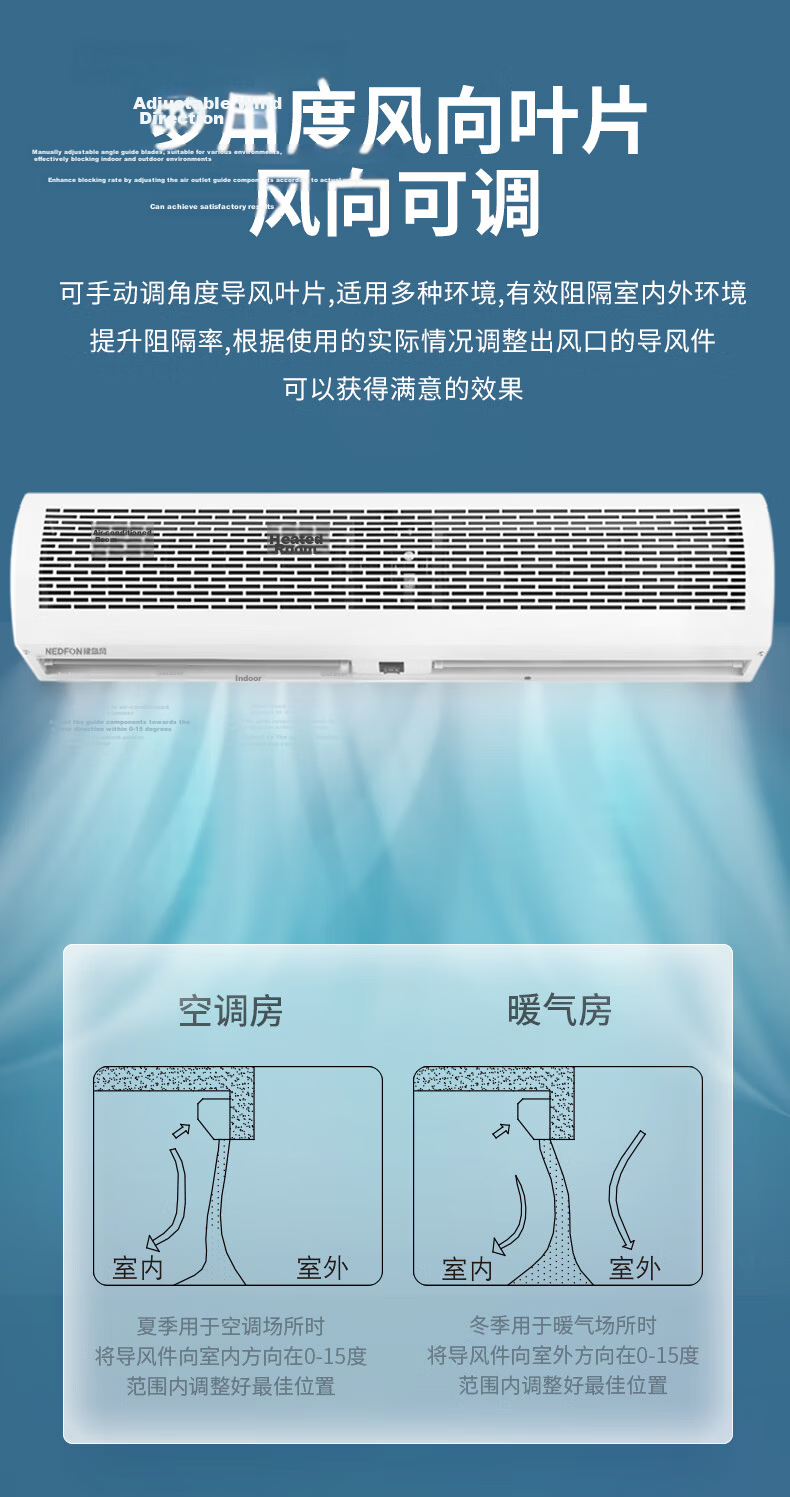

Ideal for air-conditioned and heated environments with adjustable wind direction for seasonal use

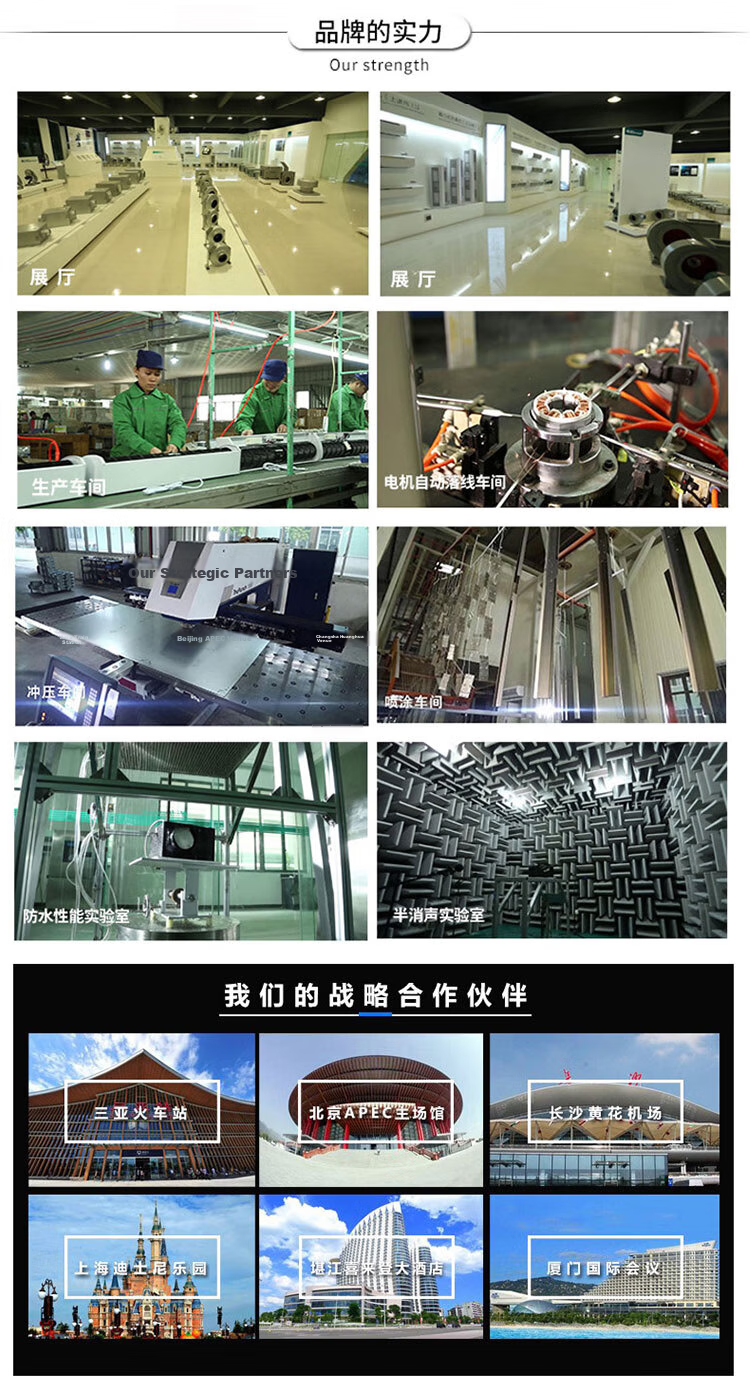

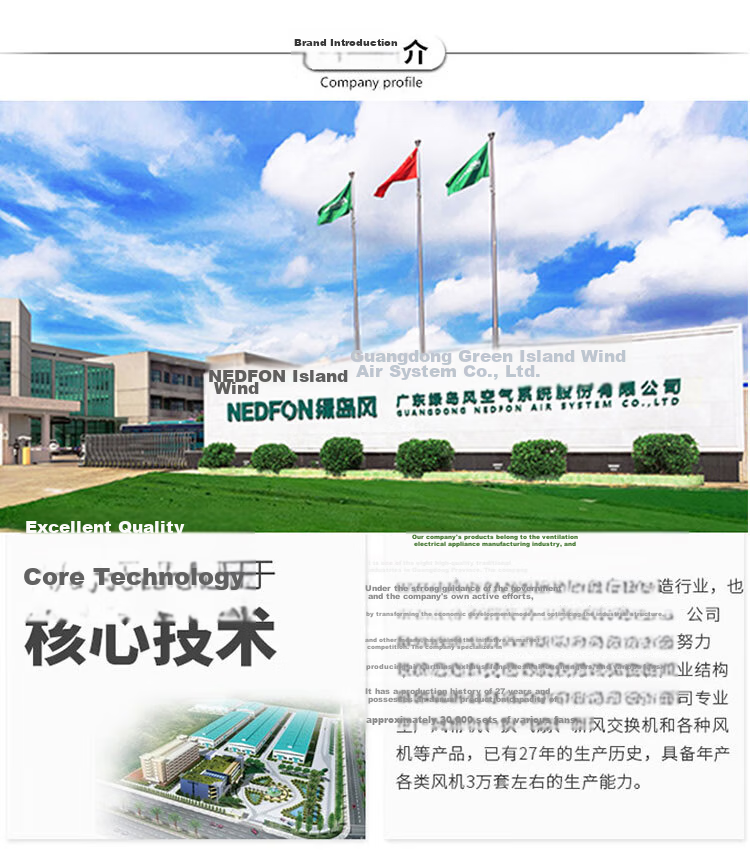

Guangdong Nedfon Air System Co., Ltd.

Over 27 years of experience in ventilation equipment manufacturing

Annual production capacity of approximately 30,000 units

Strategic partners include major railway stations and international event venues

Data tested in Nedfon performance laboratory; specifications subject to change without notice

Screws not included to accommodate different installation scenarios and materials
