Huigu 100Mbps 8-Port Industrial Switch, Industrial-Grade Ethernet Switch for Monitoring Network, Splitter, Hub, DIN Rail-Mounted HG800-FE308

•Switch

Huigu 100Mbps 8-Port Industrial Switch, Industrial-Grade Ethernet Switch for Monitoring Network, Splitter, Hub, DIN Rail-Mounted HG800-FE308

CN¥156.00

SKU: 100023524529

Status:In Stock (24)

ID: 100023524497

Weight: 530.00 g

Dims:228x160x72 mm

Specifications

Downlink Port Rate: 100Mbps
Downlink Interface Type: Ethernet Switch
Power over Ethernet (PoE): Non-POE power supply
Set: Single product
Suitable Scenarios: Access switch
Network Management Type: Non-managed
Cooling method: Natural heat dissipation
Cloud-managed switch: Cloud management not supported

Variants / Sale Attributes

Color: [Standard] 100Mbps 8-Port HG800-FE308

Version: JINGDONG Delivery

Package Contents

1 device 1 user manual 1 certificate of conformity 1 warranty card

Product Description

Overview

Brand: Hui Valley
Product Name: 8-Port 100 M Industrial Switch
Model: HG800-FE308
Business Interface: 8 × 10/100 M RJ45 ports
Power Interface: Phoenix terminal, dual power redundancy

Electrical Characteristics

Item	Detail
Input Voltage	DC12-54V
Power Consumption	<7W at full load

Similar Products

In Stock

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

View

In Stock

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

View

Port Type

Electrical port

Number of Ports

8 ports

Layer 2 Switching

Item	Detail
Switching Capacity	1.6Gbps
Packet Forwarding Rate	1.19Mpps
MAC Address Table	8K
Buffer	1 M

Environmental Conditions

Item	Detail
Operating Temperature	-40°C to +75°C
Storage/Transportation Temperature	-40°C to +75°C
Relative Humidity	5% to 95% non-condensing
Heat Dissipation	Fanless design, natural heat dissipation
MTBF	100,000 hours

Mechanical Structure

Item	Detail
Product Dimensions	120 × 90 × 45 mm
Installation Method	DIN rail mounting
Product Weight	Approx. 0.5 KG

Protection

Item	Detail
IP Rating	IP40
Power Surge Protection	IEC61000-4-5 4KV/2KV (8/20us)
Port Surge Protection	IEC 61000-4-5 4KV/2KV (10/700us)
Anti-static Interference	IEC61000-4-28K/15K

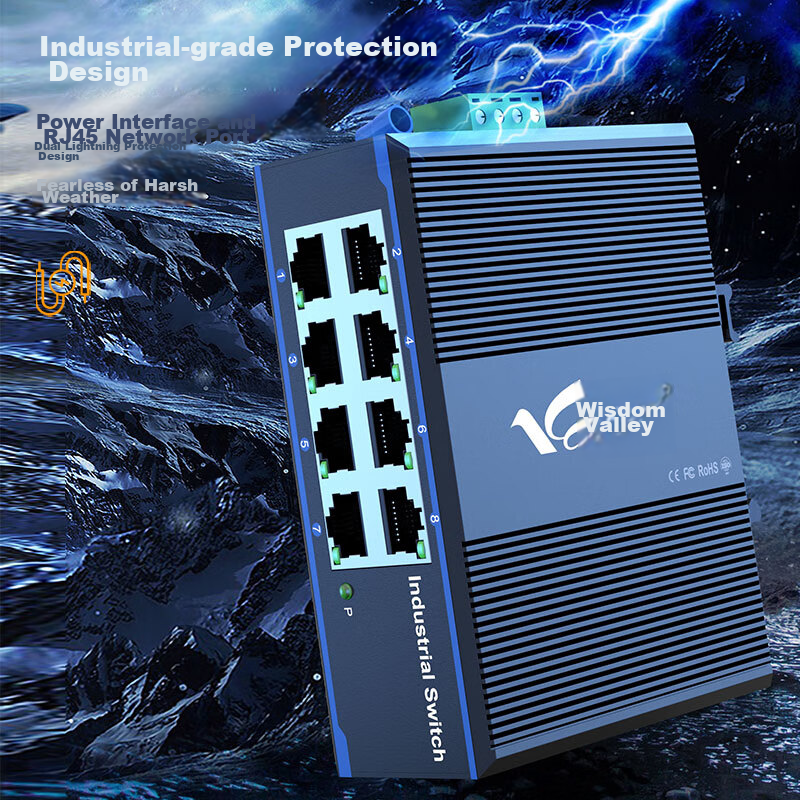

Industrial-grade design for harsh environments

Dual power redundancy for uninterrupted operation

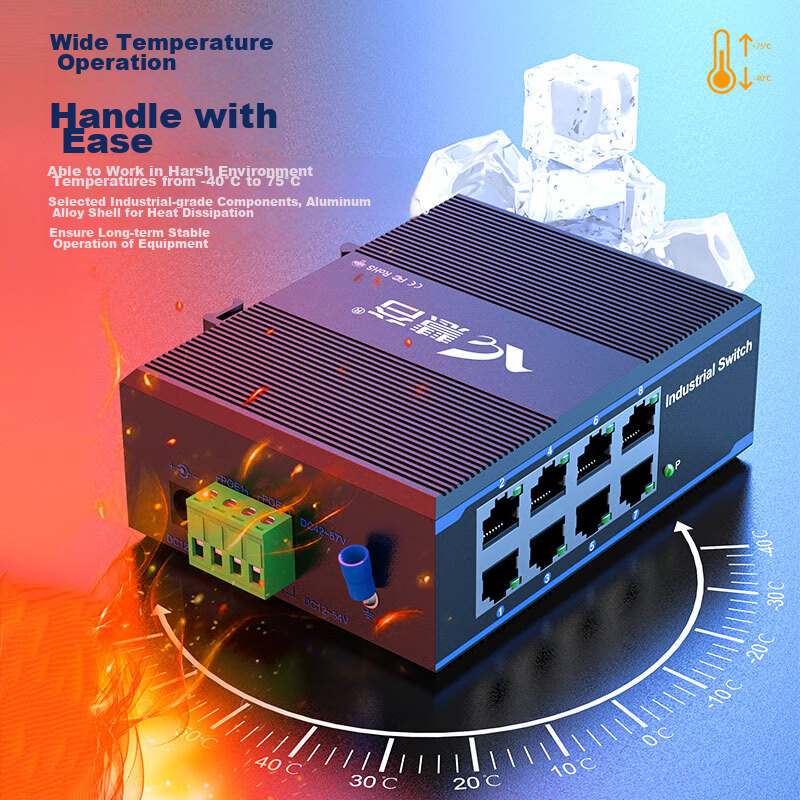

Wide temperature range from -40°C to +75°C

Suitable for various applications such as high-speed rail stations, video surveillance systems, and industrial automation

Extensive testing including low temperature, high temperature, vibration, and EMC interference

Quality certifications including CE, FCC, RoHS, and ISO9001

3-year warranty for peace of mind

Energy, smart cities, power/new energy/coal mines

Digital cities/comprehensive utility corridors/energy consumption control

Industrial Internet, transportation, intelligent manufacturing/metallurgy/environmental protection

Smart city rail/digital railways/airports, highways/ports

Rigorous quality control with over 10 testing procedures to ensure performance standards are met

China Compulsory Certification (CCC)

Quality Management System Certification (ISO9001)

Shenzhen Hui Valley Communication Technology Co., Ltd. Certification

Ministry of Public Security Testing Report

Ministry of Industry and Information Technology of the People's Republic of China Certification

Telecommunications Equipment Network Access License

RoHS, CE, FCC Compliance

The information provided is subject to change without prior notice.
