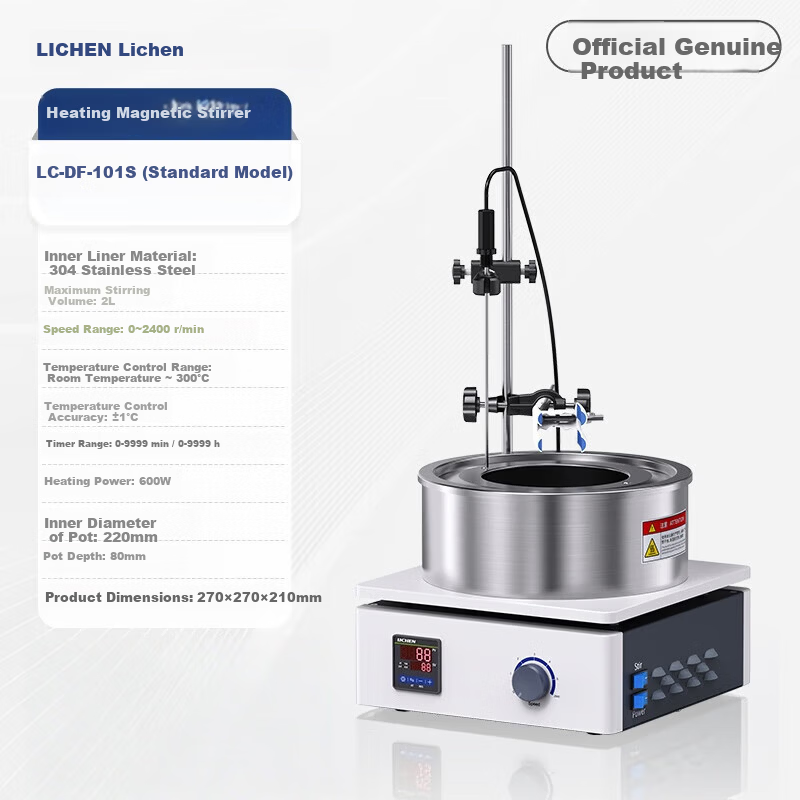

LICHEN Oil Bath Laboratory Heating Magnetic Stirrer Digital Display Constant Temperature Water Bath Oil Heating Pot DF-101Z
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
LICHEN•General laboratory equipment

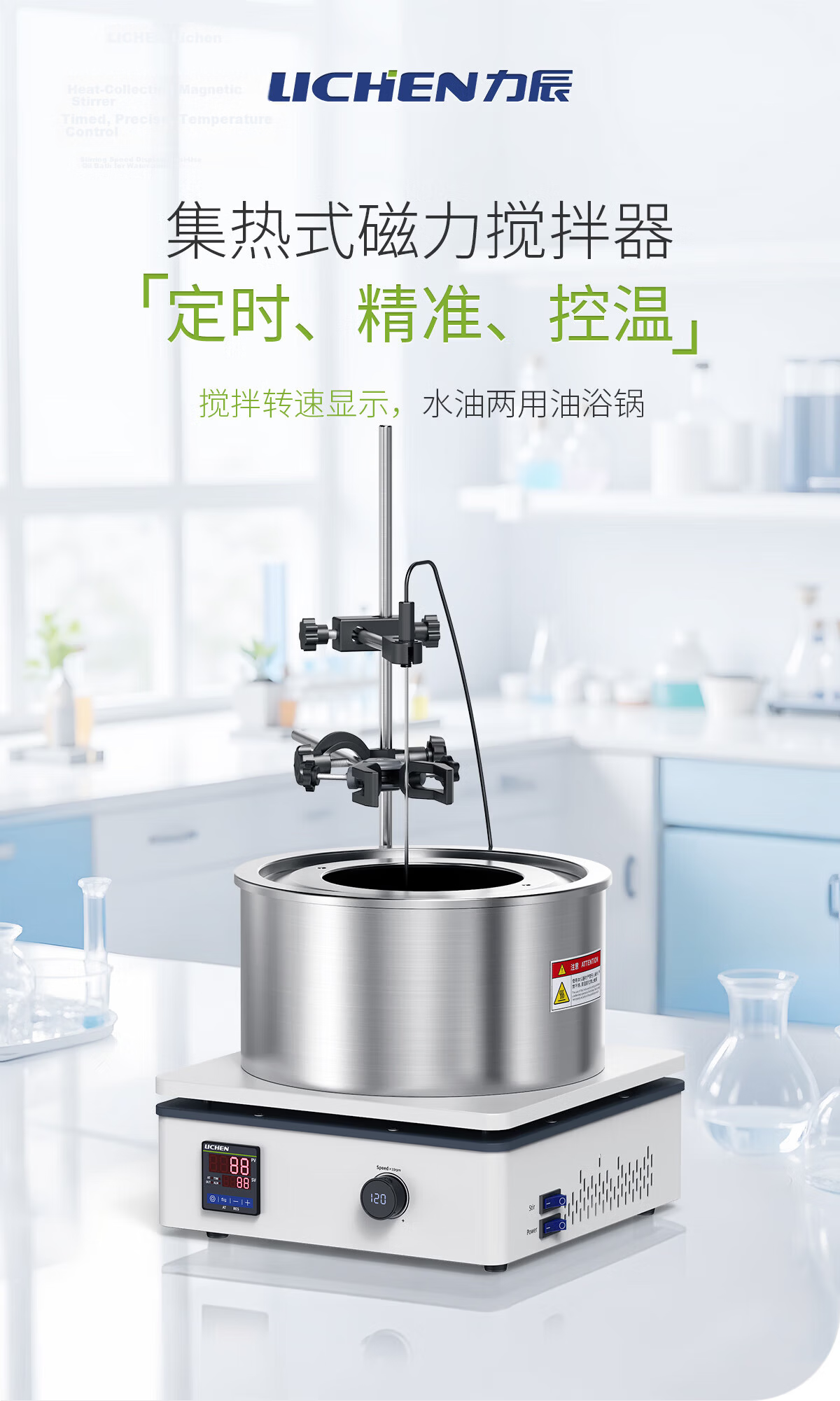

LICHEN Oil Bath Laboratory Heating Magnetic Stirrer Digital Display Constant Temperature Water Bath Oil Heating Pot DF-101Z

CNÂ¥705.20
SKU: 100024308659
Status:In Stock (5)
ID: 100024308659
Weight: 5535.00 g
Dims:355x351x283 mm

Specifications

Is it digital display?
Digital display
Thermal protection function
Equipped with overheat protection

Variants / Sale Attributes

Item number: DF101S Standard [2L] Timer

Package Contents

one unit

Product Description

Product Specifications

Overview

Brand
LICHEN

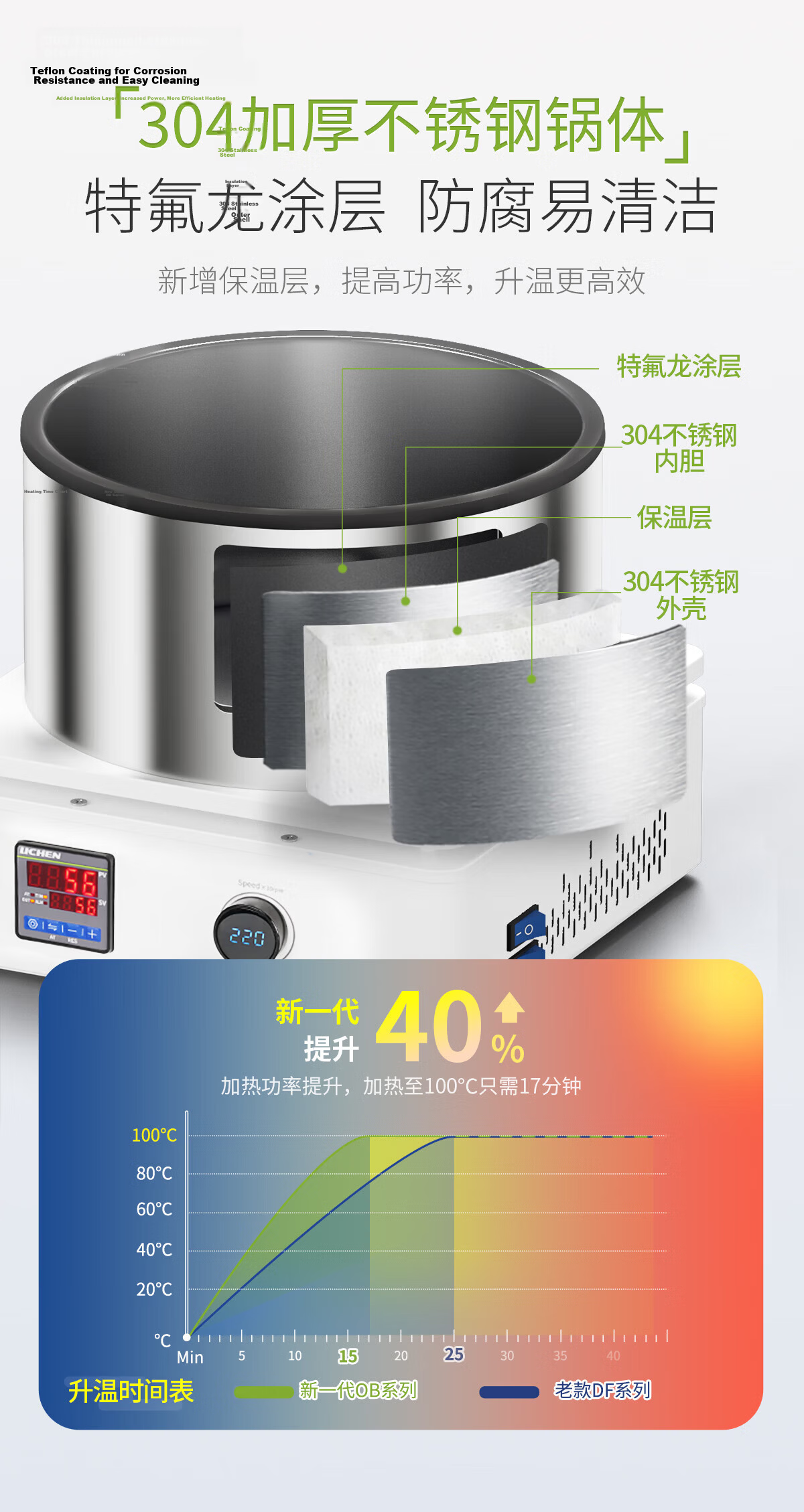

Constructed with 304 stainless steel and Teflon coating for corrosion resistance and easy cleaning

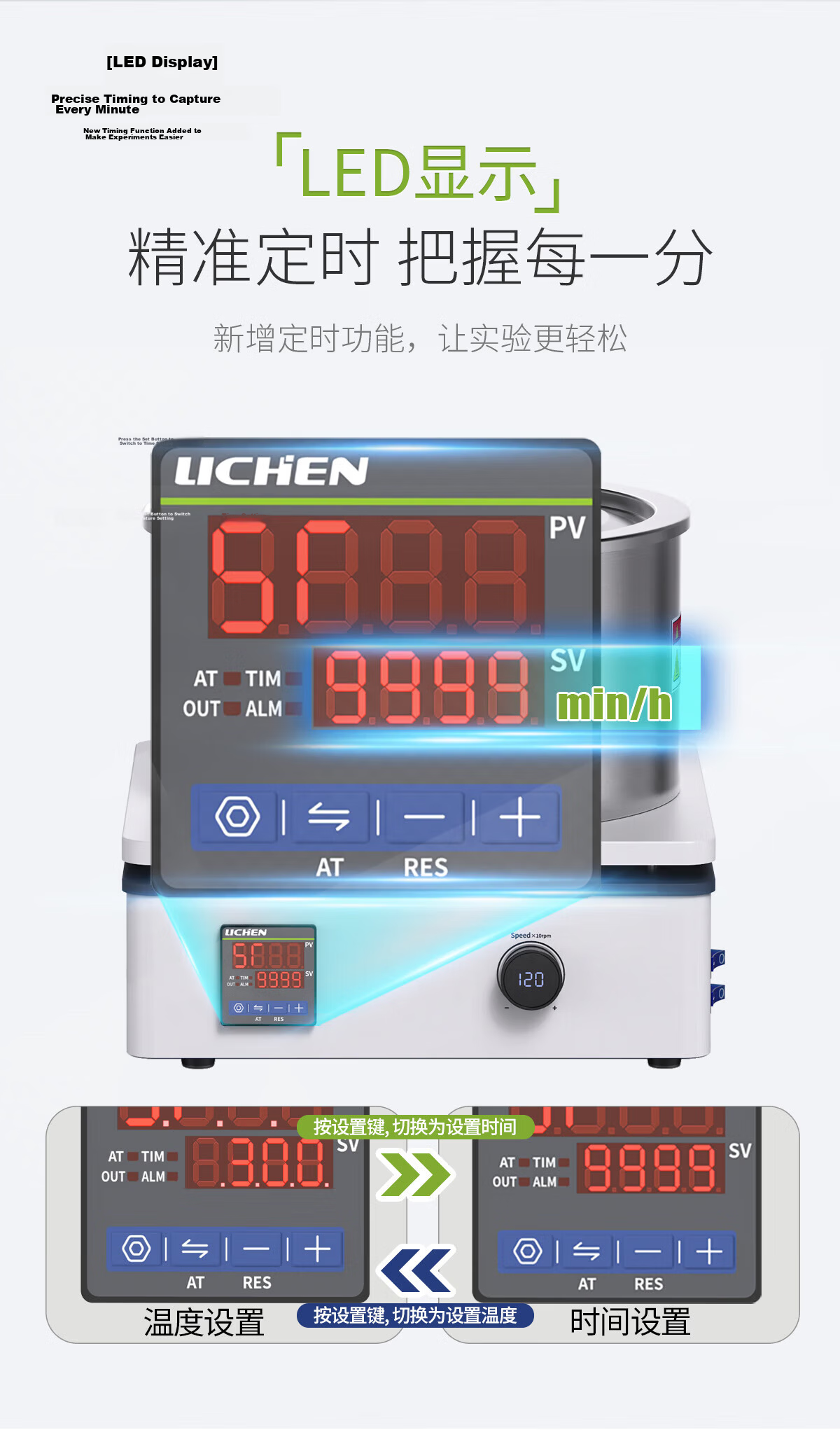

LED digital display for clear and intuitive operation

Added insulation layer for more efficient heating and heat retention

Precise temperature control with ±1°C accuracy using advanced PT100 external sensor

Additional details

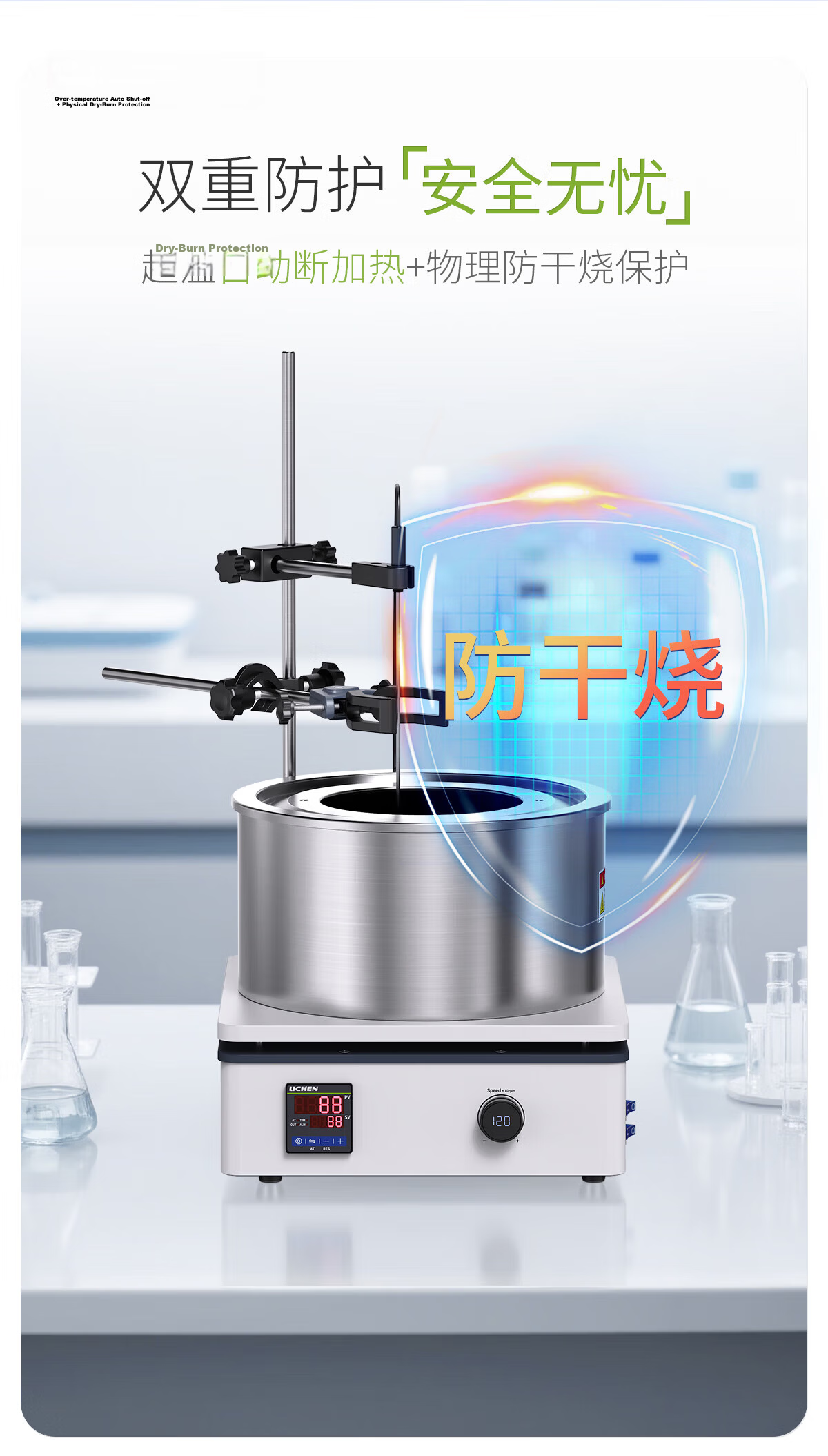

Dual safety protection
automatic overheating shutoff and physical dry-burn protection

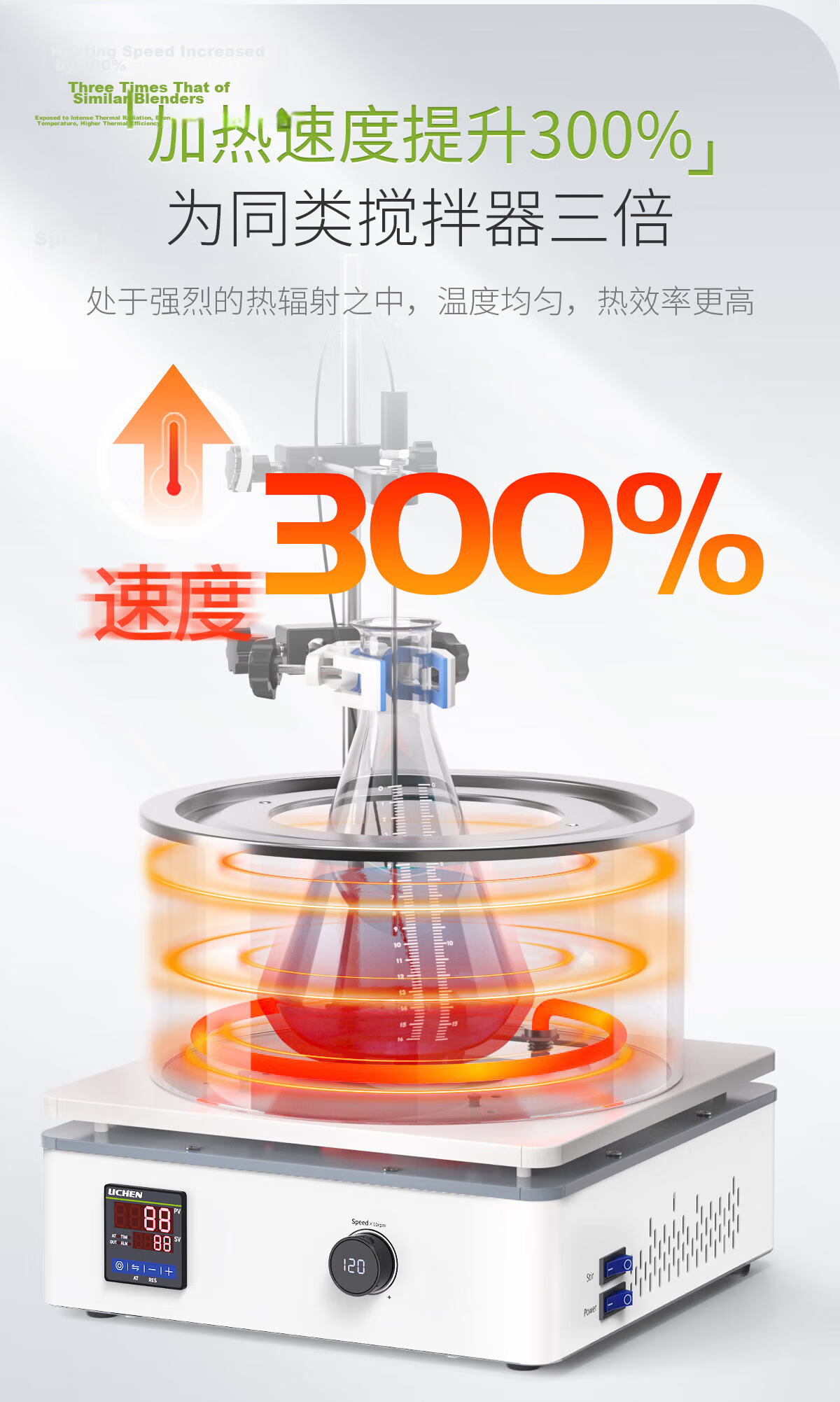

High-speed heating with power increased by 300%, reaching 100°C in 17 minutes

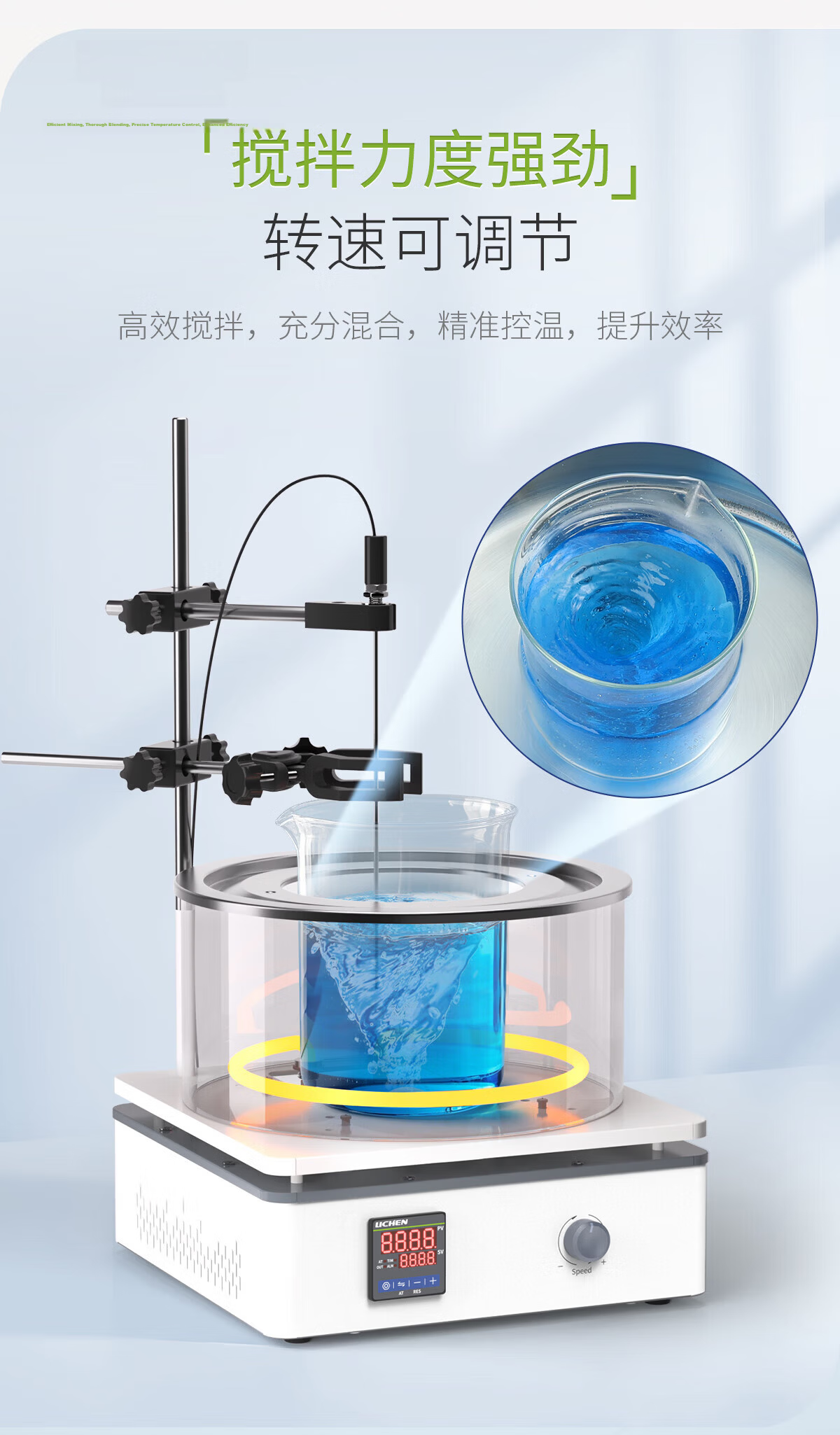

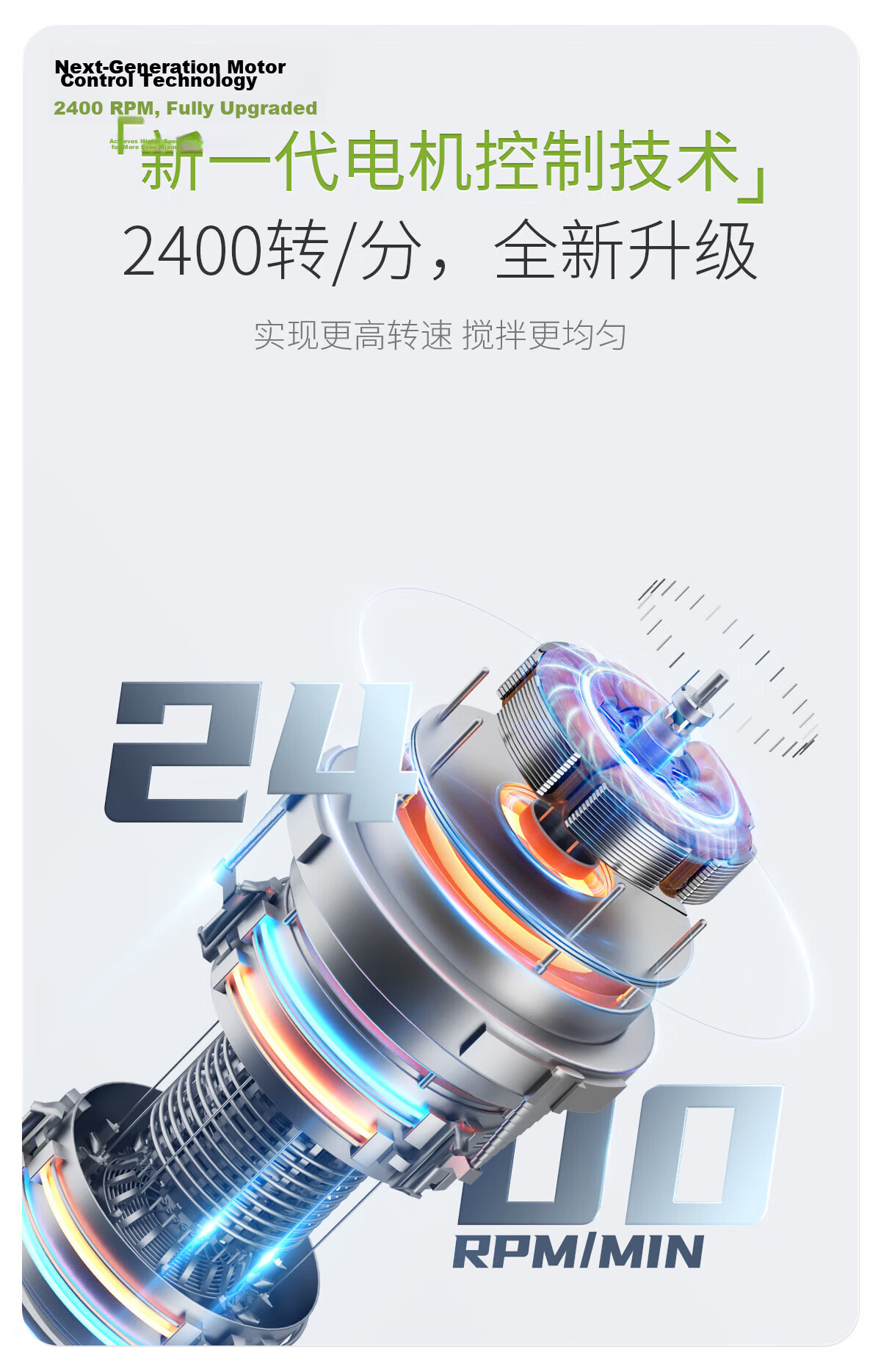

Powerful stirring with adjustable speed up to 2400 RPM using new generation DC permanent magnet motor

Anti-demagnetization design with integrated forged magnetic base for stable and reliable stirring

Timer function with digital display (up to 9999 minutes on select models)

Additional details

Similar Products

In Stock
LICHEN Oil Bath Laboratory Heating Magnetic Stirrer Digital Display Constant Temperature Water Bath Heater LC-OB-1.5L
LICHENGeneral laboratory equipment

LICHEN Oil Bath Laboratory Heating Magnetic Stirrer Digital Display Constant Temperature Water Bath Heater LC-OB-1.5L

OB1.5L / Timed DryBurn Protection

CNÂ¥770.80

View

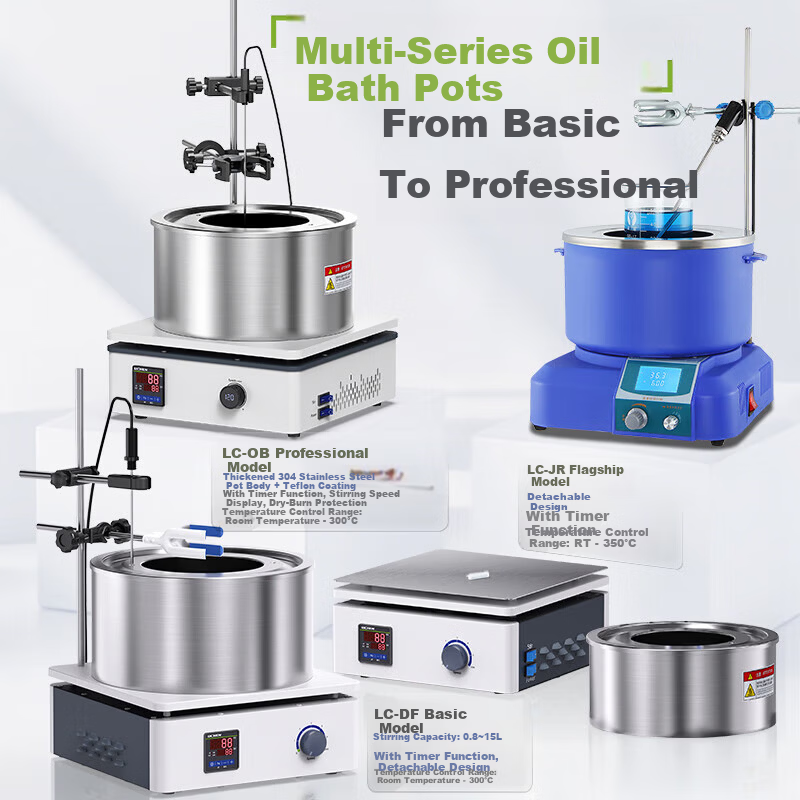

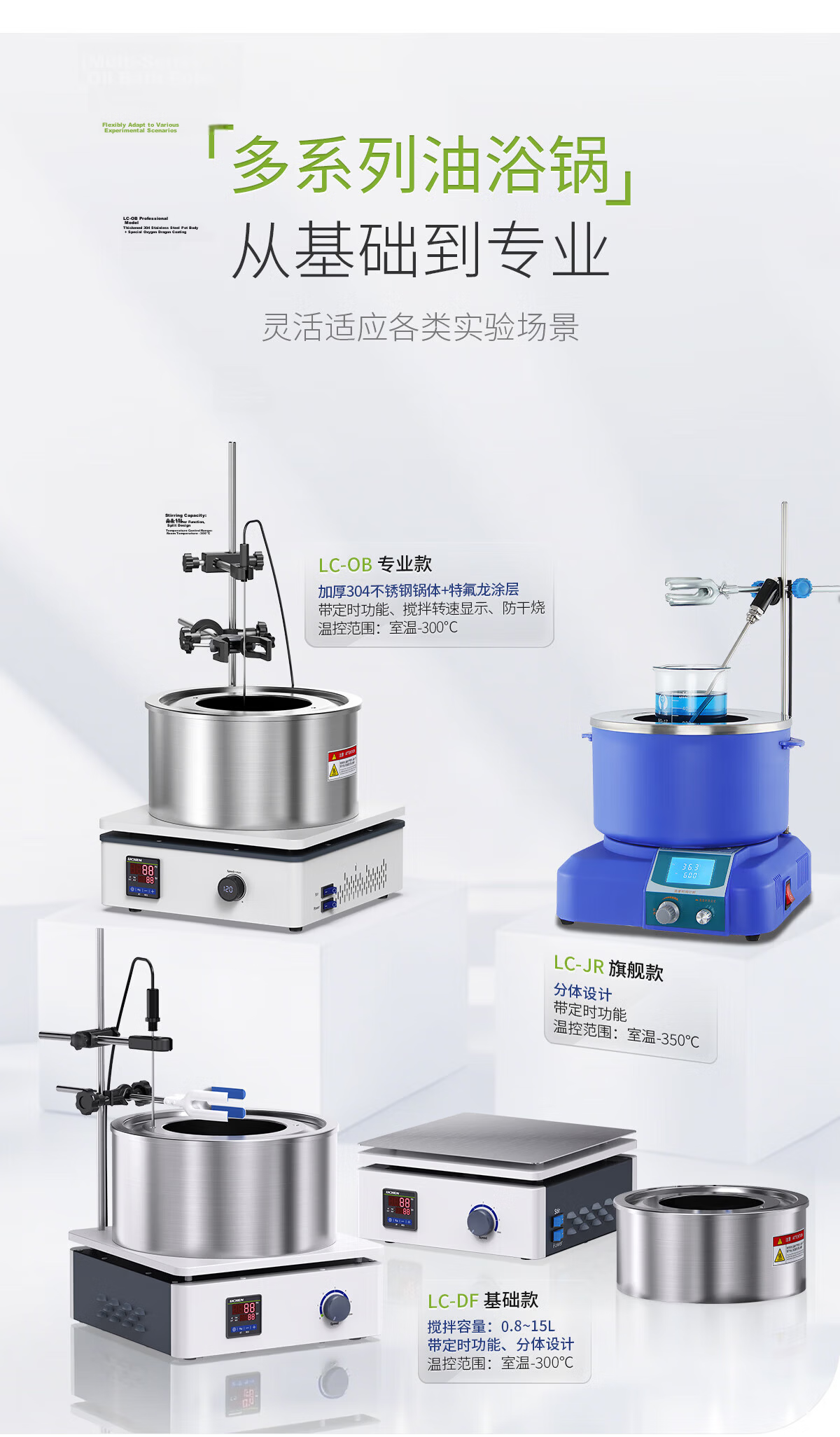

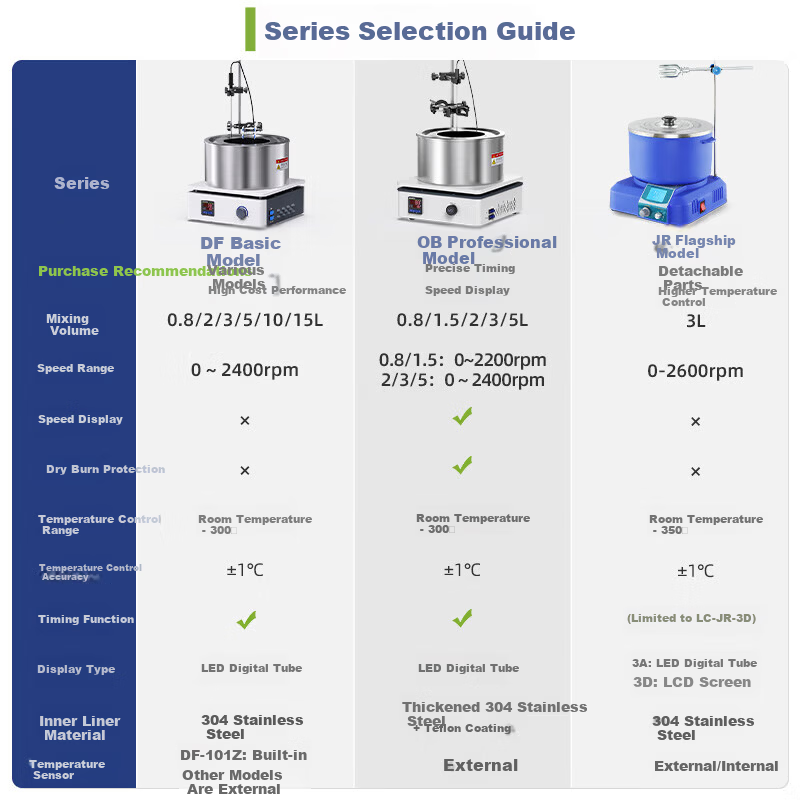

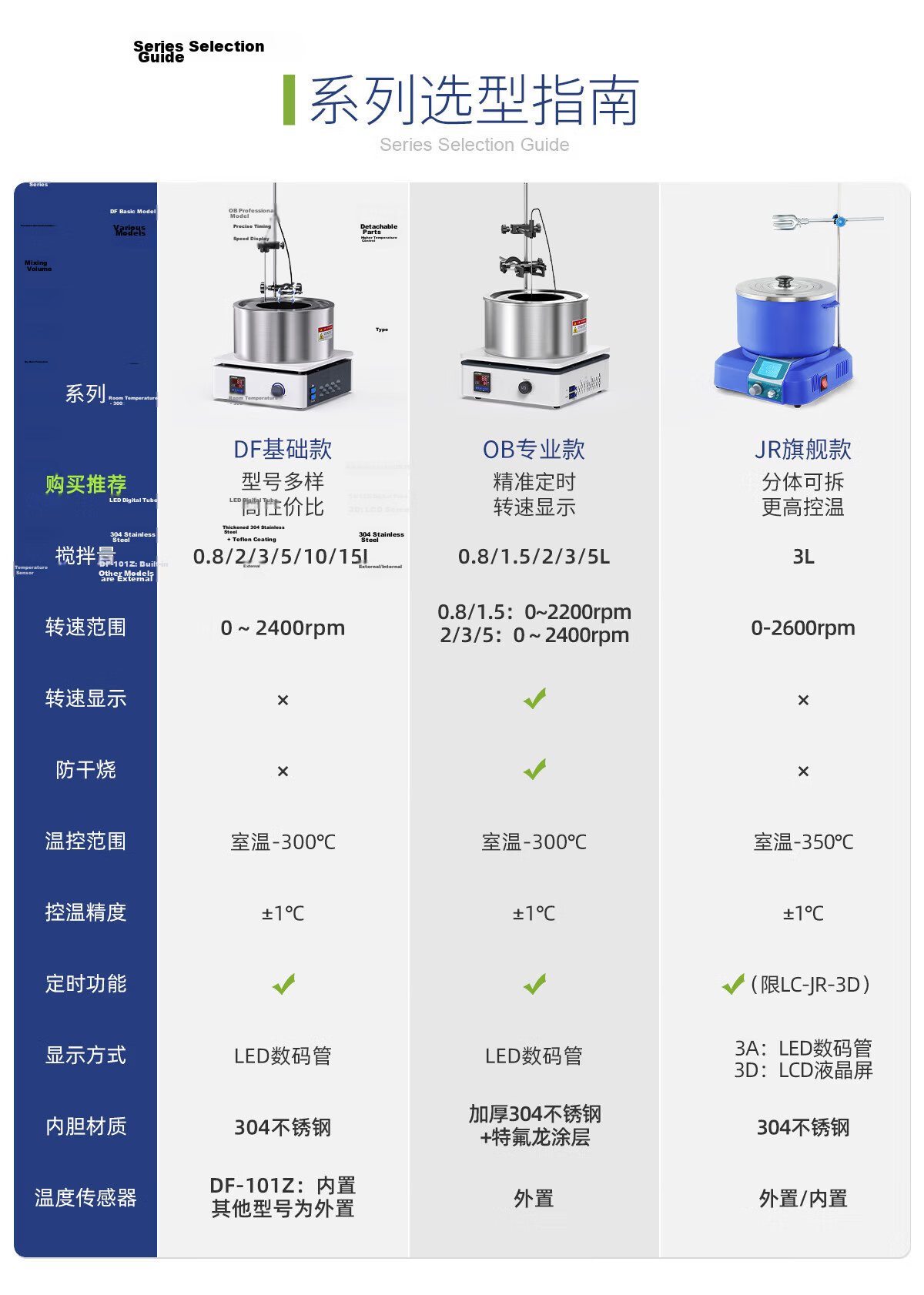

Multiple series available to flexibly adapt to various laboratory scenarios
Basic (DF), Professional (OB), and Flagship (JR)

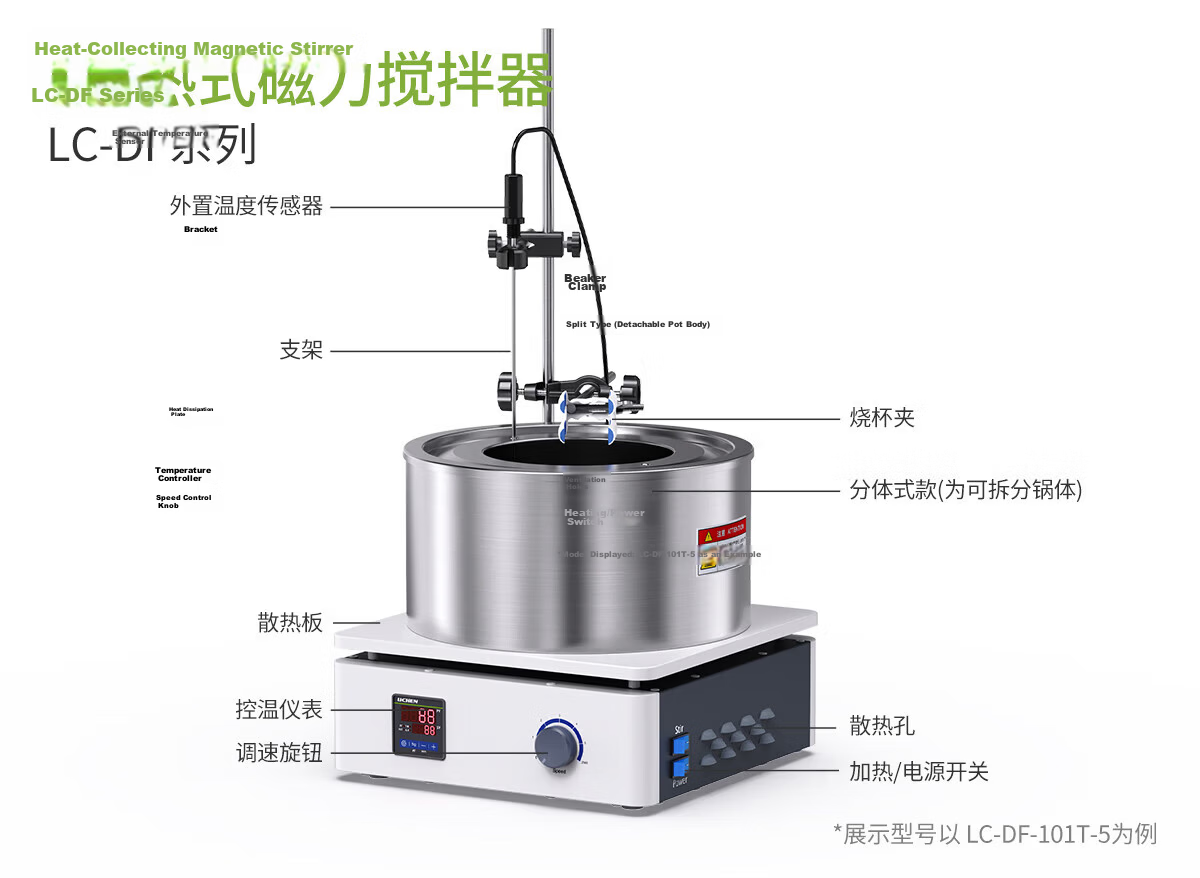

1. LC-DF Series (Basic)

Additional details

Heating temperature range
Room temperature to 300°C
Temperature control accuracy
±1°C
Stirring capacity
0.8L to 15L
Stirring speed range
0–2600 RPM (depending on model)

LED digital display for temperature and speed

Split design for detachable pot body (select models)

Additional details

Power
320W to 2000W depending on model
Dimensions and weights vary by model (e.g., LC-DF-101T-5
290×290×260 mm, 6.5 kg)

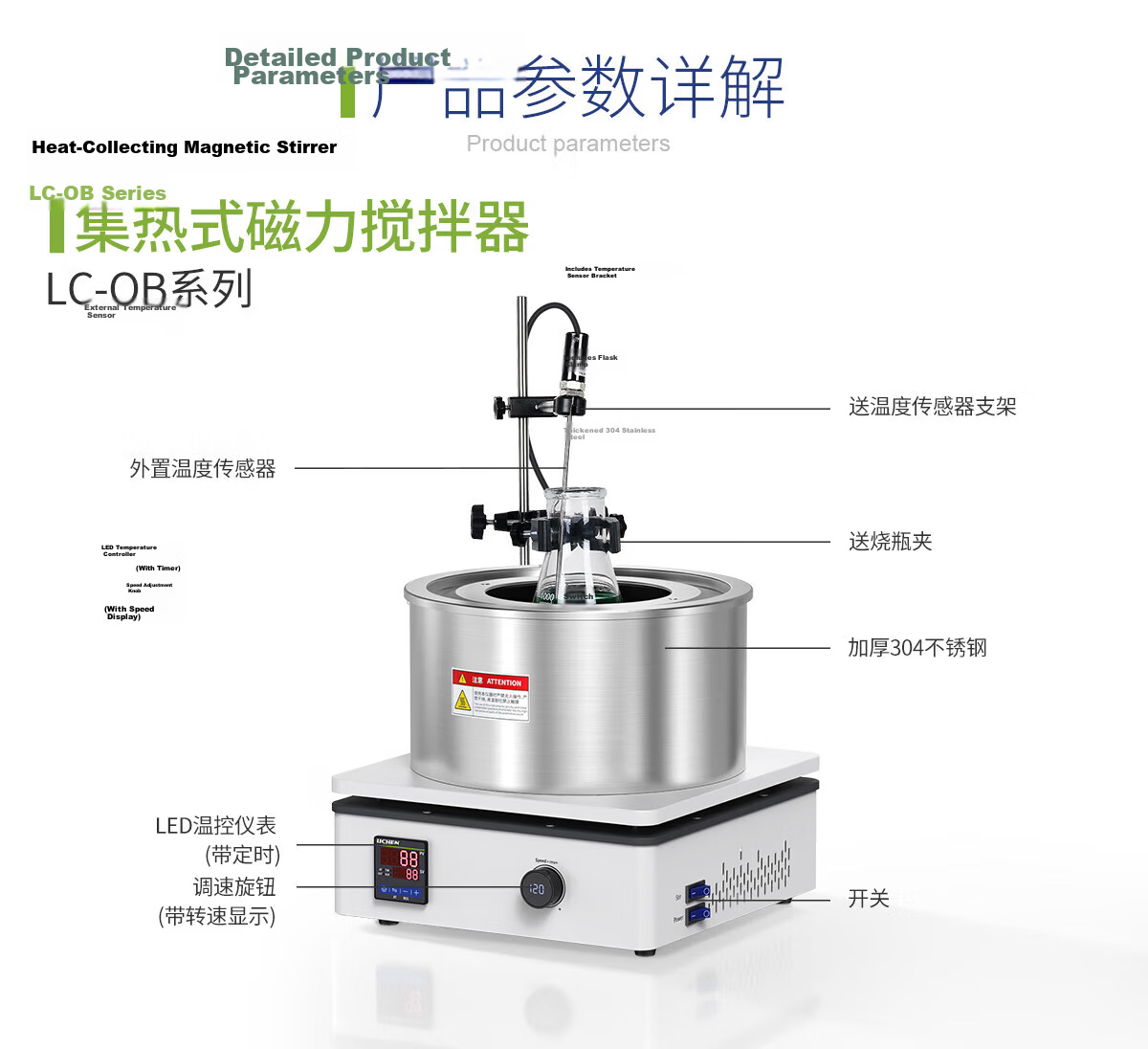

2. LC-OB Series (Professional)

Additional details

Heating temperature range
Room temperature to 300°C
Temperature control accuracy
±1°C
Stirring capacity
0.8L to 5L
Stirring speed range
0–2400 RPM

LED digital display with timer function

Integrated 304 stainless steel pot with Teflon coating and added insulation layer

Additional details

Power
600W

Dimensions approx. 270×270×235mm, weight approx. 4.8kg

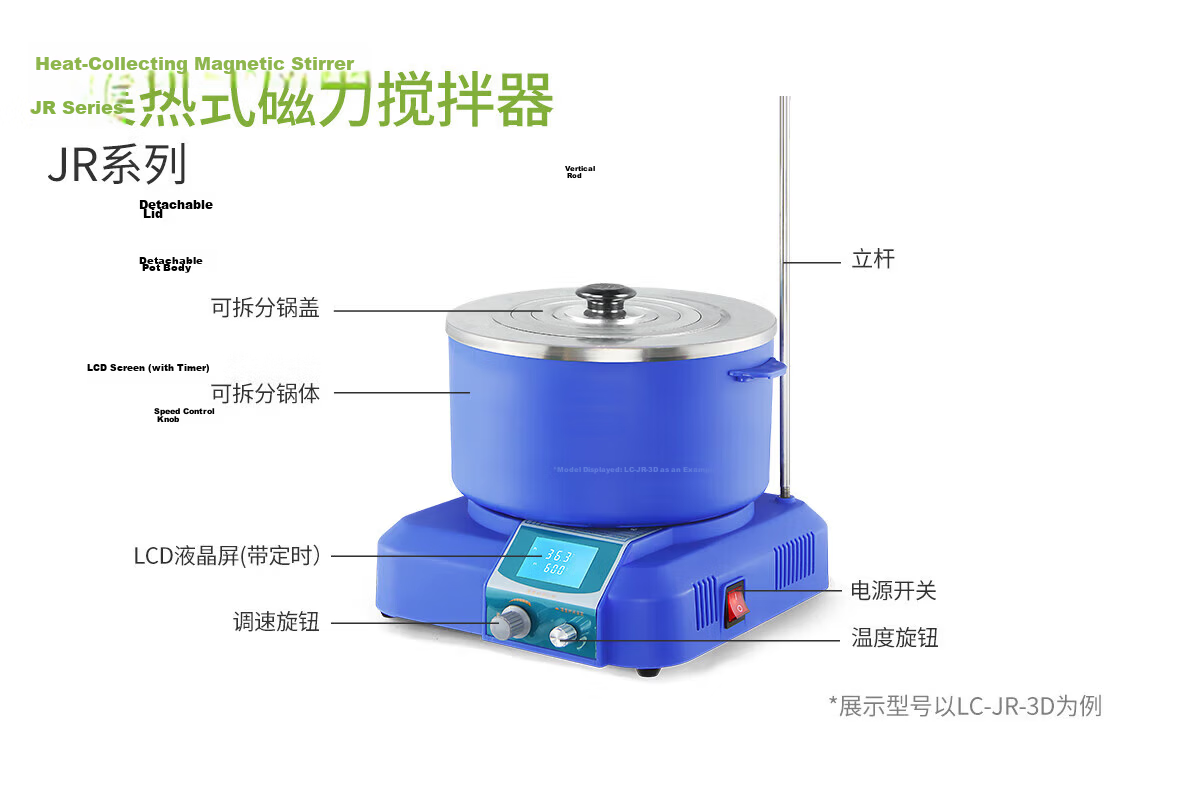

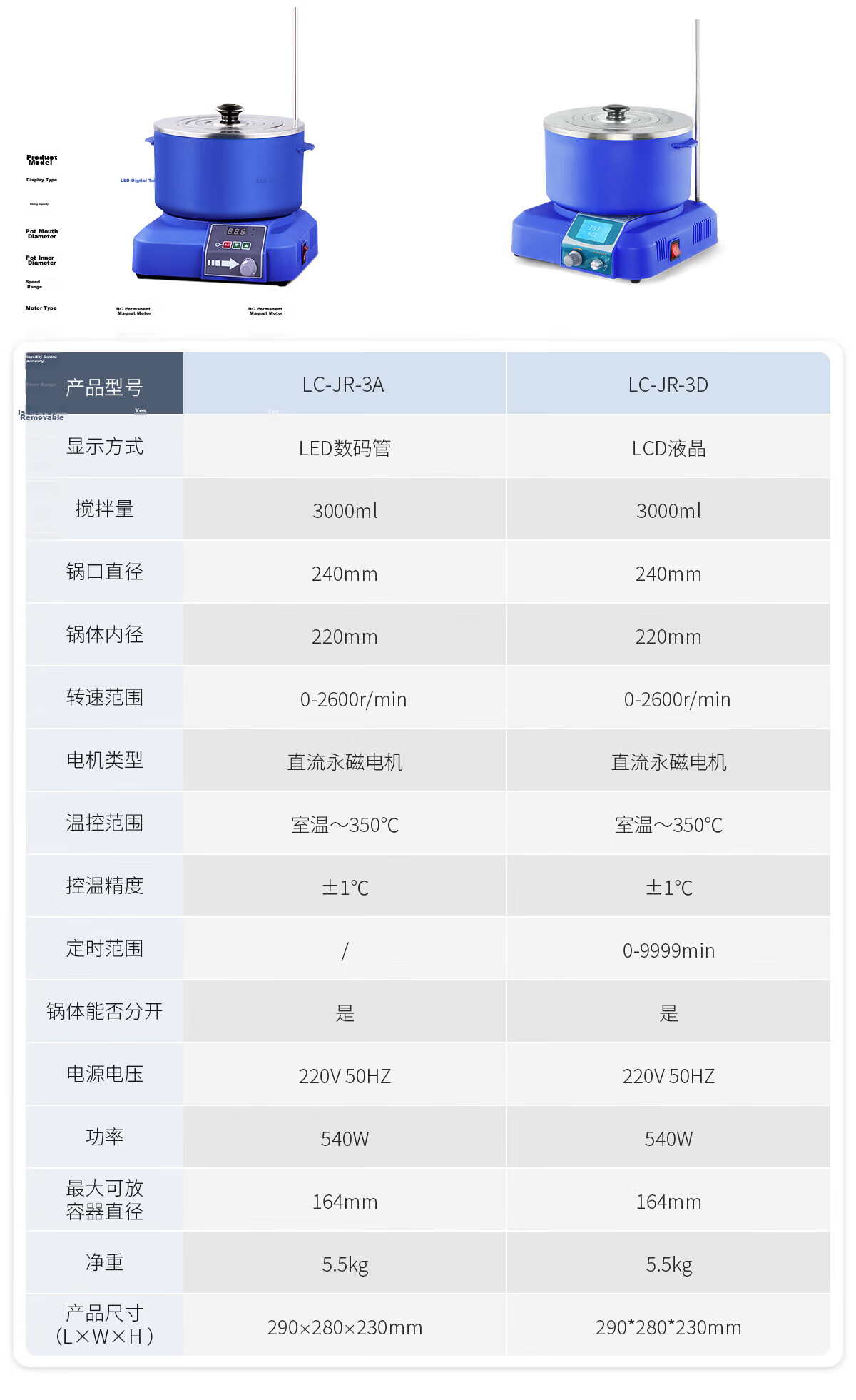

3. LC-JR Series (Flagship)

Additional details

Heating temperature range
Room temperature to 350°C
Temperature control accuracy
±1°C
Stirring capacity
3L
Stirring speed range
0–2600 RPM

LCD digital display with timer function (up to 9999 minutes)

Split design with detachable pot and lid

Additional details

Power
540W

Dimensions approx. 290×280×230mm, weight approx. 5.5kg

Additional details

Inner pot material
Thickened 304 stainless steel with Teflon coating
Outer shell
304 stainless steel
Heating method
Heat-conductive oil bath with rapid and uniform heating
Temperature sensor
External PT100 sensor (built-in on select models)

Safety features

  • Over-temperature automatic shutoff, dry-burn physical protection

Additional details

Stirring motor
DC permanent magnet motor with precise speed control

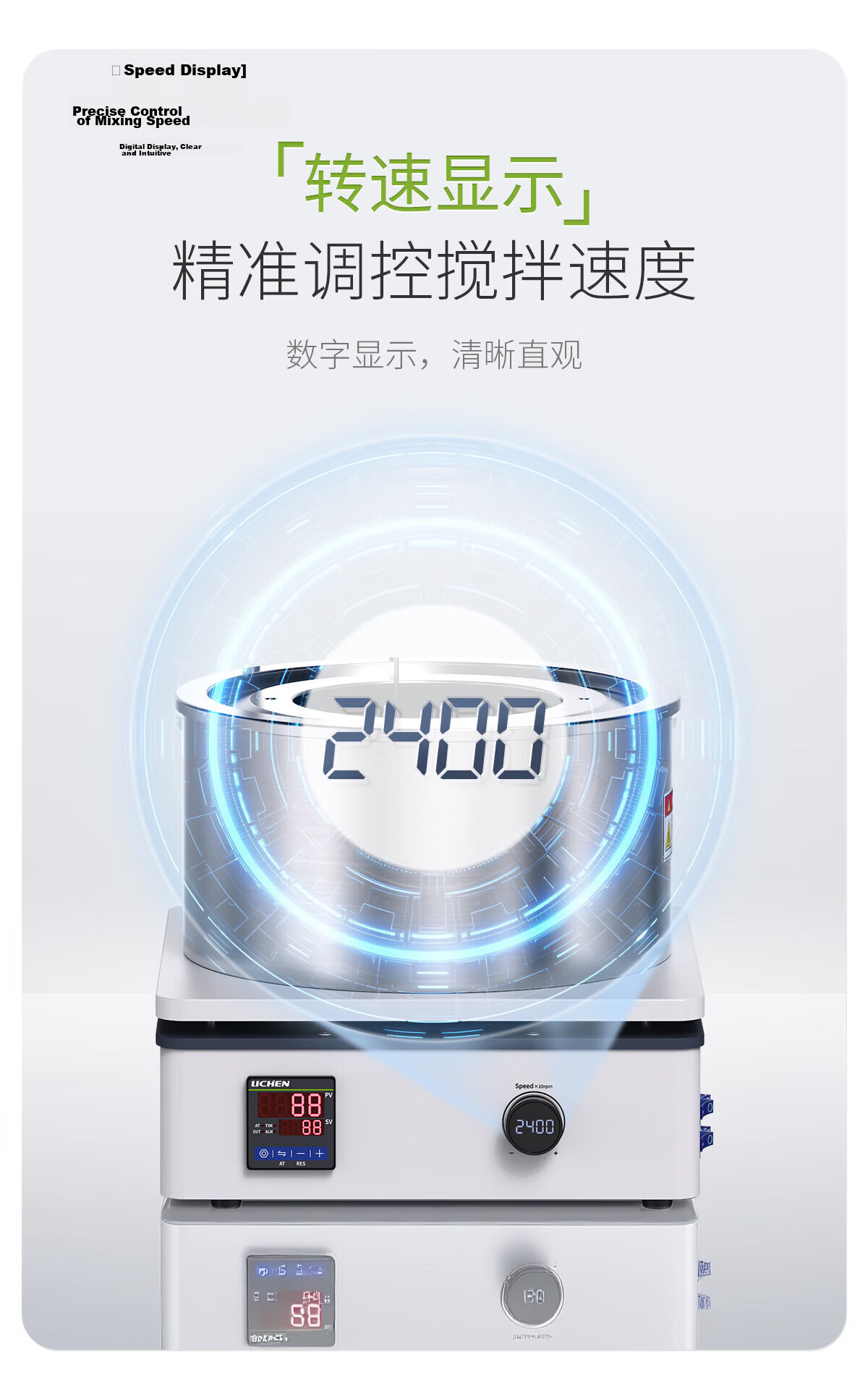

Speed display
Digital numeric display for real-time stirring speed
Accessories included
Temperature sensor, sensor bracket, beaker clamp, magnetic stir bar (high temperature resistant #105), power cord, user manual, warranty card, and other model-specific accessories

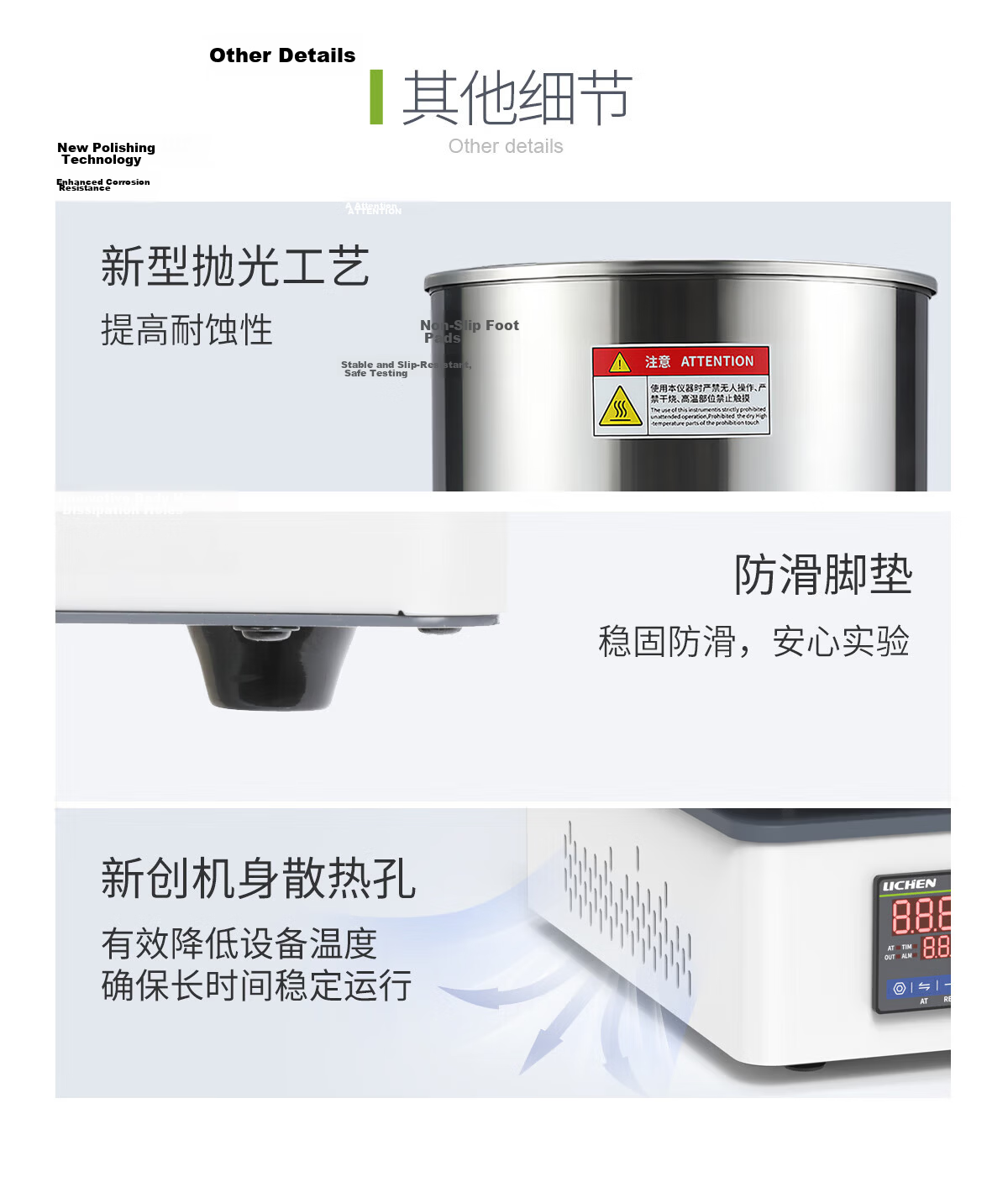

Additional features

  • Anti-slip feet for stability
  • New polishing process for enhanced corrosion resistance
  • Ventilation holes for heat dissipation ensuring long-term stable operation

Heating power increased by 300% compared to similar products

Heating to 100°C achieved within 17 minutes

Uniform temperature distribution under strong thermal radiation

Strict prohibition of unattended operation

Protective measures against dry burning and high-temperature contact

Clear LED/LCD displays for temperature, speed, and timer settings

Intuitive control knobs and buttons for temperature and speed adjustment

Timer function to facilitate precise experimental timing

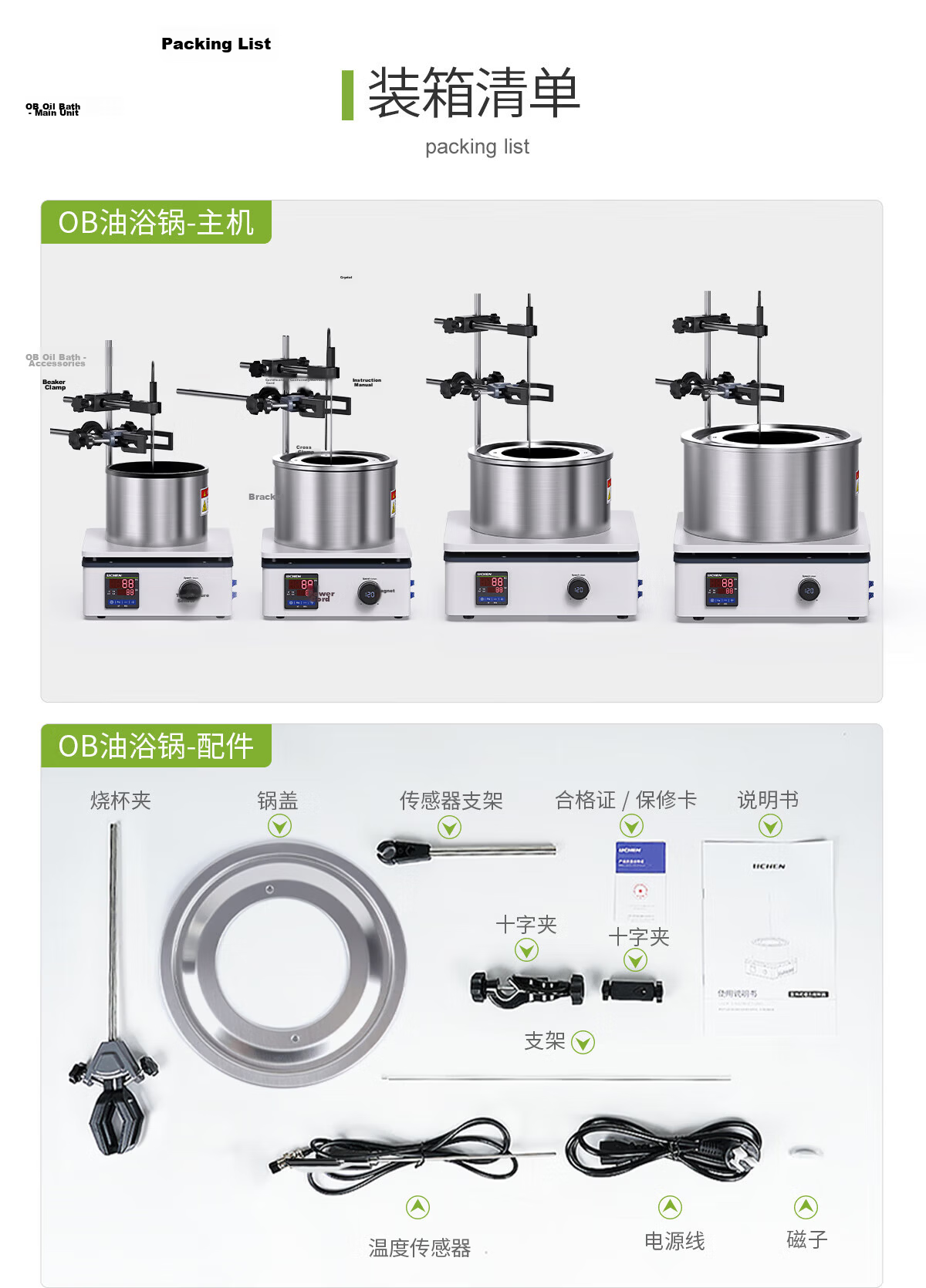

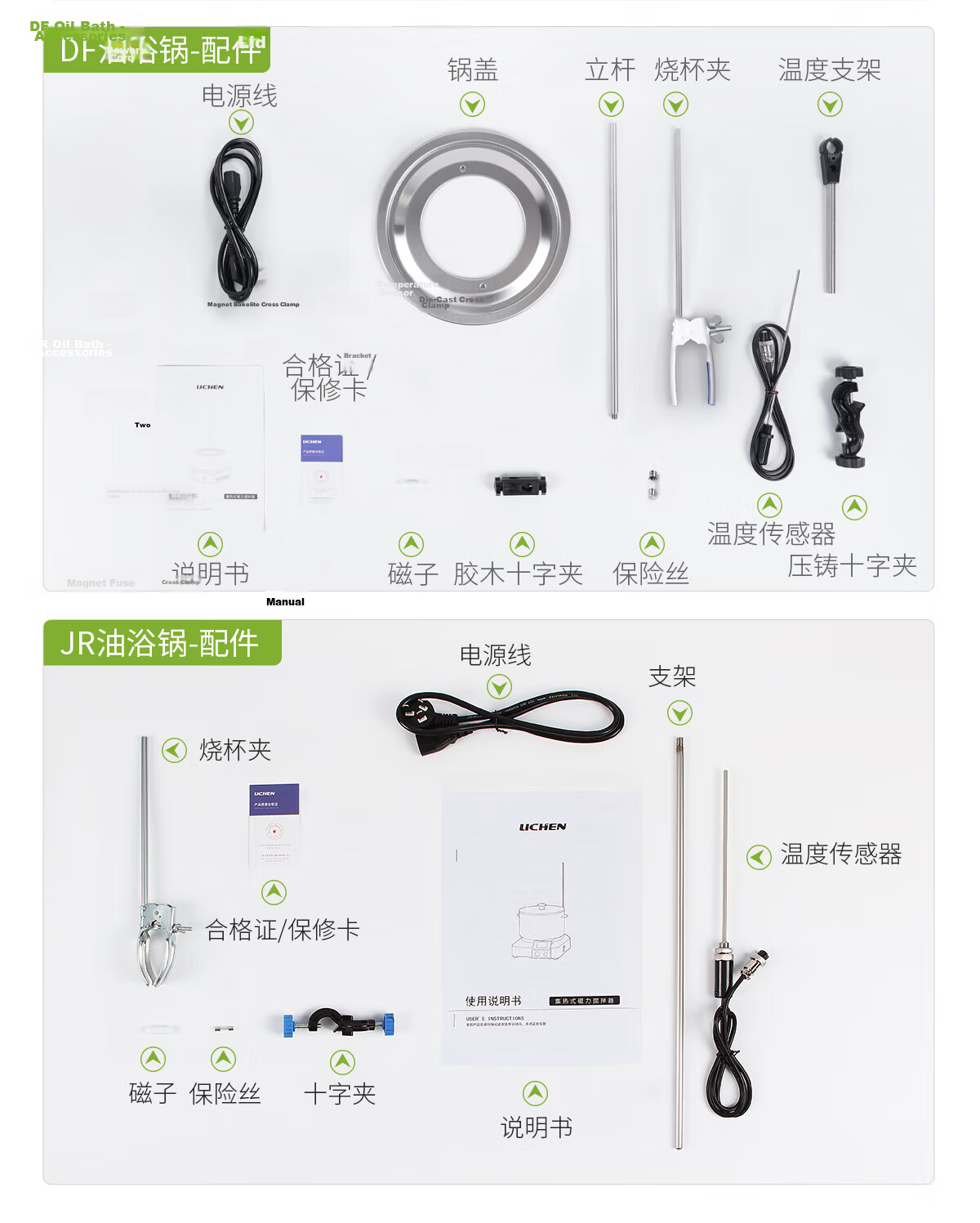

Main unit (oil bath heater)

Pot lid and beaker clamp

Temperature sensor and bracket

Magnetic stir bar

Power cord

User manual and warranty card

Additional accessories depending on model (e.g., split pot components, sensor holders)

Established in 2004

Over 100,000 units sold

More than 2,000 cooperative customers

Manufacturing base exceeding 20,000 m²

Multiple warehouses across regions for efficient shipping

On-site debugging and technical support available

Additional details

Customer service hotline
400-840-9177

LICHEN oil bath magnetic stirrers combine advanced heating technology, precise temperature and speed control, robust safety features, and versatile configurations to meet the needs of basic to professional laboratory applications. Their durable construction, efficient heating, and user-friendly interfaces make them an ideal choice for reliable and efficient laboratory heating and stirring tasks.
