LEGRAND Switch Socket Simple Joy Series Ceramic White 86 Type Wall Socket Sensor Footlight Five-Hole Socket

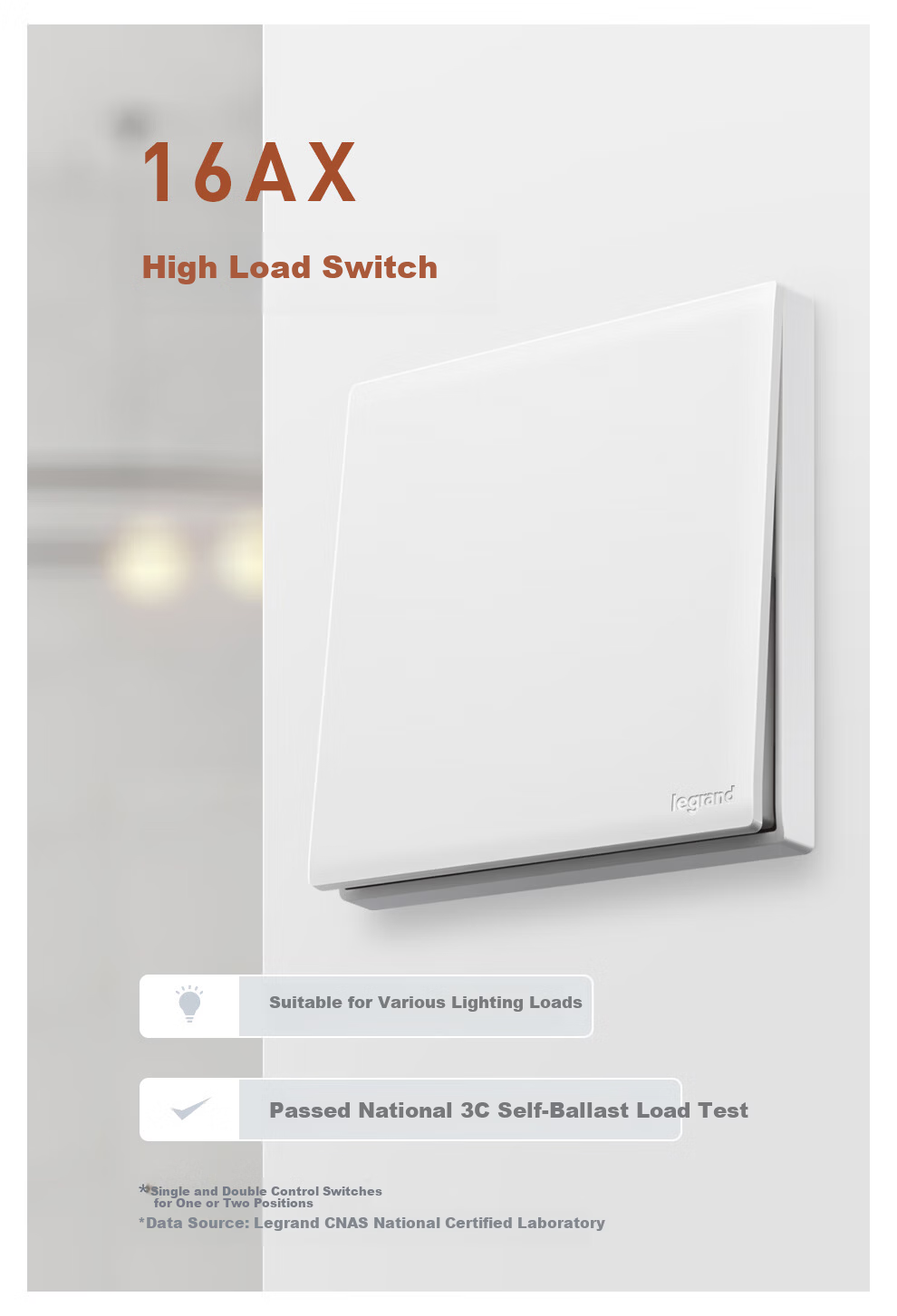

5. Switch Specifications

• Load Capacity: 16AX high load switch
• Suitable for various lighting loads
• Passed national 3C self-ballast load test
• Types: Single and double control switches (one or two gang)
• Certification: Data sourced from LEGRAND, CNAS National Certification Laboratory

6. Durability and Safety Tests

• Heat Wire Test: Passed at 850°C
• Live Plug-in and Unplug Test: Passed 10,000 cycles
• Live On/Off Test: Passed
• Certification: Data sourced from LEGRAND, CNAS National Certification Laboratory

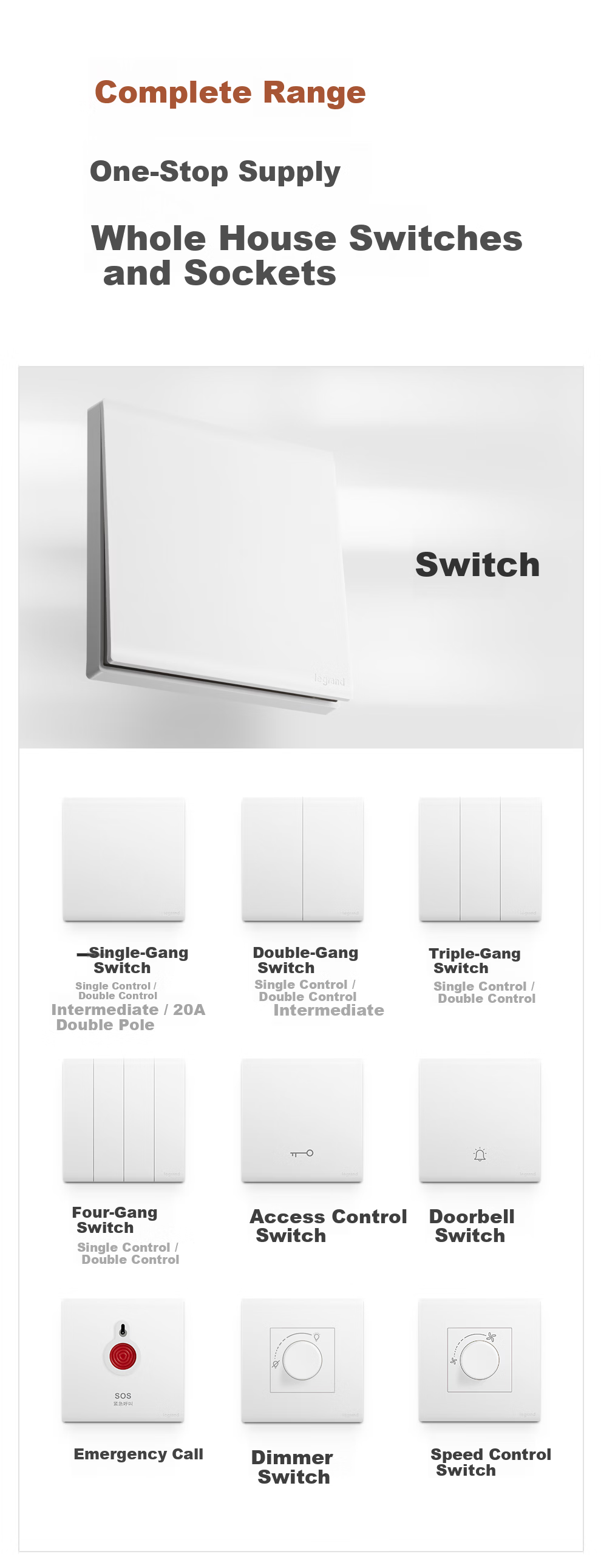

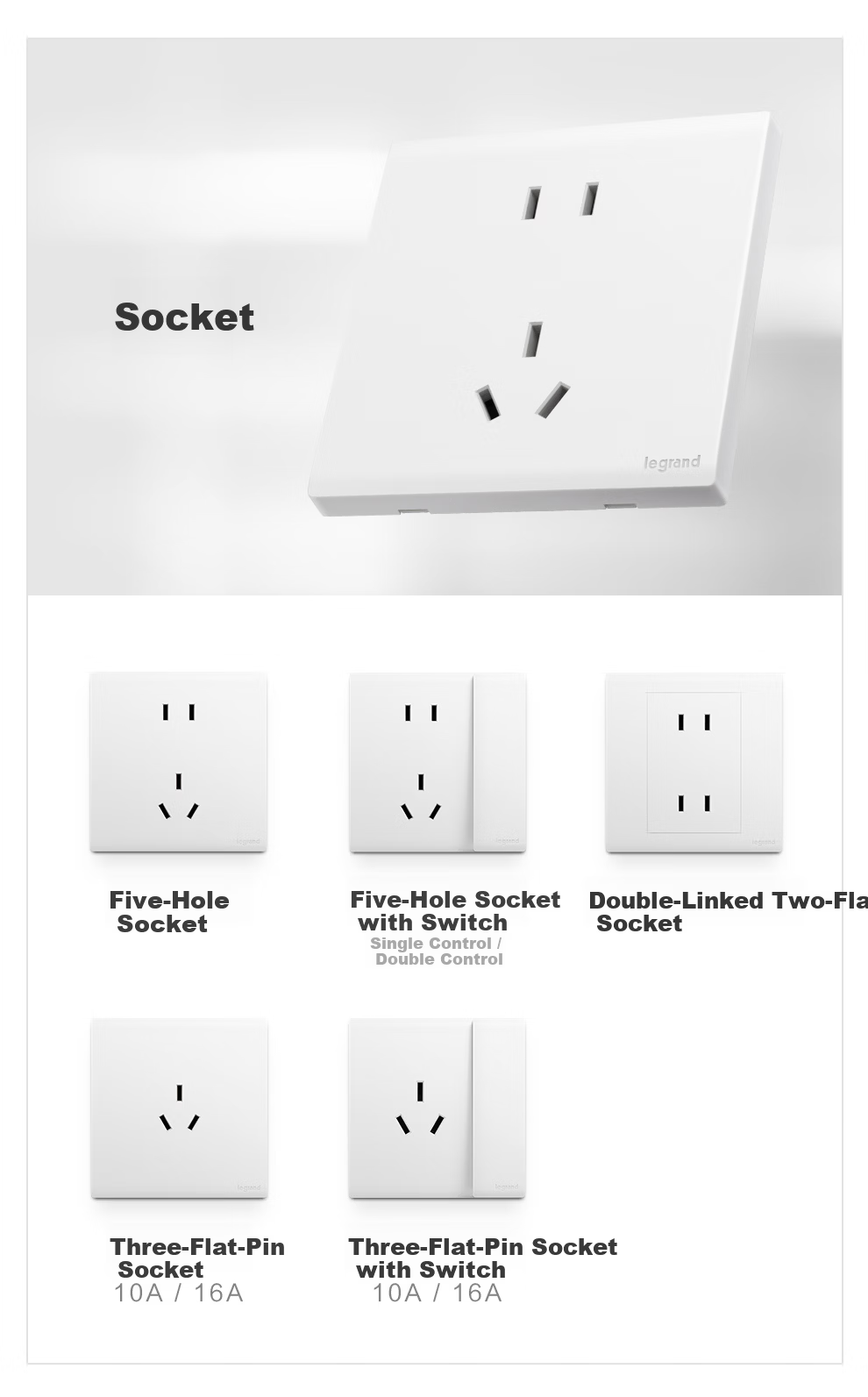

7. Product Range

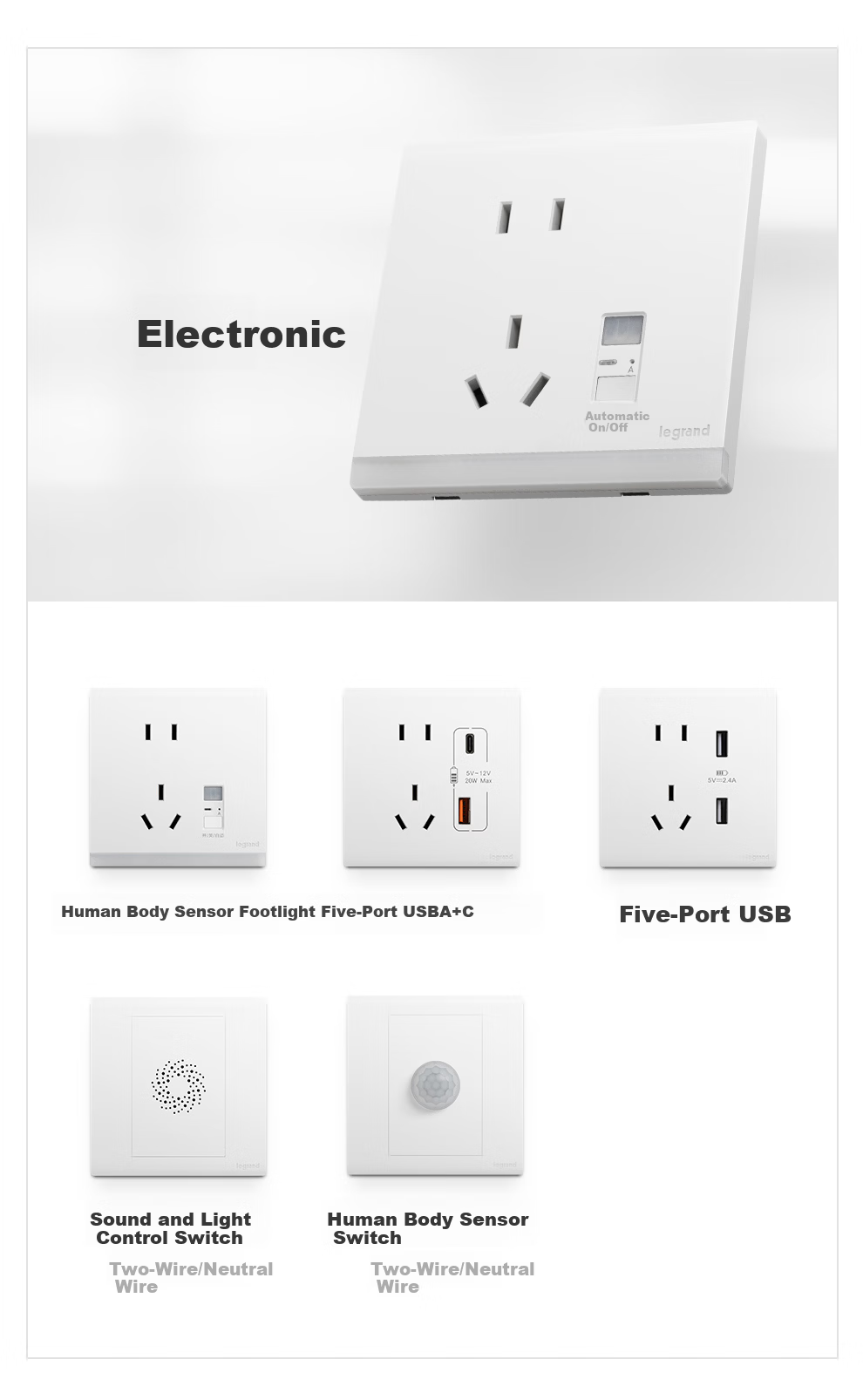

8. Electronic Features

• Automatic/on/off control

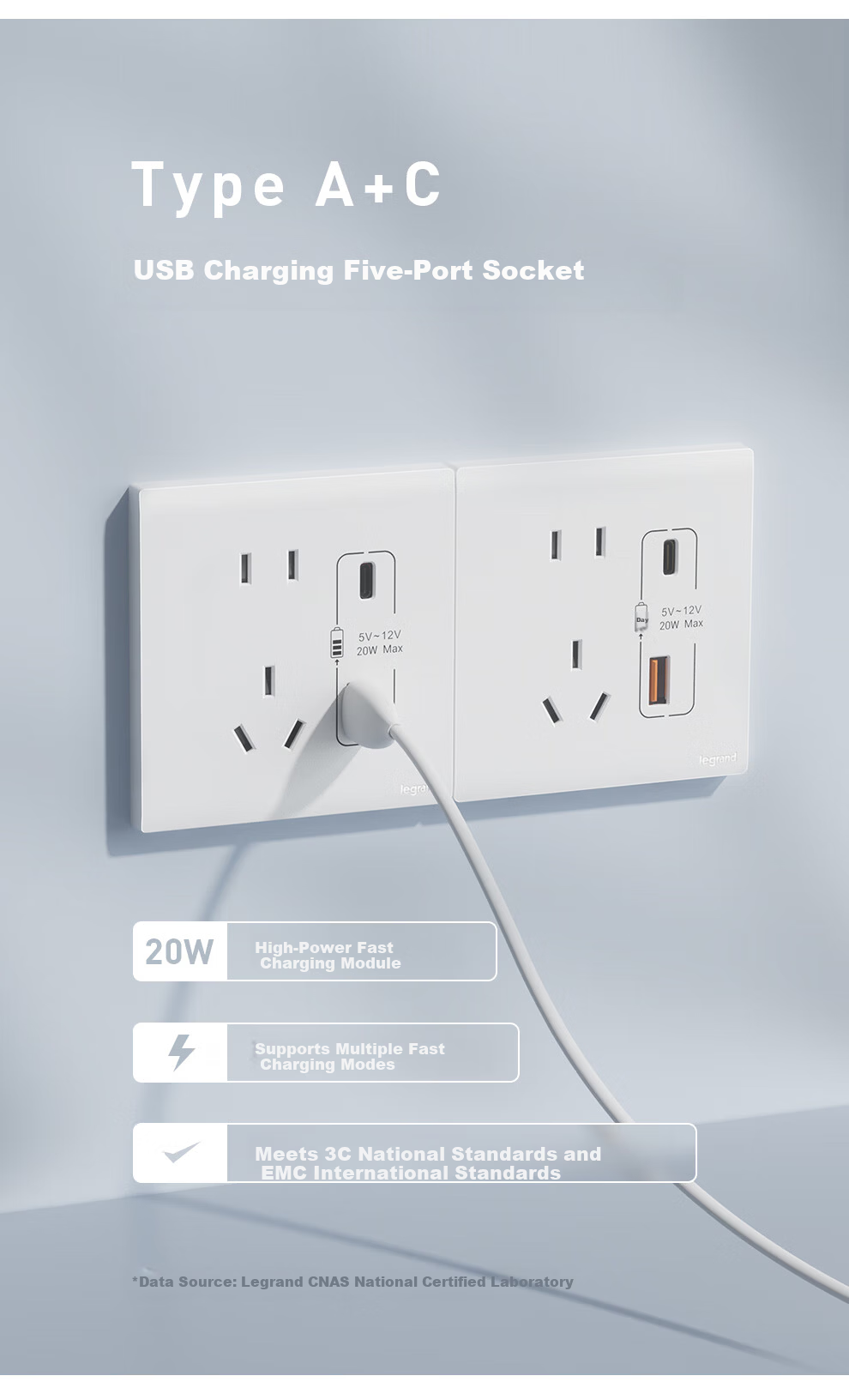

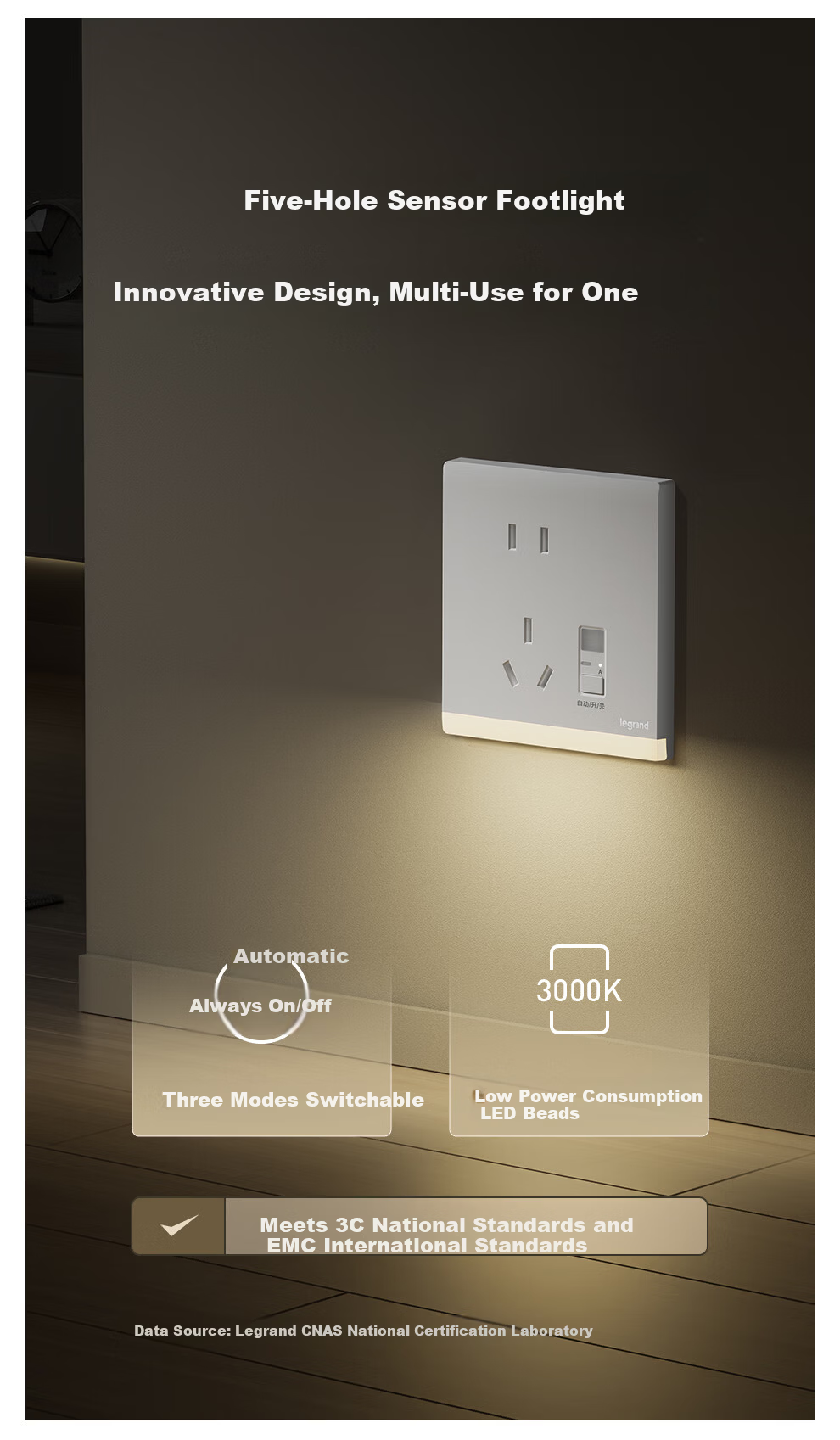

• Human body induction footlight with five-hole USB A+C socket
• Sound and light control switch
• Human body induction switch
• Wiring: Two-wire/neutral wire options

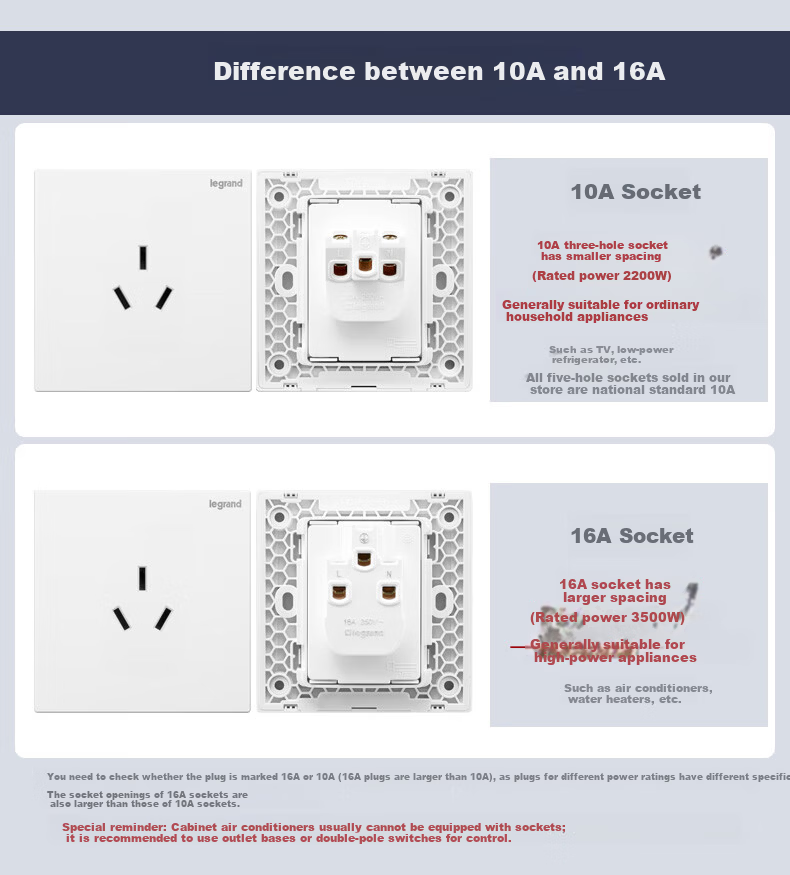

9. Current Ratings and Usage

• 10A Socket:
• Smaller pin spacing
• Rated Power: 2200W
• Suitable for household appliances like TV, low-power refrigerators
• All five-hole sockets sold comply with national 10A standard
• 16A Socket:
• Larger pin spacing
• Rated Power: 3500W
• Suitable for high-power appliances like air conditioners, water heaters
• Plug size differs from 10A; 16A plugs are larger

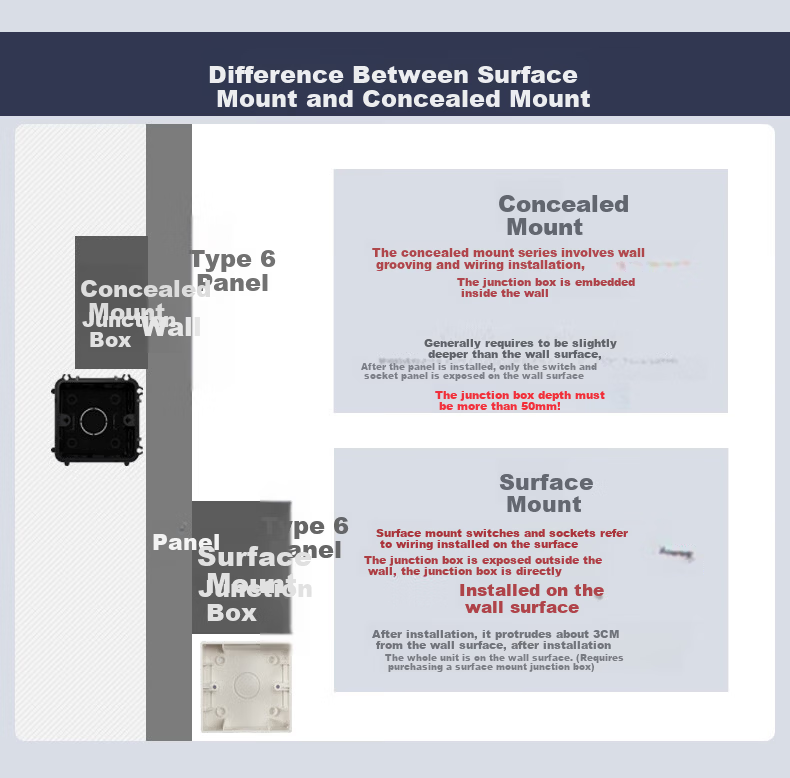

10. Installation Types

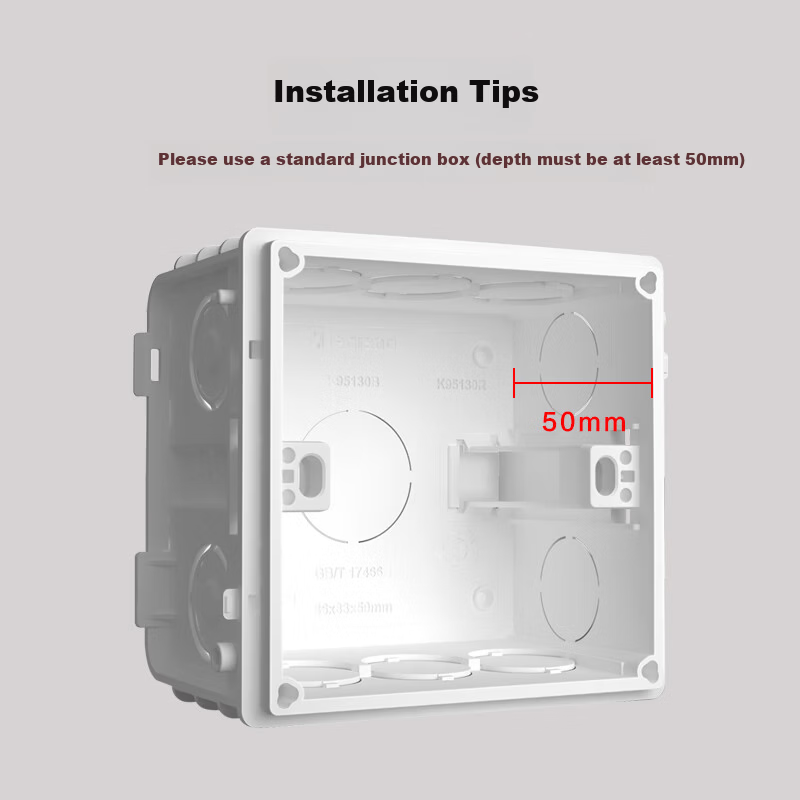

• Concealed Installation:
• 6-type panel
• Wall groove wiring
• Bottom box embedded inside the wall, requiring depth over 50mm
• Only switch/socket panel visible on wall surface
• Surface Mount Installation:
• 6-type panel
• Surface wiring
• Bottom box exposed on wall surface, protruding approximately 3cm
• Requires purchase of surface mount bottom box
