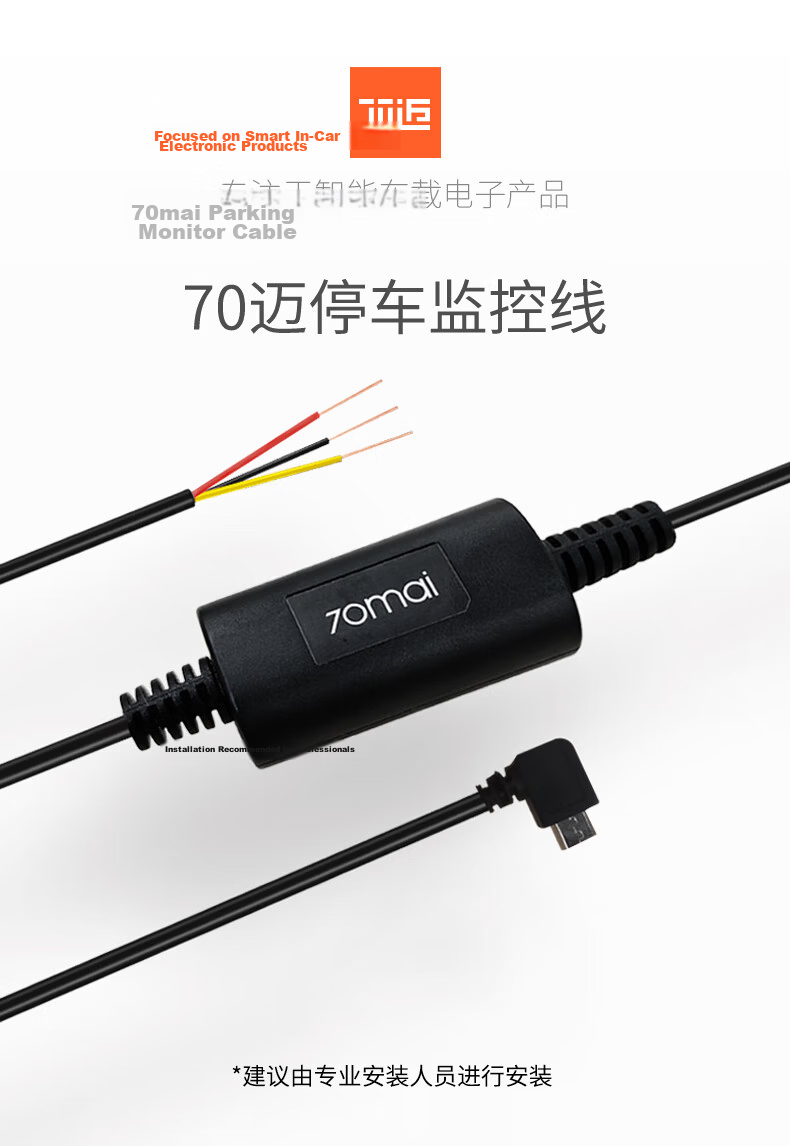

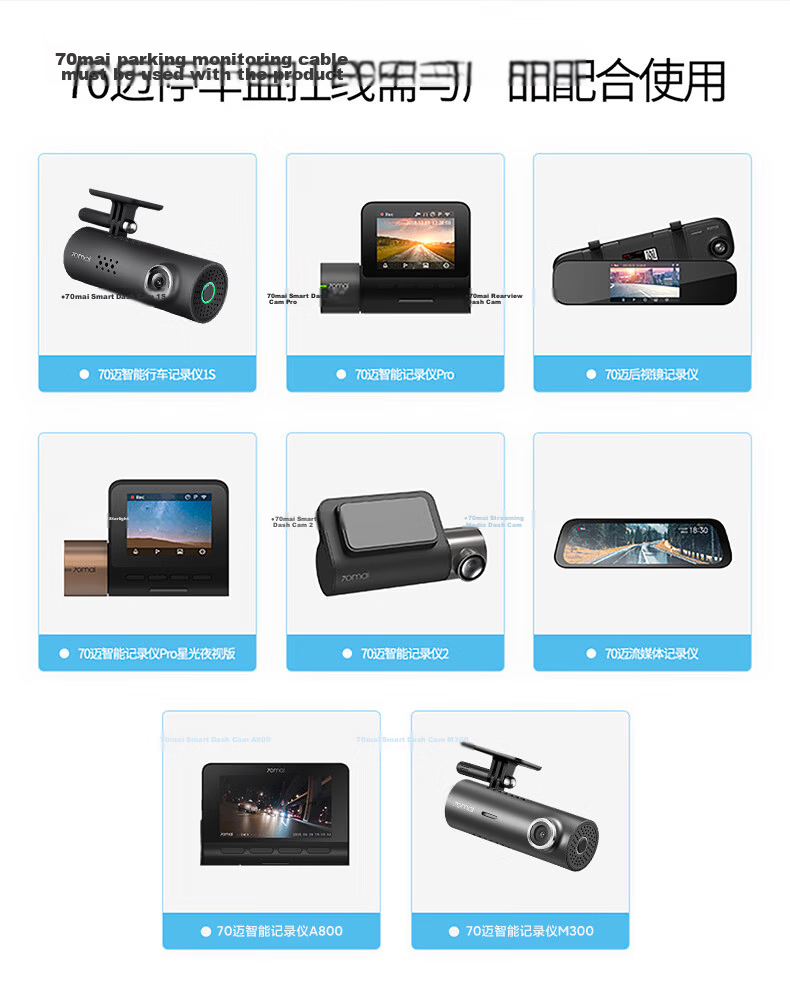

70Mai, Parking Monitoring Cable, Low Voltage Protection [Suitable for M310/M800/A810/A510 Series And X800]

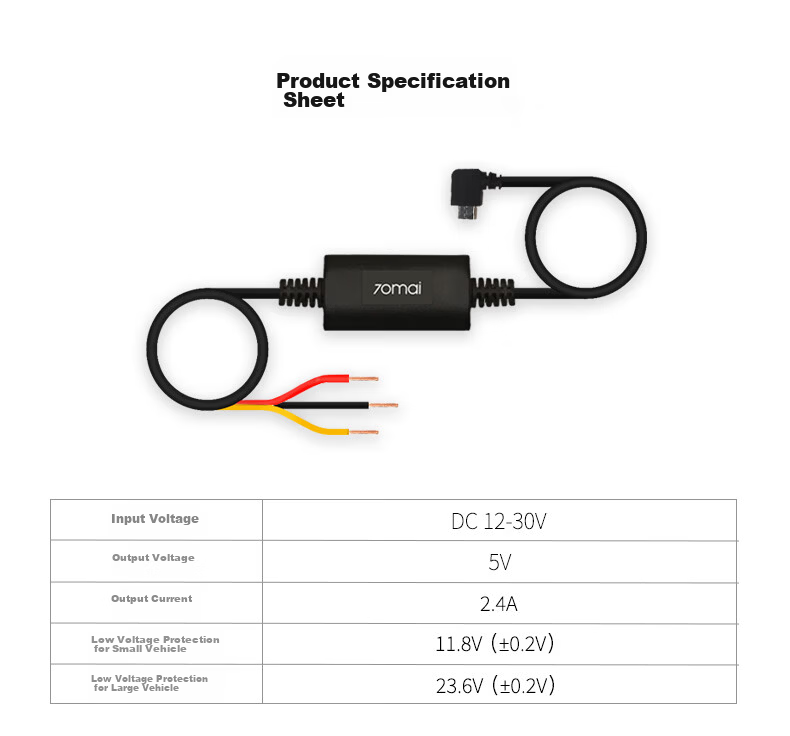

1. A constant power fuse with output voltage 12V-30V and output current 3A.

2. An ACC power fuse.

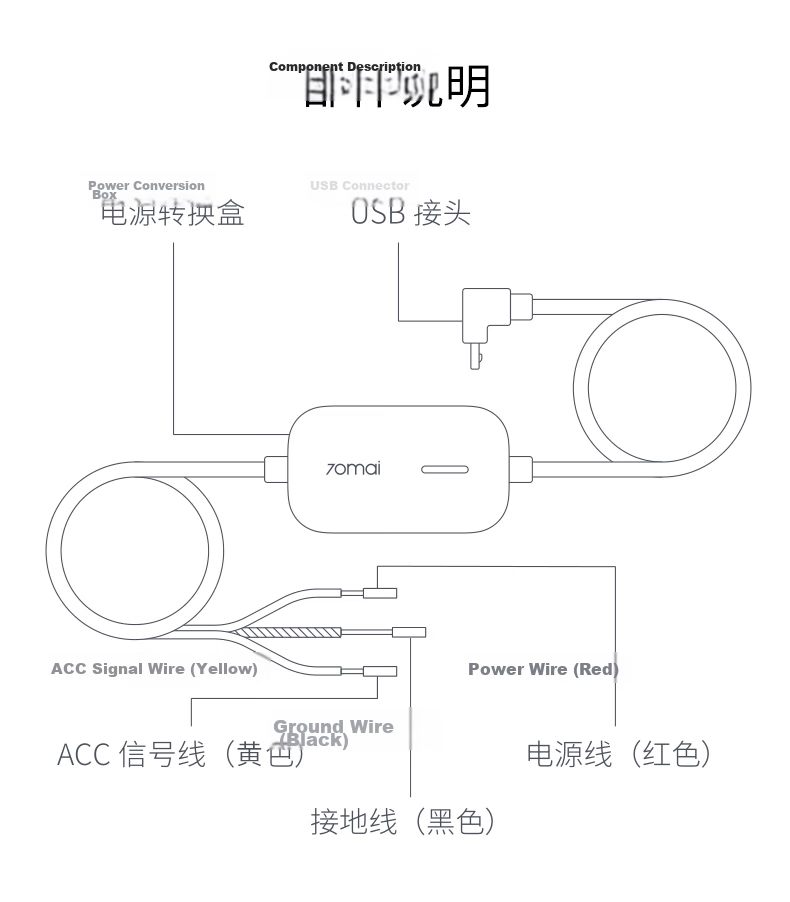

1. Red power wire to the constant power fuse (12V-30V, 3A).

2. Yellow ACC signal wire to the ACC power fuse.

3. Black ground wire to the fuse box negative terminal or chassis ground.

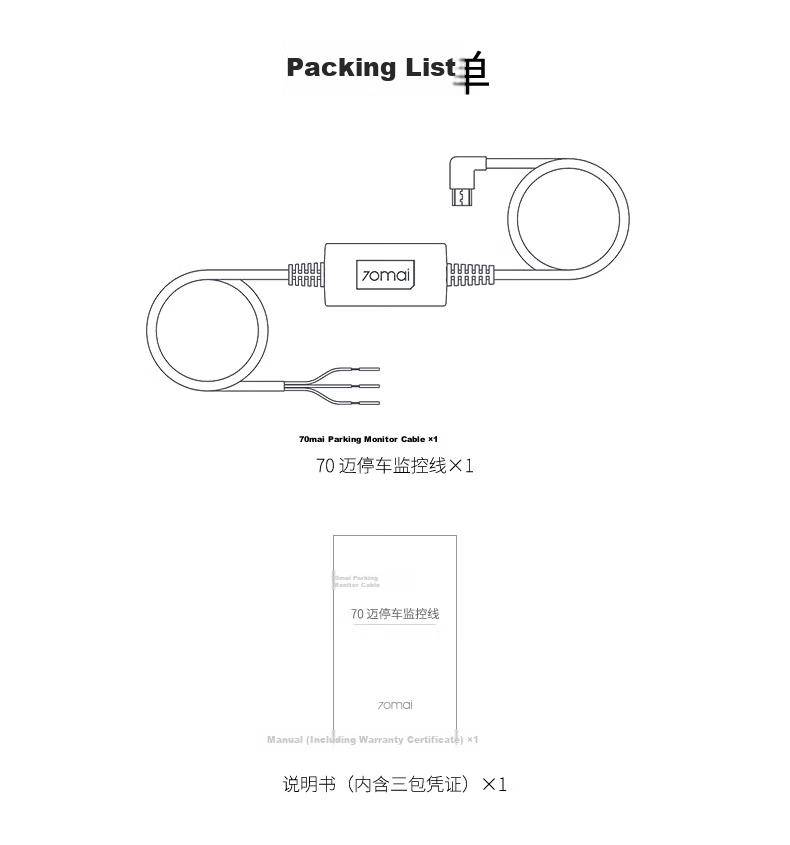

70mai Parking Monitoring Cable ×1

User Manual (including warranty certificate) ×1

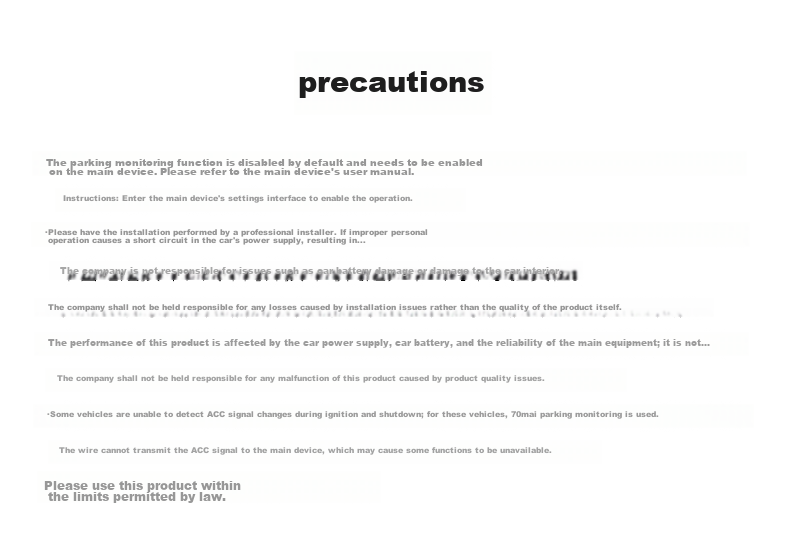

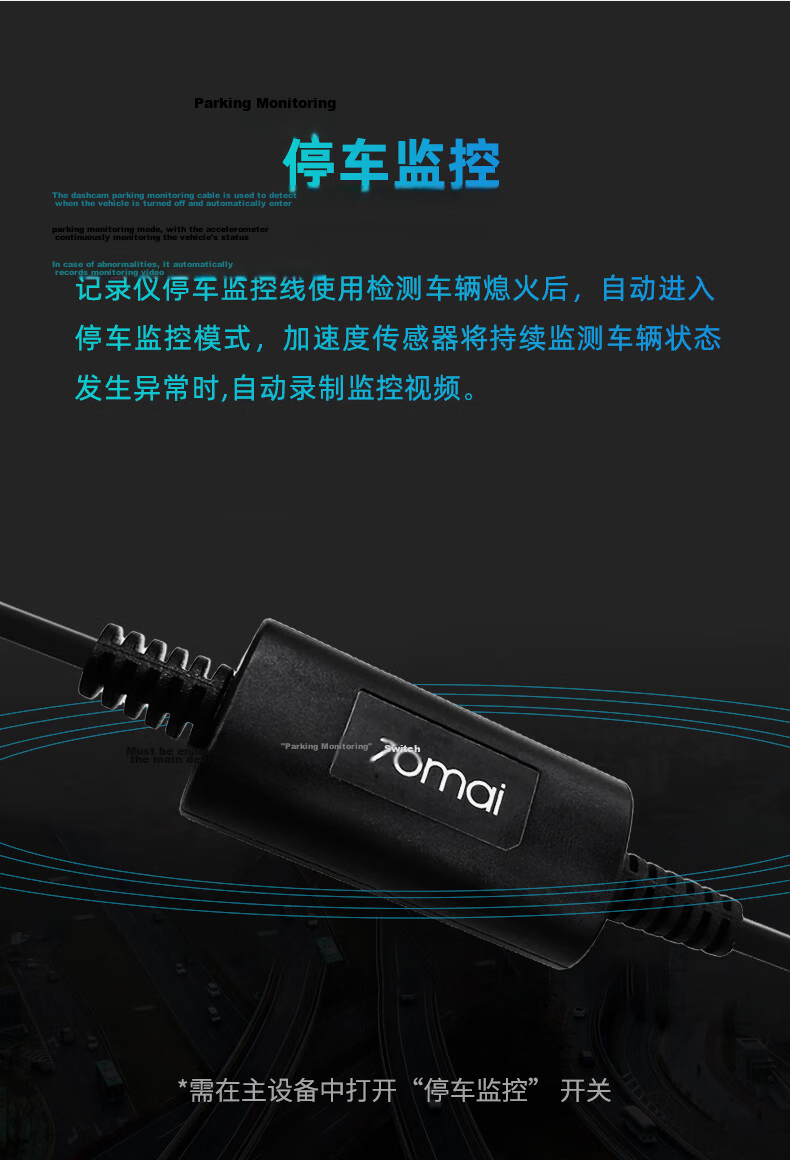

Parking monitoring is disabled by default and must be activated via the main dashcam device settings.

Professional installation is required. The manufacturer is not responsible for damages caused by improper installation, including electrical short circuits, battery damage, or interior damage.

Losses caused by installation issues rather than product defects are not covered by warranty.

Product performance depends on vehicle power supply, battery condition, and main device reliability; issues caused by these factors are not product defects.

Some vehicles may not provide ACC signal changes during ignition or shutdown, which may prevent the parking monitoring cable from transmitting ACC signals to the dashcam, potentially limiting functionality.

Use this product in compliance with local laws and regulations.
