Deli Fully Automatic Booster Pump, Household Water Heater Tap Water Pressure Booster Pump, DC Pump, Small 50W Water Pump

| Pressure | 0.45MPA |

| Protection Grade | IP44 |

| Pump Head Material | Engineering Plastic |

| Inlet/Outlet Diameter | 4mm |

| Model | ZYB75 | ZYB50 | ZYB70 | ZYB75 | ZYB50Z | ZYB75Z | ZYB120Z |

| --- | --- | --- | --- | --- | --- | --- | --- |

To achieve full automatic functionality, ensure water flow from the tap is greater than 1.6L/min before powering on.

New products should not be directly powered on for testing. Contact customer service for specific testing procedures.

Installation pipes must meet certain requirements. Inlet pipe diameter must be equal to or greater than outlet pipe diameter, and plastic hoses are prohibited for inlet pipes.

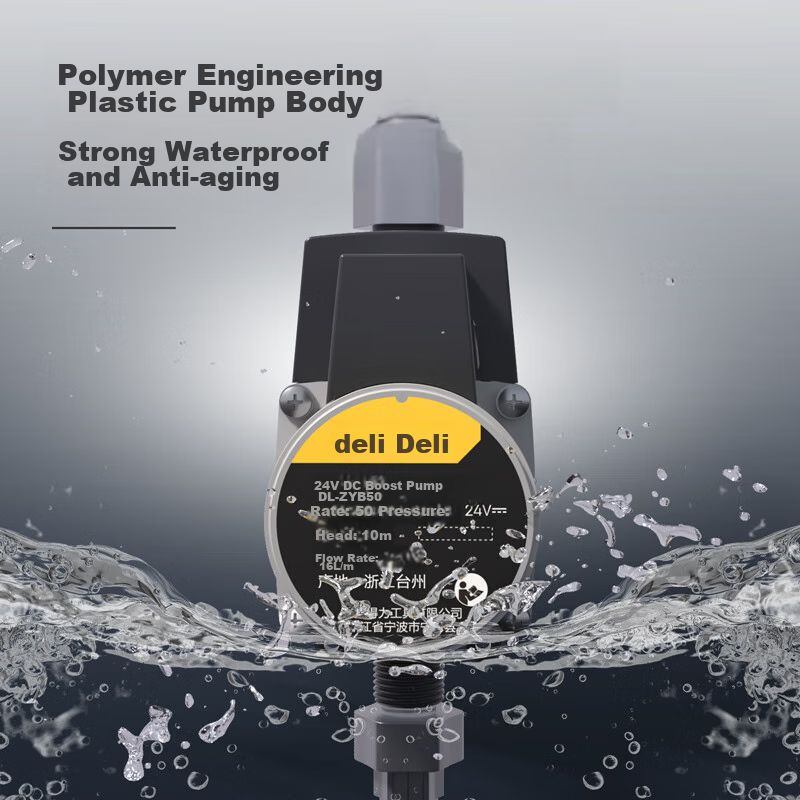

24V DC Booster Pump

Waterproof

Compact design

Suitable for various scenarios such as tap water pressurization, water heater pressurization, and toilet pressurization

Power Adapter x1

Expansion Screws x4

Expansion Tubes x2

Bracket x1

1. Connect the water pipes to the pump's inlet and outlet, ensuring correct water flow direction.

2. Secure the base plate on the wall using a 5mm drill bit.

3. Mount the pump on the base plate and secure it with screws.

4. Plug in the power adapter and ensure water flow from the tap before powering on.

Suitable for water dispenser pressurization, gas/electric water heater pressure adjustment, flower wine pressurization, washing machine pressurization, etc.

Product dimensions are measured manually, please refer to the actual product for accuracy.
