Back to CatalogDongcheng 20V Brushless Impact Drill, Electric Drill, Wrench, Four-In Lithium Battery Hammer Drill, Angle Grinder, Cutting Machine Package WCKIT18B
Specifications
Whether with carbon brush Without carbon brush
Chuck Type Quick chuck
Rated voltage 20V
Battery capacity 4Ah
Speed regulation mode Infinitely variable speed
Power Mode Lithium battery Variants / Sale Attributes Style: 20V Lithium Battery Four-Piece Set (4.0Ah Four Batteries)
Package Contents 5 stainless steel cutting discs, 3 metal grinding discs, 3 blinds, 1 set of 5 electric drill accessories, 1 set of 4 round handle alloy drill bits, 1 set of connecting shaft + drill chuck, 1 set of 5 electric plate sleeves, 1 pair of glue gloves, 1 round handle chisel (pointed chisel, flat chisel each)
Product Description Product Specifications
Overview
Brand (Dongcheng)
Product Series Premium Electric Power Tools, Multi-functional and High Efficiency, Lithium Battery Selection

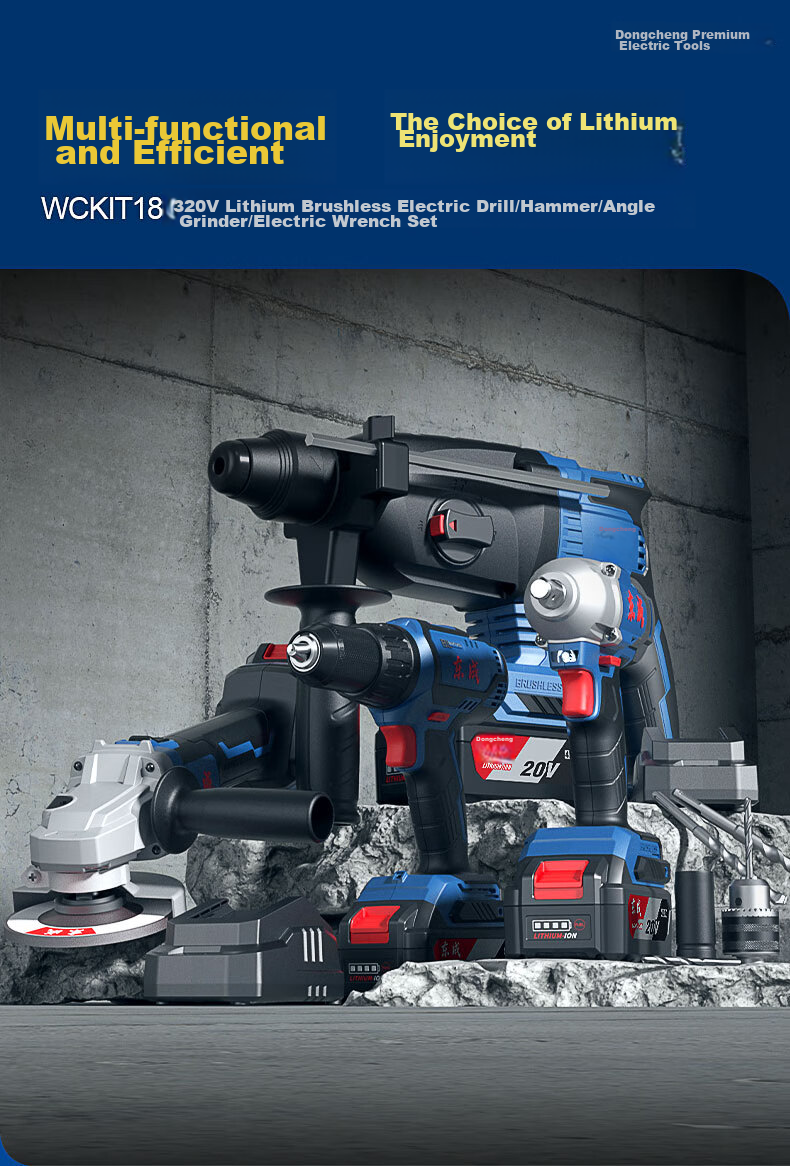

Model WCKIT18B 20V Lithium Brushless Drill/Rotary Hammer/Angle Grinder/Electric Wrench Kit

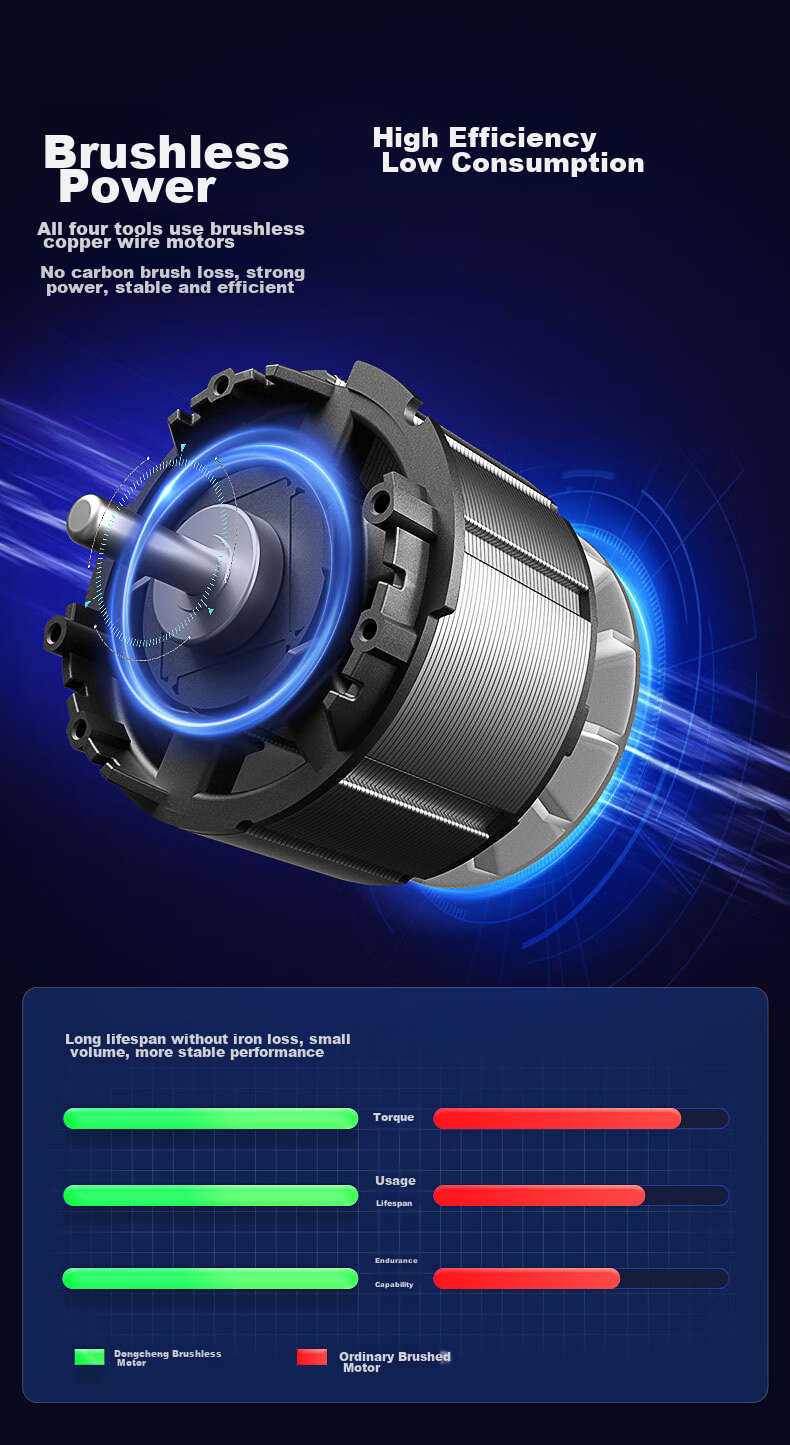

Brushless Motor Technology All four tools use brushless copper wire motors for strong power, stable performance, longer lifespan, and compact size.

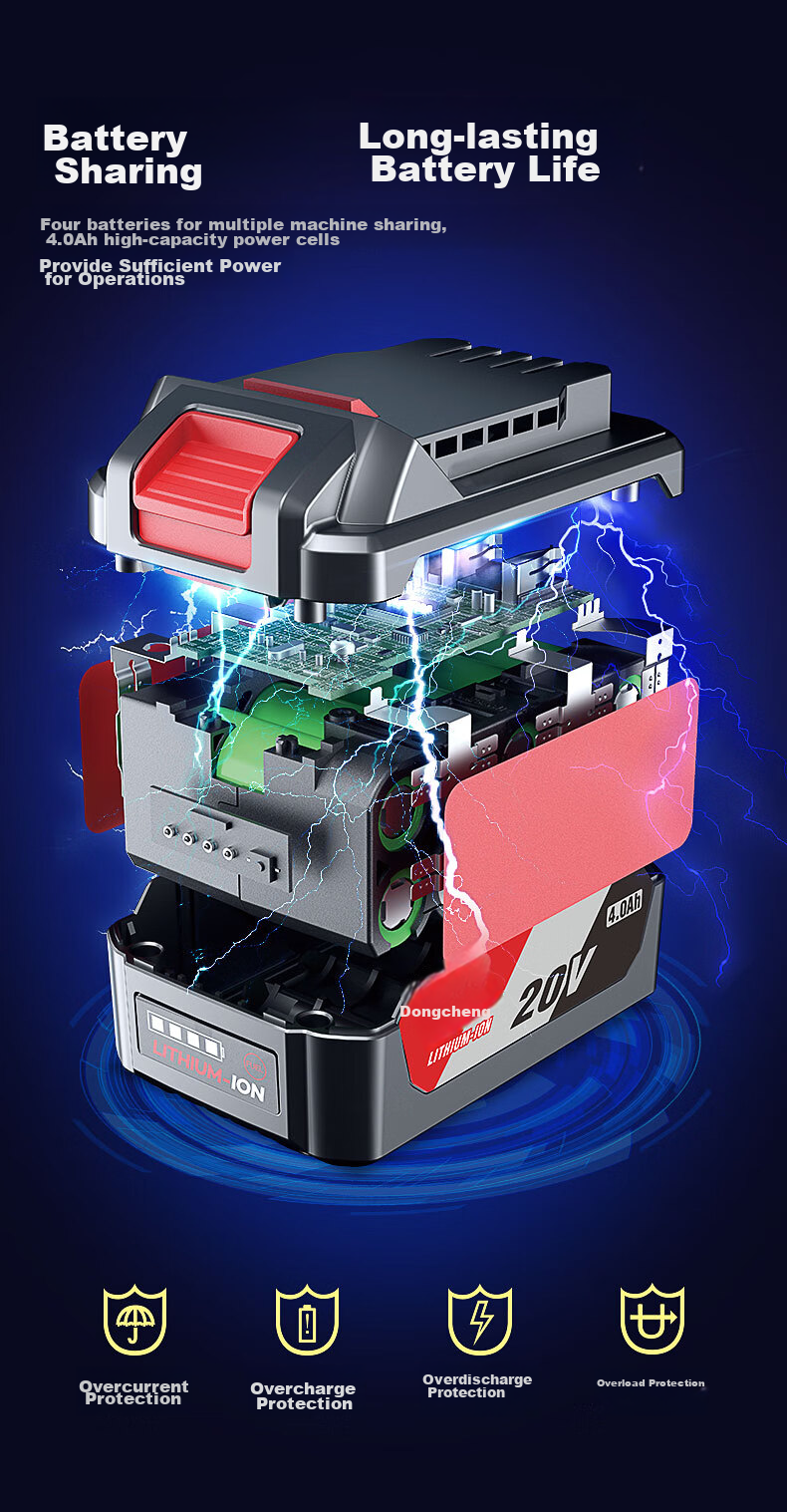

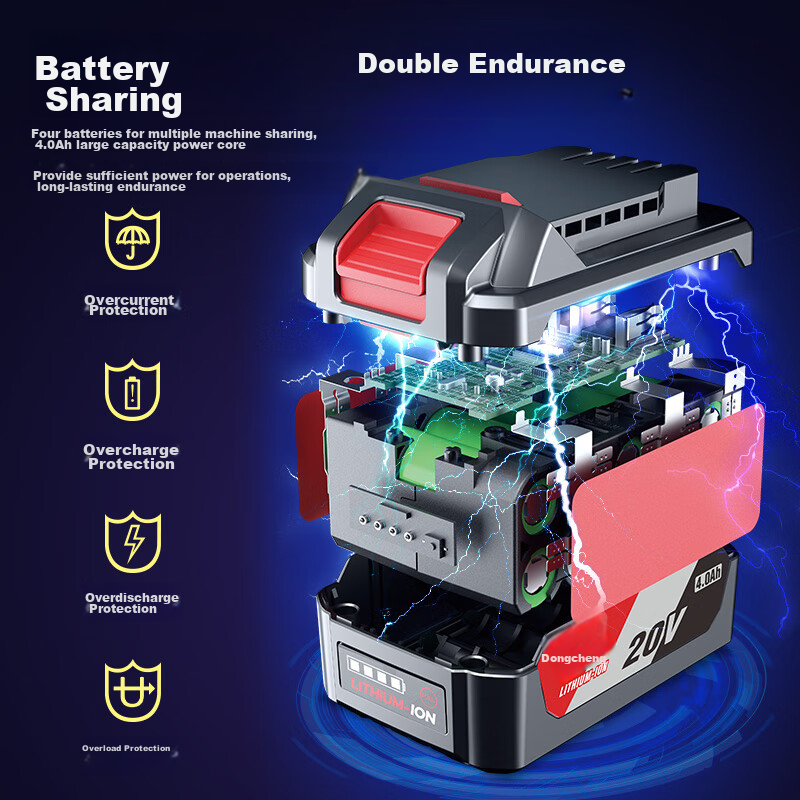

Wireless Lithium Battery Universal 20V 4.0Ah battery pack shared across multiple tools, providing long-lasting power and efficient operation.
Similar Products Out of Stock
In Stock
Protection Systems
Overcurrent, overcharge, over-discharge, and overload protections ensure safety and durability.

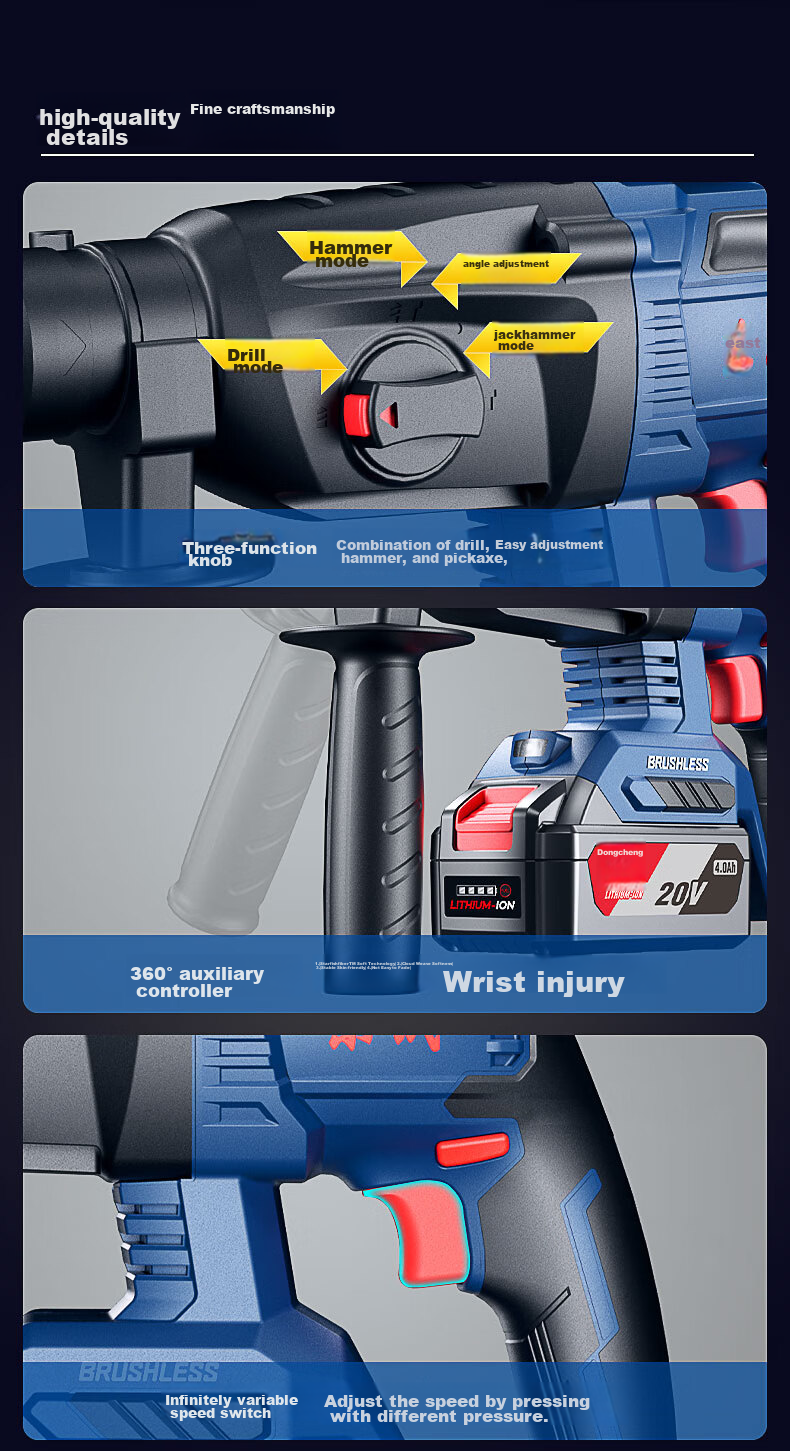

Multi-functionality Includes drill, hammer drill, chisel, angle grinder, and electric wrench functions with easy mode switching.

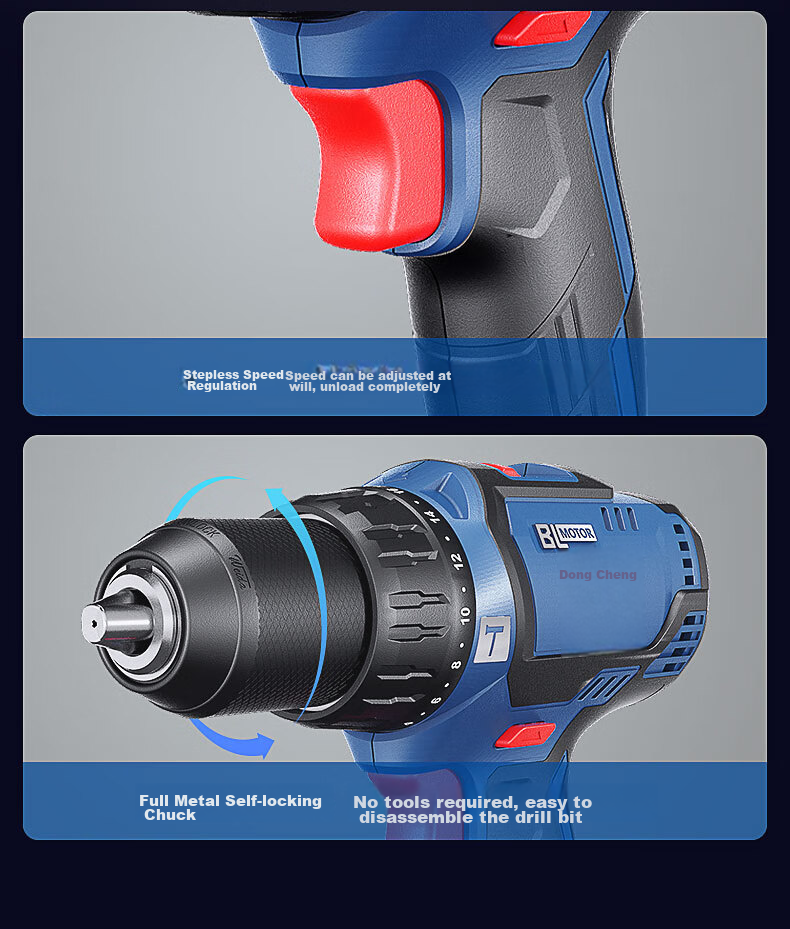

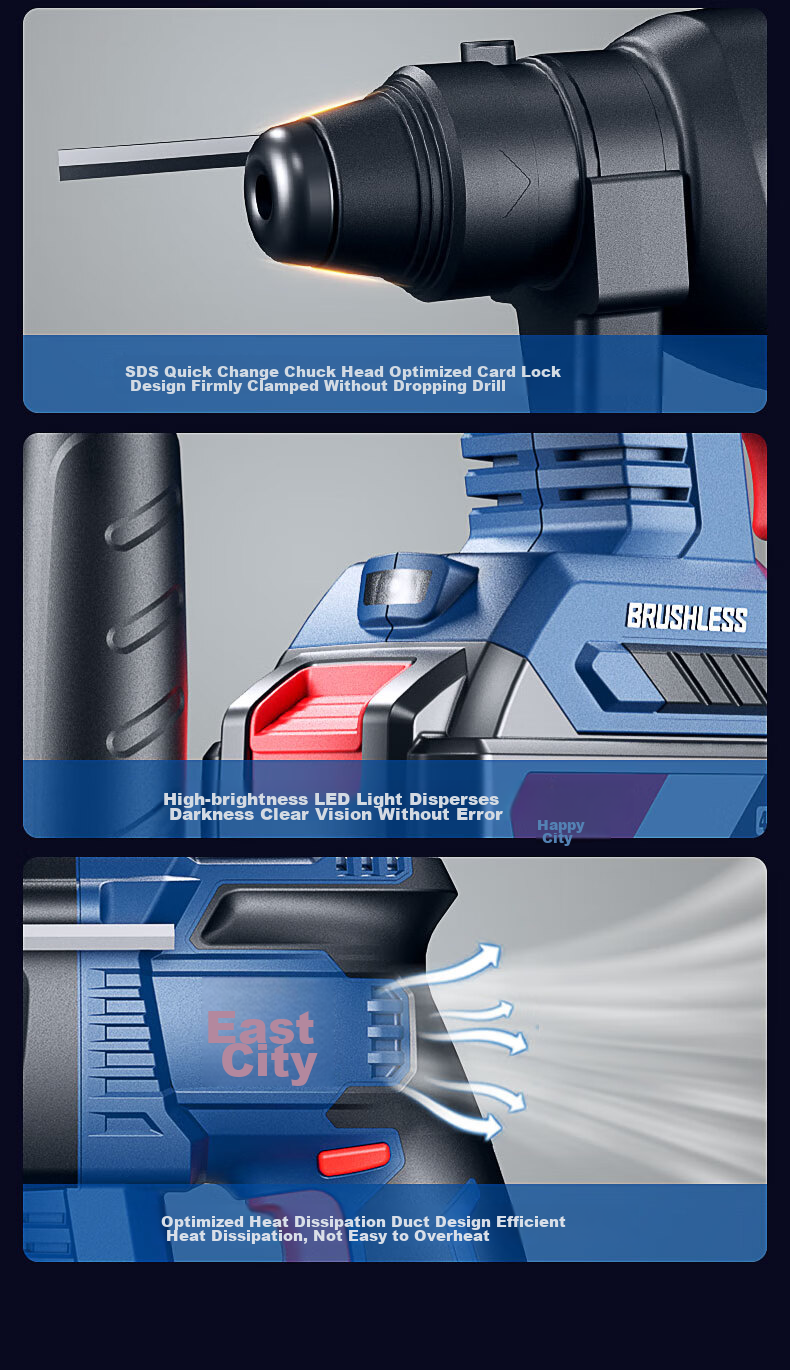

Ergonomic Design 360° adjustable auxiliary handle, no-load variable speed trigger, and optimized heat dissipation channels for comfortable and prolonged use. Quick-change SDS chuck and all-metal self-locking chuck for secure and convenient bit changes.
Additional details
High Brightness LED Work Light Illuminates dark work areas for improved visibility.

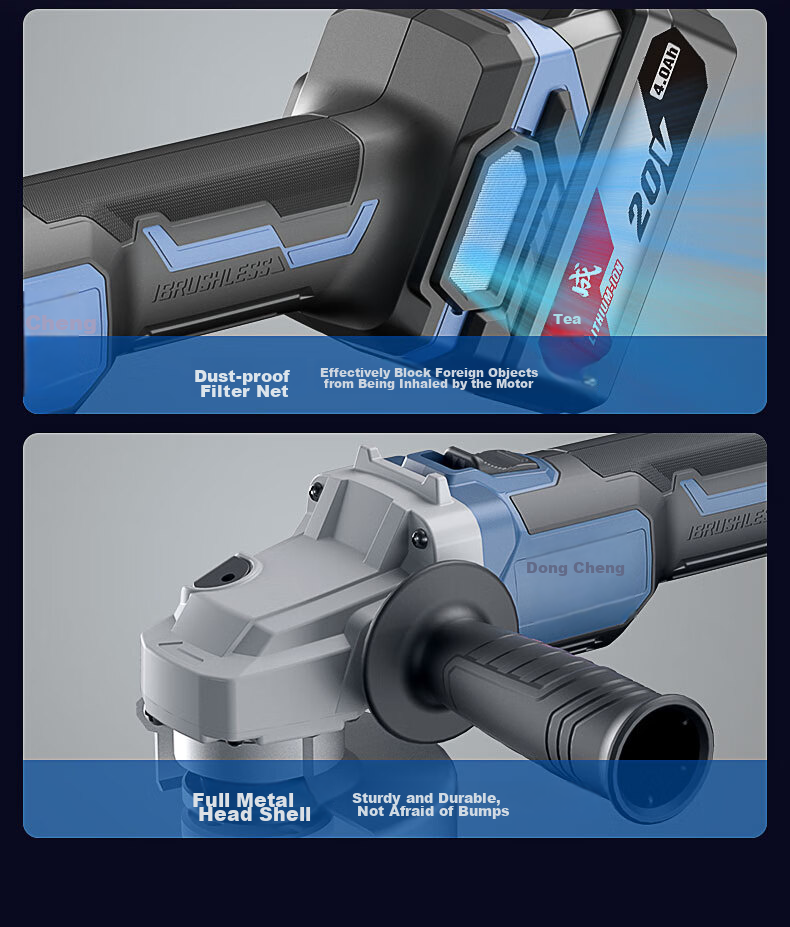

Dust Filter Prevents debris from entering the motor, enhancing tool longevity.

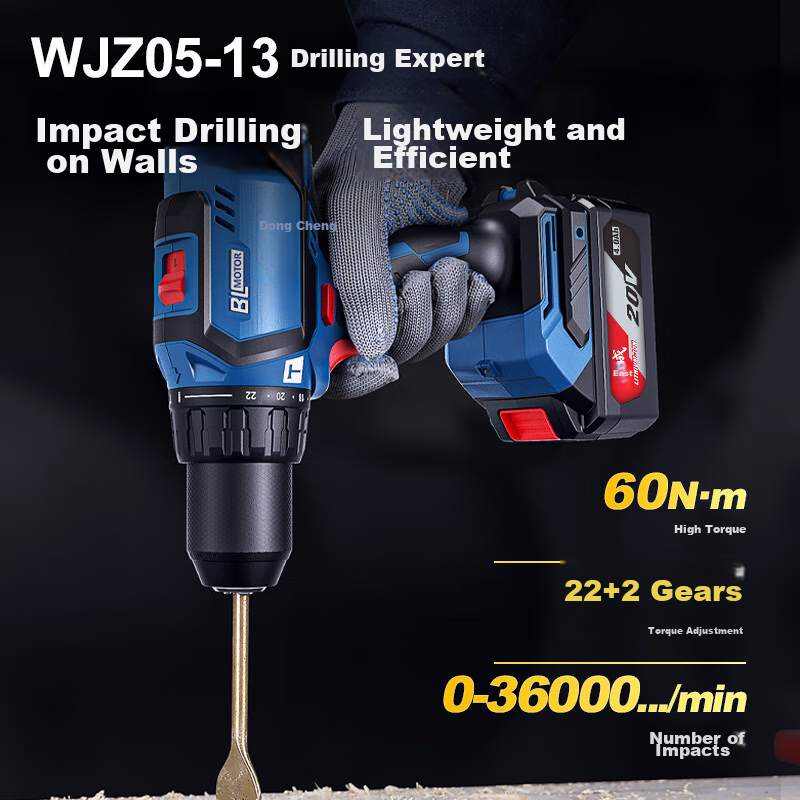

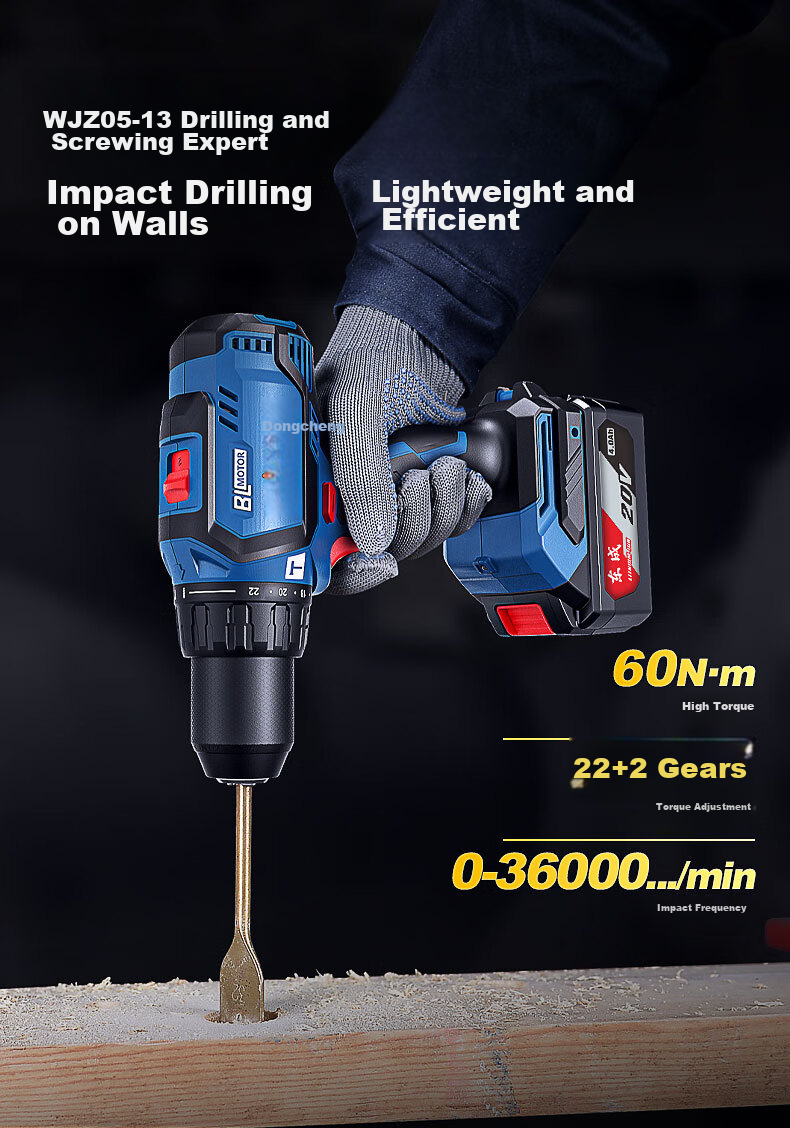

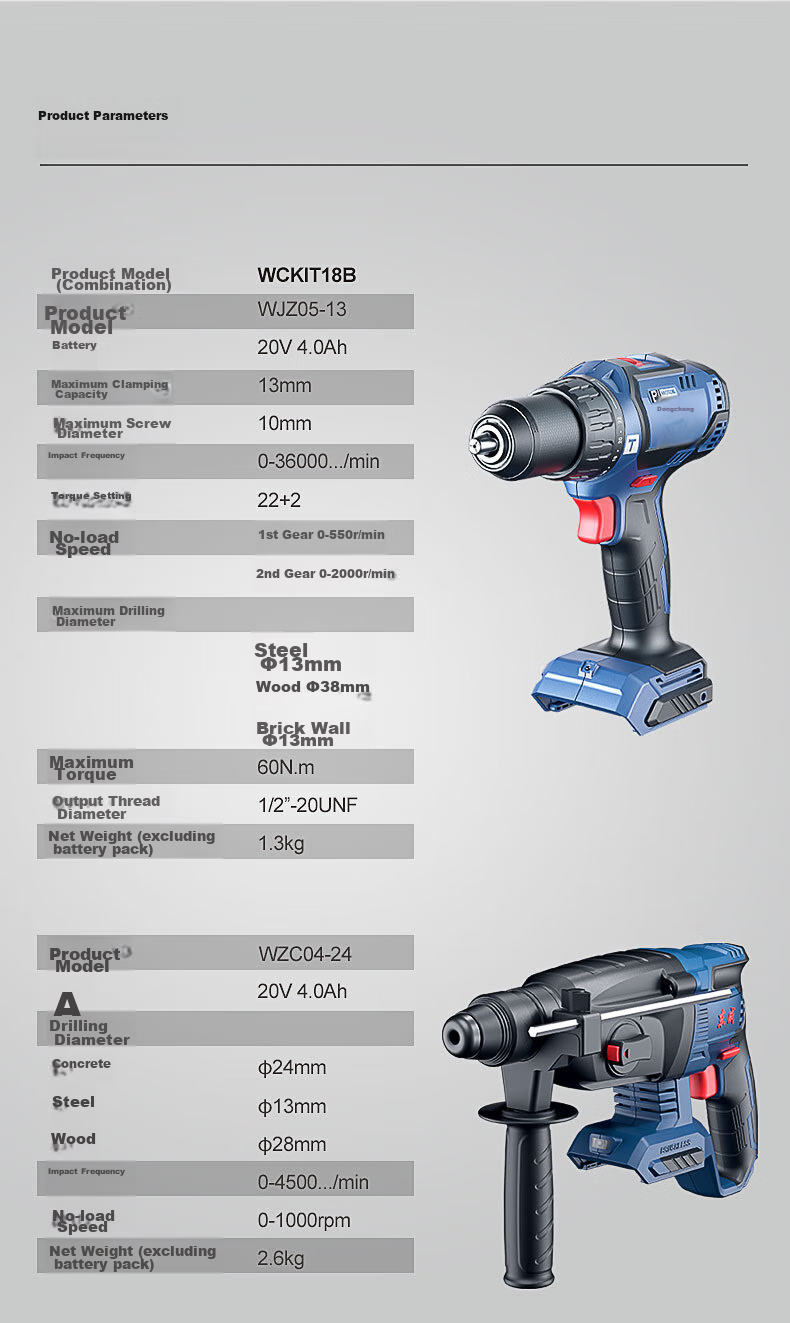

Robust Construction Full metal head shells and tungsten steel shafts for durability and resistance to wear. 1. WJZ05-13 (Impact Drill Expert)
Additional details
Battery 20V 4.0Ah
Max Chuck Capacity 13 mm
Max Screw Diameter 10 mm
Impact Frequency 0-36000 blows/min

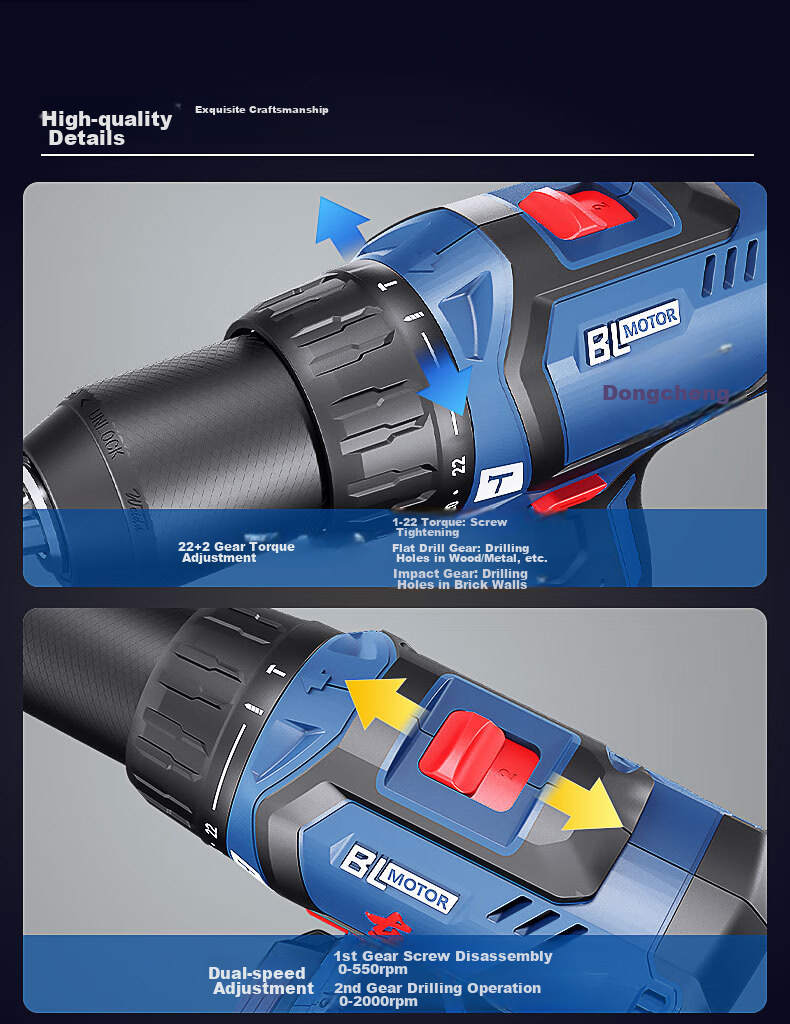

Torque Settings 22+2 levels
No-load Speed Gear 1: 0-550 rpm; Gear 2: 0-2000 rpm
Max Drilling Diameter Steel 13 mm; Wood 38 mm; Brick 13 mm
Max Torque 60 N·m

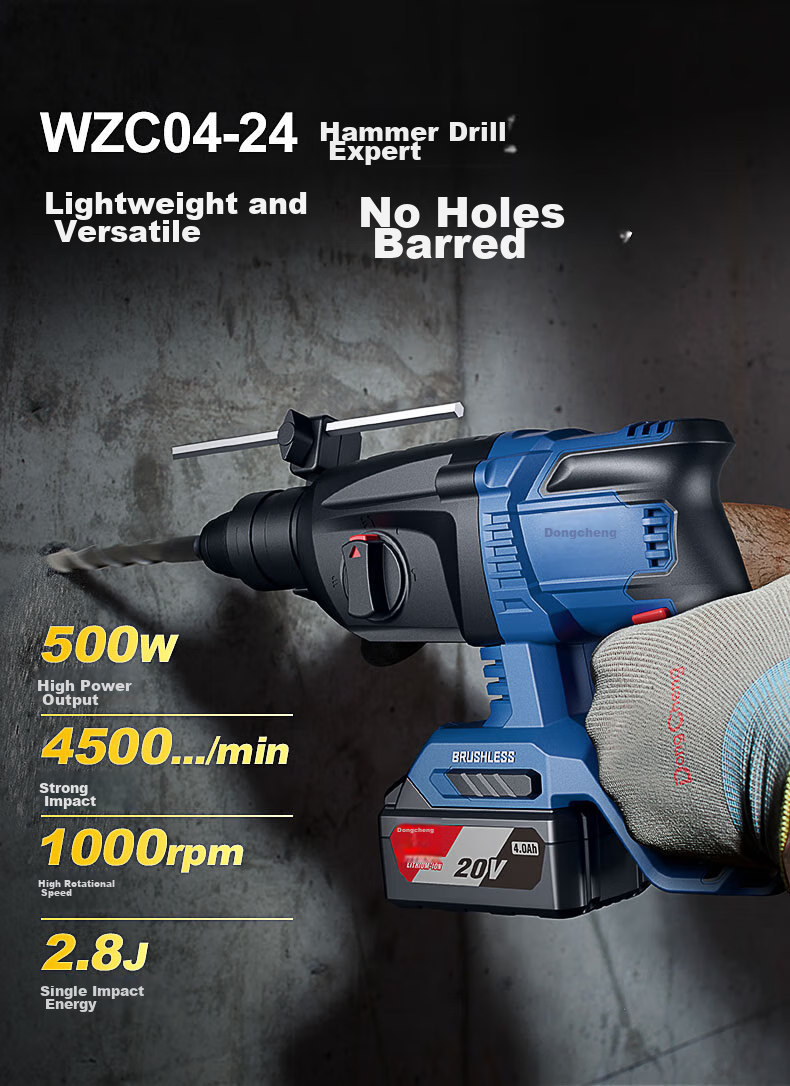

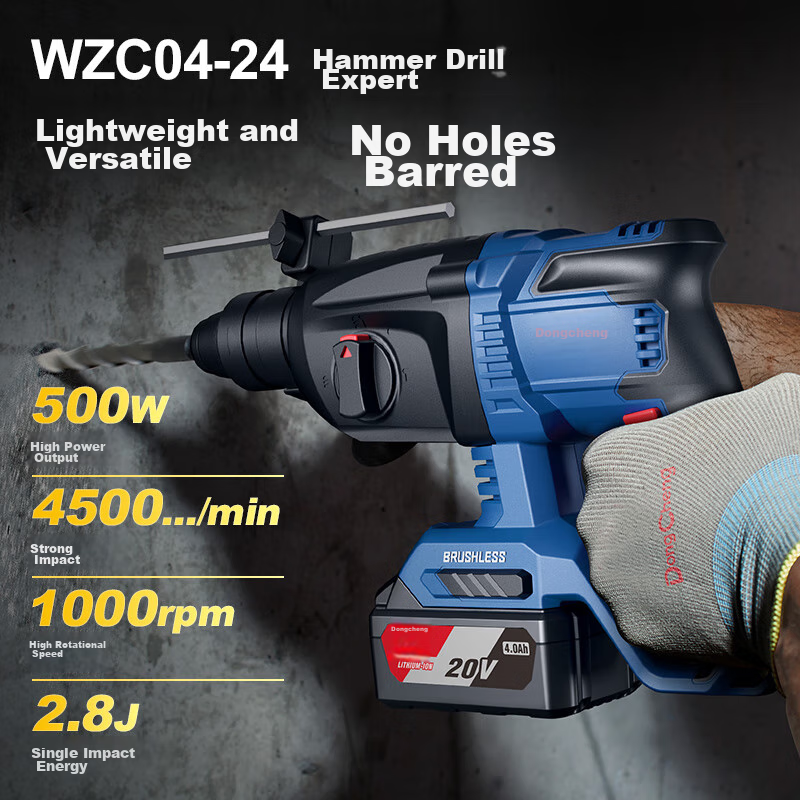

Net Weight (without battery) 1.3 kg 2. WZC04-24 (Hammer Drill Expert)
Additional details
Battery 20V 4.0Ah
Drilling Diameter Concrete 24 mm; Steel 13 mm; Wood 28 mm
Impact Frequency 0-4500 blows/min
No-load Speed 0-1000 rpm

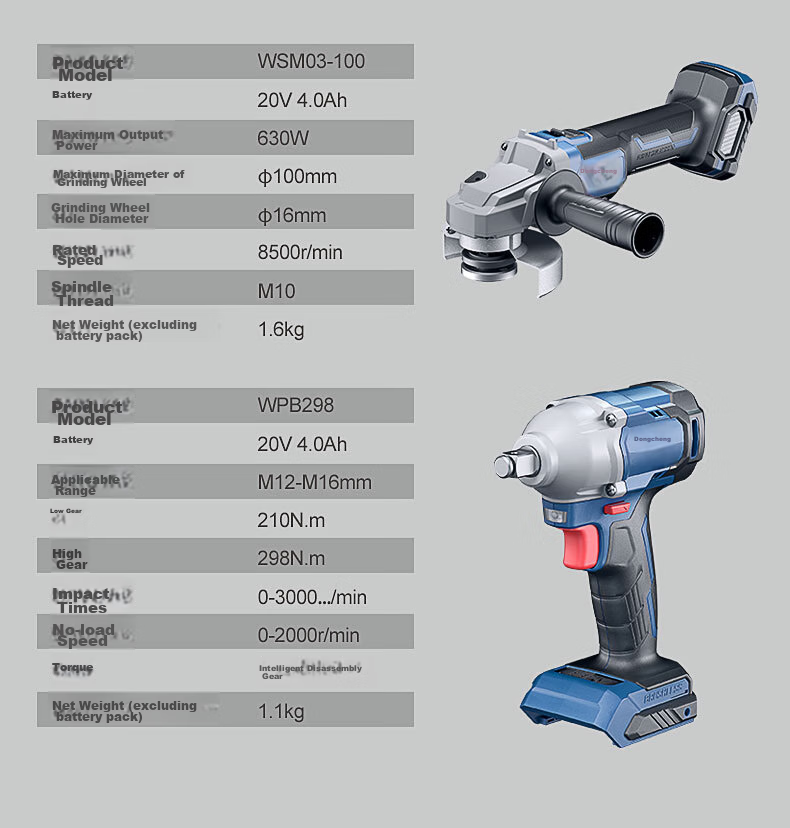

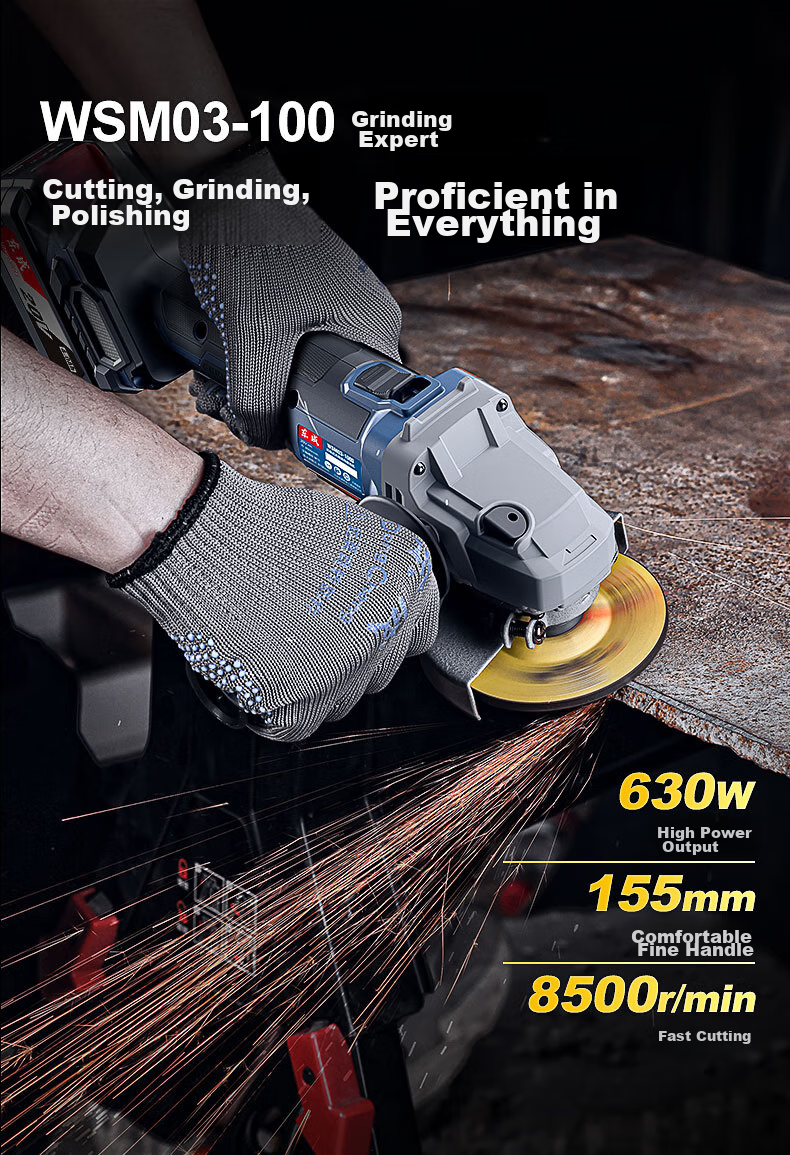

Net Weight (without battery) 2.6 kg 3. WSM03-100 (Grinding and Cutting Expert)
Additional details
Battery 20V 4.0Ah
Max Output Power 630W
Grinding Wheel Diameter 100 mm
Wheel Bore Diameter 16 mm
Rated Speed 8500 rpm
Spindle Thread M10

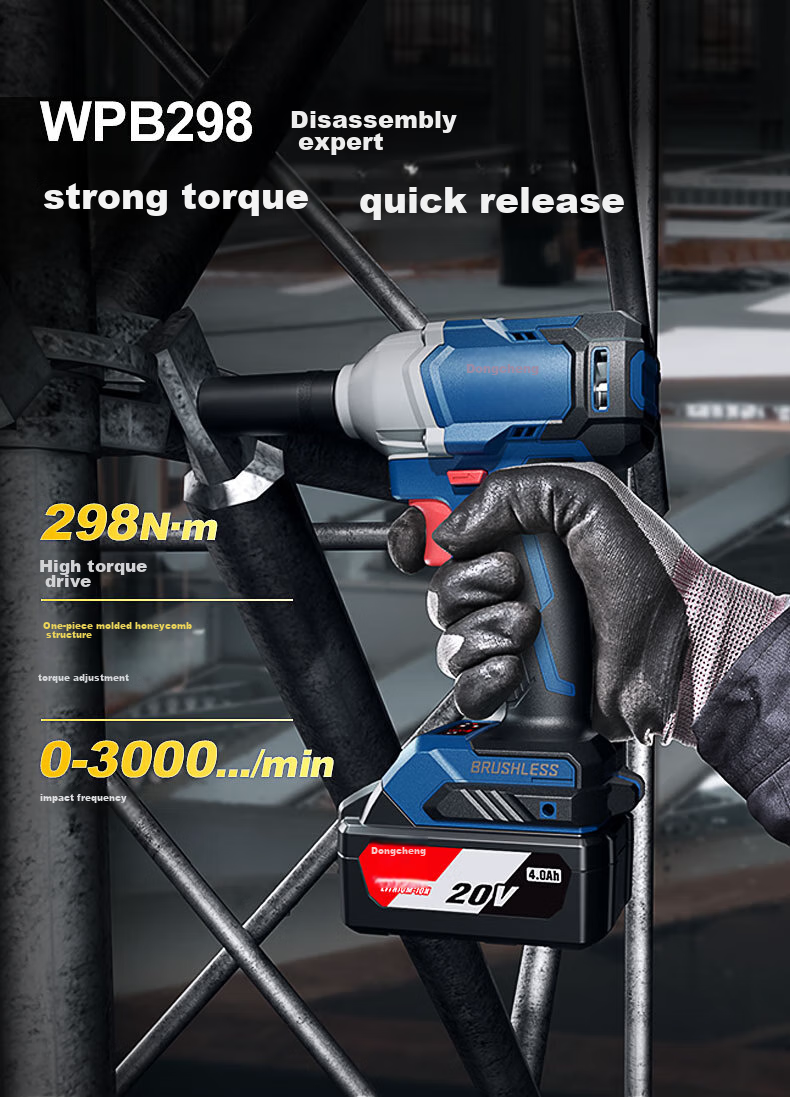

Net Weight (without battery) 1.6 kg 4. WPB298 (Electric Wrench Expert)
Additional details
Battery 20V 4.0Ah
Applicable Bolt Size M12-M16

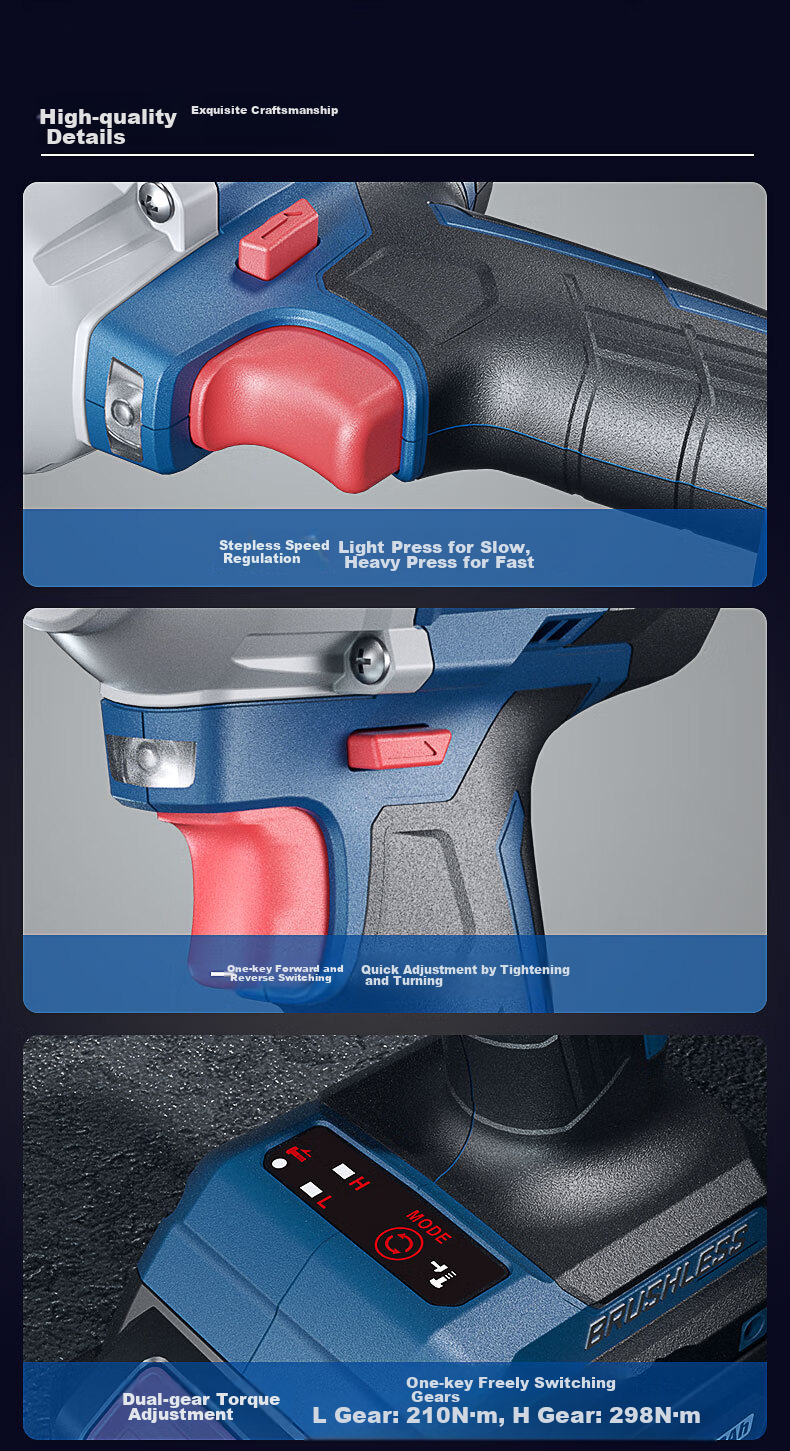

Torque Settings Low Gear 210 N·m; High Gear 298 N·m
Impact Frequency 0-3000 blows/min
No-load Speed 0-2000 rpm

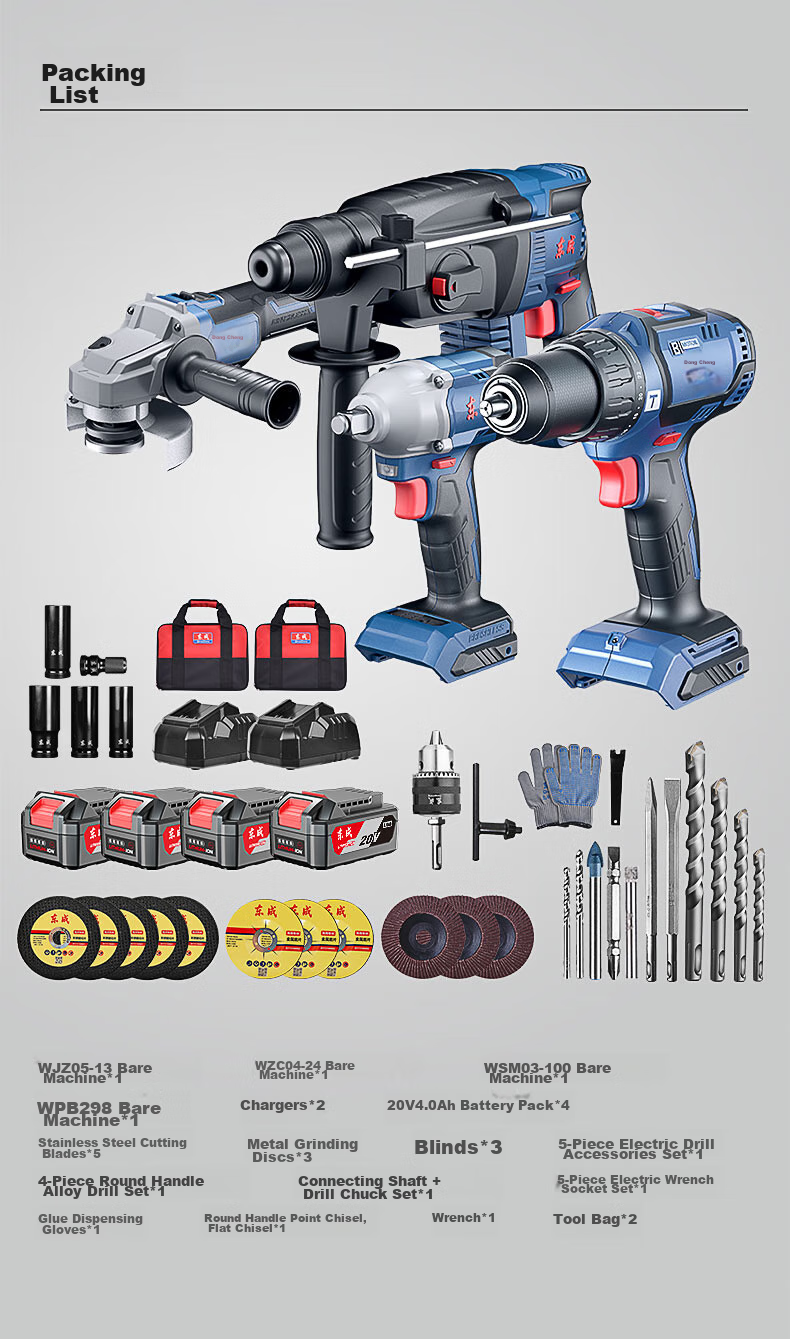

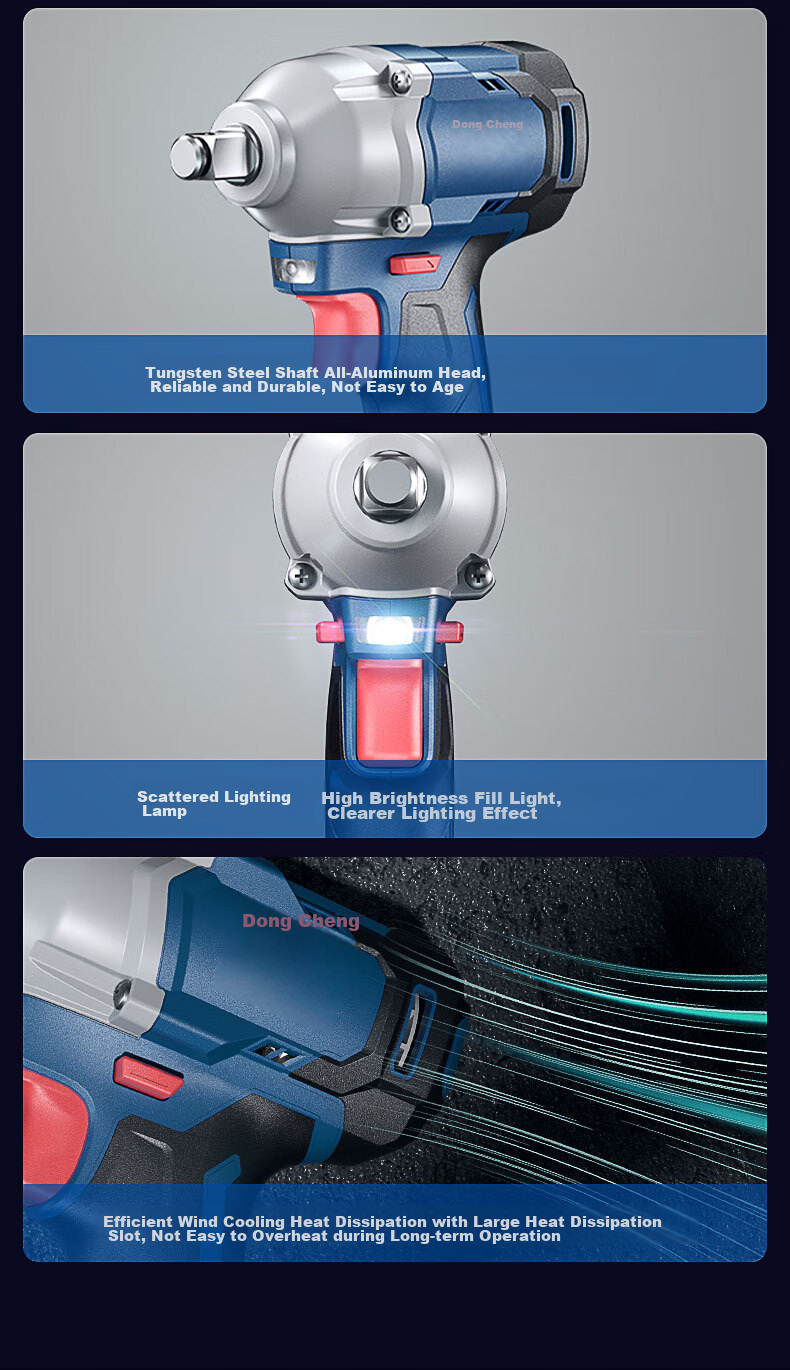

Net Weight (without battery) 1.1 kg Features Brushless motor Dual-speed Forward/reverse switch One-button gear switching Tungsten steel shaft Aluminum head Scatter-type LED lighting Efficient cooling vents. WJZ05-13 Drill (bare tool) x1
WZC04-24 Hammer Drill (bare tool) x1
WSM03-100 Angle Grinder (bare tool) x1
WPB298 Electric Wrench (bare tool) x1
20V 4.0Ah Battery Pack x4
Stainless Steel Cutting Discs x5
Drill Accessories 5-piece Set x1
Round Shank Alloy Drill Bits 4-piece Set x1
Connecting Shaft + Drill Chuck Set x1
Electric Wrench Socket Set 5-piece x1
Glue Dispensing Gloves x1
Round Shank Pointed and Flat Chisels x1
