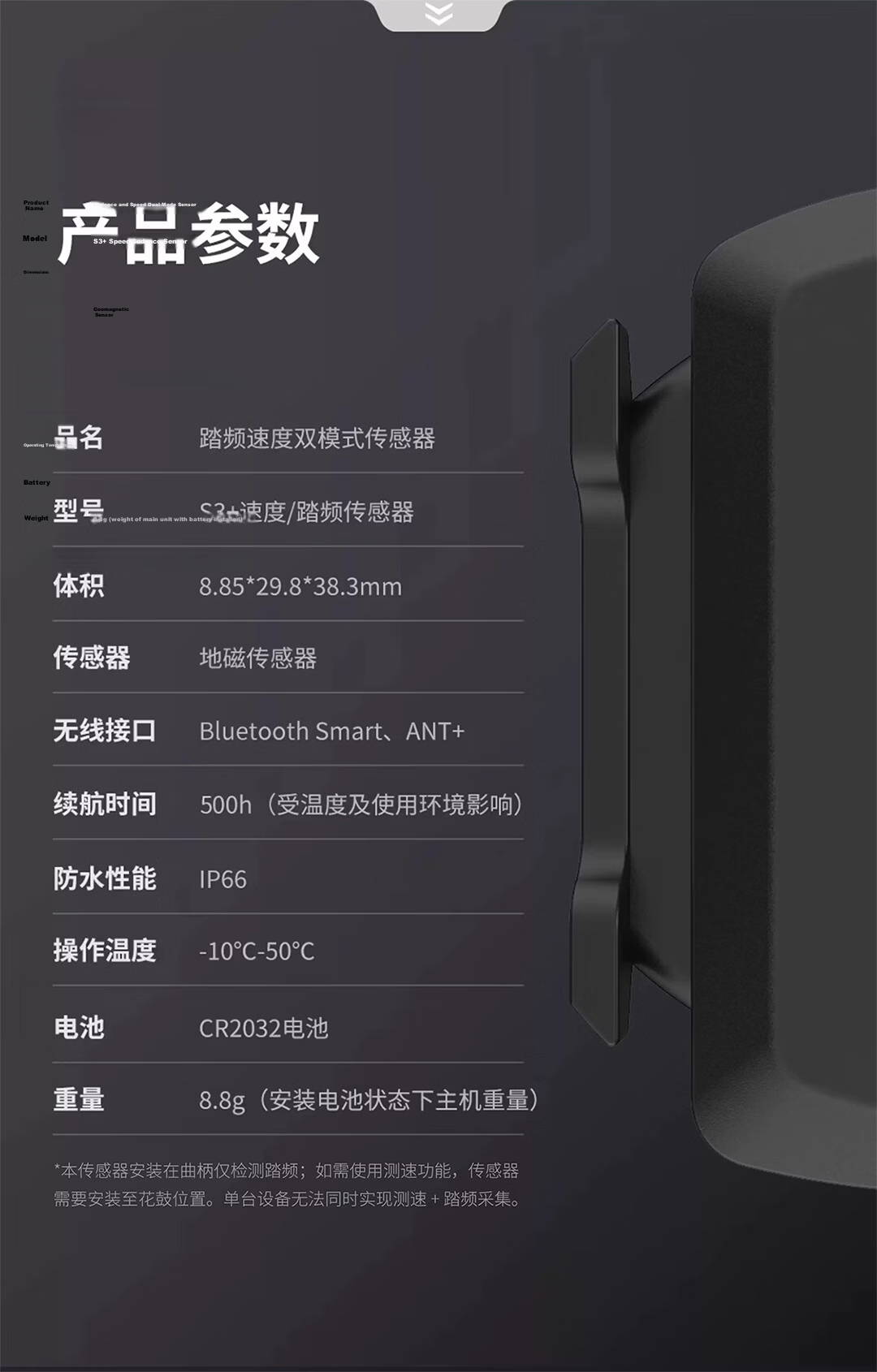

Approx. 500 hours (varies with temperature and usage environment)
Operating Temperature
-10°C to 50°C
Waterproof Rating
IP66 (splash and dust resistant; not suitable for immersion or high-pressure cleaning)

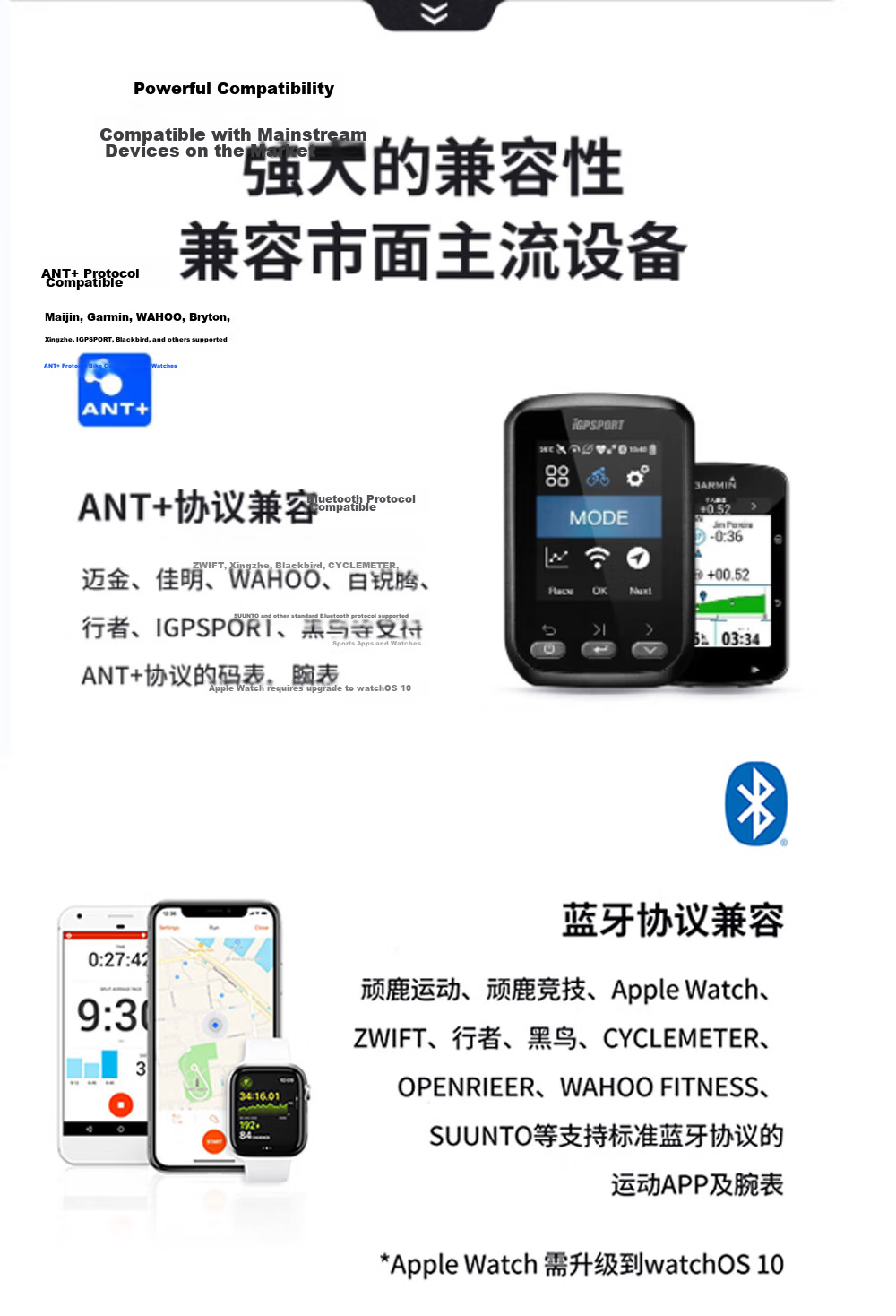

Compatible with major devices supporting ANT+ and Bluetooth protocols
ANT+ compatible devices include Magene, Garmin, Wahoo, Bryton, IGPSPORT, Blackbird, and others
Bluetooth compatible with apps and devices such as Wanlu Sports, Wanlu Pro, Apple Watch (requires watchOS 10 or later), Zwift, Cyclemeter, Suunto, Wahoo Fitness, and more
Supports simultaneous connection and data recording on dual devices with different protocols (e.g., ANT+ bike computer and Bluetooth app)
Apple Watch requires watchOS 10 for compatibility

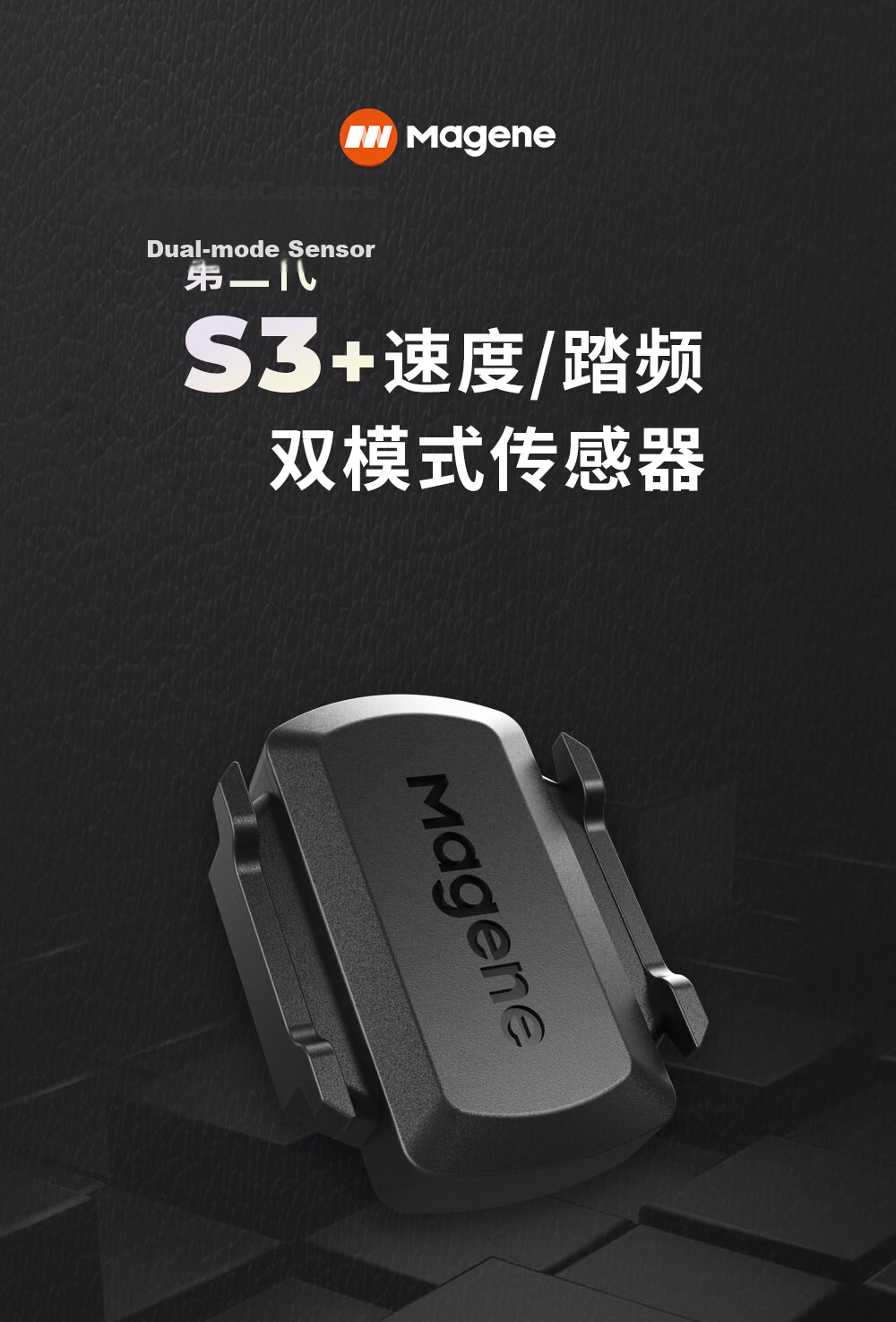

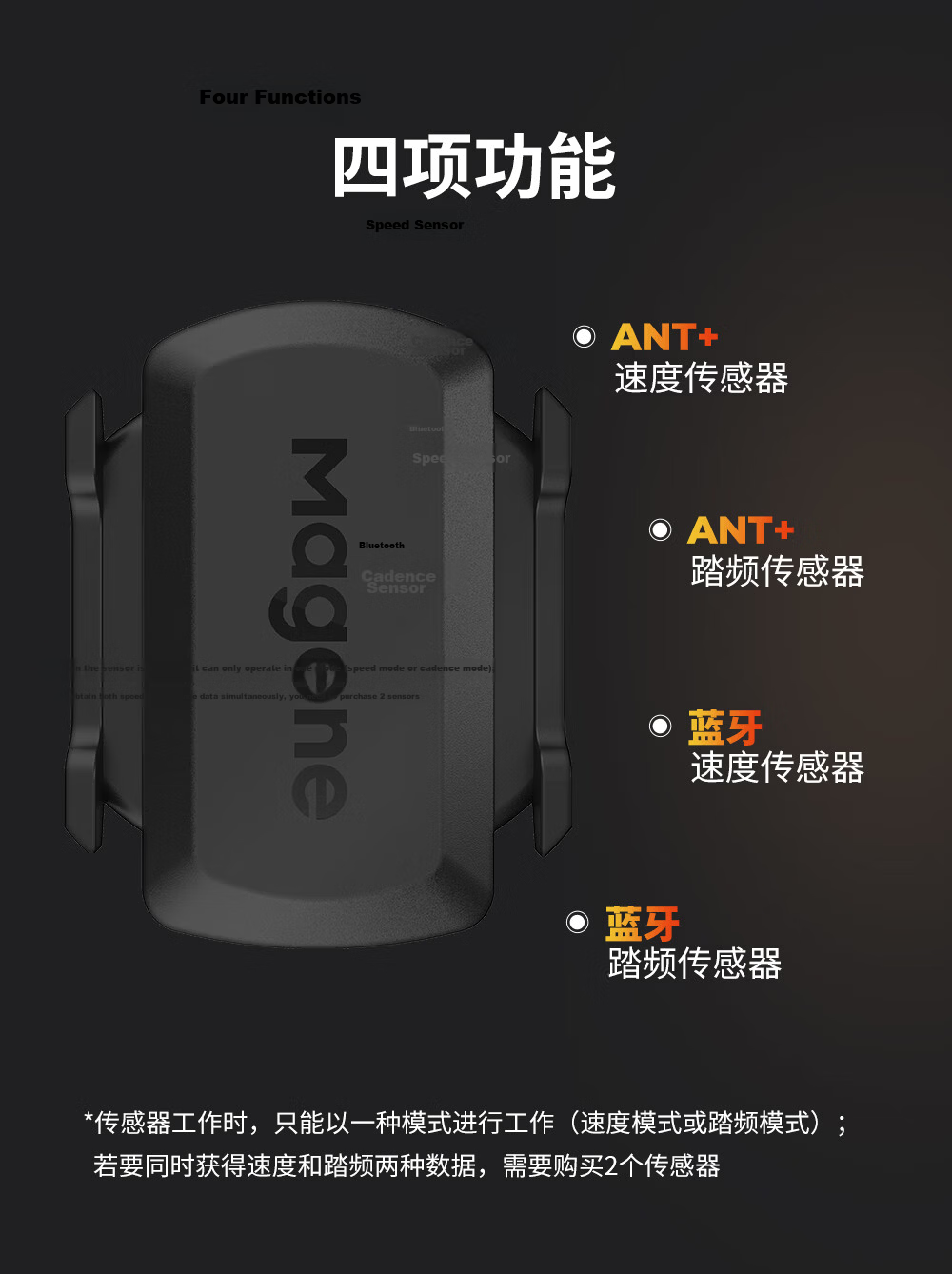

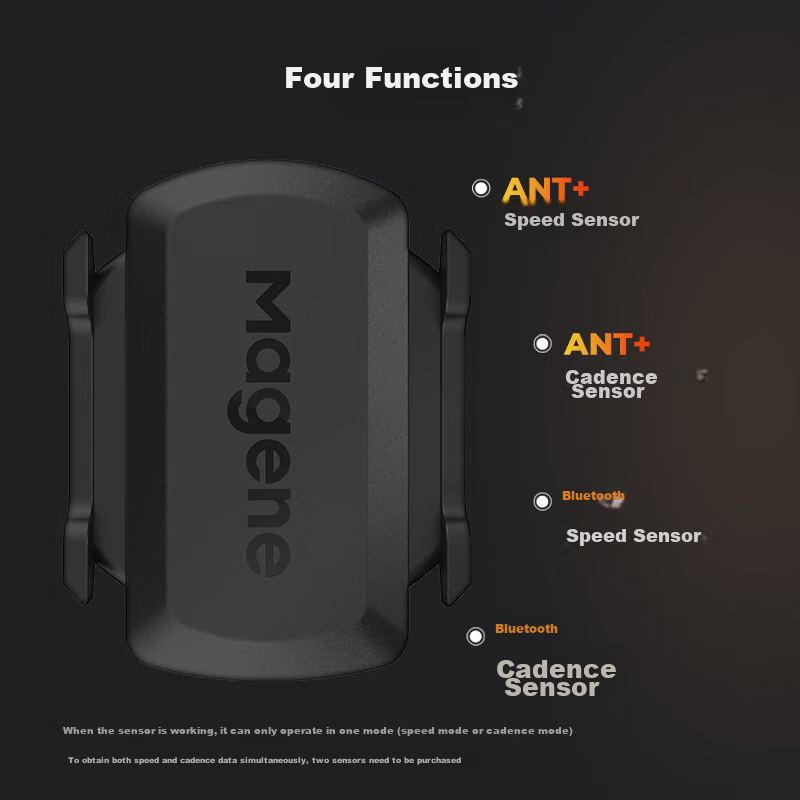

Dual mode sensor supports either speed mode or cadence mode; only one mode can operate at a time
To obtain both speed and cadence data simultaneously, two sensors are required
Additional details
Power saving mode
sensor enters sleep mode after 10 seconds of inactivity and wakes automatically within 3 seconds of movement
Mode switching requires re-connection to receiving devices

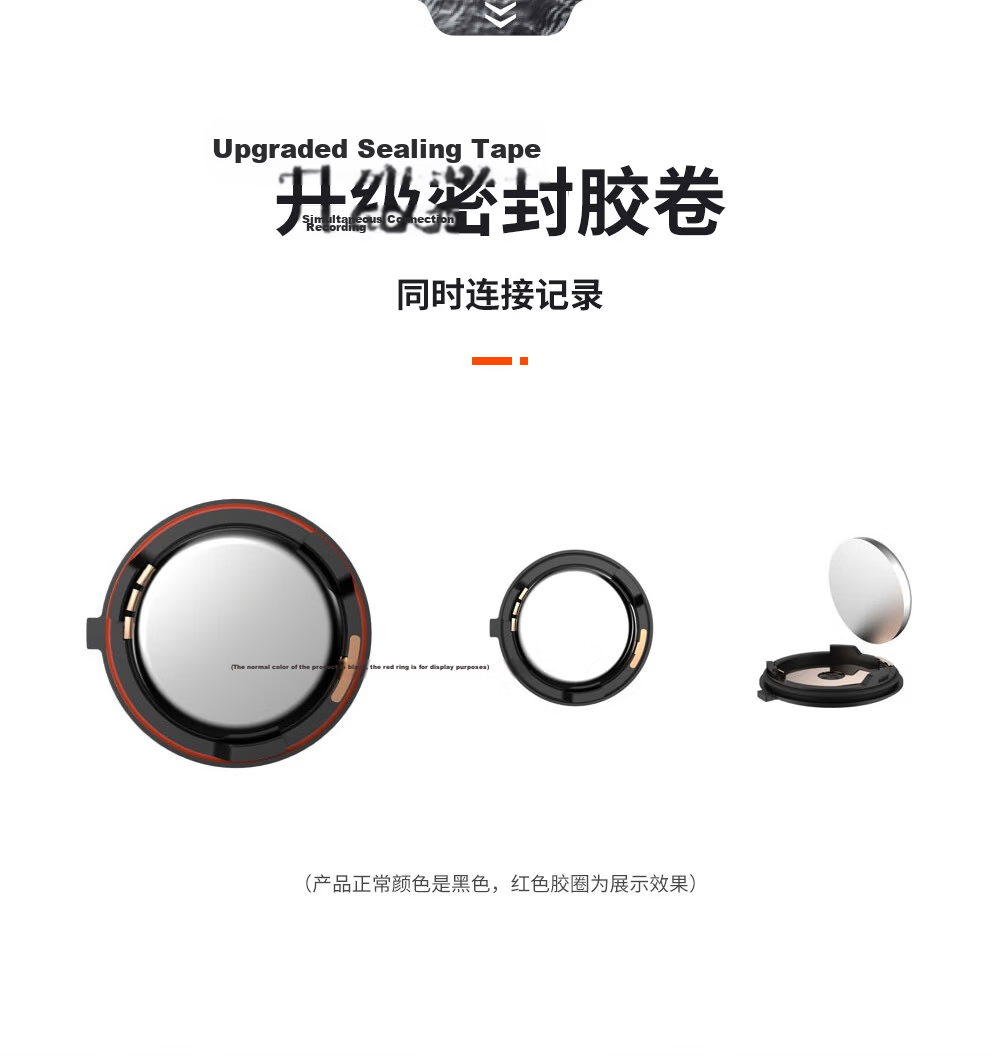

Enhanced sealing with upgraded sealing tape for improved durability

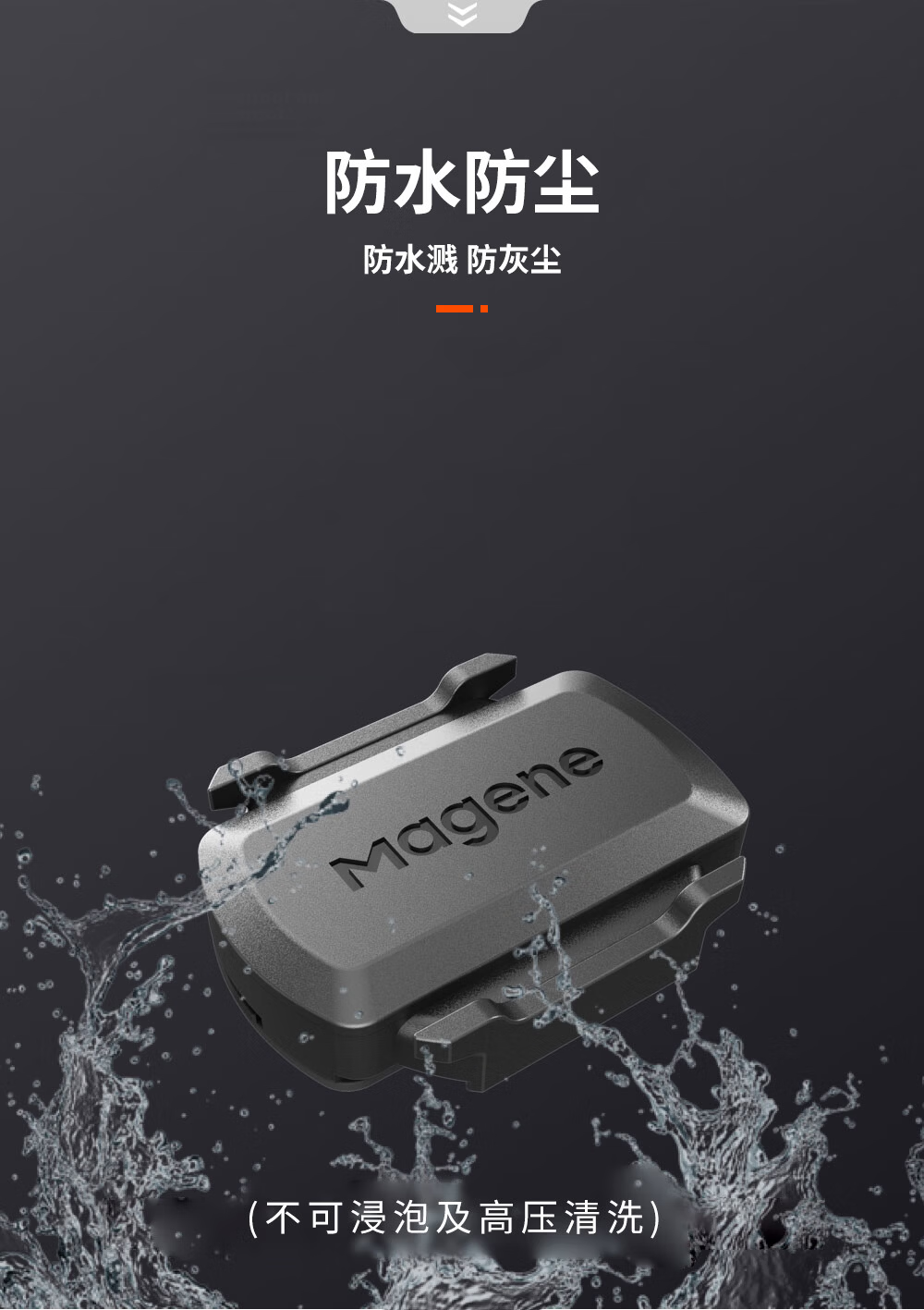

Splash-proof and dust-proof design (IP66)
Additional details
Sensor color
black (red sealing ring shown for demonstration only)

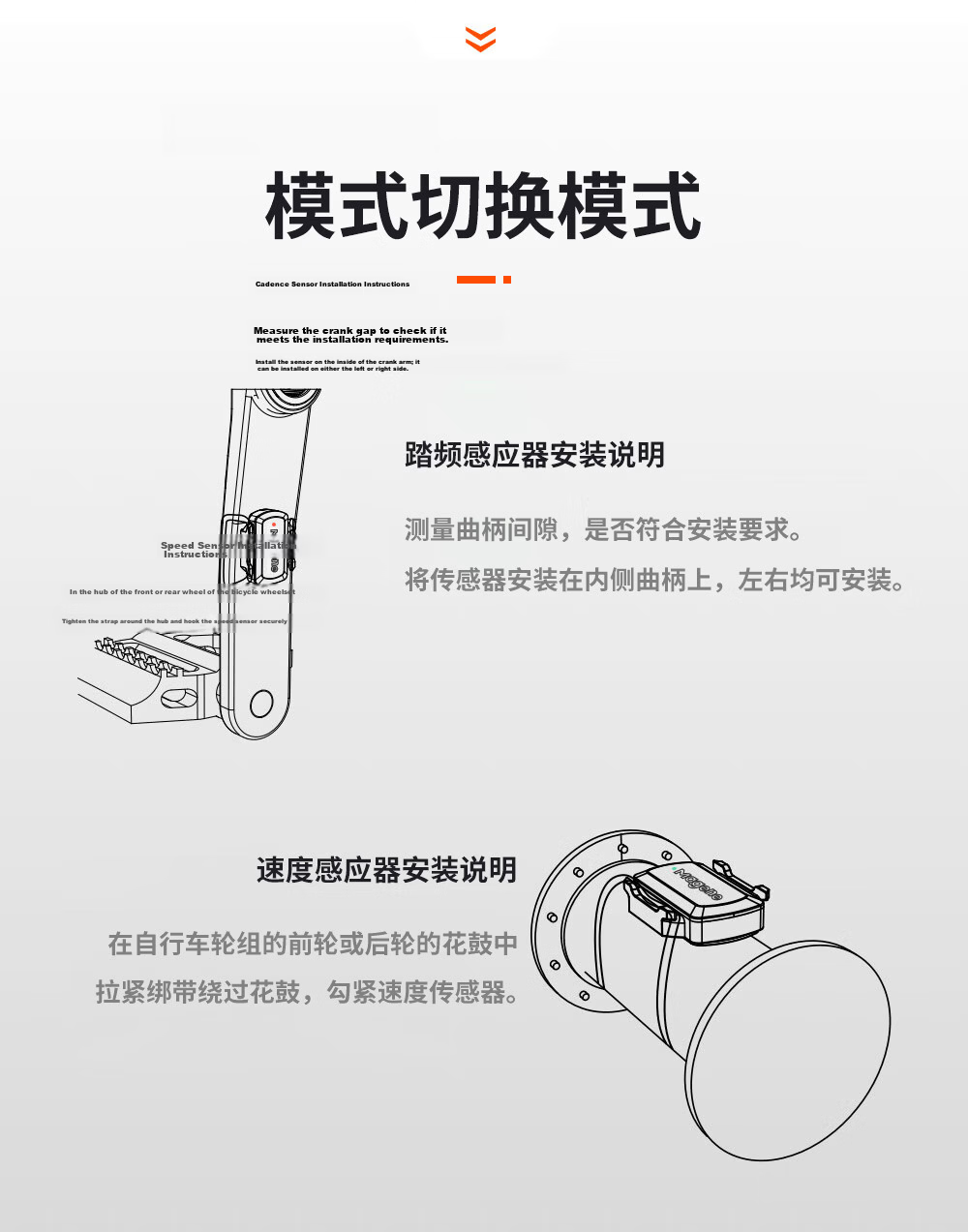

Cadence sensor
install on the inside of the crank arm (left or right side) with included rubber ring and silicone gasket; measures crank rotation only
Speed sensor
install on the front or rear wheel hub; secure with included rubber ring and strap around the hub
Speed measurement requires sensor installation on the hub; a single sensor cannot measure both speed and cadence simultaneously

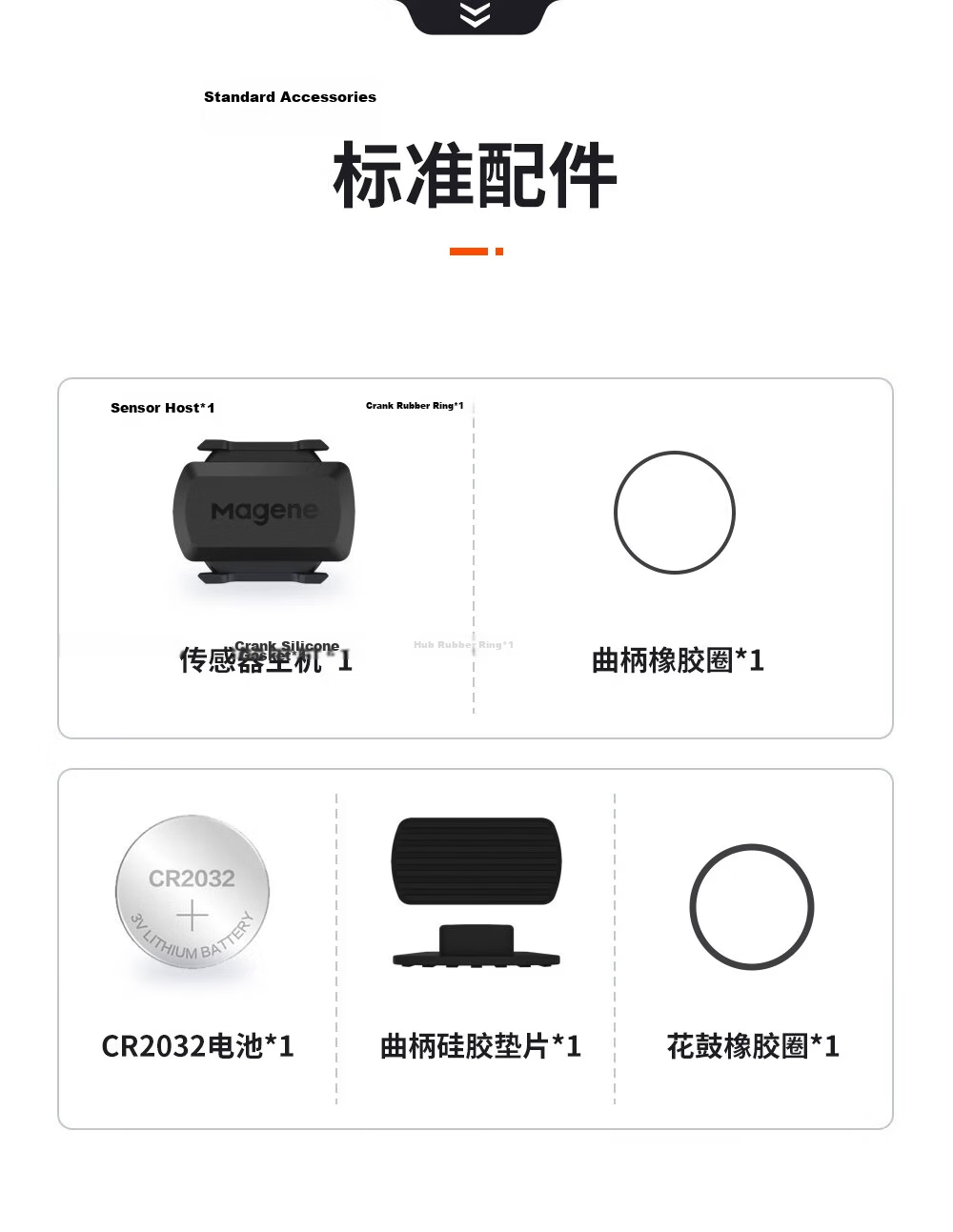

Sensor unit x1
Crank rubber ring x1
CR2032 battery x1
Crank silicone gasket x1
Hub rubber ring x1
This sensor is designed exclusively for installation on bicycles; it is not compatible with indoor cycling bikes (spin bikes)

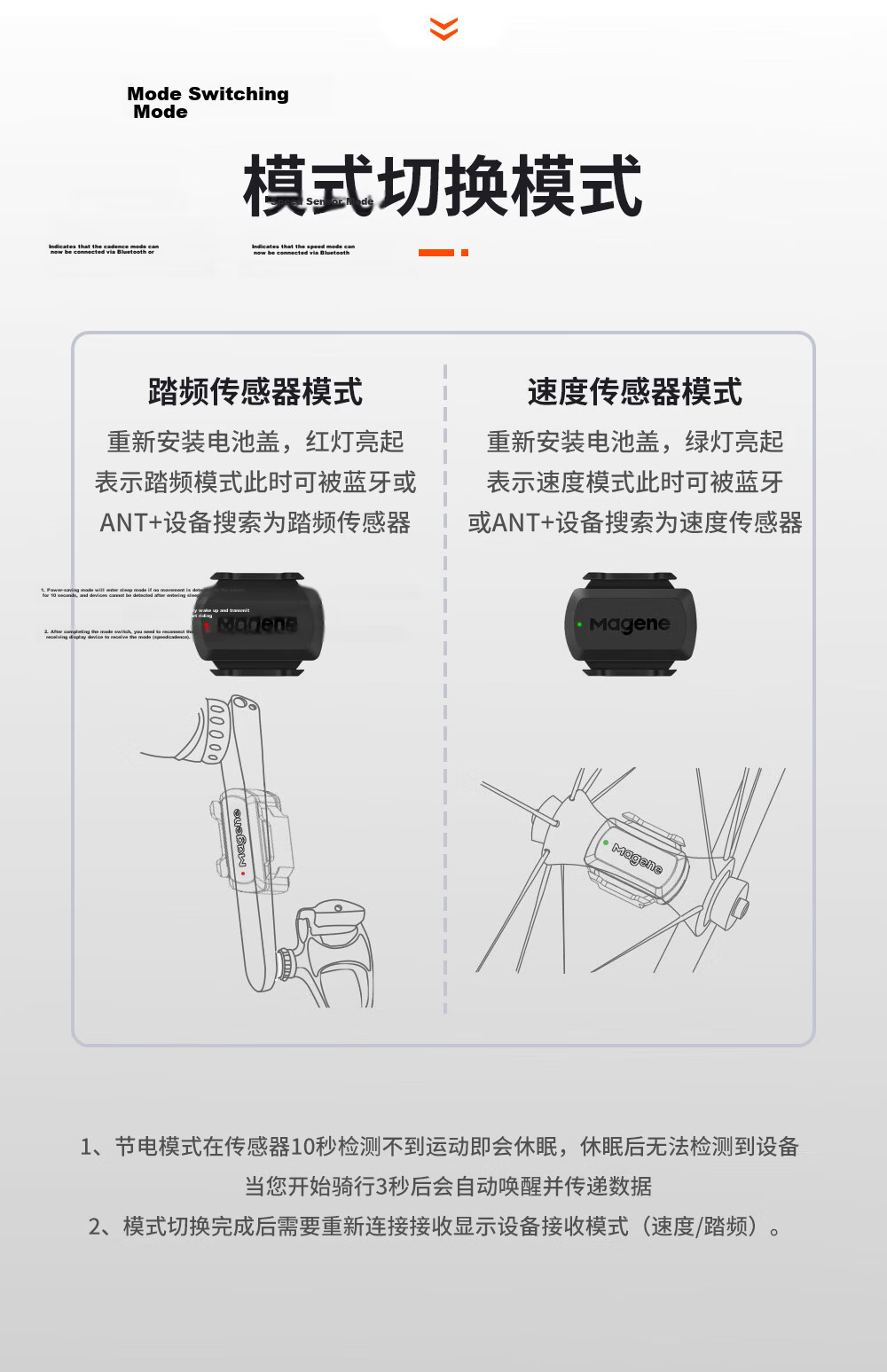

After battery cover reinstallation, red LED indicates cadence mode, green LED indicates speed mode
ANT+ device search will identify the sensor as either cadence or speed sensor depending on mode selected
