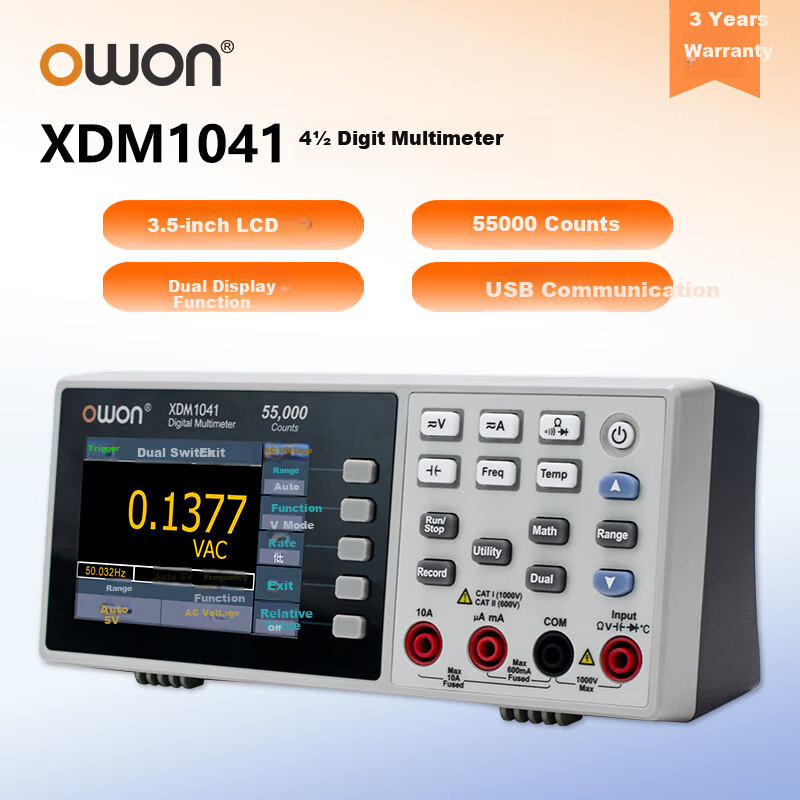

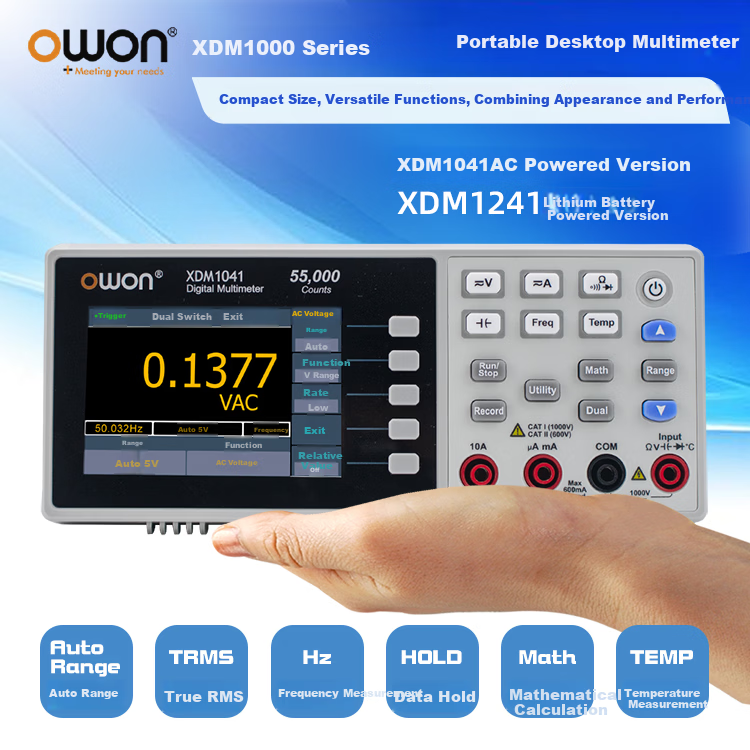

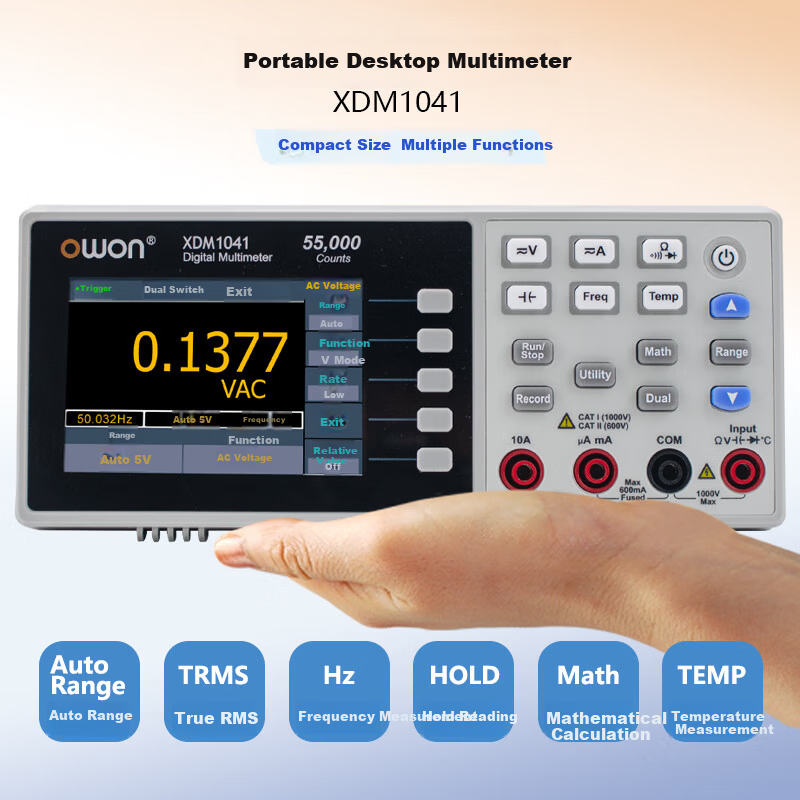

Owon Desktop Multimeter XDM1041 4.5-Digit 55000 Counts Industrial Maintenance USB Interface

owon•Multimeter

Owon Desktop Multimeter XDM1041 4.5-Digit 55000 Counts Industrial Maintenance USB Interface

CN¥637.00

SKU: 100033236590

Status:Out of Stock

ID: 100033236590

Weight: 1040.00 g

Dims:240x179x97 mm

Specifications

Functions: diode, USB communication, frequency, voltage, Fire line detection, duty cycle, temperature, electric current, Resistor, Capacitance, Fireline judgment, backlight, On/Off (buzzing)
testing principles: true effective value
Precision: four and a half
Category: desktop multimeter
Measuring range: Automatic range

Variants / Sale Attributes

Model: XDM1041 (USB Interface)

Package Contents

Main unit *1 Power cord *1 Fuse *1 Multimeter probe *1 Alligator clip *1 USB cable *1 (or RS232, depending on the selected multimeter interface) Quick guide *1

Product Description

Product Specifications

Overview

Brand: owon
Series: XDM1000 Portable Benchtop Digital Multimeter

XDM1041 (AC powered)

XDM1241 (Lithium battery powered)

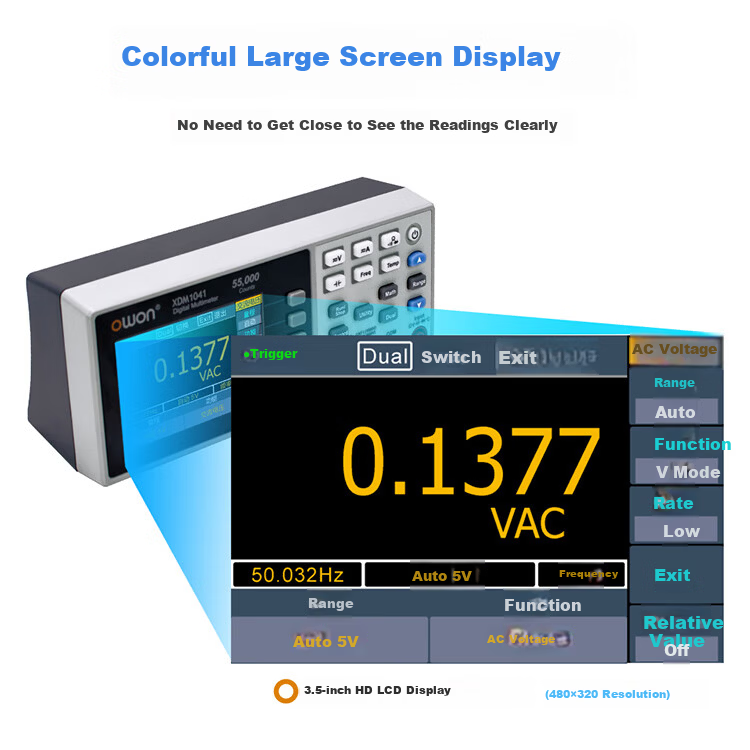

3.5-inch TFT LCD screen

Additional details

Resolution: 480 × 320 pixels
Maximum display count: 55,000

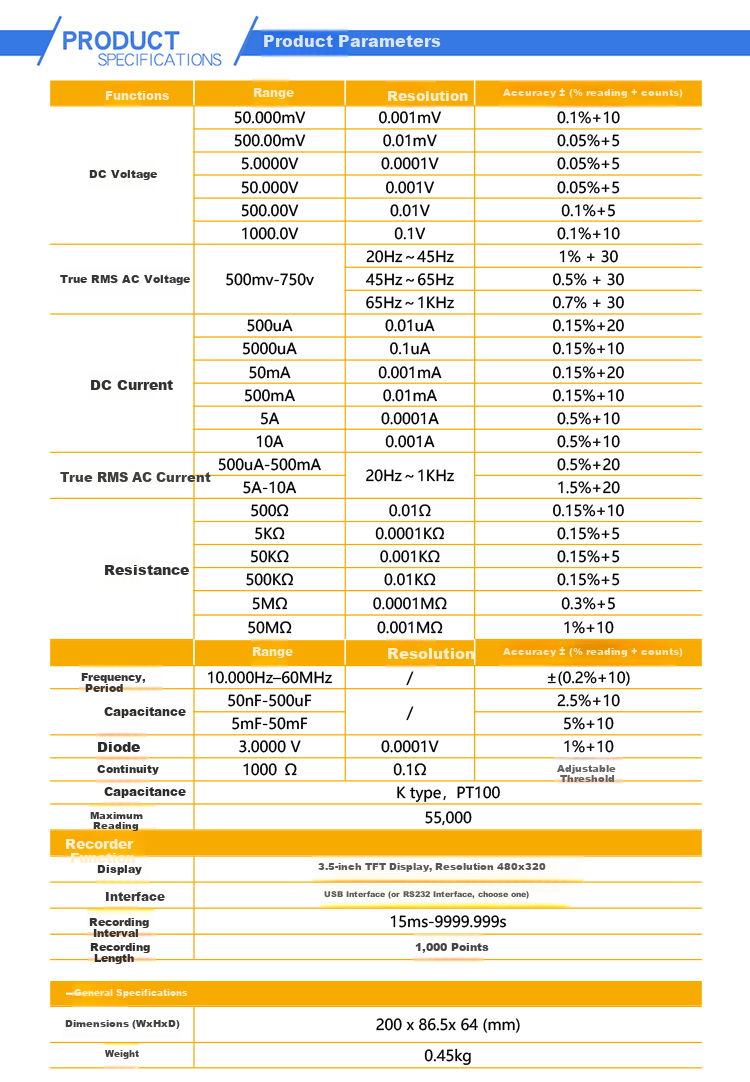

DC Voltage: 50.000mV to 1000.0V, accuracy up to ±0.05% + 5 digits

Similar Products

In Stock

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

CHNTMultimeter

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

ZTW0103D Upgraded Version [LCD Backlight]

CN¥89.00

In Stock

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

CHNTMultimeter

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

ZTY0121A Standard Model [High-Definition Large Screen]

CN¥59.00

AC Voltage (True RMS)

500mV to 750V, frequency range 20Hz–1kHz, accuracy up to ±0.7% + 30 digits

DC Current

500µA to 10A, accuracy up to ±0.5% + 10 digits

AC Current (True RMS)

500µA to 10A, frequency range 20Hz–1kHz, accuracy up to ±1.5% + 20 digits

Resistance

500Ω to 50 MΩ, accuracy up to ±1% + 10 digits

Capacitance

50nF to 50mF, accuracy up to ±5% + 10 digits

Frequency/Period

10Hz to 60MHz, accuracy ±(0.2% + 10 digits)

Diode Test

3.0000V range, accuracy ±1% + 10 digits

Continuity Test

Threshold adjustable up to 1000Ω

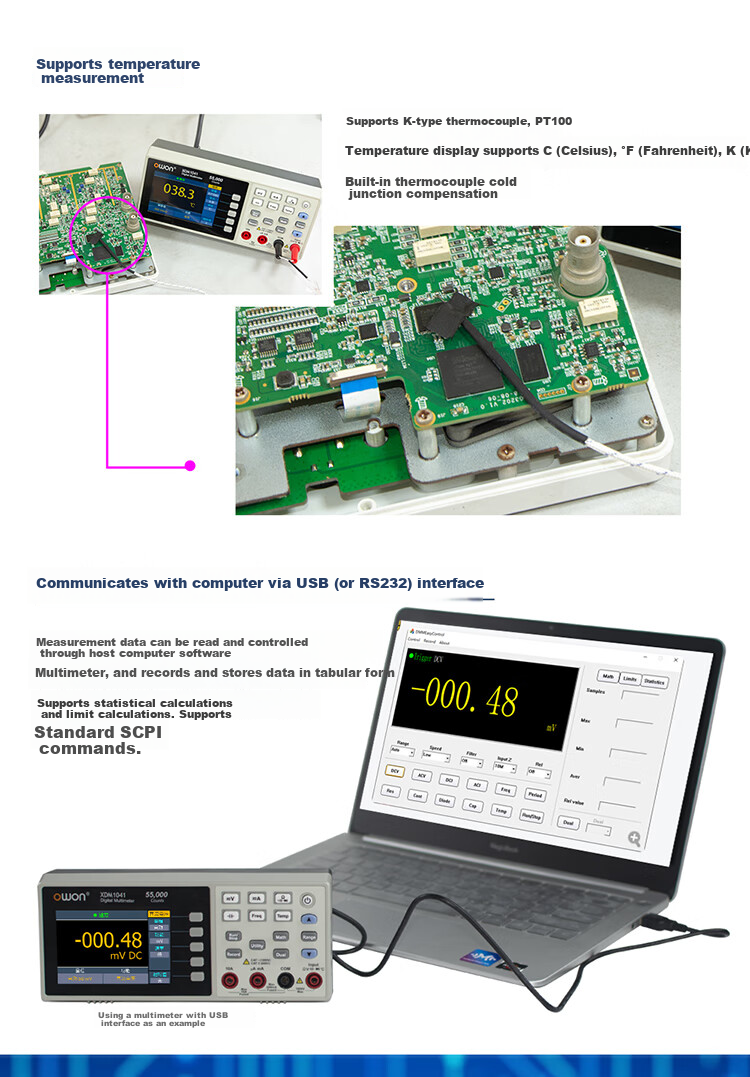

Temperature Measurement

Supports K-type thermocouple and PT100 sensors, units in °C, °F, and K, with built-in cold junction compensation

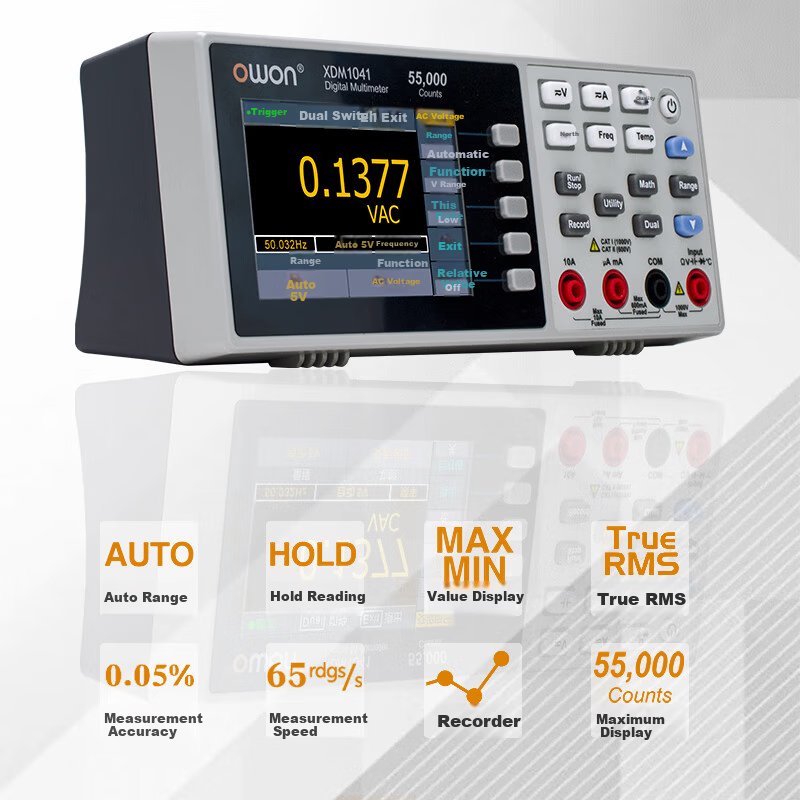

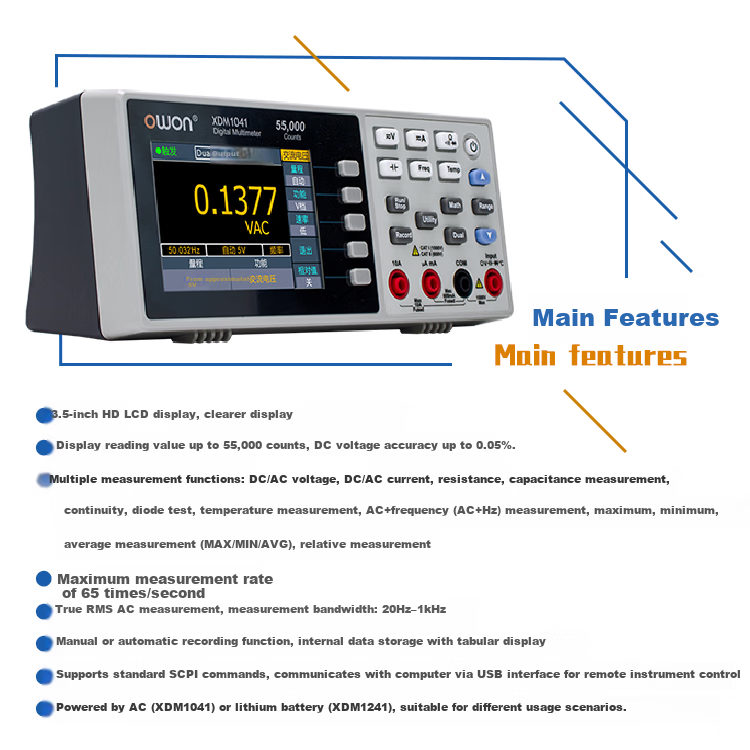

True RMS measurement for AC voltage and current

Auto and manual ranging

Relative value measurement

Max, Min, and Average value recording

Data hold and math calculation functions

Measurement rate up to 65 readings per second

Manual and automatic data logging with internal storage of up to 1,000 points

Data display in tabular format

Supports standard SCPI commands for remote control

USB or RS232 communication interface for PC connectivity and remote operation

Additional details

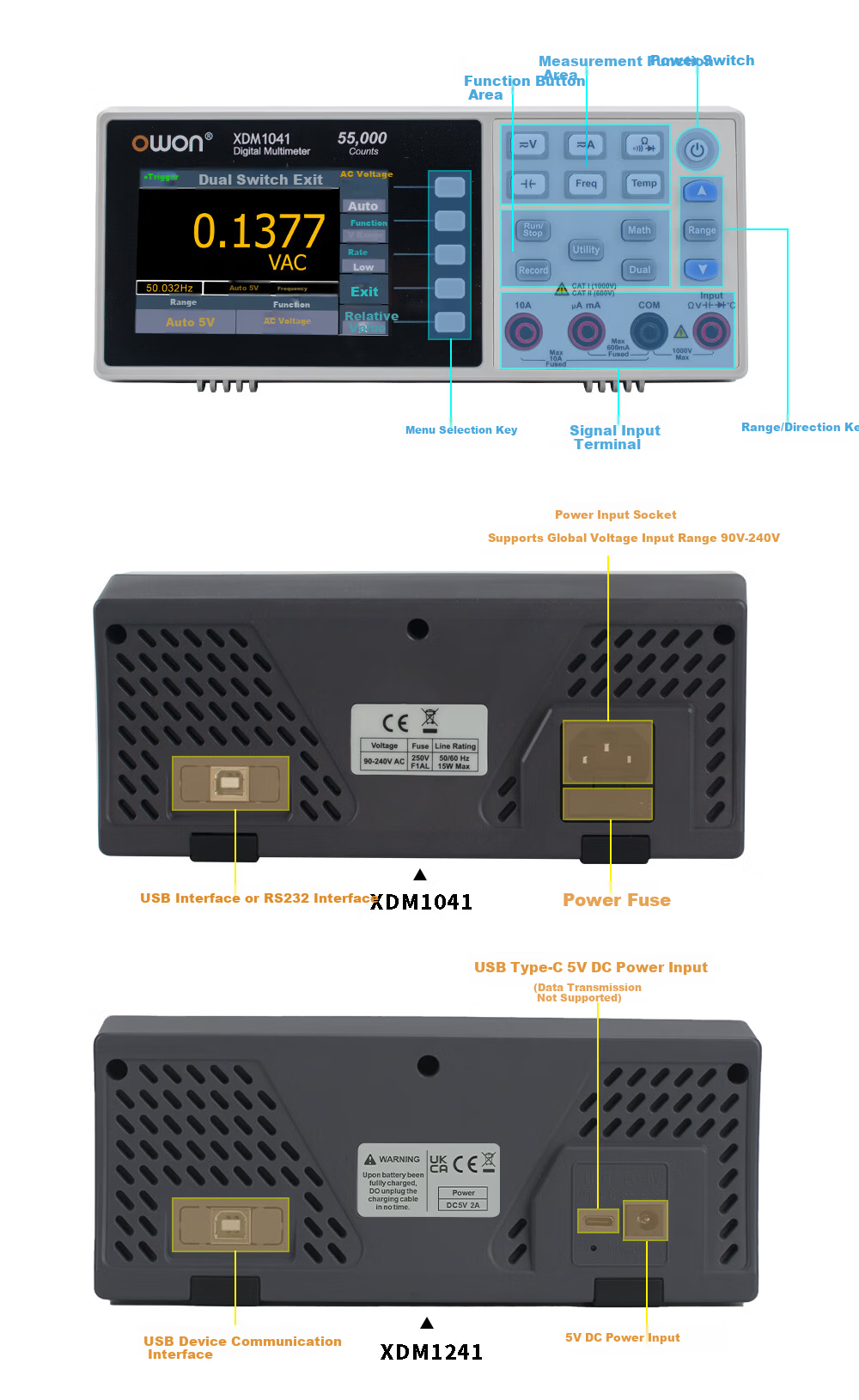

Global voltage input range: 90V–240V (XDM1041)
Power supply: AC powered (XDM1041) or lithium battery powered (XDM1241)

USB Type-C 5V DC power input (power only, no data transfer)

CE certified, passed high/low temperature, vibration, and salt spray tests

Additional details

Fuse protection: 25A, 50/60Hz
Dimensions (WxHxD): 200 × 86.5 × 64 mm
Weight: 0.45 kg

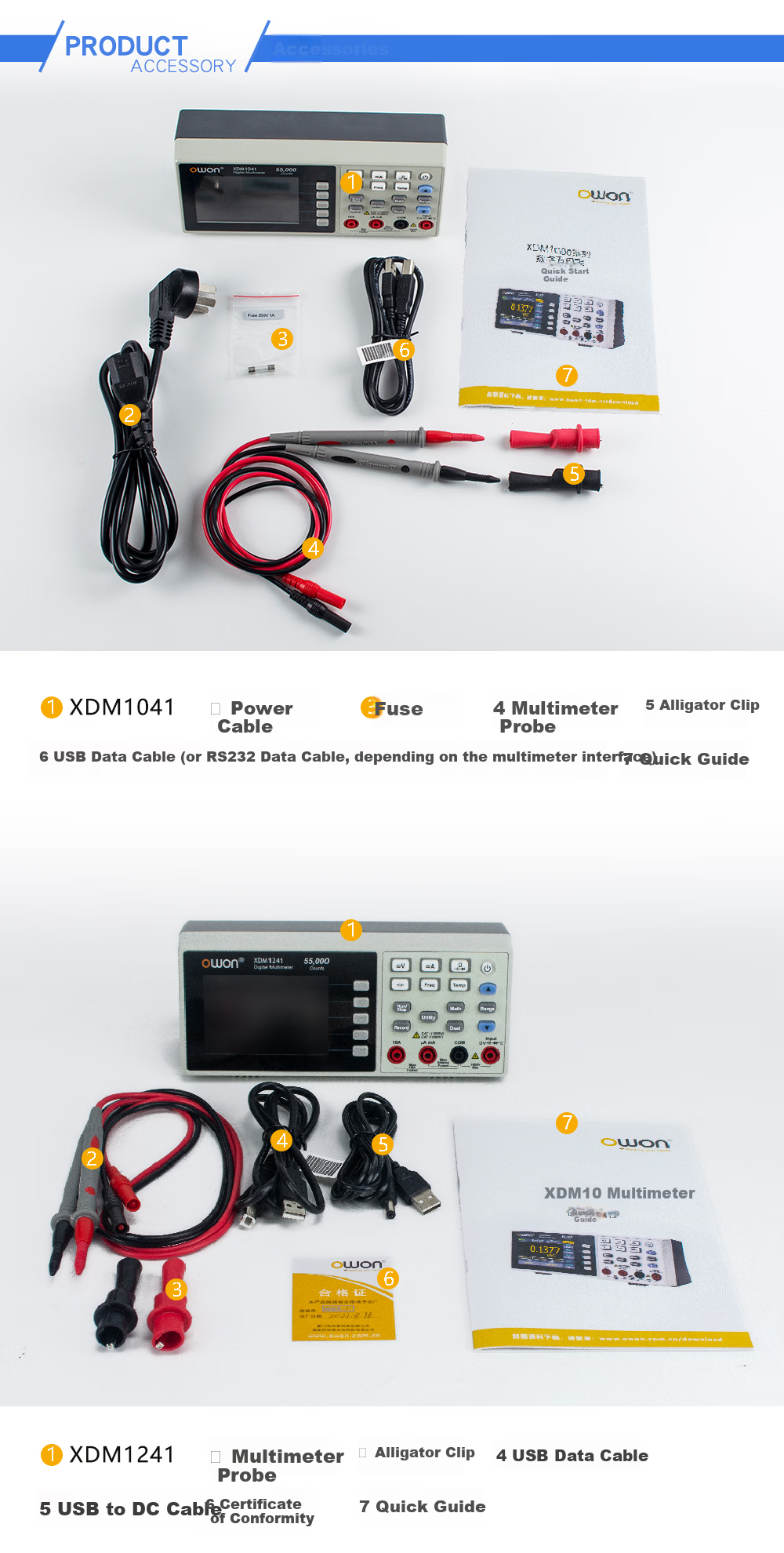

XDM1041: Power cord, fuse, test leads, alligator clips, USB or RS232 data cable, quick start guide
XDM1241: Test leads, alligator clips, USB data cable, USB to DC power cable, certificate of conformity, quick start guide
