Back to CatalogDT-5019 USB to RS485/RS422 Converter Cable 1.2m Serial COM Port Communication Adapter Module
Specifications
- Converter
- USB to serial
- Connecting wire
- USB Cable
- External performance
- Regular PVC
- Category
- Converter
- Cord Length
- Below 1.8 meters
- Shielding type
- Double shield
Variants / Sale Attributes
Model: FT232RL chip with light, 1.2 meters long

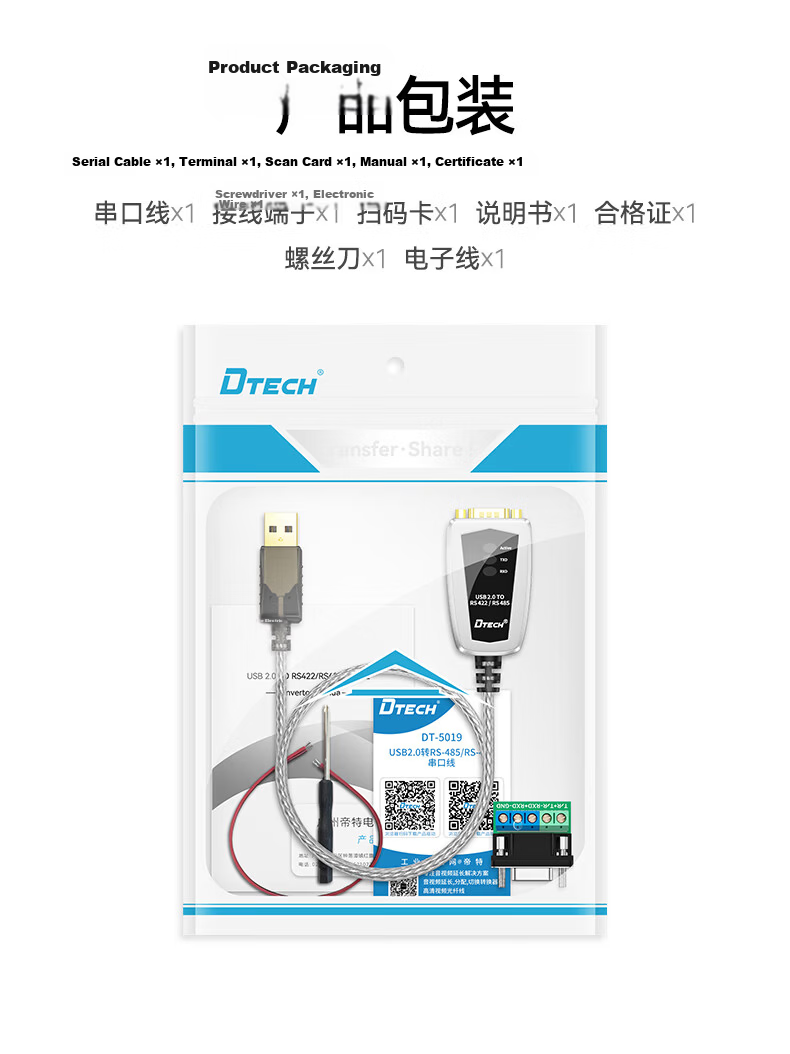

Package Contents
Product x1, Packaging x1, QR Code Card x1, Certificate of Conformity x1
Product Description

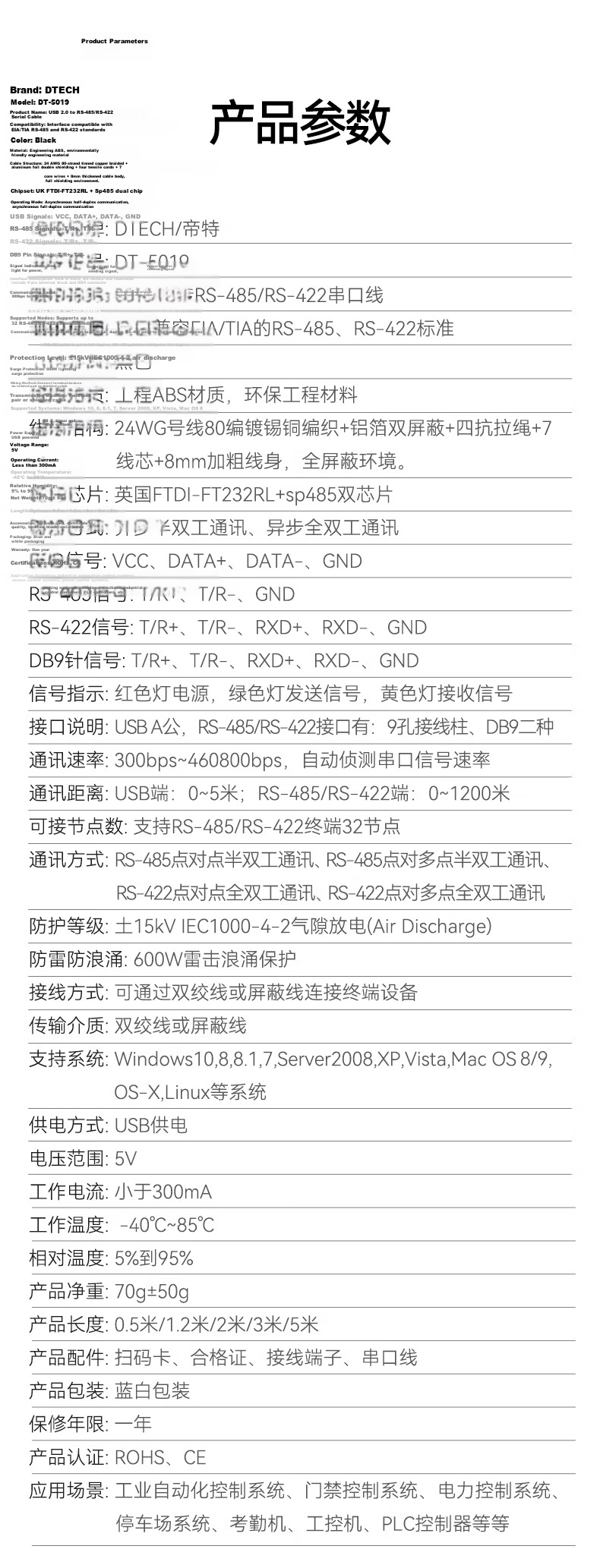

Product Specifications
Overview
- Brand
- DTECH
- Model
- DT-5019
- Product Name
- USB 2.0 to RS-485/RS-422 Serial Cable
- Compatibility
- Compliant with EIA/TIA RS-485 and RS-422 standards
- Material
- Black engineering ABS environmentally friendly material

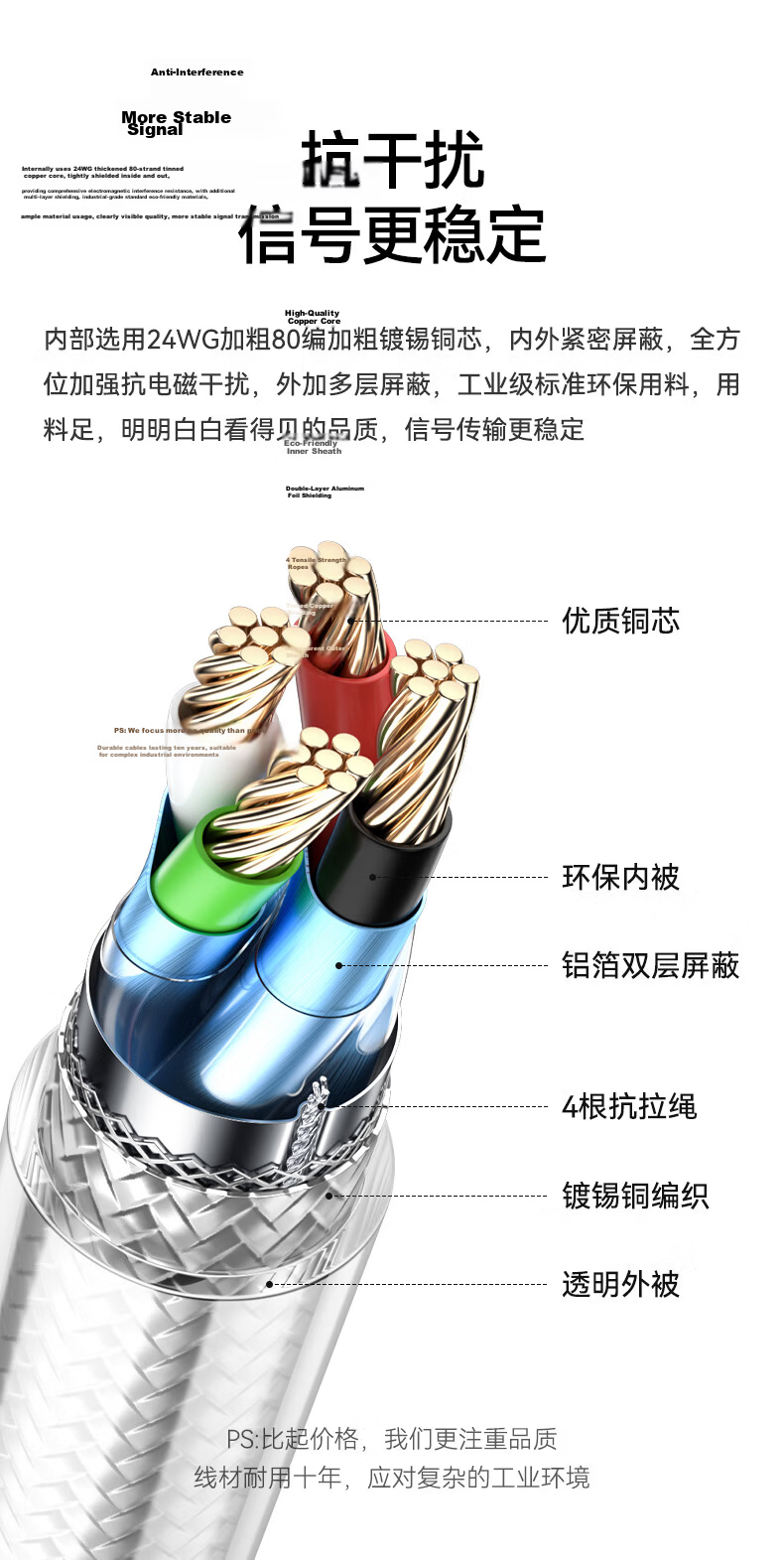

24 AWG wire with 80 strands of tinned copper braid
Aluminum foil double shielding
Four anti-pull ropes
7-core wire
8mm thickened cable body
Full shielding for industrial-grade electromagnetic interference resistance
Additional details
Similar Products
Out of Stock
In Stock
- Chipset

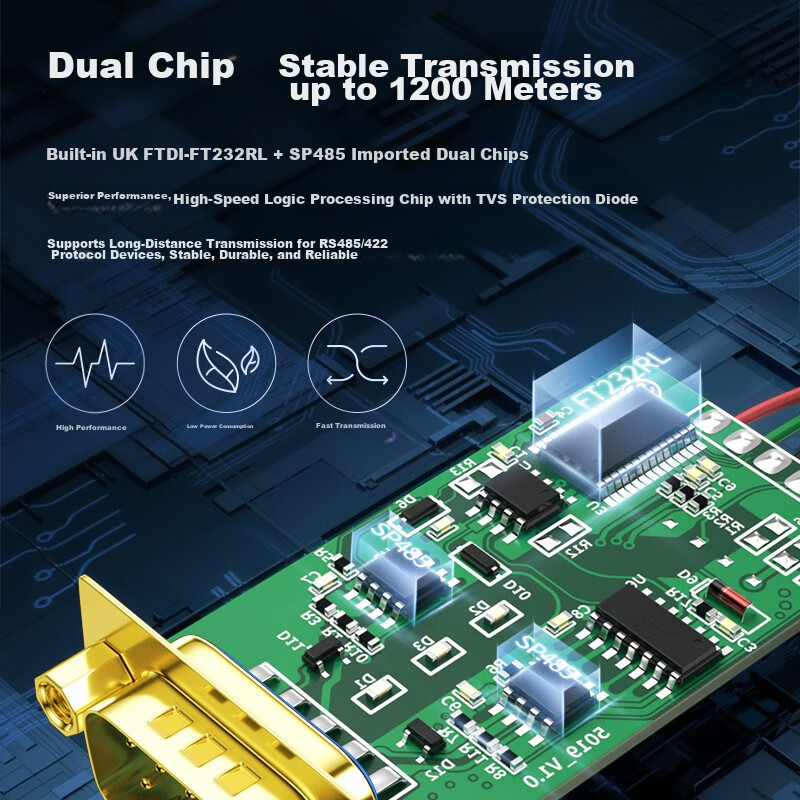

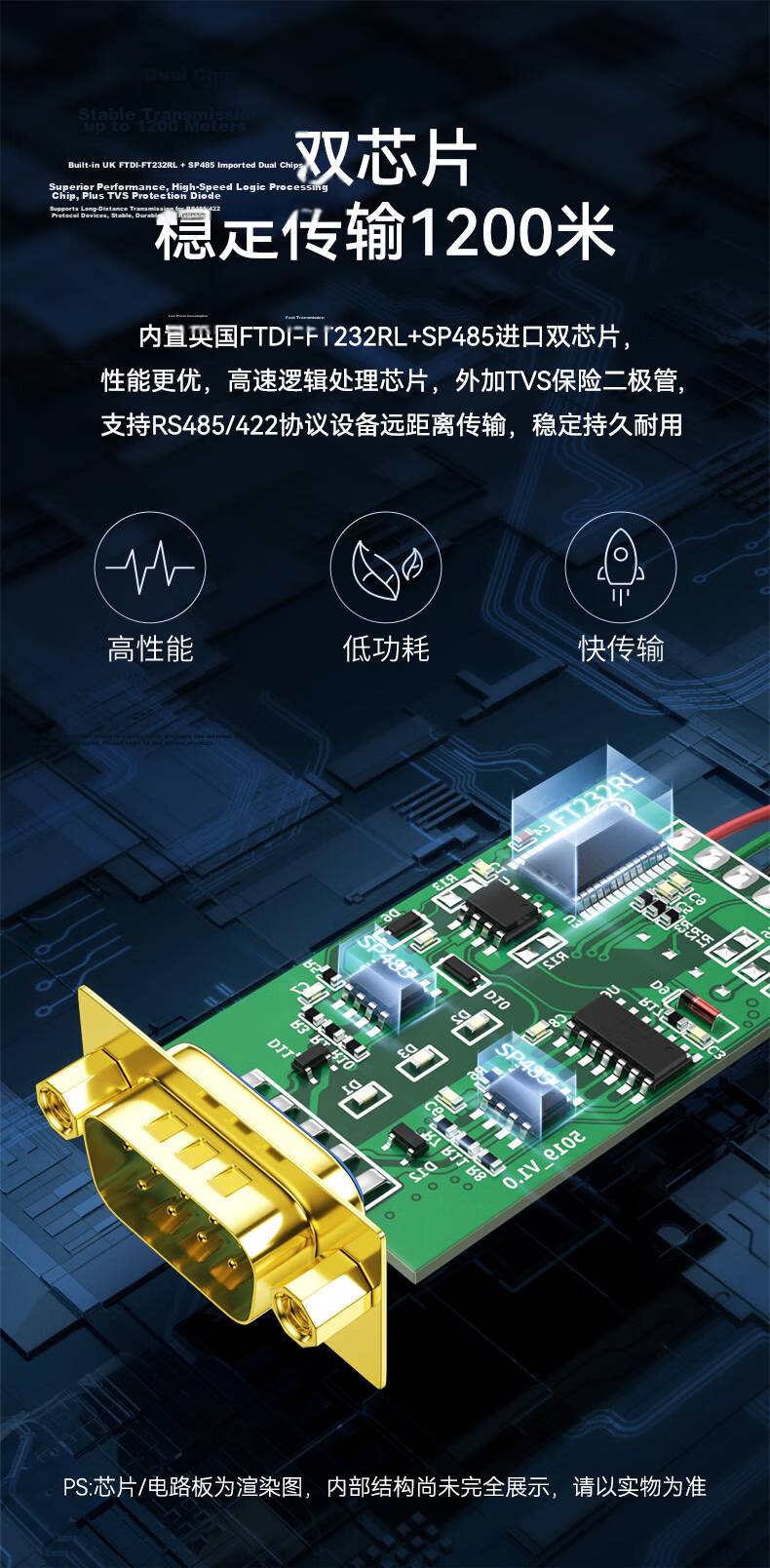

- UK imported FTDI FT232RL + SP485 dual-chip
Asynchronous half-duplex communication
Asynchronous full-duplex communication
Additional details

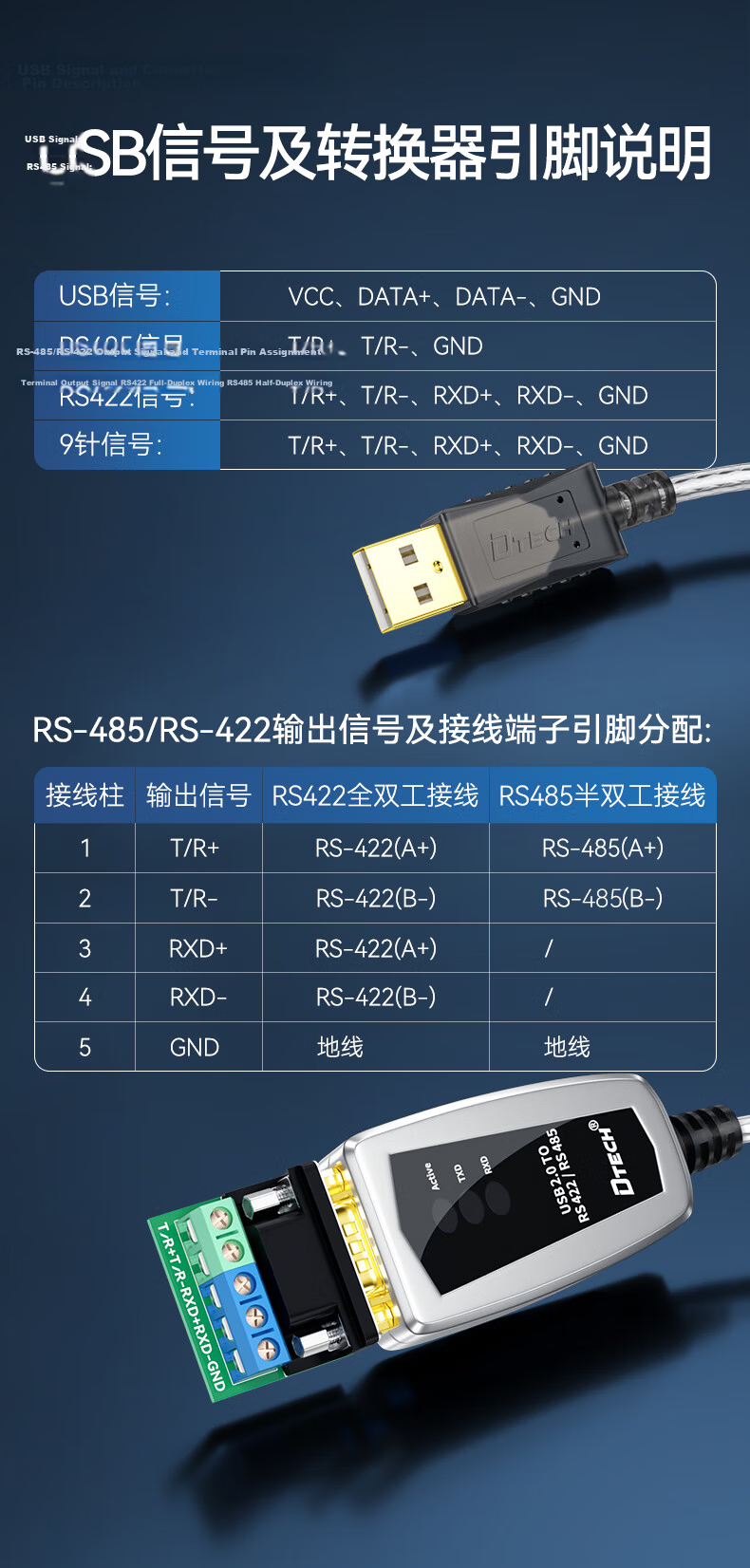

- USB
- VCC, DATA+, DATA-, GND
- RS-485
- T/R+, T/R-, GND
- RS-422
- T/R+, T/R-, RXD+, RXD-, GND
- DB9 connector
- T/R+, T/R-, RXD+, RXD-, GND

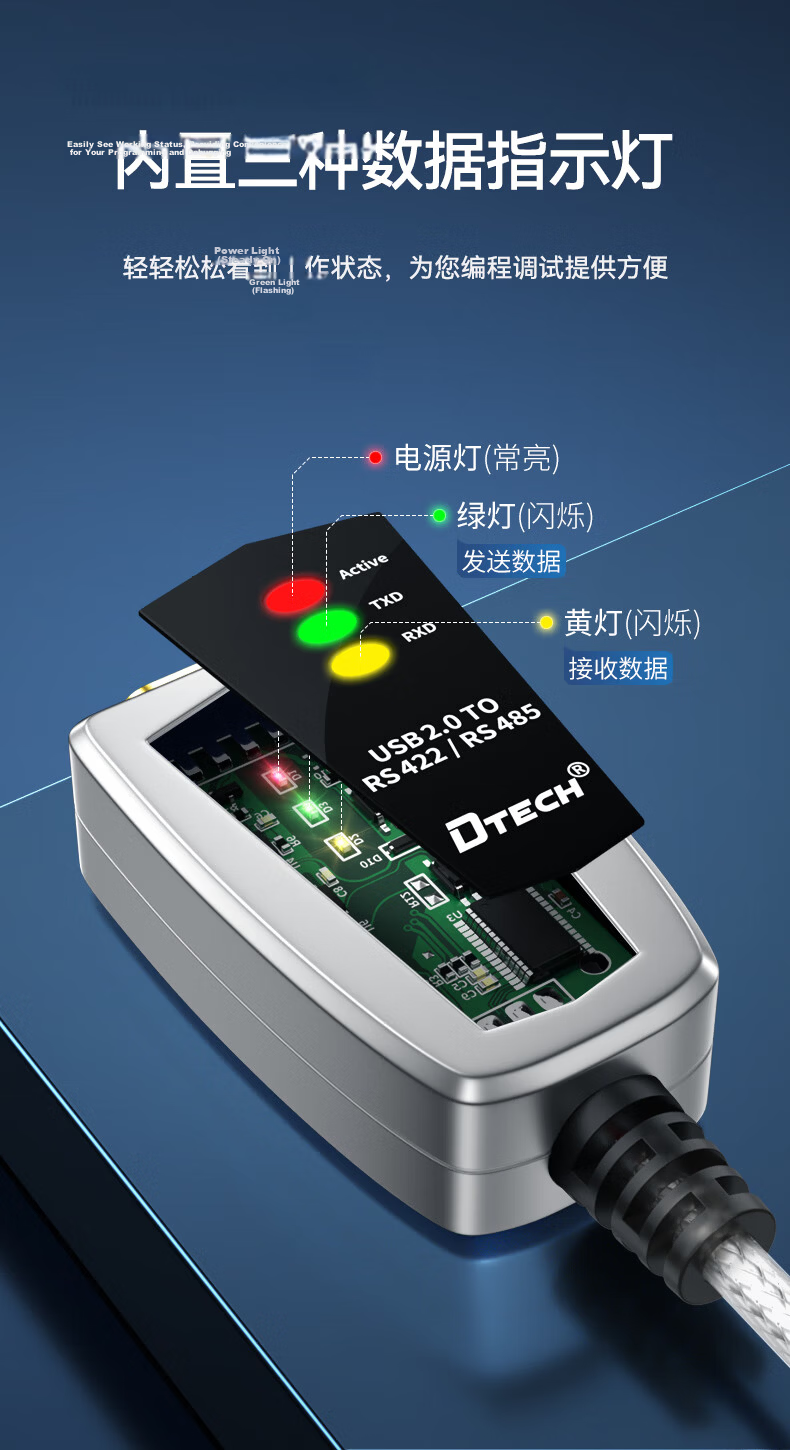

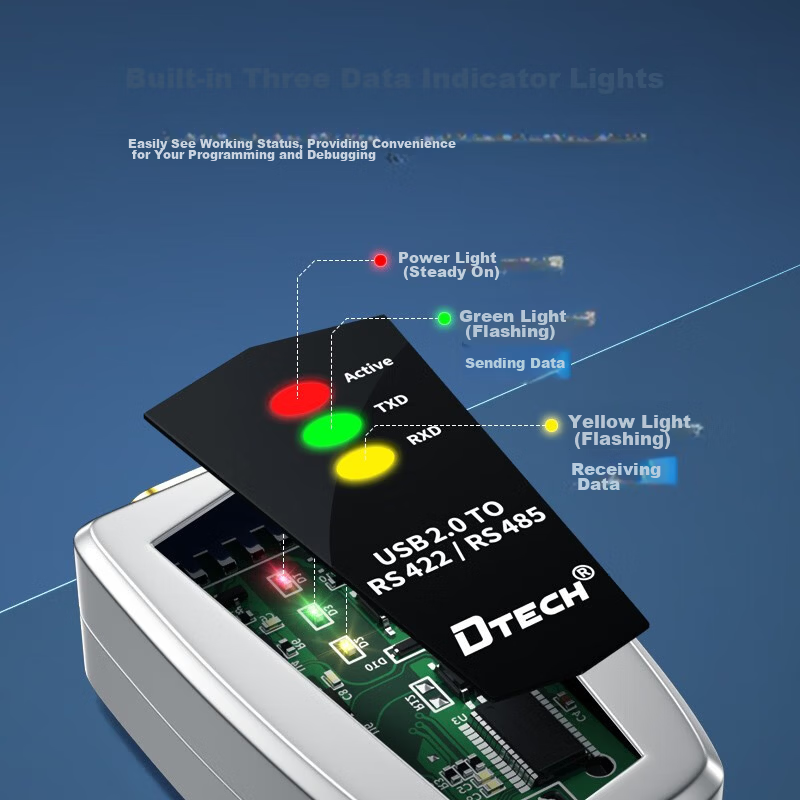

- Red LED
- Power on
- Green LED
- Data transmission (TXD)
- Yellow LED
- Data reception (RXD)
Additional details
- RS-485/RS-422 interfaces
- 9-pin terminal block and DB9 connector
Automatic detection of serial port baud rate
Additional details
- USB side
- 0 to 5 meters
- RS-485/RS-422 side
- up to 1200 meters
- Supported Nodes
- Supports up to 32 RS-485/RS-422 terminal nodes

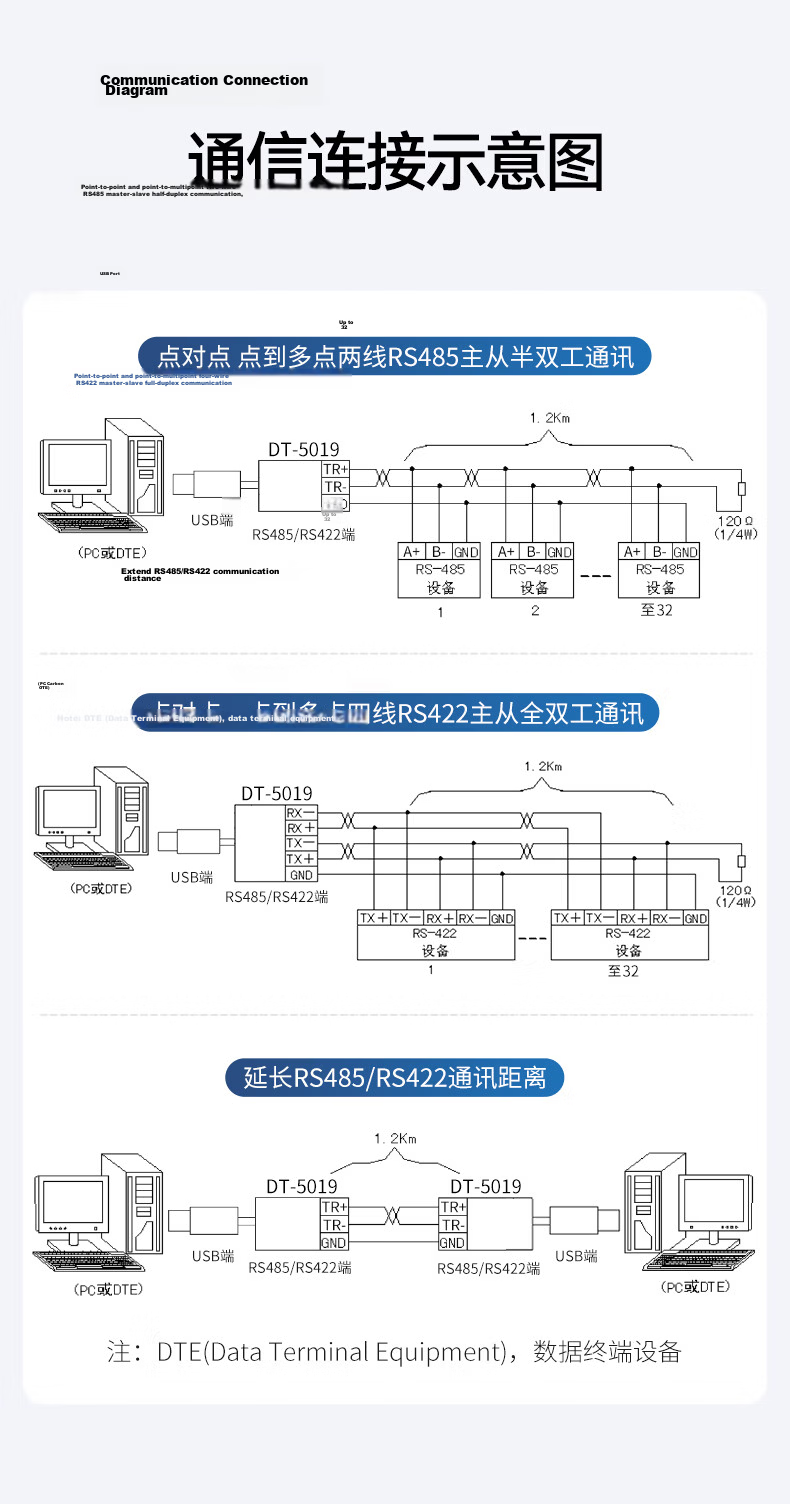

RS-485 point-to-point full duplex
RS-485 point-to-multipoint half duplex
RS-422 point-to-point full duplex
RS-422 point-to-multipoint full duplex
±15kV IEC 1000-4-2 air discharge electrostatic protection
600W surge and lightning protection per line
TVS diode protection for stable and durable transmission
High-quality tinned copper core for stable signal transmission
Multi-layer shielding for enhanced EMI resistance
Industrial-grade materials ensuring durability and environmental compliance
Tested for 10,000 bending cycles without damage
72-hour aging test ensuring stable data transmission without packet loss
-20kg tensile strength test passed with no open circuit, short circuit, or insulation breakdown

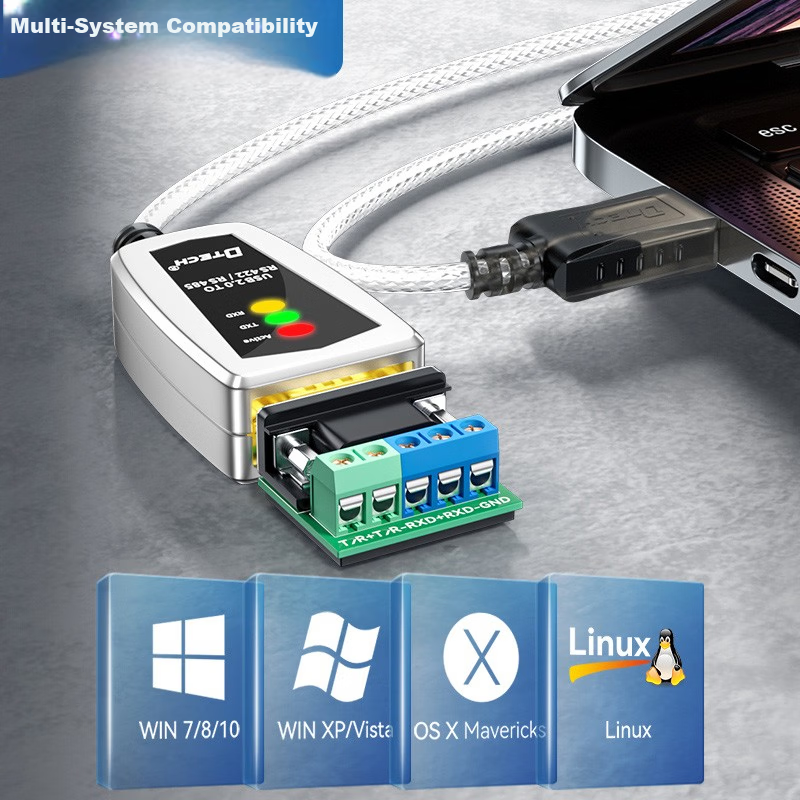

Windows 10, 8, 8.1, 7, Server 2008, XP, Vista
Mac OS 8/9, OS X (Maverick)
Additional details
- Power Supply
- USB powered, 5V voltage, current less than 300mA
- Operating Temperature
- -40°C to 85°C
- Relative Humidity
- 5% to 95%
- Product Weight
- Approx. 70 g ± 50 g
- Cable Length Options
- 0.5 m, 1.2 m, 2 m, 3 m, 5 m
Certificate of conformity ×1
Additional details
- Packaging
- Blue and white box
- Warranty
- 1 year
- Certifications
- RoHS, CE
Industrial automation control systems
Industrial control computers
Temperature control devices

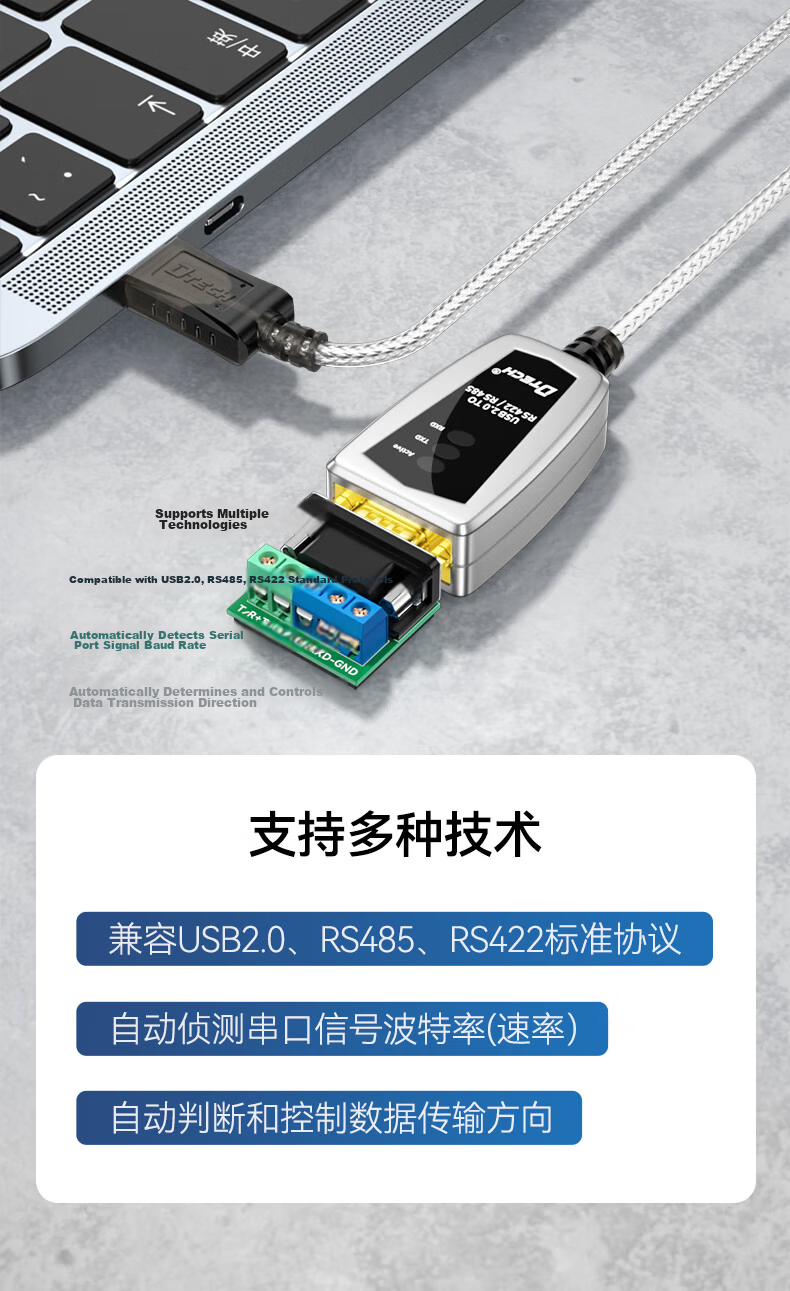

Supports USB 2.0, RS-485, RS-422 protocols
Automatic detection and control of data transmission direction (half/full duplex)
Zero-delay automatic send/receive conversion ensuring high-speed data transmission without delay
Automatic RS-485/422 protocol mode switching without manual jumper or handshake signals
Supports connection of up to 32 RS-485/422 devices in point-to-multipoint mode
Surge protection up to 600W per line and 15kV static protection ensures stable and safe operation in harsh industrial environments
High baud rate support from 300bps to 460,800bps
Internal circuit and chip design optimized for stable, high-speed, and durable performance
Internal circuit board and chip layout images are schematic; actual product may vary.
This product does not support RS-232 protocol.
Use only the provided terminal block for wiring; direct connection to 9-pin RS-232 devices is not supported.

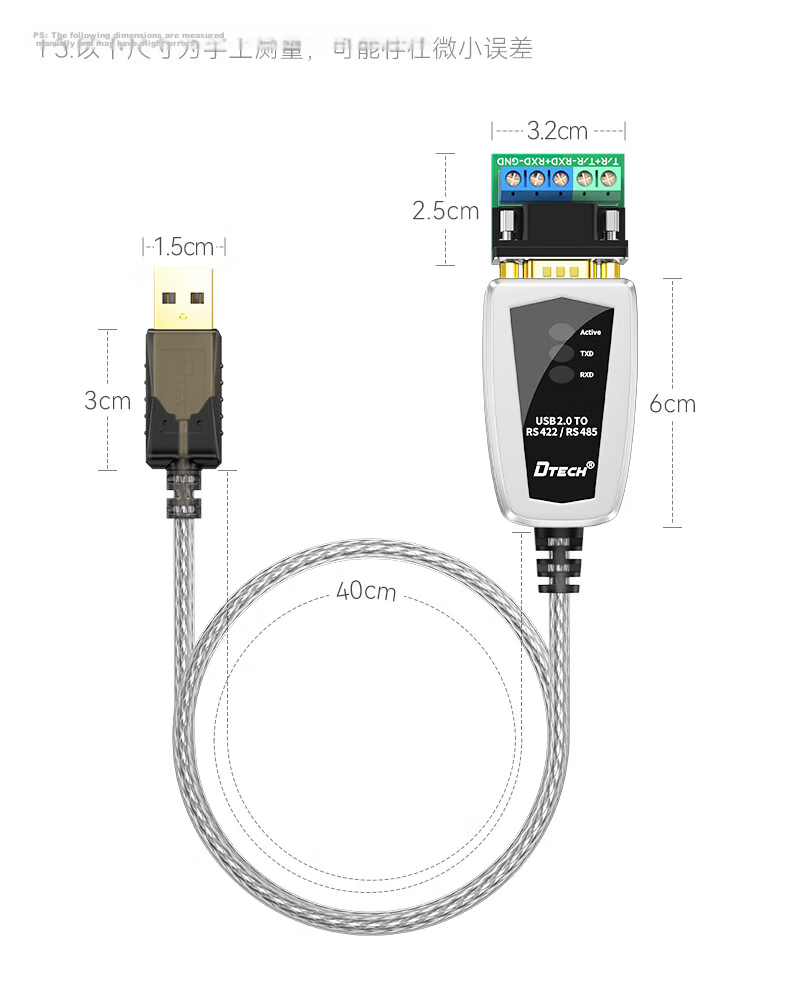

Dimensions are manually measured and may have slight deviations.
