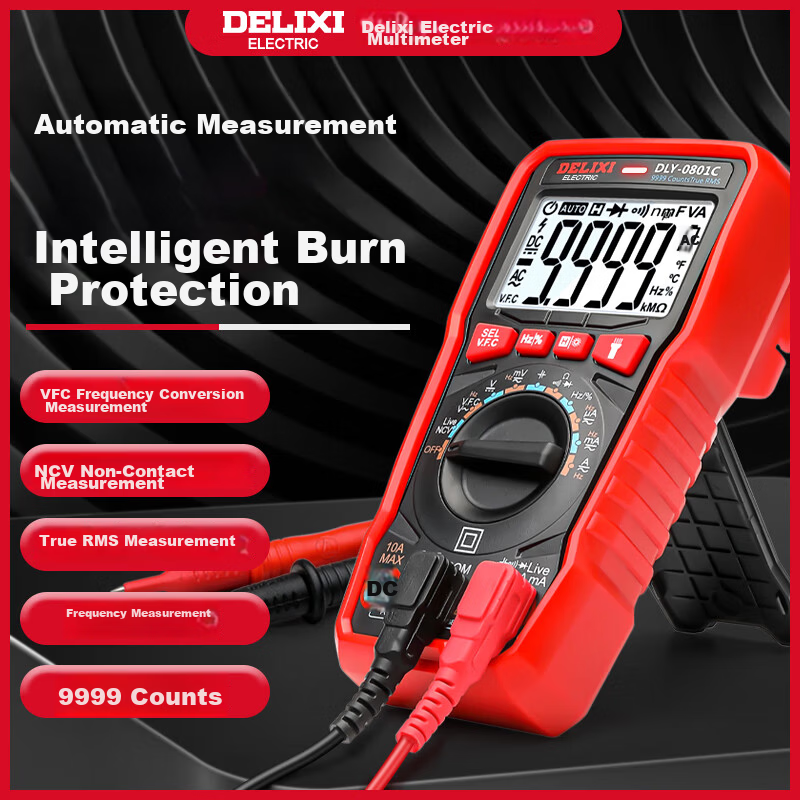

DELIXI ELECTRIC Digital Multimeter Backlit Portable High-Precision Universal Meter Electrician Household Ammeter Smart Burn-Proof

Dual ceramic fuse protection for enhanced safety and durability.

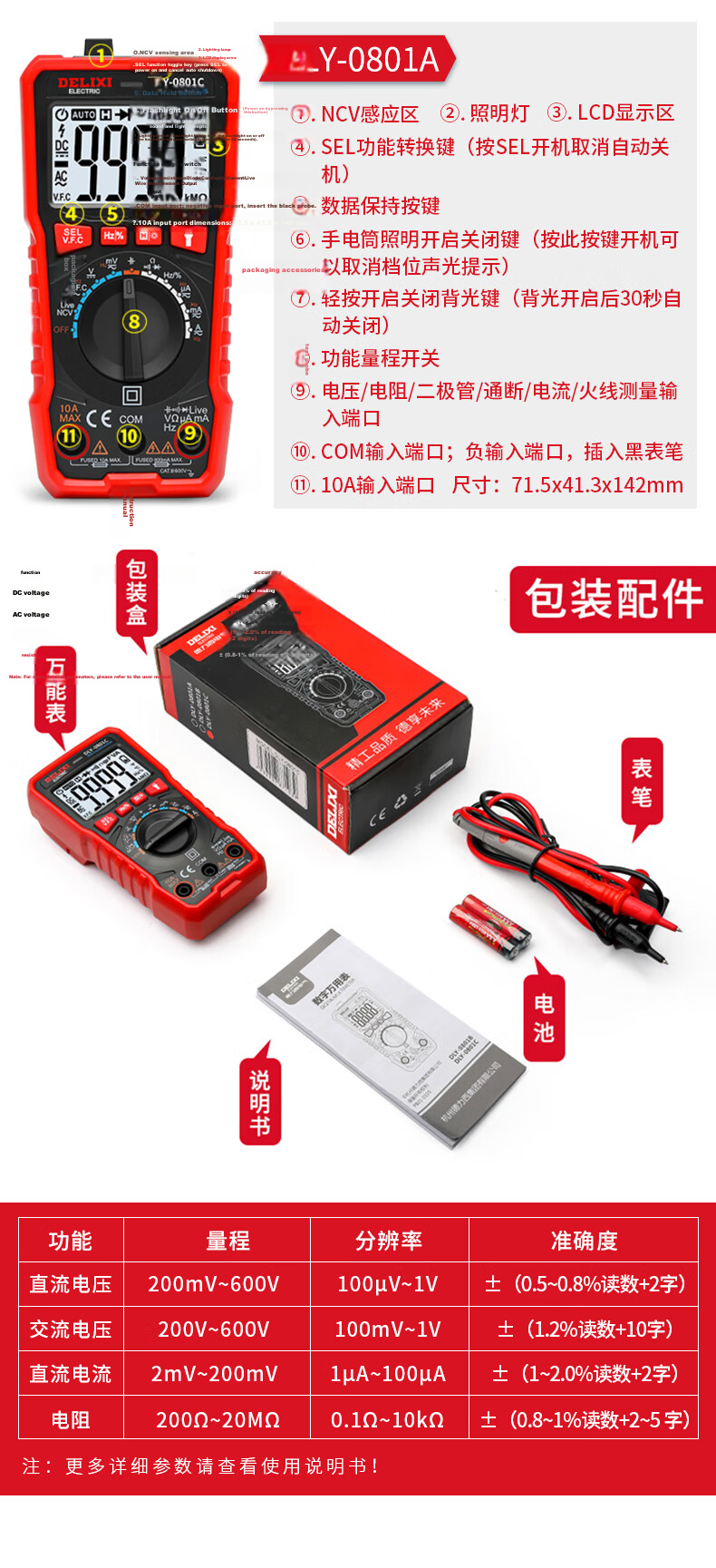

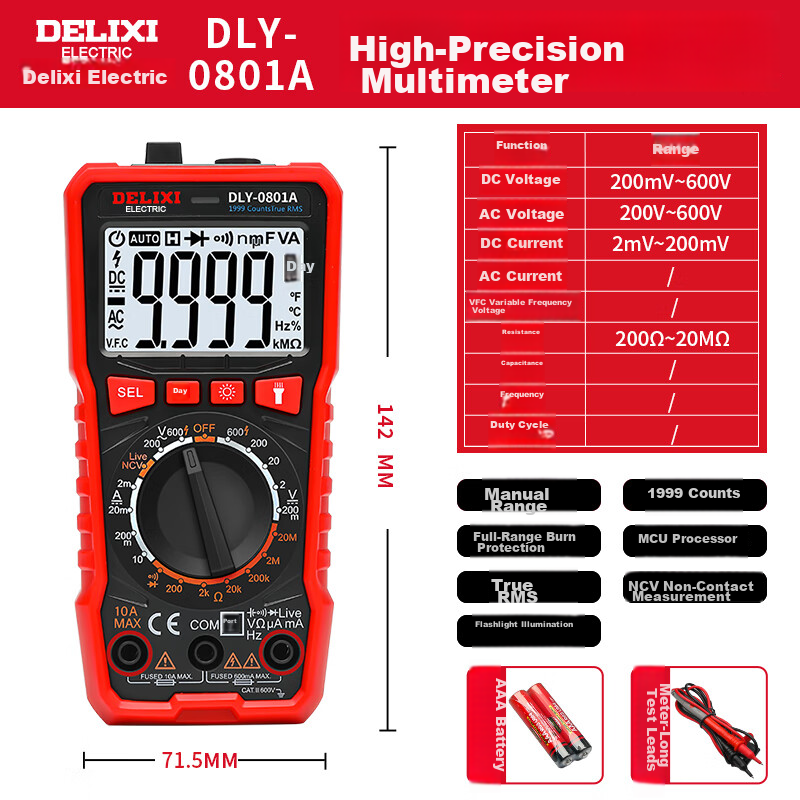

| Function | DLY-0801A (Manual) | DLY-0801B (Manual/Auto) | DLY-0801C (Auto) |

|------------------------|-----------------------------|-------------------------------|-------------------------------|

| DC Voltage | 200mV ~ 600V; resolution 100μV-1V; accuracy ±(0.5-0.8% reading + 2 digits) | 600mV ~ 600V; resolution 100μV-100mV; accuracy ±(0.5-0.8% reading + 5 digits) | 99.99mV ~ 600V; resolution 10μV-1V; accuracy ±(0.5% reading + 2 digits) |

| AC Voltage | 200V ~ 600V; resolution 100mV-1V; accuracy ±(1.2% reading + 10 digits) | 6V ~ 600V; resolution 1mV-1V; accuracy ±(1.0% reading + 3 digits) | 99.99mV ~ 600V; resolution 10μV-1V; accuracy ±(1.0-1.2% reading + 3 digits) |

| DC Current | 2mA ~ 200mA; resolution 1μA-100μA; accuracy ±(1-2.0% reading + 2 digits) | 600μA ~ 600mA; resolution 0.01μA-100μA; accuracy ±(1-2.0% reading + 2 digits) | 999.9μA ~ 600mA; resolution 0.01μA-100μA; accuracy ±(1-2.0% reading + 2 digits) |

| AC Current | Not available | 600μA ~ 600mA; resolution 0.01μA-100μA; accuracy ±(1-2% reading + 5 digits) | 999.9μA ~ 600mA; resolution 0.01μA-100μA; accuracy ±(1-2% reading + 5 digits) |

| Resistance | 200Ω ~ 20MΩ; resolution 0.1Ω-10kΩ; accuracy ±(0.8-1% reading + 2-5 digits) | 60kΩ ~ 600kΩ; resolution 0.1Ω-10kΩ; accuracy ±(0.8-3% reading + 2-5 digits) | 99.99kΩ ~ 999.9kΩ; resolution 0.1Ω-10kΩ; accuracy ±(0.8-3% reading + 2-5 digits) |

| Capacitance | Not available | 6nF ~ 60mF; resolution 1pF-10μF; accuracy ±(3.0-5.0% reading + 5-10 digits) | 9.999nF ~ 99.99mF; resolution 1pF-10μF; accuracy ±(3.0-5.0% reading + 10 digits) |

| Frequency | 10Hz ~ 10MHz; accuracy ±(0.1% reading ± 5 digits) | 9.999Hz ~ 9.999kHz; accuracy ±(0.1% reading ± 5 digits) | 9.999Hz ~ 9.999kHz; accuracy ±(0.1% reading ± 5 digits) |

| Duty Cycle | Not available | 10% ~ 95%; resolution 0.1%; accuracy ±(1.0% reading ± 5 digits) | 10% ~ 95%; resolution 0.1%; accuracy ±(1.0% reading ± 5 digits) |

| Diode Test | Yes | Yes | Yes |

| Continuity Test | Yes (with buzzer) | Yes (with buzzer) | Yes (with buzzer) |

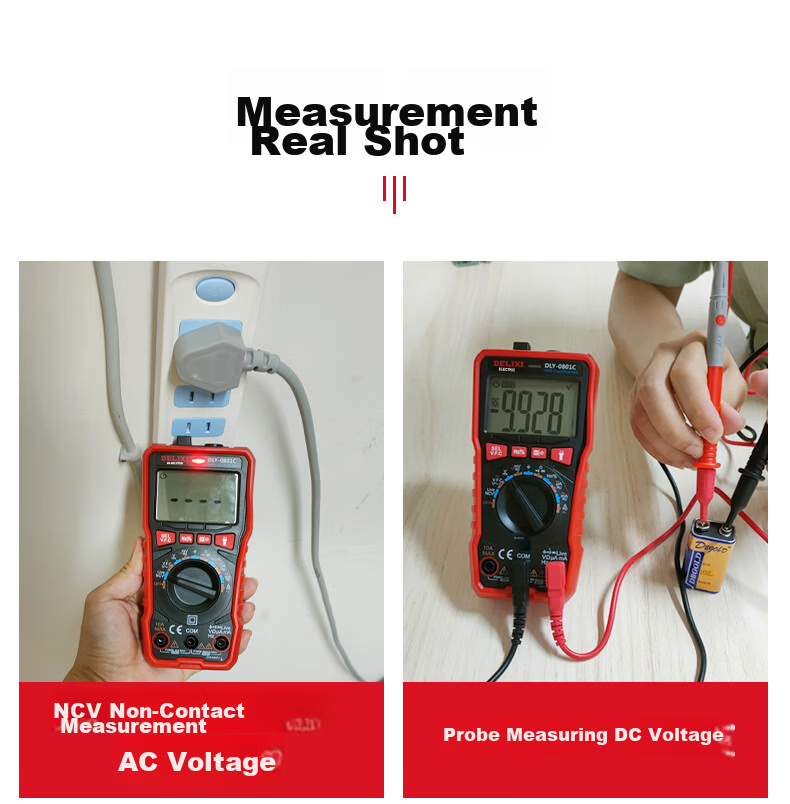

| Non-Contact Voltage (NCV) | Yes | Yes | Yes |

| VFC (Variable Frequency Control) Voltage Measurement | No | Yes | Yes |

| True RMS Measurement | Yes | Yes | Yes |

| Line (Live/Neutral) Identification | Yes | Yes | Yes |

Manual and automatic range switching with one-button toggle (DLY-0801B and DLY-0801C).

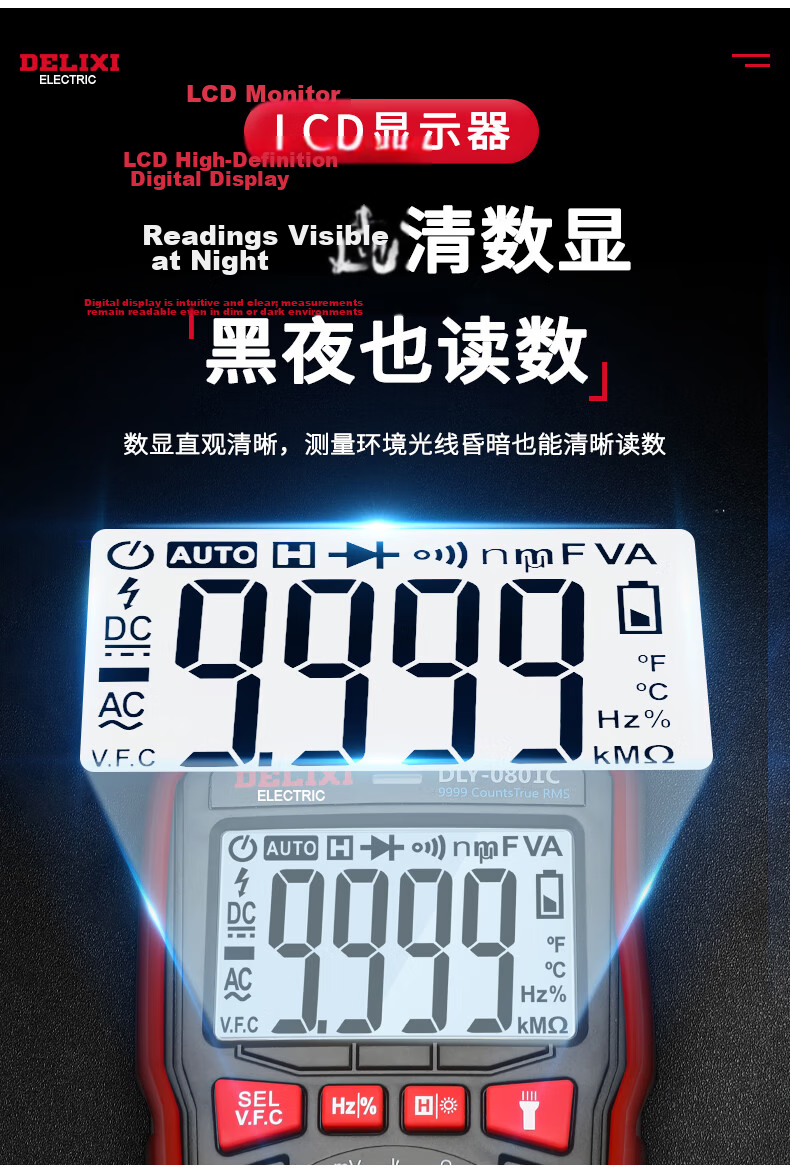

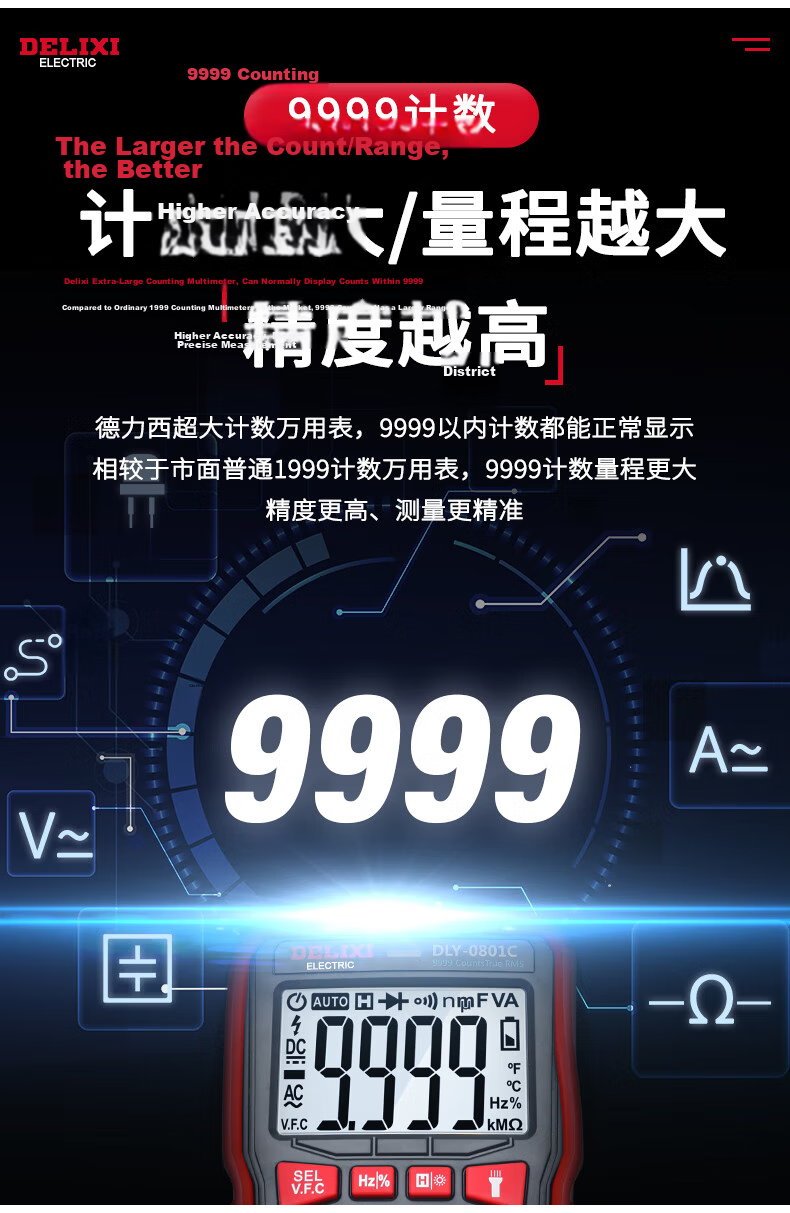

Large 9999 count display for higher precision compared to standard 1999 count meters.

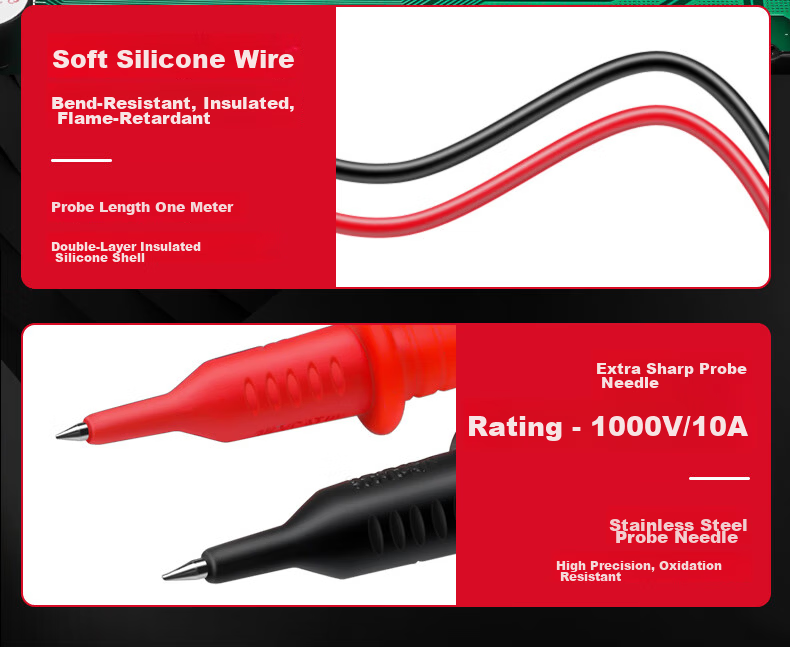

Soft silicone test leads with stainless steel sharp probes rated for 1000V/10A.

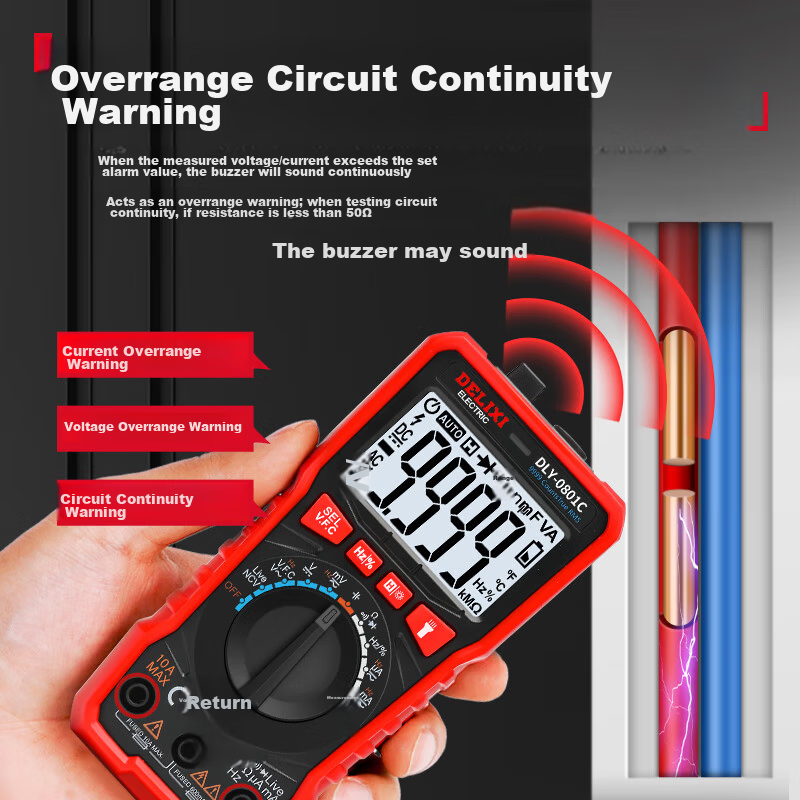

Audible alerts for over-range, continuity, and NCV detection.

Backlight automatically turns off after 30 seconds to conserve power.

Data hold and error indication functions.

Automatic power-off after 15 minutes of inactivity.

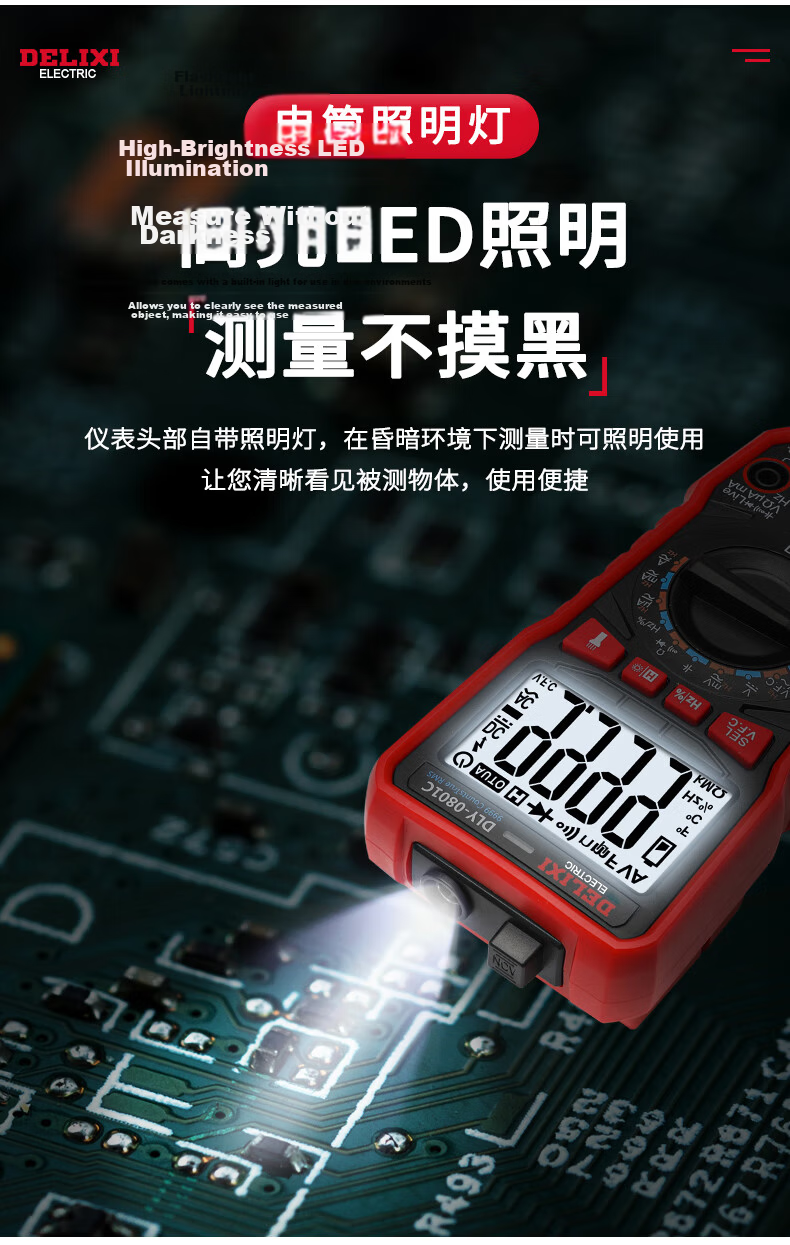

Built-in LED flashlight for working in dark environments.

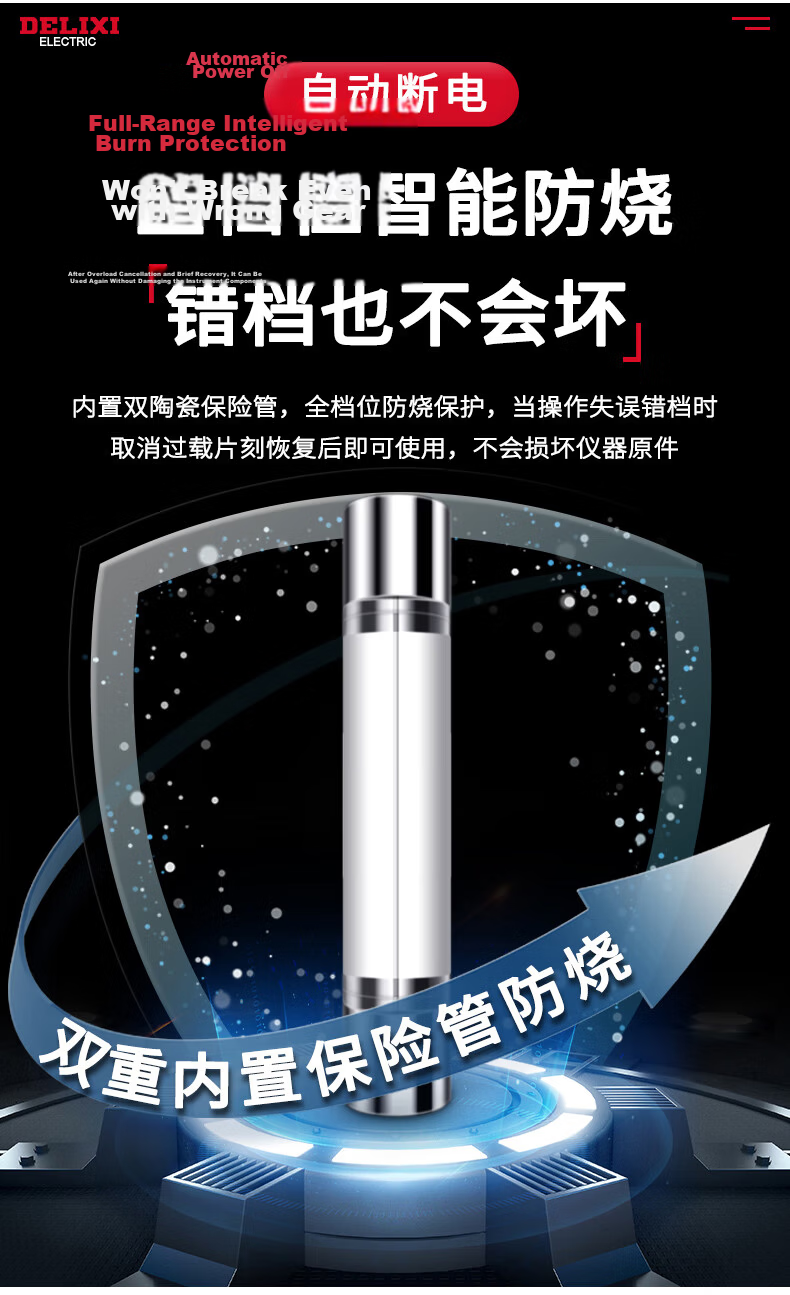

Dual ceramic fuse protection ensures instrument safety even on incorrect range selection.

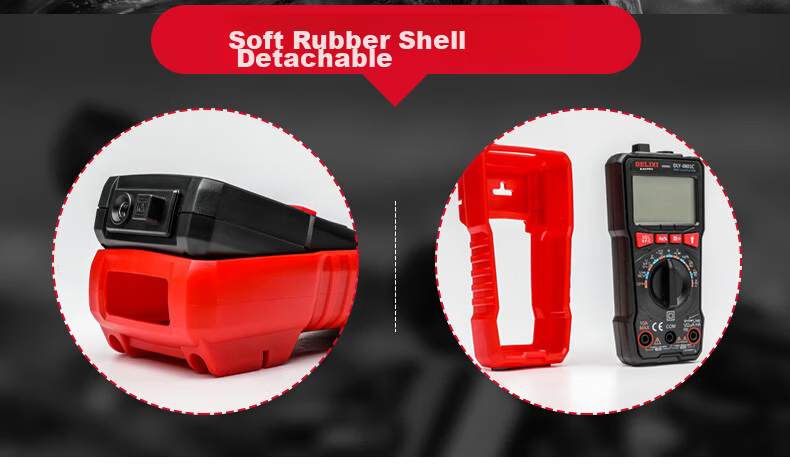

Rubber housing is removable and provides excellent shock, dust, and water resistance.

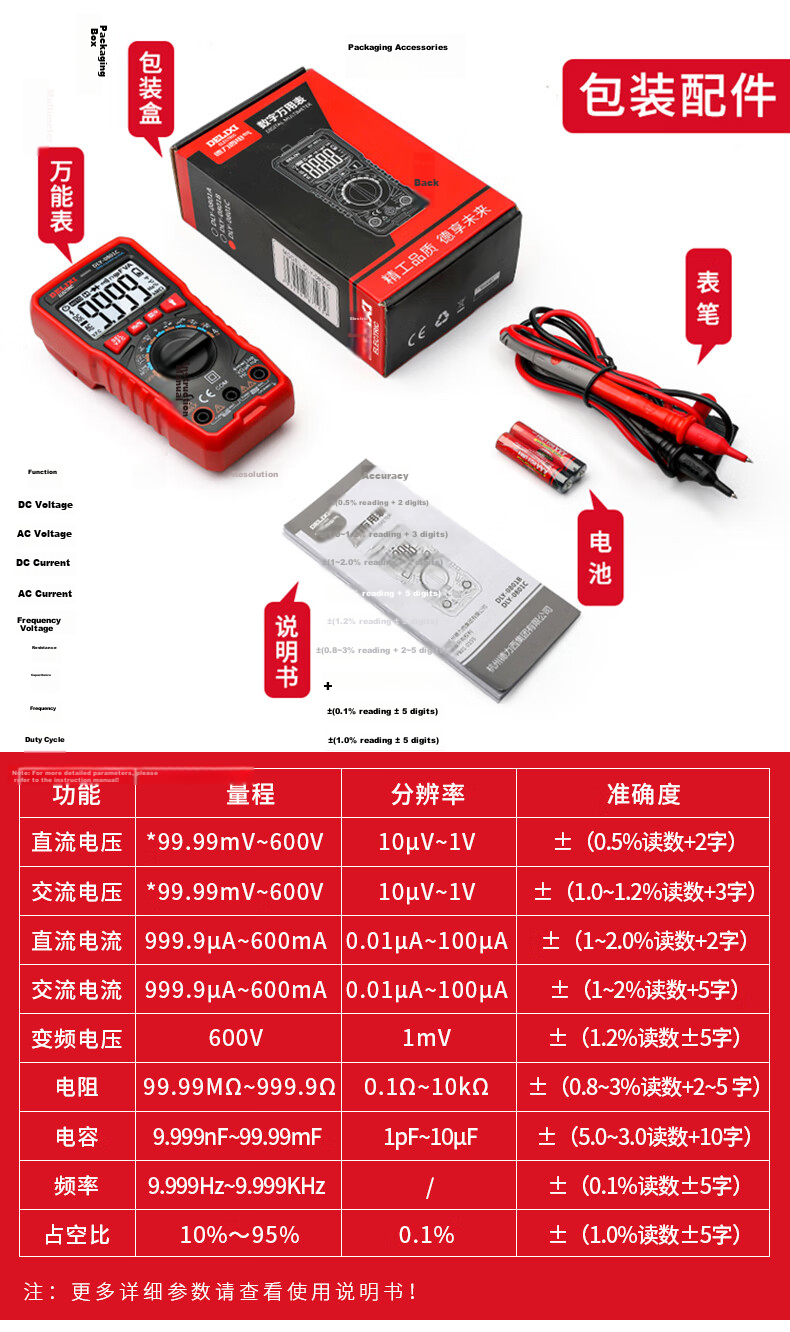

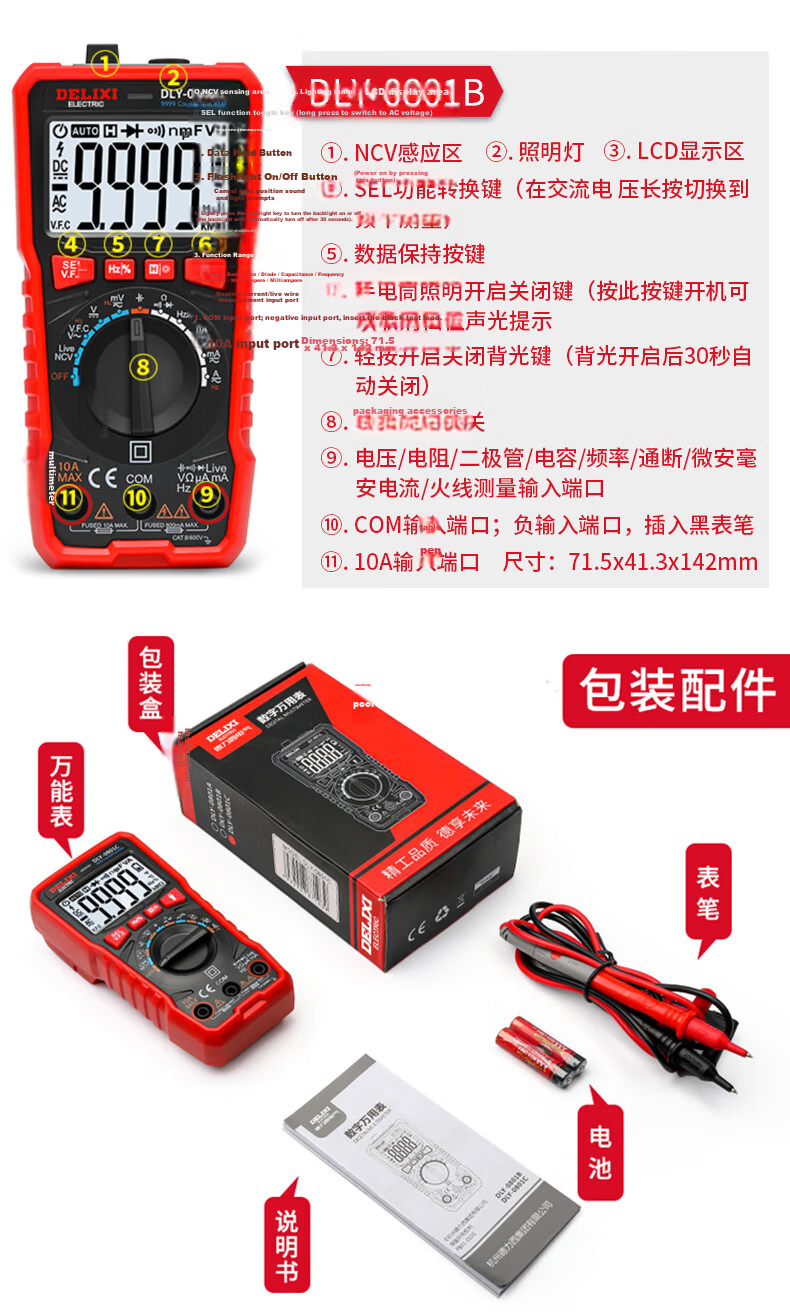

DELIXI ELECTRIC Multimeter (model dependent)

Test leads

Batteries (2 x AAA)

User manual

For detailed specifications and operating instructions, please refer to the user manual.
