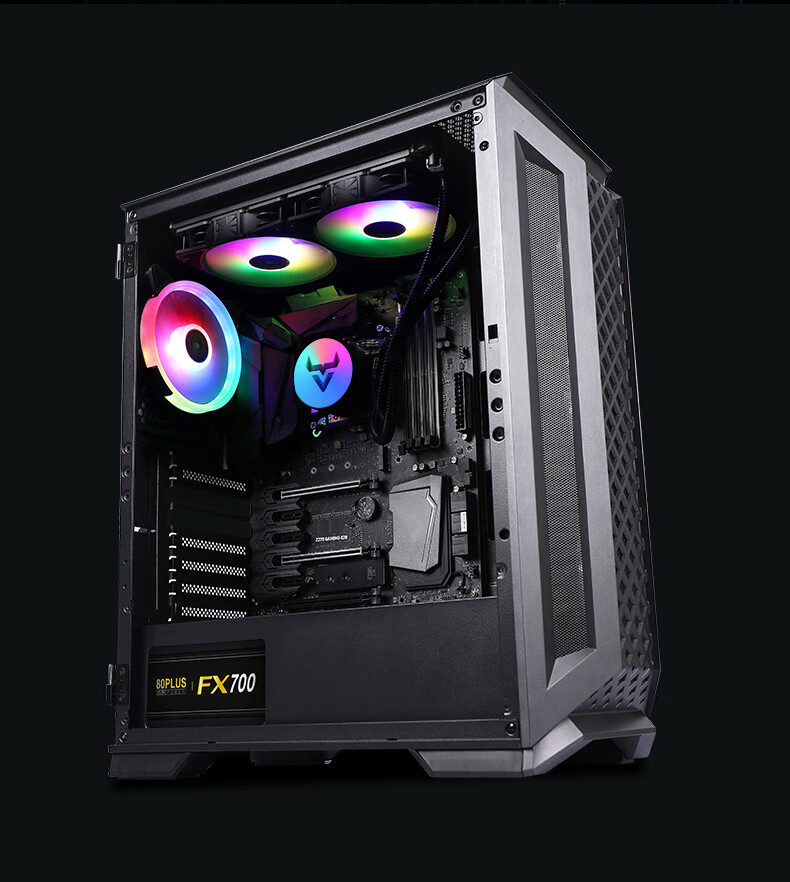

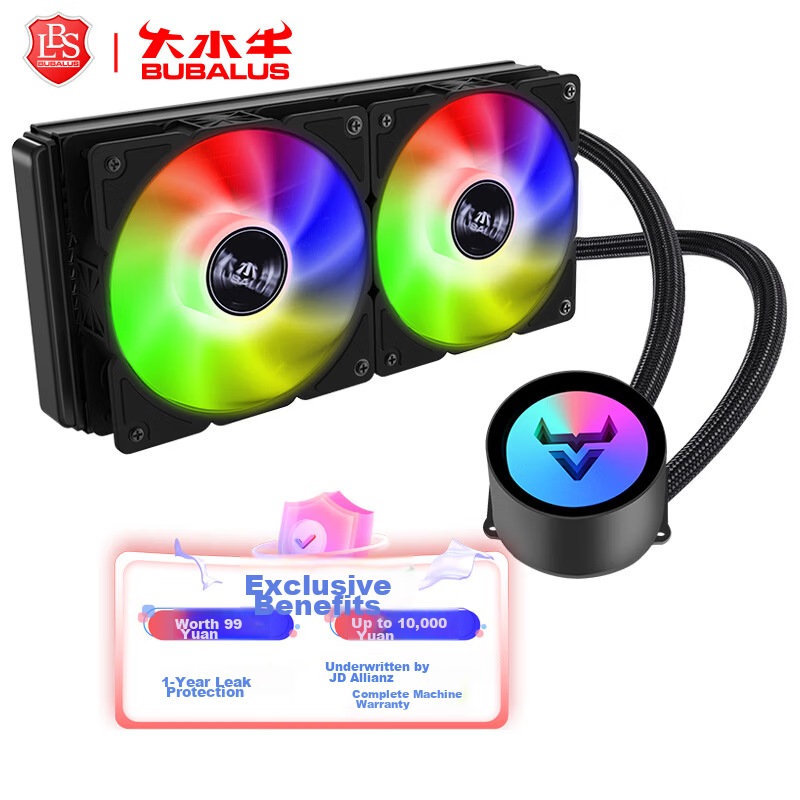

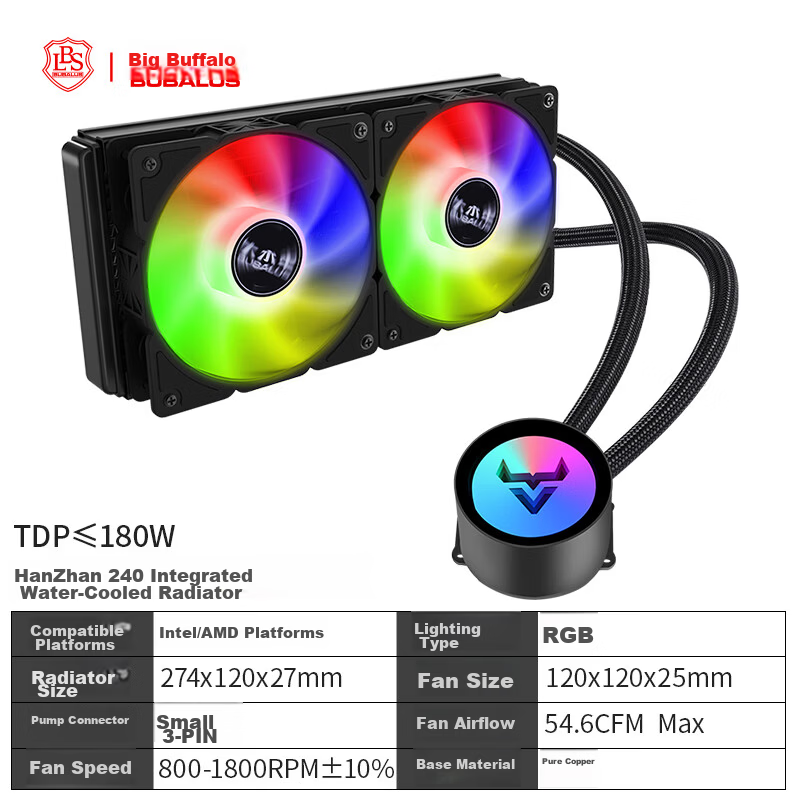

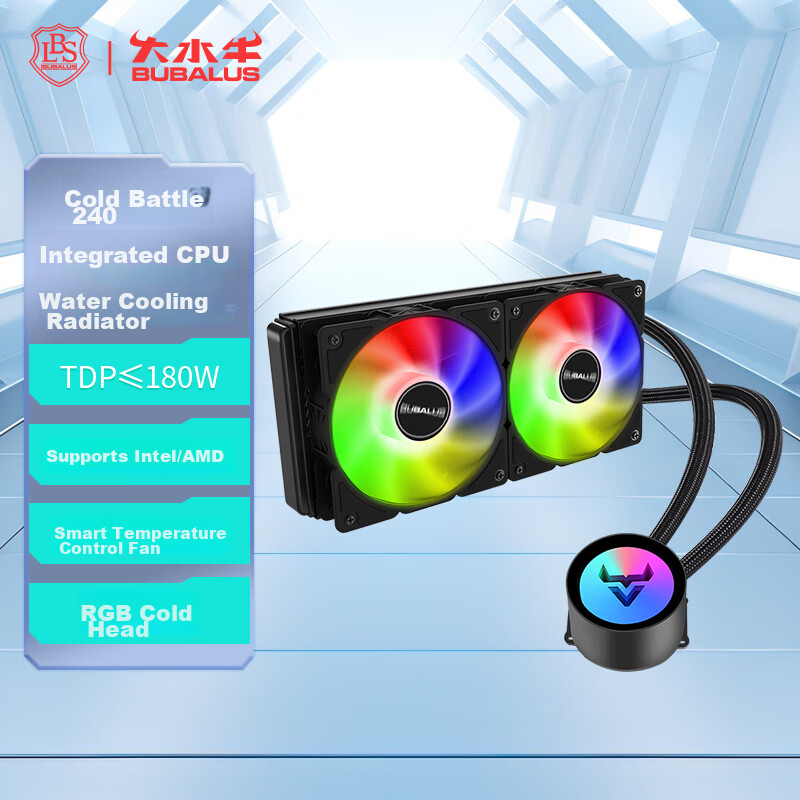

BUBALUS HanZhan 240 All-in-One CPU Liquid Cooler (Multi-Platform/Supports Intel LGA2011/AMD/RGB Waterblock/PWM Smart Temperature Control/PC Fan)
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
BUBALUS•radiator

BUBALUS HanZhan 240 All-in-One CPU Liquid Cooler (Multi-Platform/Supports Intel LGA2011/AMD/RGB Waterblock/PWM Smart Temperature Control/PC Fan)

CNÂ¥179.00
SKU: 100036570471
Status:In Stock (45)
ID: 100036570471
Weight: 1560.00 g
Dims:350x164x96 mm

Specifications

Water cooling type
240 radiator
Compatible interface
AMD AM4, AMD FM2+, INTEL1151 (9th generation), INTEL LGA1700
Cold heading type
Intelligent Digital Display
Lighting Effects
RGB
Number of heat pipes
No
Type
All-in-one liquid cooler
Fan connection method
Wired connection

Variants / Sale Attributes

Color: HanZhan 240 Water Cooling / RGB Lighting

Package Contents

Water cooling radiator, 2 fans, fan temperature control Y-splitter cable, screw pack, 1 syringe of thermal paste, AMD mounting bracket, Intel backplate + mounting bracket, user manual

Product Description

Product Specifications

Overview

Brand
BUBALUS
Model
Zhan 240
Cooling Type
RGB Water Cooling with PWM Intelligent Temperature Control and High-Efficiency Heat Dissipation

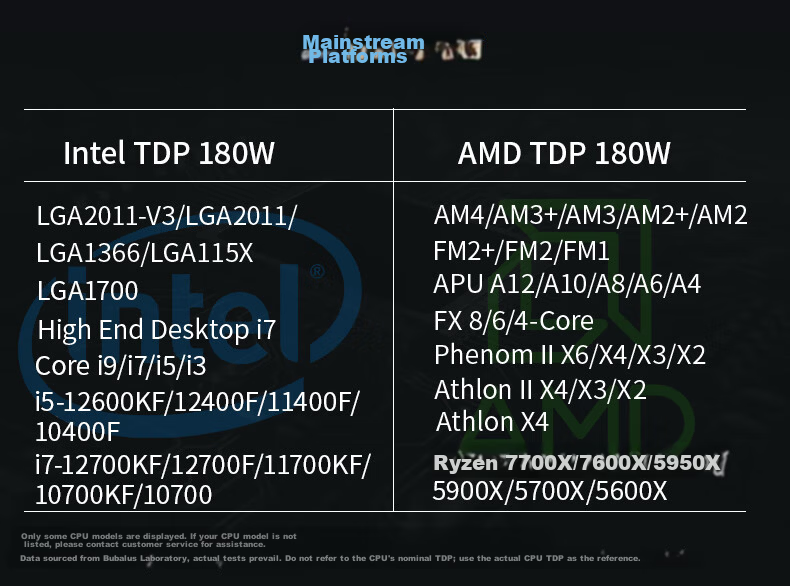

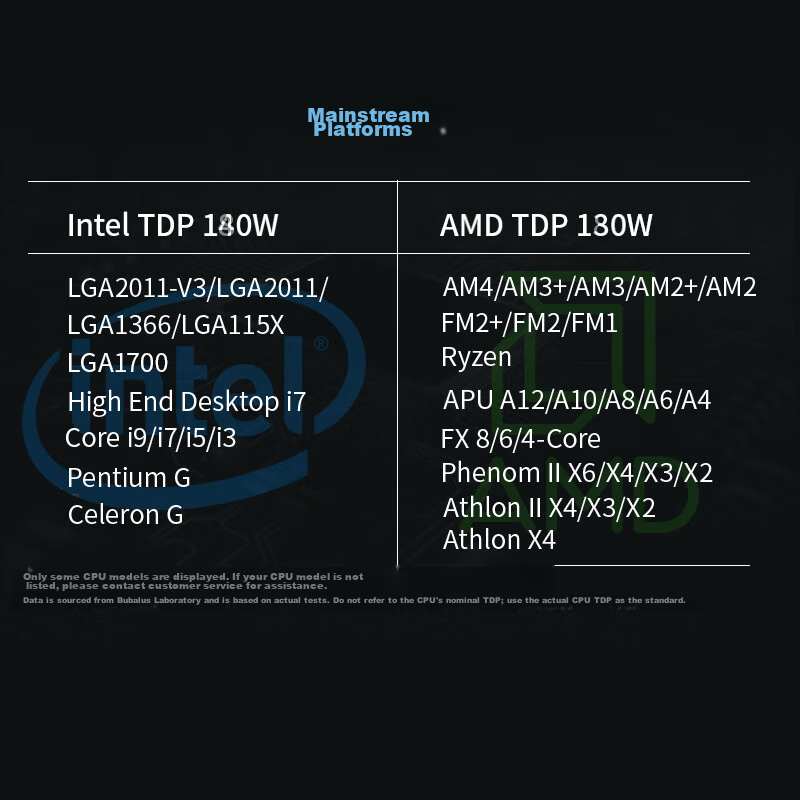

Intel Platforms
LGA2011-V3, LGA2011, LGA1366, LGA115X, LGA1700, High-End Desktop i7, Core i9/i7/i5/i3, i5-12600KF/12400F/11400F/10400F/10700KF/10700, 11700KF, 12700KF/12700F
AMD Platforms
AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1, APU A12/A10/A8/A6/A4, FX 8/6/4-Core, Phenom II X6/X4/X3/X2, Athlon II X4/X3/X2, Ryzen 7700X/7600X/5950X/5900X/5700X/5600X, Athlon X4

Similar Products

Out of Stock
Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK
thermalrightradiator

Thermalright Assassin Spirit 120 VISION ARGB BLACK CPU Air Cooler AS120 VISION ARGB BLACK

AS120 VISION ARGB Black

CNÂ¥129.90

View
In Stock
SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)
SAMAradiator

SAMA Second Generation XW360-PLUS Fanless Black All-In 360 Water Cooling CPU Cooler (2.8-Inch Large Round LCD Display)

2.8-Inch Screen, Second-Generation XW360-P Fanless, Black

CNÂ¥529.00

View
Only partial CPU models listed. For unsupported models, contact customer service for compatibility confirmation.

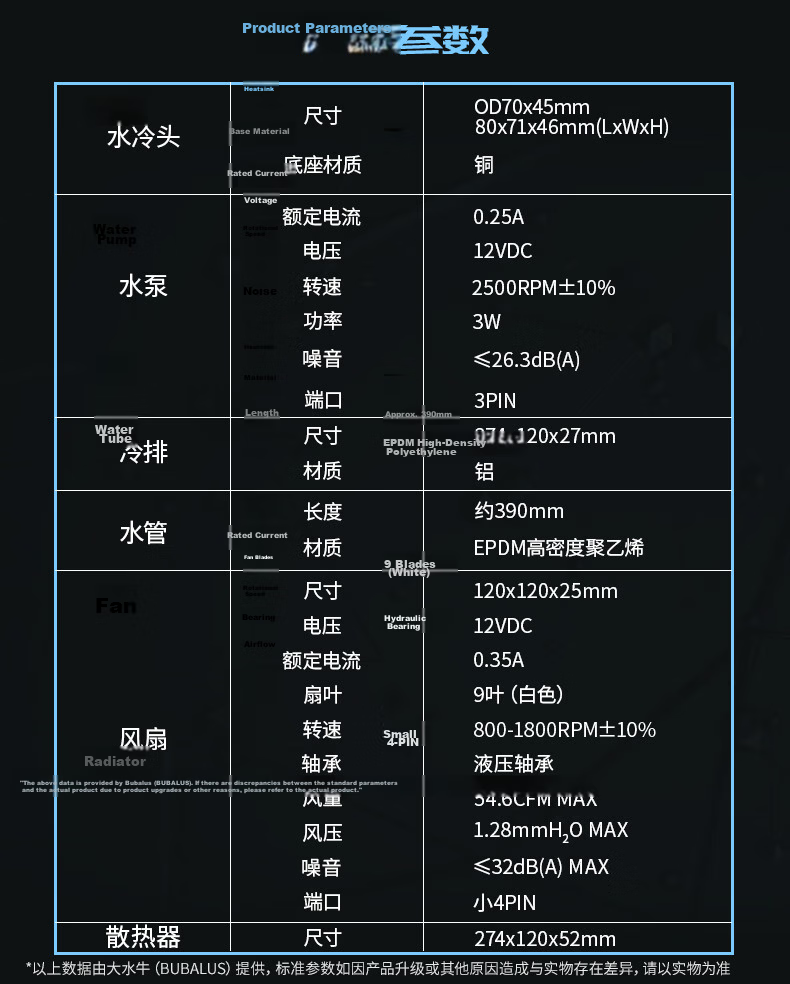

Additional details

Material

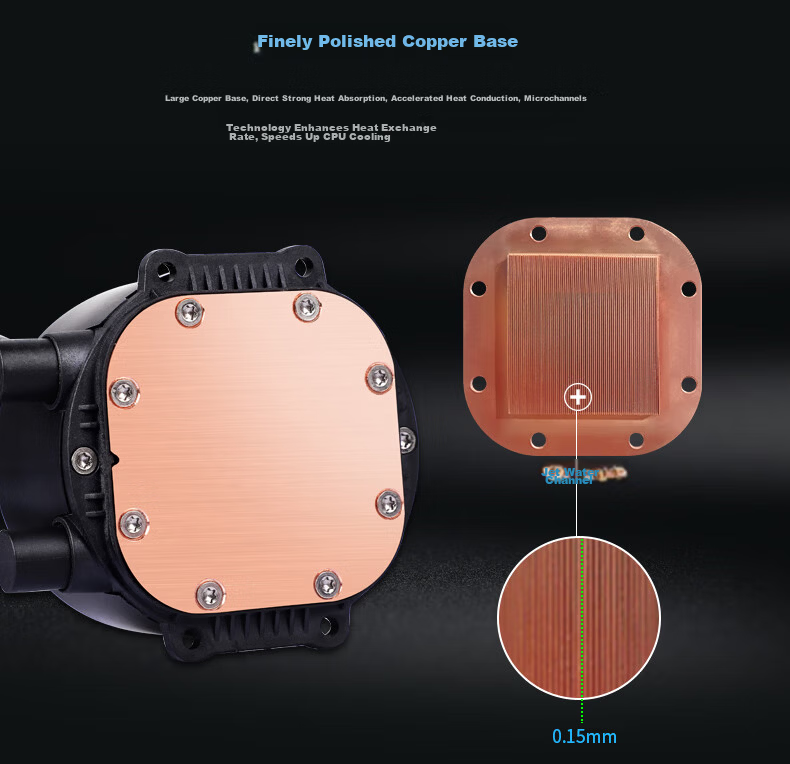

Copper base with fine polishing and micro-channel technology (0.15 mm jet waterway)
Dimensions
70 mm (OD) x 45 mm (height)
Rated Current
0.25A
Voltage
12V DC
Pump Speed
2500 RPM ±10%
Pump Power
3W
Noise Level
≤26.3 dB(A)
Port
3-Pin

Features

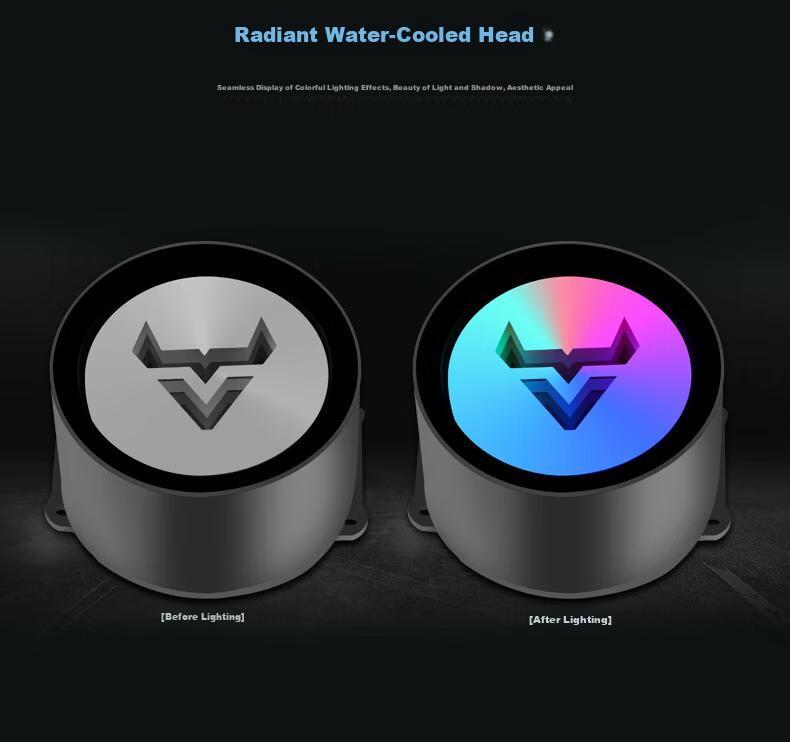

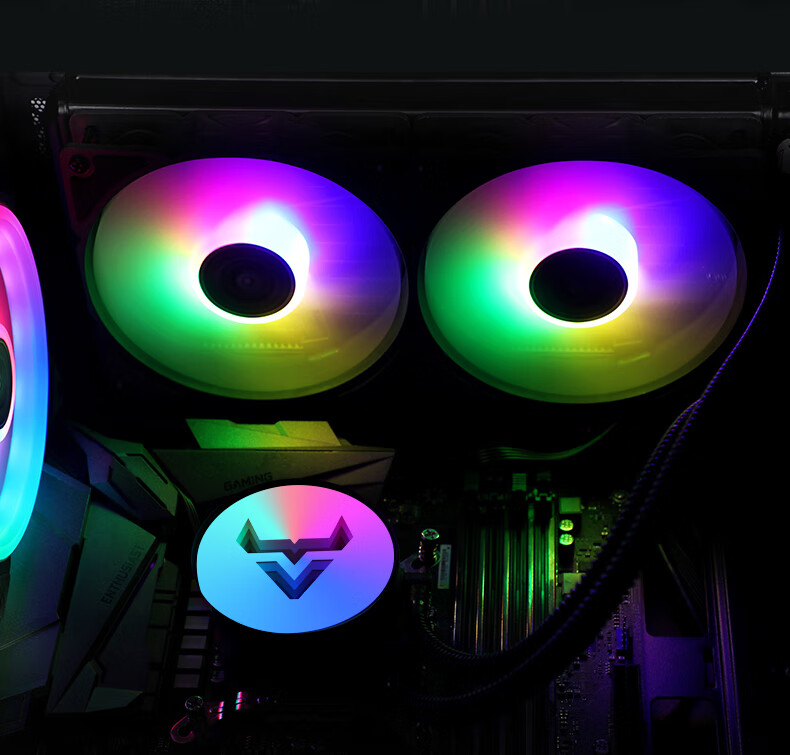

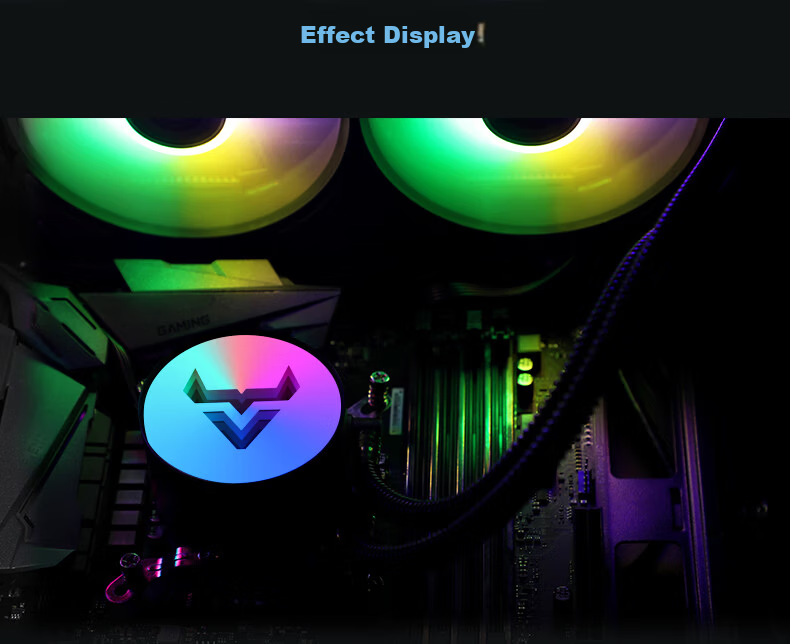

  • RGB lighting with seamless color effects
  • Intelligent temperature control
  • Noise reduction

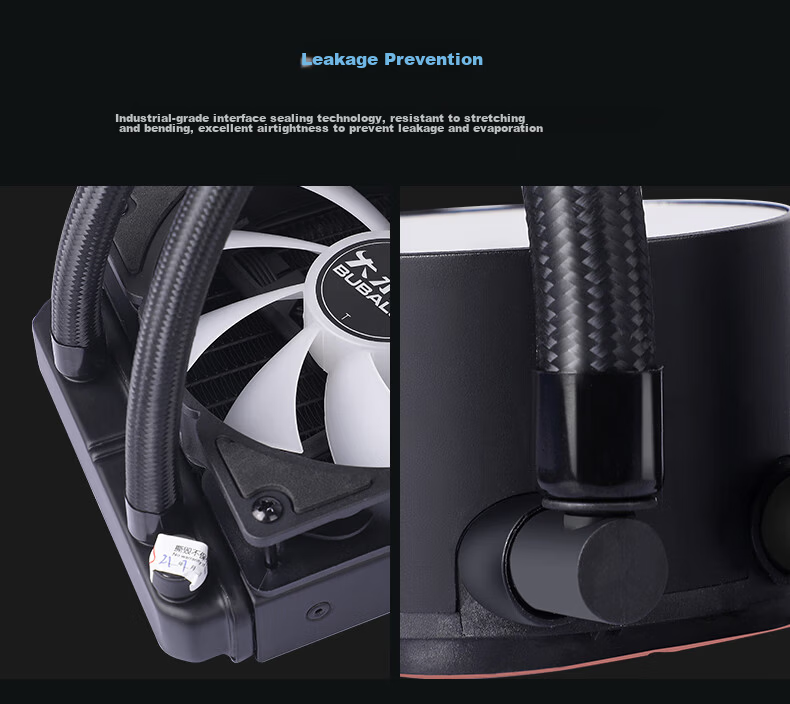

  • Industrial-grade sealed interface to prevent leakage and evaporation
  • EPDM high-density polyethylene water cooling tubes with low evaporation rate

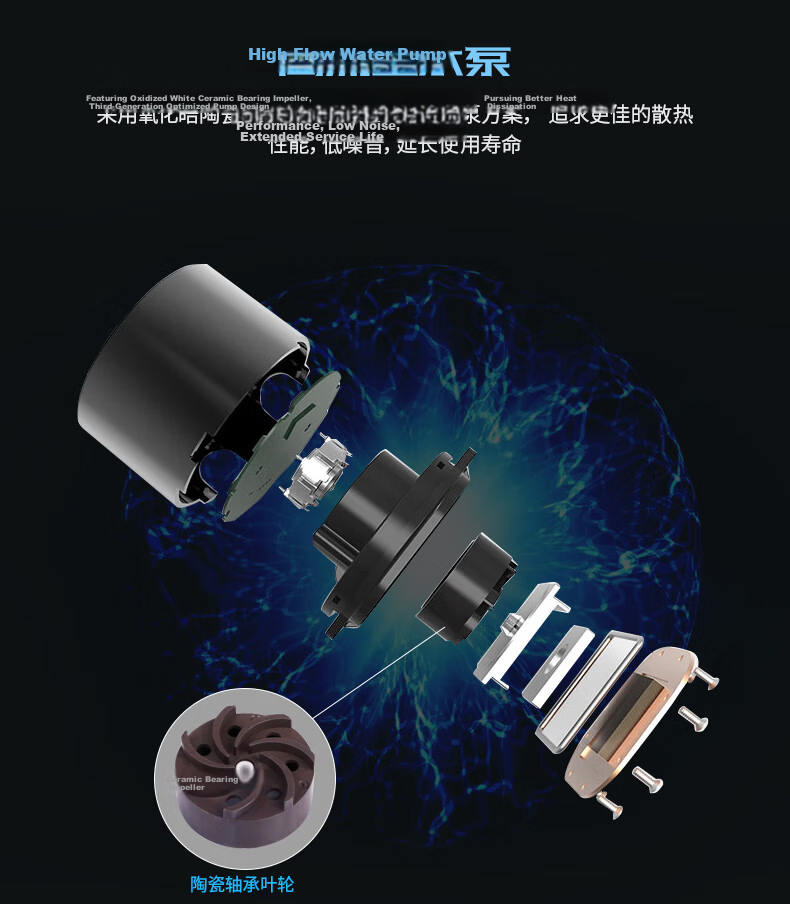

  • High flow water pump with third-generation optimized ceramic bearing impeller for enhanced performance and longevity.

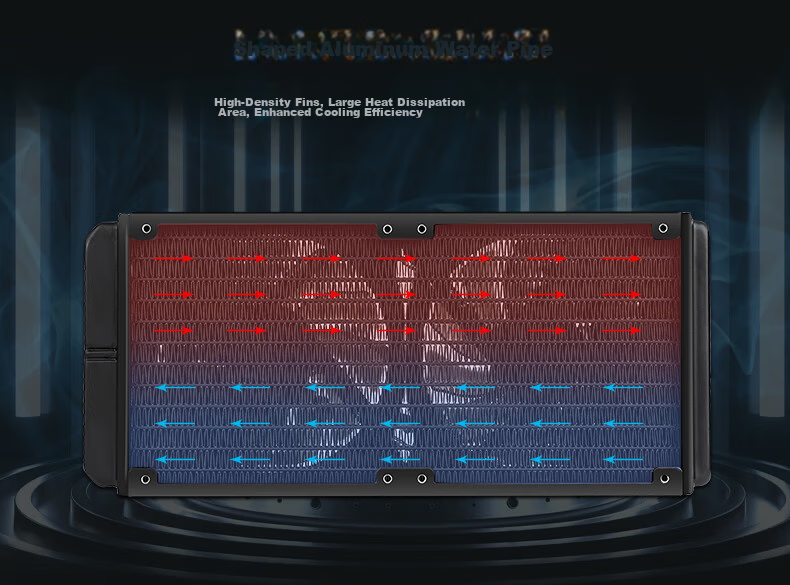

Additional details

Material
Aluminum
Dimensions
274 x 120 x 27 mm (standard), 274 x 120 x 52 mm (thicker radiator option)

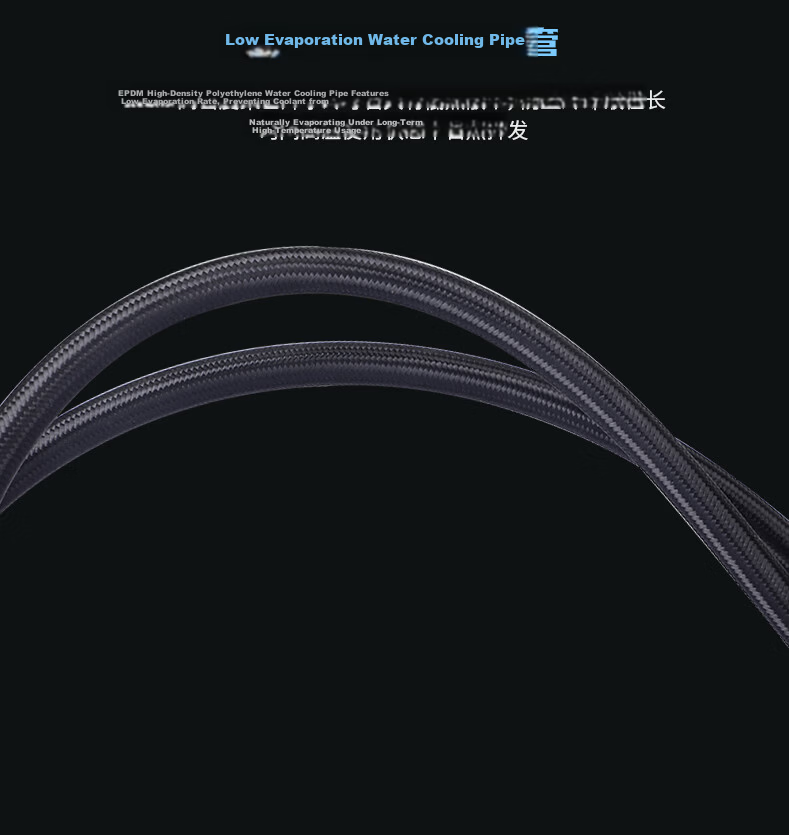

Length
Approx. 390 mm
Material
EPDM high-density polyethylene

Features

  • Low evaporation
  • Resistant to stretching and bending
  • Sealed to prevent leakage

Additional details

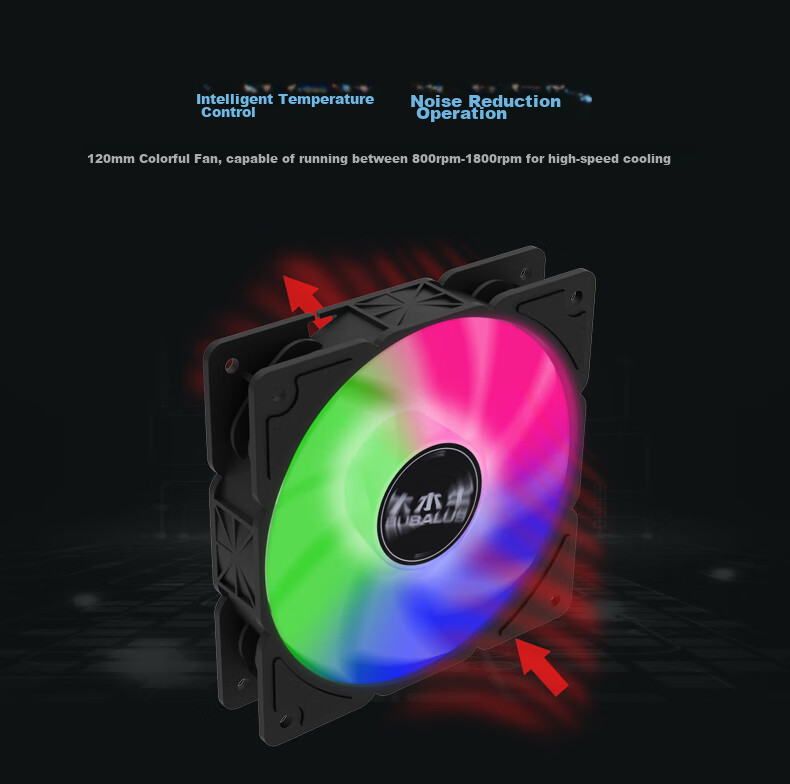

Size
120 x 120 x 25 mm
Voltage
12V DC
Rated Current
0.35A
Blade Count
9 (white)
Speed Range
800 - 1800 RPM ±10% (PWM controlled)
Bearing Type
Hydraulic bearing
Maximum Airflow
54.6 CFM
Maximum Air Pressure
1.28 mmH2O
Maximum Noise Level
≤32 dB(A)
Connector
4-Pin PWM

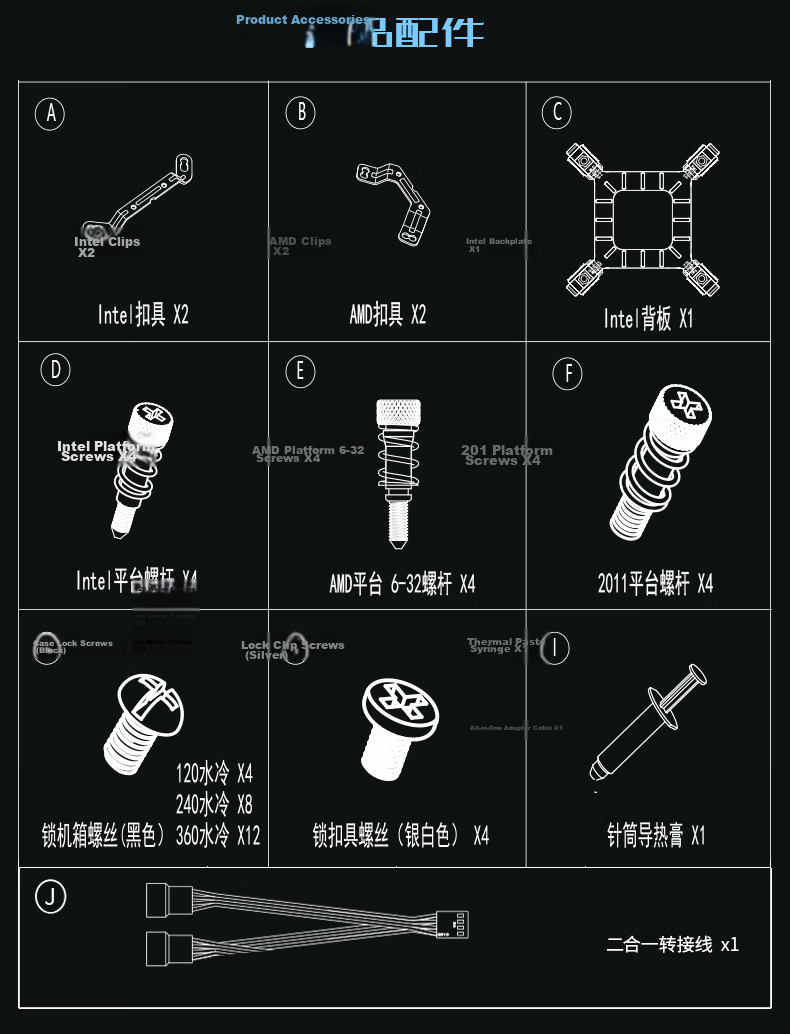

Intel Mounting Brackets x2

AMD Mounting Brackets x2

Intel Backplate x1

Intel Platform Screws x4

AMD Platform 6-32 Screws x4

2011 Platform Screws x4

120mm Water Cooling Screws x4

240mm Water Cooling Screws x8

360mm Water Cooling Screws x12

Case Lock Screws (Black)

Locking Screws for Brackets (Silver)

Thermal Paste Syringe x1

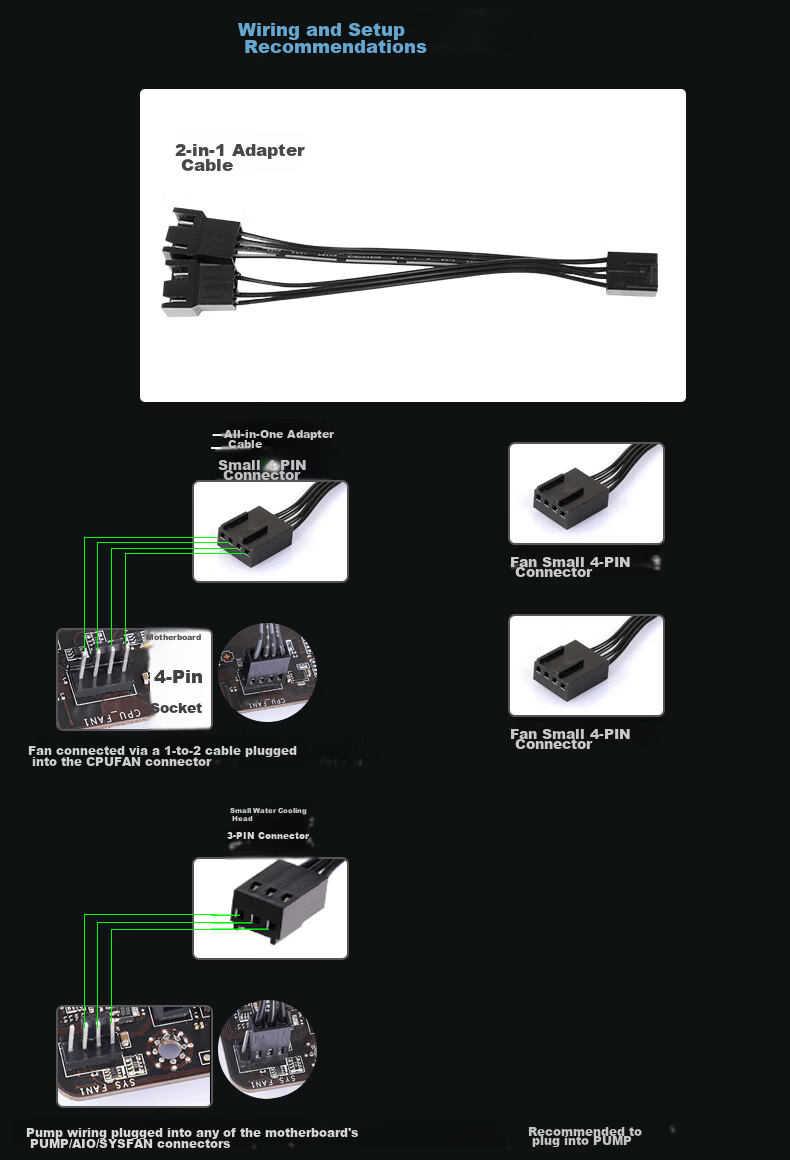

2-in-1 and Unified Adapter Cables x1

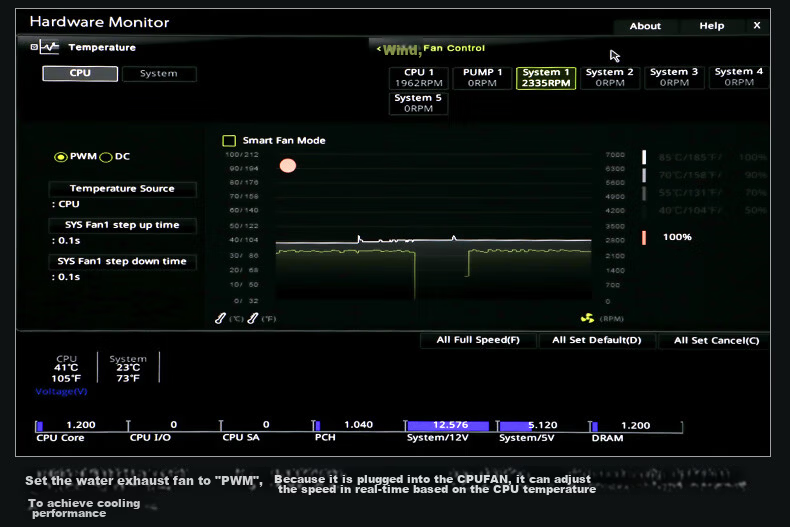

Fan connected via 4-Pin PWM to CPU_FAN header for dynamic speed control based on CPU temperature

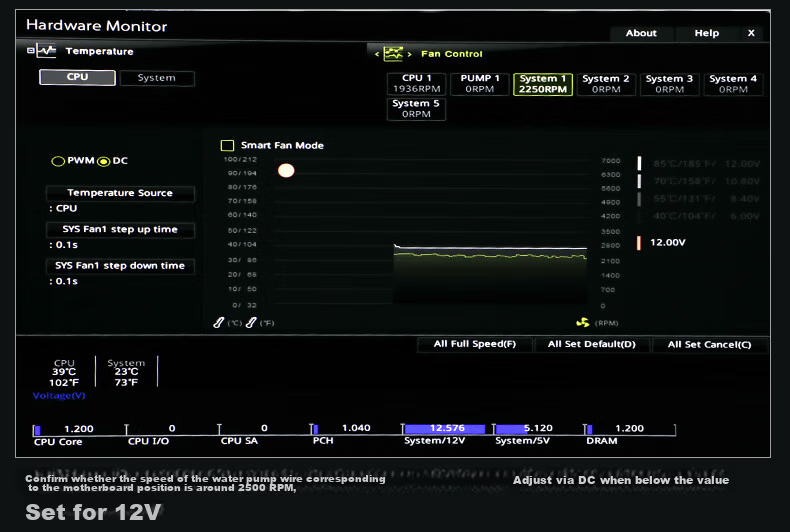

Pump connected to PUMP/AIO/SYS_FAN header recommended for stable 12V operation at ~2500 RPM

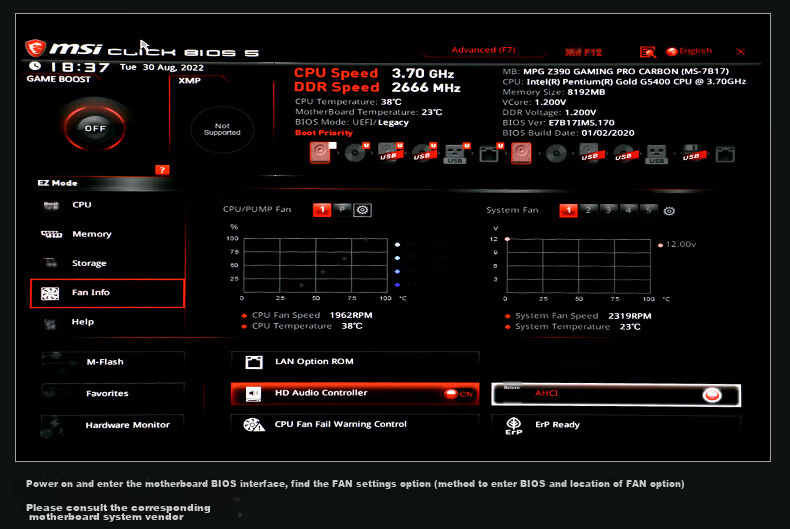

BIOS fan control settings recommended for optimal cooling performance and noise reduction

Product images and specifications are for reference only; actual product may vary.

Data sourced from BUBALUS laboratory testing; actual performance depends on real-world conditions.

Do not rely solely on CPU nominal TDP; use actual CPU TDP for compatibility and cooling requirements.
