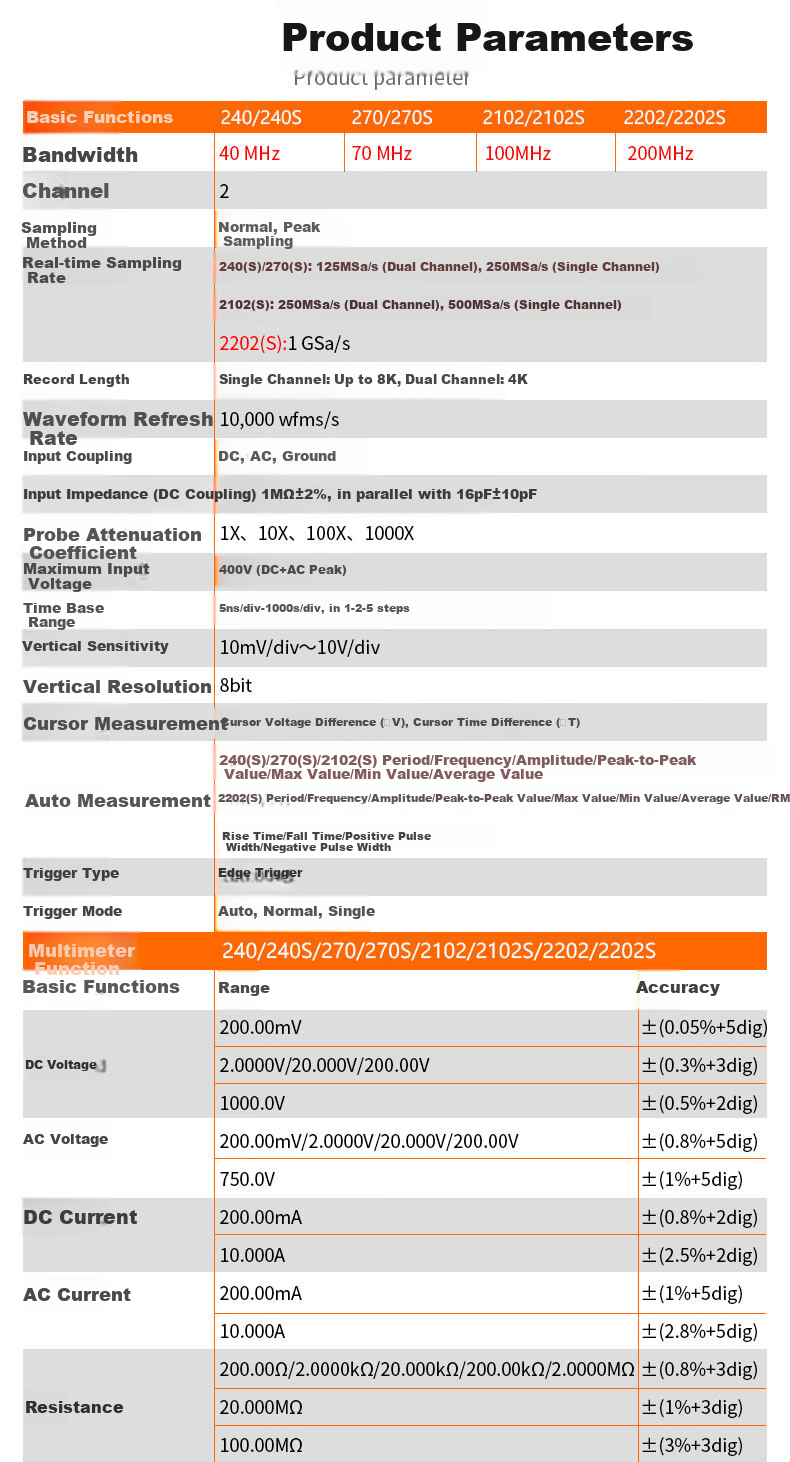

Basic Functions

Item	Detail

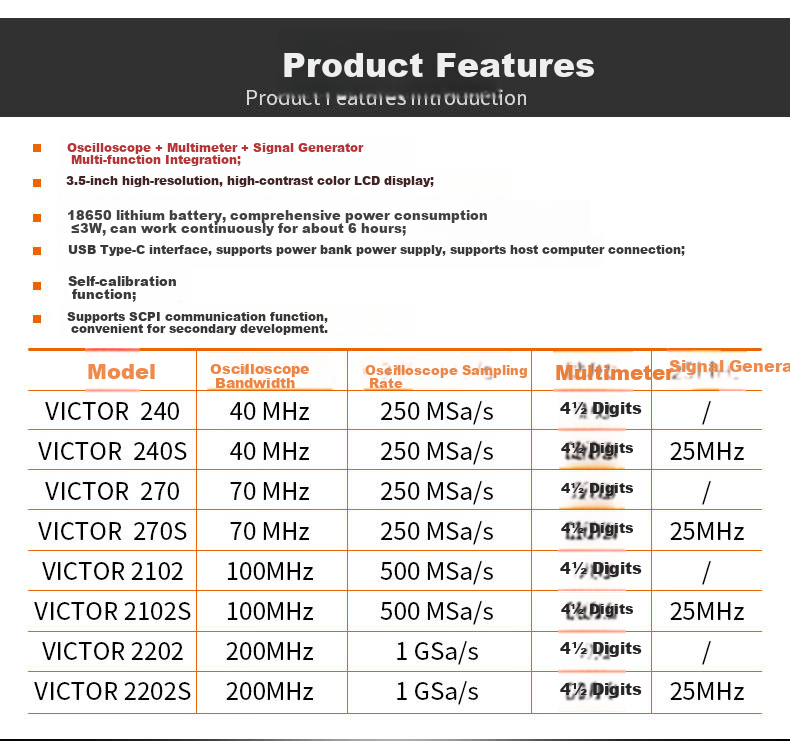

Bandwidth	40MHz to 200MHz
Channels	2
Real-time Sampling Rate	125MSa/s to 1GSa/s
Record Length	Up to 8K
Input Coupling	DC, AC, GND
Input Impedance	1 MΩ ± 2%
Probe Attenuation	1X, 10X, 100X, 1000X
Maximum Input Voltage	400V (DC+AC peak)
Time Base Range	5ns/div to 1000s/div
Vertical Sensitivity	10mV/div to 10V/div
Vertical Resolution	8 bits
Trigger Types	Edge Trigger
Trigger Modes	Auto, Normal, Single
