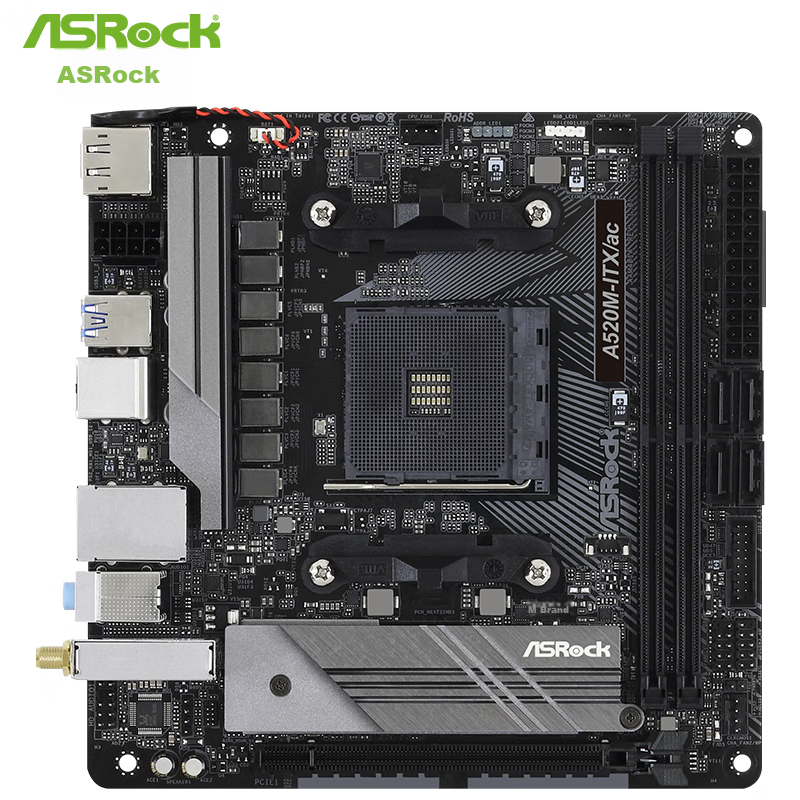

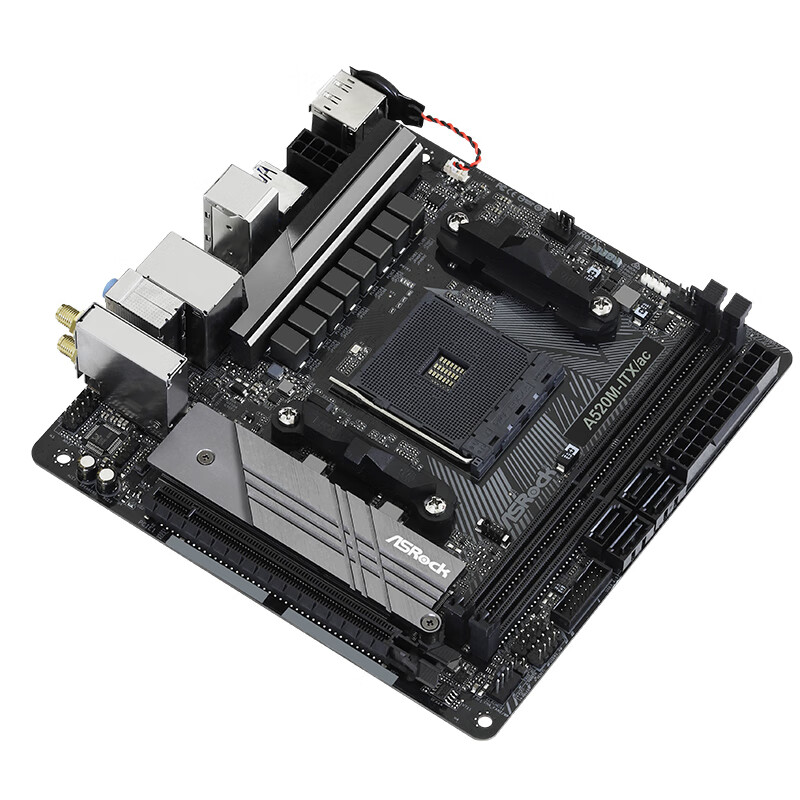

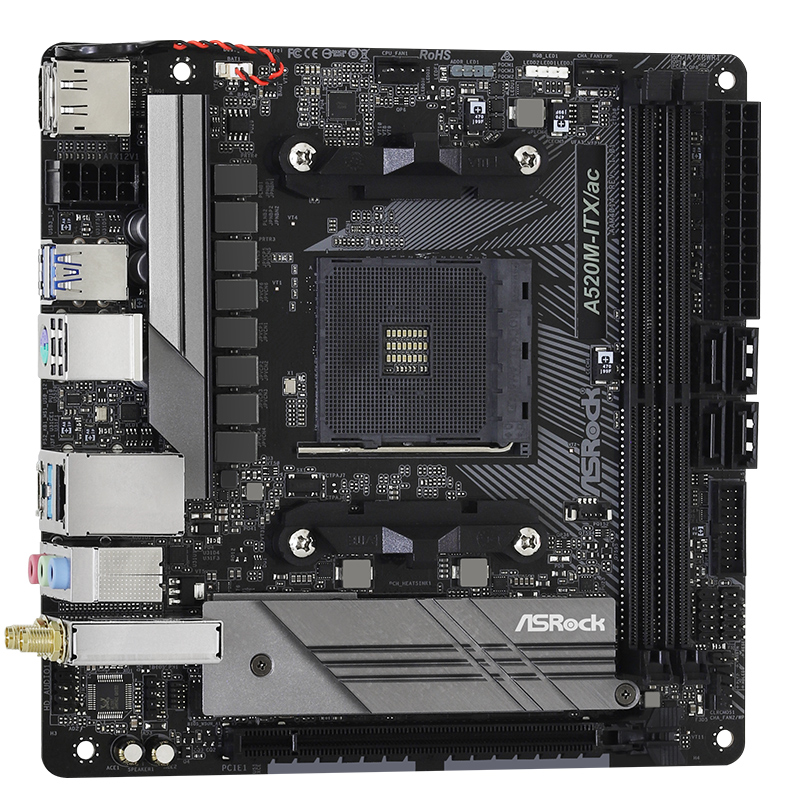

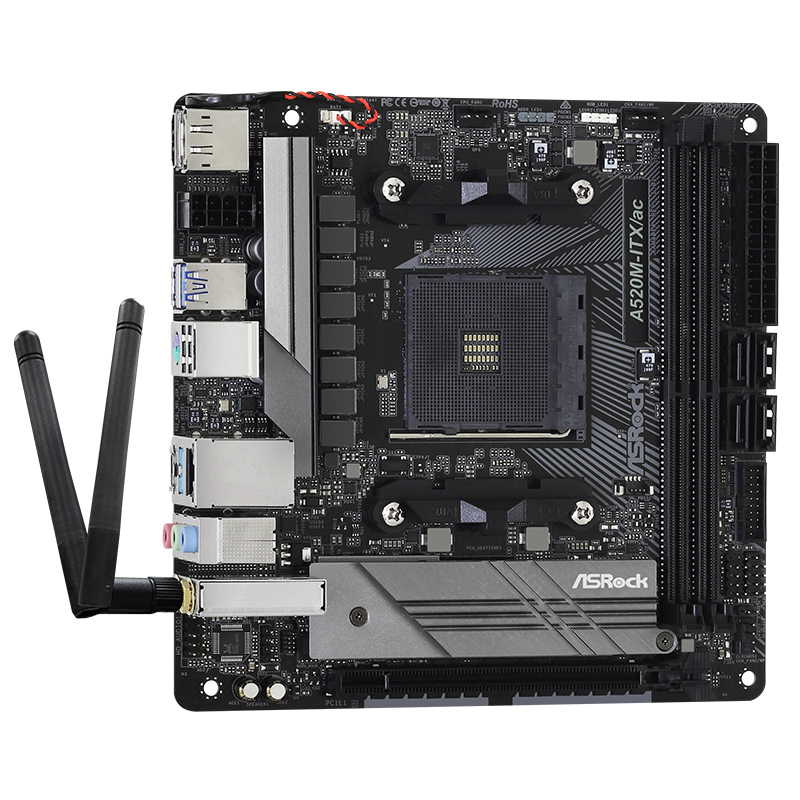

ASRock A520M-ITX/ac Supports CPU 5600/5600GT (AMD A520/Socket AM4)

ASRock•motherboard

ASRock A520M-ITX/ac Supports CPU 5600/5600GT (AMD A520/Socket AM4)

CN¥639.00

SKU: 100037760200

Status:In Stock (5)

ID: 100015822394

Weight: 800.00 g

Dims:276x210x58 mm

Specifications

RGB: Non-RGB
Board type: Mini-ITX
PCI Express x8: 0 pcs
Support PCIe protocol: Support PCIE 3.0
Compatible CPU interface: AMD AM4
Wi-Fi Connection: Wi-Fi 5
AMD chip: A520
SSD solid state drive interface: M.2 interface (NVMe protocol)

Variants / Sale Attributes

model: Mini Board WIFI5 D4 A520M-ITX

Package Contents

A520M-ITX/ac motherboard x 1, Quick Installation Guide x 1, Support CD x 1, I/O Shield x 1, SATA Data Cable x 2, ASRock WiFi 2.4/5 GHz Antenna x 2

Product Description

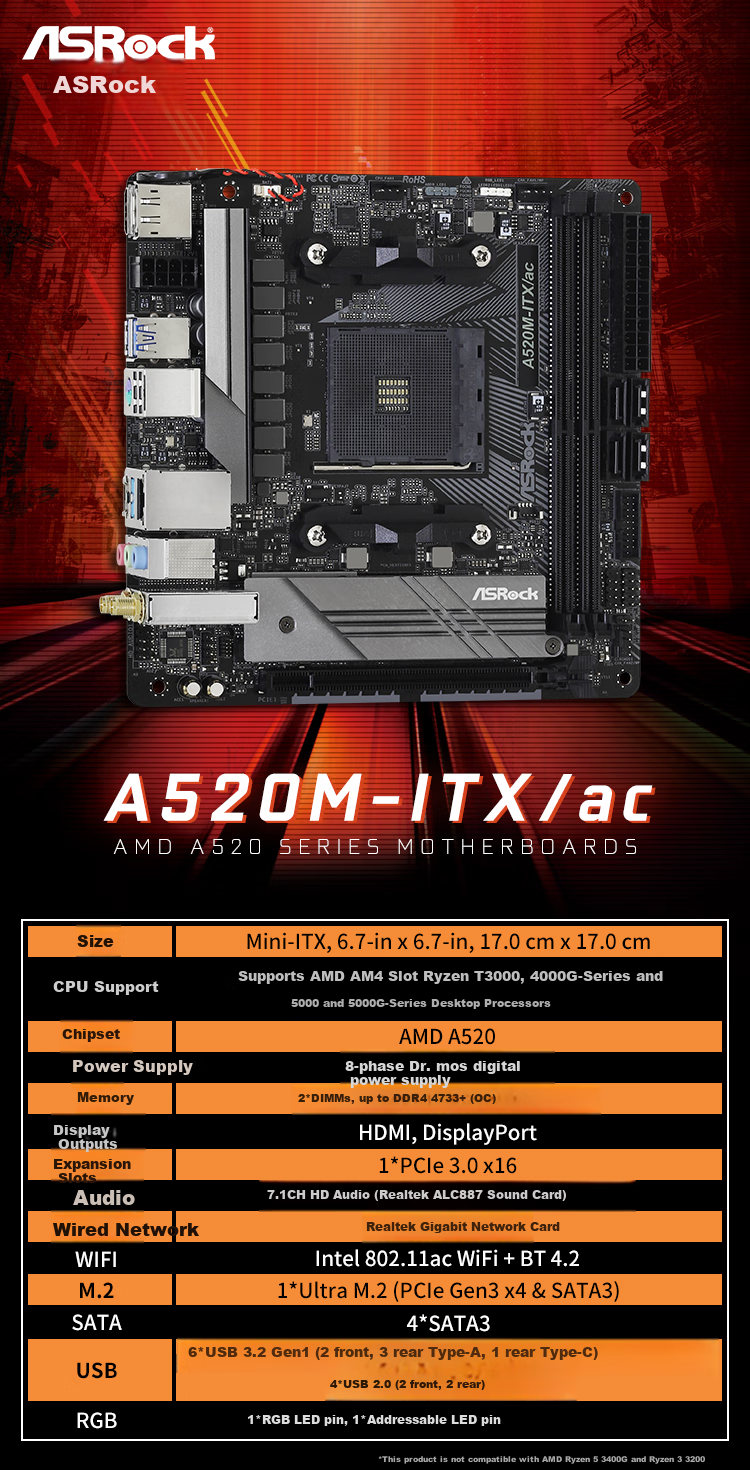

Overview

Brand: ASRock
Model: A520 M-ITX/ac
Form Factor: Mini-ITX, 6.7-in x 6.7-in (17.0 cm x 17.0 cm)
CPU Support: Supports AMD AM4 socket Ryzen 3000, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors
Chipset: AMD A520
Power Phase: 8 Power Phase Dr. MOS Digital Power
Memory: 2 x DIMMs, Max DDR4 4733+(OC)

Similar Products

In Stock

GIGABYTEmotherboard

GIGABYTE X870I AORUS PRO ICE WIFI7 Mini Motherboard DDR5 Compatible with AMD CPU AM5 9700X 9800X3D 9900X 9600X

X870

CN¥2,499.00

View

In Stock

GIGABYTEmotherboard

GIGABYTE GIGABYTE Gaming Ice Sculpture X870E AORUS PRO X3D ICE Motherboard DDR5 AMD CPU AM5 9700X 9950X 9900X 9600X Compatible

X870

CN¥3,299.00

View

Expansion Slots

1 x PCIe 3.0 x16

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)

Networking

Realtek Gigabit LAN, Intel 802.11ac WiFi + BT 4.2

Storage

1 x Ultra M.2 (PCIe Gen3 x4 & SATA3), 4 x SATA3

USB Ports

6 x USB 3.2 Gen1 (2 Front, 3 Rear Type-A, 1 Rear Type-C), 4 x USB 2.0 (2 Front, 2 Rear)

RGB

1 x RGB LED Header, 1 x Addressable LED Header

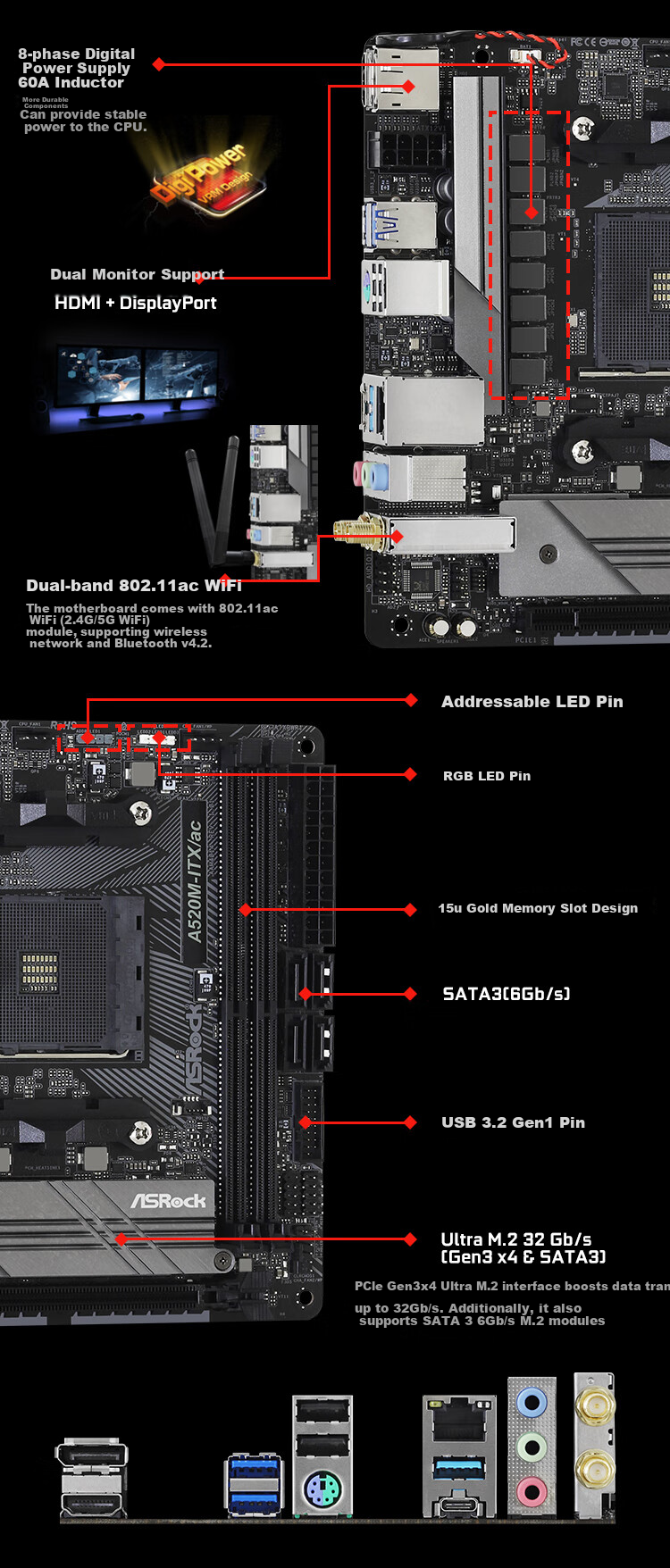

Features

Dual Display Support (HDMI + DisplayPort)
Dual Band 802.11ac WiFi
Addressable LED Header
RGB LED Header
15u Gold Contact Memory Slots
SATA3 (6Gb/s)
USB 3.2 Gen1 Header

Additional details

Compatibility: Not compatible with AMD Ryzen 5 3400 G and Ryzen 3 3200 G

Additional Features

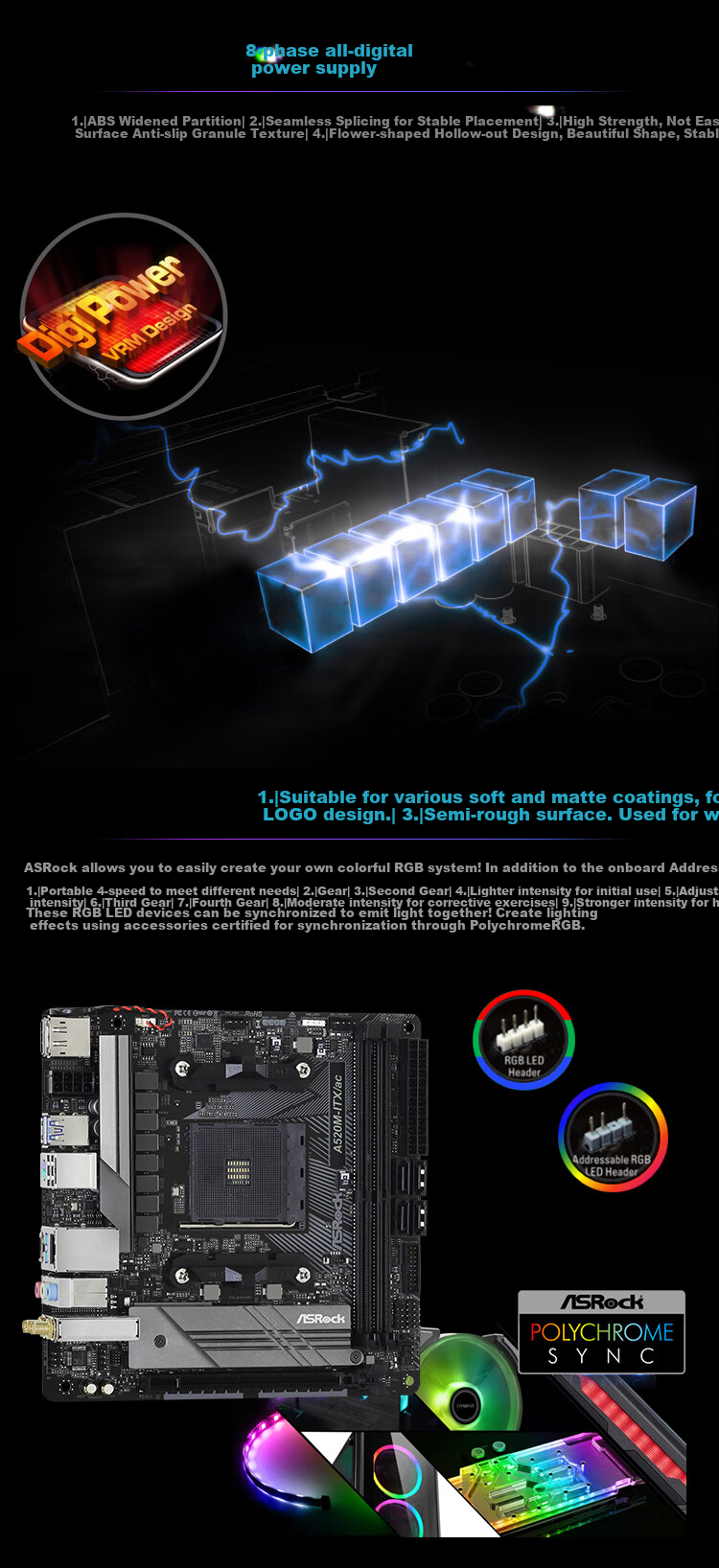

Polychrome RGB Sync

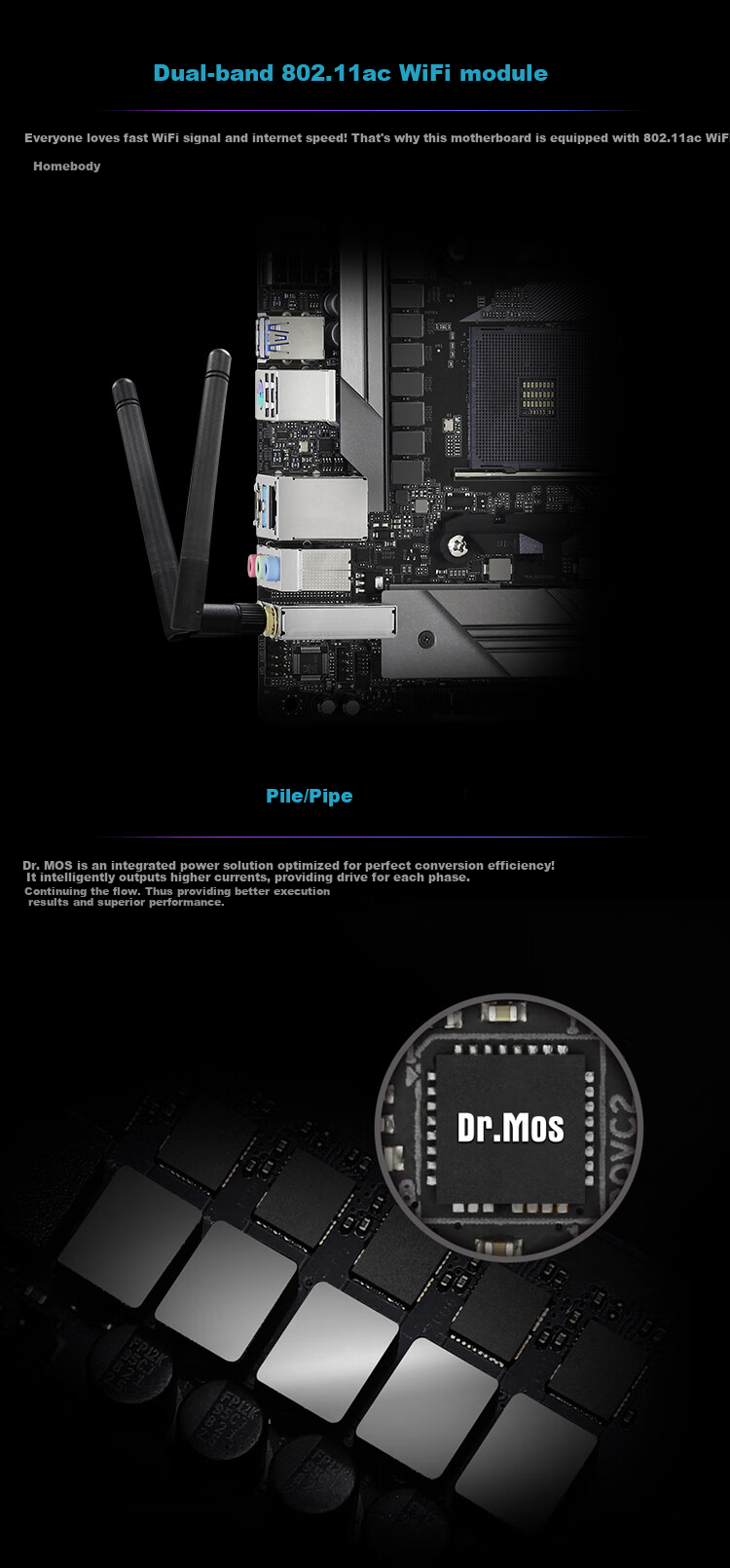

Dual Band 802.11ac WiFi Module
Dr. MOS Design

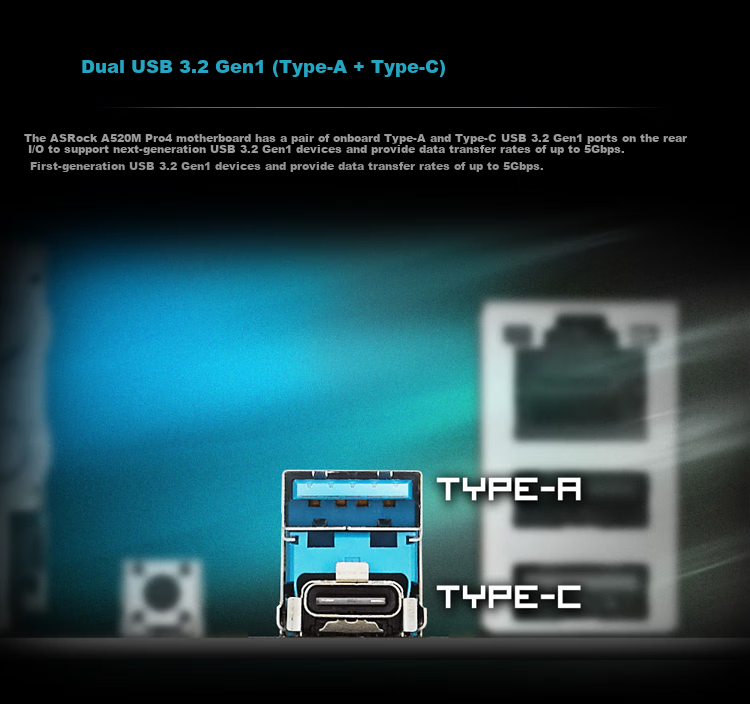

Dual USB 3.2 Gen1 Ports (Type-A + Type-C)

ASRock A520M-ITX/ac motherboard is designed with a compact Mini-ITX form factor, supporting a range of AMD Ryzen processors and featuring advanced components such as 8 Power Phase Dr. MOS Digital Power for stable CPU power delivery. It also includes various connectivity options like HDMI, DisplayPort, Gigabit LAN, WiFi, and multiple USB ports. The motherboard's RGB lighting capabilities and compatibility with Polychrome RGB Sync allow users to create vibrant lighting effects. Additionally, the inclusion of Dr. MOS design ensures efficient power conversion, while the dual USB 3.2 Gen1 ports provide high-speed data transfer rates.
