CHNT Clamp Meter Digital Multimeter High Precision Fully Automatic Clamp Current Meter Smart Universal Meter 600A AC/DC Ammeter

CHNT•Multimeter

CHNT Clamp Meter Digital Multimeter High Precision Fully Automatic Clamp Current Meter Smart Universal Meter 600A AC/DC Ammeter

CN¥79.00

SKU: 100042601984

Status:In Stock (171)

ID: 100042601984

Weight: 340.00 g

Dims:240x180x60 mm

Specifications

Precision: Other
Functions: Smart NCV
Measuring range: Automatic/Manual range
testing principles: Relative value measurement
Category: clamp meter

Variants / Sale Attributes

Model: 217 Standard Configuration [Diode + Capacitor + Live and Neutral Wires]

Package Contents

Clamp meter*1 Battery*2 Instruction manual*1

Product Description

Overview

Brand: CHNT (Professional Manufacturing Since 1984, Over 30 Years Experience)

SAA Safety Certification

CB International Safety Certification

EU OIML Certification

Germany VDE Certification

US UL Certification

EU E13 Certification

Zhejiang Consumer Safety Certification

9 Major International Authoritative Certifications including CE, RoHS, IEC, SGS, FC, KEUA, TUV, FCC, KEMA, China Compulsory Certification, Australia Safety Certification

Listed Asian Company

50 Overseas Subsidiaries

Business Presence in 97 Countries and Regions

Additional details

Annual Sales: 500 Million RMB
Global Employees

Similar Products

In Stock

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

CHNTMultimeter

CHNT Multimeter, High-Precision Digital Intelligent Burn-Proof Portable Multi-Function Universal Meter, Electrician Repair-Specific Ammeter

ZTW0103D Upgraded Version [LCD Backlight]

CN¥89.00

In Stock

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

CHNTMultimeter

CHNT High-Precision Digital Multimeter, Fully Automatic Repair Tool for Electricians, Portable Intelligent Universal Meter

ZTY0121A Standard Model [High-Definition Large Screen]

CN¥59.00

30,000

38 Years of Technical Accumulation and Excellence Pursuit

Additional details

Model: ZTW0217, ZTW0204E, ZTW0204F, ZTW0217B
Type: Clamp Meter (600A capacity)

True RMS Measurement for Accurate Reading of Any Waveform Voltage

Additional details

Multi-functional: Measures AC/DC Current, AC/DC Voltage, Resistance, Capacitance, Frequency, Temperature, Diode, Continuity with Buzzer, NCV (Non-Contact Voltage Detection), Live/Neutral Line Identification

Intelligent Burn Protection Technology

High Precision and High Counting (Up to 6000 counts)

Large 28mm Clamp Jaw for Convenient Current Measurement

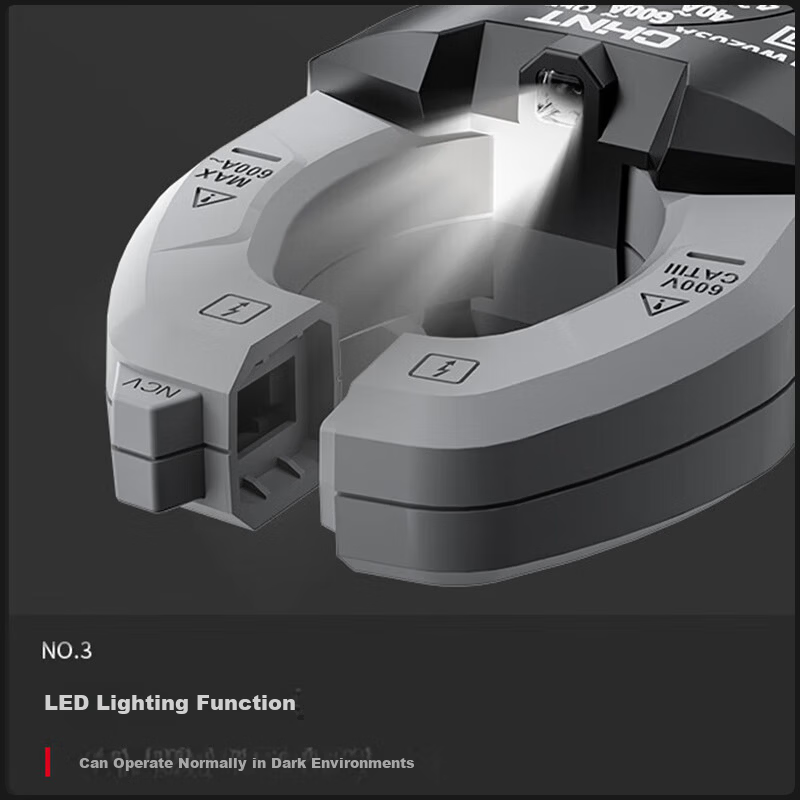

LCD Display with Backlight and Flashlight for Low Light Conditions

Audible and Visual Indicators for Continuity and NCV Detection

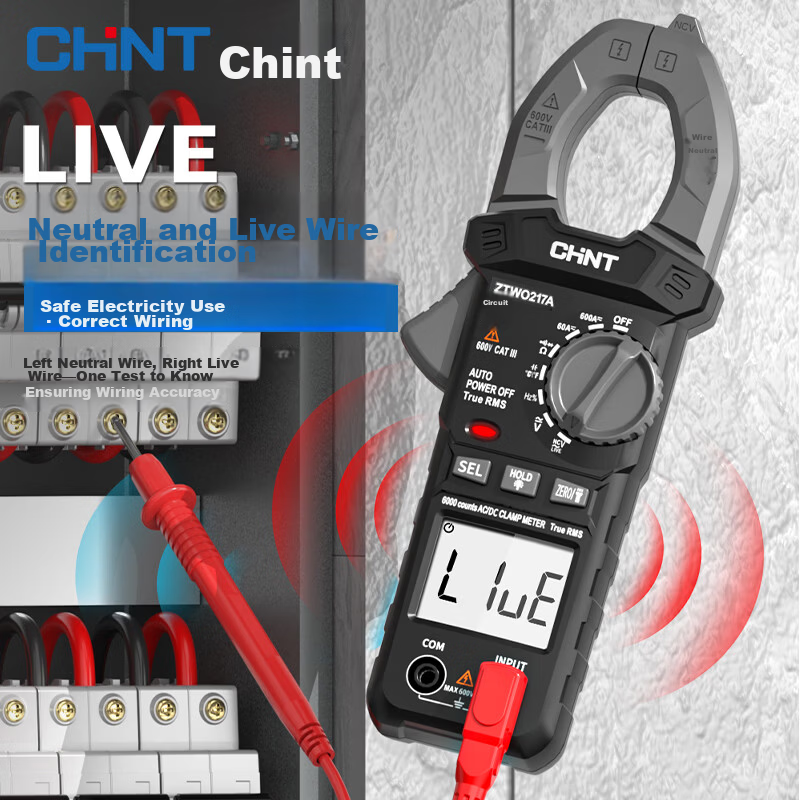

Live/Neutral Line Detection with High Sensitivity Sensor and Alarm

Overload Protection, Auto Power Off, Data Hold Function

Additional details

Battery: 2 x AAA (7#) Batteries Included
AC Current: 0.01A to 600A, Accuracy varies by model (from ±2% to ±4% reading plus counts)
DC Current: Available on some models, 0.2A to 600A, Accuracy approx. ±2.5% reading plus counts
AC Voltage: 0.01V to 600V, Accuracy approx. ±1.2% to ±1.5% reading plus counts, High Voltage Red Light Warning
DC Voltage: 0.01V to 600V, Accuracy approx. ±1% reading plus counts
Resistance: 10Ω to 60 MΩ, Accuracy approx. ±1.2% to ±2% reading plus counts
Capacitance: 10nF to 60,000μF, Accuracy approx. ±4% reading plus counts
Frequency: Up to 10kHz or 9.9MHz depending on model
Temperature: -20°C to 1000°C (on selected models)
Duty Cycle: Up to 99% (selected models)
Size: Approx. 185 x 67 x 35 mm to 185 x 70 x 34 mm depending on model
Weight: Approx. 178 g to 213 g depending on model
Clamp Jaw Opening: 28 mm

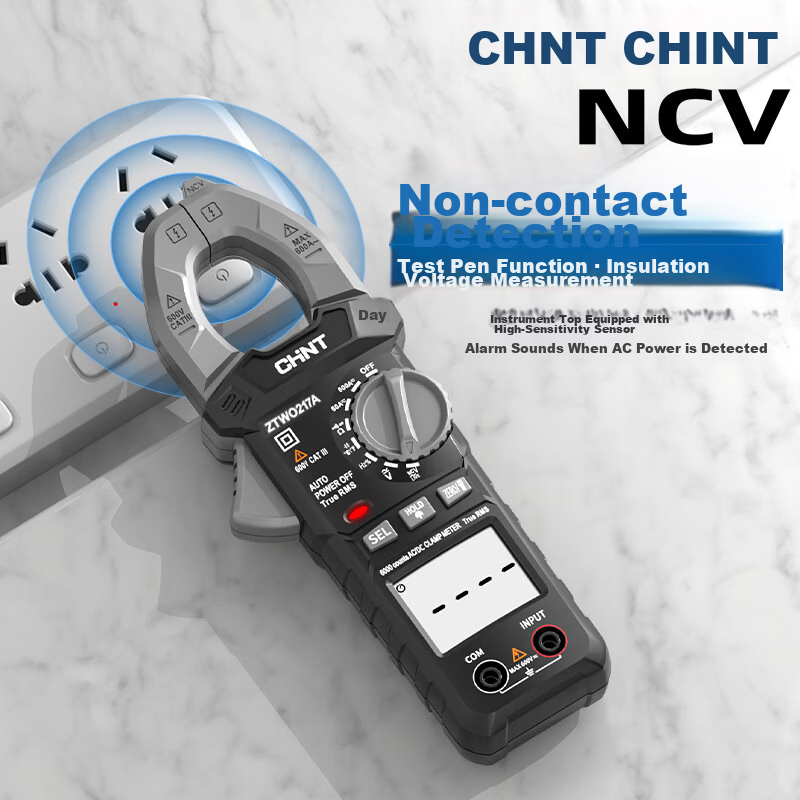

NCV Non-Contact Voltage Detection with High Sensitivity Sensor and Alarm

Live/Neutral Line Identification for Correct Wiring Assurance

True RMS for Accurate Measurement of Non-Sinusoidal Waveforms

Continuity Buzzer with LED Indicator (on selected models)

Backlight and Flashlight for Enhanced Visibility

Overload Protection and Auto Power Off for Safety and Power Saving

Clear Function Markings and User-Friendly Interface

High-Quality Clamp Head for Reliable Current Measurement

Clamp Meter Unit (Model dependent)

Test Leads

2 x AAA Batteries

User Manual

Warranty Card

Certificate of Conformity

Packaging Box or Carrying Pouch (depending on model)

Strong Logistics and Warehousing System for Fast Delivery

Trusted Brand with Over 30 Years of Manufacturing Experience

Professional After-Sales Service and Technical Support
