Weishu DG1000 Microphone Mixer Conference Audio Mixer Distributor, 48V Phantom Power Supply, 8-Channel XLR Interface, Independent Adjustment, Expandable Interface
•Meeting audio and video

Weishu DG1000 Microphone Mixer Conference Audio Mixer Distributor, 48V Phantom Power Supply, 8-Channel XLR Interface, Independent Adjustment, Expandable Interface

CNÂ¥2,459.00
SKU: 100042707954
Status:In Stock (1)
ID: 100035042230
Weight: 4260.00 g
Dims:578x308x100 mm

Specifications

Type
Other
Video conferencing is supported
Video conferencing is not supported
Handwriting touch
Not supported

Variants / Sale Attributes

Color: Microphone Mixer, 8 Channels [Expandable Interface]

Package Contents

One hub, warranty card, user manual, and matching cables

Product Description

Overview

Brand
Weishu
Model
DG1000

Professional 8-channel intelligent conference mixer

8-channel automatic microphone/line input, expandable to 16 units and up to 128 microphone conference system

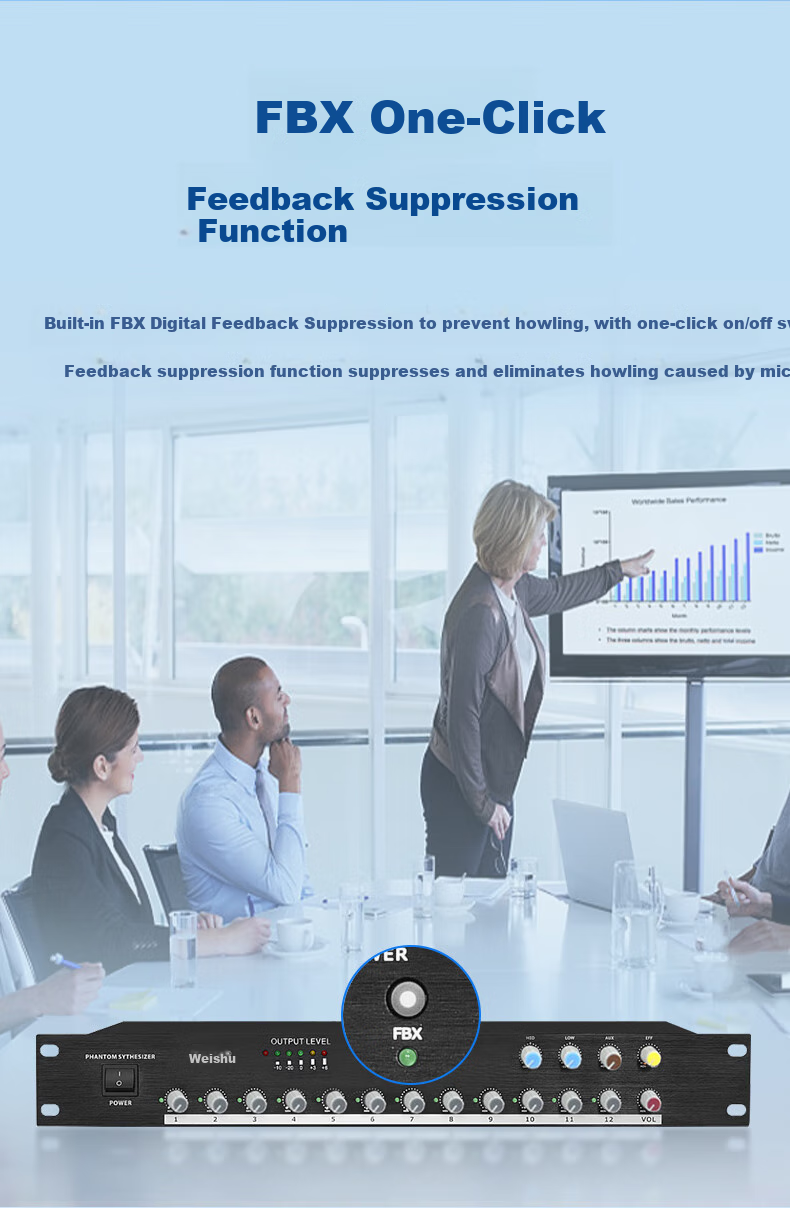

Anti-feedback feature to prevent howling

Each channel equipped with limiter

Individual setting for priority speech mode on each channel

Ability to automatically close statements from other channels when speaking in front of the speaking channel

Expansion control function with device connectors

Can be expanded to 16 mixers and 128 microphones using standard RJ-45 network port connectors

Stable output with three-core Cannon connectors for purer sound quality

Priority setting for channels 1-8 microphone speech

Switchable manual and automatic modes

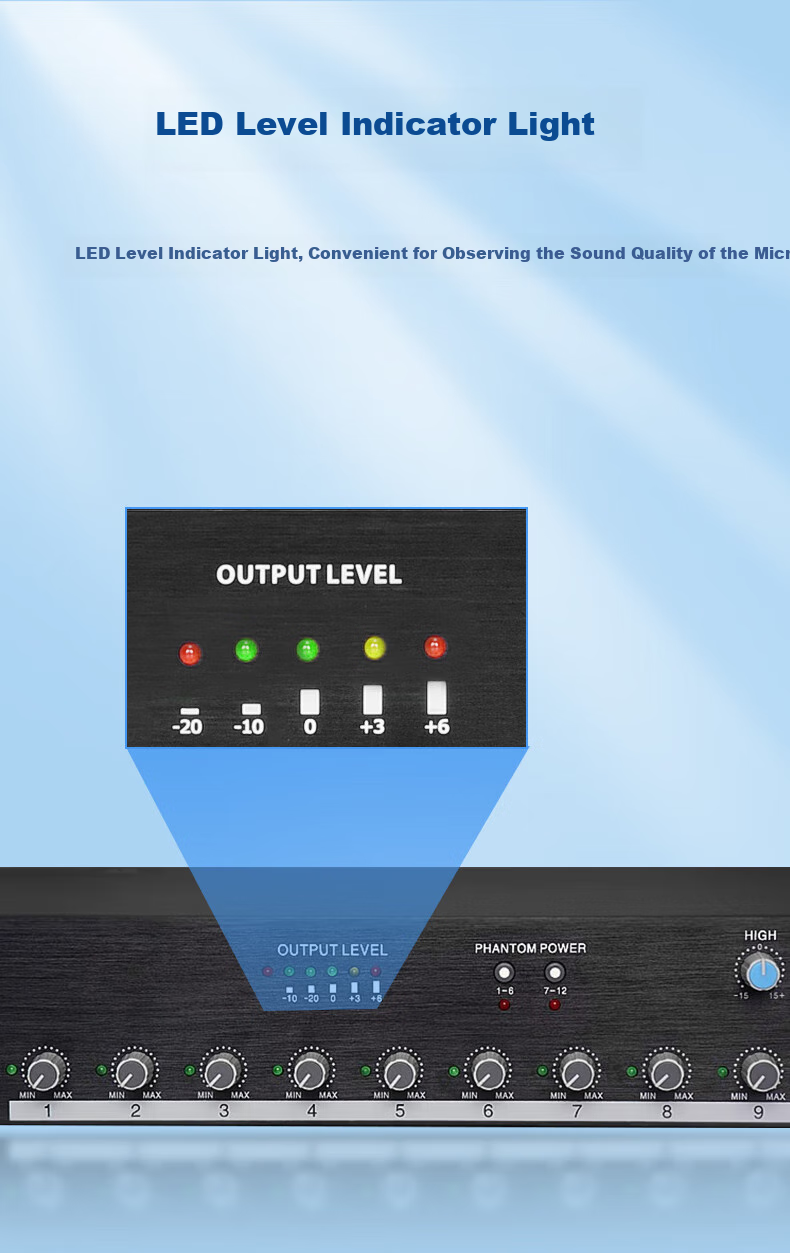

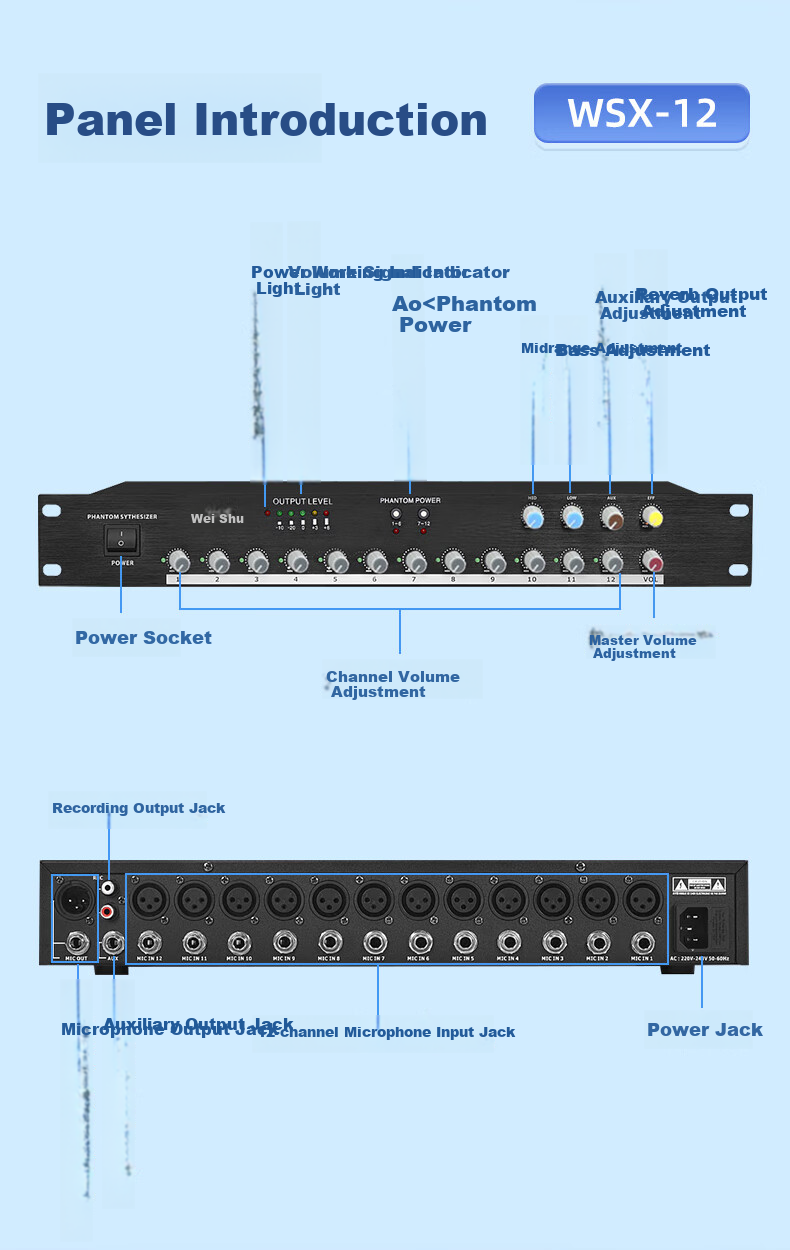

Trigger channel opening, level adjustment knob, priority function setting switch, level indicator light, channel volume adjustment knob, power switch, 6.3mm headphone jack, indicator light, monitoring volume adjustment knob, lock, 48V input for channels 5-8, phantom power switch, channel low-frequency attenuation switch, main output volume, 48V input for channels 1-4, gain knob, RS-232 port, power input port, main audio output port, channel input level switch, channel input port, Aux & Control port, main audio output RCA port

Similar Products

Out of Stock
Yijiatong Single-Ear Headset Y500-RJ9 Crystal Connector, Over-Ear Headset/customer Service Headset/noise-Cancelling Headphones/sales Call Headset/business/education Direct Connection Telephone
Meeting audio and video

Yijiatong Single-Ear Headset Y500-RJ9 Crystal Connector, Over-Ear Headset/customer Service Headset/noise-Cancelling Headphones/sales Call Headset/business/education Direct Connection Telephone

Y500 Single Ear-RJ9 Crystal Head

CNÂ¥59.00

View
Out of Stock
Jabra Evolve2 65 Flex MS Wireless Charging Pad Bluetooth Noise-Cancelling Headset for Computer Office Conference Calls Customer Service Online Education Over-Ear
JabraMeeting audio and video

Jabra Evolve2 65 Flex MS Wireless Charging Pad Bluetooth Noise-Cancelling Headset for Computer Office Conference Calls Customer Service Online Education Over-Ear

[Foldable with Base] Ev2 65MS Flex

CNÂ¥2,771.00

View

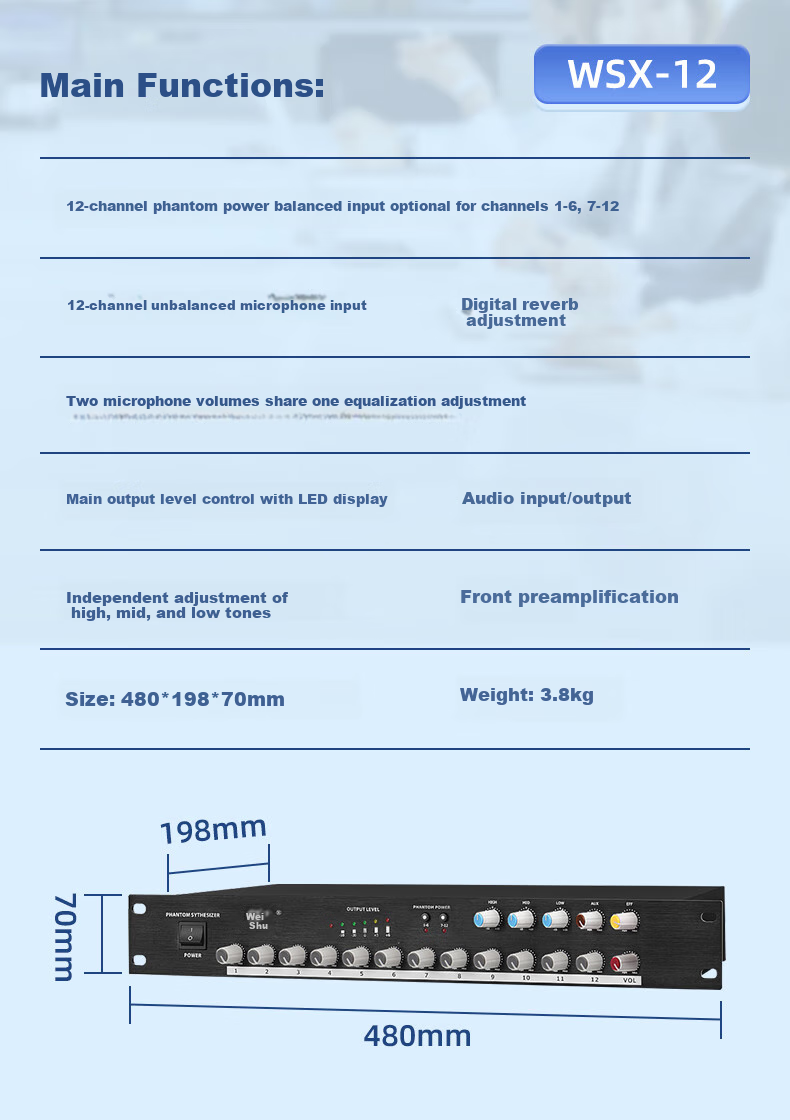

Technical parameters include built-in limiter in each channel to prevent overload, low cut switch in each channel, automatic threshold setting, balanced input and output, microphone/line level selection switch for any input/output channel, LED display for main output level control, adjustable level for monitoring headphone output, dimensions: 434mm x 235mm x 43mm, weight: 3.2kg

Additional details

Input impedance
MIC 4300Ω LINE 28kΩ
Gain limit
62dB
Output impedance (parallel)
MIC 15kΩ LINE 220Ω
Inherent noise
-80dBV
Output impedance (non-parallel)
AUX 2.2kΩ
THD+N
≤0.5
Preamp output impedance
2.2kΩ
Frequency response
20Hz-20kHz
Input level
MIC -12dBV LINE +16dBV
Phantom power
+48V
Input level
MIC -45dBV LINE 0dB
Control output voltage
+5V
Balanced output level
MIC -45dBV LINE 0dB
Power supply
AC 220V
Preamp output level
-4.4dBV
Power adapter output
AC 15V
Input level (parallel)
MIC -22.4dBV LINE
Power consumption
25W
Dimensions
434 mm x 235 mm x 43 mm
Weight
3.2 kg
