Itcom Aidicon Industrial Switch 5-Port Gigabit Unmanaged Security Monitoring PLC Ethernet Hub DIN Rail Mount Without Power Supply IT168-3500-10-5GTX

Itcom Aidicon Industrial Switch 5-Port Gigabit Unmanaged Security Monitoring PLC Ethernet Hub DIN Rail Mount Without Power Supply IT168-3500-10-5GTX

CN¥99.00

SKU: 100045468119

Status:In Stock (1)

ID: 100102087061

Weight: 490.00 g

Dims:170x150x65 mm

Specifications

Cloud-managed switch: Cloud management not supported
Uplink port rate: Gigabit
Set: Single product
Suitable Scenarios: Access switch
Number of Ports: 5 ports
Downlink Interface Type: Ethernet Switch
Cooling method: Natural heat dissipation
Downlink Port Rate: Gigabit

Variants / Sale Attributes

Color: Industrial Grade | Gigabit 5Port

Version: basic version

Package Contents

ITCOM industrial Ethernet switch 100M 5-port security surveillance PLC Ethernet hub plug and play DIN rail mount without power supply IT168-3500-10-5TX

Product Description

Product Specifications

Overview

Brand: itcom
Product Model: IT168-3500-10-5GTX

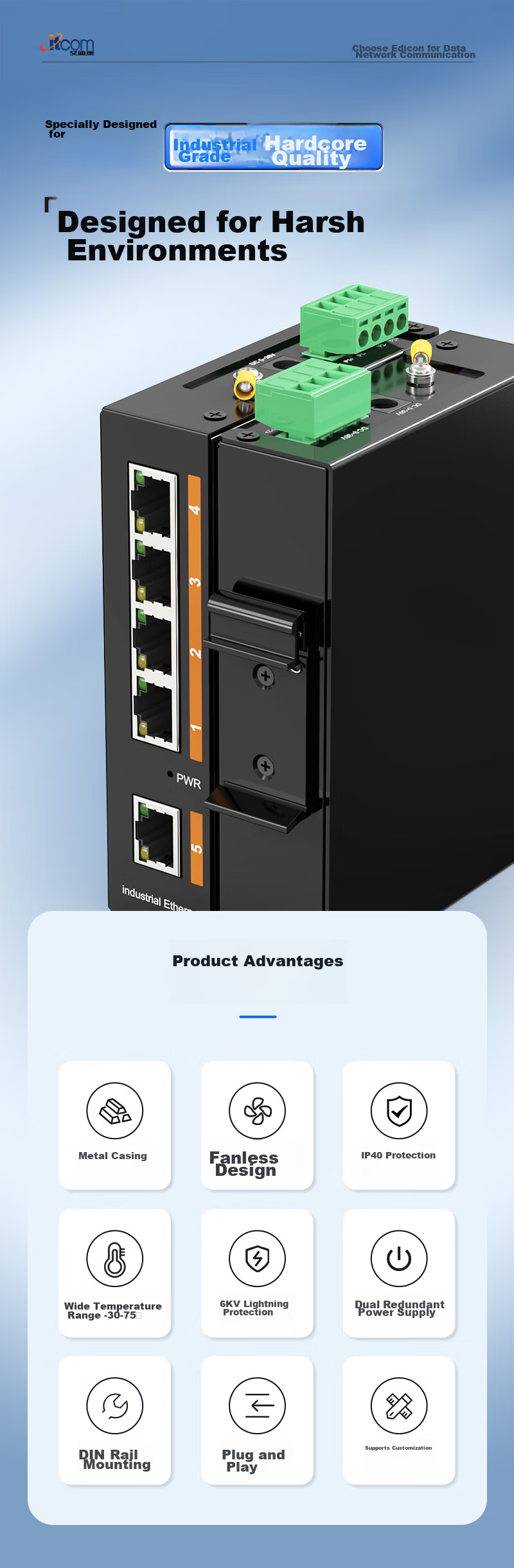

Industrial-grade Ethernet switch designed for harsh environments with robust industrial quality.

Metal housing with fanless design.

IP40 protection level.

Additional details

Wide operating temperature range: -30°C to 75°C.

Dual redundant power supply with wide voltage input (DC 12-54V).

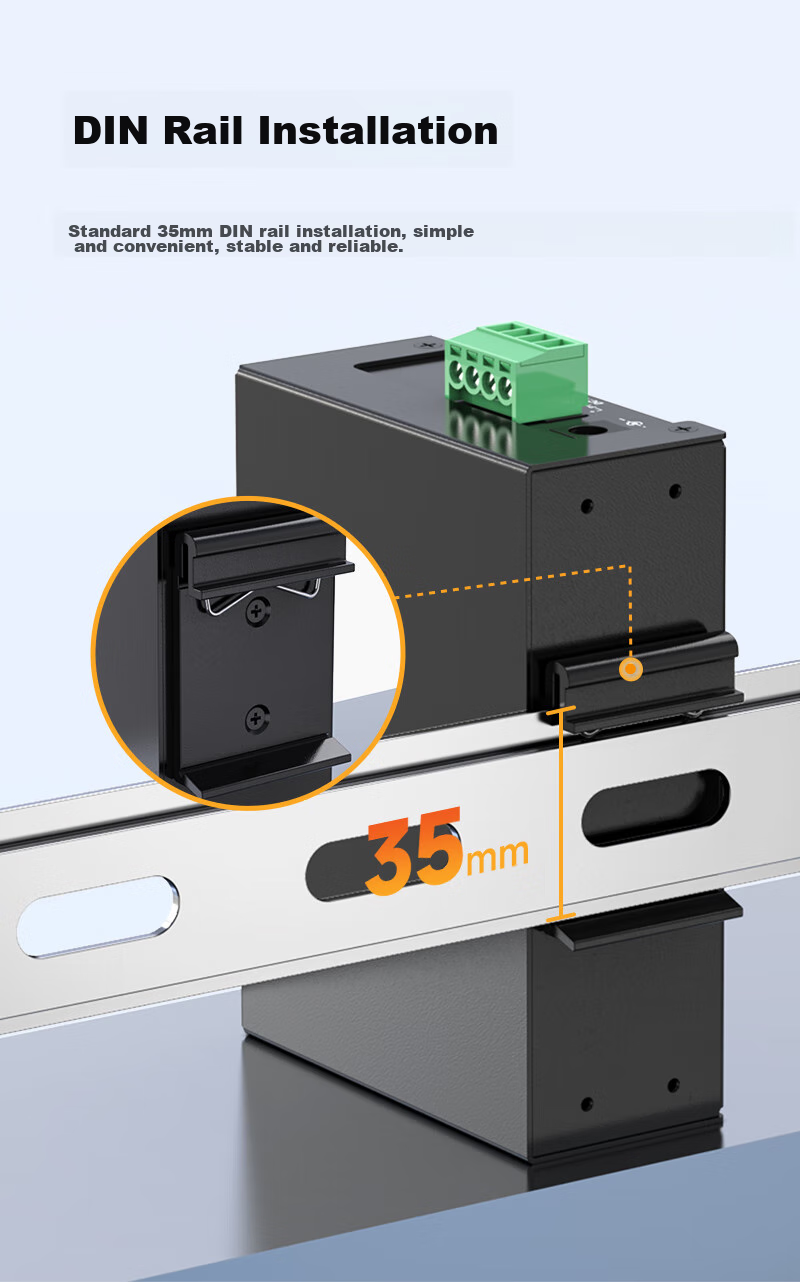

DIN rail mounting for easy installation.

Plug and play functionality.

Supports customization.

Standard configuration does not include power adapter due to common use of DC power supply in industrial scenarios; power adapter available separately upon request.

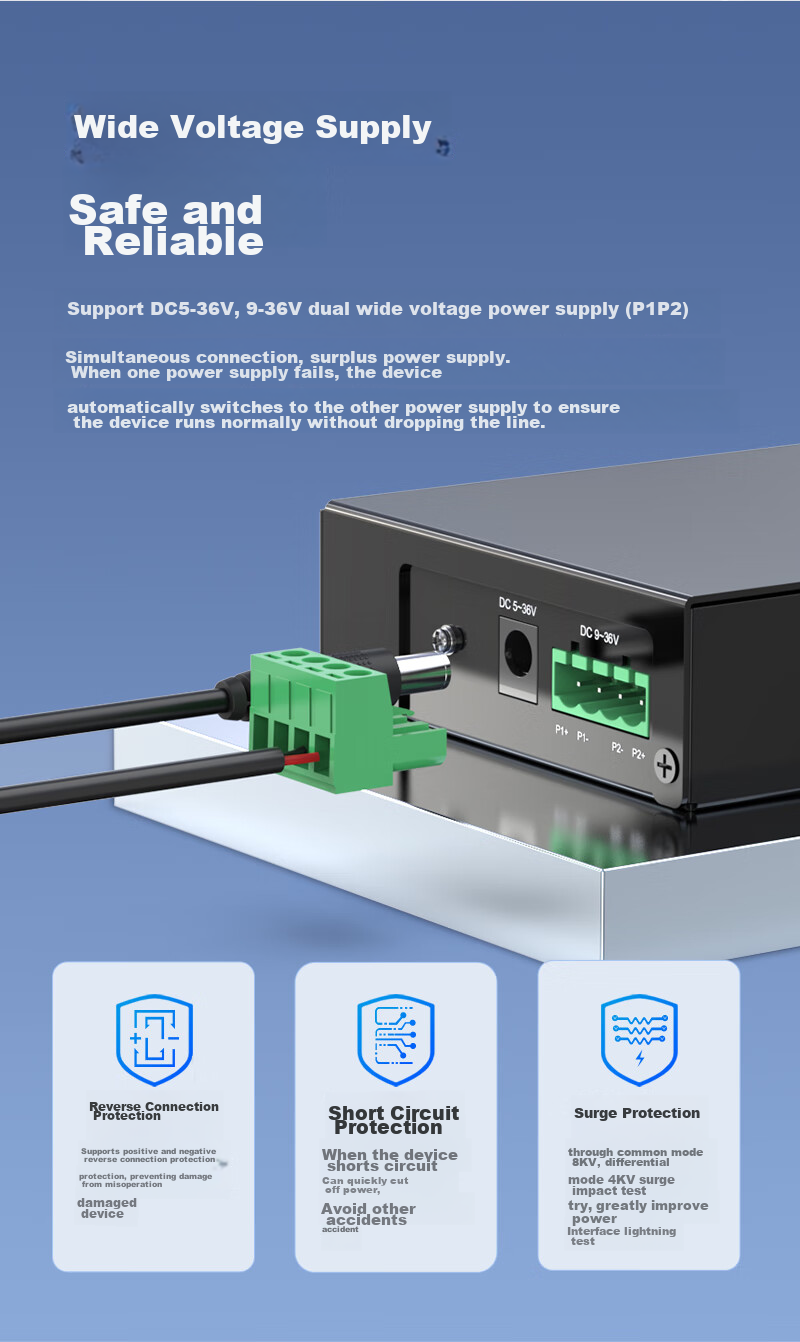

Dual power inputs (P1, P2) with automatic switchover to ensure uninterrupted operation.

Similar Products

In Stock

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

In Stock

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

Port Type

Electrical and optical ports

Power over Ethernet (PoE)

Non-POE power supply

Network Management Type

Non-managed

Reverse polarity protection, short circuit protection, and surge protection.

Supports positive and negative polarity reverse connection protection.

Surge protection tested to IEC61000-4-5 Level 4 (4kV differential mode, 8kV common mode).

Anti-surge and anti-electromagnetic interference capabilities.

5 x 10/100/1000Base-TX ports.

Supports MDI/MDIX auto crossover.

Additional details

Switching capacity: 10Gbps.
Packet forwarding rate: 7.44Mpps.

Store-and-forward switching method.

Additional details

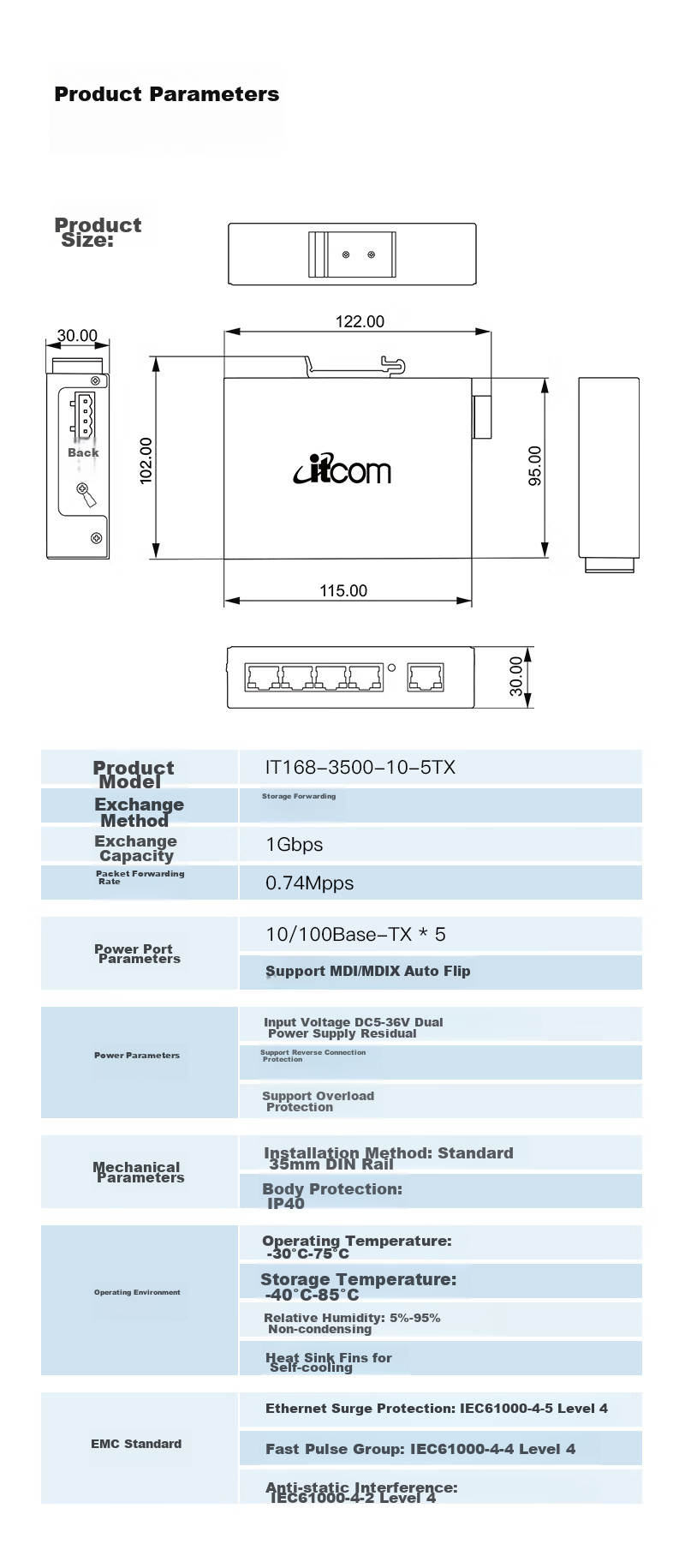

Dimensions (L x W x H): 122.00 mm x 95.00 mm x 30.00 mm (manual measurement, for reference only).
Weight: Refer to actual product.
Protection level: IP40.
Operating temperature: -30°C to 75°C.
Storage temperature: -40°C to 85°C.
Relative humidity: 5% to 95%, non-condensing.

Heat dissipation via heat sink fins.

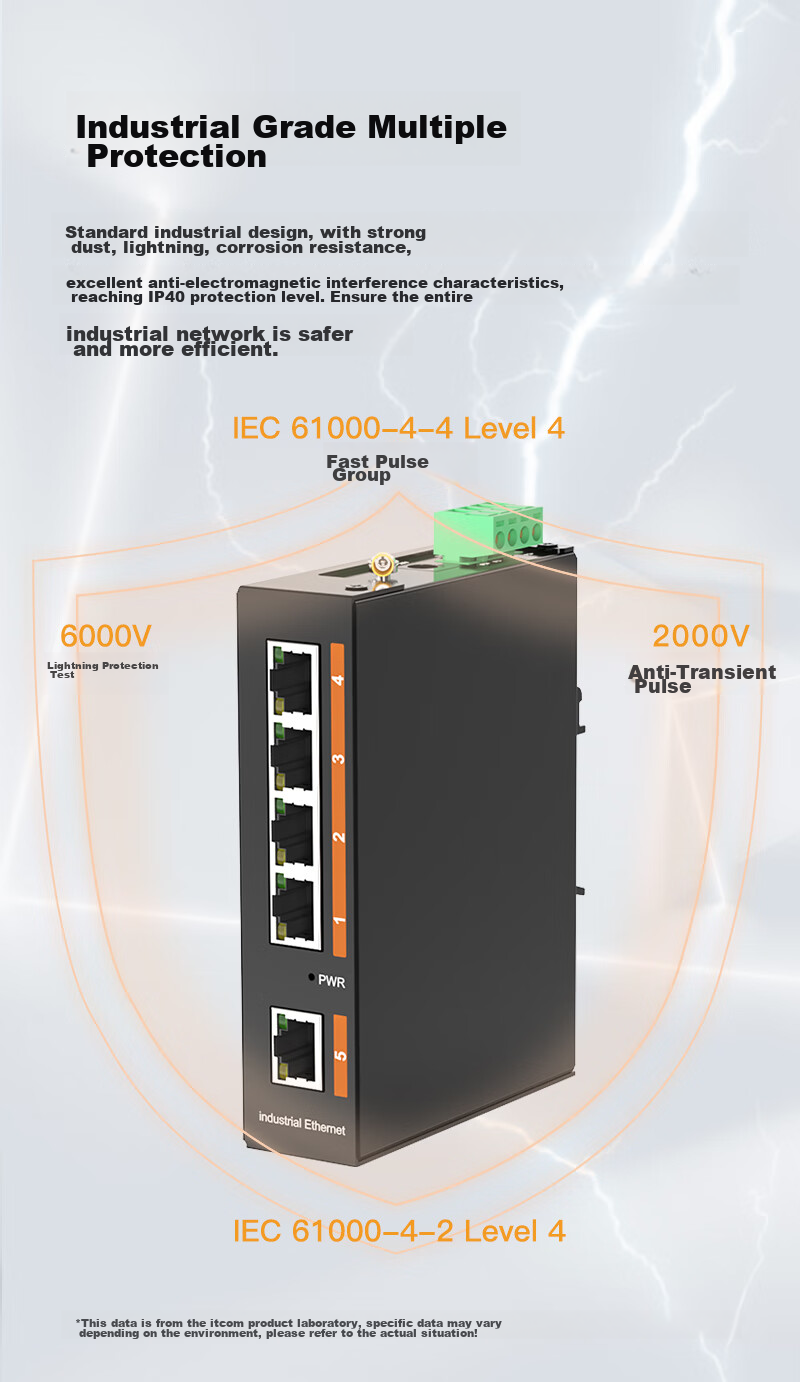

EMC standards

IEC 61000-4-2 Level 4 (Electrostatic Discharge Immunity).
IEC 61000-4-4 Level 4 (Fast Transient/Burst Immunity).
IEC 61000-4-5 Level 4 (Surge Immunity).

Lightning protection tested up to 6kV.

Anti-electromagnetic interference and anti-corrosion features.

Data sourced from itcom product laboratory; actual performance may vary depending on environment.

Designed with over 20 years of industry experience focusing on industrial network reliability and safety.

For power adapter purchase or other inquiries, please contact customer service.
