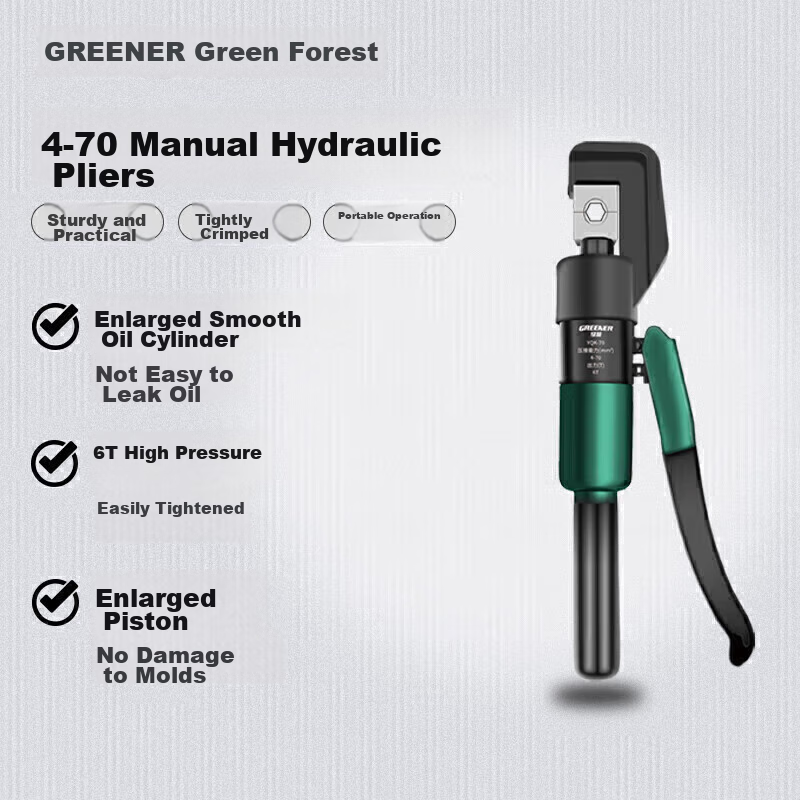

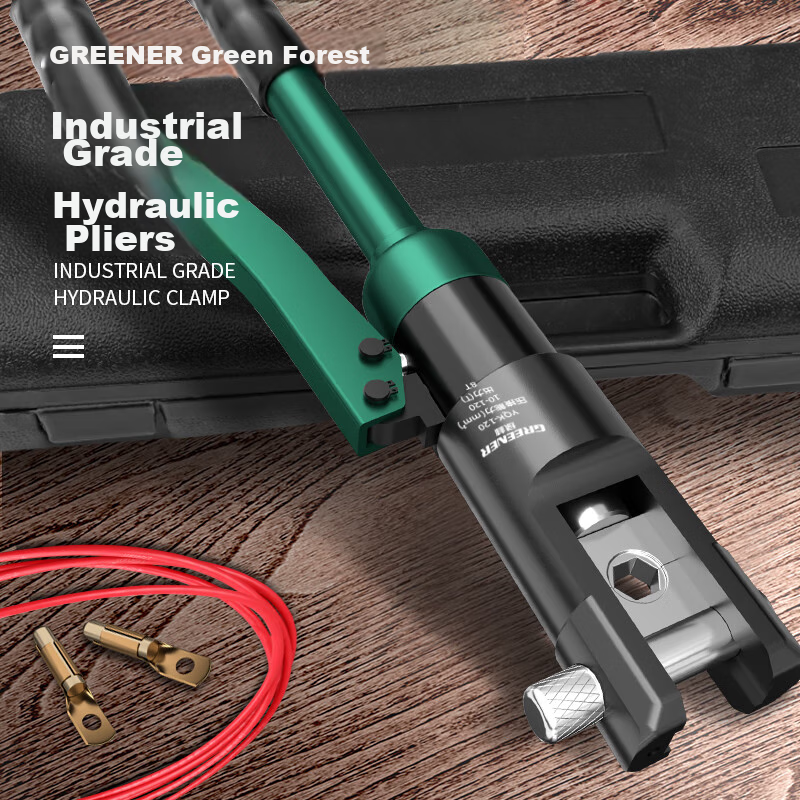

Greener manual hydraulic crimping tool

[8-Inch Wire Pliers] Simple Green And Yellow Handle
CNÂĄ19.80

89-581 German Professional Diagonal Cutting Pliers 6"
CNÂĄ70.29

[8.5-Inch] Industrial-Grade Wire Pliers
CNÂĄ18.71
1. Turn the switch to ON
2. Insert the terminal into the crimping mold

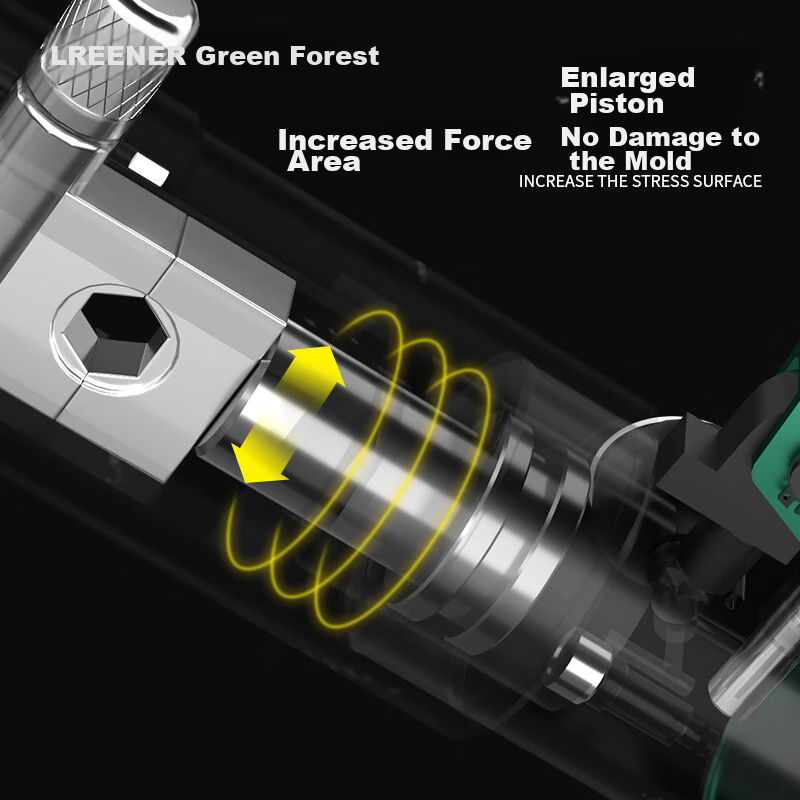

3. Move the handle to push the piston
4. Precisely crimp the terminal without excessive force to minimize resistance
| Item | Detail |
|---|---|

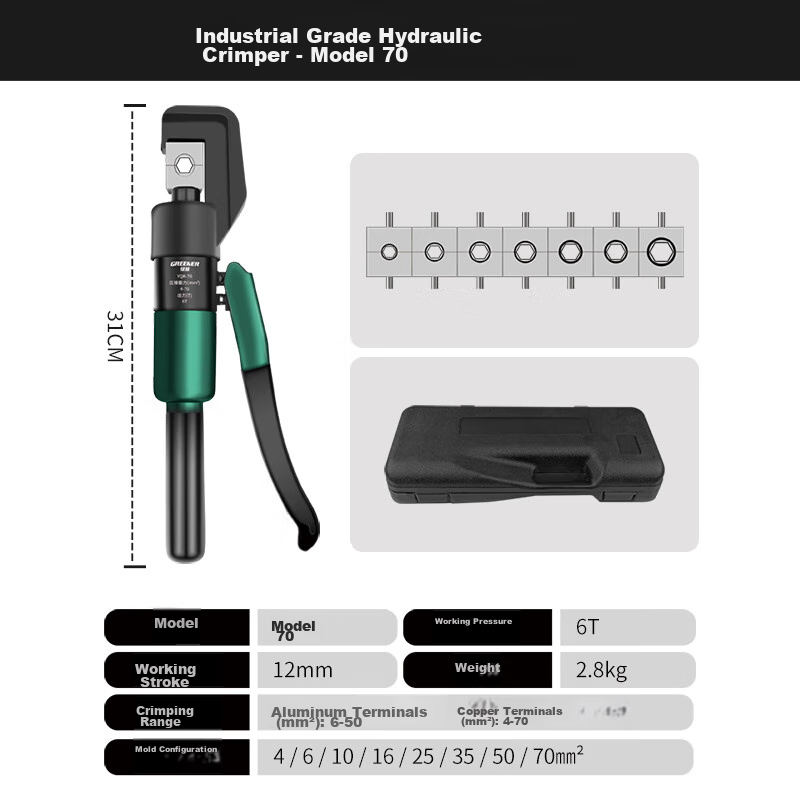

| Industrial Hydraulic Crimping Tool-70 Type | — |
| Length | 31 cm |
| Working Pressure | 6T |
| Stroke | 12 mm |
| Weight | 2.8 kg |
| Crimping Range | — |
| Aluminum Terminals (mm²) | 6-50 |
| Copper Terminals (mm²) | 4-70 |
| Mold Configuration | 4/6/10/16/25/35/50/70 mm² |
| Industrial Hydraulic Crimping Tool-120 Type | — |
| Length | 42 cm |
| Working Pressure | 8T |
| Stroke | 16 mm |
| Weight | 4 kg |
| Crimping Range | — |
| Aluminum Terminals (mm²) | 16-95 |
| Copper Terminals (mm²) | 10-120 |
| Mold Configuration | 10/16/25/35/50/70/95/120 mm² |
| Industrial Hydraulic Crimping Tool-240 Type | — |
| Length | 46 cm |
| Working Pressure | 12T |
| Stroke | 20 mm |
| Weight | 6.3 kg |
| Crimping Range | — |
| Aluminum Terminals (mm²) | 25-185 |
| Copper Terminals (mm²) | 16-240 |
| Mold Configuration | 16/25/35/50/70/95/120/150/185/240 mm² |
| Industrial Hydraulic Crimping Tool-300 Type | — |
| Length | 46 cm |
| Working Pressure | 12T |
| Stroke | 20 mm |
| Weight | 6.5 kg |
| Crimping Range | — |
| Aluminum Terminals (mm²) | 25-240 |
| Copper Terminals (mm²) | 16-300 |
| Mold Configuration | 16/25/35/50/70/95/120/150/185/240/300 mm² |
