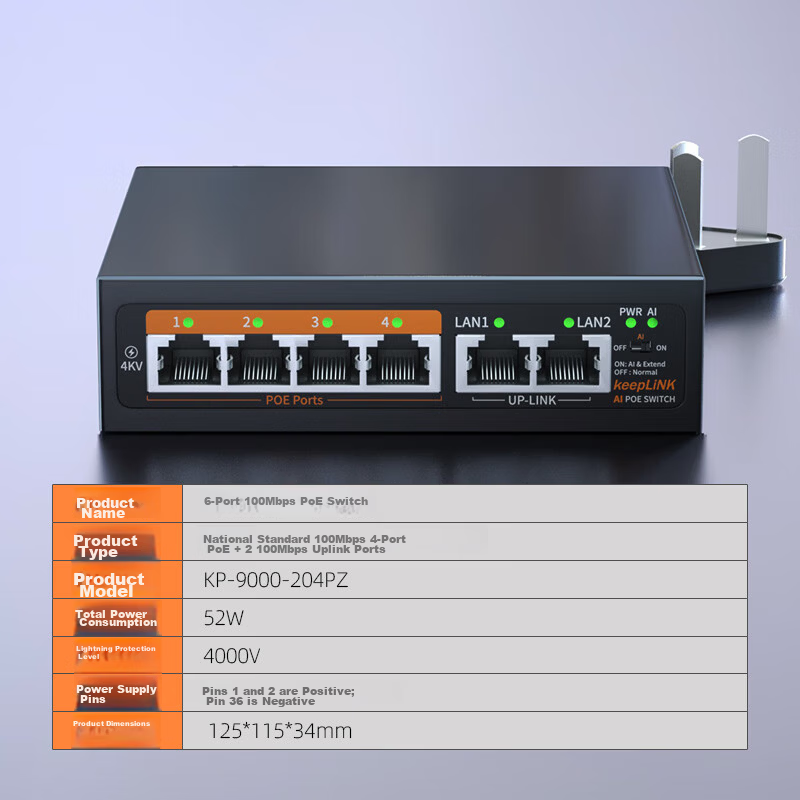

KeepLINK KP-9000-204PZ 100Mbps 6-Port Standard POE Switch 52W Surveillance Camera Network Cable Splitter Distributor

keepLINK•Switch

KeepLINK KP-9000-204PZ 100Mbps 6-Port Standard POE Switch 52W Surveillance Camera Network Cable Splitter Distributor

CN¥59.00

SKU: 100046899794

Status:In Stock (41)

ID: 100046899794

Weight: 496.00 g

Dims:175x158x49 mm

Specifications

Cloud-managed switch: Cloud management not supported
Set: Single product
Network Management Type: Non-managed
Downlink Port Rate: 100Mbps
Uplink port rate: 100Mbps
Suitable Scenarios: Access switch
Downlink Interface Type: Ethernet Switch
Cooling method: Natural heat dissipation

Variants / Sale Attributes

Color: 100Mbps 52W | 4port PoE + 2 uplink

Package Contents

Switch X1, Certificate X1, Manual X1

Product Description

Product Specifications

Overview

Brand: keepLINK
Model: KP-9000-204PZ
Product Type: Standard PoE Switch with AI Smart Watchdog

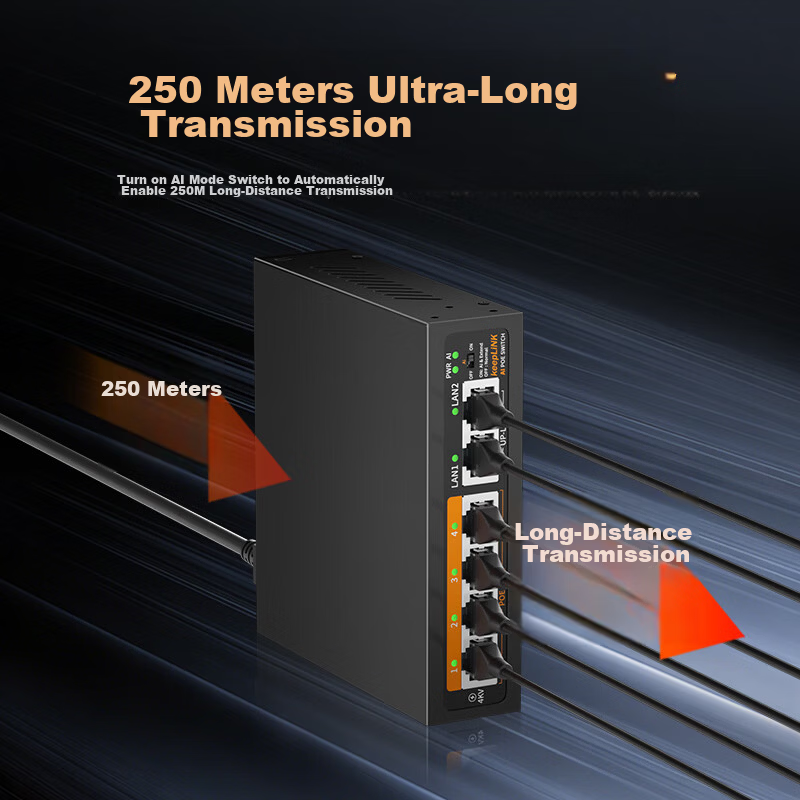

AI Smart Watchdog with AI mode switch for automatic 250m long-distance transmission

4000V lightning protection

Additional details

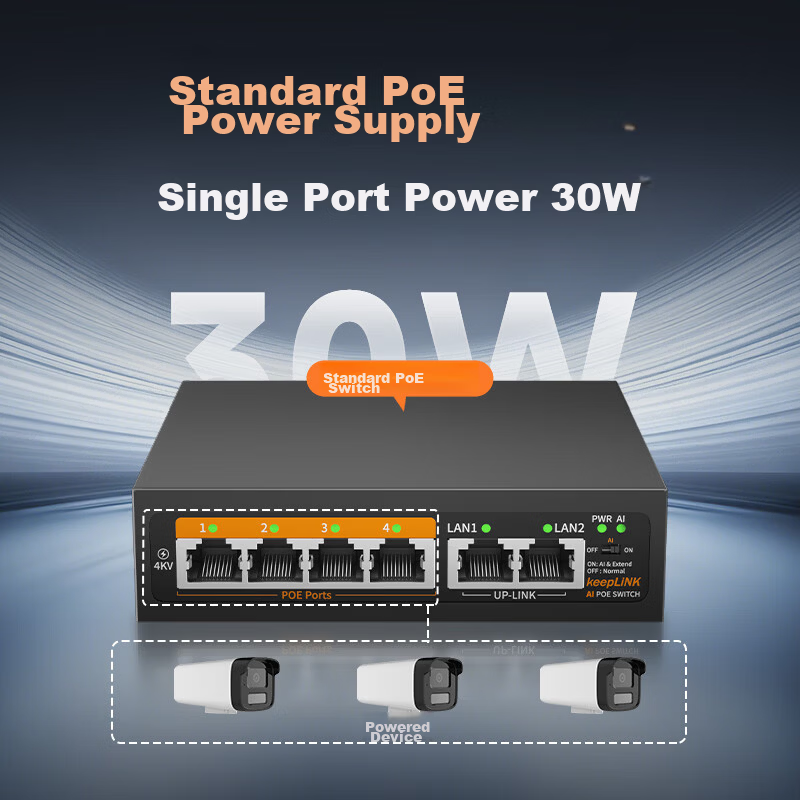

Single port power output: 30W

Intelligent power supply protection with built-in protection circuit

Automatic port fuse in case of short circuit or overload; power resumes after fault clearance

Plug and play, no configuration required

Auto MDI/MDI-X support on all ports

MAC address auto learning and updating

Similar Products

In Stock

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

In Stock

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

Power over Ethernet (PoE)

POE power supply

Number of Ports

6 ports

Port Type

Electrical port

IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control

1. Home/Villa networking solutions with keepLINK switches, NVR, monitors, PoE cameras

2. Enterprise and retail store networking solutions

4 x 100Mbps PoE RJ45 ports

2 x 100Mbps cascade RJ45 ports

Additional details

Backplane bandwidth: 1.2 Gbps
MAC address table size: 2K entries
AC input: 100-240V

Standard 52W power adapter included

Additional details

100Base-TX: 2 pairs Cat5 or above UTP/STP cable (up to 100 m)
10Base-TX: 2 pairs Cat5e or above UTP/STP cable (up to 250 m)
Power LED: On indicates device powered on
AI LED: On indicates AI + intelligent long-distance mode enabled
Port LEDs: On indicates link normal; blinking indicates data transmission
ON: AI + intelligent long-distance mode enabled (250 m transmission)
OFF: Default transmission mode without AI features

Complies with IEEE 802.3 Ethernet and IEEE 802.3u Fast Ethernet standards

Compatible with IEEE 802.3af/at powered devices (PD) and certified non-standard PDs

Store-and-forward switching

MAC auto learning and aging

Supports IEEE 802.3x full-duplex flow control and Backpressure half-duplex flow control

IEEE 802.3 Ethernet MAC protocol

IEEE 802.3i 10BASE-T Ethernet

IEEE 802.3u 100BASE-TX Fast Ethernet

IEEE 802.3af PoE standard

IEEE 802.3at PoE+ standard

IEEE 802.3x flow control

Additional details

Ethernet: 10 Mbps half-duplex, 20 Mbps full-duplex
Fast Ethernet: 100 Mbps half-duplex, 200 Mbps full-duplex

Supports IEEE 802.3af and IEEE 802.3at standards

Additional details

Maximum port output power: 30W

Overcurrent protection supported

Overvoltage protection supported

Short circuit protection supported

Sequential power-on supported

Soft start for high-power PD devices supported

Additional details

Operating temperature: 0°C to 40°C
Storage temperature: -40°C to 70°C
Operating humidity: 10% to 90% RH, non-condensing
Storage humidity: 5% to 90% RH, non-condensing
Operating altitude: up to 2000 meters (6500 feet)
Storage altitude: up to 2000 meters (6500 feet)
Surge protection: Differential mode 4KV, Common mode 4KV
Device only: 125 mm x 115 mm x 34 mm
With casing: 155 mm x 170 mm x 43 mm
Carton (36 units): 470 mm x 360 mm x 330 mm
Cable length (with plug): 70 cm
Device weight (without packaging): approx. 0.45 kg
Carton weight (36 units): approx. 20.5 kg

Protective inner packaging with card inserts

Additional details

Outer packaging: high-quality kraft carton, size 350 mm x 350 mm x 425 mm
Packaging quantity: 40 units per carton

Carton labeled with product model, code, and quantity

Additional details

Storage conditions: 5% to 90% RH non-condensing, temperature -40°C to 70°C, recommended room temperature for best preservation
Maximum stacking: 4 layers in full packaging
Storage environment: clean, ventilated, free of corrosive gases, flammable or explosive materials, and strong mechanical vibrations
Storage life: up to 1 year under recommended conditions; re-inspection recommended after 2 years before use
