Jingmingshu NF-8209S Kit Cable Tester, Length Meter, Wire Tracker, Port Flasher, Crimping Test

•Network/Communication Instruments and Meters

Jingmingshu NF-8209S Kit Cable Tester, Length Meter, Wire Tracker, Port Flasher, Crimping Test

CN¥329.00

SKU: 100047016971

Status:In Stock (13)

ID: 100047016971

Weight: 700.00 g

Dims:236x172x52 mm

Specifications

Category: Cable Tester

Variants / Sale Attributes

Model: 1

Measuring range: 1

Package Contents

1 machine, 1 packaging box, 1 pair of earphones, 1 data cable, 1 toolkit, 1 manual, 2 wiring sets

Product Description

Overview

Brand: Smart Mouse
Model: NF-8209S

Features

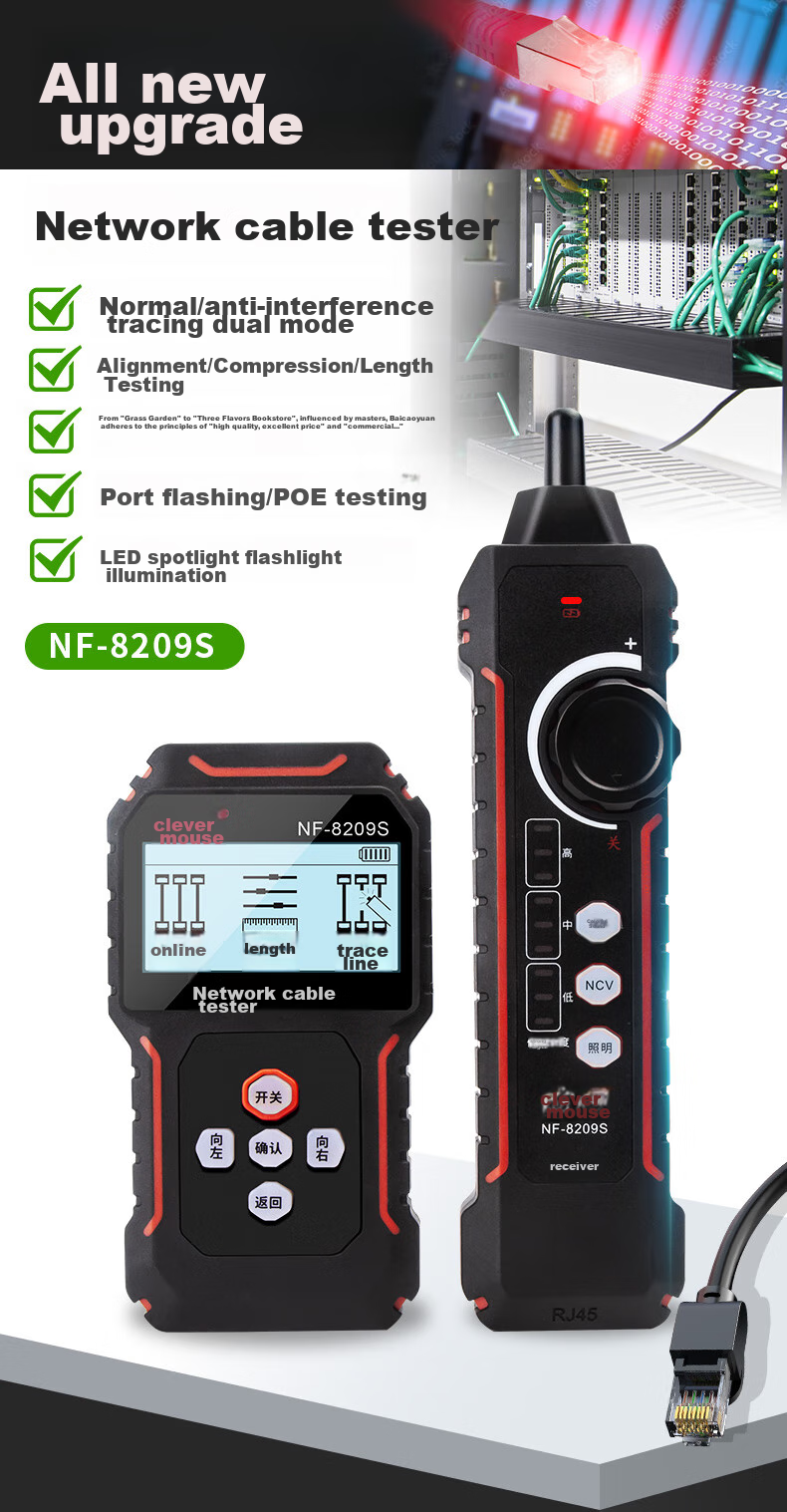

Upgraded network cable tester with dual modes: normal/anti-interference tracing
Capable of line testing, wire mapping, length measurement
Type-C interface for lithium battery direct charging

Similar Products

Out of Stock

HABOTESTNetwork/Communication Instruments and Meters

HABOTEST Network Cable Tester HT801B Multifunction Broadband Signal Continuity Checker Tool

HT801B [Multifrequency Pulse]

CN¥122.00

View

In Stock

DELIXI ELECTRICNetwork/Communication Instruments and Meters

DELIXI ELECTRIC Network Cable Tester Multifunctional Network Telephone Line Tracker Live Wire Locator

Antiinterference live wire tracing [60A]

CN¥128.44

View

In Stock

CHNTNetwork/Communication Instruments and Meters

CHNT Cable Locator Electrician Network Cable Tester Wall Detector Underground Metal Detector Standard Kit

[Doublemode Cable Locator, Depth Detection up to 2 Meters] Engineering Model

CN¥289.00

View

Port flashing/POE testing

Built-in spotlight LED flashlight

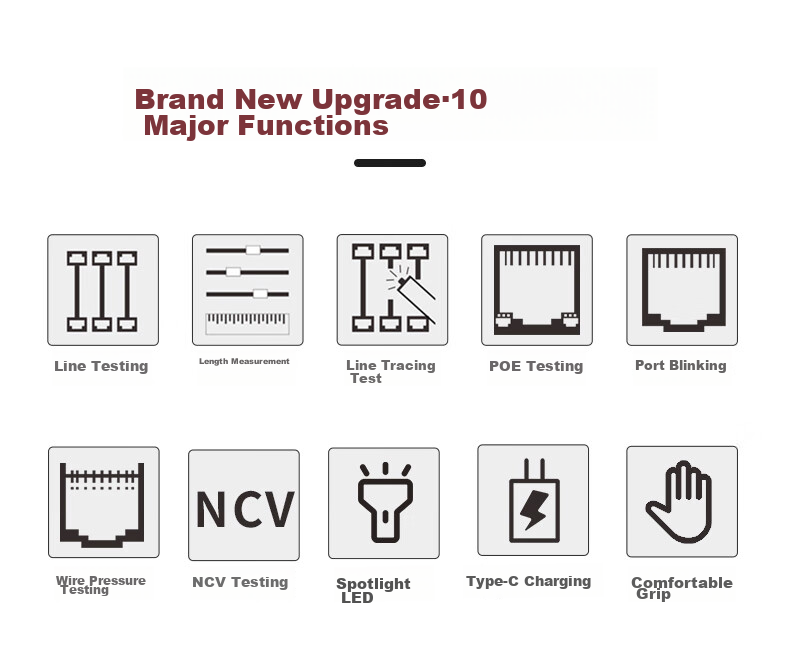

10 major functions including line testing, length measurement, wire tracing, POE testing, port flashing, NCV testing, wire crimping testing, etc.

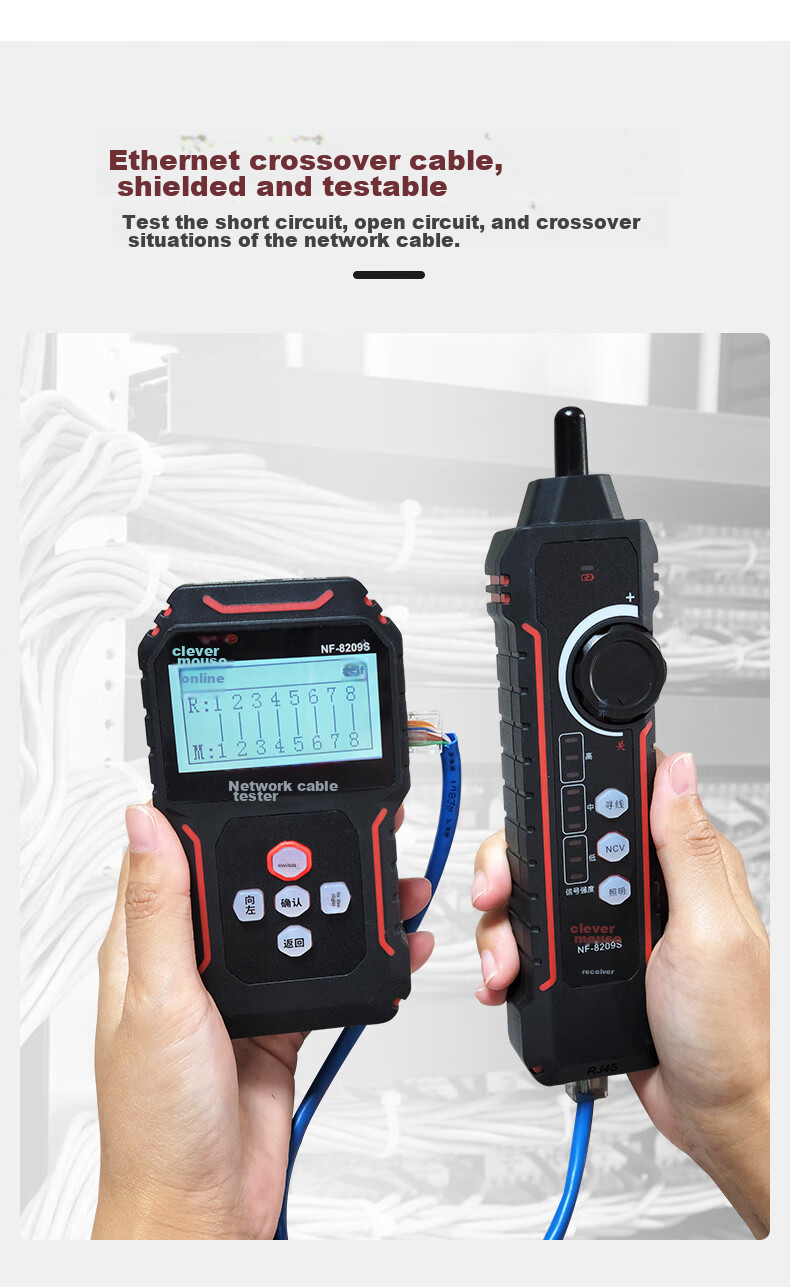

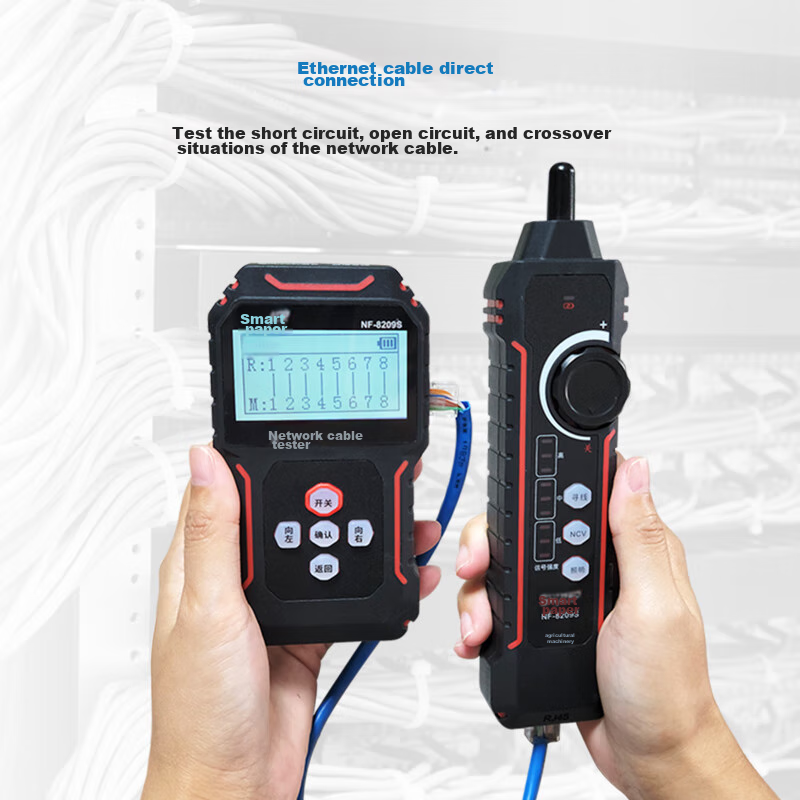

Shielded cable testing for short circuits, breaks, and cross-connections

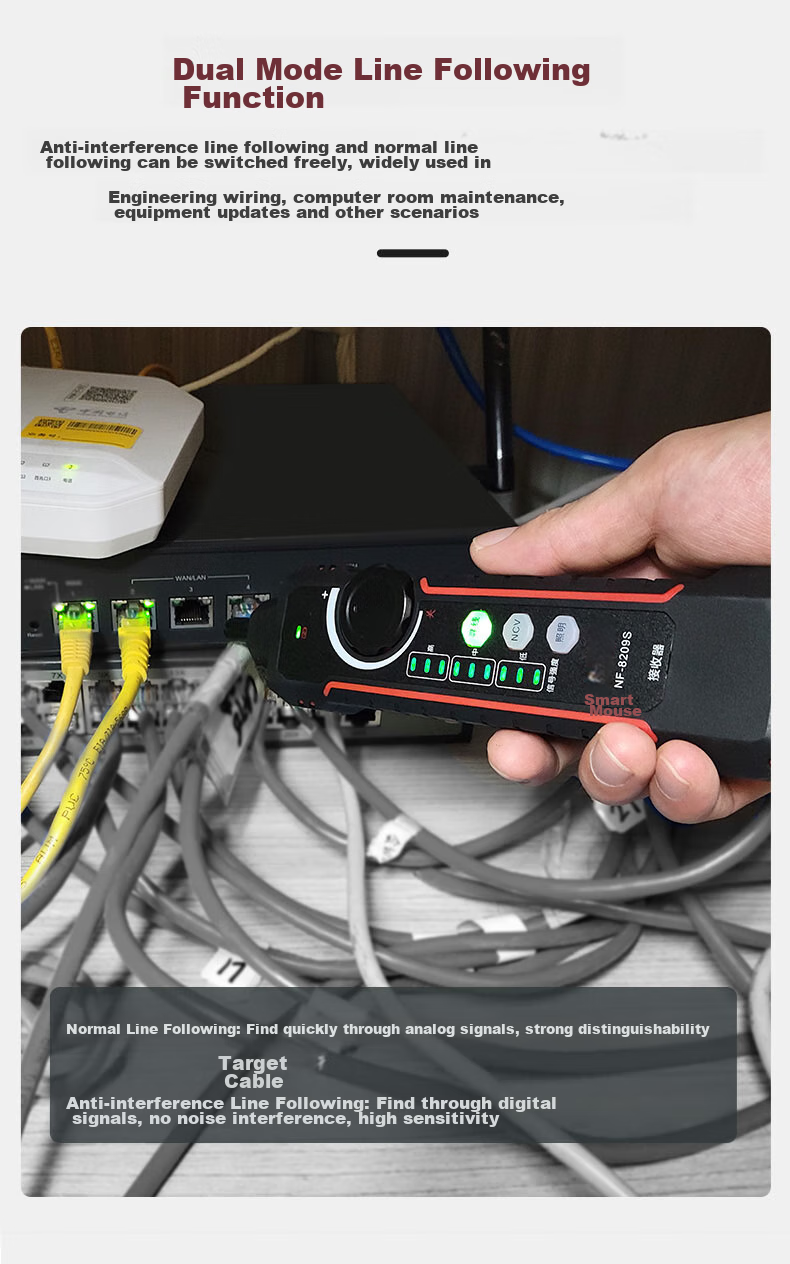

Dual tracing modes: anti-interference tracing and normal tracing

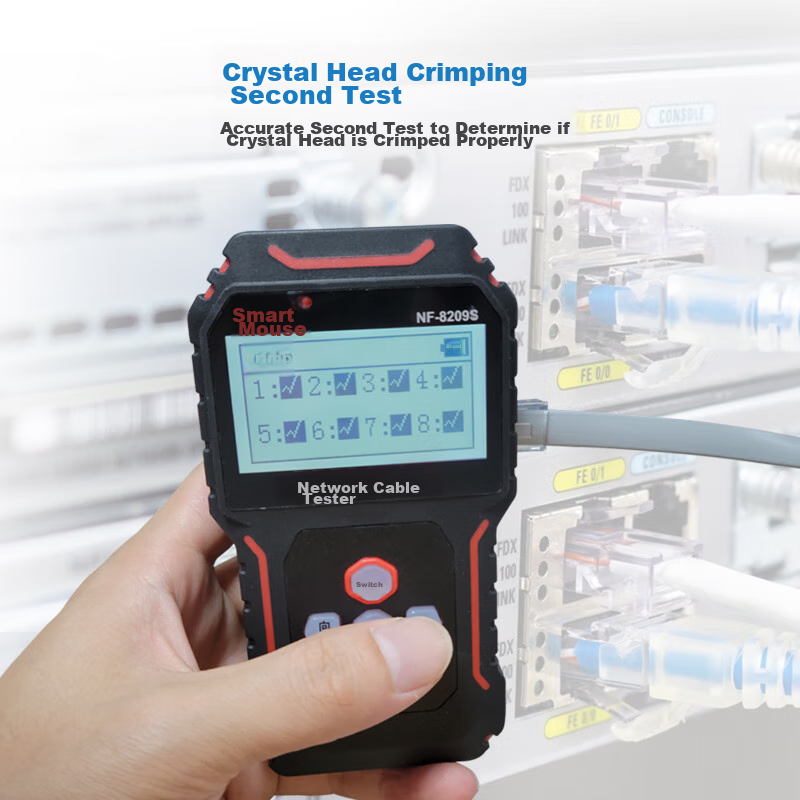

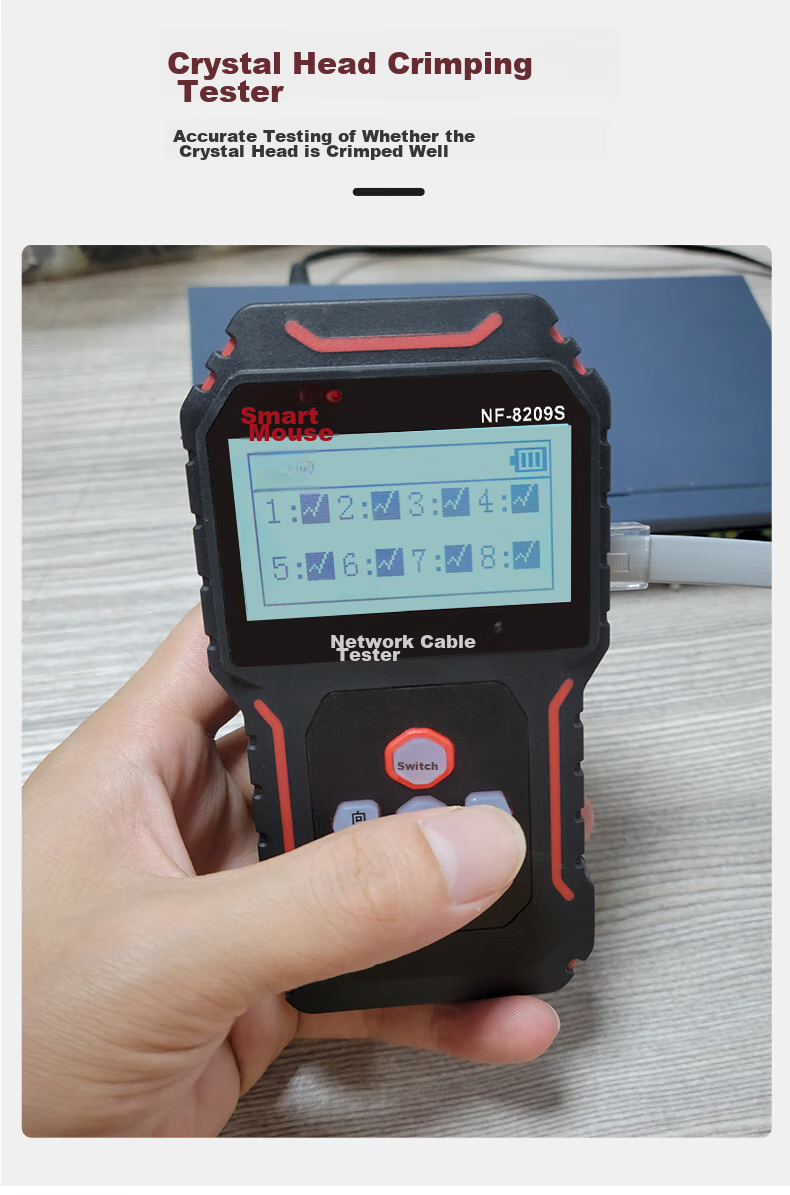

Crystal head crimping testing

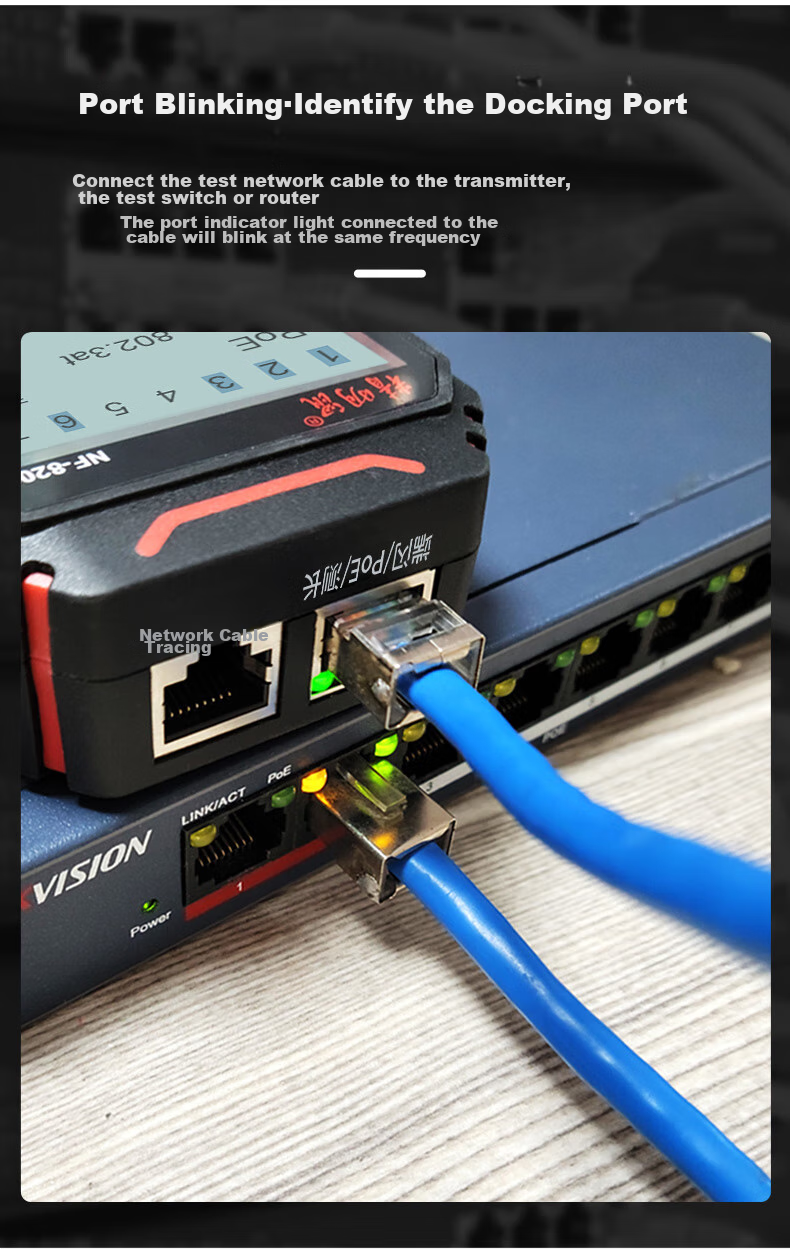

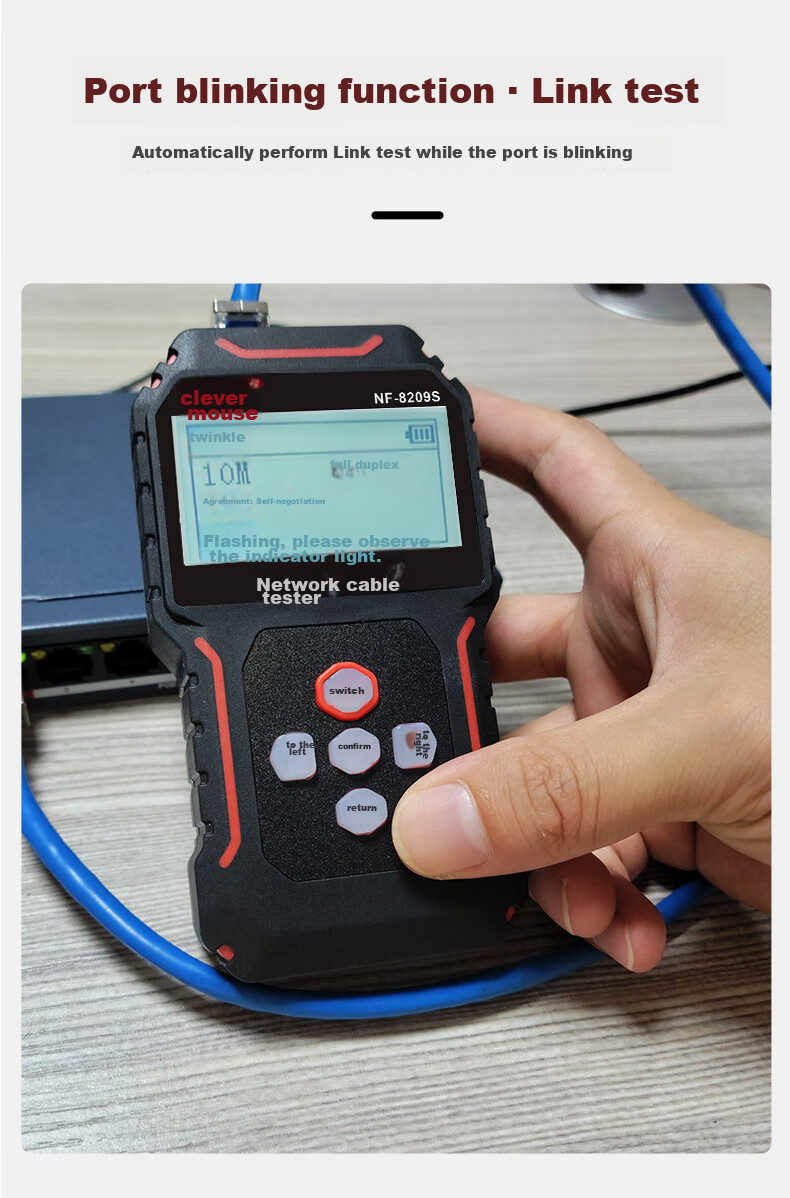

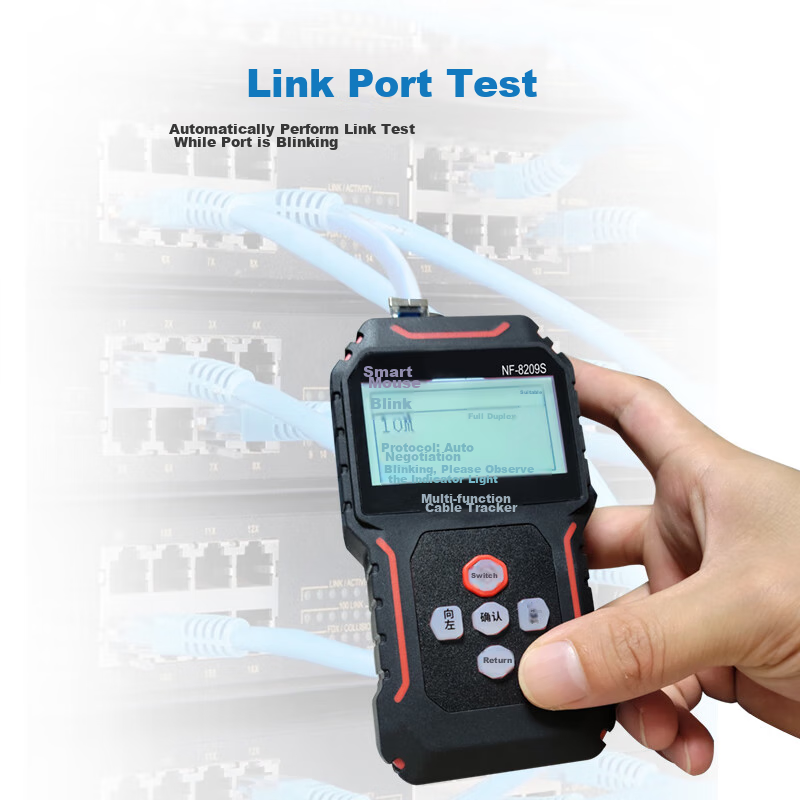

Port flashing for identifying connected ports

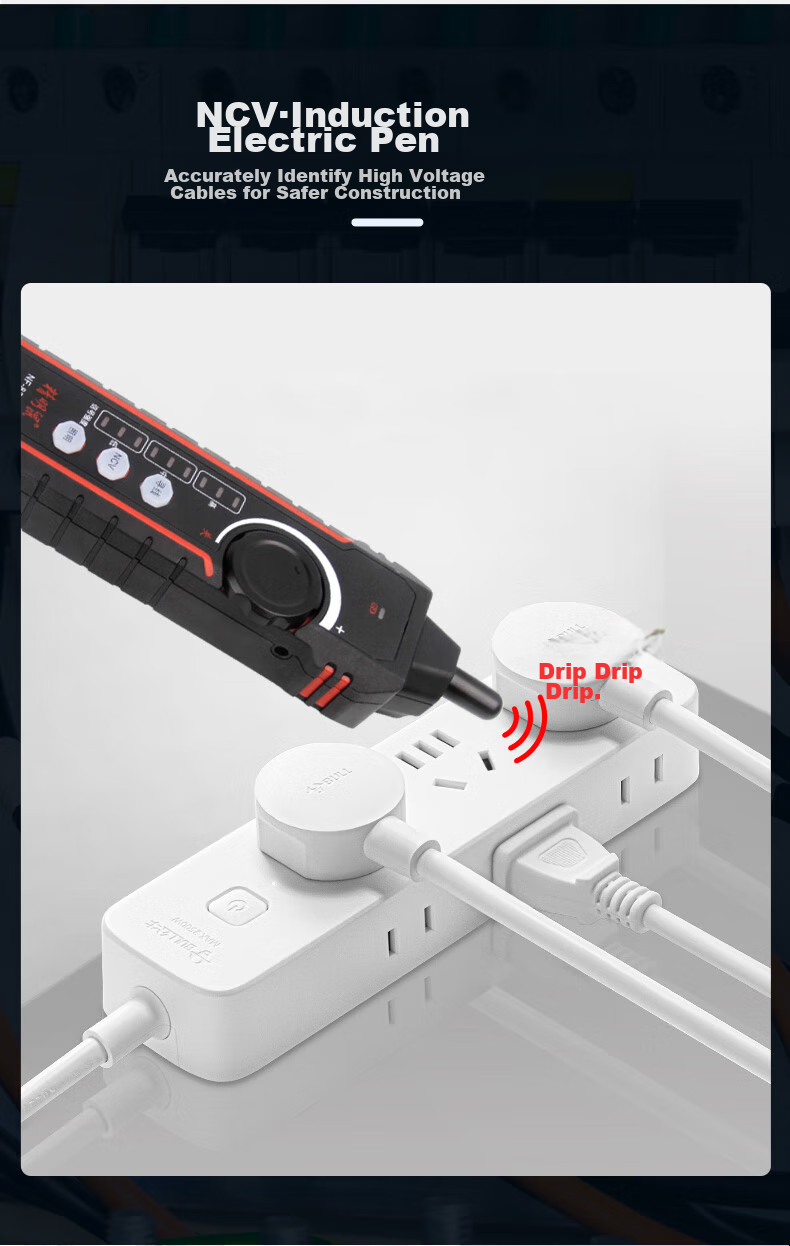

NCV function for detecting live wires

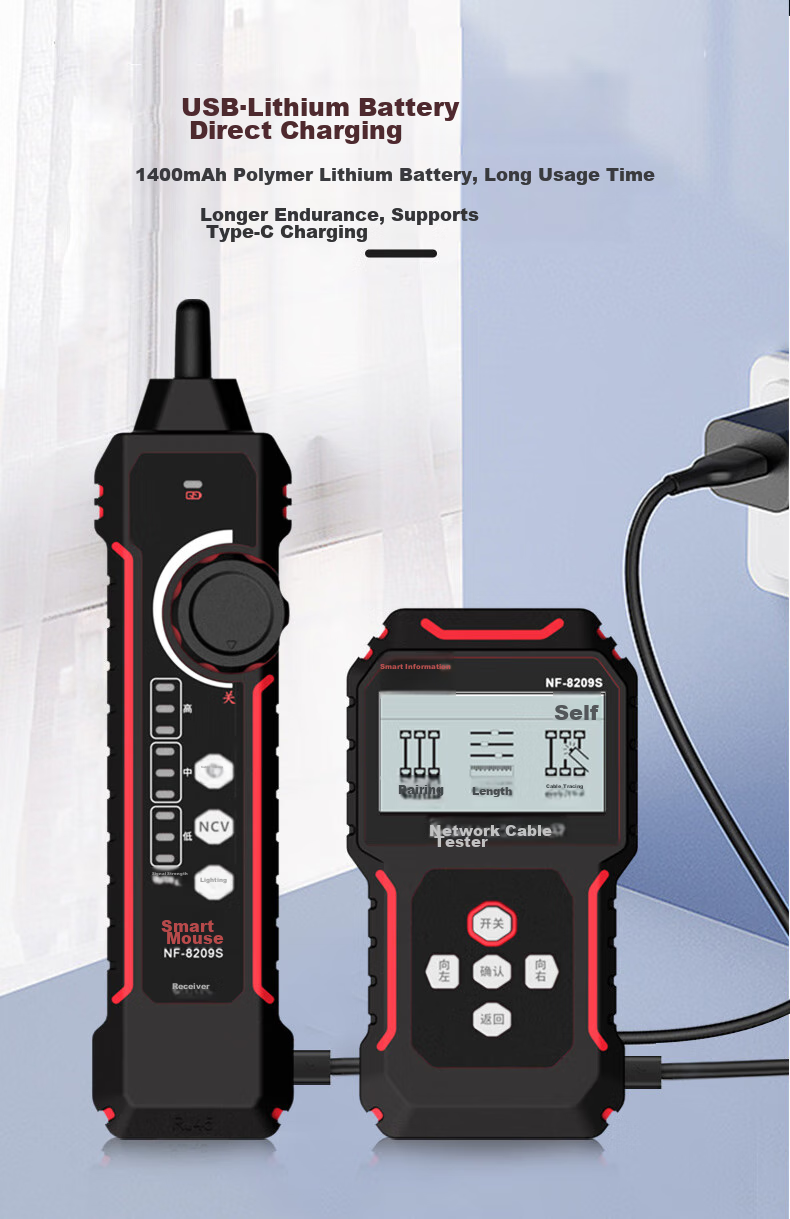

USB rechargeable with 1400mAh lithium polymer battery

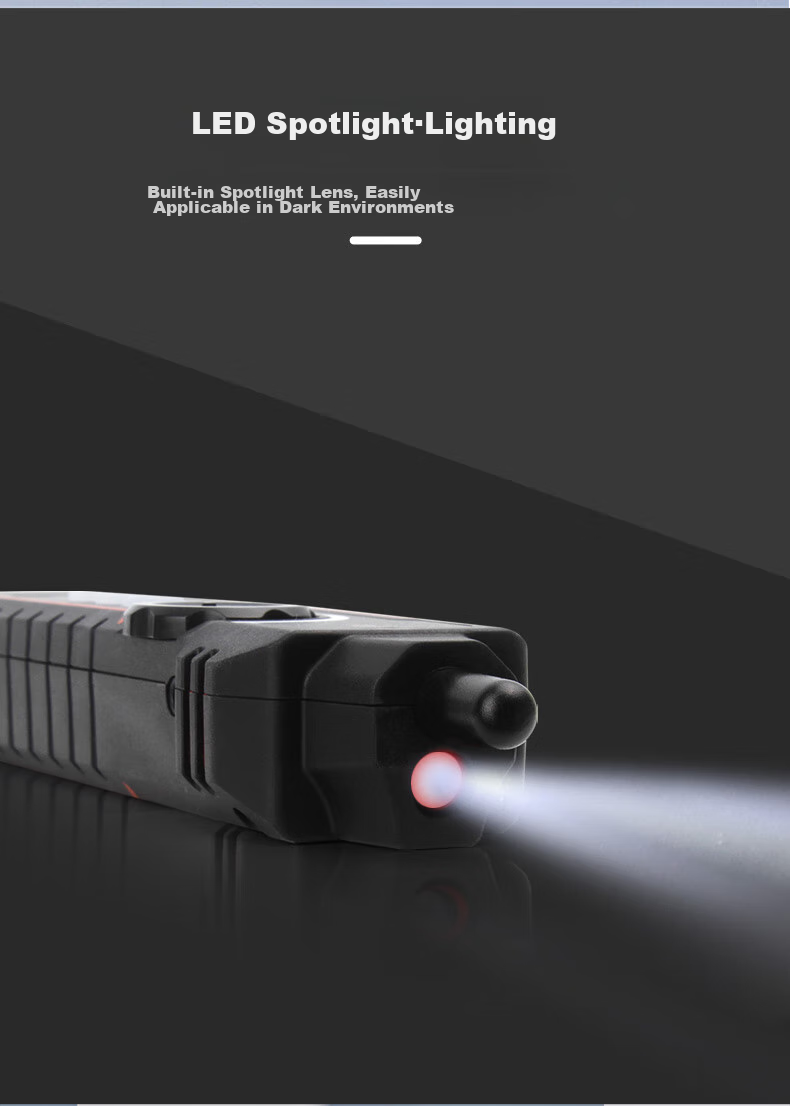

Built-in spotlight LED for illumination

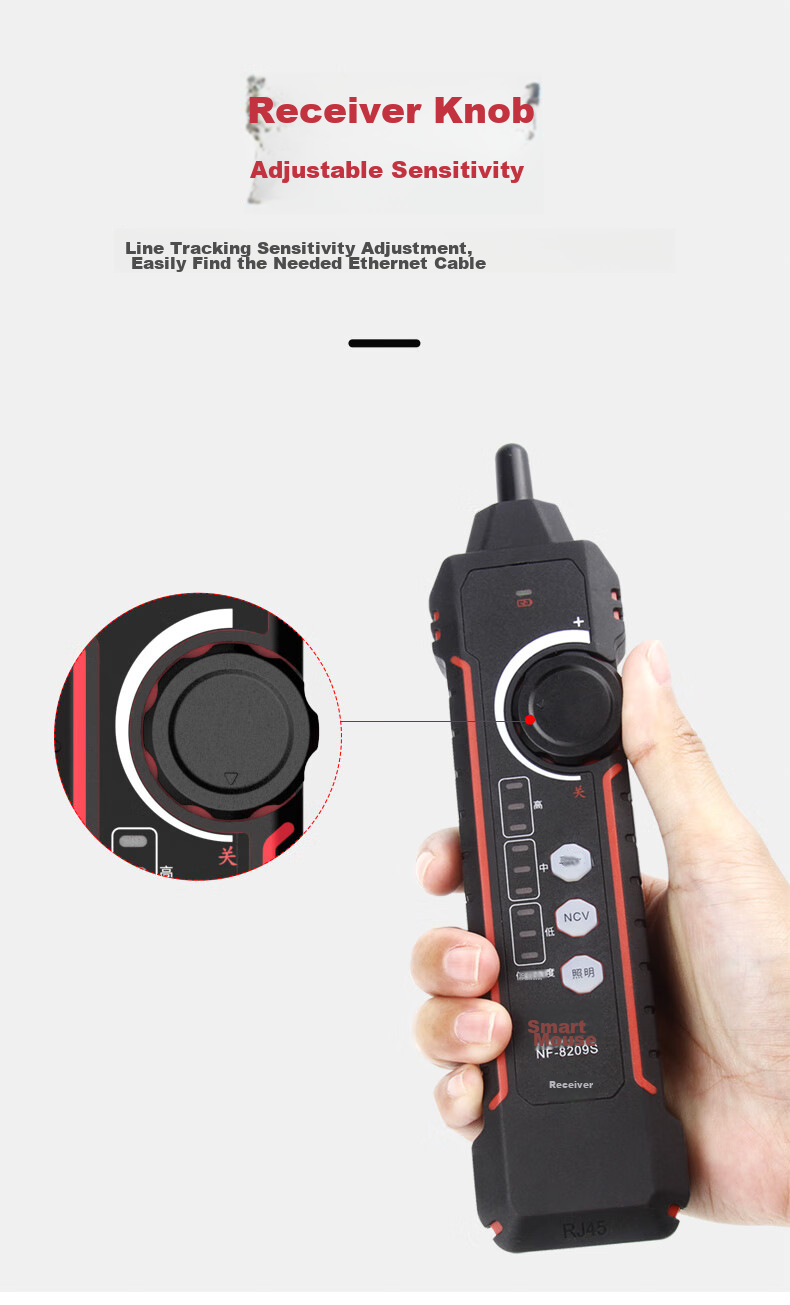

Adjustable receiver knob for tracing sensitivity

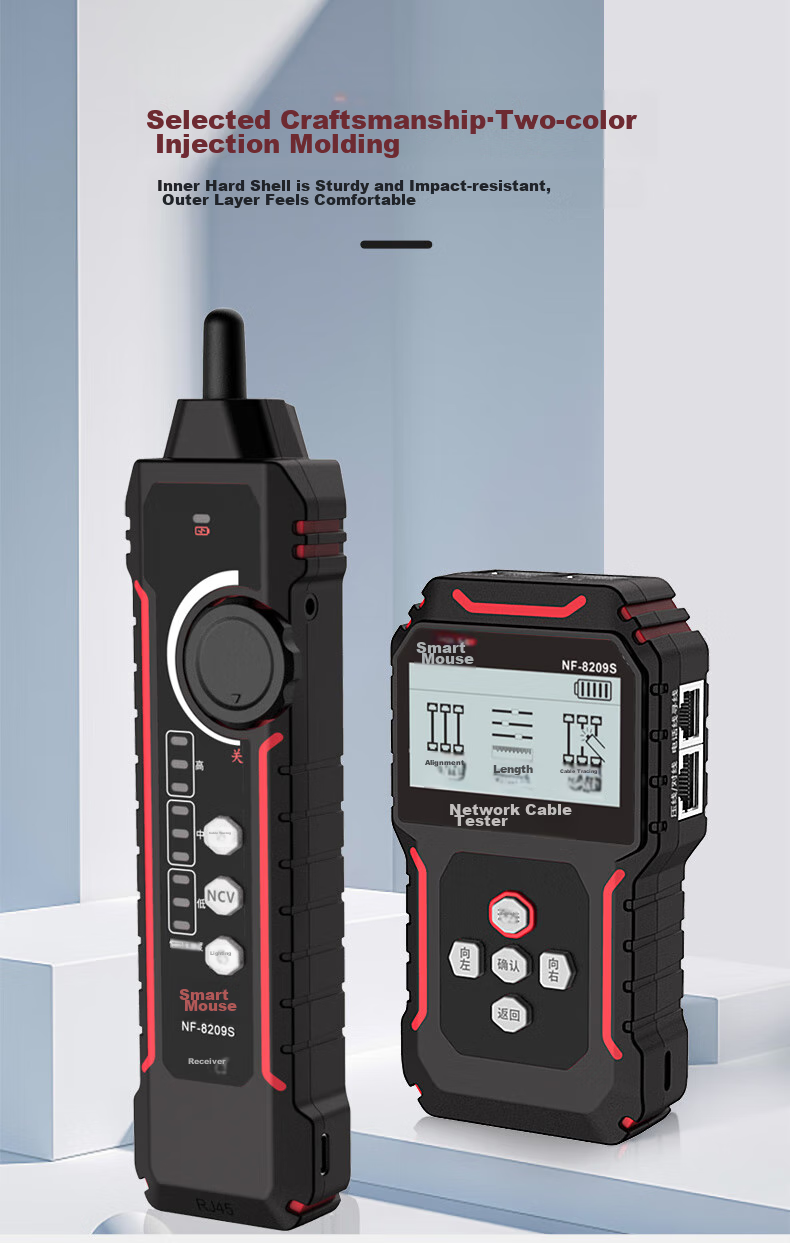

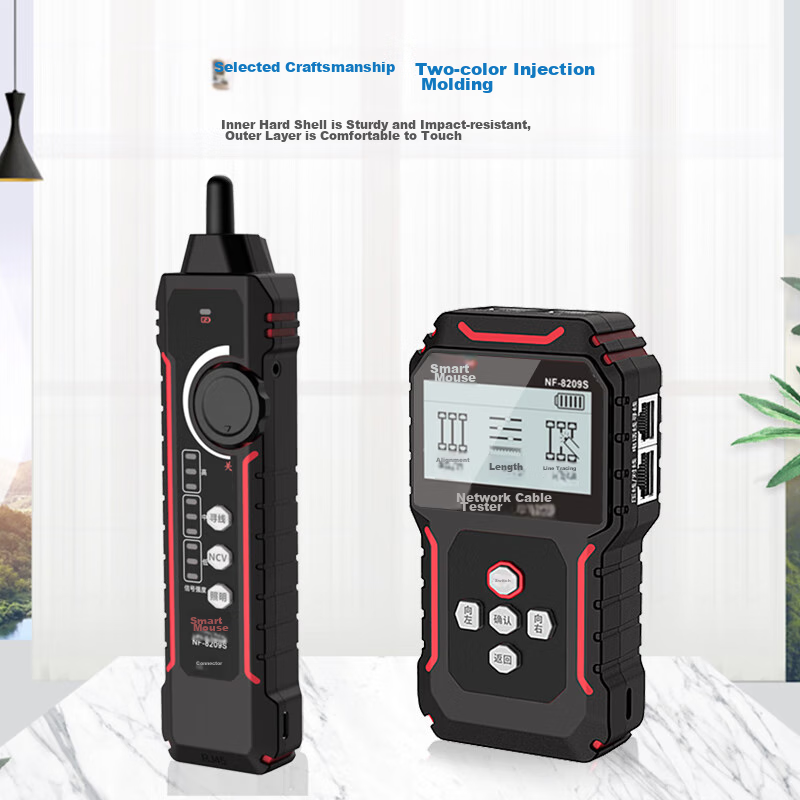

High-quality construction with dual-color injection molding

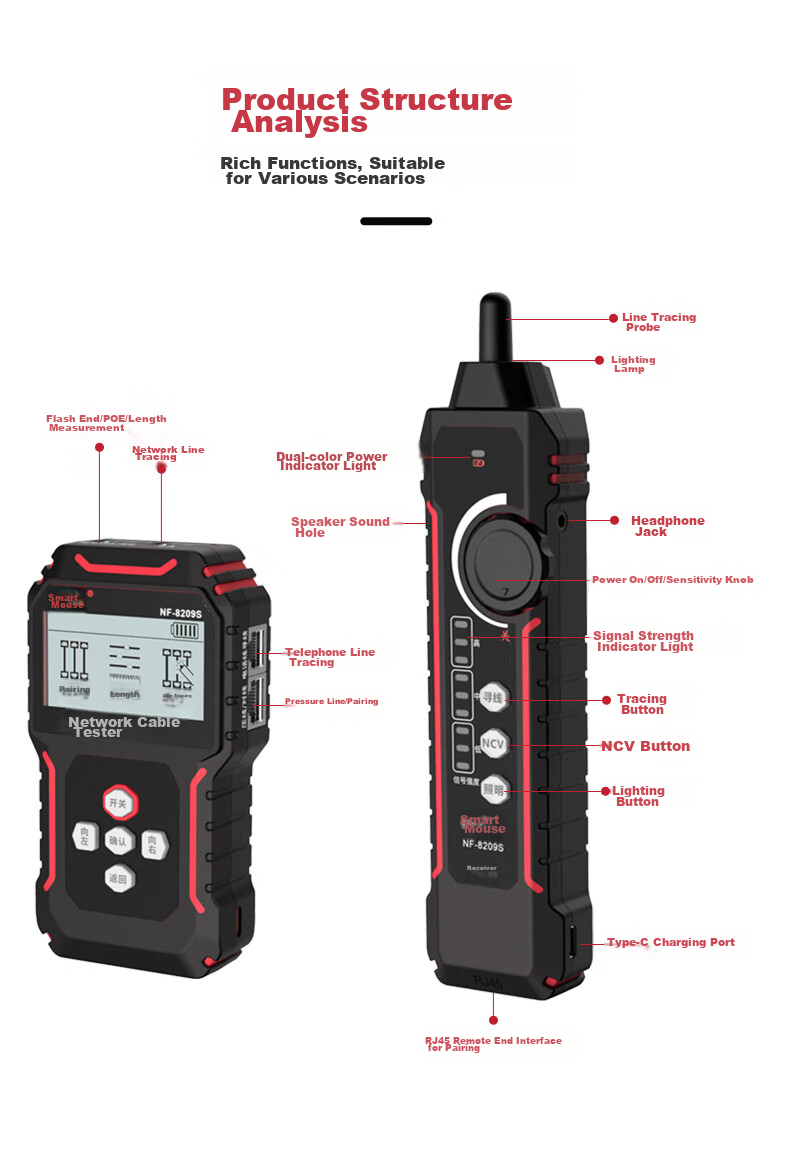

Product Functions

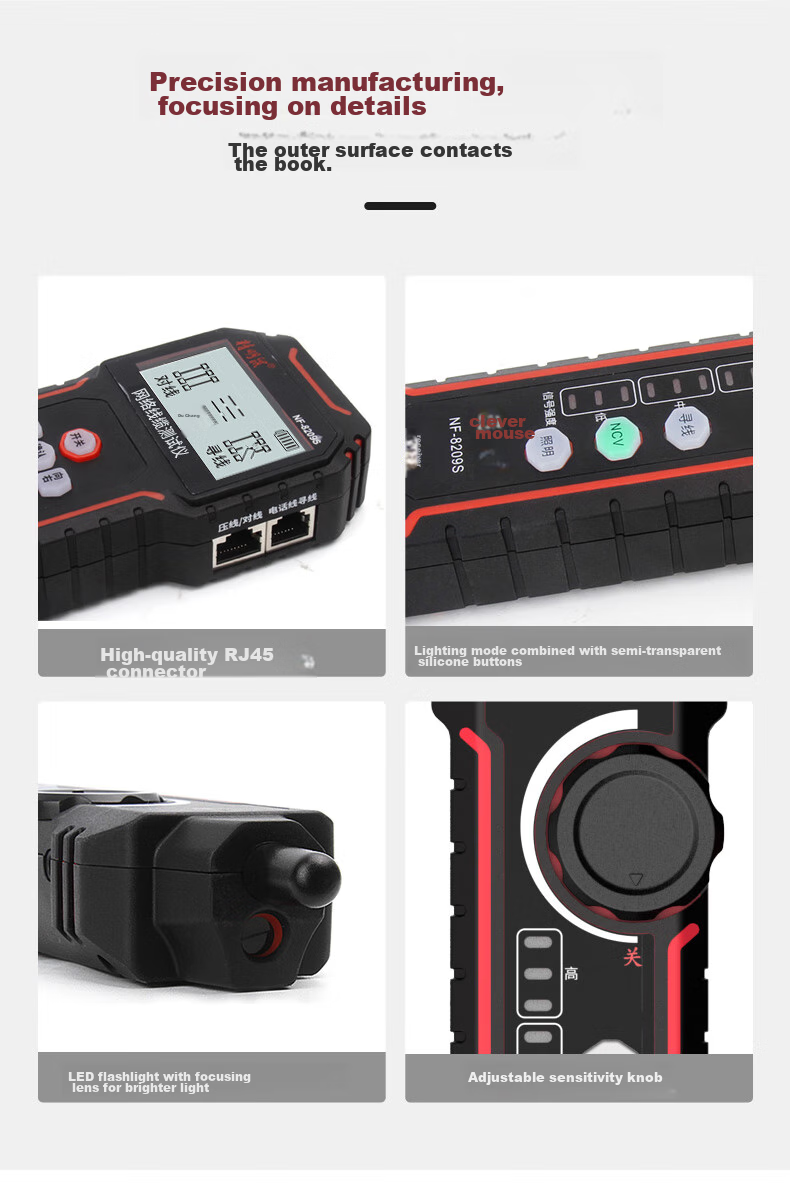

Wire tracing probe, flashlight, port/POE/length testing, network tracing, power indicator lights, speaker holes, headphone jack, power/sensitivity knob

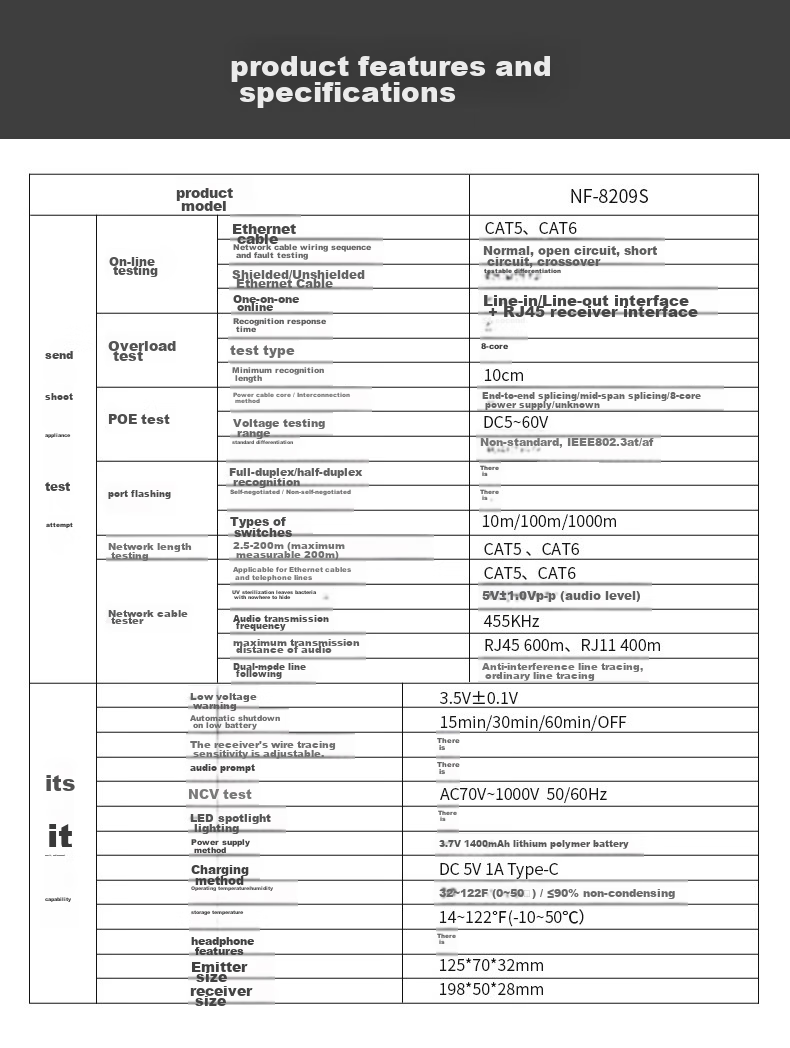

Technical Specifications

Item	Detail
Suitable for CAT5, CAT6 cables	—
Testing capabilities include wire sequence, faults (normal, open, short, cross), wire mapping, shielded/unshielded cables, 1:1 wire mapping, etc.	—
Response time	≤1 second
Testing types	8-core
Minimum identification length	10 cm
POE voltage testing range	DC5~60V

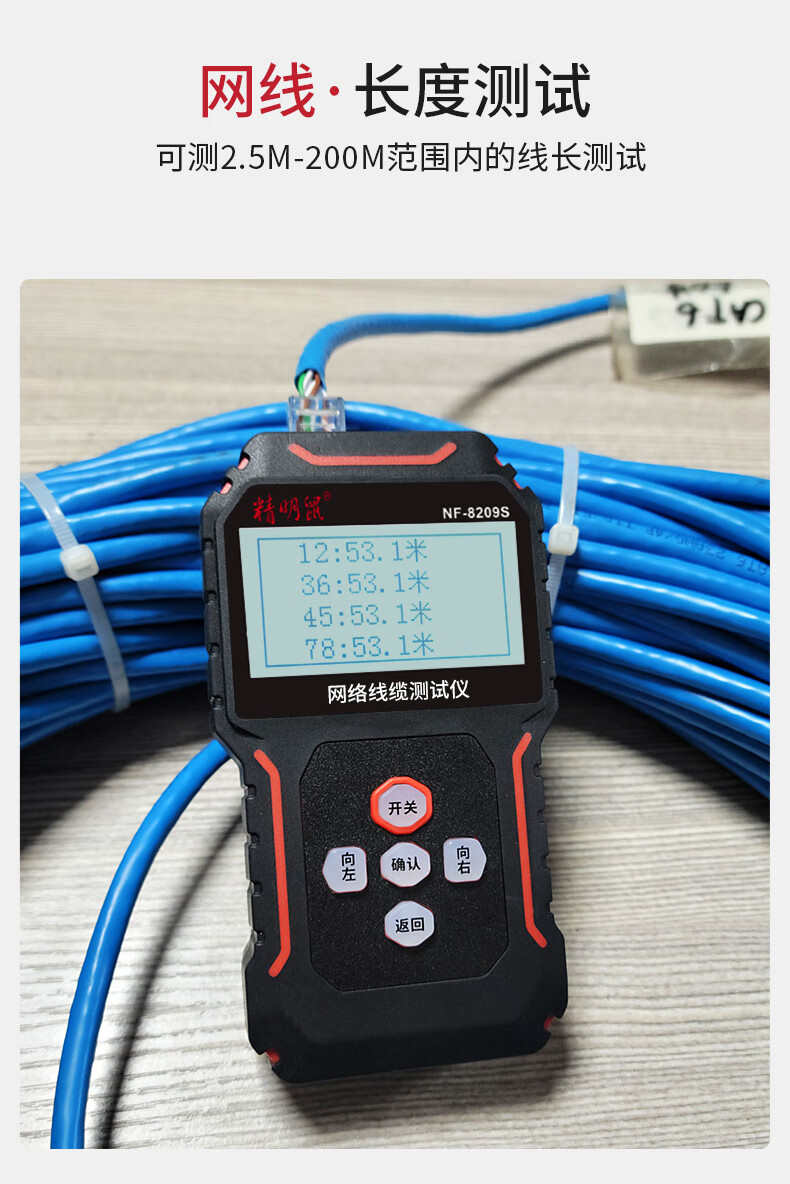

Network length testing range	2.5-200 m
Audio transmission frequency	455KHz
Battery	3.7V 1400mAh lithium polymer
Charging	DC5V 1A Type-C
Operating temperature/humidity	32~122°F (0~50℃) / ≤90% non-condensing
Storage temperature	14~122°F (-10~50°C)

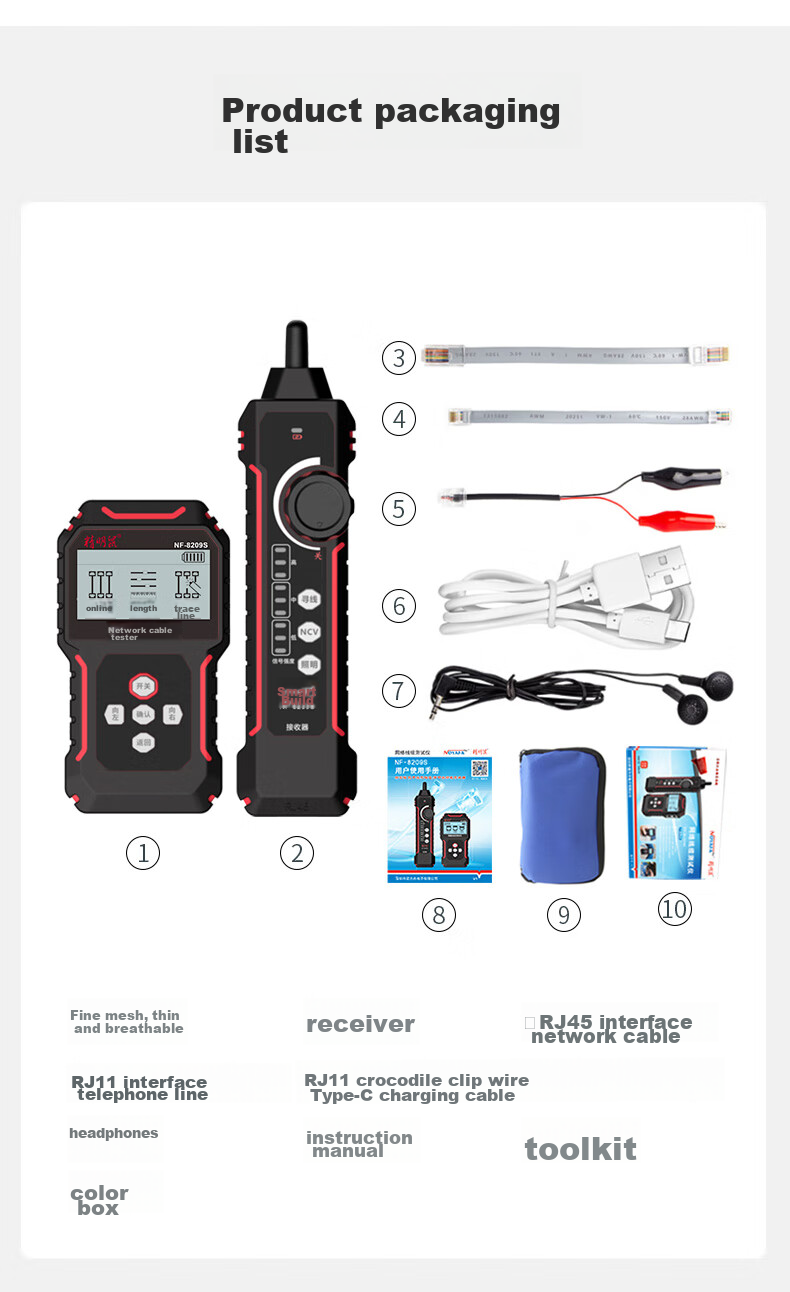

Package Contents

NF-8209S Network Cable Tester
Transmitter, Receiver
RJ45 Ethernet Cable, RJ11 Telephone Cable
RJ11 Alligator Clip Cable, Type-C Charging Cable
Headphones, User Manual
Tool Kit, Color Box

Some specifications may vary based on the product version.
