Back to CatalogSNDWAY Coating Thickness Gauge High Precision Automotive Paint Film Meter Industrial Paint Film Detector SW-6300A
Specifications
- Material measurement
- Metal, paint, plating, paint film, Coating
- Display type
- digital display
- How it works
- All in one
- Category
- coating thickness gauge
Variants / Sale Attributes
Model: Classic flagship model. Coating thickness 01200μm
Package Contents
Host*1, Fabric bag*1, Data cable*1, Instruction manual and warranty card*1, Iron substrate*1, Aluminum substrate*1, Calibration sheets*5
Product Description

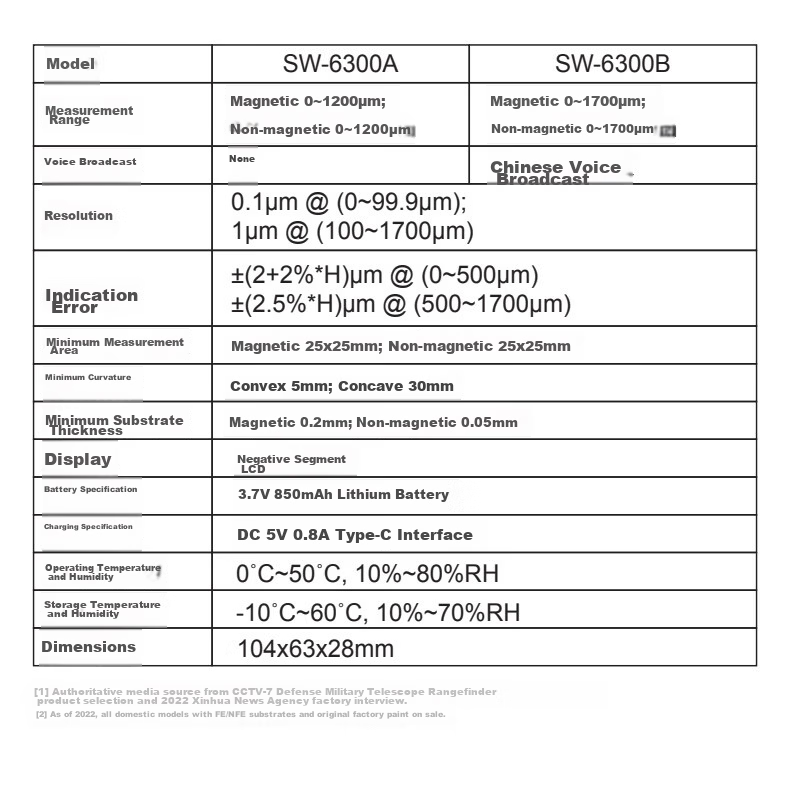

Product Specifications
Overview
- Brand
- SNDWAY
- Type
- Portable Coating Thickness Gauge
- Models
- SW-6300A, SW-6300B
- SW-6300A
- Magnetic substrate 0–1200 μm; Non-magnetic substrate 0–1200 μm
- SW-6300B
- Magnetic substrate 0–1700 μm; Non-magnetic substrate 0–1700 μm
0.1 μm for 0–99.9 μm
1 μm for 100–1700 μm
±(2 + 2% × H) μm for 0–500 μm
±(2.5% × H) μm for 500–1700 μm
Similar Products
In Stock
Out of Stock
Minimum Measurement Area25 mm × 25 mm (magnetic and non-magnetic) Minimum Curvature RadiusConvex ≥ 5 mm; Concave ≥ 30 mm Minimum Substrate ThicknessMagnetic 0.2 mm; Non-magnetic 0.05 mm Dual modeMagnetic and Eddy Current automatic switching Automatic substrate identification (ferrous/non-ferrous)
User self-service multi-point calibration
Calibration accessories include 5 standard thickness blocks and 2 substrate types (iron and aluminum)
Calibration cycle requires consistent substrate type to ensure accuracy
Additional details
- Display
- Reverse segment LCD screen with backlight
- Voice Broadcast
- Real human voice broadcast (Chinese language supported) for hands-free operation

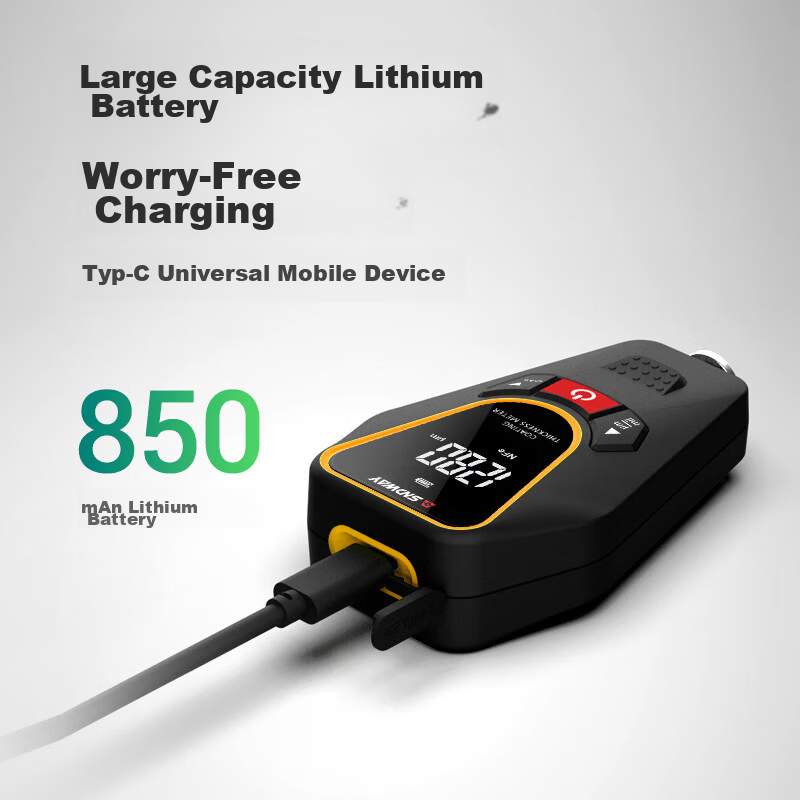

Built-in 3.7 V, 850 mAh lithium battery
Type-C USB charging, DC 5V 0.8A input
Supports charging via USB adapter, car charger, or power bank
Continuous all-day operation
High-precision anti-interference digital probe
Adaptive to substrate material based on magnetic and eddy current properties

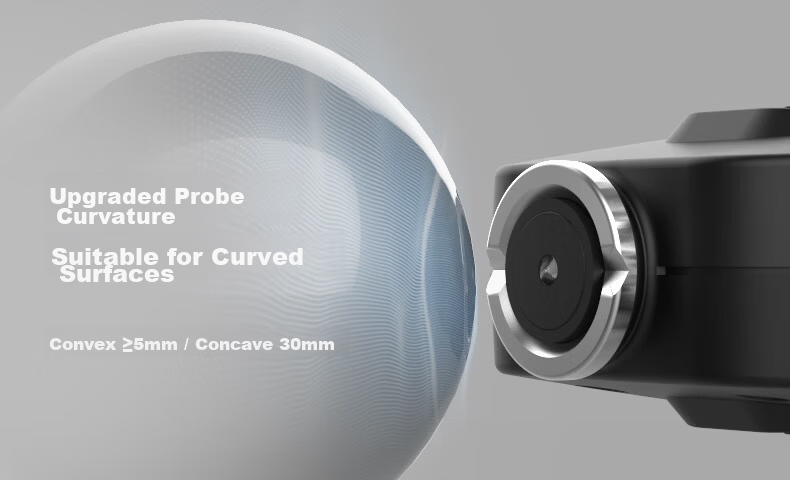

Upgraded probe curvature suitable for curved surfaces

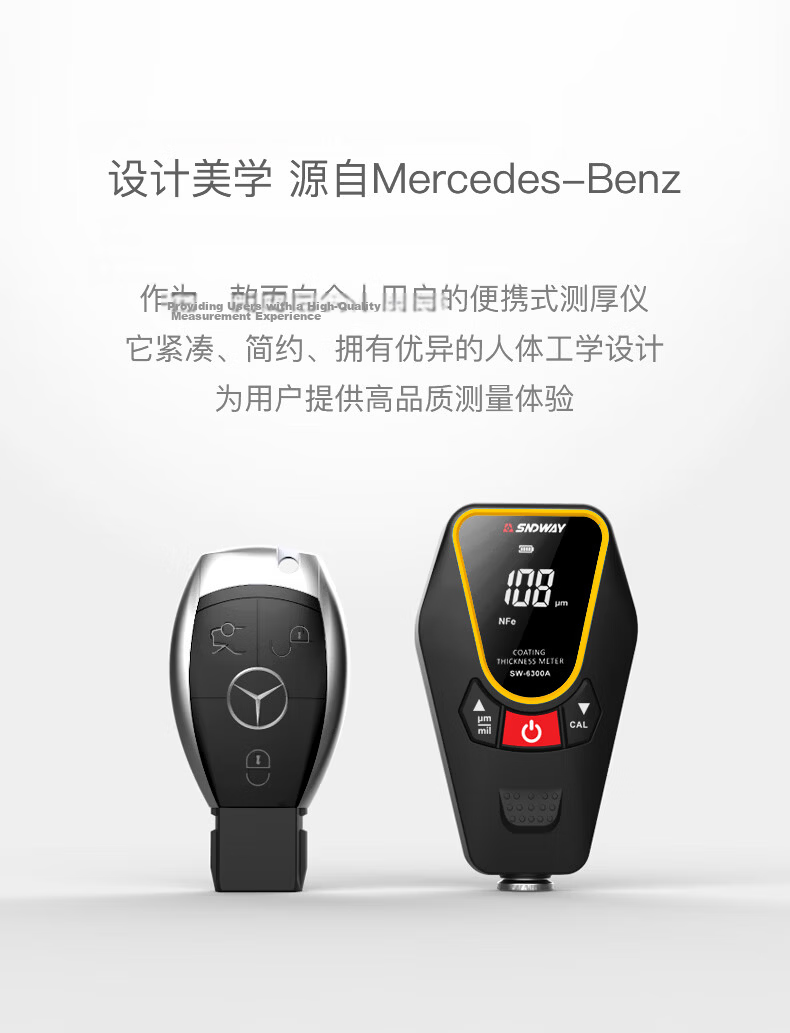

Compact, ergonomic design inspired by Mercedes-Benz aesthetics
Symmetrical mechanical design for stable handheld use

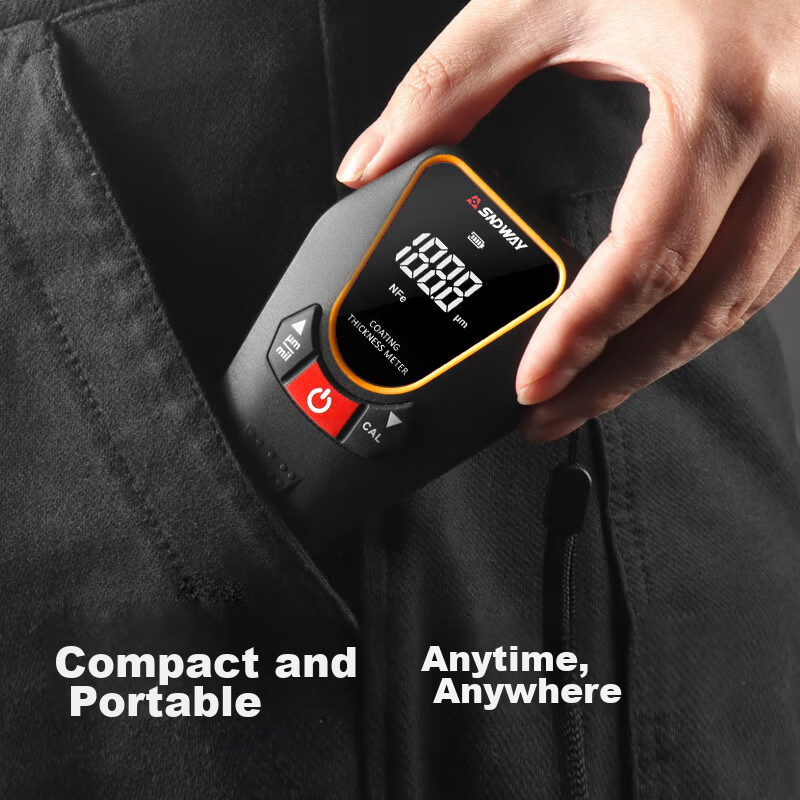

Pocket-sized for easy portability
Suitable for measuring coatings on ferrous and non-ferrous metals
Supports measurement on car paint, rubber, enamel, and other non-conductive coatings on metal substrates

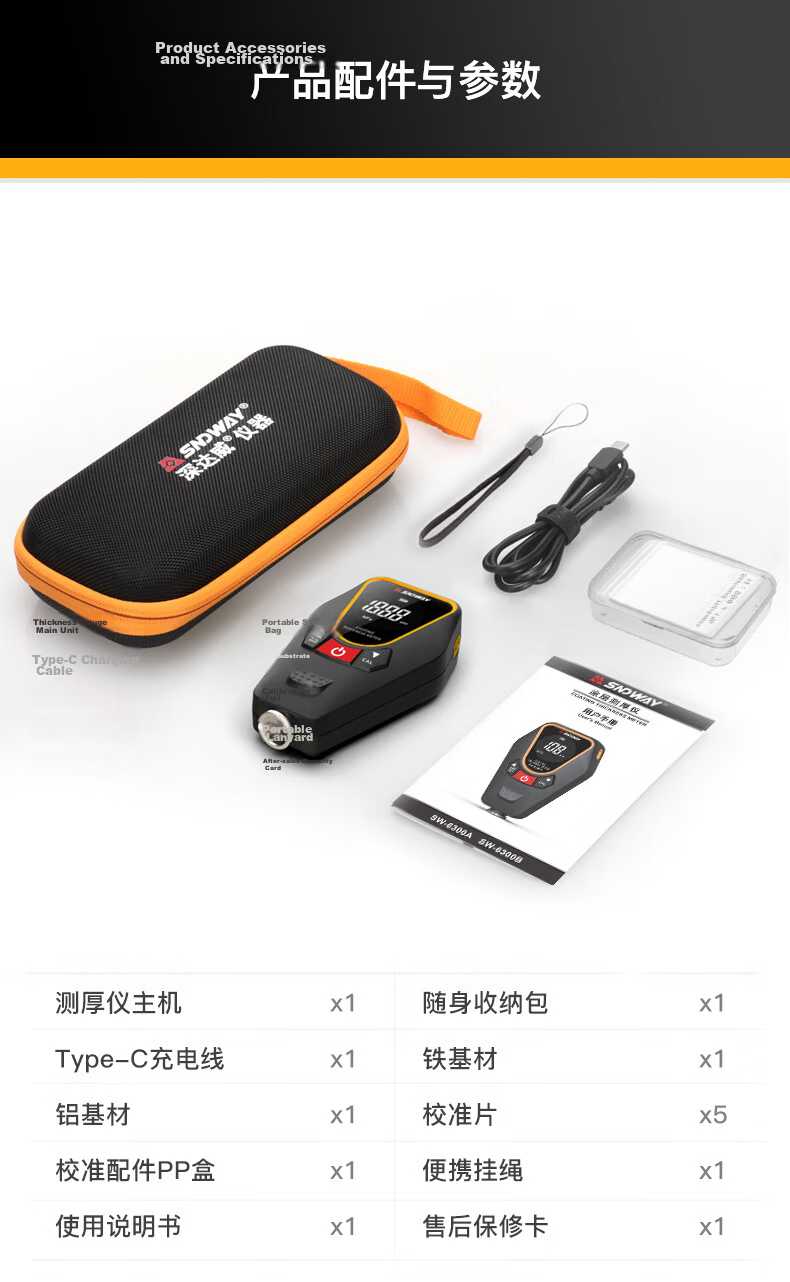

Coating thickness gauge main unit ×1
Portable carrying case ×1
Type-C charging cable ×1
Calibration accessory PP box ×1
After-sales warranty card ×1
Additional details
- Temperature
- 0°C to 50°C
- Humidity
- 10% to 80% RH
- Temperature
- -10°C to 60°C
- Humidity
- 10% to 70% RH
- Dimensions
- 104 mm × 63 mm × 28 mm
Recognized by authoritative media including CCTV-7, Xinhua News Agency
Certified by China National Knowledge Infrastructure (CNKI) in engineering technology and surface technology fields
Developed by a high-tech enterprise and professional Chinese manufacturer with global export experience

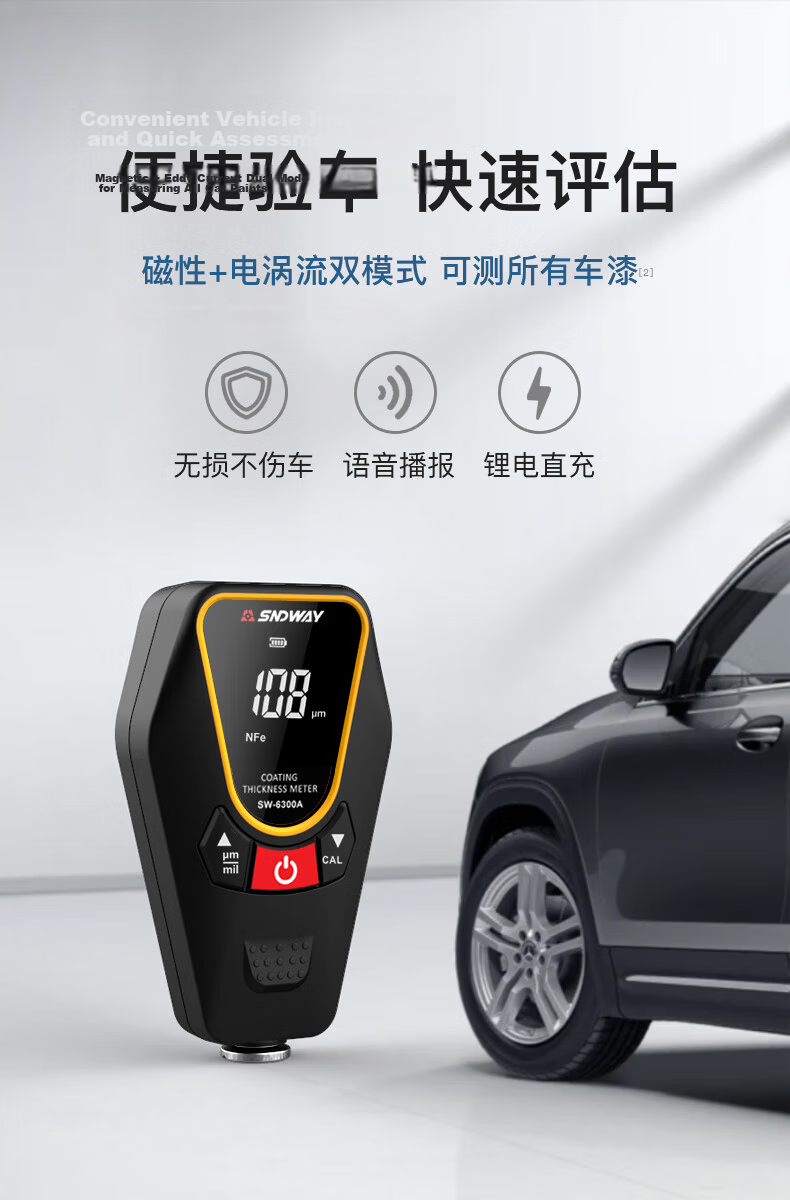

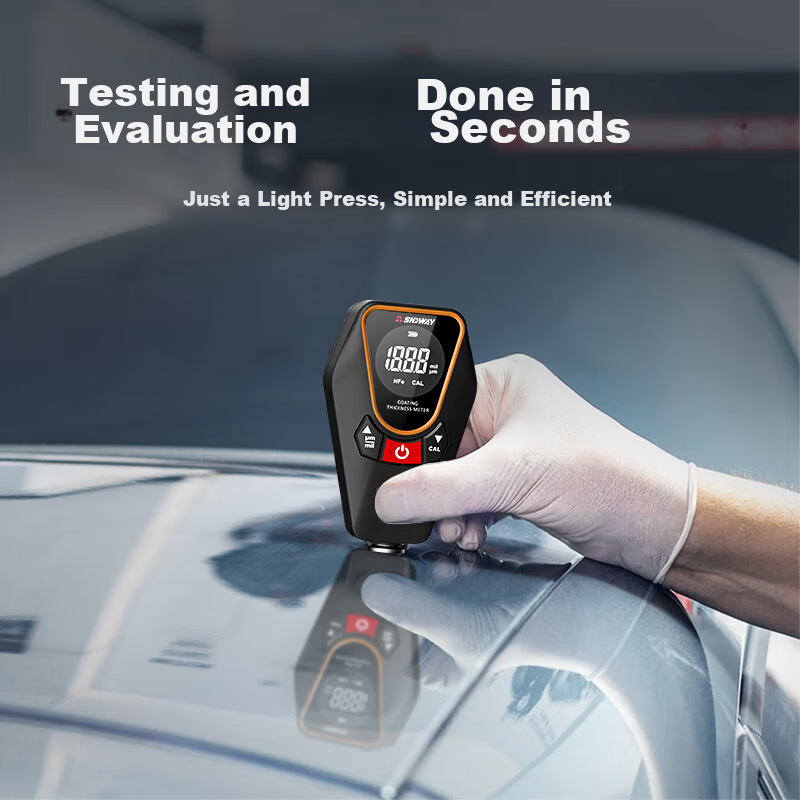

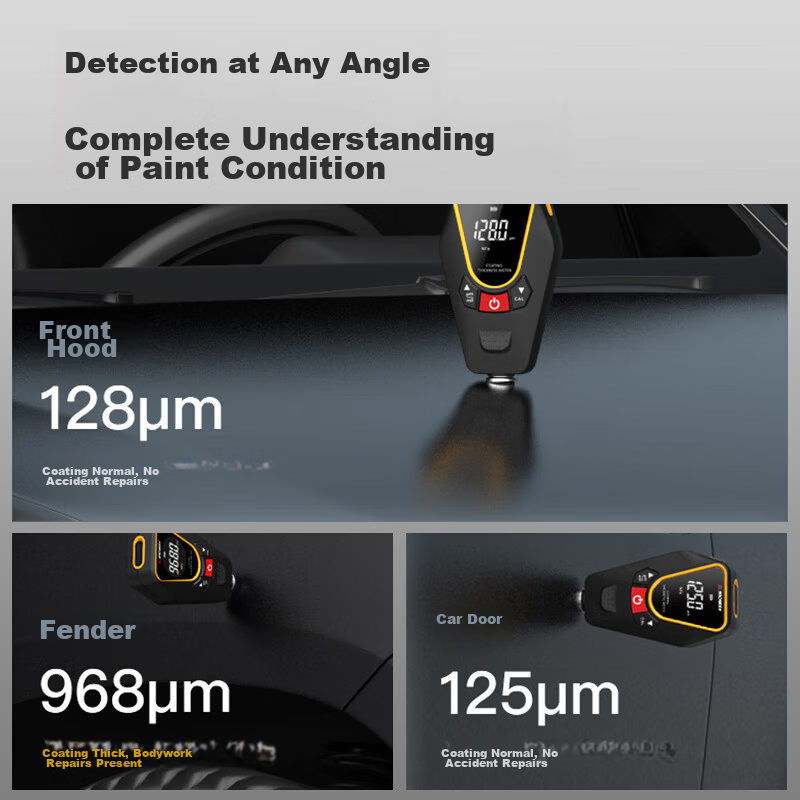

Ideal for quick vehicle paint inspection and evaluation
Non-destructive testing with magnetic and eddy current dual modes

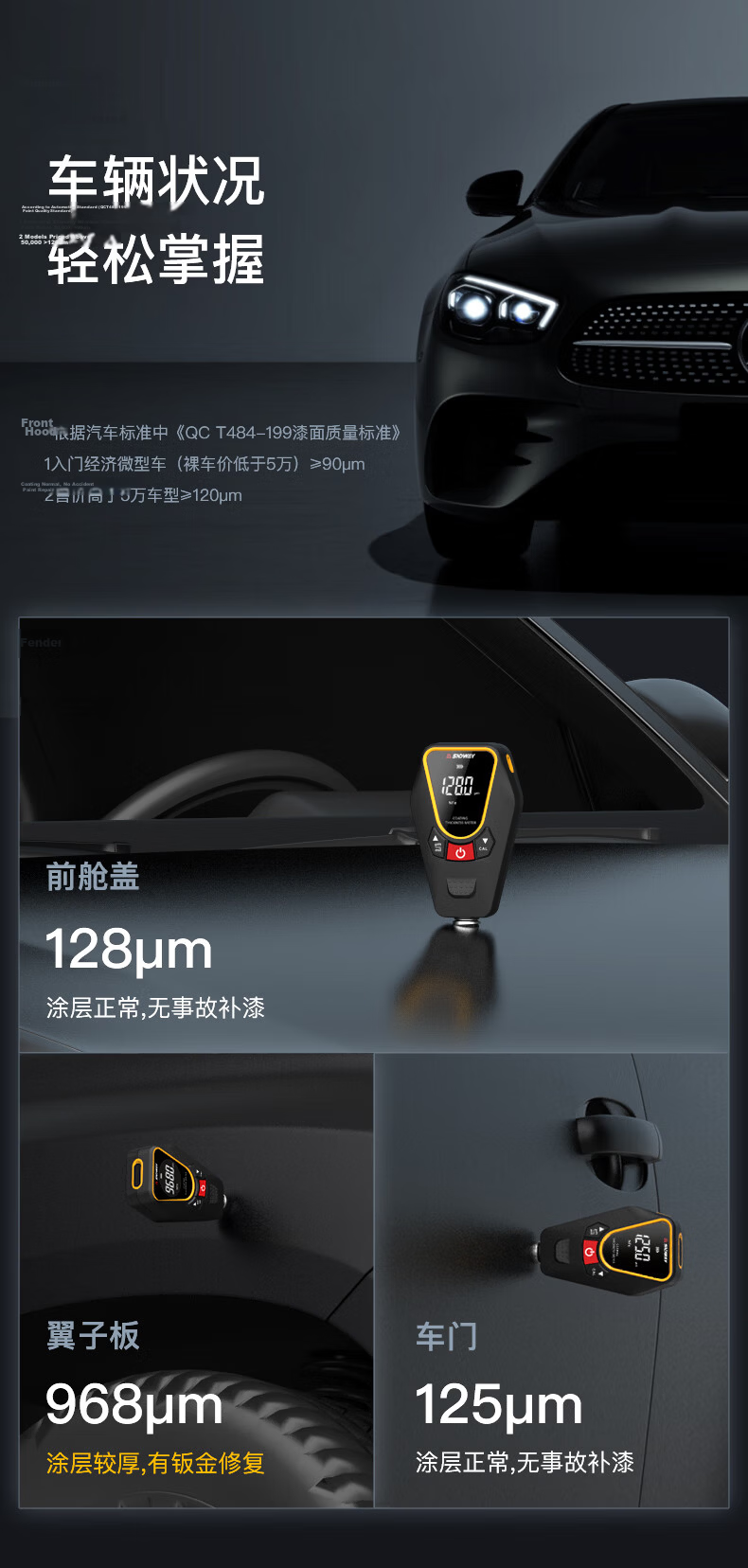

Provides reliable data for automotive paint quality standards (e.g., QCT484-199)
Suitable for personal users and professionals requiring portable, high-precision coating thickness measurement
