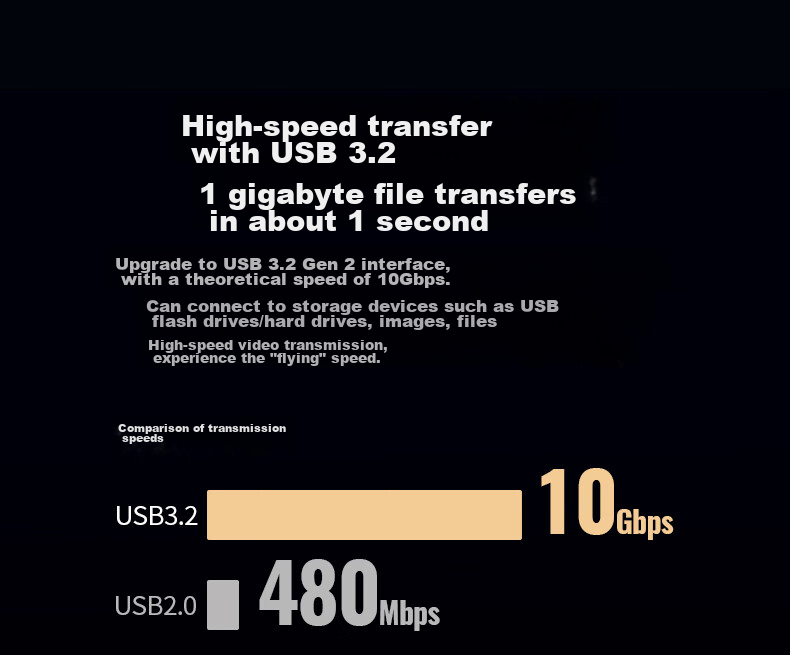

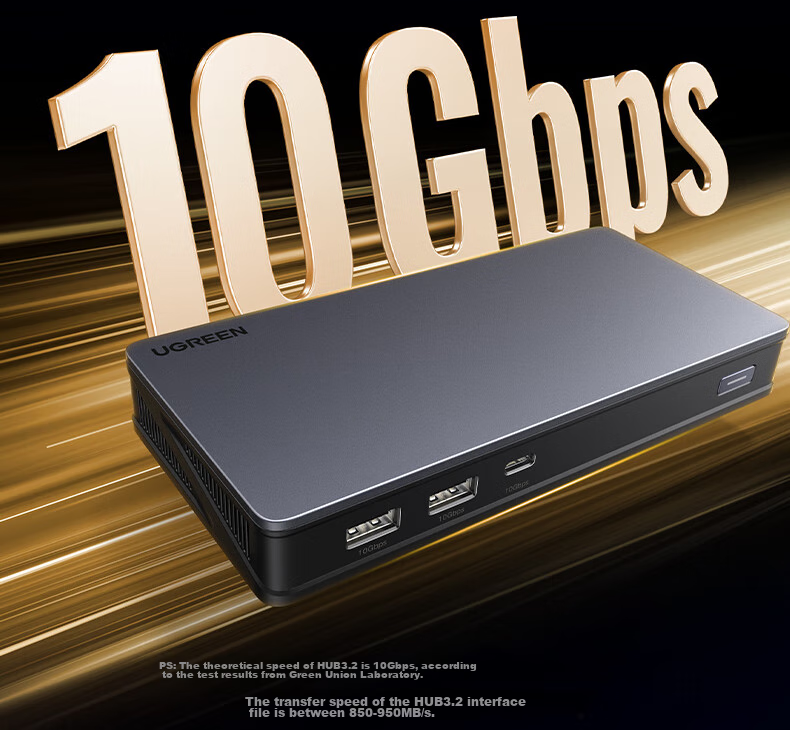

Supports fast file transfer speeds (~1GB file in ~1 second)
Additional details

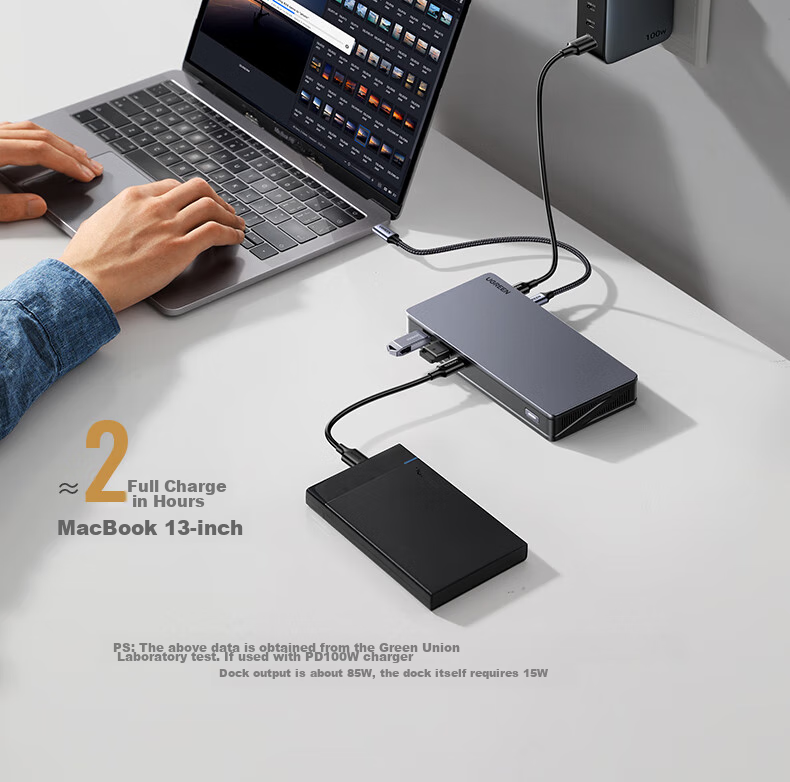

Power Delivery (PD) Charging
Up to 100W (Max)
Supports PD 3.0 fast charging protocol
Stable power supply with multiple protection circuits (overcurrent, short circuit, surge protection)
Additional details

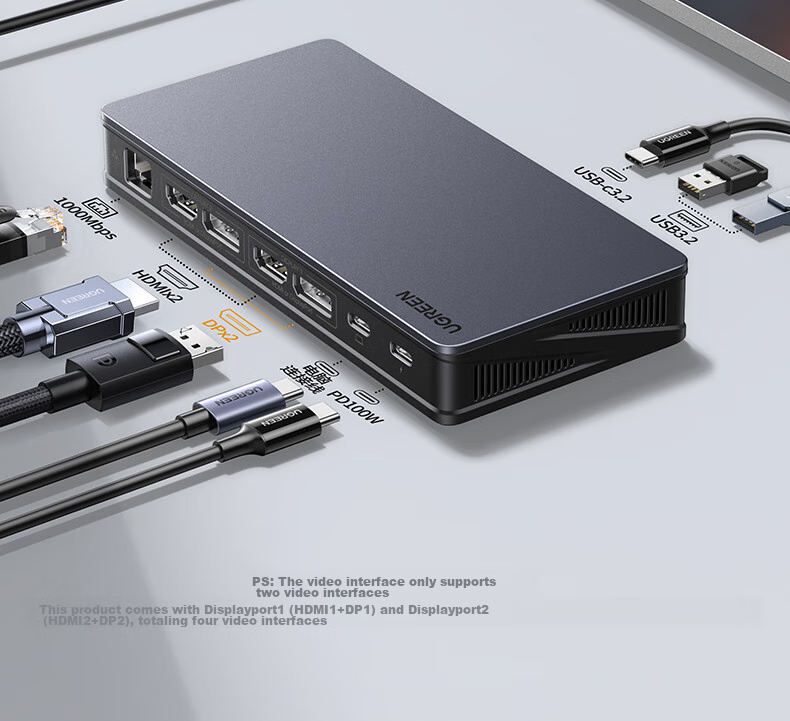

Total Video Ports
4 (2 HDMI + 2 DisplayPort)

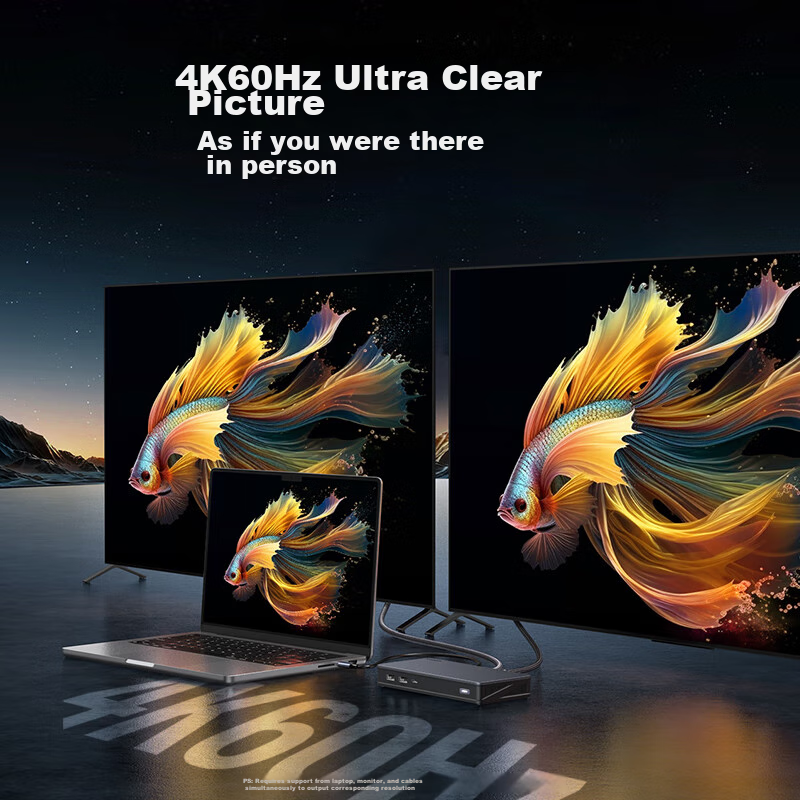

Supports 4K@60Hz, 8K@30Hz, 8K@60Hz depending on model variant

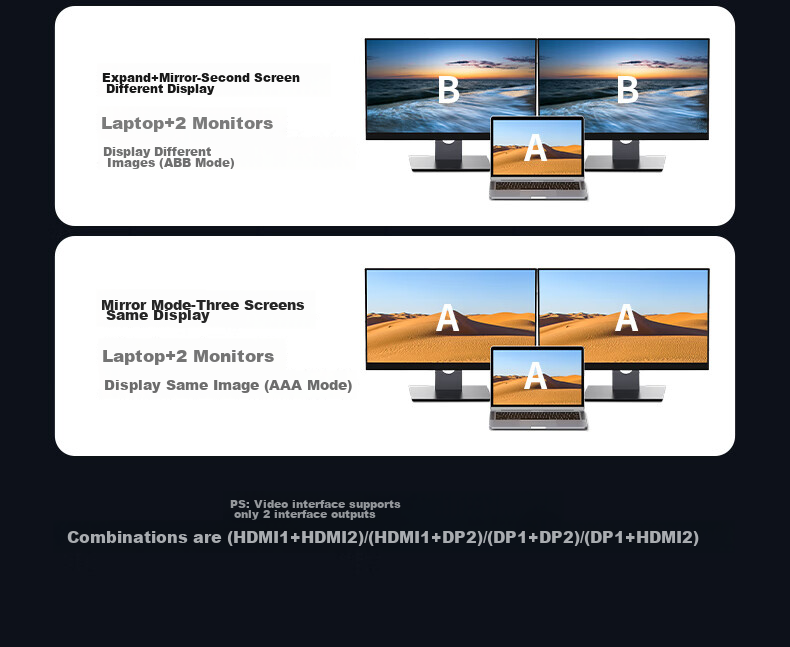

Video output supports combinations of HDMI and DP ports (HDMI1+HDMI2, HDMI1+DP2, DP1+DP2, DP1+HDMI2)
Only two video interfaces can output simultaneously
Additional details
Total Ports
12 to 17 depending on model variant
USB 3.0 × 2 to 3.2 × 3 ports depending on model
Additional details
Audio Ports
3.5 mm professional audio jack × 3 (on some models)
SD/TF Card Slots and M.2 NVMe support on select models
Additional details
Network Speed
1000Mbps to 2500Mbps depending on model
Includes 1m full-function USB-C to USB-C cable with video transmission support
Compatible with MacBook Pro/Air (2017-2025 models, M1 to M5 chips)
Compatible with major Windows laptops including Lenovo ThinkPad series, HP Spectre/XPS, Dell Inspiron/Vostro, Huawei MateBook, Xiaomi Book, ASUS ProArt, Acer Predator, Microsoft Surface, and more
Requires host device with full-function Type-C port for full feature support
Additional details

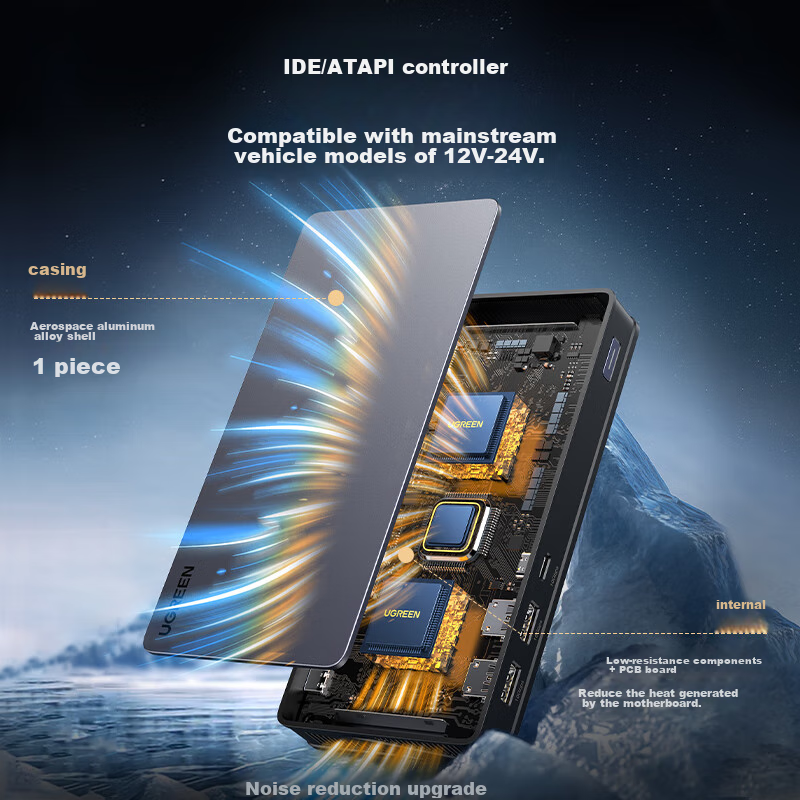

Material

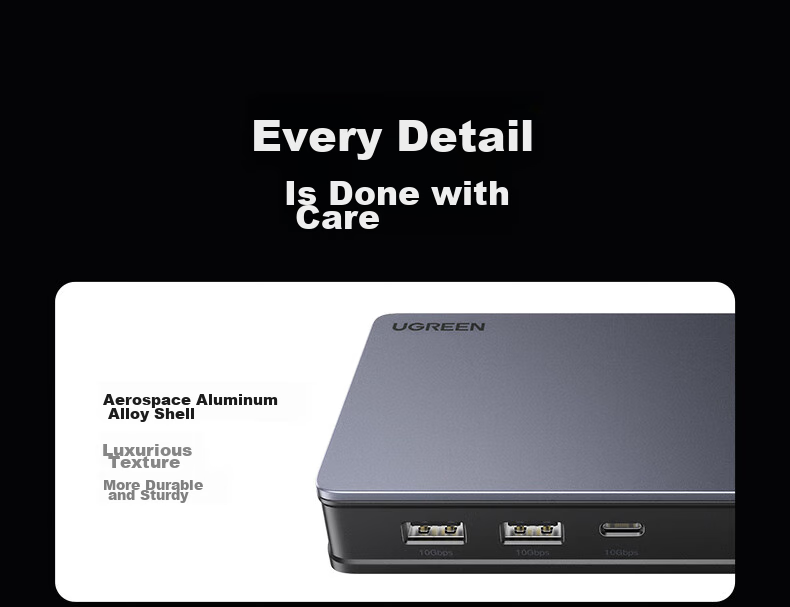

Aviation-grade aluminum alloy shell for durability and heat dissipation

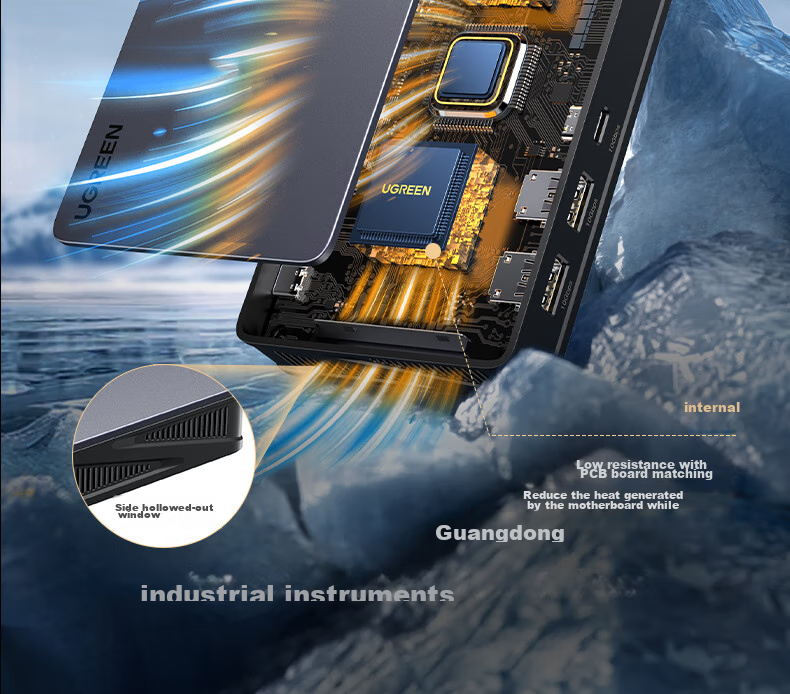

Cooling
Low resistance PCB and enlarged ventilation for effective heat dissipation
Shielding
3 to 5 layers of shielding for stable signal transmission and anti-interference
Features

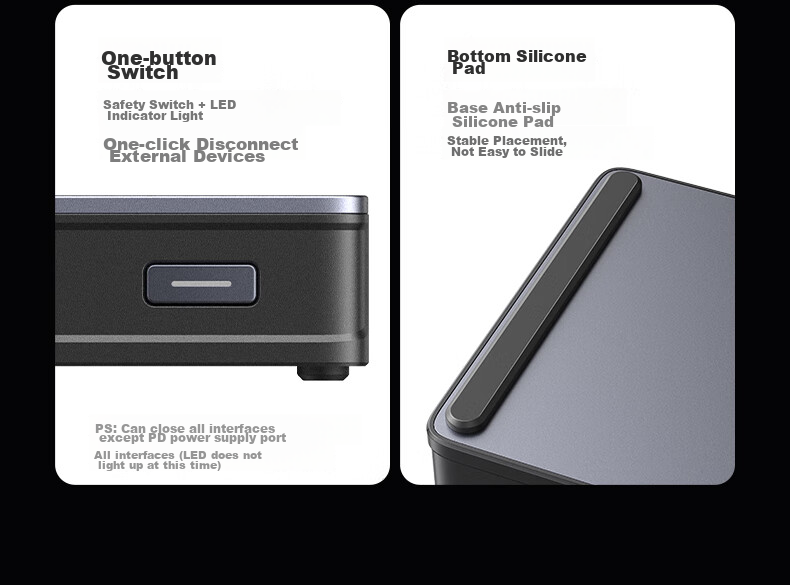

One-key switch to disable all ports except PD charging
LED indicator
Non-slip silicone base

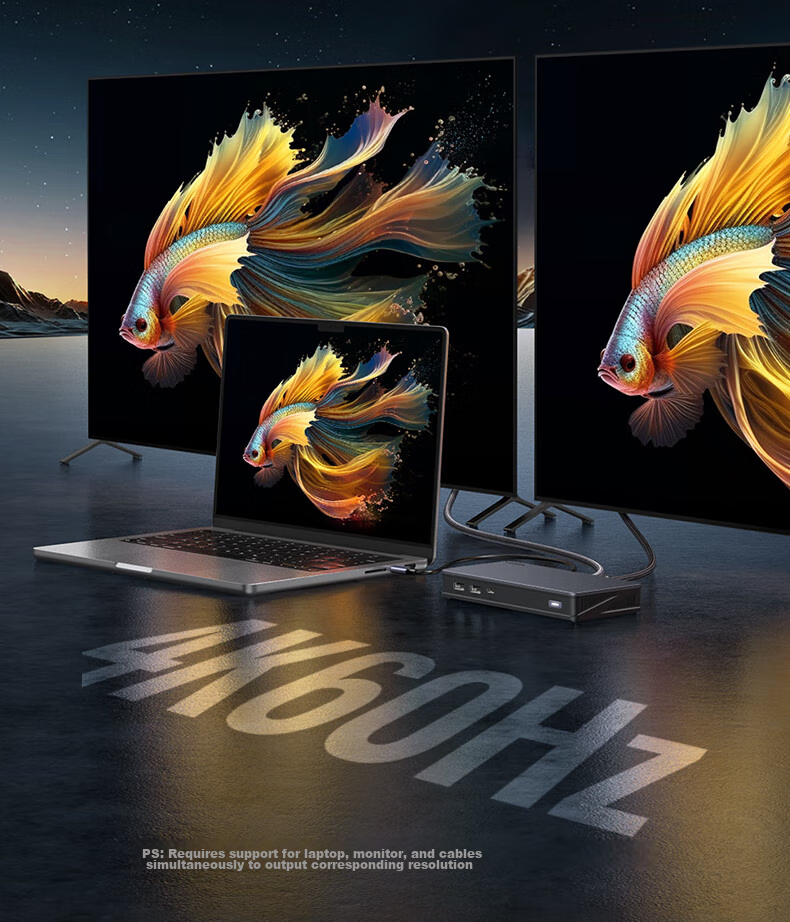

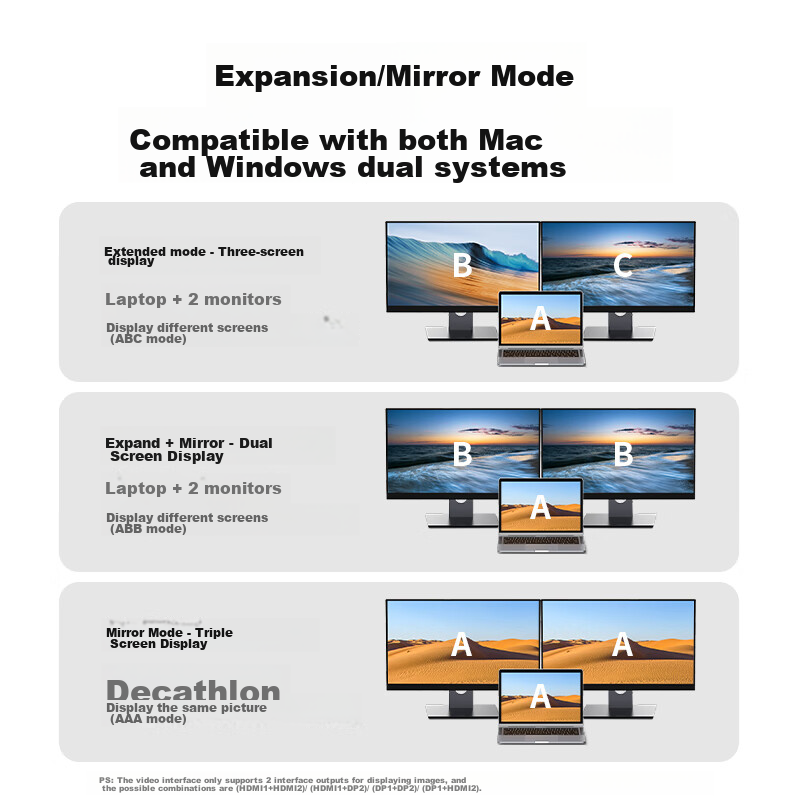

Supports extended, mirror, and mixed display modes for multi-screen setups
Supports DisplayPort protocol versions 1.2 to 1.4 with DSC (Display Stream Compression)
Supports high refresh rates up to 120Hz at 2K resolution
Supports Thunderbolt 4 and Thunderbolt 5 on select models with data rates up to 120Gbps

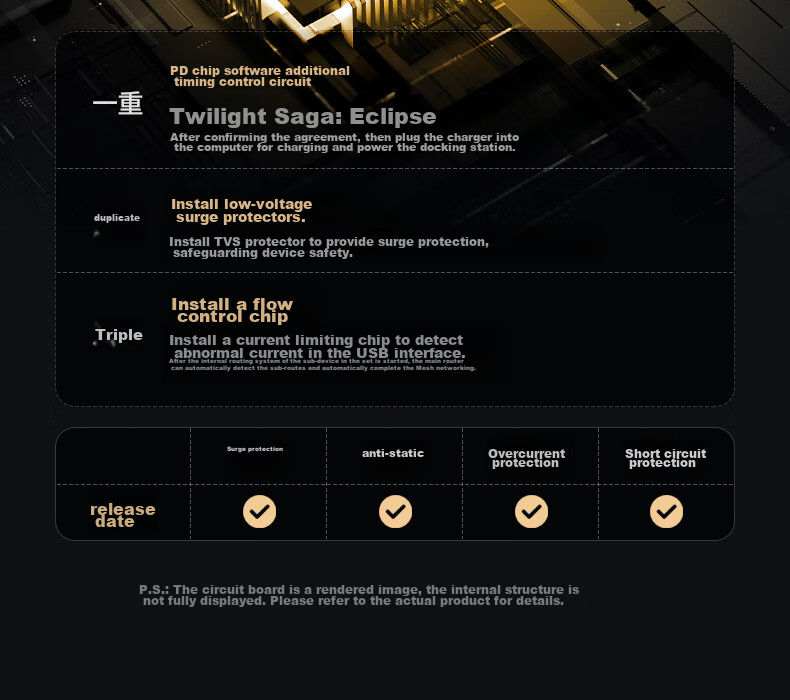

Multi-protection circuitry including PD protocol timing control, surge protection, overcurrent and short circuit protection
Additional details

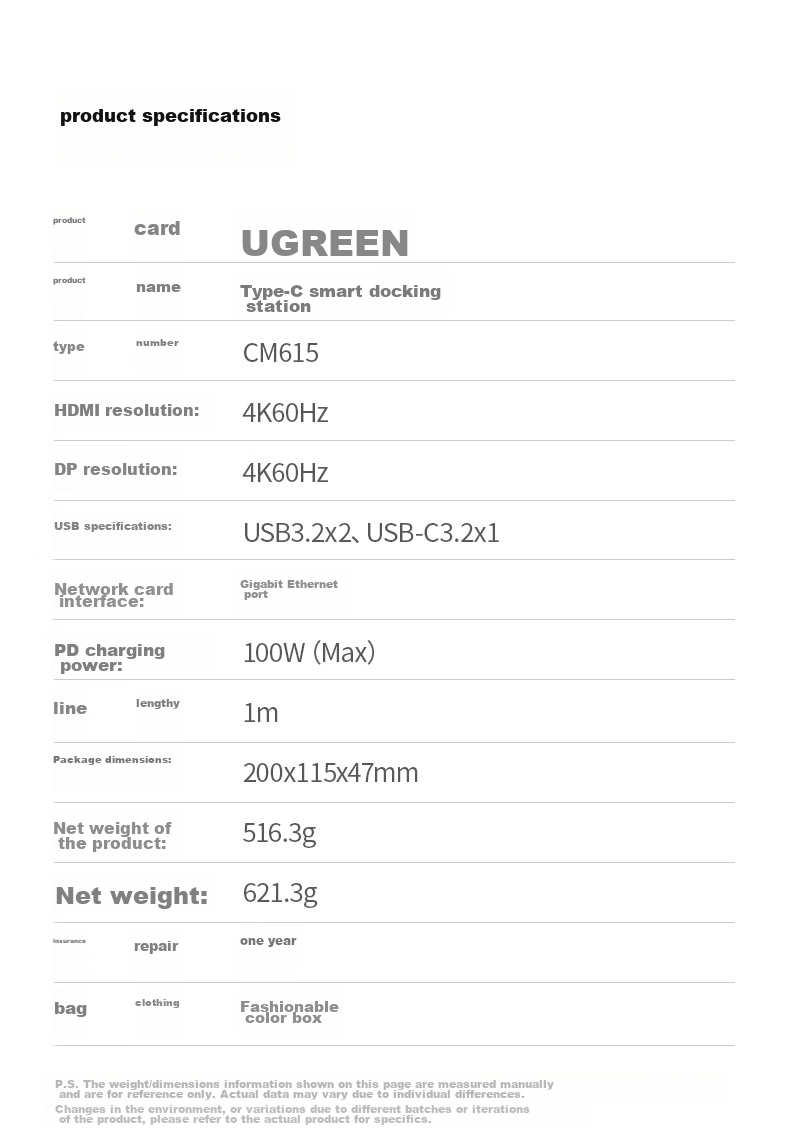

Package Dimensions
200 × 115 × 47 mm
Product Net Weight
516.3 g
Package Weight
621.3 g
Packaging
Stylish color box
Warranty
1 year
Actual product specifications may vary due to batch differences or updates.
Video transmission requires host device and cable to support video output over USB-C.
DisplayLink driver installation is required for video transmission via USB data port. Drivers available at https://www.displaylink.com/downloads or via included USB drive.
Network port driver installation may be required; driver available on included USB drive.
For optimal performance, use compatible cables and devices supporting required protocols.
