Standard configuration 1

wireless connection
CNÂ¥99.00

Wireless 2D Base | Paper + Screen + Medication Code
CNÂ¥264.05
| Item | Detail |
|---|---|

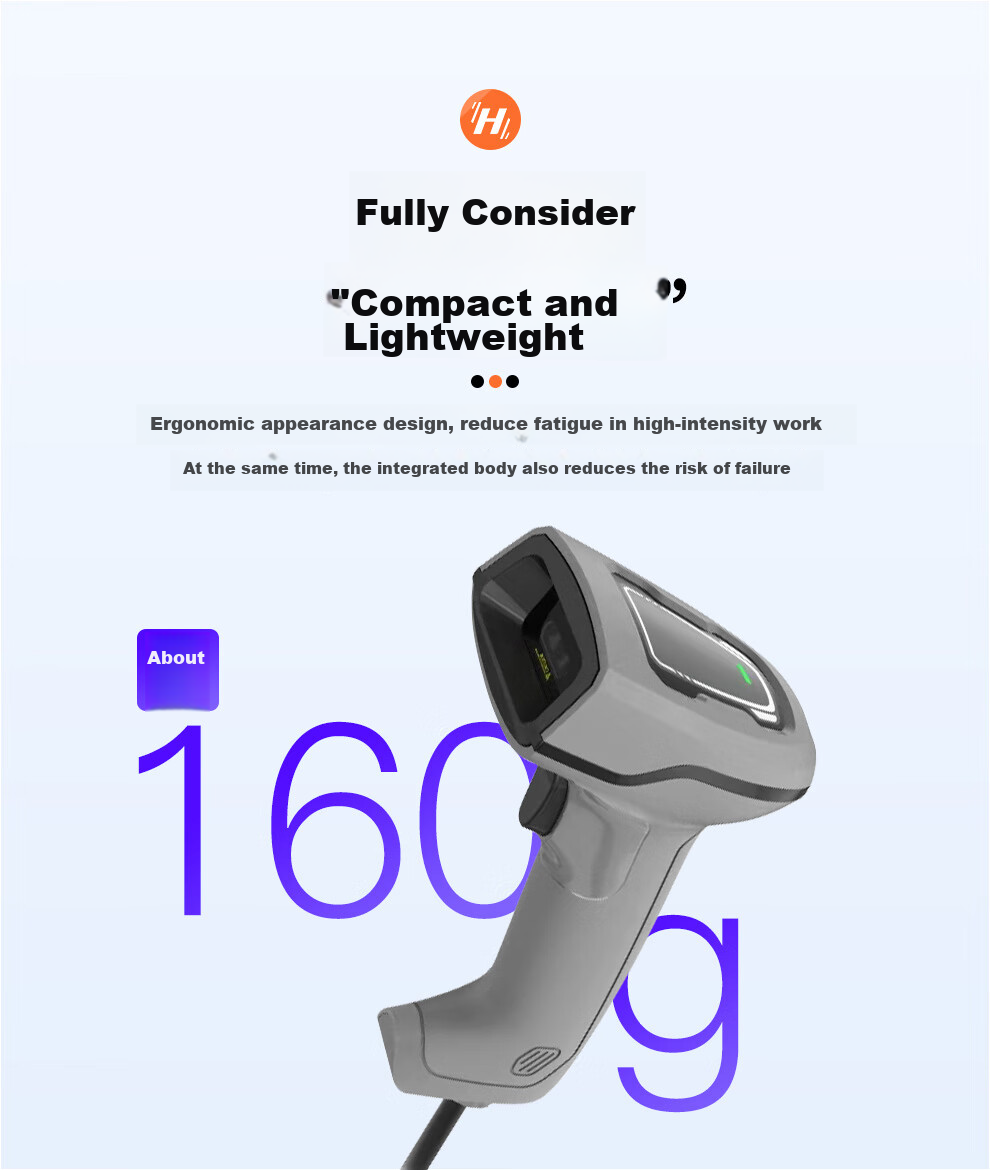

| Appearance | Compact and lightweight design |
| Interfaces | Wired Ethernet/USB, Wireless Ethernet/USB |
| Resolution | 1280×1024, Frame Rate: 50 fps |
| Barcode Categories | Code 39, Code 93, Code 128, QRCode, DataMatrix, etc. |
| Field of View | Horizontal 40°, Vertical 34° |
| Detection Angles | Tilt angle +60°, Skew angle +60°, Rotation angle 360° |
| Connectivity | Bluetooth, SmartSDK, TCP Client, FTP, etc. |
| Power | USB 2.0, 5VDC, 12-24 VDC, 3.8VDC (battery powered) |
| Operating Temperature | -20~50°C, Storage Temperature: -30~60°C |
| Humidity | 20%~80% RH non-condensing |
| Certifications | CE, KC, BT 5.0, BLE |
| Battery | 3150mAh rechargeable lithium battery |
| Charging Time | 4 hours, Scanning Capacity: 29000 scans |
| Weight | Scanner: approx. 230 g, Base: approx. 180 g |

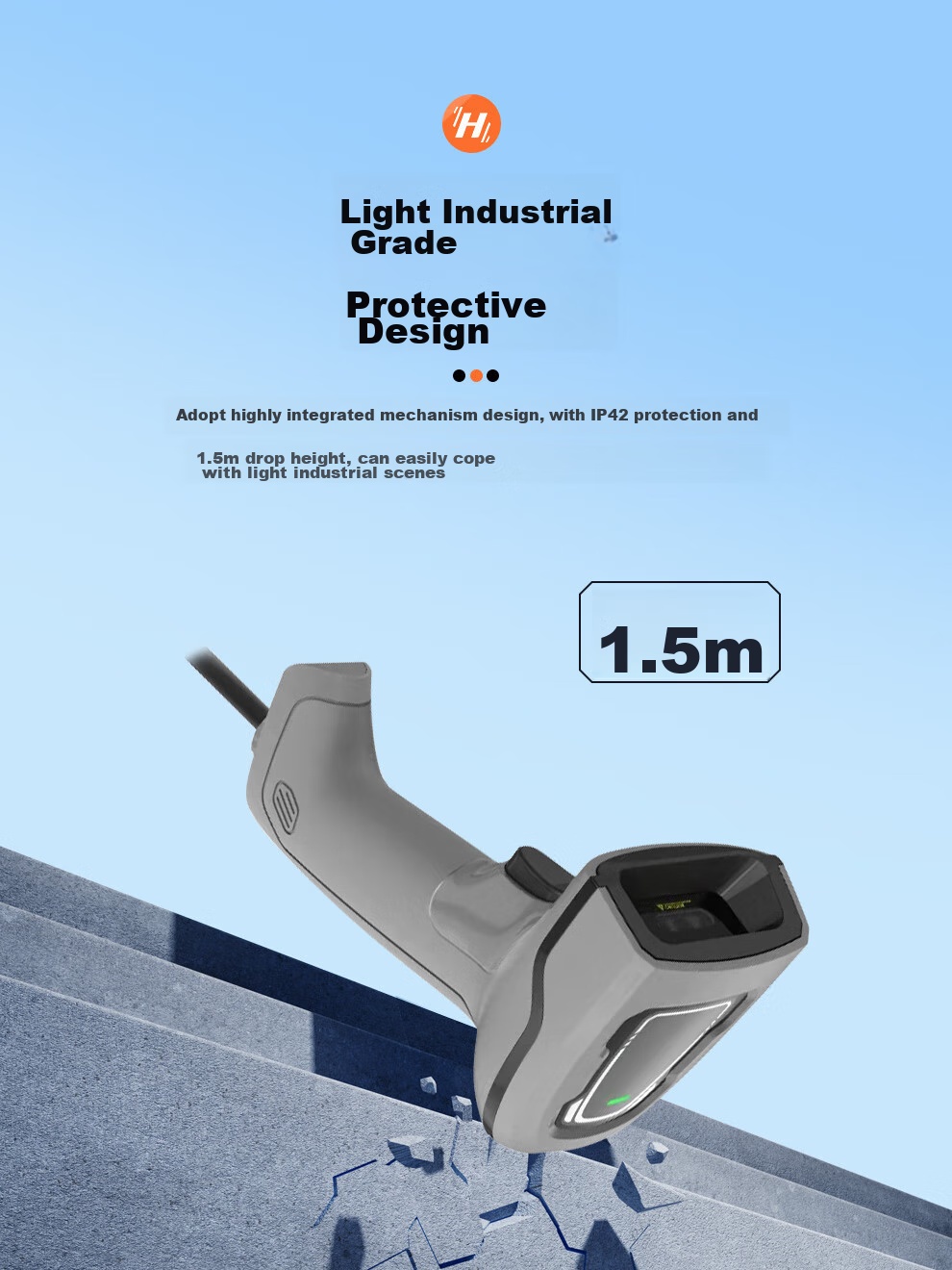

| Protection Level | IP42 |
| Software | IDMVS |
| Prompting | LED indicator, buzzer, vibrator |
| Dimensions | Scanner: 74.4 mm×86.6 mm×190.2 mm, Base: 100.9 mm×131.8 mm×83.6 mm |
The specifications provided are based on the information provided and may be subject to change or updates by the manufacturer.

Wireless
CNÂ¥769.00

HR11 Onedimensional barcode scanner for logistics use
CNÂ¥199.00
