SIGLENT SDS1204X HD 12-bit High Definition Oscilloscope 200MHz Bandwidth 4 Channels 2GSa/s Sampling

SIGLENT•Oscilloscope

SIGLENT SDS1204X HD 12-bit High Definition Oscilloscope 200MHz Bandwidth 4 Channels 2GSa/s Sampling

CN¥6,441.00

SKU: 100057889697

Status:In Stock (34)

ID: 100051113618

Weight: 6650.00 g

Dims:505x400x340 mm

Specifications

Category: digital oscilloscope
How it works: Desk-top
Bandwidth: 100MHz300MHz
Number of channels: Four-channel

Variants / Sale Attributes

Model: SDS1204XHD [200MHz 4 Channels]

Package Contents

USB data cable: 1 piece Quick guide: 1 copy Passive probe: 1 set/channel Calibration certificate: 1 copy Power cable: 1 piece

Product Description

Product Specifications

Overview

Brand: SIGLENT

SIGLENT is a nationally recognized "Little Giant" enterprise, publicly listed since 2019, specializing in electronic test and measurement instruments. The company holds over 370 patents and has received prestigious awards including the China Patent Excellence Award. SIGLENT’s SDS1000XHD series digital oscilloscopes feature a new 12-bit vertical resolution, delivering stunning high-definition waveform details with reduced quantization error.

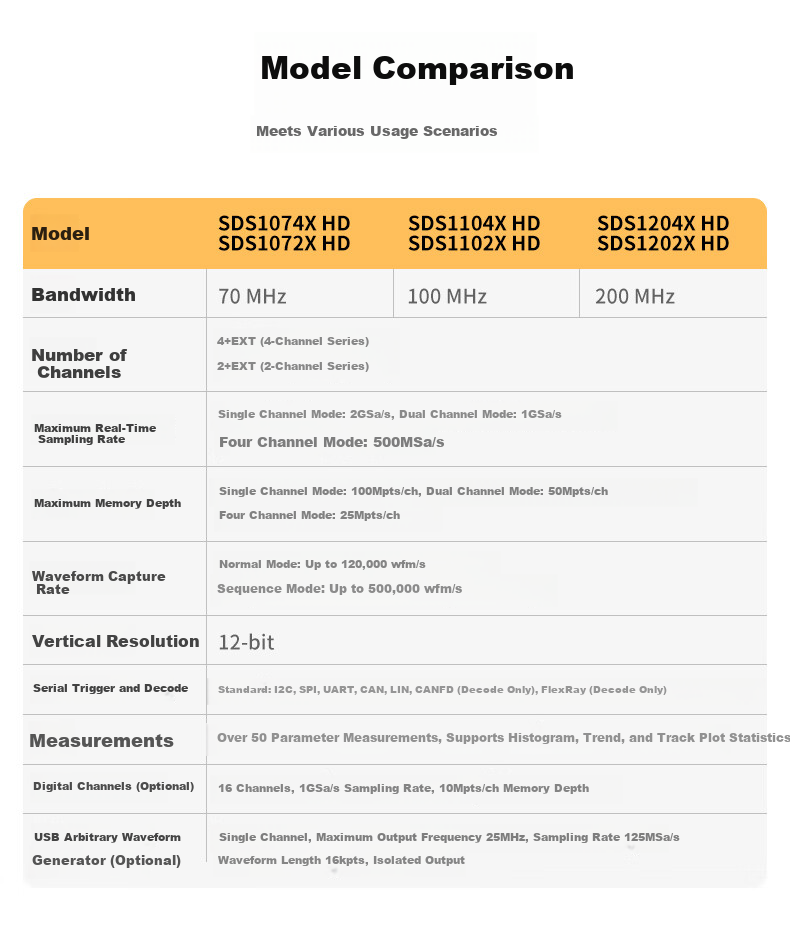

SDS1074XHD (70 MHz bandwidth, 4+EXT channels)

SDS1104XHD (100 MHz bandwidth, 4+EXT channels)

SDS1204XHD (200 MHz bandwidth, 4+EXT channels)

SDS1072XHD (70 MHz bandwidth, 2+EXT channels)

SDS1102XHD (100 MHz bandwidth, 2+EXT channels)

SDS1202XHD (200 MHz bandwidth, 2+EXT channels)

Additional details

Bandwidth: 70 MHz / 100 MHz / 200 MHz (depending on model)
Channels

Similar Products

In Stock

FNIRSIOscilloscope

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

digital oscilloscope

CN¥549.00

View

In Stock

TEKTRONIXOscilloscope

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TBS1102X (Dual Channel 100MHz)

CN¥4,099.00

View

In Stock

UNI-TOscilloscope

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UT-V23

CN¥179.90

View

2 or 4 analog channels plus external trigger

Sampling Rate

Item	Detail
Single channel mode	2 GSa/s
Dual channel mode	1 GSa/s
Four channel mode	500 MSa/s

Maximum Memory Depth

Item	Detail

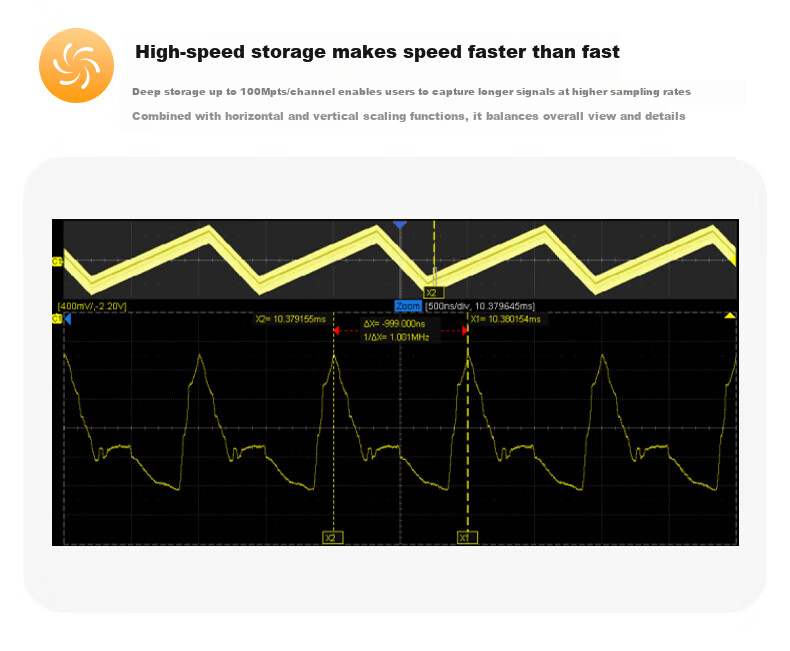

Single channel	100 Mpts per channel
Dual channel	50 Mpts per channel
Four channel	25 Mpts per channel

Waveform Capture Rate

Item	Detail
Normal mode	up to 120,000 waveforms per second
Sequence mode	up to 500,000 waveforms per second

Additional details

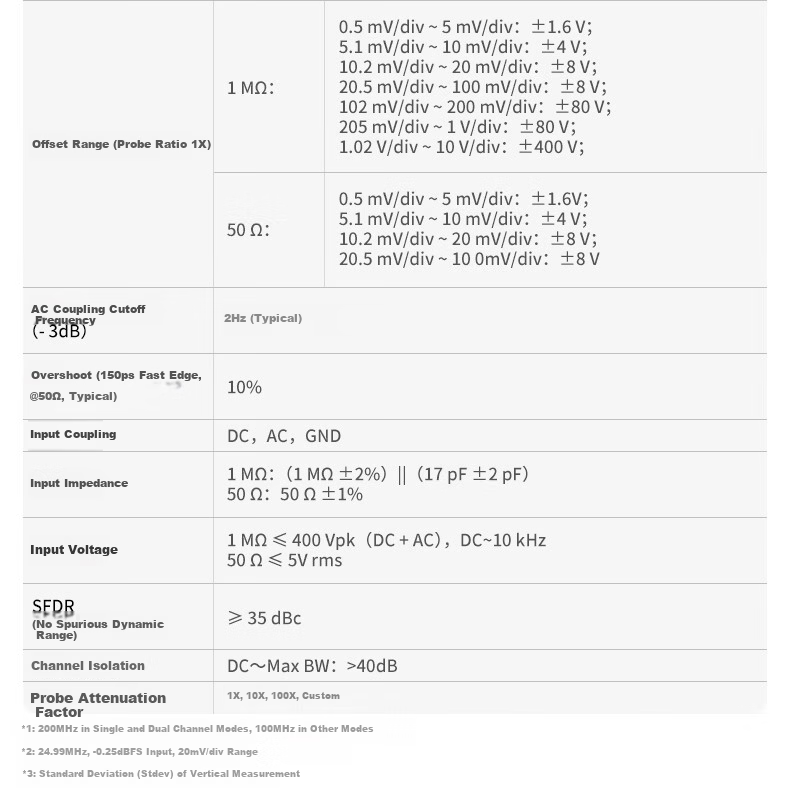

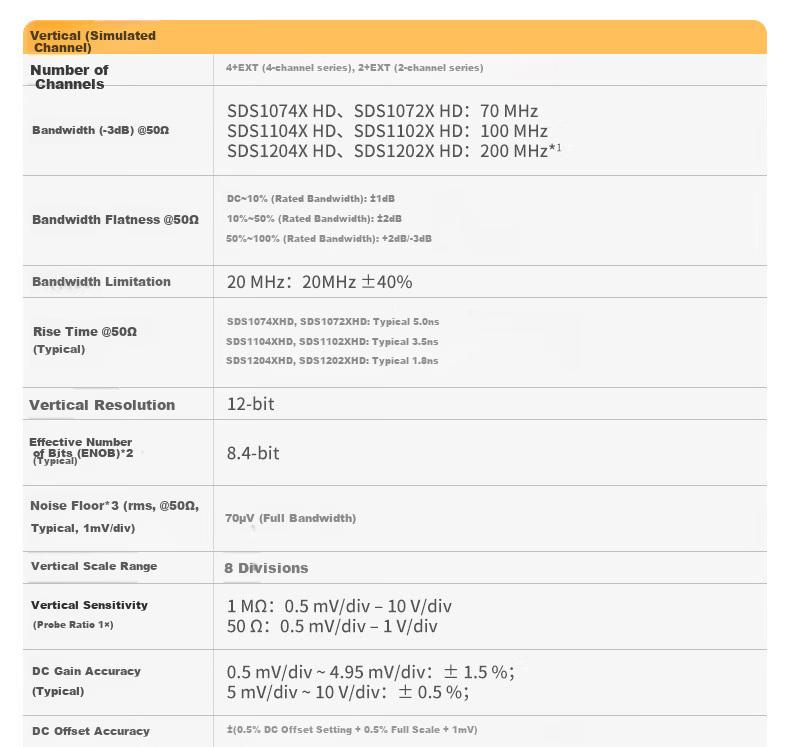

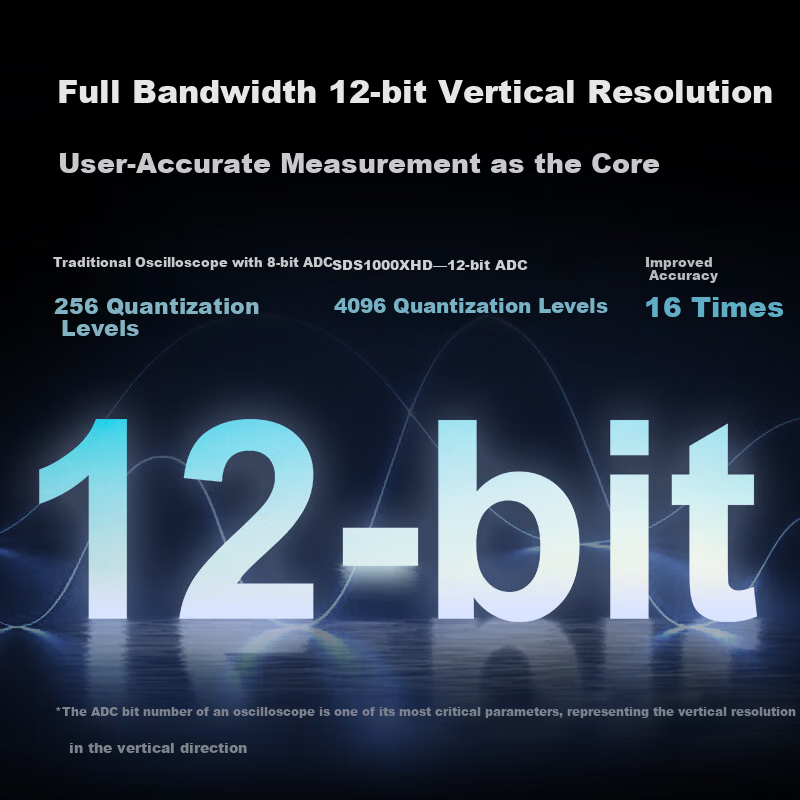

Vertical Resolution: 12-bit ADC with effective number of bits (ENOB) approx. 8.4 bits

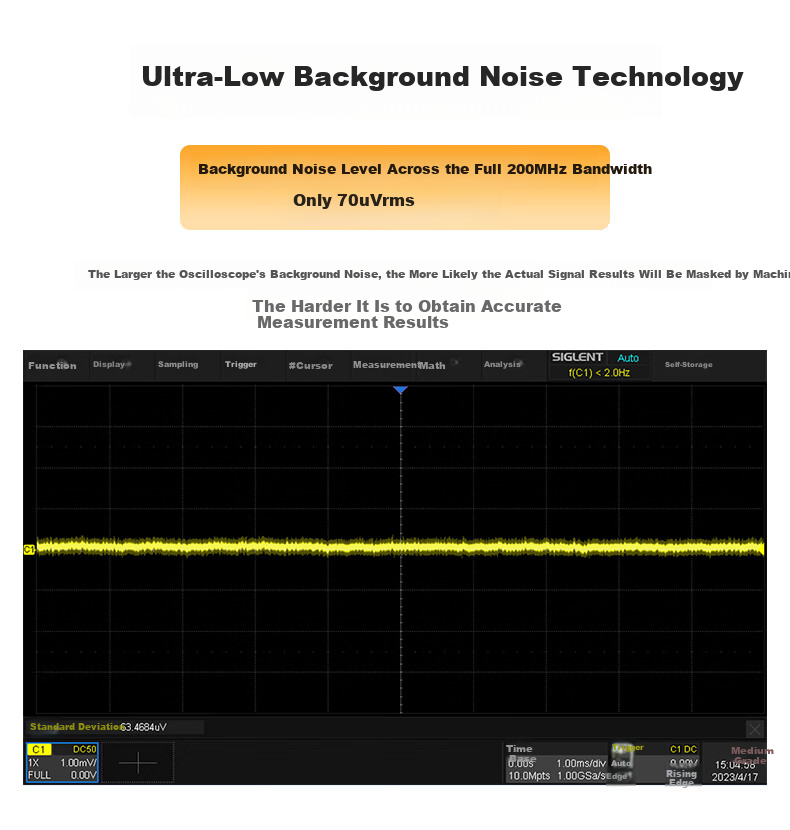

Noise Floor: Ultra-low noise of 70 µVrms at full 200 MHz bandwidth
DC Gain Accuracy: ±0.5% typical
Input Coupling: DC, AC, GND

Input Impedance

1 MΩ ±2% || 17 pF ±2 pF
50 Ω ±1%

Input Voltage Range

Item	Detail
1 MΩ	≤ 400 Vpk (DC + AC, DC to 10 kHz)
50 Ω	≤ 5 Vrms

Rise Time (typical)

Item	Detail
70 MHz models	5.0 ns
100 MHz models	3.5 ns
200 MHz models	1.8 ns

Bandwidth Flatness

±1 dB at DC to 10% rated bandwidth
±2 dB at 10% to 50% rated bandwidth
+2 dB / -3 dB at 50% to 100% rated bandwidth

Additional details

Channel Isolation: > 40 dB from DC to max bandwidth
Probe Attenuation Settings: 1X, 10X, 100X, custom

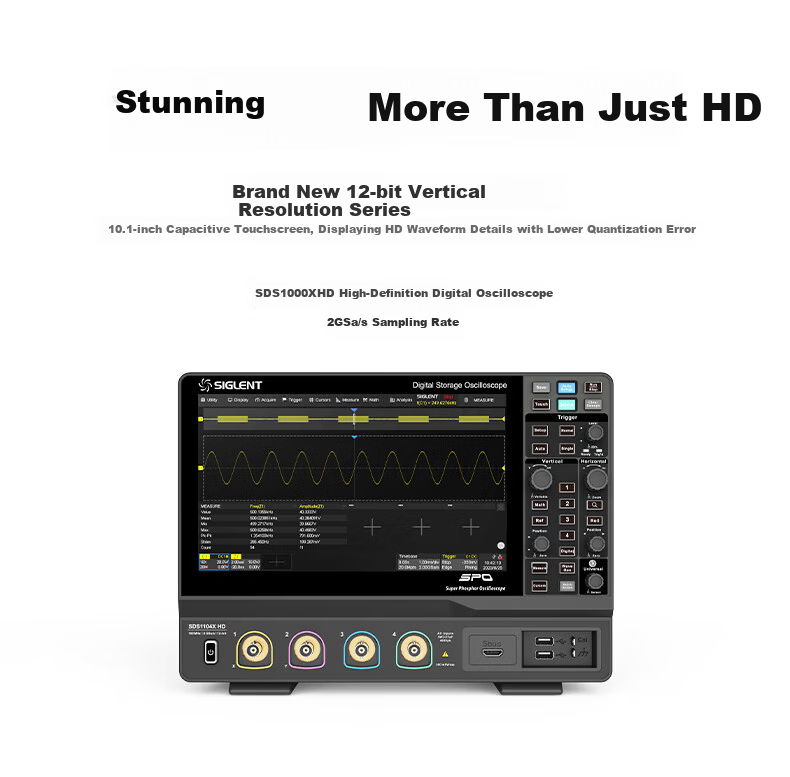

10.1-inch capacitive touchscreen with high-definition waveform display

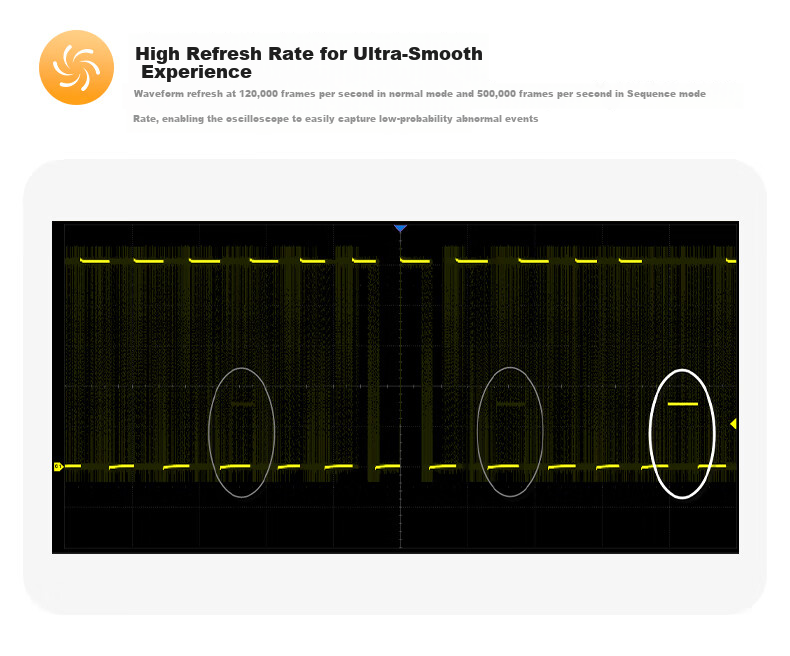

High refresh rate for smooth waveform rendering

Item	Detail
Normal mode	120,000 frames per second
Sequence mode	500,000 frames per second

Supports multi-touch gestures and intuitive controls

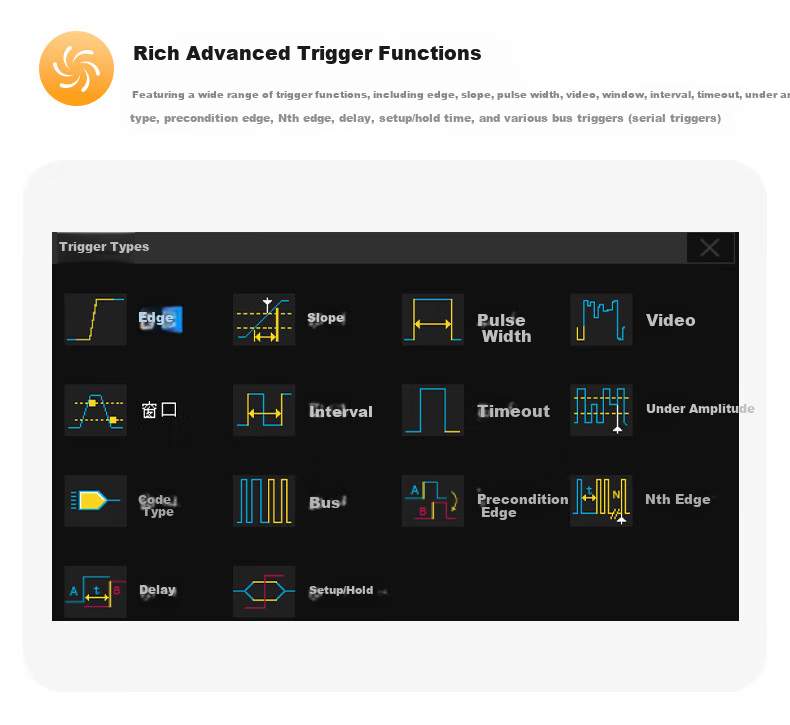

Rich trigger types including edge, slope, pulse width, video, window, interval, timeout, dropout, pattern, serial bus triggers (I2C, SPI, UART, CAN, LIN, CANFD decode, FlexRay decode)

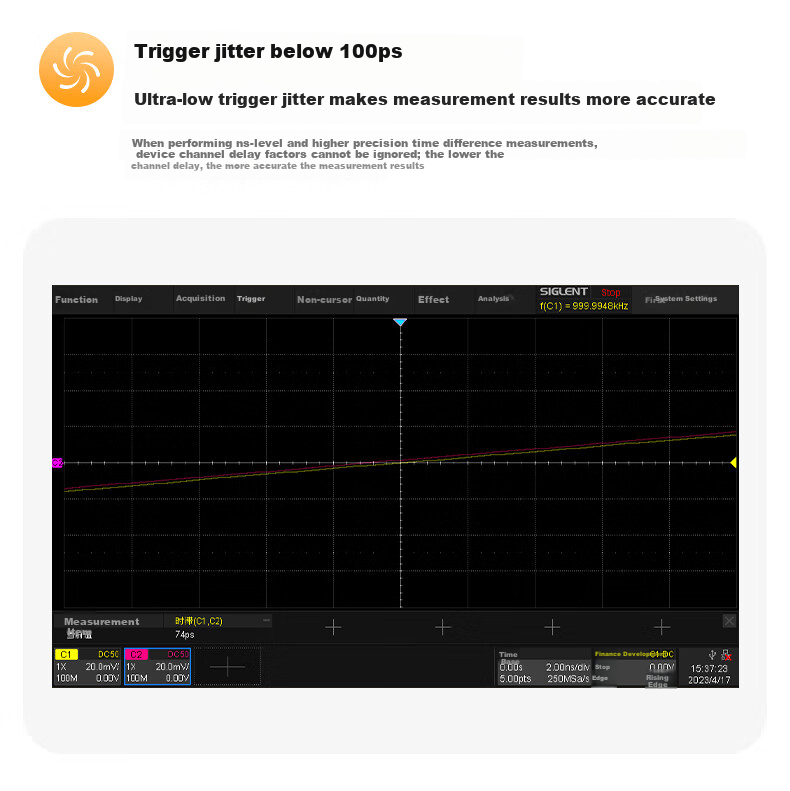

Low trigger jitter below 100 ps for precise timing measurements

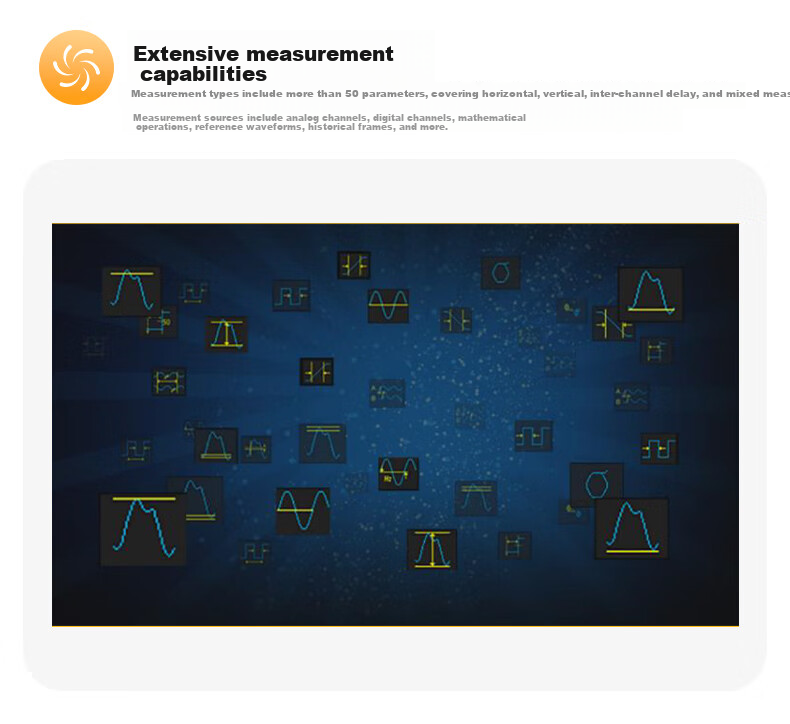

Over 50 measurement parameters including horizontal, vertical, inter-channel delay, and mixed measurements

Supports histogram, trend, and track statistics

Additional details

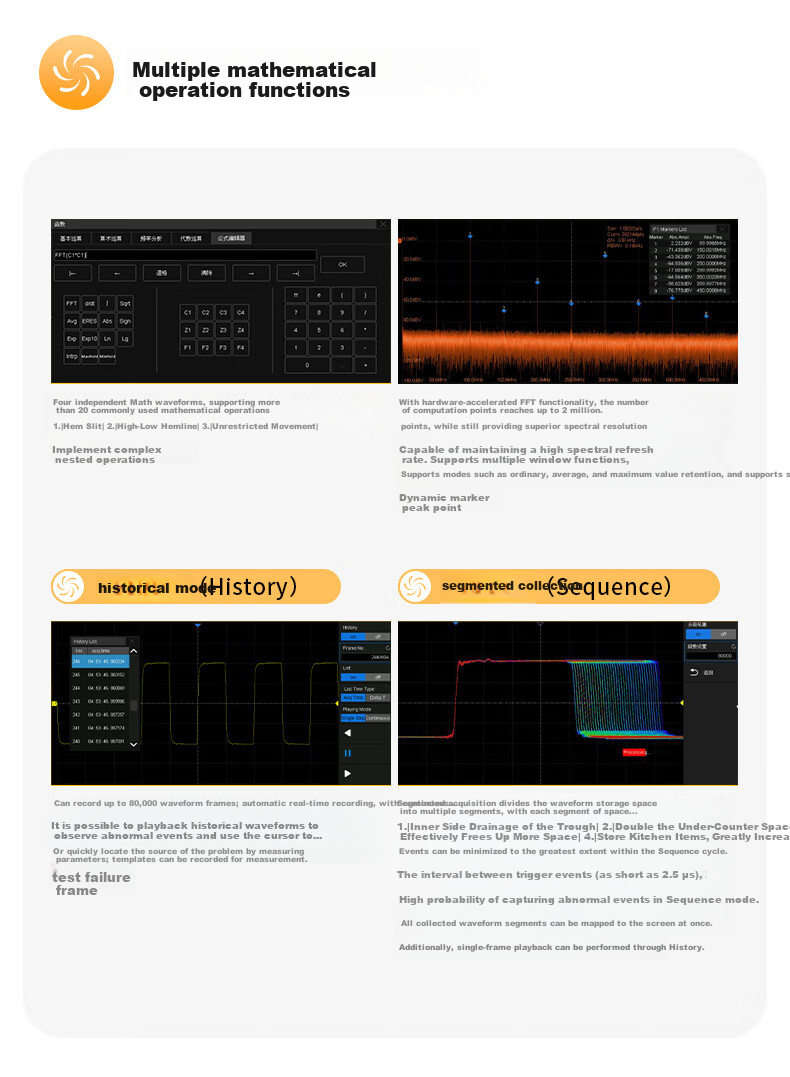

Math functions: 4 independent math waveforms, 20+ common math operations, hardware-accelerated FFT with up to 2 M points, formula editor for custom expressions

Supports multiple window functions and modes (normal, average, peak hold)

History and Sequence modes allow recording and playback of up to 80,000 waveform frames for detailed analysis of rare events

Additional details

Digital Channels: 16 channels, 1 GSa/s sampling rate, 10 Mpts memory depth per channel
Arbitrary Waveform Generator (AWG): Single channel, max output frequency 25 MHz, 125 MSa/s sampling rate, 16k points waveform length, isolated output

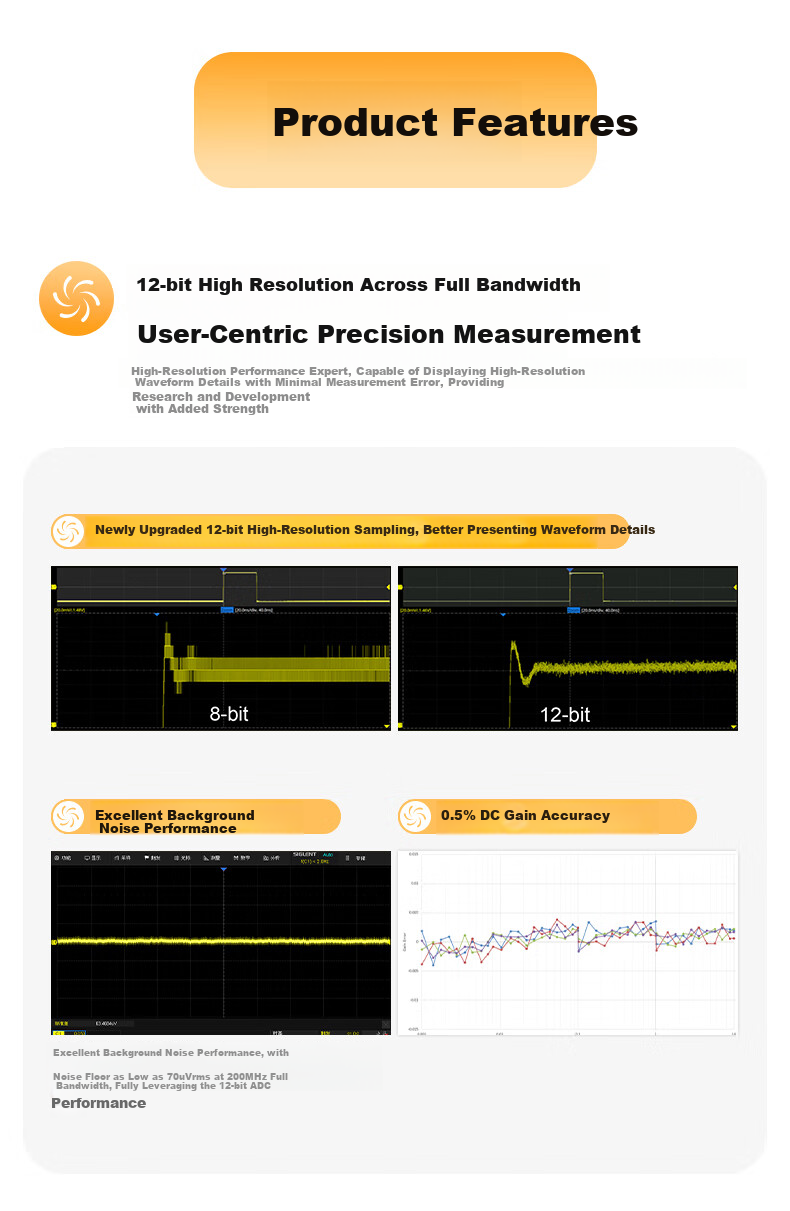

12-bit high vertical resolution across full bandwidth for precise waveform detail and reduced measurement error

Ultra-low noise floor enables accurate signal acquisition without masking by instrument noise

High memory depth and sampling rate allow capturing long-duration signals with fine detail

Advanced triggering and analysis tools facilitate capturing and diagnosing complex signals and rare anomalies

Additional details

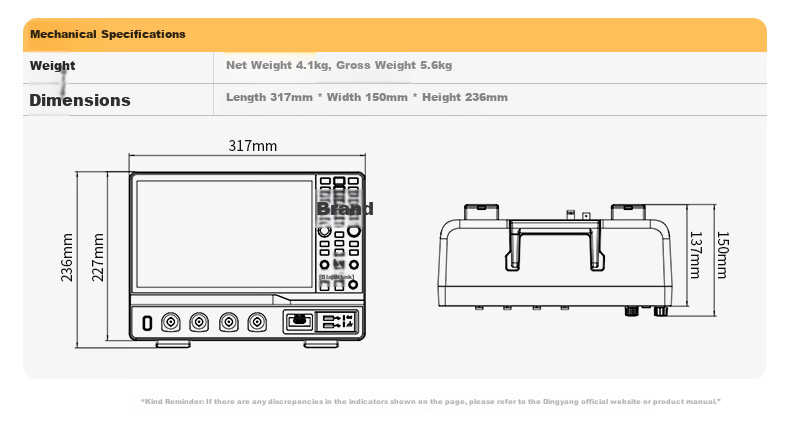

Dimensions (W x H x D): 317 mm x 236 mm x 150 mm
Net Weight: 4.1 kg
Gross Weight: 5.6 kg

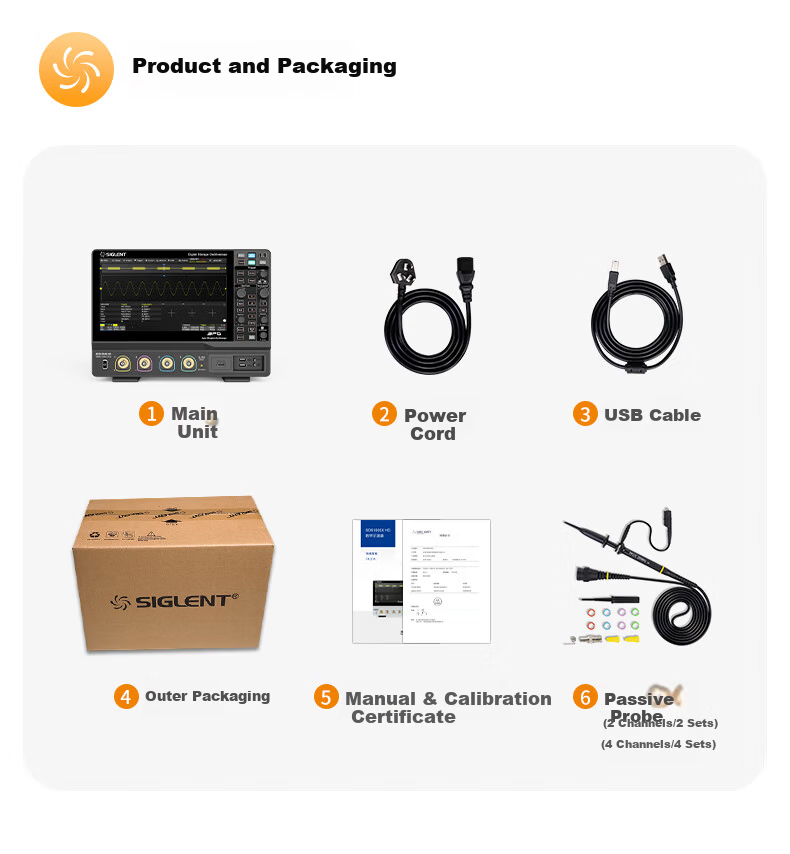

Passive probes (2 probes for 2-channel models, 4 probes for 4-channel models)

User manual and calibration certificate

Specifications are subject to change. For the most accurate and up-to-date information, please refer to the official SIGLENT website or product manual.

Additional details

Stock Code: 688112

Experience outstanding performance with SIGLENT SDS1000XHD series digital oscilloscopes — precision measurement tools designed to empower your research and development.
