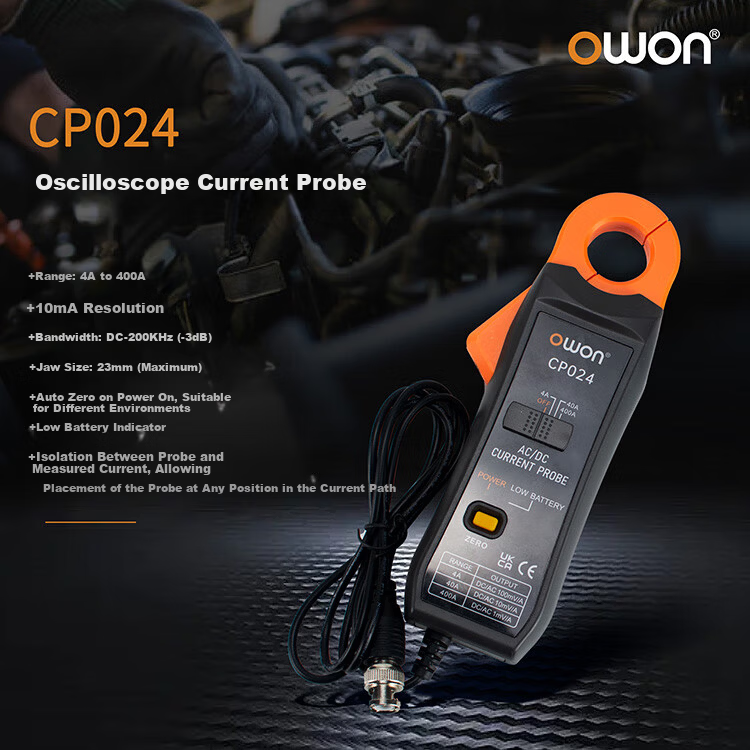

Owon CP024 Oscilloscope Probe AC/DC Current Clamp (1mA~400A, DC~200KHz)

owon•Oscilloscope

Owon CP024 Oscilloscope Probe AC/DC Current Clamp (1mA~400A, DC~200KHz)

CN¥1,064.00

SKU: 100061373039

Status:In Stock (3)

ID: 100061373039

Weight: 470.00 g

Dims:265x165x90 mm

Variants / Sale Attributes

Model: CP024

Package Contents

Host*1 Battery*1 Quick Guide*1 Soft Case*1

Product Description

Product Specifications

Overview

Brand: Owon
Model: CP024
Product Type: Oscilloscope Current Probe
Measurement Range: 4A to 400A
Resolution: 10mA
Bandwidth: DC to 200kHz (-3dB)
Jaw Size: 23 mm (maximum)
Auto Zero: Automatic zeroing on power-on for different environments

Similar Products

In Stock

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

FNIRSIOscilloscope

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

digital oscilloscope

CN¥549.00

In Stock

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TEKTRONIXOscilloscope

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TBS1102X (Dual Channel 100MHz)

CN¥4,099.00

In Stock

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UNI-TOscilloscope

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UT-V23

CN¥179.90

Isolation

Probe and measured current are electrically isolated

Battery Indicator

Low battery display

Compliance

CE Certified

Power Supply

9V 6LR61 battery

Power Consumption

180mW (typical)

Dimensions

180 x 68 x 32 mm

Weight

250 g

Operating Temperature and Humidity

0°C to 50°C, relative humidity below 70%

Storage Temperature and Humidity

-10°C to 60°C, relative humidity below 70%

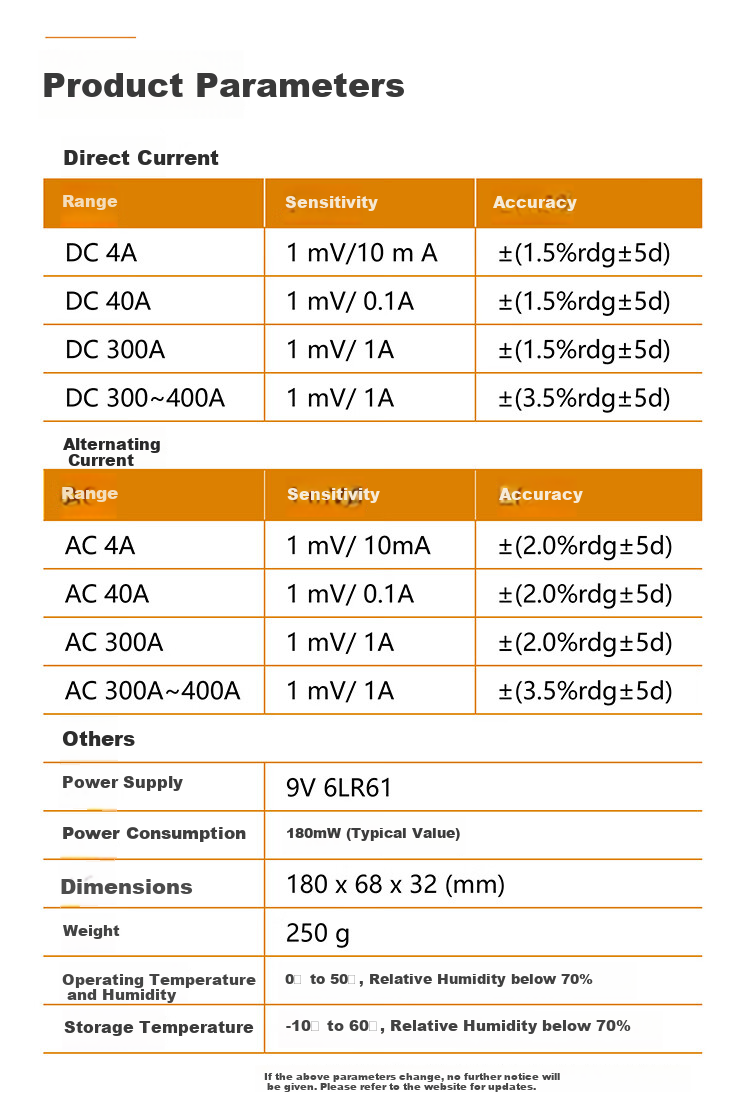

Range

4A, Sensitivity: 1 mV/10mA, Accuracy: ±(1.5% reading + 5 digits)

Range

40A, Sensitivity: 1 mV/0.1A, Accuracy: ±(1.5% reading + 5 digits)

Range

300A, Sensitivity: 1 mV/1A, Accuracy: ±(1.5% reading + 5 digits)

Range

300-400A, Sensitivity: 1 mV/1A, Accuracy: ±(3.5% reading + 5 digits)

Range

4A, Sensitivity: 1 mV/10mA, Accuracy: ±(2.0% reading + 5 digits)

Range

40A, Sensitivity: 1 mV/0.1A, Accuracy: ±(2.0% reading + 5 digits)

Range

300A, Sensitivity: 1 mV/1A, Accuracy: ±(2.0% reading + 5 digits)

Range

300-400A, Sensitivity: 1 mV/1A, Accuracy: ±(3.5% reading + 5 digits)

The probe can be placed at any position along the current path.

Specifications are subject to change without prior notice; please refer to the official website for the latest updates.
