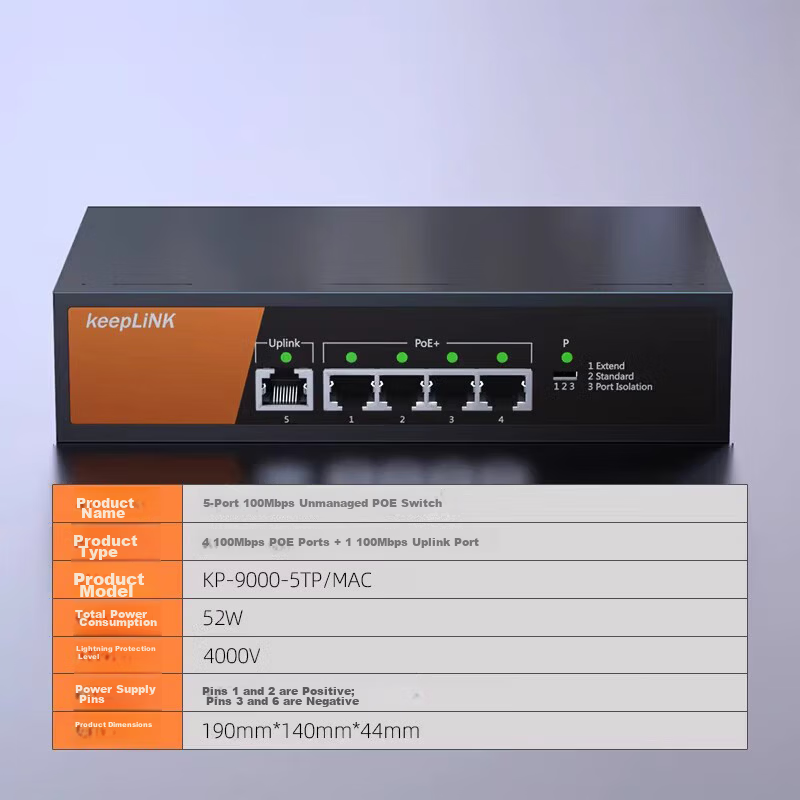

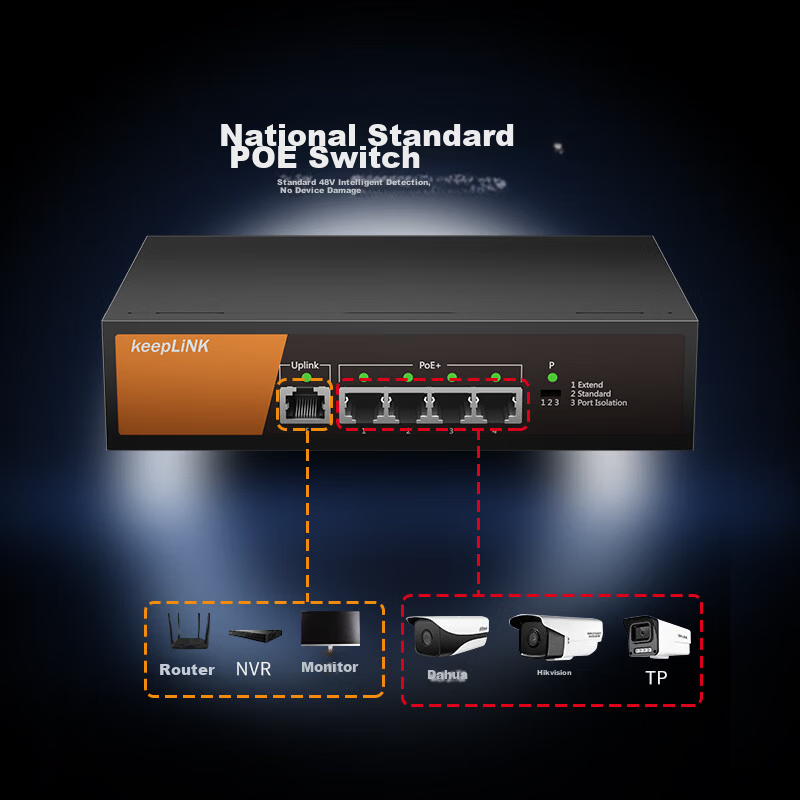

KeepLINK KP-9000-5TP-MAC 5-Port 100Mbps 4-Port PoE Power Supply Switch Dual Uplink Intelligent Monitoring Splitter Enterprise-Level Separator
Thumbnail 1
Thumbnail 2
Thumbnail 3
Thumbnail 4
Thumbnail 5
keepLINK•Switch

KeepLINK KP-9000-5TP-MAC 5-Port 100Mbps 4-Port PoE Power Supply Switch Dual Uplink Intelligent Monitoring Splitter Enterprise-Level Separator

CNÂ¥59.00
SKU: 100062106640
Status:In Stock (9)
ID: 100062106640
Weight: 871.00 g
Dims:223x217x55 mm

Specifications

Network Management Type
Non-managed
Set
Single product
Downlink Port Rate
100Mbps
Power over Ethernet (PoE)
POE power supply
Uplink port rate
100Mbps
Port Type
Electrical port
Suitable Scenarios
Access switch
Cooling method
Natural heat dissipation

Variants / Sale Attributes

Color: Enhanced | 5 Gigabit | 4 PoE: 52W

Package Contents

Switch X1, Certificate X1, Manual X1

Product Description

Product Specifications

Overview

Brand
keepLINK
Model
KP-9000-5TP-MAC
Product Type
5-Port 10/100Base-TX PoE Switch

Standard PoE support (IEEE 802.3af/at)

Additional details

Single port power output
30W

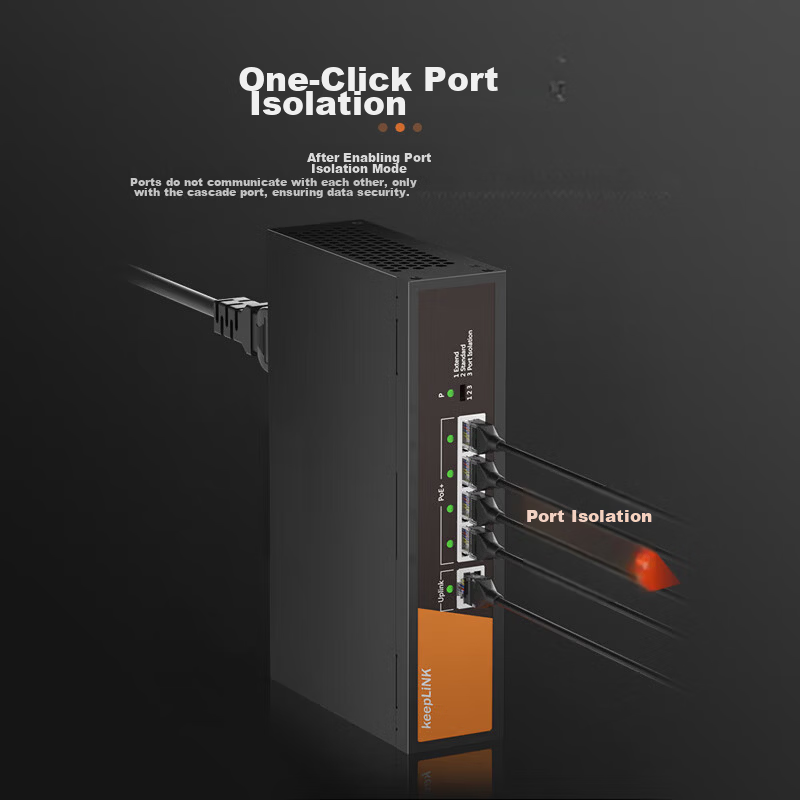

Port isolation with one-key enable function
when enabled, ports 1-4 cannot communicate with each other but only with the uplink port, ensuring data security

Intelligent power supply protection with built-in circuit to automatically fuse ports during short circuit or overload, protecting the switch and connected devices; power resumes after fault clearance

Similar Products

In Stock
Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch
Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CNÂ¥580.50

View
In Stock
Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10
SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CNÂ¥179.00

View
Cloud-managed switch
Cloud management not supported
Downlink Interface Type
Ethernet Switch
Number of Ports
5 ports

Plug and play, no configuration required

Auto MDI/MDI-X support on all ports

MAC address auto-learning and updating

Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control

Strong chipset (Realtek)

4000V surge protection on ports

Extended transmission distance up to 250 meters on twisted pair cable (mode selectable)

Additional details

Supports network topologies
star, bus, tree; ring topology not supported

Fanless design for natural heat dissipation

5 x 10/100Base-TX PoE ports (ports 1-4 support PoE)

Additional details

Power input
AC 220V triangular socket

P (PoE)

Active

Twisted pair cable

Additional details

Standard mode
0-100 meters
Extend mode
up to 250 meters
Input voltage
AC 100~240V, 50-60Hz
Total power consumption
≤52W
Mainboard power consumption
<2W
PoE power pins
1,2+ / 3,6-
PoE supported ports
1-4

Extend mode for 250m long-distance transmission

Port isolation supported on ports 1-4

Additional details

Switching capacity
1 Gbps
Packet forwarding rate
0.744 Mpps
MAC address table size
2K entries
Packet buffer size
768 Kbits
Jumbo frame support
2K bytes
Forwarding delay
<5 microseconds

Polarity reversal support

Storm control support

Additional details

Operating temperature
-10°C to +50°C
Storage/transport temperature
-40°C to +70°C
Relative humidity
10% to 90% non-condensing
Dimensions (L x W x H)
190 x 140 x 44 mm
Weight
0.6 kg
Installation
Desktop
MTBF
100,000 hours
Network port surge protection
IEC61000-4-5 Level 4 (4/2KV, 10/700us)
Voltage dip immunity
IEC61000-4-11 Level 3 (10V)
Electrostatic discharge immunity
IEC61000-4-2 Level 4 (6K/8K)
Free fall resistance
0.5 m

Power cord

User manual

Certificate of conformity
