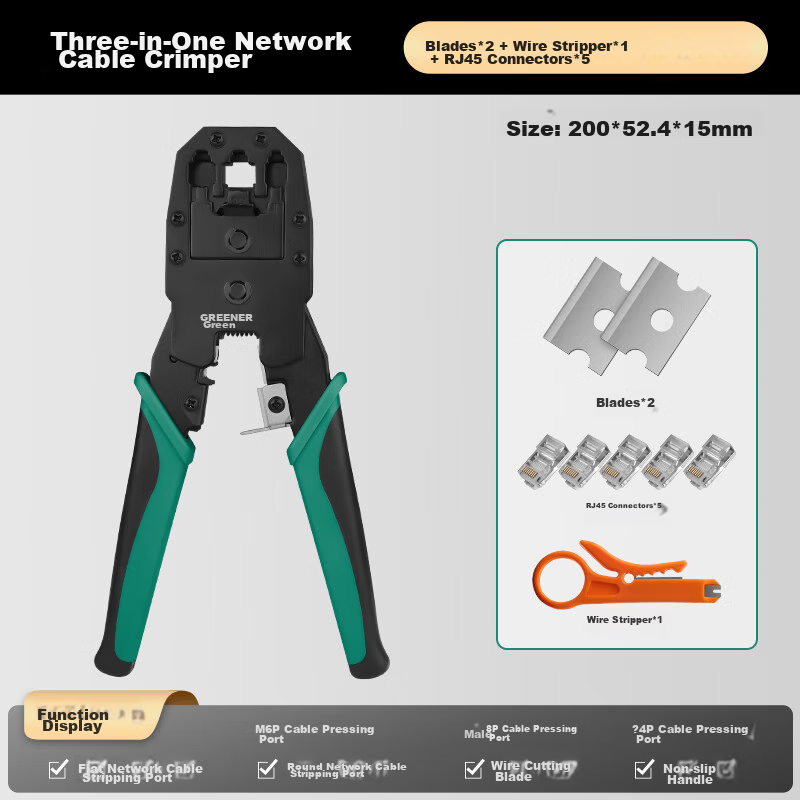

GREENER Network Cable Crimping Tool Set with RJ45 Connector Crimper, Wire Stripper, and Cutter, 9-Piece Home Use Multi-Function Kit

Drop-resistant, engineered for impact resistance and deformation prevention

1. Laser cutting of raw materials

2. Metal stamping

3. Thread tapping on plier head

4. Quenching in active carburizing medium at 900-950°C to increase hardness and strength

5. Phosphating and blackening to form an anti-rust oxide film on the surface

Precision craftsmanship with attention to detail from raw material to finished product

Hardened stainless steel blades with high wear resistance and anti-rolling edges

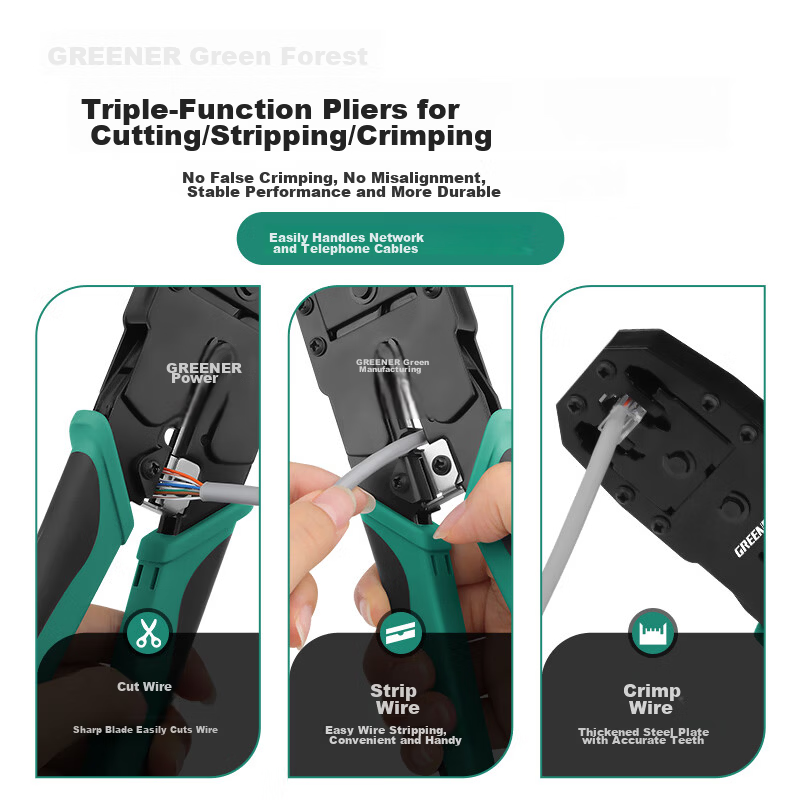

Designed for quick and accurate cable preparation and connector crimping

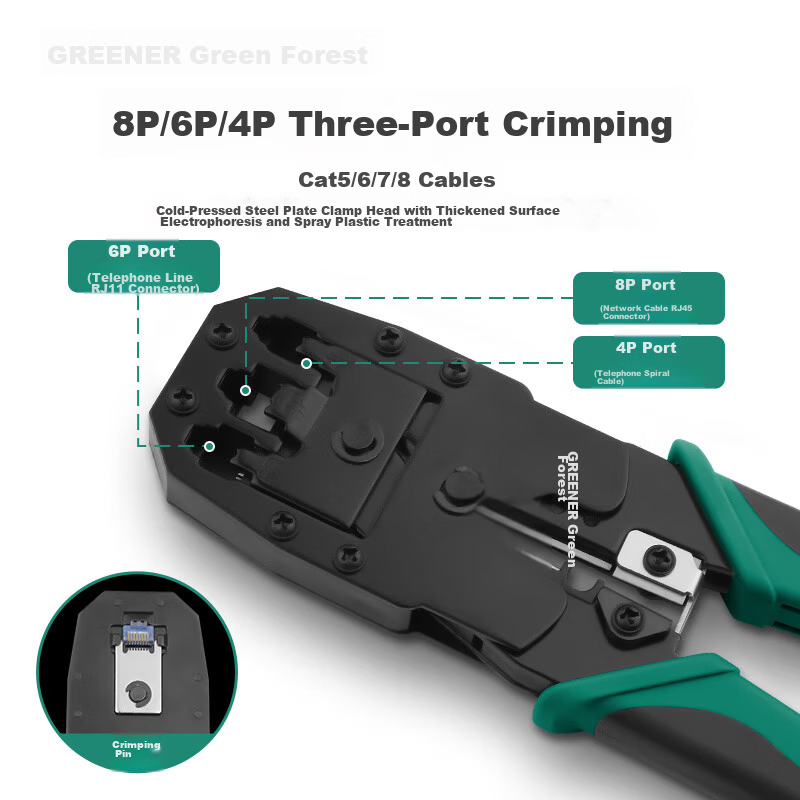

Supports T568A and T568B wiring standards for network cables

Suitable for data centers, server rooms, engineering wiring, and home network installations

Insert cable into stripping port to remove outer jacket without damaging inner wires

Arrange wires according to T568A/B standard and trim to appropriate length (~5mm)

Insert wires into connector and align with crimping slot

Crimp connector firmly with the pliers to ensure secure connection

Dimensions measured manually; slight deviations may occur.

All images, data, and specifications are for reference only. GREENER reserves the right to final interpretation.
