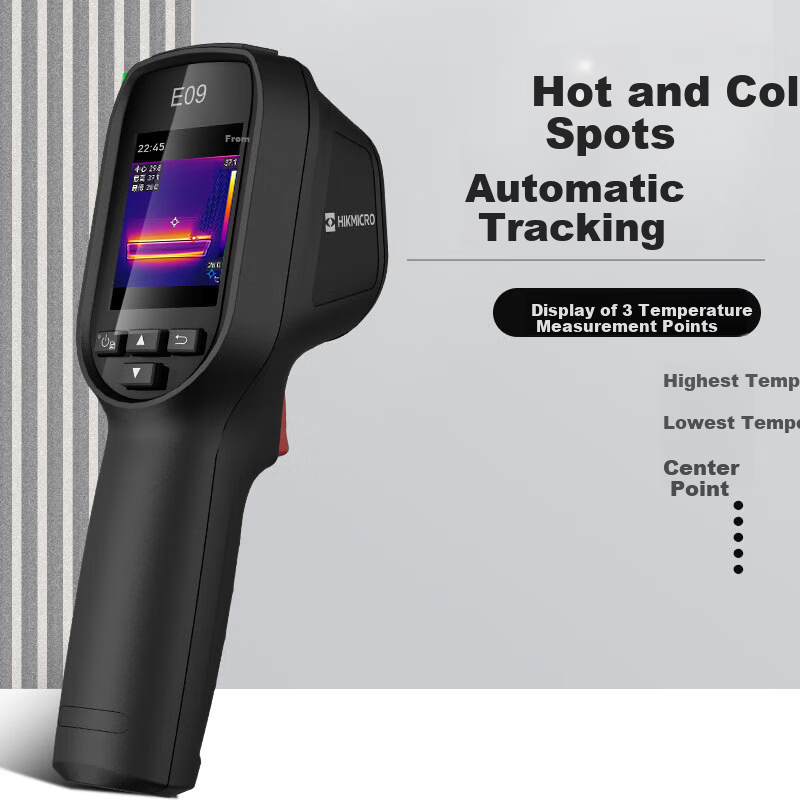

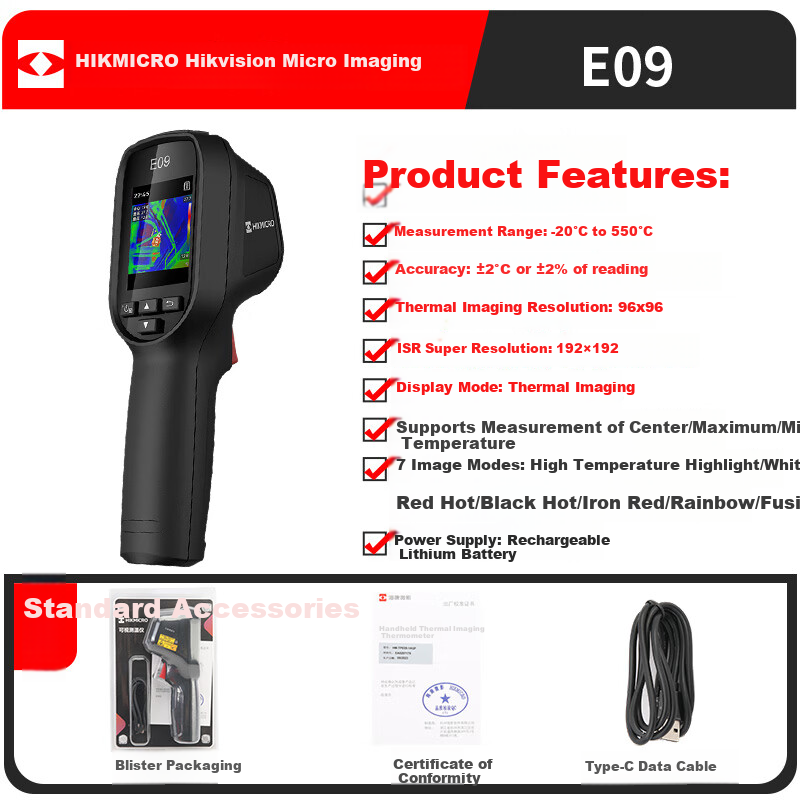

HIKMICRO Thermal Imager High-Definition Infrared Thermal Camera Temperature Measurement Night Vision Floor Heating Inspection Leak Detector E09

HIKMICRO•Infrared thermal imager

HIKMICRO Thermal Imager High-Definition Infrared Thermal Camera Temperature Measurement Night Vision Floor Heating Inspection Leak Detector E09

CN¥949.00

SKU: 100067351698

Status:In Stock (5)

ID: 100067351698

Weight: 855.00 g

Dims:350x225x91 mm

Specifications

Category: Handheld
work shift: Long wave
Suitable Scenarios: leak test, Power inspection, Outdoor, military, scientific research, firefighting, Industry, repair

Variants / Sale Attributes

Model: [Hot Selling Upgraded Version] E09 (Hot Image 240*240)

Package Contents

instrument, charger, warranty, manual

Product Description

Product Specifications

Overview

Brand: HIKMICRO
Model: E09
Product Type: High-precision Infrared Thermal Imager

Floor heating leak detection

Electrical power inspection and maintenance

HVAC leak detection

Circuit board repair

Fire prevention

Automotive repair

Mechanical maintenance

Building industry inspections

Additional details

ISR Super Resolution Technology: Enhances image resolution from 96×96 (9,216 pixels) to 192×192 (36,864 pixels) for clearer thermal images

Similar Products

In Stock

HIKMICRO Thermal Imaging Camera, High-Definition Infrared Thermal Imager, Industrial Temperature Measurement, Power Inspection, Underfloor Heating Leak Detection Device H13PRO

HIKMICROInfrared thermal imager

HIKMICRO Thermal Imaging Camera, High-Definition Infrared Thermal Imager, Industrial Temperature Measurement, Power Inspection, Underfloor Heating Leak Detection Device H13PRO

[Touchscreen Model] H13Pro (Pixel 192*144/digital Zoom/photography And Video Recording)

CN¥4,699.00

In Stock

FLUKE TC01A Smartphone Thermal Imager, Thermal Imaging Night Vision Device, Infrared Thermometer, High-Definition Thermal Imager

FLUKEInfrared thermal imager

FLUKE TC01A Smartphone Thermal Imager, Thermal Imaging Night Vision Device, Infrared Thermometer, High-Definition Thermal Imager

TC01A - Supports Android System

CN¥2,536.00

Thermal Sensor

Uncooled vanadium oxide microbolometer

Thermal Sensitivity (NETD)

<50mK (@25°C, F#=1.0)

Frame Rate

25 Hz

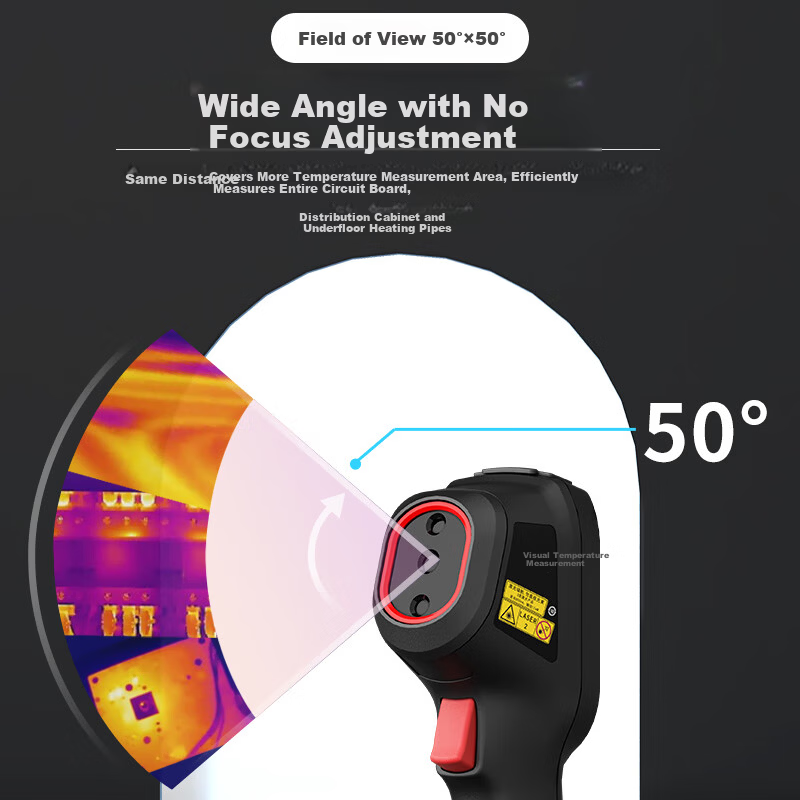

Field of View (FOV)

50° × 50°

Minimum Focus Distance

0.1 m

Spatial Resolution (IFOV)

8.89 mrad

Thermal Measurement Range

Up to 550°C

Measurement Accuracy

±2°C or ±2% of reading (whichever is greater)

Multi-point Temperature Measurement

Laser Point Positioning for precise targeting

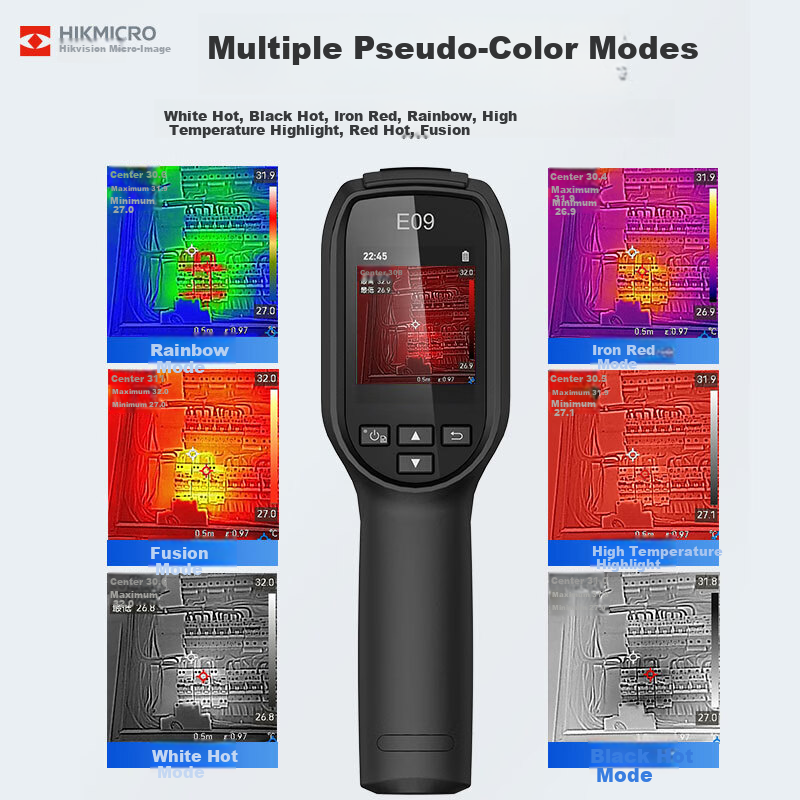

Multiple Pseudocolor Palettes for detailed thermal analysis

Audible and Visual Over-temperature Alarm with customizable threshold

Additional details

Intelligent Screencasting: Supports PC screen mirroring via data cable connection
Data Storage: 4GB built-in eMMC, stores JPEG images with embedded temperature data
Battery: Rechargeable lithium battery with direct charging via Type-C port
Battery Life: >8 hours at 25°C
Charging Time: <3 hours at 25°C
Visible Light Camera Resolution: 640×480
Image Output Resolution: 240×240
Focus: Fixed focus (no adjustment required)
Hardware Interface: USB Type-C
Software: HIKMICRO PC analysis software for image import, point/line/area marking, and automatic report generation
Calibration: Factory calibrated; third-party calibration certificates available separately (not included by default)
Length: 196 mm
Width: 59 mm
Height: 117 mm

Handheld thermal imager E09

Data cable

Blister packaging

Factory certificate

Designed for efficient and stable use with a wide temperature measurement area

Supports quick identification of problem areas in various industrial and residential scenarios

Additional details

Recommended pseudocolor palette for floor heating detection: Iron Rainbow
Floor heating detection temperature range: 25–30°C for optimal comfort and heating effect
System preheating time recommended: 15–30 minutes before inspection to ensure clear temperature differences
