±3%RH (at 25°C, 20%RH to 80%RH), ±5%RH (other conditions)
Temperature
0.1°C/°F
Humidity
0.1%RH
Maximum data points
100,000
Recording interval
Adjustable from 10 seconds to 24 hours
Recording modes
Storage (≥30 min interval), Transport (≥5 min interval), Alarm (≤2 min interval)
Supports shadow data for passive recording to prevent data loss
Digital temperature and humidity sensor with fast response (5 seconds refresh rate)
High precision ±0.3°C, exceeding GSP requirements
Special sensor design for pharmaceutical refrigerators with magnetic attachment for easy installation

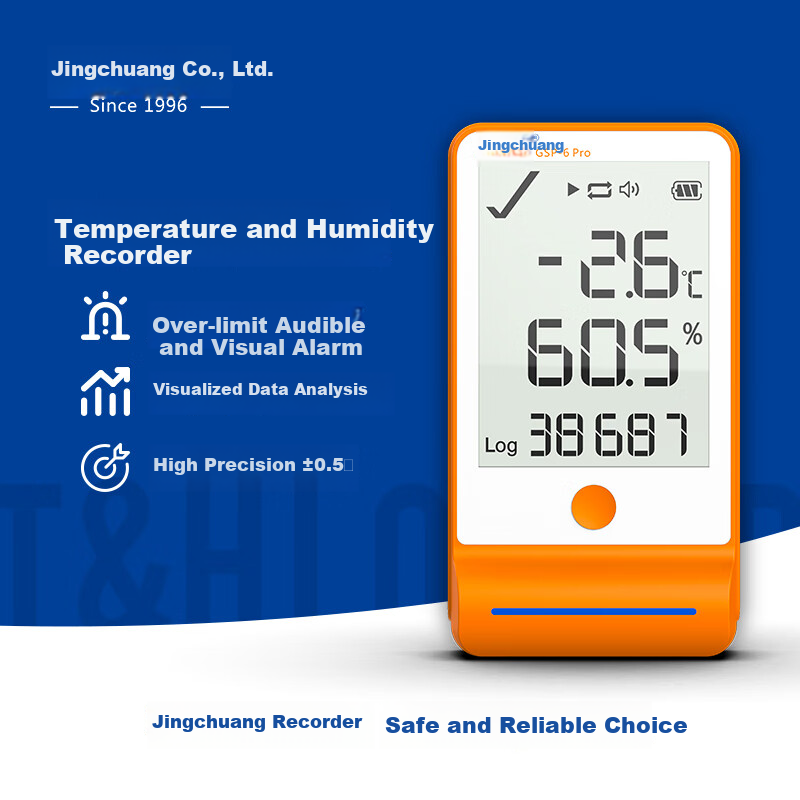

3.3-inch LCD large screen showing temperature and humidity simultaneously
Clear and easy to read from a distance
Local audible and visual alarms for temperature and humidity excursions
Bluetooth upgraded for fast configuration and data reading
USB interface for data download and automatic upload to PC
Compatible with ElitechLog software for macOS and Windows

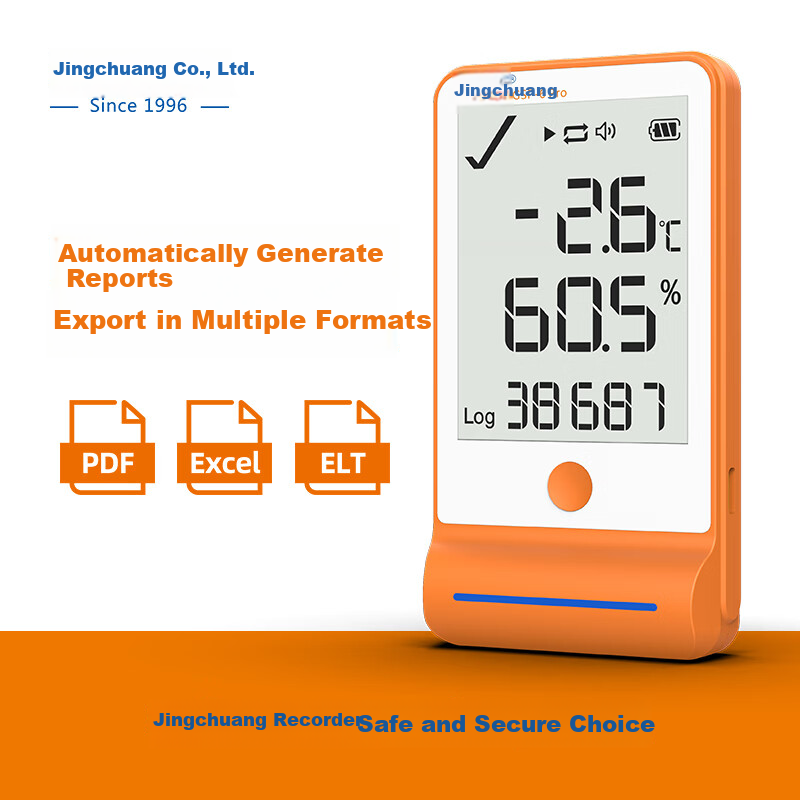

Supports export of reports in PDF, Excel, TXT, ELT formats
On-site Bluetooth printing capability
Powered by 1.5V AA battery or USB direct supply
Battery life up to 1 year under normal conditions with 15-minute recording interval and alarm off
Additional details
Dimensions
118.8 x 64.6 x 19.6 mm
Weight
130 g
Built-in strong magnet and anti-slip soft rubber on back for stable attachment to equipment surfaces
Additional details
Temperature
-30°C to +70°C (LCD refresh may slow at low temperatures but recovers)
Suitable for cold chain environments including vaccine storage and transport
MKT (Mean Kinetic Temperature) algorithm for accurate temperature representation despite transient fluctuations caused by door openings or defrost cycles
Automatic shortening of recording interval upon alarm condition to meet GSP standards
Large data storage capacity allowing continuous recording for up to 694 days at 5-minute intervals
High stability and low drift sensor technology
Risk mitigation by ensuring accurate and stable temperature monitoring to prevent vaccine spoilage and legal liabilities
Magnetic design for easy installation on medical refrigerators up to 2 meters tall

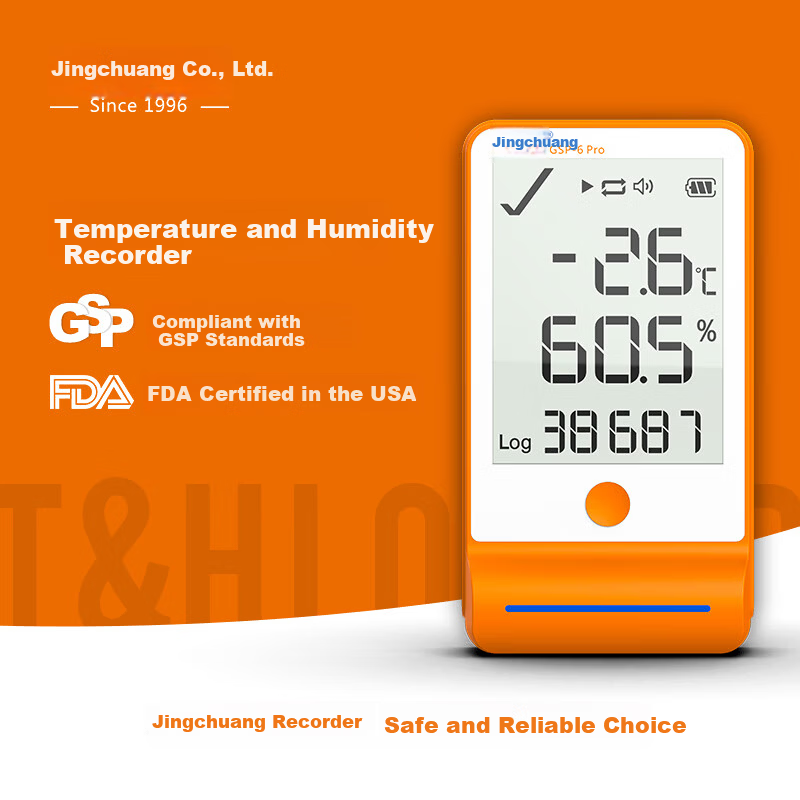

Meets GSP regulations for pharmaceutical cold chain monitoring
Supports SARS-CoV-2 vaccine storage requirements
ElitechLog software for data management and report generation
Supports quick Bluetooth parameter configuration and data export
Low temperature operation may cause slower LCD refresh, which is normal and recovers at higher temperatures
