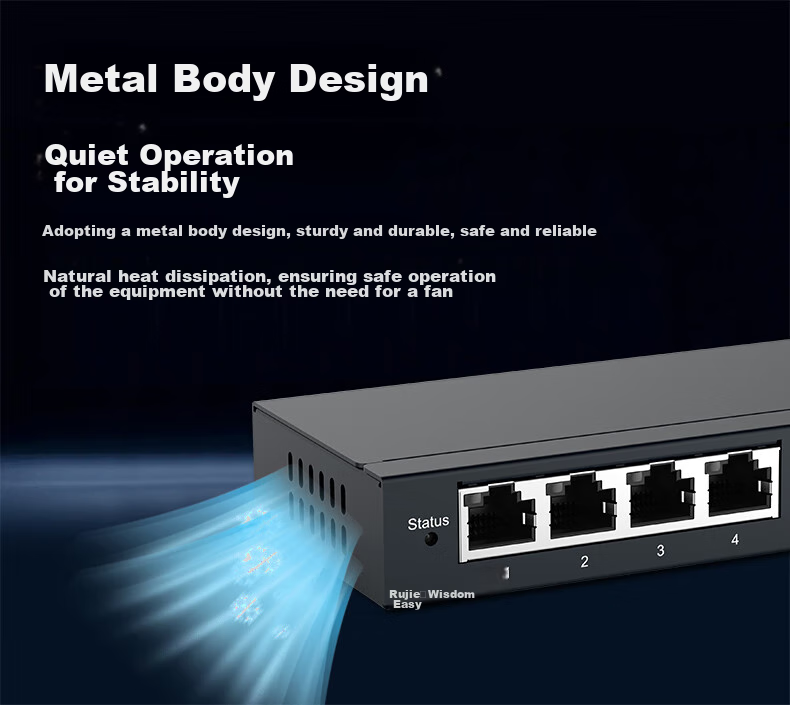

Fanless design, no fan monitoring or automatic speed adjustment
Airflow Direction
Not supported
Static MAC Address
Not supported
MAC Address Filtering
Not supported
Operating Temperature
0°C to 45°C
Storage Temperature
-40°C to 70°C
Operating Humidity
10% to 90% RH (non-condensing)
Storage Humidity
5% to 95% RH (non-condensing)
Dust and Water Protection
IP20
Power Supply
Built-in power supply
Input Voltage Range
100V-240V AC (max 264V)
Frequency
50/60Hz
Rated Current
0.6A
Maximum Power Consumption
14W
Power Cord Length
1.5 m
Power Hot-Swap
Not supported
DC Power Connector
Not available
Energy Efficient Ethernet (EEE)
Not supported
Power Surge Protection
Port surge protection common mode ±4kV; power supply surge protection common mode ±6kV, differential mode ±6kV
Dimensions (W x D x H)
280 mm x 126 mm x 44 mm
Weight
≤1.72 kg (including packaging)
Installation Methods
Desktop, wall mount, rack mount
System Indicator LEDs
Supported
Power Switch
Not supported
Reset Button
Not supported
Cable Hot Plug
Supported
Fixed Management Port
Not available
1. Standard Mode (switch fully left)
All ports communicate with each other; flow control enabled on all ports
2. Flow Control Off Mode (switch middle)
All ports communicate; flow control disabled on all ports
3. Port Isolation Mode (switch fully right)
Ports 1-22 cannot communicate with each other but can communicate with ports 23 and 24; ports 23 and 24 can communicate with each other; flow control enabled on all ports
VLAN Support
One-key VLAN mode switching supported
Flow Control
Supported with mode switch
Port Isolation
Supported
Distance Transmission
Up to 250 m in certain models
Safety Standard
GB4943.1-2022
Network Certification
Renwang Certification

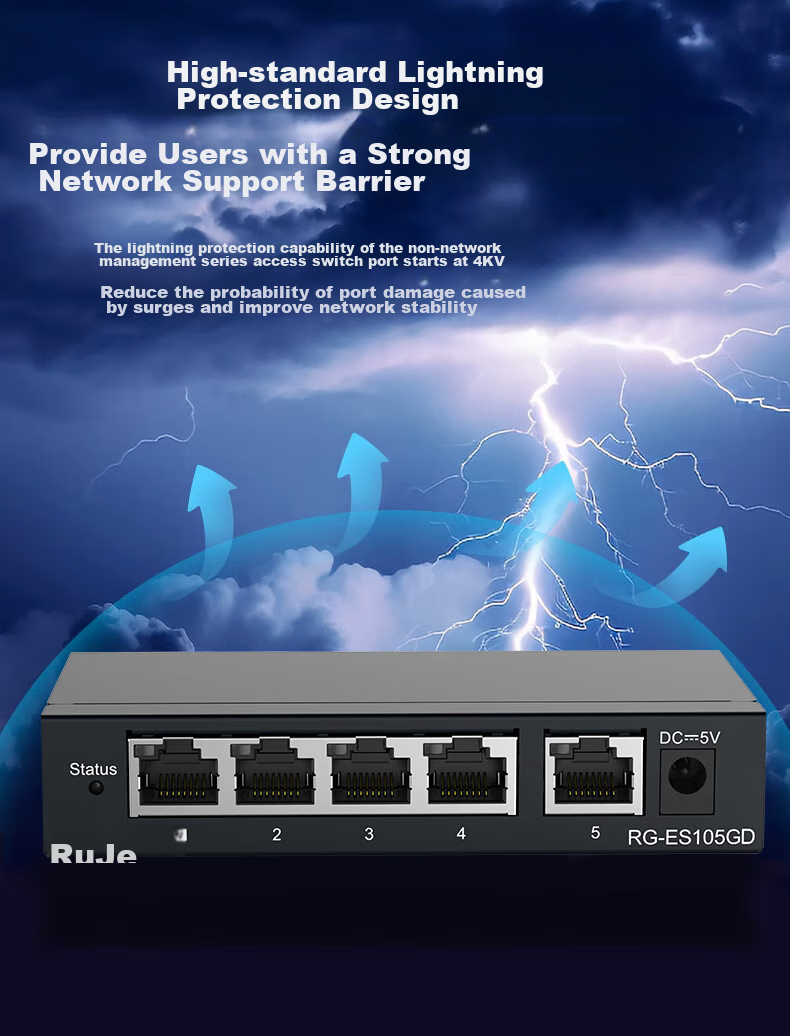

High specification 4KV port surge protection to enhance network stability and reduce damage from surges

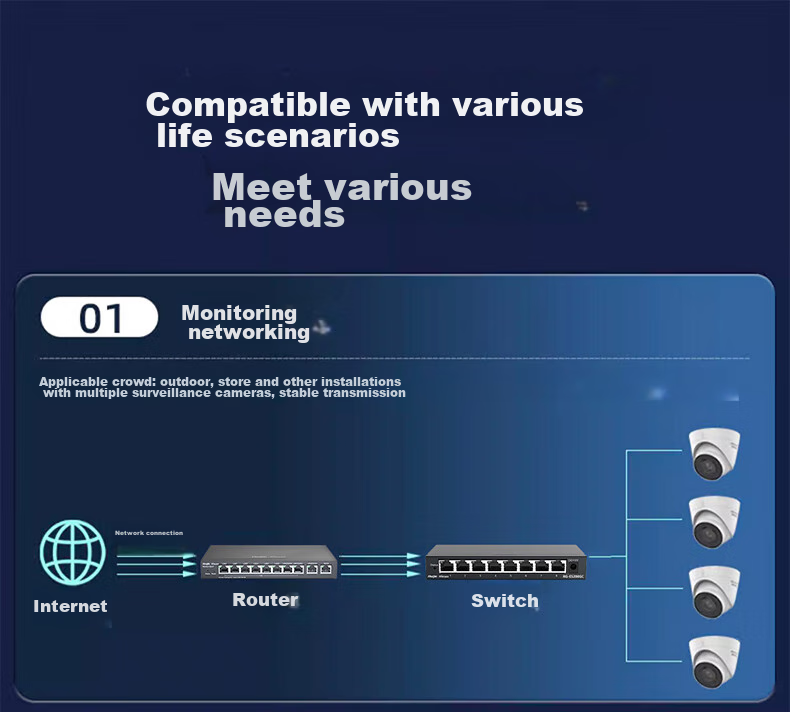

Designed to handle burst traffic in video surveillance applications to prevent video lag
User-friendly mode switch allows easy configuration without technical expertise
