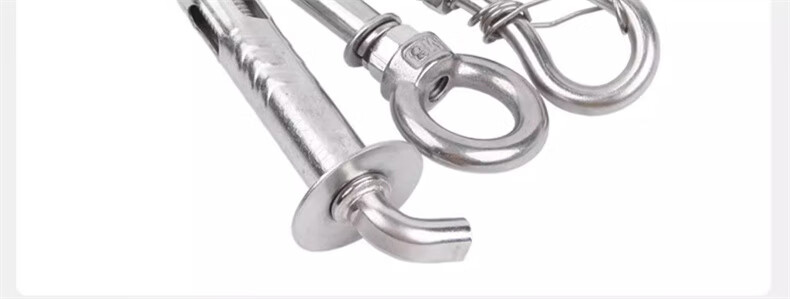

Jingkai S10265 304 Stainless Steel Expansion Hook Expansion Screw Hanging Hook Anchor Bolt

| Size | Total Length (L1) | Sleeve Length (L2) | Opening (A) | Weight (kg) | Drill Bit Size (mm) | Load Capacity (kg) | Recommended Use |

|-------|-------------------|--------------------|-------------|-------------|---------------------|--------------------|---------------------------------|

| M6 | 84 | 35 | 20 | 0.028 | 10 | 120 | Hanging lanterns, clotheslines |

| M8 | 100 | 40 | 20 | 0.055 | 12 | 170 | Hanging lanterns, clotheslines |

| M10 | 115 | 40 | 20 | 0.094 | 14 | 320 | Hanging sandbags |

| M12 | 135 | 55 | 30 | 0.172 | 16 | 510 | Heavy-duty hanging |

Load capacities are tested in concrete and are for reference only.

Measurements are manually taken in batches; slight deviations may occur. Please refer to the actual product.

1. Smooth and burr-free surface, ensuring high-quality workmanship and durability.

2. Clear and uniform threads for even force distribution and resistance to stripping.

3. Made from premium 304 stainless steel, offering corrosion resistance and long service life.

Includes various types such as small mouth hooks, water heater expansion screws, closed hooks, normal open hooks, spring hooks, and ring expansion screws, suitable for diverse installation needs.
