Ruijie 300M Elevator-Specific Bridge RG-YST230F Pair, Outdoor Security Monitoring Video Return, Factory-Installed 300-Meter Point-To Transmission, Label Fluorescent Desig

•Data communication network equipment

Ruijie 300M Elevator-Specific Bridge RG-YST230F Pair, Outdoor Security Monitoring Video Return, Factory-Installed 300-Meter Point-To Transmission, Label Fluorescent Desig

CN¥276.30

SKU: 100075899626

Status:In Stock (8)

ID: 100074386015

Weight: 700.00 g

Dims:236x190x84 mm

Specifications

Antenna: Built-in antenna
Body material: Metal
Game Acceleration: No
Cooling method: Natural heat dissipation
LAN port type: Electrical port
WAN port type: Electrical port
Wireless speed: 300M
Total carrying capacity: <30 terminals

Variants / Sale Attributes

Color: RG-YST230F Pair, Elevator Network Bridge 300 Meters

Package Contents

1 unit of RG-YST230F (recorder end) 1 unit of RG-YST230F (camera end) 2 Passive PoE combiners 1 Quick Installation Guide 4 cable ties 2 positioning stickers

Product Description

Overview

Brand: Ruijie
Model: RG-YST230F
Usage: Security monitoring, specifically for network bridge applications

Features

1 DC power port
1 100Mbps Ethernet port
RuijieReyeE for small-scale PoE applications

Applications

Similar Products

Out of Stock

MERCURYData communication network equipment

MERCURY WiFi7 Ceiling AP BE3600 High-Speed Stable MC7AP3600HP

WiFi7 | 3600M | 3600HP Series

CN¥389.00

View

In Stock

TP-LINKData communication network equipment

TP-LINK Wi-Fi 7 Wireless Panel AP BE3600 Dual Band Dual 2.5G Ports Whole Home WiFi Kit Perfect for 2000M Broadband TL-7AP3622HI-PoE

Single | Dual 2.5G | TL7AP3622HIPoE

CN¥539.00

View

Management method

App management, Web Page, Remote Management, Cloud Management

Wireless protocols

Wi-Fi 5

LAN output port

100 megabit Ethernet port

WAN port

100 megabit Ethernet port

Item	Detail
Community monitoring	RG-YST250 (for appearance and scene analysis)
Elevator and crane monitoring	RG-YST250F (for appearance and scene analysis)

Bridge Distance

Item	Detail
RG-YST230F	300 meters
RG-YST250F	500 meters

Camera Support

Stable operation with 8 million pixel cameras

Interference Resistance

Supports anti-interference mode for stable monitoring in multi-elevator environments

Indicator Lights

Fluorescent port indicators for easy installation in dim environments

Protection

Dustproof, waterproof, and high protection for outdoor use

Hardware Specifications

Item	Detail
RF Design	Dual-stream single-frequency 2x2
Frequency Band	2.4GHz
Standard	802.11b/g/n
Antenna Type	Built-in directional antenna (70° horizontal, 70° vertical)
Bridge Distance	Recommended 300 meters
Spatial Streams	2 streams
Transmission Rate	Up to 300Mbps at 2.4GHz
Transmit Power	≤100mW
Dimensions	143.5 mm (L) x 68.7 mm (W) x 42 mm (H)
Weight	0.3 kg

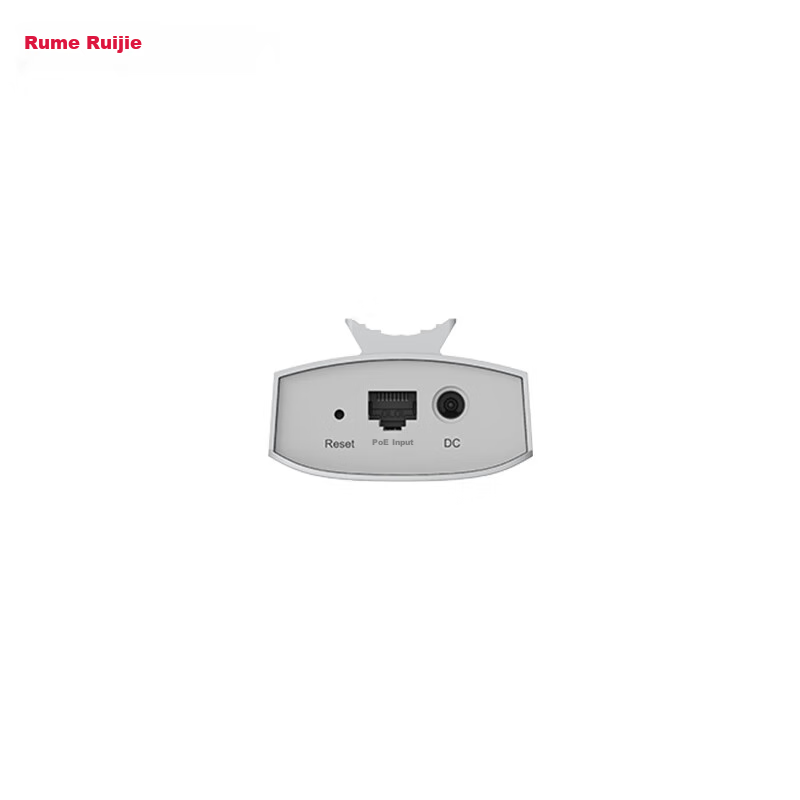

Ethernet Port	1 10/100Mbps auto-negotiation port
Power Supply	12V non-standard PoE support
Interface	1 DC port for 12V power supply
Hardware Buttons/Switches	1 reset button
Power Consumption	<5W
Operating Temperature	-10°C to 45°C
Storage Temperature	-40°C to 70°C
Operating Humidity	5% to 95% (non-condensing)
Storage Humidity	5% to 95% (non-condensing)

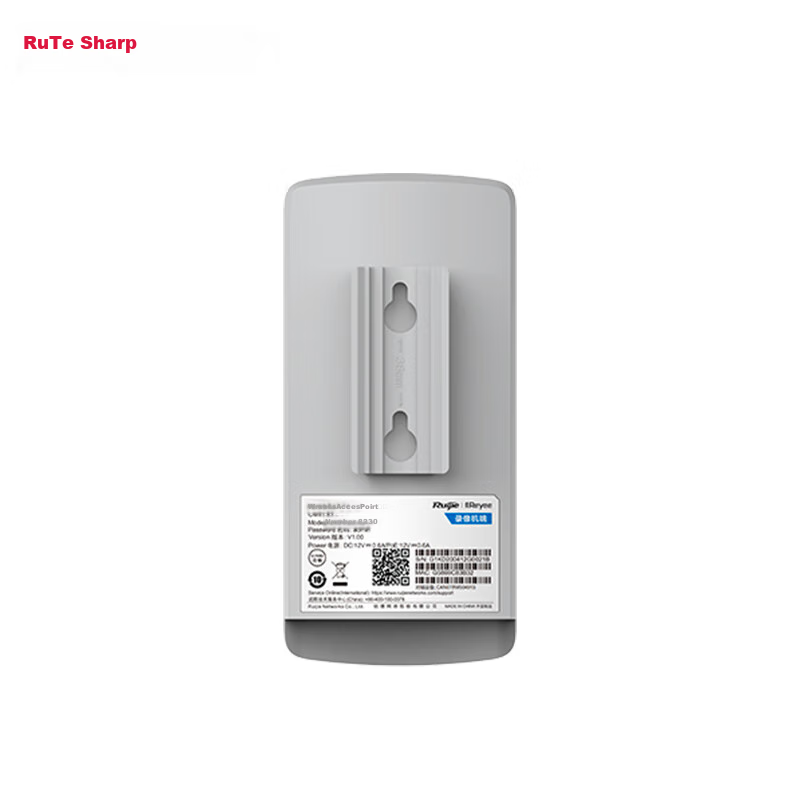

Installation	Wall mount/pole mount
Protection Level	IP41
Lightning Protection Level	Common mode 4KV, differential mode 2KV
