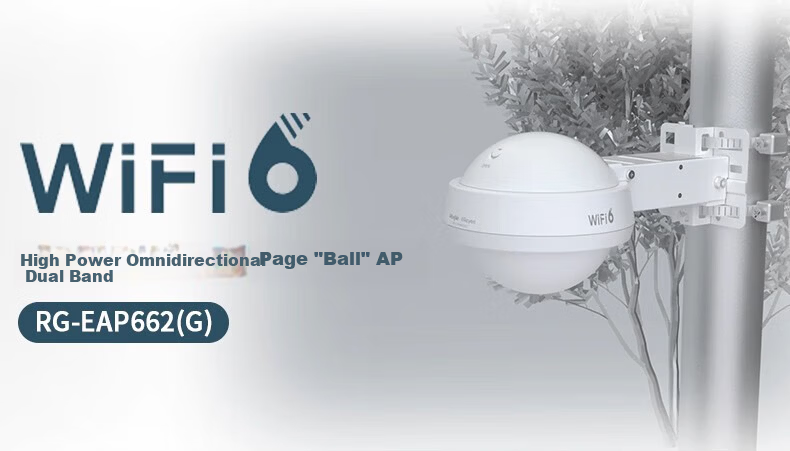

Ruijie WiFi6 Outdoor Wireless AP RG-EAP662(G) Gigabit Dual-Band 1800Mbps Smart Omni-Directional High-Power Outdoor Wireless Base Station IP68 Dustproof Waterproof
Specifications
Antenna Built-in antenna
Wireless speed 1,800m
Body material Metal
Wireless protocols Wi-Fi 6
Game Acceleration No
Total carrying capacity 51-80 terminals
Cooling method Natural heat dissipation
Coverage 151-200㎡ Variants / Sale Attributes Color: RGEAP662(G) WiFi6 Omnidirectional 1800M
Package Contents 1 host unit;
1 sheet metal bracket;
1 metal connecting rod (pre-installed on the host unit);
2 clamps;
4 M8 x 60 expansion bolts with pull anchors;
1 quick installation manual;
Product Description Product Specifications
1. RG-EAP662(G)
Additional details
WiFi Standard WiFi 6
Frequency Bands 2.4 GHz and 5 GHz
Coverage Radius 2.4 G up to 50 m, 5 G up to 100 m (open area)
Data Rate 1775 Mbps total
Recommended Maximum Clients 64
Similar Products
Power Supply
PoE 18W or DC 12V 2A
Antenna Built-in low-radiation omnidirectional antenna, 3x3 MIMO with an additional channel for enhanced transmission and reception sensitivity
Operating Temperature -30°C to 65°C
Protection Rating IP68 (dustproof and waterproof)
Dimensions 200 mm x 220 mm x 166 mm (excluding mounting bracket)
Weight 1.2 kg (excluding mounting bracket)

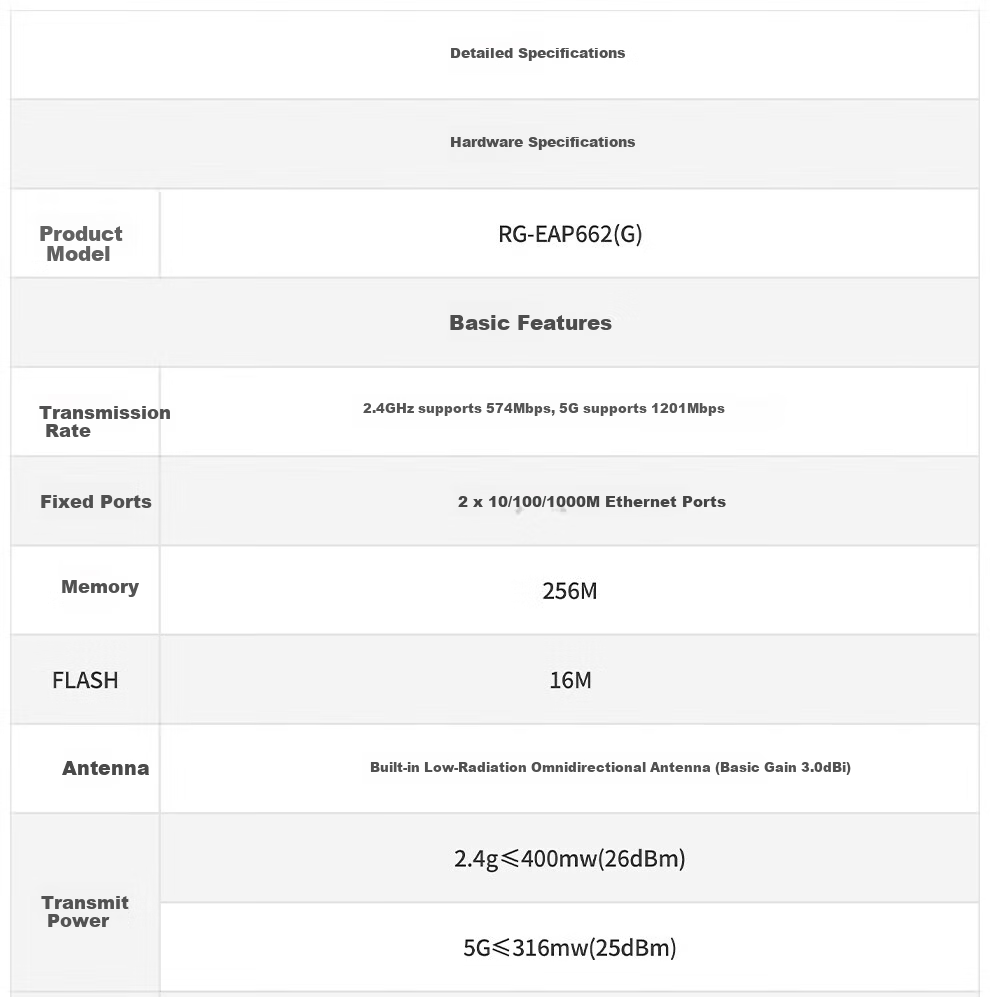

Ports 2 x 10/100/1000 Mbps Ethernet ports
Memory 256 MB RAM, 16 MB Flash
Transmission Power 2.4 G ≤ 400mW (26dBm), 5 G ≤ 316mW (25dBm)
PoE Standard 802.3at (30W)
Maximum Coverage 2.4 G up to 100 m, 5 G up to 300 m (varies by environment)
Lightning Protection 6000V

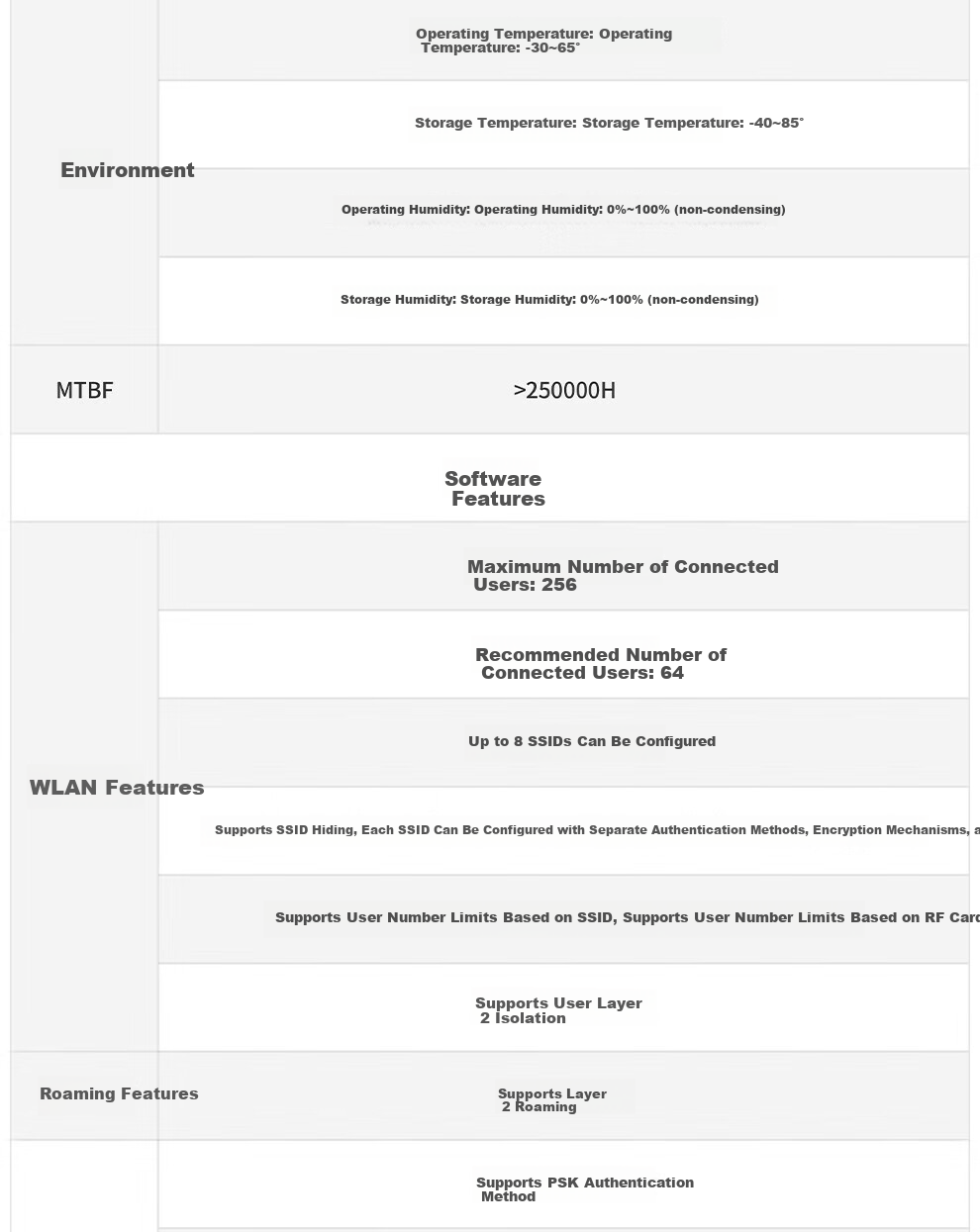

Environmental Humidity 0% to 100% non-condensing Software Features Up to 8 SSIDs SSID hiding Individual authentication and encryption per SSID VLAN support User number limits per SSID and RF card User layer 2 isolation Layer 2 roaming PSK authentication Additional details

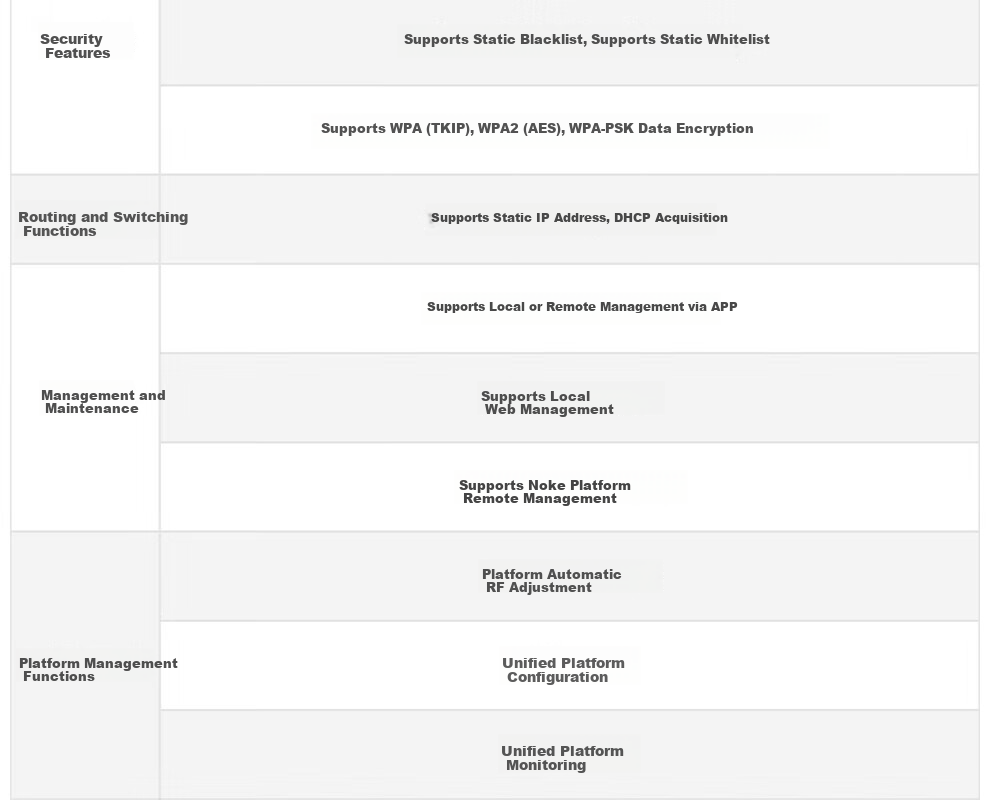

Security Static black/white lists, WPA(TKIP), WPA2(AES), WPA-PSK encryption Additional details
Management Local web management, Ruijie cloud platform remote management, automatic RF adjustment, unified configuration and monitoring Additional details

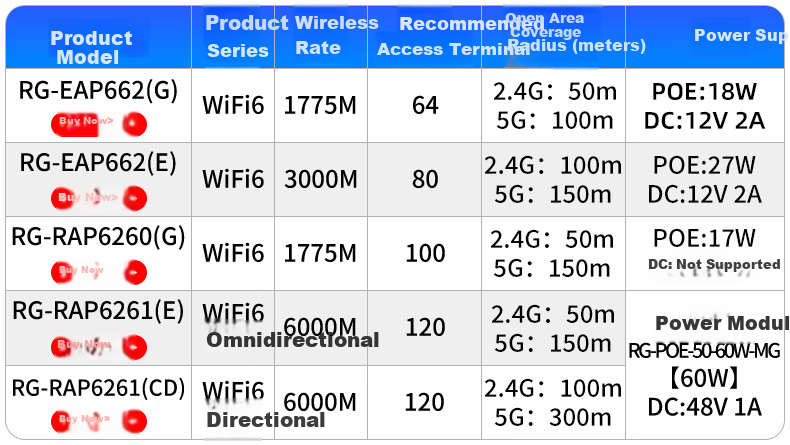

WiFi Standard WiFi 6
Frequency Bands 2.4 GHz and 5 GHz
Coverage Radius 2.4 G up to 100 m, 5 G up to 150 m (open area)
Data Rate 3000 Mbps total
Recommended Maximum Clients 80
Power Supply PoE 27W or DC 12V 2A Additional details
WiFi Standard WiFi 6
Frequency Bands 2.4 GHz and 5 GHz
Coverage Radius 2.4 G up to 50 m, 5 G up to 150 m
Data Rate 1775 Mbps total
Recommended Maximum Clients 100
Power Supply PoE 17W, no DC support Additional details
WiFi Standard WiFi 6
Frequency Bands 2.4 GHz and 5 GHz
Coverage Radius 2.4 G up to 50 m, 5 G up to 150 m
Data Rate 6000 Mbps total
Recommended Maximum Clients 120
Power Supply Power module supported, omnidirectional antenna Additional details
WiFi Standard WiFi 6
Frequency Bands 2.4 GHz and 5 GHz
Coverage Radius 2.4 G up to 100 m, 5 G up to 300 m (directional antenna)
Data Rate 6000 Mbps total
Recommended Maximum Clients 120
Power Supply DC 48V 1A Power Supply Module Power Output: 60W High power omnidirectional dual-band WiFi 6 access points suitable for large open areas such as stadiums (e.g., one unit covers a football field)
Independent 3x3 MIMO with an additional channel for enhanced signal transmission and reception sensitivity
Additional details

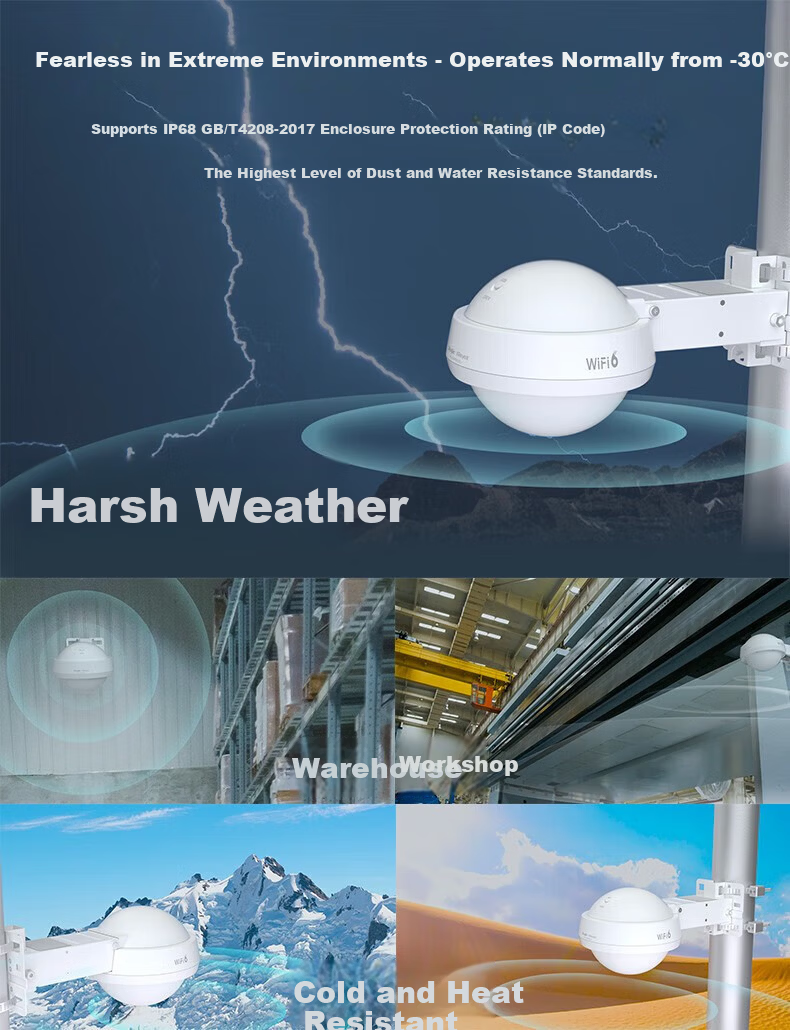

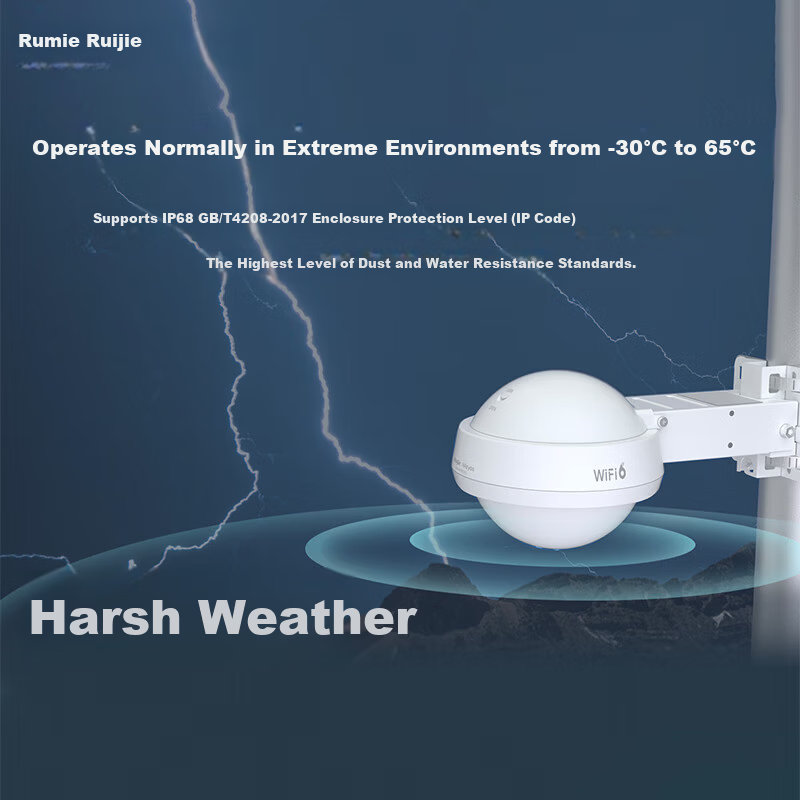

Extreme environment tolerance operates normally between -30°C and 65°C IP68 rated enclosure for dust and water resistance, suitable for harsh weather, warehouses, and workshops

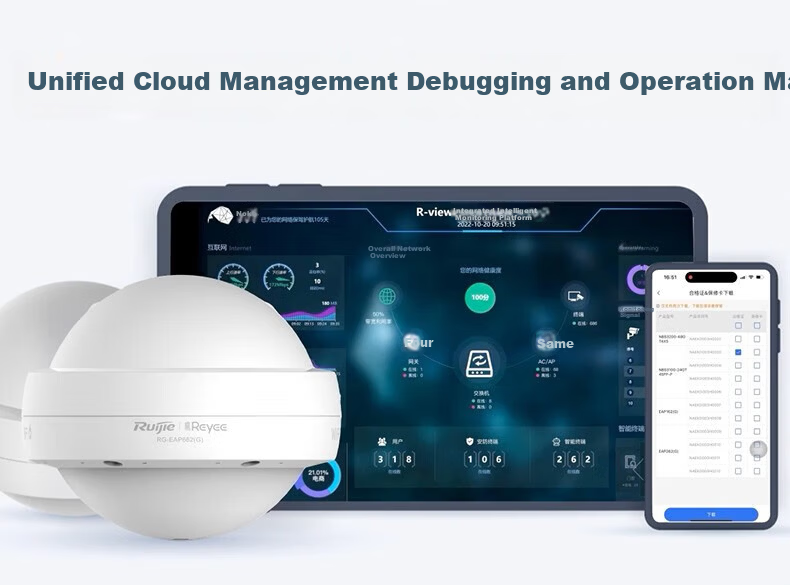

Unified cloud management platform (Ruijie R-View) for easy deployment, monitoring, and maintenance

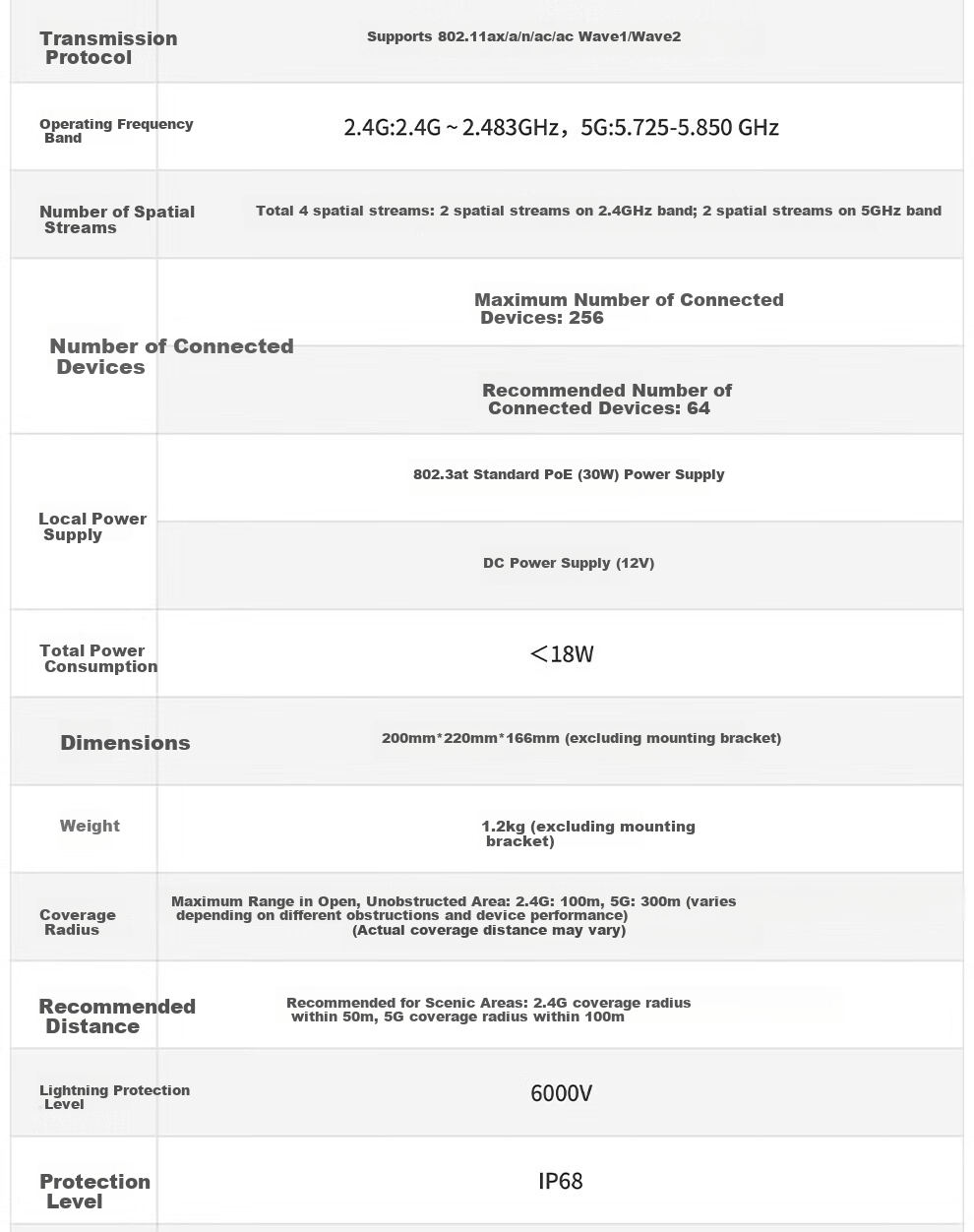

Supports 802.11ax/a/n/ac/ac Wave 1/Wave 2 protocols
Supports 4 spatial streams (2 for 2.4 GHz, 2 for 5 GHz)
Supports up to 256 concurrent users with recommended client numbers varying by model
Supports 2 Ethernet ports with gigabit speeds
Supports PoE power supply and local DC power options
Supports advanced WLAN features including multiple SSIDs, user isolation, roaming, and security protocols
Supports remote and local management via web and cloud platforms with automatic RF optimization
Designed for long-distance WiFi coverage with recommended coverage radii depending on environment and model
Open areas requiring wide coverage such as parks, stadiums, and large venues
Harsh environments requiring durable and weather-resistant equipment
High-density user environments requiring stable and high-speed WiFi 6 connectivity
Industrial and warehouse settings with extreme temperature and humidity conditions
