up to 80,000 wfms/s (70/100 MHz), 120,000 wfms/s (200 MHz)
Sequence mode
up to 500,000 wfms/s
Additional details
Noise floor
as low as 50-70 µVrms (200 MHz full bandwidth)
FFT length
2 Mpts
SPO (Super Phosphor Oscilloscope) technology for superior signal capture and analysis

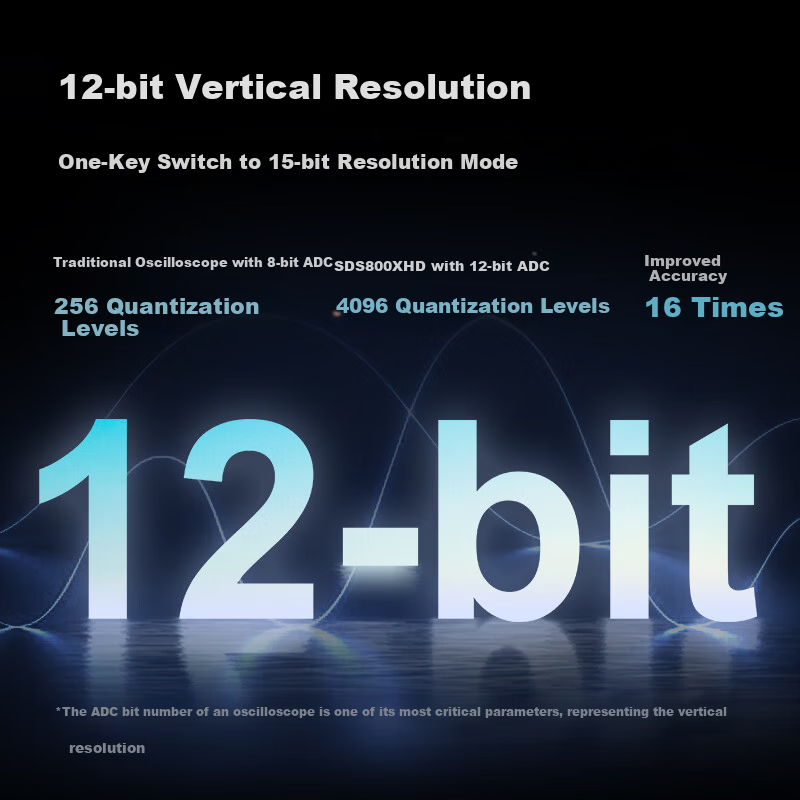

12-bit high resolution ADC with 4× vertical resolution improvement over traditional 8-bit scopes
One-key enhancement to 15-bit resolution mode reduces quantization error by 16×
Ultra-low noise design with advanced noise reduction and high precision circuitry
Intelligent segmented memory technology with up to 128 Mpts deep memory for capturing rare transient events with 1 in a million probability
Supports long-term monitoring and anomaly detection with history mode storing up to 80,000 waveform frames
Hardware-based template testing with up to 80,000 tests per second and minimum test time of 2 µs
16 trigger types including edge, slope, pulse width, bus, window, pattern, delay, and hold triggers
Serial bus trigger and decoding support for I2C, SPI, UART, CAN, LIN protocols
Time search and navigation for quick anomaly location
Protocol timing analysis and clear visualization
Web remote control via LAN (10M/100M) and USB 2.0 interfaces
USB host and device ports for peripheral support and data transfer
SMB network file sharing and cross-platform compatibility
PASS/FAIL testing and trigger output available
Silent mode with buzzer off for noise-sensitive environments
Automatic segmented storage with CSV export of waveform data
Additional details
Dimensions (L×W×H)
approx. 312 mm × 133 mm × 151 mm
Net weight
approx. 2.6 kg
Gross weight
approx. 3.8 kg
Passive probes (2 channels for 2-channel models, 4 channels for 4-channel models)
Main unit
Power cable
USB cable
User guide and calibration certificate
Additional details
Measurement categories supported
CAT I, CAT II, CAT III, CAT IV (according to application)
Probes must be properly grounded; do not connect probe ground to high potential to avoid electric shock risk
Additional details
Stock Code
688112
The SIGLENT SDS800XHD series oscilloscopes deliver professional-grade performance with ultra-high resolution, ultra-low noise, and advanced signal capture capabilities. Featuring a user-friendly capacitive touchscreen, extensive protocol decoding, and powerful memory depth, these oscilloscopes are ideal for laboratory and production line testing, enabling efficient and precise measurement tasks with ease.
