Shenghua Shitong Video Conference Camera Control Keyboard 7-inch Screen RS232+422+485+IP+POE PTZ Joystick Remote Conference Camera Multi-Compatible SH-KC2080

SHENGHUASHITONG•Meeting audio and video

Shenghua Shitong Video Conference Camera Control Keyboard 7-inch Screen RS232+422+485+IP+POE PTZ Joystick Remote Conference Camera Multi-Compatible SH-KC2080

CN¥4,360.00

SKU: 100079613868

Status:In Stock (1)

ID: 100061832079

Weight: 2320.00 g

Dims:350x250x165 mm

Specifications

Type: Other
Handwriting touch: Not supported
Video conferencing is supported: Video conferencing is supported

Variants / Sale Attributes

Color: SHKC2080 7inch screen

Package Contents

Control keyboard ×1, 232 control cable ×1, power adapter ×1, warranty card ×1, certificate of conformity ×1

Product Description

Product Specifications

Overview

Brand: SHENGHUASHITONG
Model: Controlling Keyboard with 7-inch Capacitive Touchscreen
Screen Size: 7-inch capacitive touchscreen
Resolution: 1024 x 600
Display Support: HDMI 4K @ 30fps

Android 11

Supports H.265 / H.264 decoding

Supports 9-split screen display

Supports H.264 4x1080p @ 30fps, 16x720p @ 30fps

Supports H.265 1x4K @ 60fps

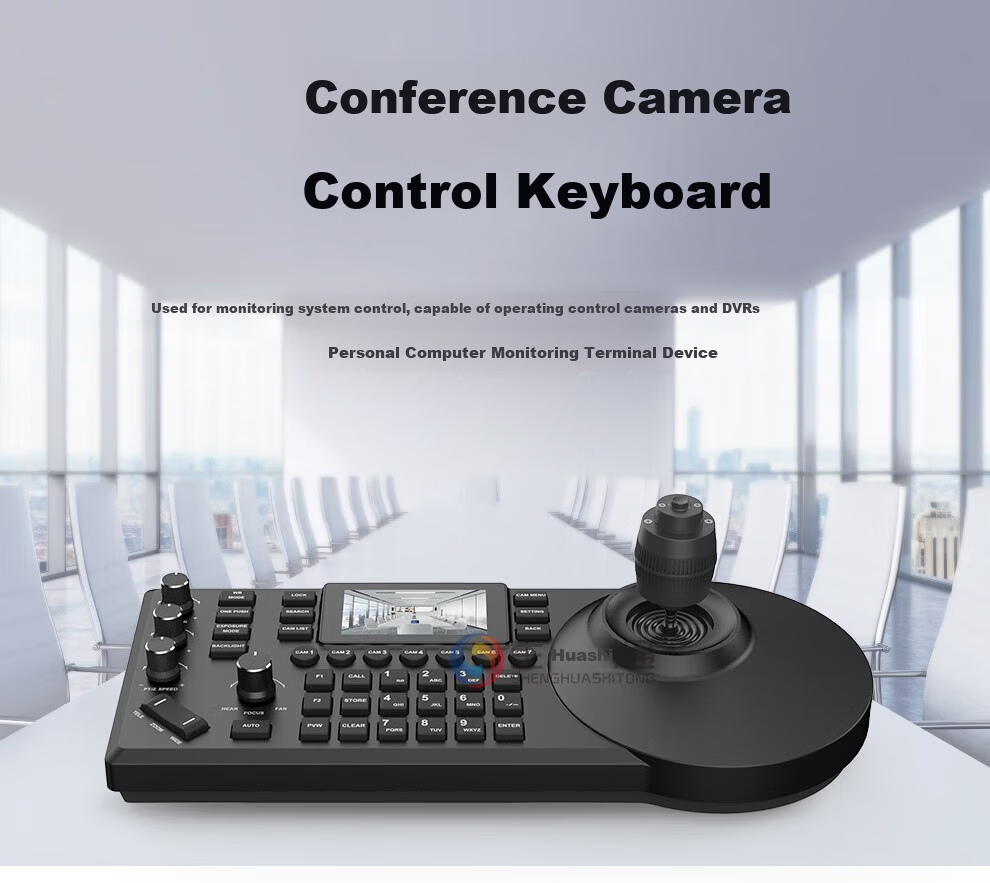

Controls cameras, DVRs, monitoring systems, and computers

PTZ (pan-tilt-zoom) control including pan, tilt, zoom, focus, exposure, and preset positions

Similar Products

Out of Stock

Meeting audio and video

Yijiatong Single-Ear Headset Y500-RJ9 Crystal Connector, Over-Ear Headset/customer Service Headset/noise-Cancelling Headphones/sales Call Headset/business/education Direct Connection Telephone

Y500 Single Ear-RJ9 Crystal Head

CN¥59.00

View

Out of Stock

JabraMeeting audio and video

Jabra Evolve2 65 Flex MS Wireless Charging Pad Bluetooth Noise-Cancelling Headset for Computer Office Conference Calls Customer Service Online Education Over-Ear

[Foldable with Base] Ev2 65MS Flex

CN¥2,771.00

View

Supports preset position encoding and easy switching

Supports cruise and pattern scanning functions

Supports ONVIF 2.8 protocol for device access and control

Supports up to 2048 devices addition

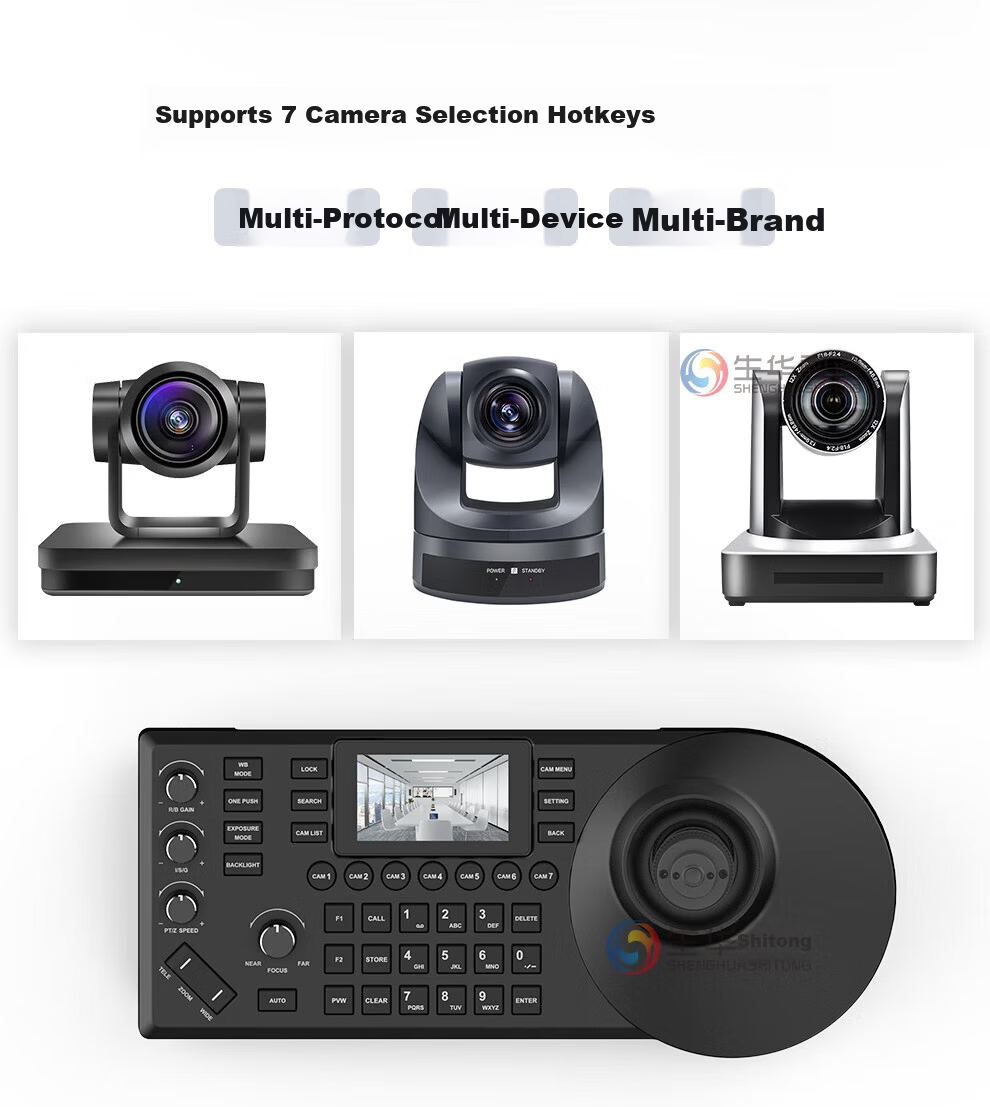

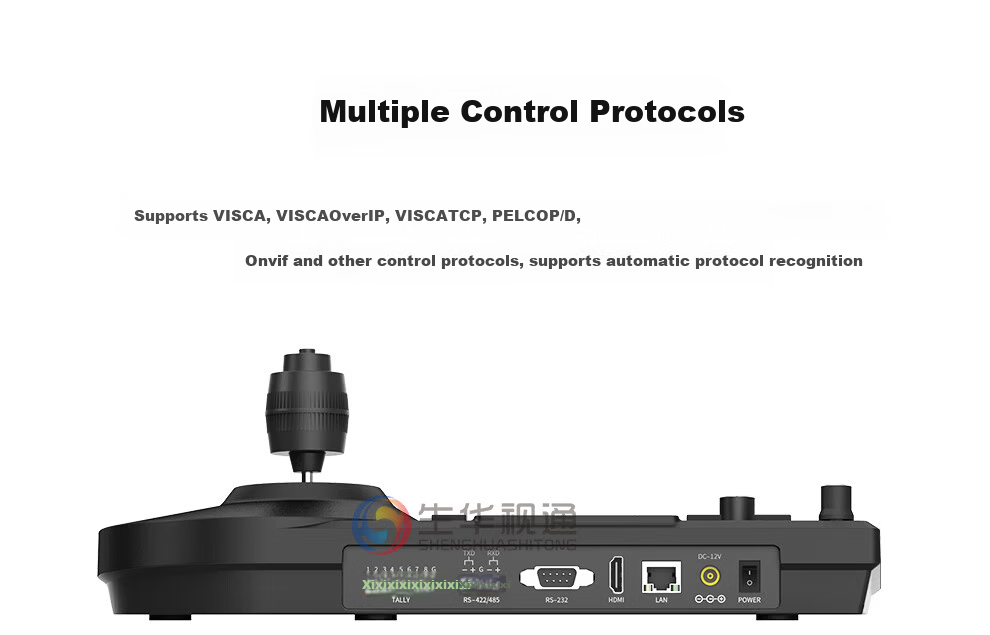

Compatible with multiple camera brands and protocols including PELCO-D, SONY VISCA, CISCO, POLYCOM, CANON, PANASONIC, etc.

Supports multi-brand simultaneous control

Standard DC 12V 2A ±10% power input

Supports HDMI screen casting to external displays for clearer meetings

Supports photo capture and video recording

Supports firmware upgrade via USB drive

Supports external mouse and TF card expansion storage

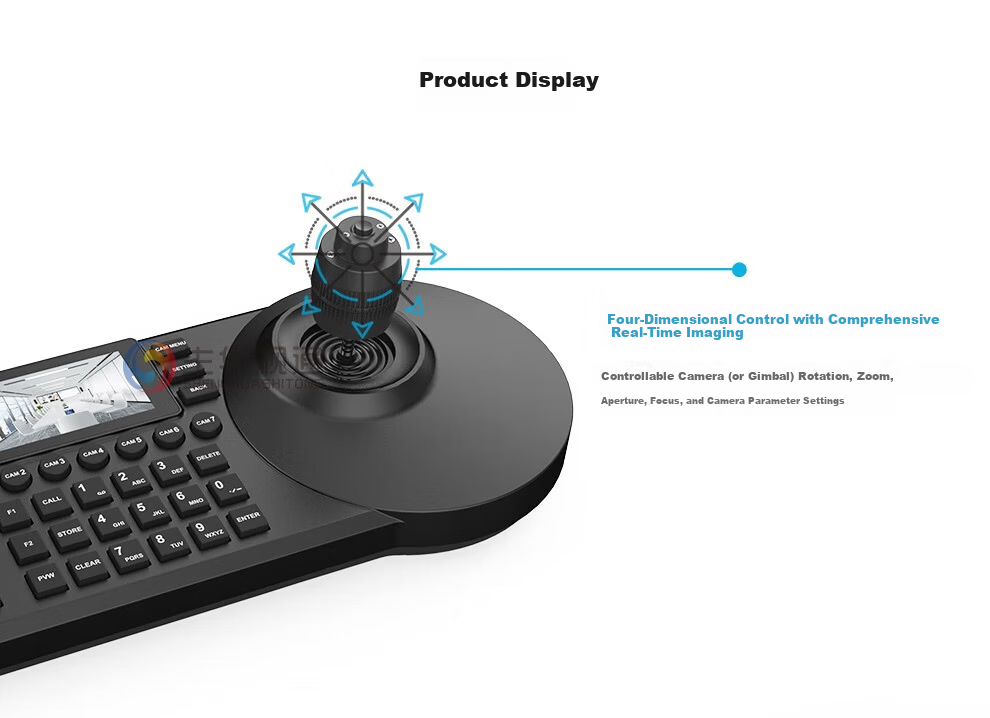

Supports 4-dimensional joystick, shuttle wheel, rotary knob, and control buttons for operation

Supports language settings and password modification

Additional details

Power Consumption: <1.5W
Mean Time Between Failures (MTBF): >30,000 hours
Operating Temperature: -10°C to 50°C
Storage Temperature: -40°C to 60°C
Operating Humidity: 10% - 90% RH (non-condensing)
Net Weight: 1781 g per unit
Packaging Dimensions (Outer): 365 x 245 x 155 mm

The SHENGHUASHITONG controlling keyboard features a 7-inch capacitive touchscreen running Android 11, designed for comprehensive control of cameras, DVRs, and monitoring systems. It supports advanced PTZ functions, multi-brand compatibility, and up to 2048 devices. With HDMI output and screen casting, it enhances meeting clarity. The device offers robust connectivity options, low power consumption, and reliable operation in various environments.
