SIGLENT SDS802X HD Oscilloscope 12-bit Resolution 70MHz Bandwidth 2 Channels 2GSa/s Sampling Rate

CN¥2,259.00

SKU: 100081762540

Status:In Stock (21)

ID: 100078293119

Weight: 4040.00 g

Dims:408x288x251 mm

Specifications

How it works: Desk-top
Number of channels: Dual channel
Category: digital oscilloscope
Bandwidth: 0100MHz

Variants / Sale Attributes

Model: 2channel 70MHz 2GSa/s with 2 sets of probes

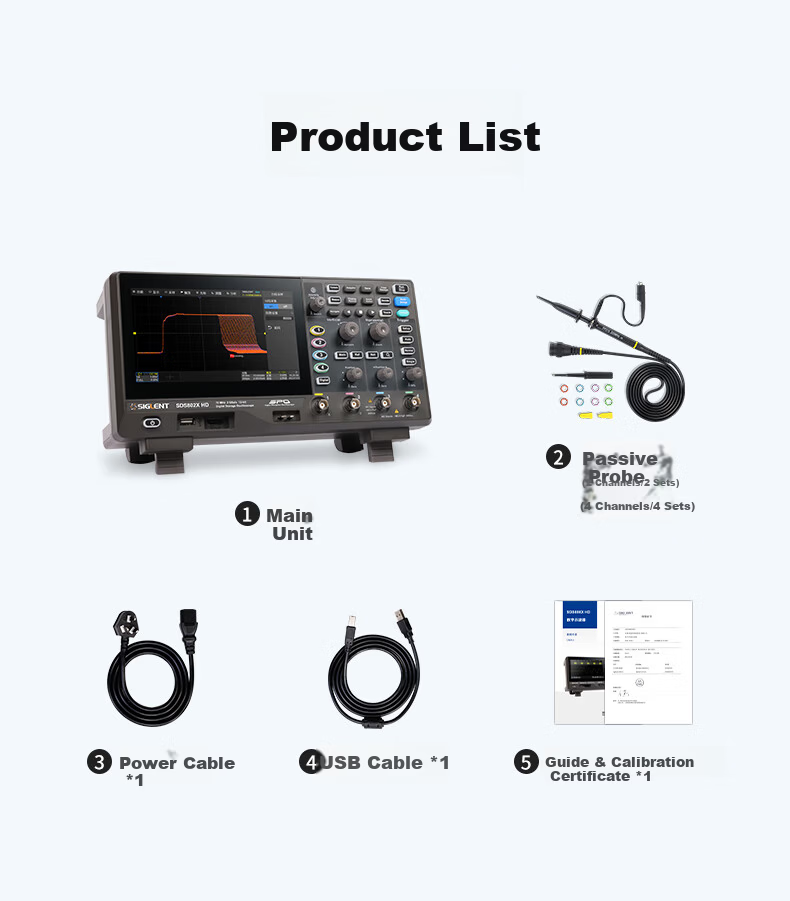

Package Contents

Main unit *1, probes *2/4 (sets), power cable *1, USB cable *1, quick guide *1, calibration certificate *1

Product Description

Product Specifications

Overview

Brand: SIGLENT
Model Series: SDS800XHD Series (including SDS804XHD, SDS814XHD, SDS824XHD, SDS802XHD, SDS812XHD, SDS822XHD)

SIGLENT is a nationally recognized "Little Giant" enterprise, publicly listed since 2019, specializing in electronic test and measurement instruments.

Holds over 370 patents and has received multiple Chinese patent excellence awards.

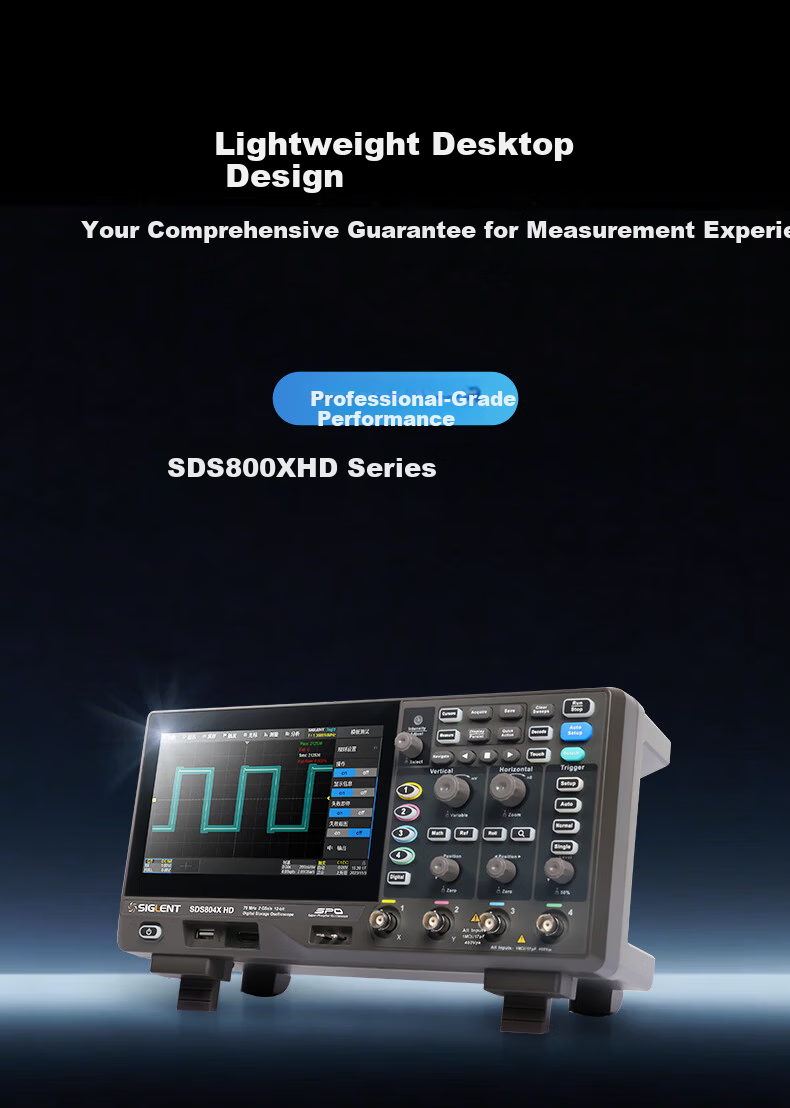

Designed with a lightweight, compact benchtop form factor ensuring professional-grade performance and comprehensive measurement experience.

Additional details

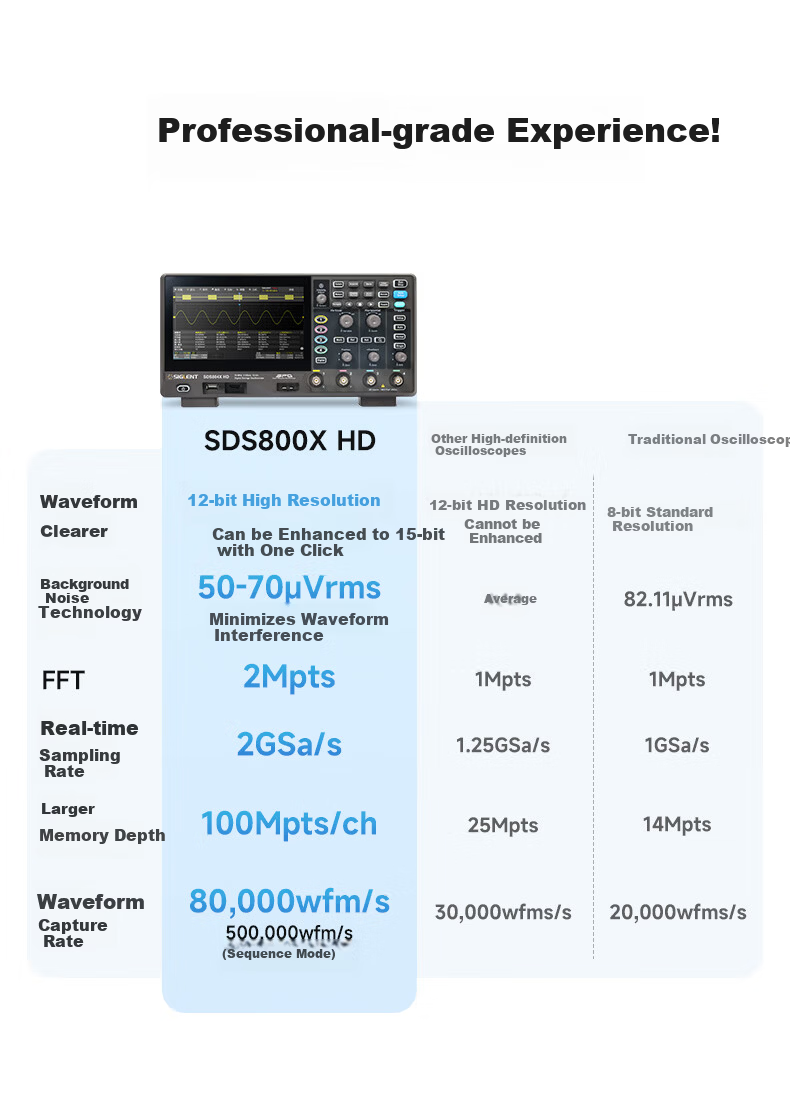

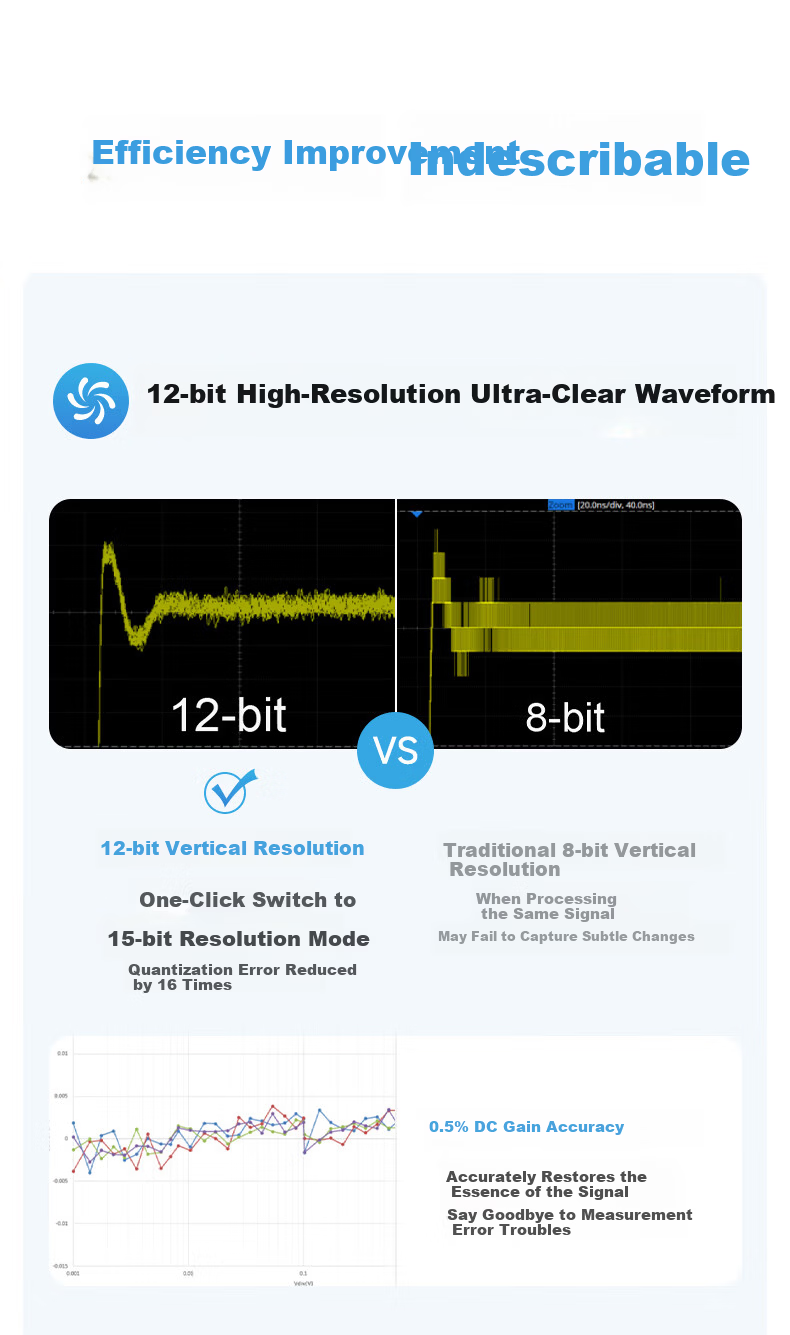

High Resolution ADC: 12-bit vertical resolution with one-key enhancement to 15-bit mode, providing 4x vertical resolution improvement over traditional 8-bit oscilloscopes.

Similar Products

In Stock

FNIRSIOscilloscope

FNIRSI Dual Channel Tablet Digital Oscilloscope 4.5-Digit Multimeter Signal Generator - 2C53P

digital oscilloscope

CN¥549.00

View

In Stock

TEKTRONIXOscilloscope

TEKTRONIX TBS1102X Digital Storage Oscilloscope (100MHz Dual Channel) 1-Year Warranty

TBS1102X (Dual Channel 100MHz)

CN¥4,099.00

View

In Stock

UNI-TOscilloscope

UNI-T UT-V23 Oscilloscope High Voltage Probe 100:1 100MHz 2000V High Voltage Measurement

UT-V23

CN¥179.90

View

Up to 2 GSa/s in single-channel mode, 1 GSa/s in dual-channel mode, and 500 MSa/s in four-channel mode.

Memory Depth

Up to 100 Mpts per channel (varies by model and channel configuration).

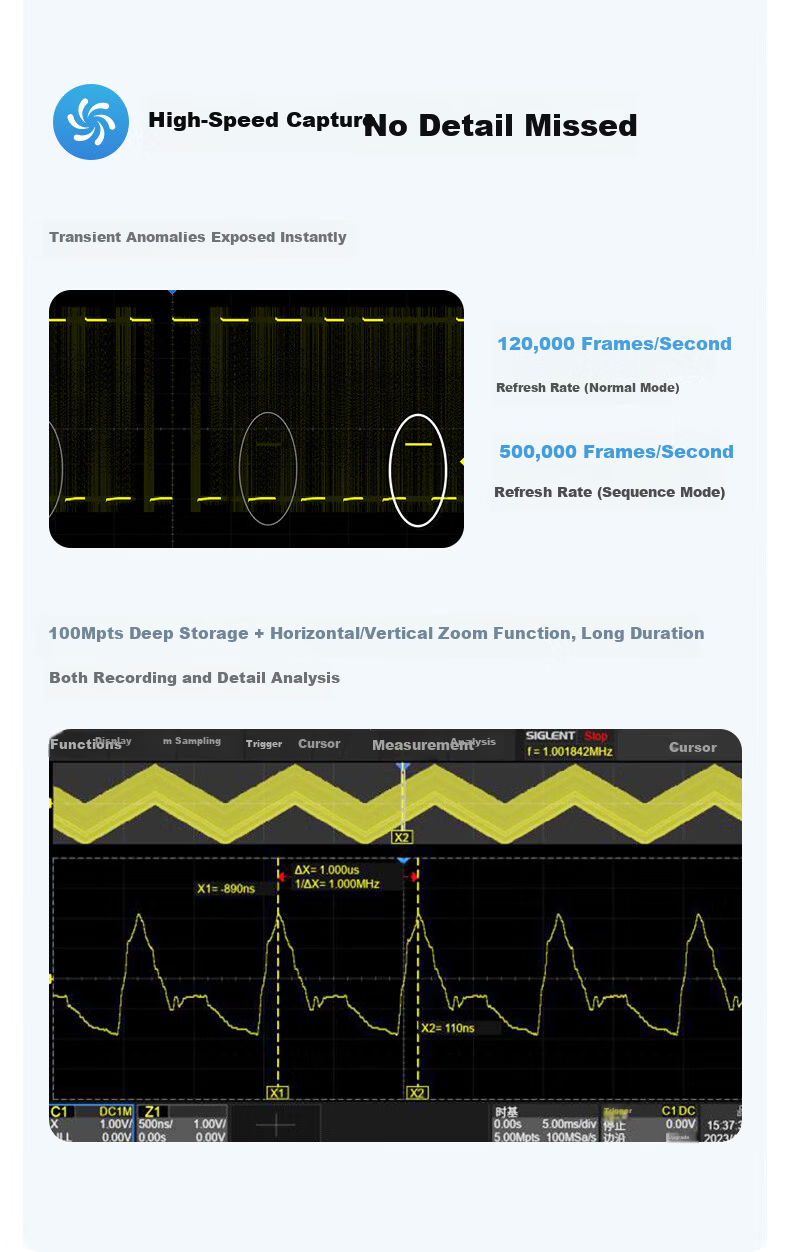

Waveform Capture Rate

Up to 120,000 wfms/s in normal mode and 500,000 wfms/s in Sequence mode.

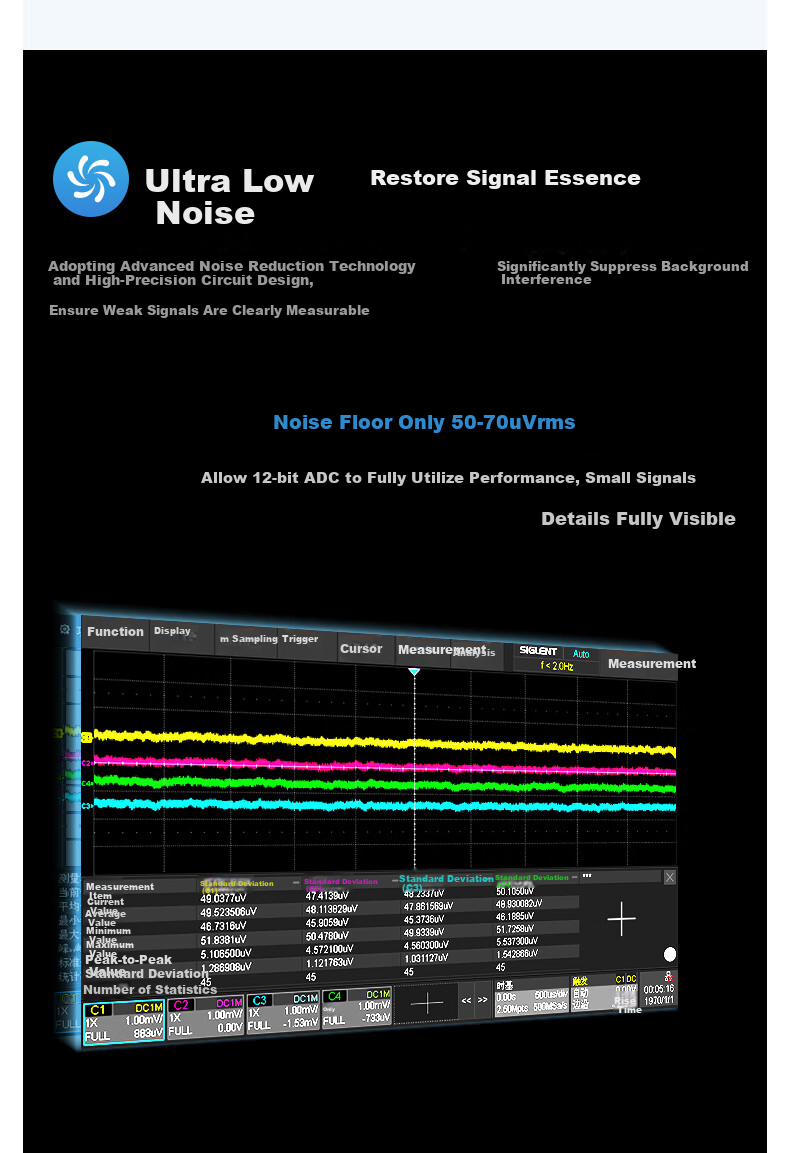

Ultra-Low Noise Floor

50-70 µVrms noise level at full bandwidth (200 MHz models), enabling clear capture of weak signals and low-probability transient events.

SPO Technology

Superior signal acquisition and analysis capabilities with real-time sampling and high fidelity waveform reproduction.

FFT Analysis

2 Mpts FFT length for detailed frequency domain analysis.

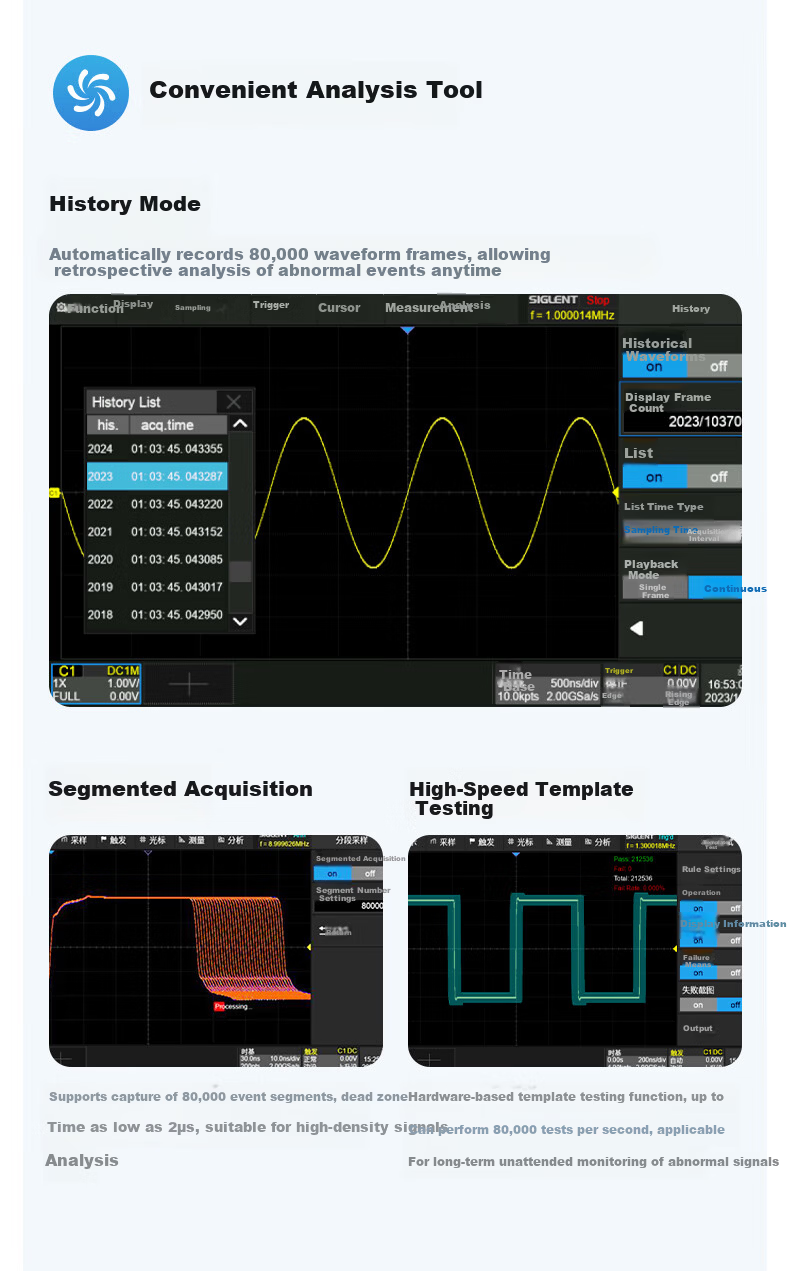

Intelligent Segmented Memory

Supports up to 80,000 segments for capturing rare transient events with minimal dead time.

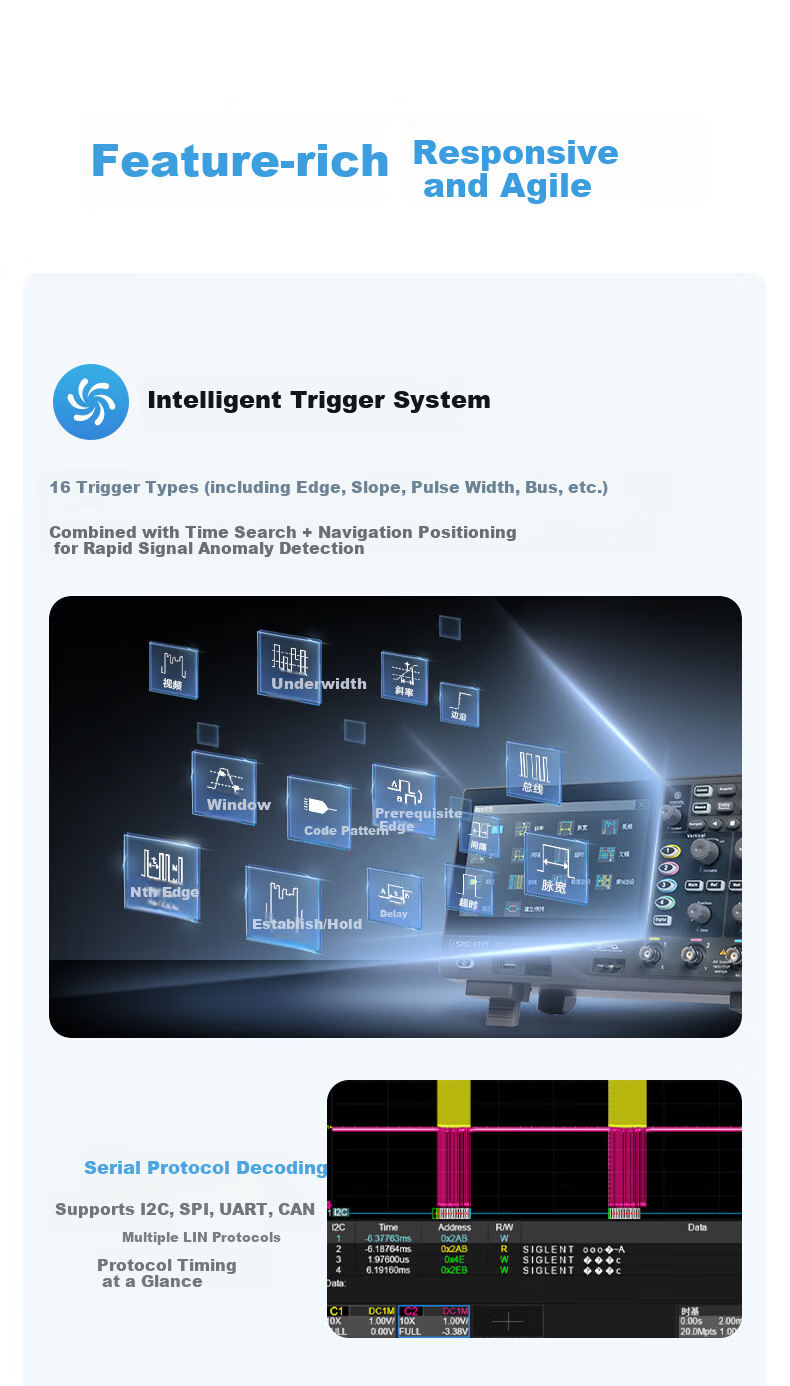

Trigger System

16 trigger types including edge, slope, pulse width, bus triggers, and serial protocol triggers.

Serial Protocol Decoding

Supports I2C, SPI, UART, CAN, and LIN protocols for embedded system debugging.

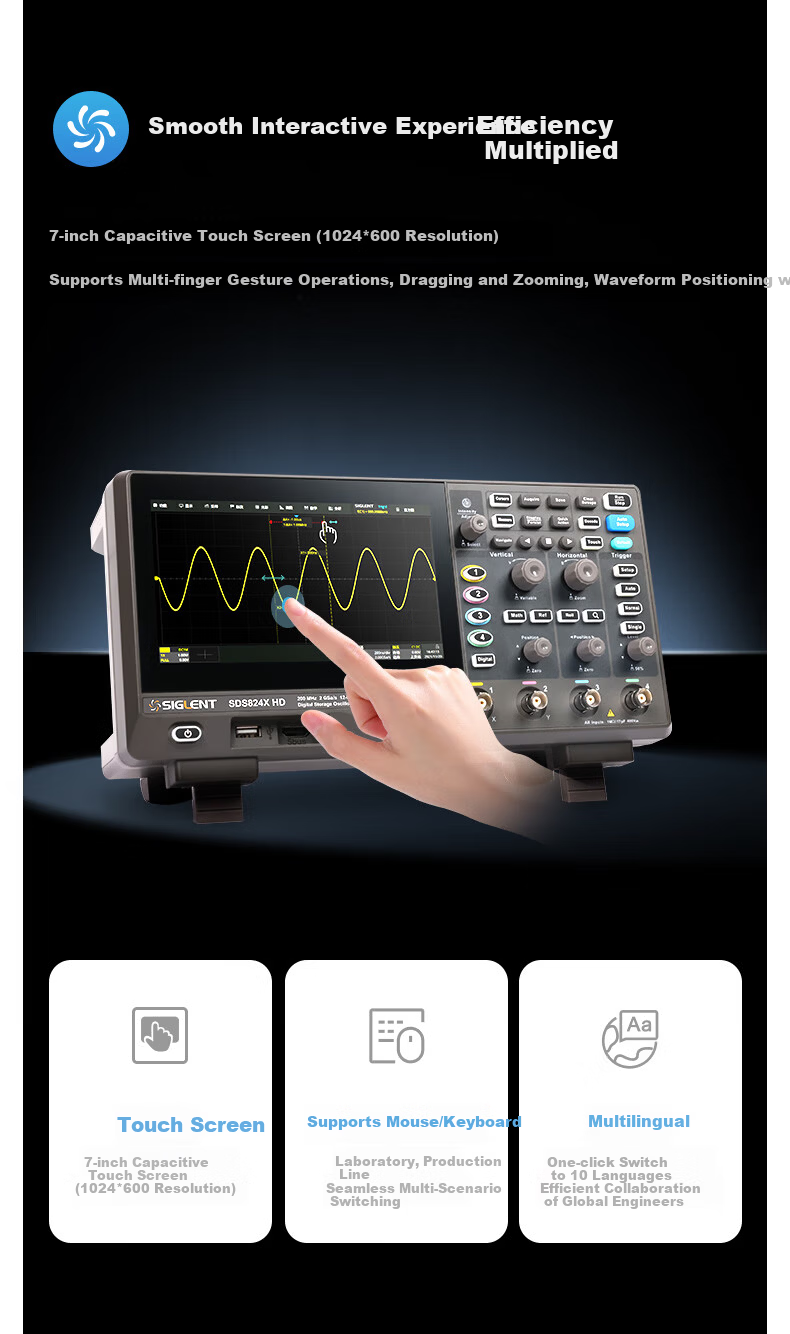

AutoSet and Gesture Zoom

Fast automatic parameter configuration and intuitive multi-touch gesture support on capacitive 7-inch touchscreen (1024x600 resolution).

Multi-language Support

Includes Simplified Chinese, Traditional Chinese, English, French, Japanese, German, Spanish, Russian, Italian, Portuguese.

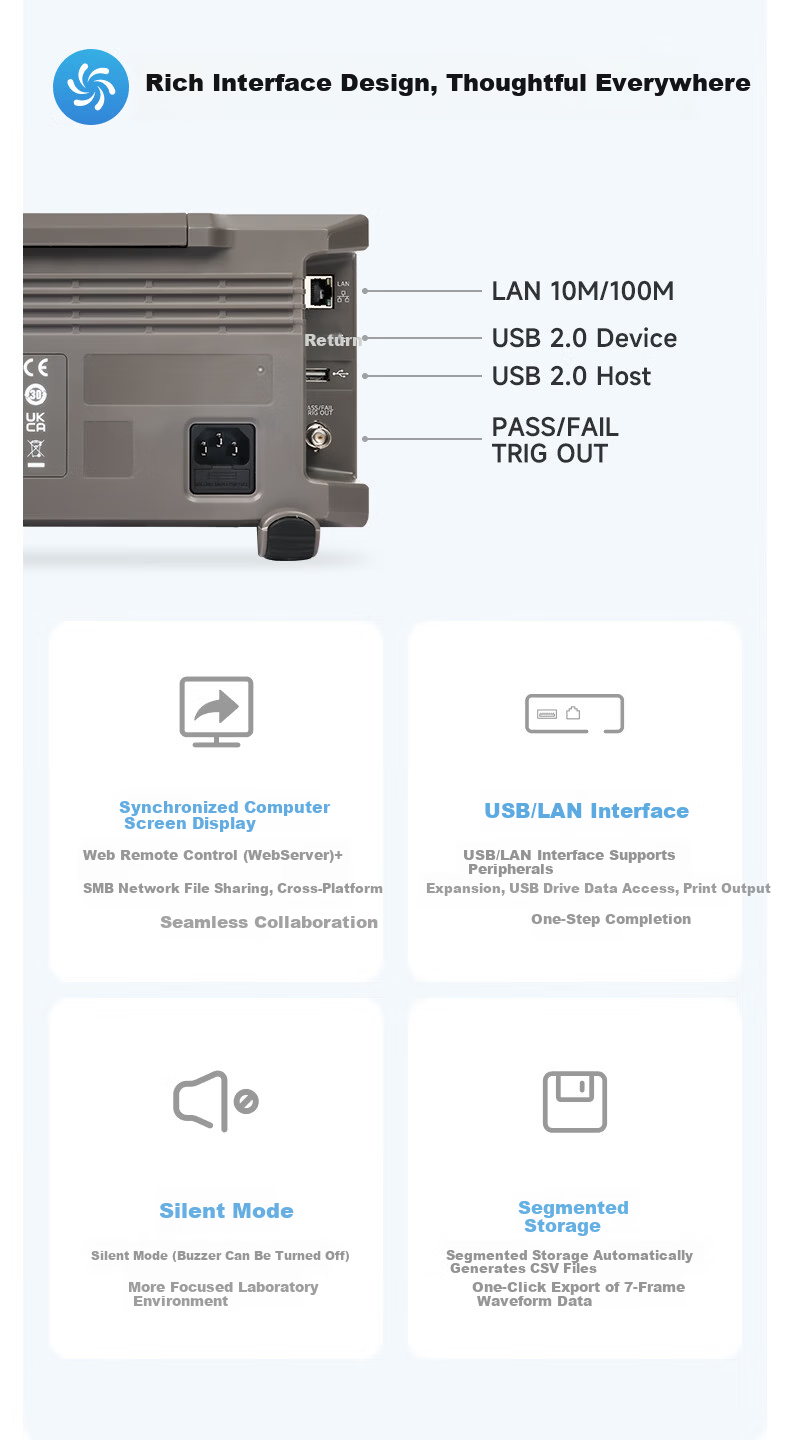

Remote Control & Connectivity

LAN (10/100 M), USB 2.0 Host and Device ports, WebServer for remote operation, MATLAB data integration, SMB network file sharing.

Pass/Fail Testing and Trigger Output for production line applications.

Additional details

Silent Mode: Mute buzzer for quiet laboratory environments.
Data Export: Automatic CSV file generation for segmented memory data, one-key export of 7 frames of waveform data.

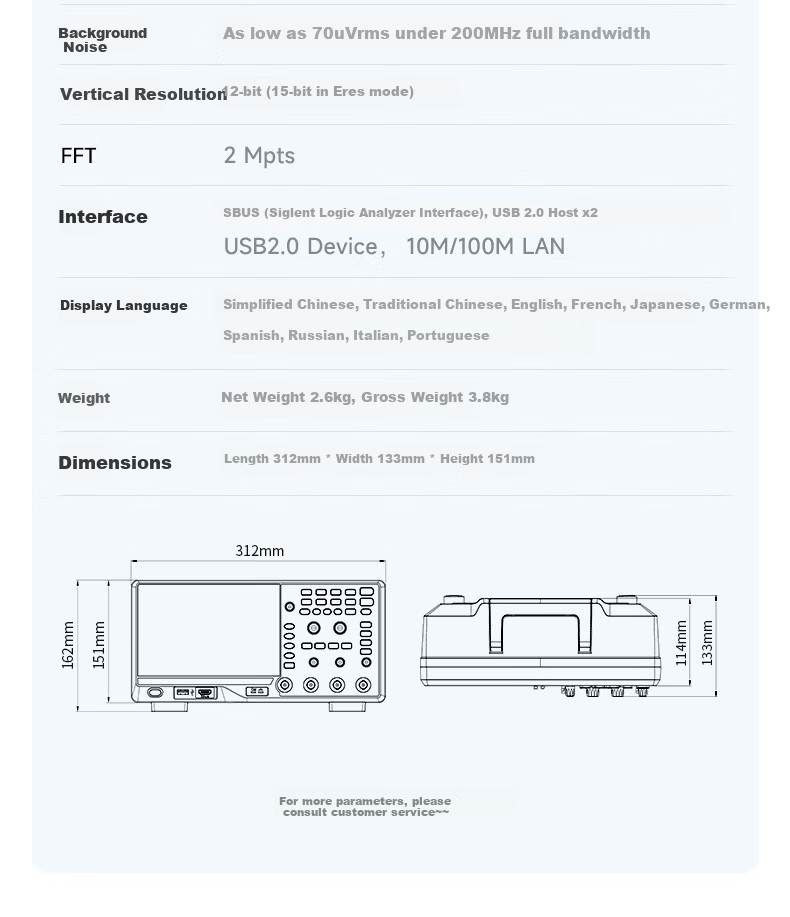

Dimensions & Weight: Approx. 312 mm (L) x 133 mm (W) x 151 mm (H), net weight 2.6 kg, gross weight 3.8 kg.

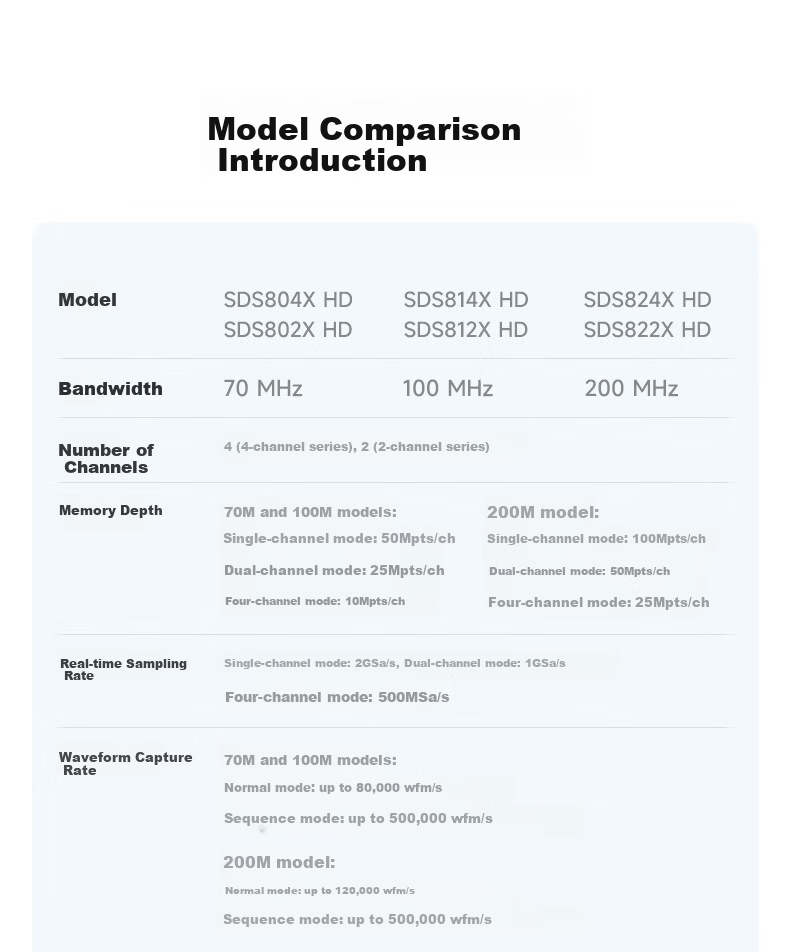

SDS804XHD: 70 MHz bandwidth, 4 channels.
SDS814XHD: 100 MHz bandwidth, 4 channels.
SDS824XHD: 200 MHz bandwidth, 4 channels.
SDS802XHD: 70 MHz bandwidth, 2 channels.
SDS812XHD: 100 MHz bandwidth, 2 channels.
SDS822XHD: 200 MHz bandwidth, 2 channels.
70 MHz & 100 MHz models: Single channel mode 50 Mpts/ch, dual channel mode 25 Mpts/ch, four channel mode 10 Mpts/ch.
200 MHz models: Single channel mode 100 Mpts/ch, dual channel mode 50 Mpts/ch, four channel mode 25 Mpts/ch.

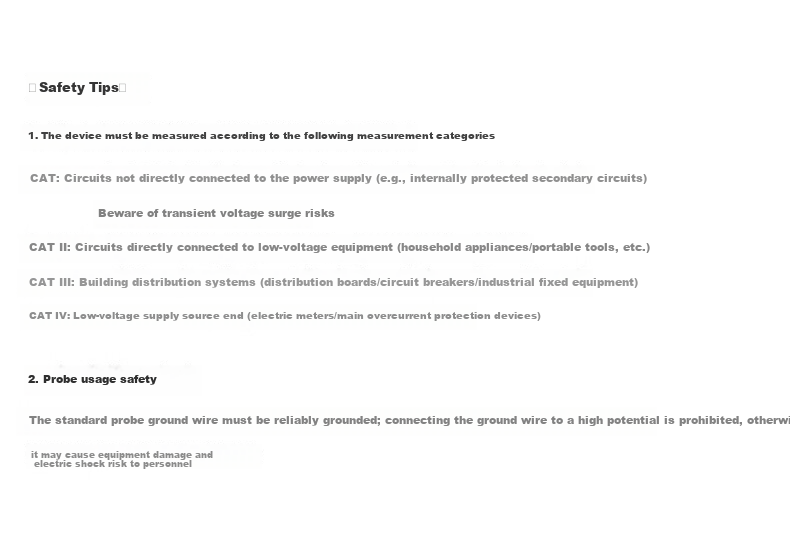

Measurement Categories: CAT I (protected secondary circuits), CAT II (direct connection to low voltage equipment), CAT III (building distribution systems), CAT IV (low voltage supply at source).
Probe Safety: Ground leads must be properly connected to avoid electric shock risks.

Passive probes (2 channels for 2-channel models, 4 channels for 4-channel models)

User guide and calibration certificate x1

Additional details

Stock Code: 688112

The SIGLENT SDS800XHD series oscilloscopes deliver professional-grade performance with ultra-high resolution, ultra-low noise, and advanced features such as segmented memory, serial protocol decoding, and intelligent triggering. Their ergonomic design, rich connectivity, and multi-language support make them ideal for laboratory, production line, and embedded system applications.
