Netcore S10PM, 10-Port 100Mbps POE Switch, Cloud Managed Splitter, Surveillance Network Camera Hub, VLAN Isolation, Light Management

netcore•Switch

Netcore S10PM, 10-Port 100Mbps POE Switch, Cloud Managed Splitter, Surveillance Network Camera Hub, VLAN Isolation, Light Management

CN¥129.00

SKU: 100085464890

Status:In Stock (2)

ID: 100017594330

Weight: 920.00 g

Dims:220x197x52 mm

Specifications

Number of Ports: 10 ports
Power over Ethernet (PoE): POE power supply
Cloud-managed switch: Cloud management supported
Network Management Type: Network management
Port Type: Electrical port
Downlink Interface Type: Ethernet Switch
Downlink Port Rate: 100Mbps
Uplink port rate: 100Mbps

Variants / Sale Attributes

Color: 10-Port 100Mbps | POE:120W | Cloud Management

Package Contents

S10PM*1 power adapter*1 manual*1

Product Description

Overview

Brand: netcore
Model: S10PM

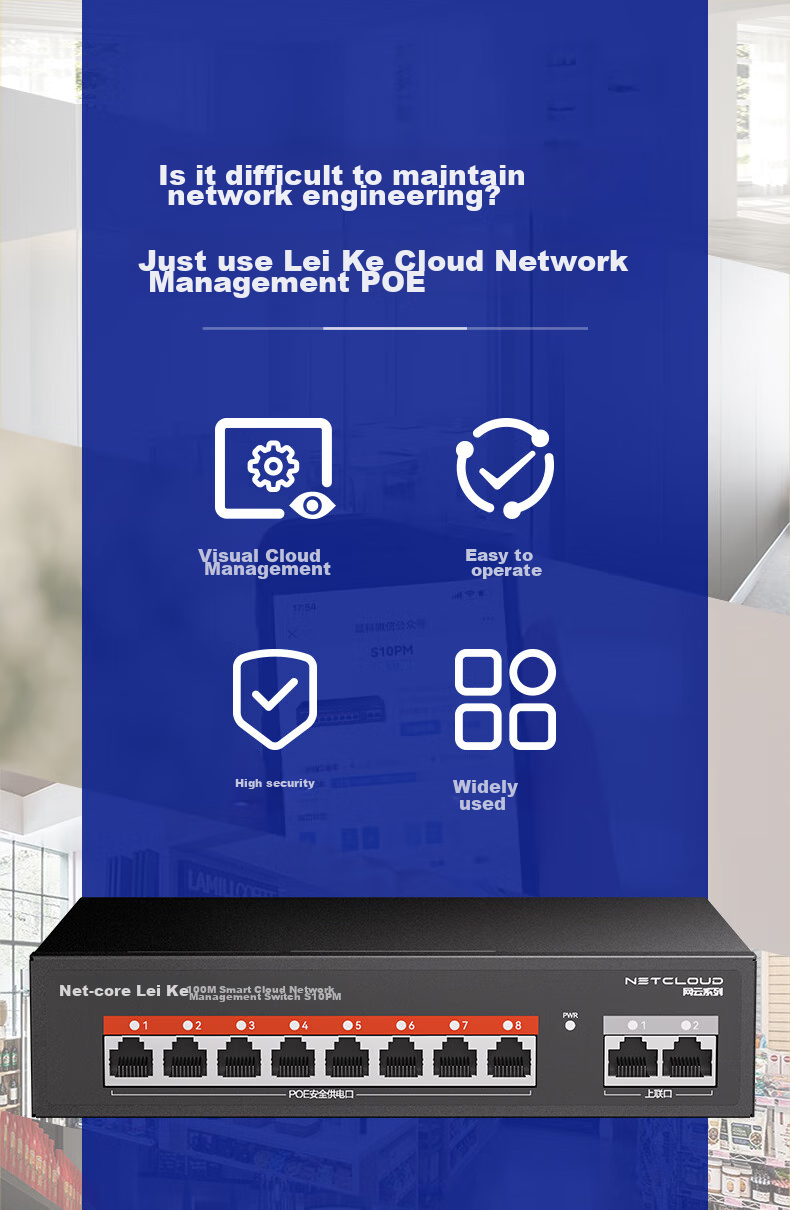

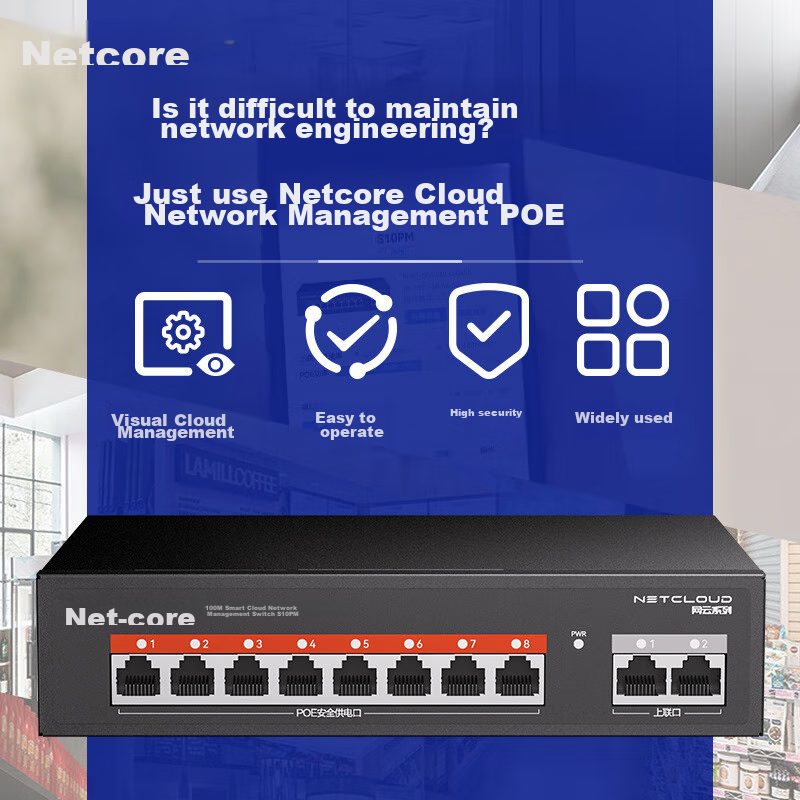

Product Name: 100Mbps Intelligent Cloud Network Management Switch S10PM

Features

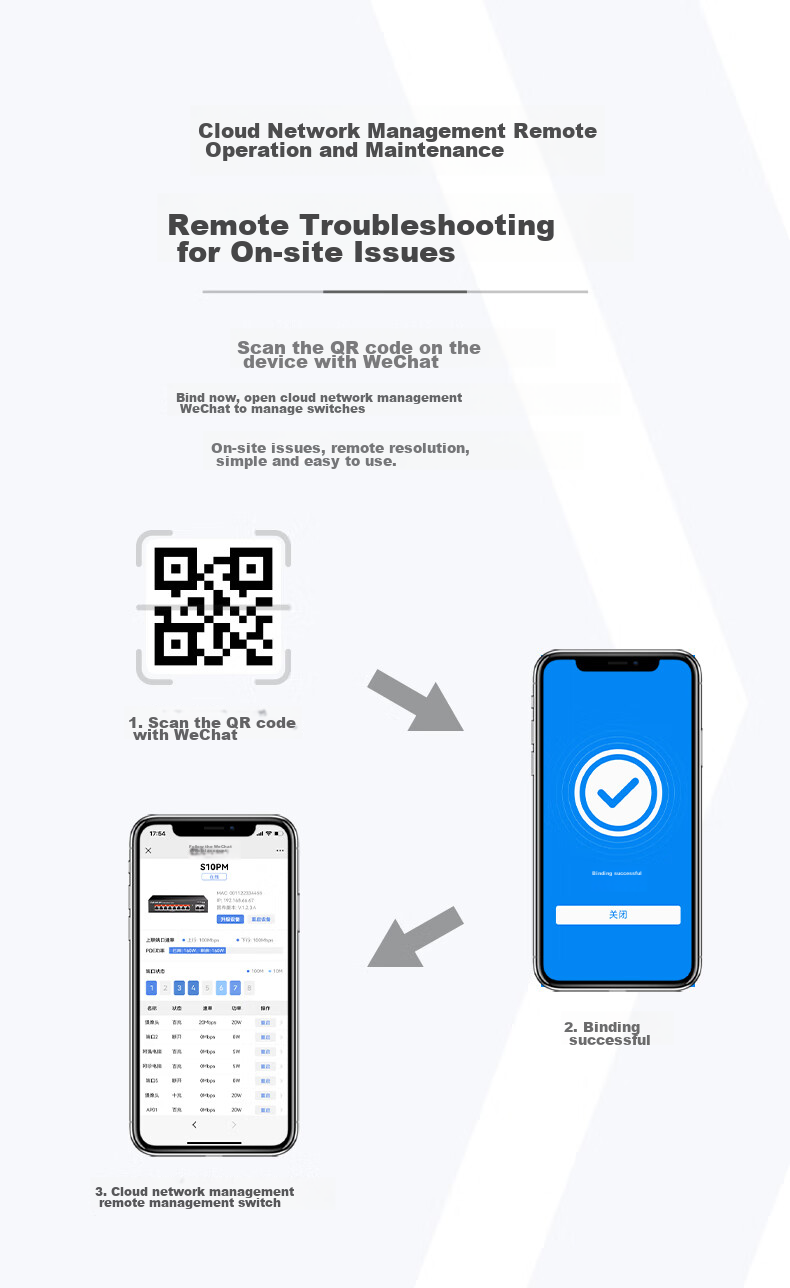

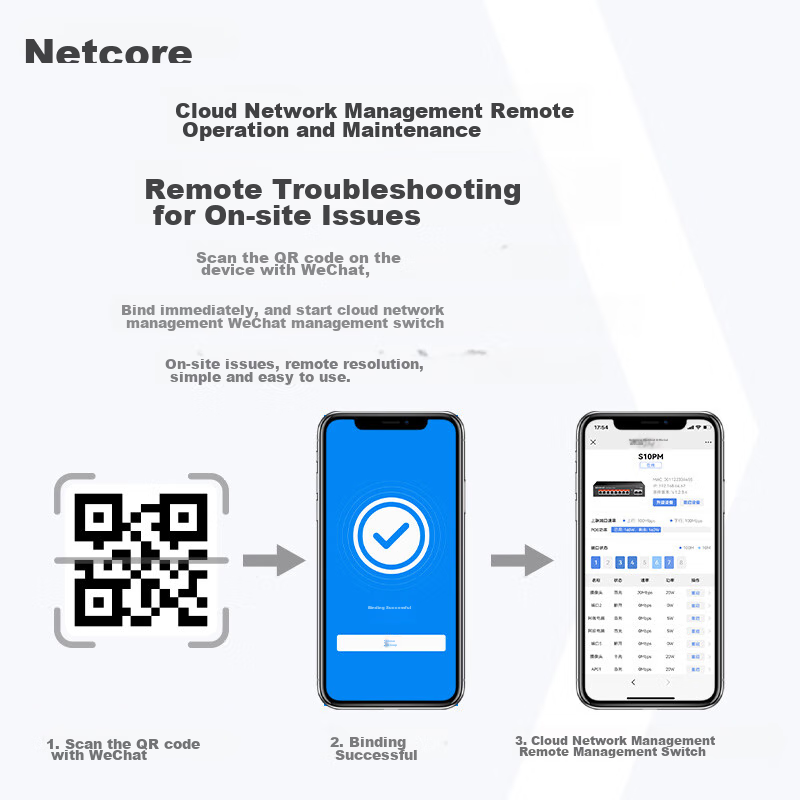

Cloud network management for remote operation and maintenance
Remote troubleshooting of on-site issues
10-port 100Mbps Cloud Network Management POE Switch

Similar Products

In Stock

Switch

Ruijie 8-Port Gigabit PoE Switch RG-ES110GD V2, 110W POE Power, Unmanaged Access, Metal Shell, Enterprise Office Monitoring Project Switch

ES110GD-P V2|8-Port Gigabit|POE 110W

CN¥580.50

View

In Stock

SAMZHESwitch

Sanze 8-Port PoE Switch 10-Port Gigabit Ethernet Splitter Dual Uplink Industrial Monitoring Power Supply Network Hub Enterprise Switch POE-HJQ10

[8Port PoE] 10Port Gigabit, Total Power 120W

CN¥179.00

View

Natural heat dissipation

Suitable Scenarios

Access switch

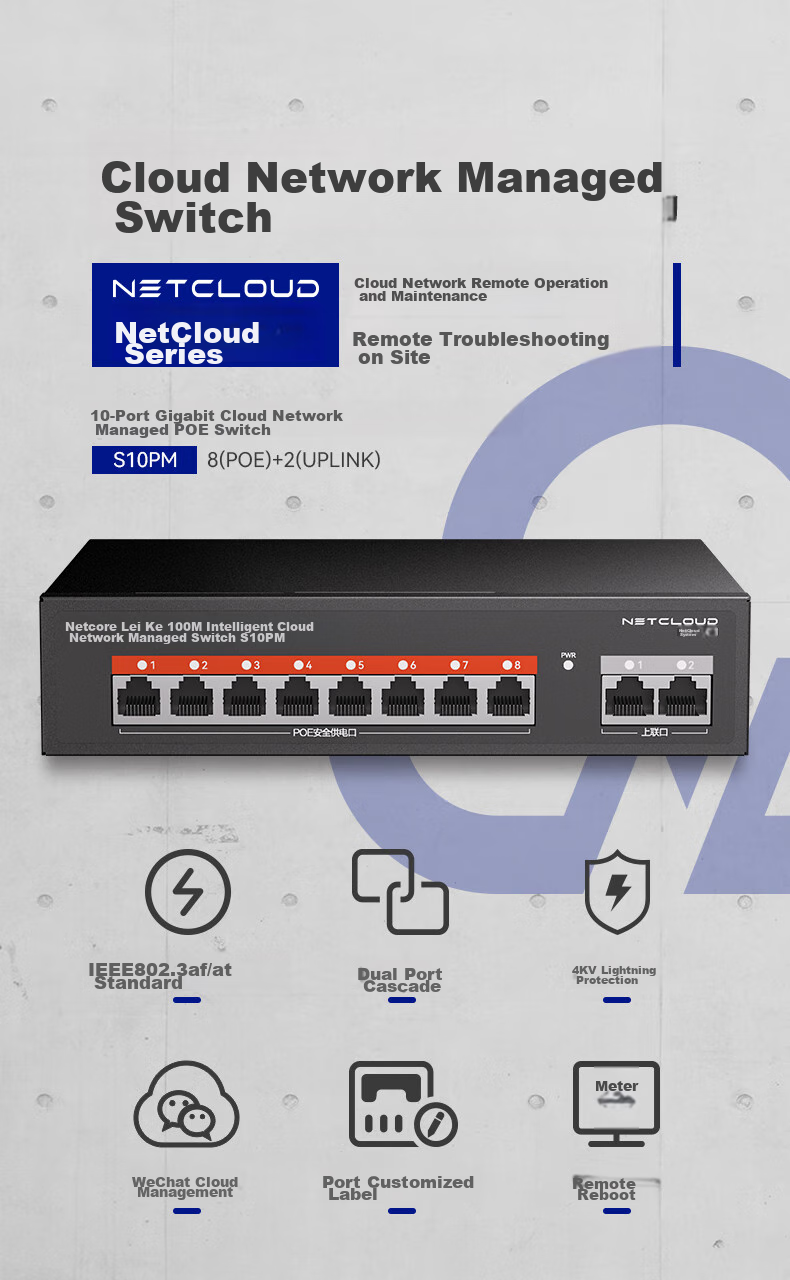

8 (POE) + 2 (UPLINK) ports

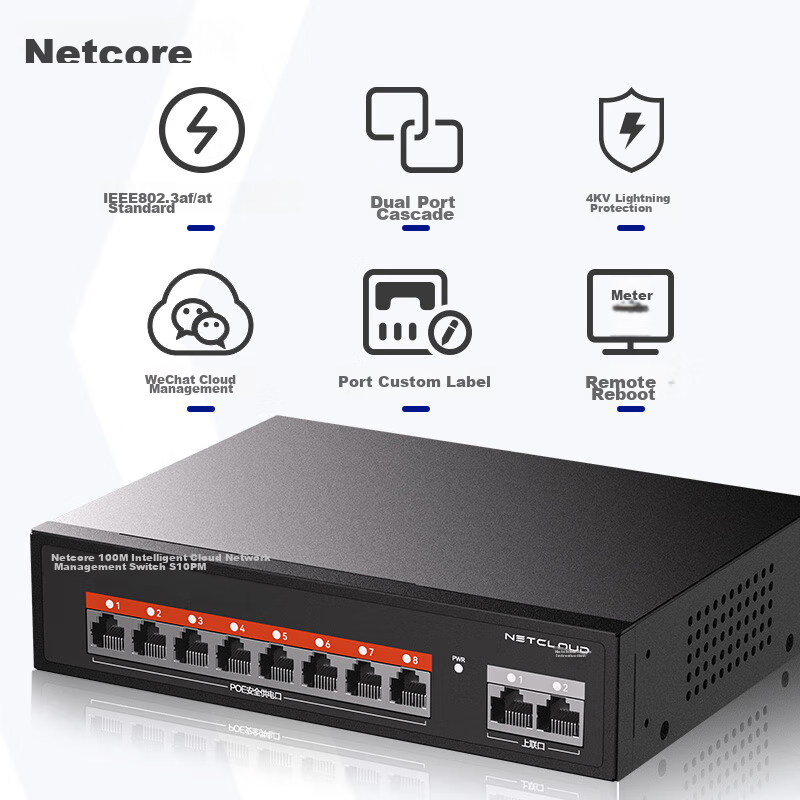

IEEE802.3af/at standard compliant

4KV lightning protection

WeChat cloud management

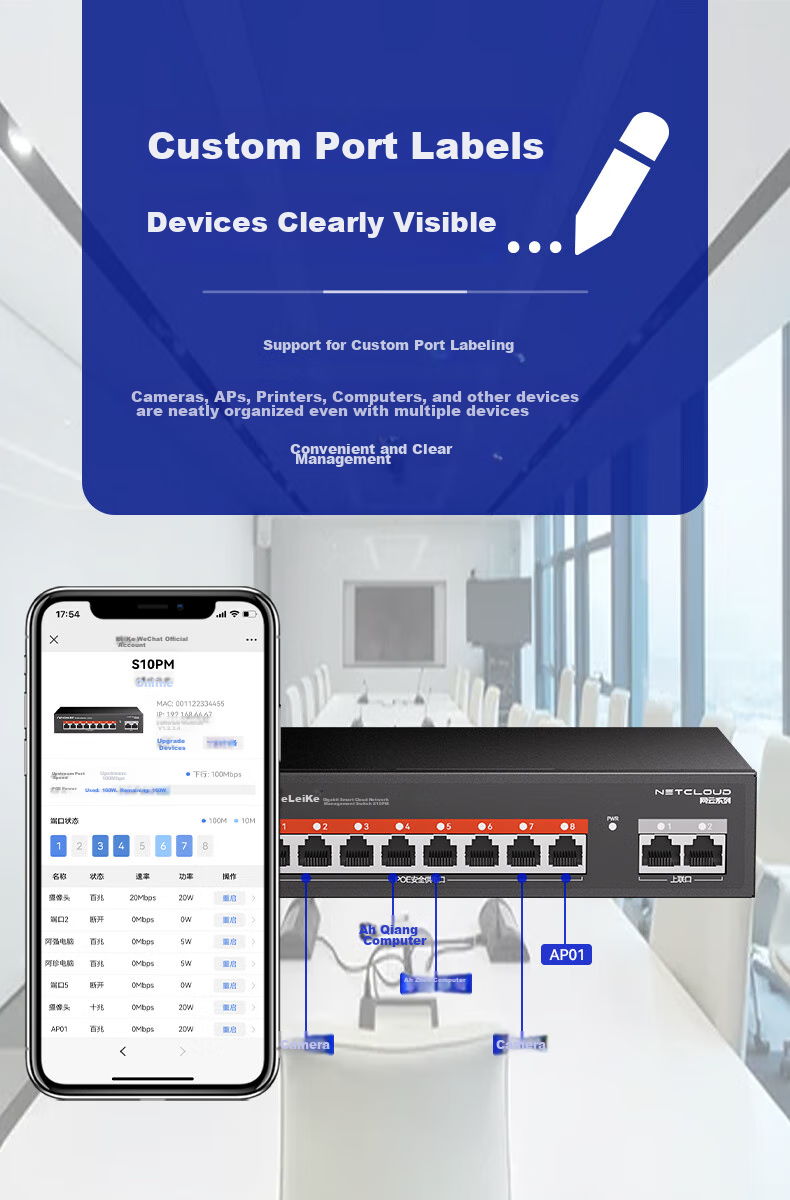

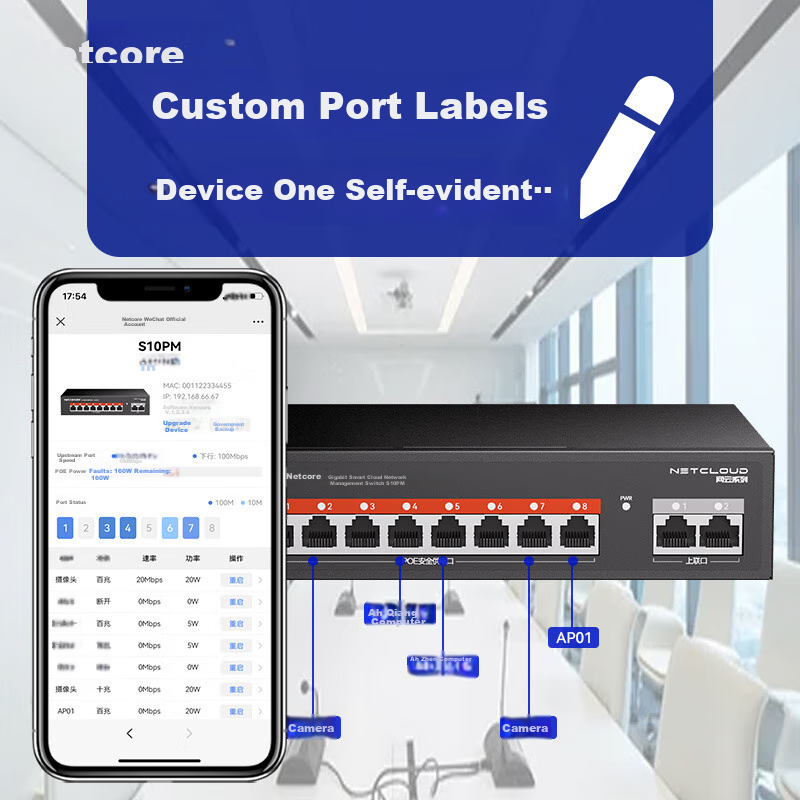

Port custom labeling

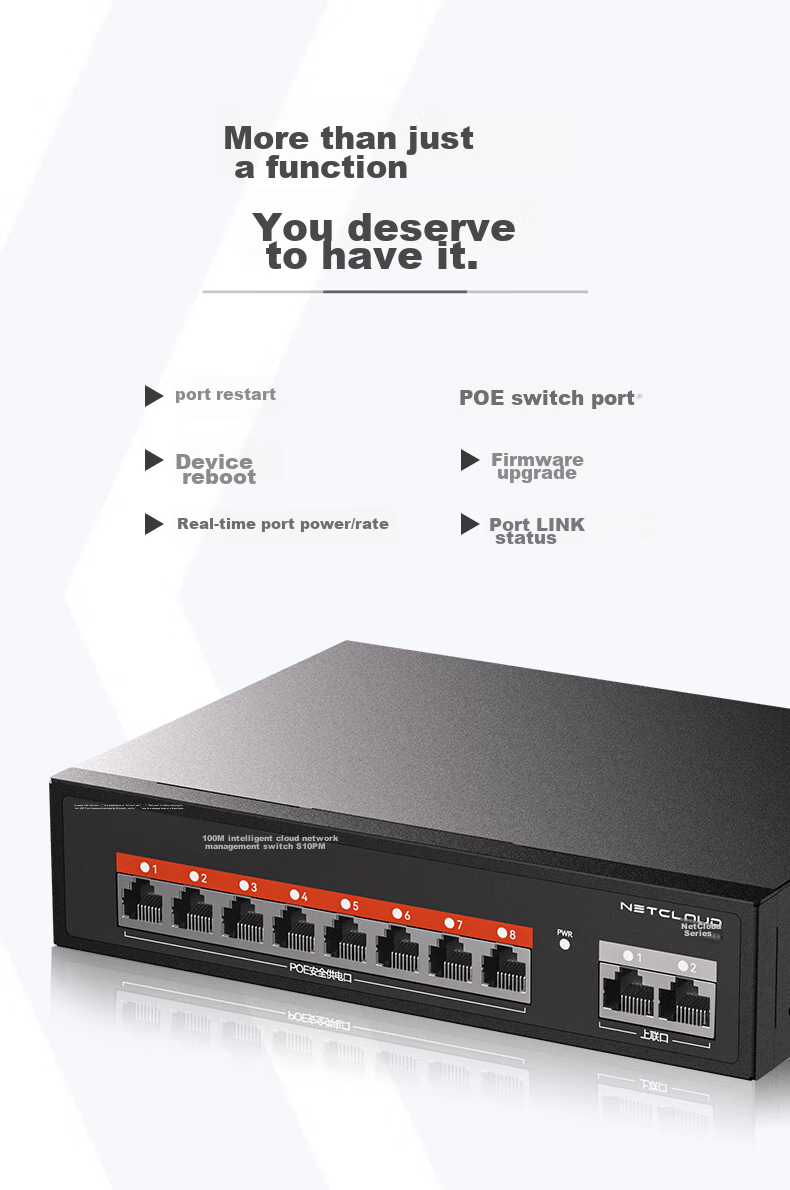

Remote reboot functionality

Management

WeChat cloud-based management
Port isolation setting
Port restart
Device reset
Firmware upgrade
Real-time port power/rate monitoring
Port LINK status

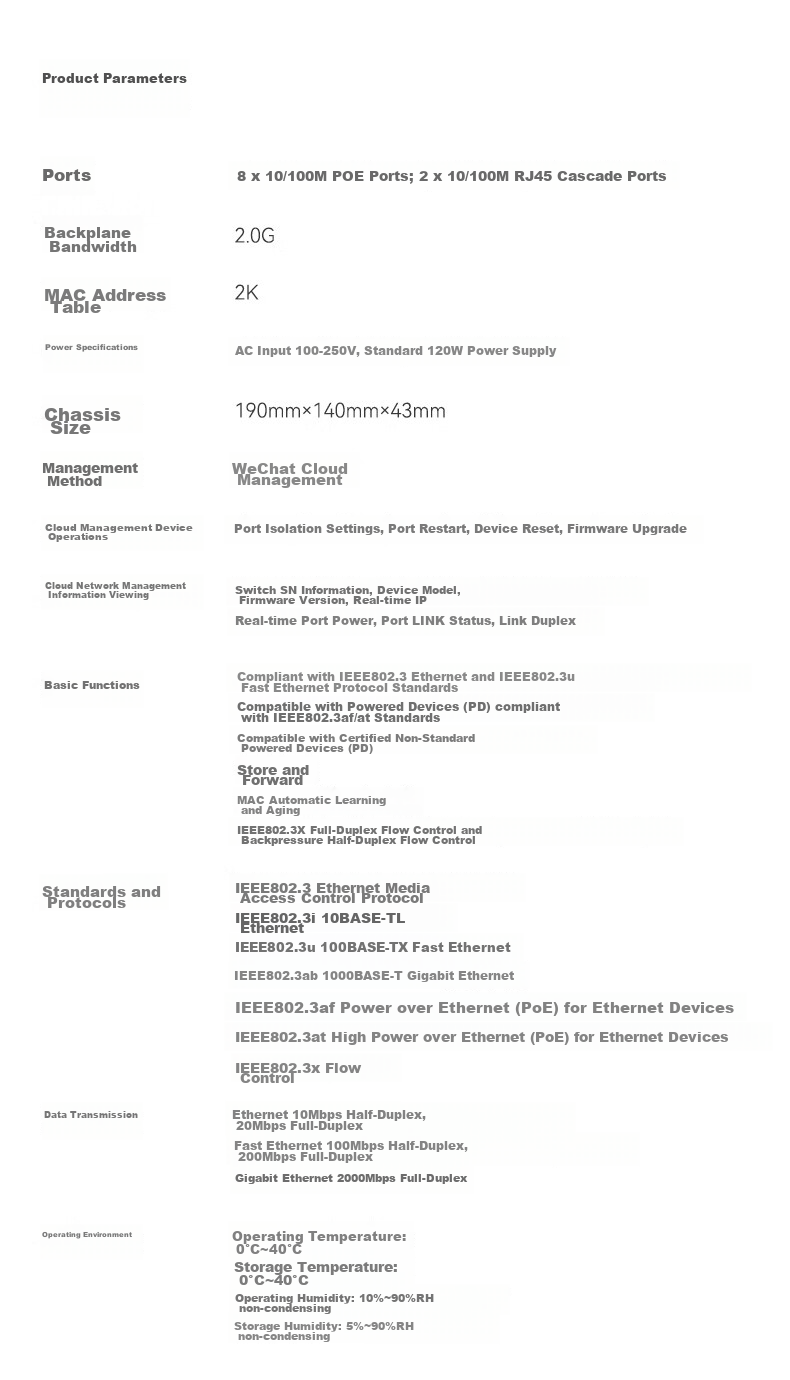

Specifications

Item	Detail
8 x 10/100M POE ports	—
2 x 10/100M cascade RJ45 ports	—
Backplane bandwidth	2.0 G
MAC address table	2K
Power specifications	AC input 100-250V, standard 120W power supply
Dimensions	190 mm x 140 mm x 43 mm

Basic Functions

Compliant with IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
Compatible with devices compliant with IEEE802.3af/at standards
Storage and forwarding
MAC address auto-learning and aging
IEEE802.3X full-duplex flow control and Backpressure half-duplex flow control

Standards and Protocols

IEEE802.3 Ethernet Media Access Control Protocol
IEEE802.3i 10BASE-TL Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
IEEE802.3ab 1000BASE-T Gigabit Ethernet
IEEE802.3af Power over Ethernet (PoE)
IEEE802.3at High Power PoE
IEEE802.3x Flow Control

Data Transmission

Ethernet 10Mbps half-duplex, 20Mbps full-duplex
Fast Ethernet 100Mbps half-duplex, 200Mbps full-duplex
Gigabit Ethernet 2000Mbps full-duplex

Operating Environment

Item	Detail
Operating temperature	0°C to 40°C
Storage temperature	0°C to 40°C
Operating humidity	10% to 90% RH non-condensing
Storage humidity	5% to 90% RH non-condensing
