Upper inner diameter 44 mm, lower inner diameter 55 mm
Compatible Fork
Standard straight fork with upper outer diameter 28.6 mm and lower outer diameter 30 mm, or standard tapered fork with upper outer diameter 28.6 mm and lower outer diameter 39.8 mm
Model
HS-26S-P-A
Fork Size
44-56 mm universal
Material
Aluminum alloy + cartridge bearings
Weight
Approx. 128 g
Compatible Head Tube
Upper inner diameter 44 mm, lower inner diameter 56 mm
Compatible Fork
Standard straight fork with upper outer diameter 28.6 mm and lower outer diameter 30 mm, or standard tapered fork with upper outer diameter 28.6 mm and lower outer diameter 39.8 mm
Model
HS-28S-P-A
Fork Size
41.8/42-52 mm universal
Material
Aluminum alloy + cartridge bearings
Weight
Approx. 103 g
Compatible Head Tube
Upper inner diameter 41.8 mm, lower inner diameter 52 mm
Compatible Fork
Standard straight fork with upper outer diameter 28.6 mm and lower outer diameter 30 mm, or standard tapered fork with upper outer diameter 28.6 mm and lower outer diameter 39.8 mm
Sealed bearings for durability and quiet operation
T6 heat-treated high-strength aluminum alloy outer cup

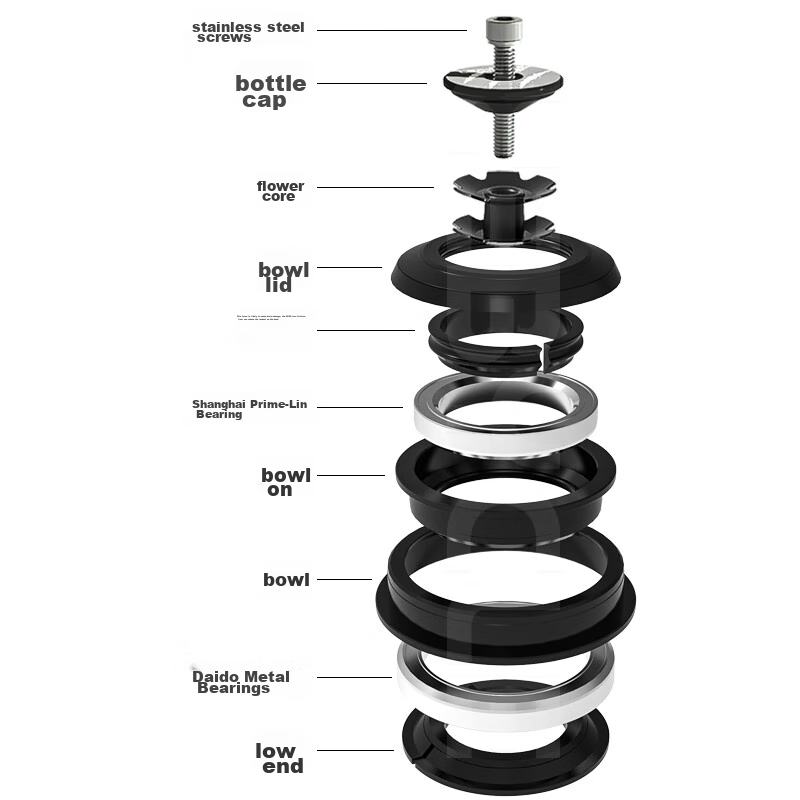

Easy installation with stainless steel screws, headset, top cap, compression ring, star nut, and cartridge bearings
Installation Guide
Consult customer service for purchase of installation tools
Detailed installation instructions provided for headset assembly
Additional details
Product Display
Real-life product images available
1. Provide your frame's brand, model, and year to customer service for assistance in selecting the correct headset
2. If frame information is unknown, measure the head tube and fork tube dimensions and provide them to customer service for guidance
Measurements and specifications are crucial for selecting the right LeBycle headset for your bicycle frame.
