IC/D card reading functionality; Compatible with various card types including IC thick cards, clip IC cards, dip cards, IC white cards, mango white cards, and custom printed cards
Reading Technology
Contactless card reading
Operating Frequency
13.56 MHz
Supported Protocols
MFS50, S70, and other 14443A protocol tags
Reading Distance
Up to 8 cm
Reading Speed
Less than 0.2 seconds
Read Time
<100 ms
Read Interval
0.5 seconds
Communication Interface
USB (without COM serial port)
Operating Voltage
5 V
Operating Current
100 mA
Operating Temperature Range
-20°C to 70°C
Weight
160 g
Dimensions
75 mm (length unspecified)
Compatibility
Supports Windows XP, Windows CE, Windows 7, Windows 10, Linux, Vista, Android operating systems
Built-in audible feedback with beep sound upon card reading
Increased reading speed

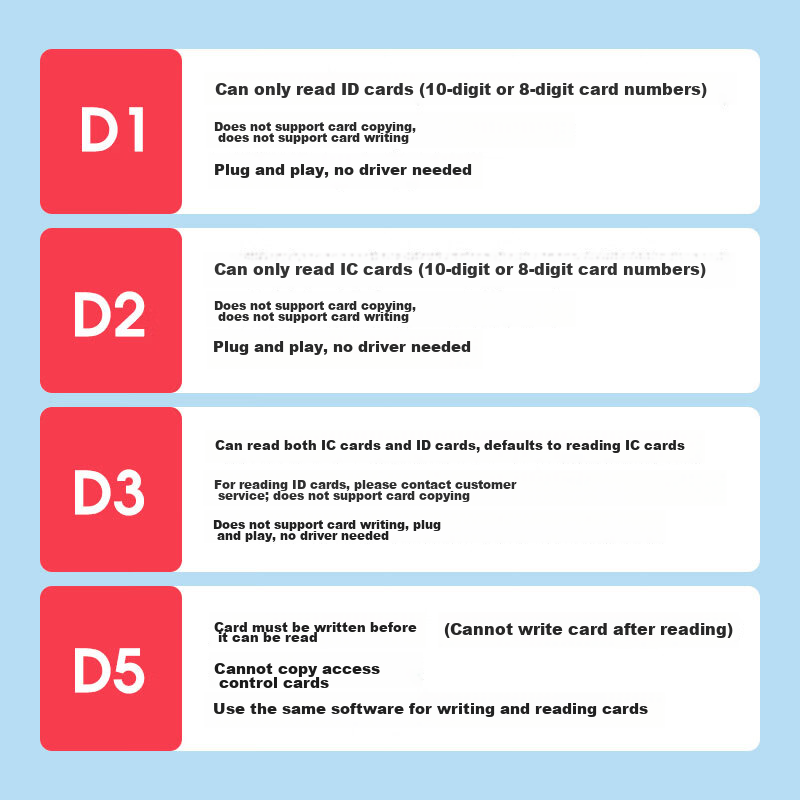

Multiple card compatibility with selectable reader models based on card chip type
1. Connect the device to a PC or Android system via the connection cable
2. Open a text editor such as Notepad or Word
3. Place the card above the reader for scanning
Default output is the first 10 digits of the card number; for other output formats, please contact customer service
Different card chip types require corresponding reader models; if chip type is unknown, please consult customer service
Additional details
Additional Information
For more industry-specific details and product demonstrations, please contact customer service
